Cockpit57
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Vehicles with
service intervals dependent on time/distance travelled already
have certain service intervals set.
The intervals are calculated separately in vehicles with LongLife service Te ch-
nical progress has made it possible to considerably reduce servicing require-
ments. With the LongLife System, SEAT ensures that your vehicle only has an
interval service when it is necessary. To calculate this (max. two years), the
conditions under which the vehicle is used and the individual driving style
are also taken into account. The service pre-warning will appear at 20 days or
less prior to the corresponding service. The distance travelled is rounded off
to the nearest 100 km and the time to full days. The current service message
can only be consulted 500 km or more after the last service. Until that time,
only dashes are displayed.
Service warning
A service warning will appear when the ignition is switched on if a service is
due soon.
The instrument panel display will show the “spanner symbol”
 and the
“km” indication, along with a clock symbol with the days remaining until the
date of the next service. The figure indicated is the maximum number of kilo-
metres remaining before the date of the next service. The indication changes
after a few seconds. A “clock symbol” appears and the number of days until
the service appointment should be carried out.
Service
If a service is due, a gong signal will sound and the flashing “spanner”

symbol will be shown along with the fixed text SERVICE.
If no service is carried out following the indication on the instrument panel,
the excess distance travelled and the excess time following the SERVICE
warning will be displayed.
Reading the service message
The current service message can be consulted with the ignition on, the
engine switched off and the vehicle at a standstill:
•Press the button on the instrument panel as often as necessary until
the spanner symbol
 is displayed.
An overdue service is indicated by a minus sign in front of the mileage or day
information.
Resetting service interval display
If the service was not performed by a SEAT dealer, the display must be reset
as follows:
•Switch the ignition off.•Press and hold the button.•Switch ignition back on.•Release the button and press the button within 20 seconds.
Do not reset the display between service intervals, as the display will other-
wise be incorrect.
If the display is reset manually, the next service interval will be indicated after
15,000 km or one year and will not be calculated individually.Note
In LongLife Service vehicles, if the battery is disconnected for a long period,
the days remaining until the next service cannot be calculated. Therefore, the
service message indications may be incorrect. In this case, bear in mind the
maximum service intervals permitted in the ⇒Booklet “Service Schedule”.

0.0 / SET
0.0 / SET

IbizaST_EN.book Seite 57 Dienstag, 14. September 2010 1:31 13

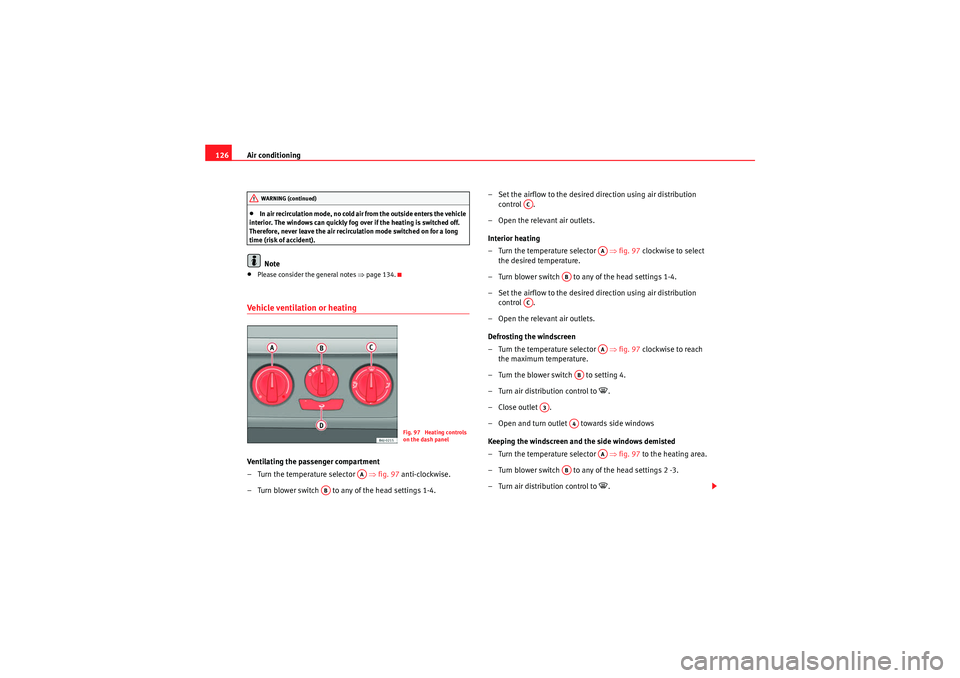

Air conditioning
126•In air recirculation mode, no cold air from the outside enters the vehicle
interior. The windows can quickly fog over if the heating is switched off.
Therefore, never leave the air recirculation mode switched on for a long
time (risk of accident).Note
•Please consider the general notes ⇒page 134.Vehicle ventilation or heatingVentilating the passenger compartment
– Turn the temperature selector ⇒fig. 97 anti-clockwise.
– Turn blower switch to any of the head settings 1-4. – Set the airflow to the desired direction using air distribution
control .
– Open the relevant air outlets.
Interior heating
– Turn the temperature selector ⇒fig. 97 clockwise to select
the desired temperature.
– Turn blower switch to any of the head settings 1-4.
– Set the airflow to the desired direction using air distribution control .
– Open the relevant air outlets.
Defrosting the windscreen
– Turn the temperature selector ⇒fig. 97 clockwise to reach
the maximum temperature.
– Turn the blower switch to setting 4.
– Turn air distribution control to
<.
–Close outlet .
– Open and turn outlet towards side windows
Keeping the windscreen and the side windows demisted
– Turn the temperature selector ⇒fig. 97 to the heating area.
– Turn blower switch to any of the head settings 2 -3.
– Turn air distribution control to <.
WARNING (continued)
Fig. 97 Heating controls
on the dash panel
AA
AB
AC
AA
AB
AC
AA
AB
A3
A4
AA
AB
