Seat Ibiza ST 2011 Owner's manual

259
Technical specifications
Petrol engine 1.2 TSI 77 kW (105 PS)
Engine specifications Power output in kW (PS) rpm 77 (105)/5000
Maximum torque in Nm at rpm 175/1550-4100
No. of cylinders/capacity in cm3
4/ 1197
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) With a slight power loss
Performance ManualAutomatic
Maximum speed in km/h 190 190
Acceleration from 0-80 km/h in sec. 6,8 6,7
Acceleration from 0-100 km/h in sec. 10,2 10
Weights
Manual Automatic
Gross vehicle weight in kg 1600 1620
Weight in running order (with driver) in kg 1145 1165
Gross front axle weight in kg 860 890
Gross rear axle weight in kg 820 820
Permitted roof load in kg 75 75
Trailer weight
ManualAutomatic
Trailer without brakes 570 580
Trailer with brakes, gradients up to 8% 1200 1200
Trailer with brakes, gradients up to 12% 1200 1200
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

260Technical specifications
Engine oil capacity Approximate engine oil capacity with oil filter change 3.6 litres

Petrol engine 1.2 TSI 77 kW (105 PS) Start-Stop
Engine specifications Power output in kW (PS) rpm 77 (105)/ 5000
Maximum torque in Nm at rpm 175/1550-4100
No. of cylinders/capacity in cm3
4/ 1197
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h 190
Acceleration from 0-80 km/h in sec. 6,8
Acceleration from 0-100 km/h in sec. 10,2
Weights
Gross vehicle weight in kg 1605
Weight in running order (with driver) in kg 1150
Gross front axle weight in kg 860
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 570
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1200

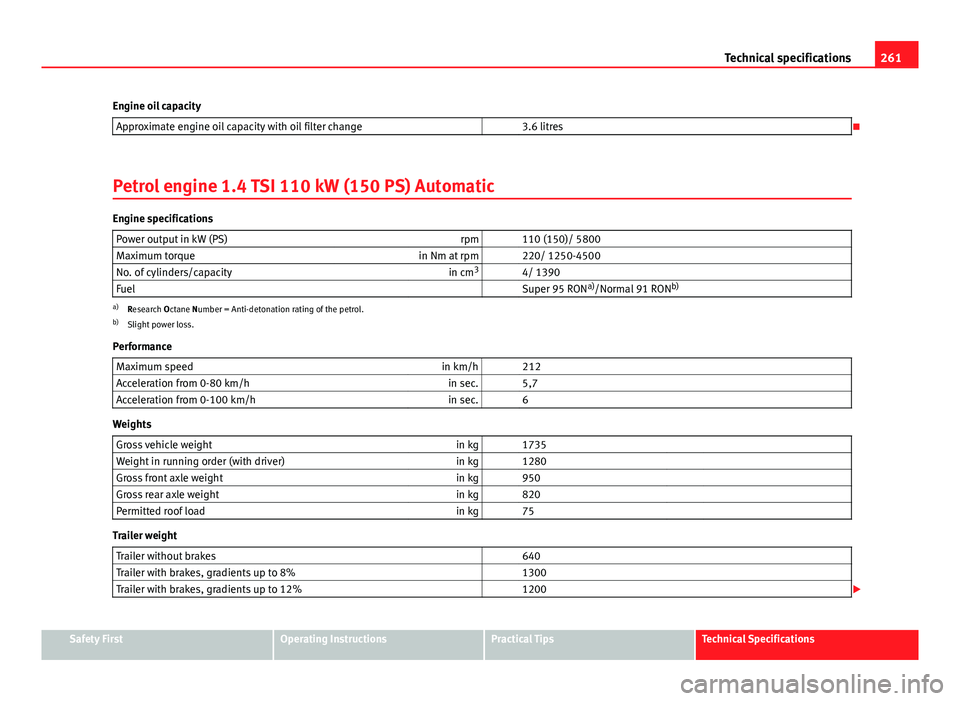

261
Technical specifications
Engine oil capacity Approximate engine oil capacity with oil filter change 3.6 litres

Petrol engine 1.4 TSI 110 kW (150 PS) Automatic
Engine specifications Power output in kW (PS) rpm 110 (150)/ 5800
Maximum torque in Nm at rpm 220/ 1250-4500
No. of cylinders/capacity in cm3
4/ 1390
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h 212
Acceleration from 0-80 km/h in sec. 5,7
Acceleration from 0-100 km/h in sec. 6
Weights
Gross vehicle weight in kg 1735
Weight in running order (with driver) in kg 1280
Gross front axle weight in kg 950
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 640
Trailer with brakes, gradients up to 8% 1300
Trailer with brakes, gradients up to 12% 1200
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

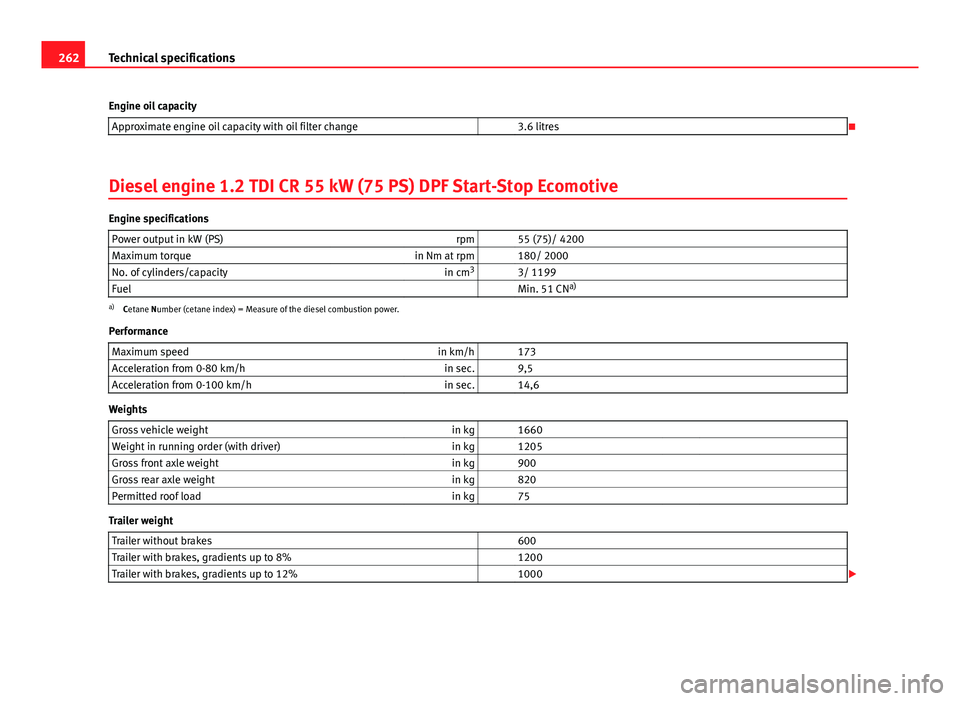

262Technical specifications
Engine oil capacity Approximate engine oil capacity with oil filter change 3.6 litres

Diesel engine 1.2 TDI CR 55 kW (75 PS) DPF Start-Stop Ecomotive
Engine specifications Power output in kW (PS) rpm 55 (75)/ 4200
Maximum torque in Nm at rpm 180/ 2000
No. of cylinders/capacity in cm3
3/ 1199
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance Maximum speed in km/h 173
Acceleration from 0-80 km/h in sec. 9,5
Acceleration from 0-100 km/h in sec. 14,6
Weights
Gross vehicle weight in kg 1660
Weight in running order (with driver) in kg 1205
Gross front axle weight in kg 900
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 600
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000

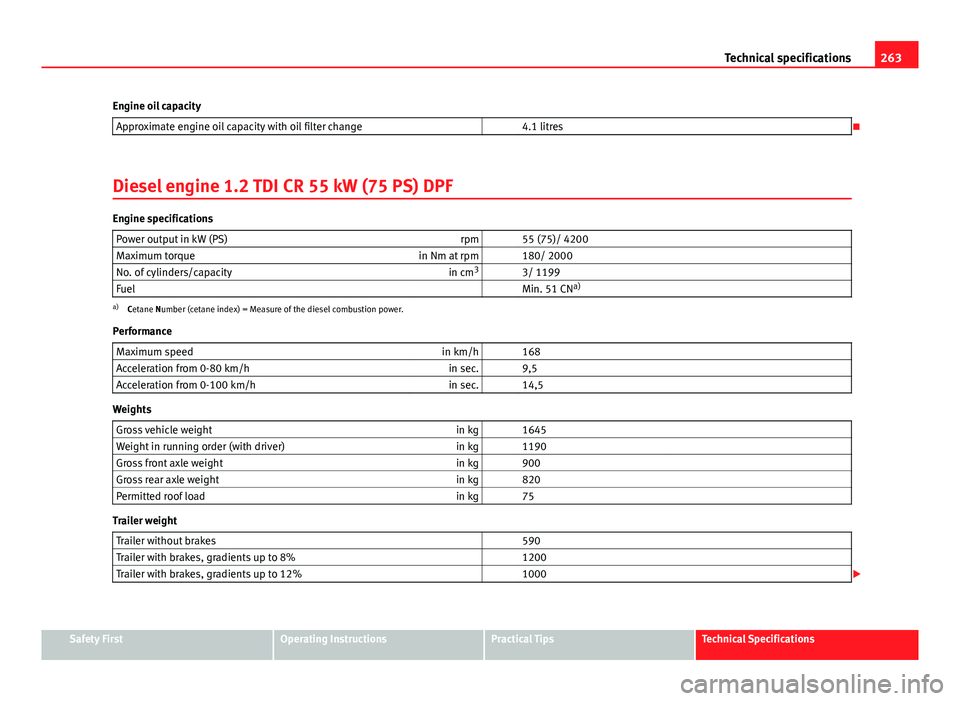

263
Technical specifications
Engine oil capacity Approximate engine oil capacity with oil filter change 4.1 litres

Diesel engine 1.2 TDI CR 55 kW (75 PS) DPF
Engine specifications Power output in kW (PS) rpm 55 (75)/ 4200
Maximum torque in Nm at rpm 180/ 2000
No. of cylinders/capacity in cm3
3/ 1199
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance Maximum speed in km/h 168
Acceleration from 0-80 km/h in sec. 9,5
Acceleration from 0-100 km/h in sec. 14,5
Weights
Gross vehicle weight in kg 1645
Weight in running order (with driver) in kg 1190
Gross front axle weight in kg 900
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 590
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

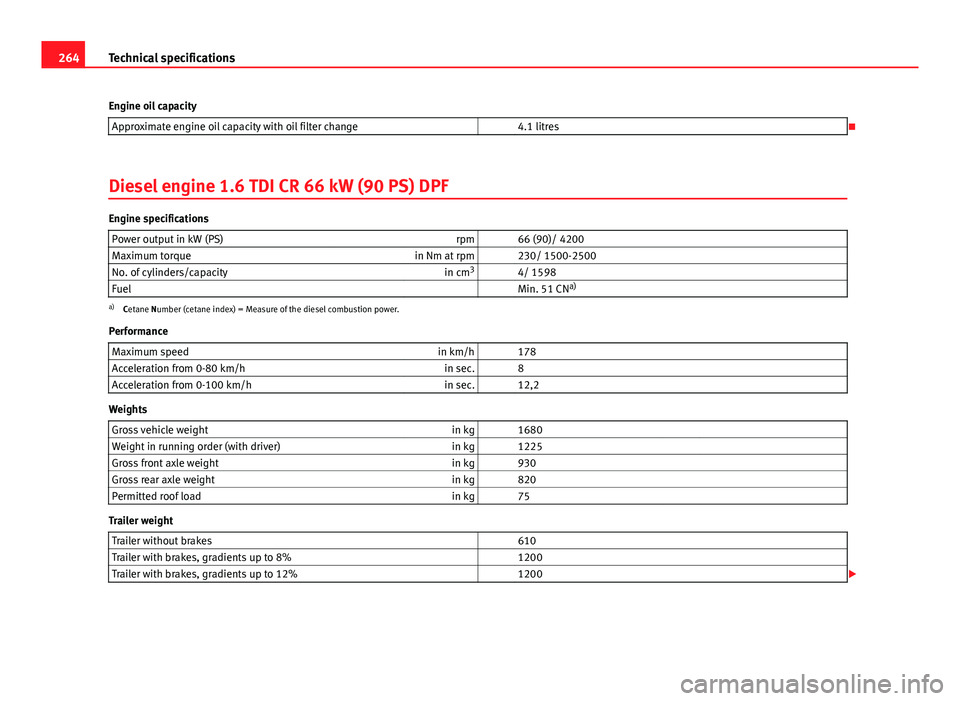

264Technical specifications
Engine oil capacity Approximate engine oil capacity with oil filter change 4.1 litres

Diesel engine 1.6 TDI CR 66 kW (90 PS) DPF
Engine specifications Power output in kW (PS) rpm 66 (90)/ 4200
Maximum torque in Nm at rpm 230/ 1500-2500
No. of cylinders/capacity in cm3
4/ 1598
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance Maximum speed in km/h 178
Acceleration from 0-80 km/h in sec. 8
Acceleration from 0-100 km/h in sec. 12,2
Weights
Gross vehicle weight in kg 1680
Weight in running order (with driver) in kg 1225
Gross front axle weight in kg 930
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 610
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1200

265
Technical specifications
Engine oil capacity Approximate engine oil capacity with oil filter change 4.3 litres

Diesel engine 1.6 TDI CR 77 kW (105 PS) with/without DPF
Engine specifications Power output in kW (PS) rpm 77 (105)/ 4400
Maximum torque in Nm at rpm 250/ 1500-2500
No. of cylinders/capacity in cm3
4/ 1598
Fuel Min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance Maximum speed in km/h 188
Acceleration from 0-80 km/h in sec. 7,3
Acceleration from 0-100 km/h in sec. 10,9
Weights
Gross vehicle weight in kg 1680
Weight in running order (with driver) in kg 1225
Gross front axle weight in kg 930
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 610
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1200
Safety FirstOperating InstructionsPractical TipsTechnical Specifications

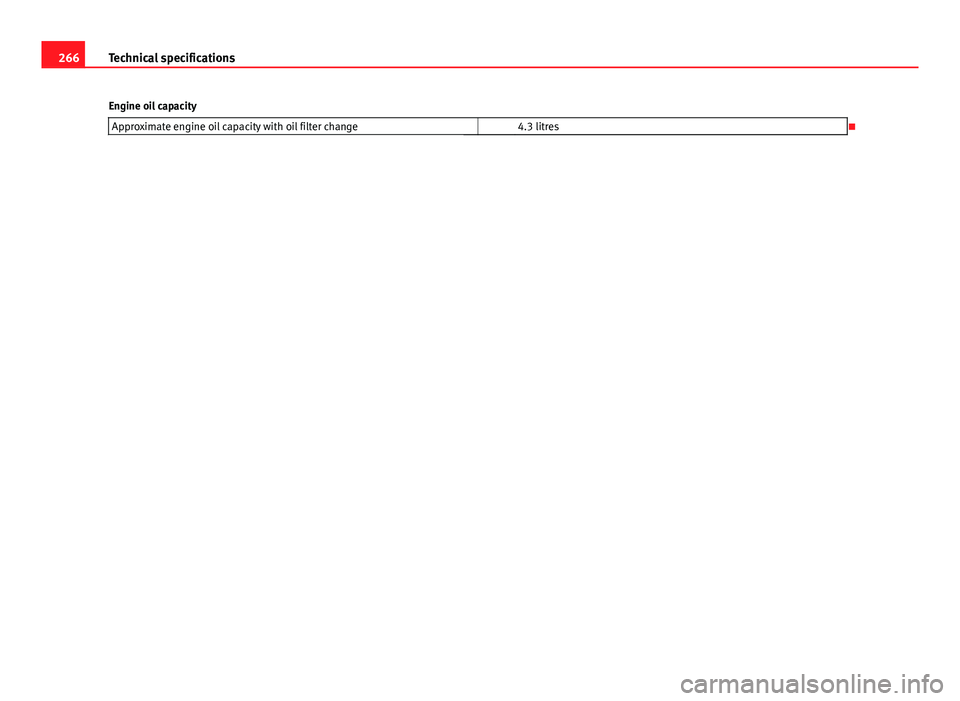

266Technical specifications
Engine oil capacity Approximate engine oil capacity with oil filter change 4.3 litres


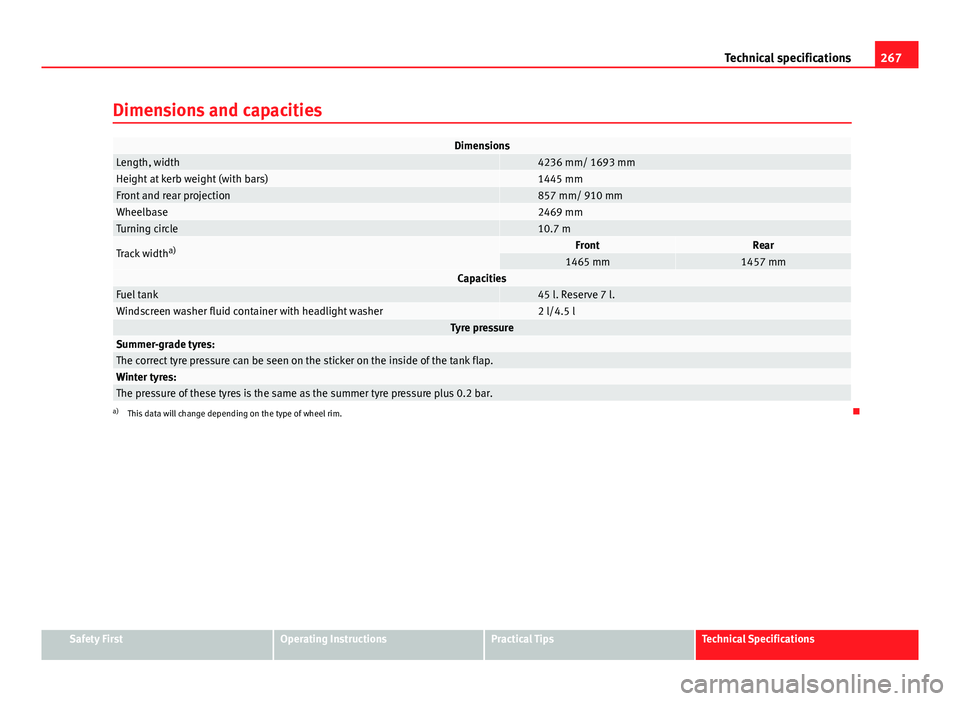

267
Technical specifications
Dimensions and capacities
DimensionsLength, width 4236 mm/ 1693 mmHeight at kerb weight (with bars) 1445 mmFront and rear projection 857 mm/ 910 mmWheelbase 2469 mmTurning circle 10.7 m
Track width a)FrontRear1465 mm1457 mmCapacitiesFuel tank 45 l. Reserve 7 l.Windscreen washer fluid container with headlight washer 2 l/4.5 lTyre pressureSummer-grade tyres:The correct tyre pressure can be seen on the sticker on the inside of the tank flap.Winter tyres:The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.a)
This data will change depending on the type of wheel rim. 
