air condition Seat Ibiza ST 2012 Maintenance programme

8SEAT maintenance programme
SEAT maintenance programme
Service intervals General information
To ensure that you have each service carried out on time and that none are
forgotten, there is a reminder sticker on the driver side door pillar and a re-
minder will also be shown via the service interval display on the instrument
panel.
The service intervals quoted are for vehicles used under normal operating
conditions.
However, if the vehicle is used in adverse conditions, it may require work
before the next established service interval or even between service inter-
vals.
Adverse conditions include:
● the use of fuel with a high sulphur content
● frequent short journeys
● leaving the engine idling for long periods of time (as occurs with taxis)
● driving on dusty roads or in dusty areas
● frequently using the vehicle for towing
● mainly driving in the city, in heavy traffic where it is necessary to contin-
uously brake and start, and
● using the vehicle mainly in the winter This particularly affects:
●
the air filter
● the timing belt
● the engine oil and
● the diesel particulate filter
In some countries diesel fuel has a high sulphur content; in these cases the
fuel filter and the oil should be changed every 7500 km (5000 miles)
⇒  page 9. Your SEAT Official Service will be able to tell you which coun-
tries have diesel with a high sulphur content.
The service advisor at your SEAT Official Service will advise you on the need
to carry out additional work on your vehicle, taking into account the usage
conditions of the vehicle.
In the following pages, we have compiled the jobs that must be carried out.
These services are valid at the time of printing and can be subject to further
modifications for technical reasons. Your SEAT Official Service always has
the latest available information and will be able to tell you if your vehicle
requires any other additional inspections established by law.
The cost of the SEAT service may vary, depending on the vehicle type,
equipment fitted, additional work and statutory inspections. Your SEAT Offi-
cial Service will tell you how much the SEAT service will cost (labour and
parts). Ð

11
General Service Programme
● The headlight adjustment is checked
● The date of the next service is entered on the service sticker which is at-
tached to the driver side door pillar
● The service interval display is reset Ð
Inspection service
Operations to be performed on your vehicle:
● The exhaust system is checked for leaks, damage and secure fitting
● ATF in the automatic gearbox: Check and, where necessary, top up with
fluid (except Exeo, Exeo ST and 09G gearbox in hot climates).
● Power steering hydraulic system: Check the seal and the fluid level, and
if it is part of the equipment, if required, top up with hydraulic oil (only Exeo
and Exeo ST).
● Check the battery.
● Check the depth of the tyre tread (incl. the spare wheel, if applicable),
the evenness of the tread wear, the age and pressure of the tyres. Where
applicable, adjust the tyre pressure monitor.
● Check brake system and dampers for leaks and damage.
● Check the sunroof (where applicable) operates correctly and if necessary
clean and lubricate guides.
● Check the thickness of brake pads and the condition of front and rear
brake discs. ●
Check the correct operation of the front and rear lighting, the turn sig-
nals, the hazard warning lights, the daytime driving lights, the static corner-
ing lights and the automatic dipped beam control (where applicable) and
the horn.
● Check if the windscreen is damaged.
● Check that the passenger compartment and glove compartment light-
ing, the cigarette lighter/power socket, horn and warning lamps work cor-
rectly.
● Body: check for visible rust.
● Check the condition and, if required, the tension of the Poly V-belt.
● Check the coolant and anti-freeze liquid and top up as required.
● Inspect the engine and components of the engine compartment (from
above) for leaks and damage.
● Visually inspect (from below) the engine and components of the engine
compartment, the gearbox, the end drive and the track rod boots for leaks
and damage.
● Check the engine oil level.
● Check the expiry date of the puncture kit tyre sealant (where applicable)
and record; check whether the bottle is damaged and the level of the seal-
ant.
● Take a test drive and check that the brakes, handbrake, steering, and air
conditioning operate correctly, and perform a kickdown.
● Check the windscreen wipers and headlight washers (where applicable)
operate correctly; check the blades, the rest position, the final position and
for possible damage, and top up the washer fluid as required.
● The headlight adjustment is checked £

13

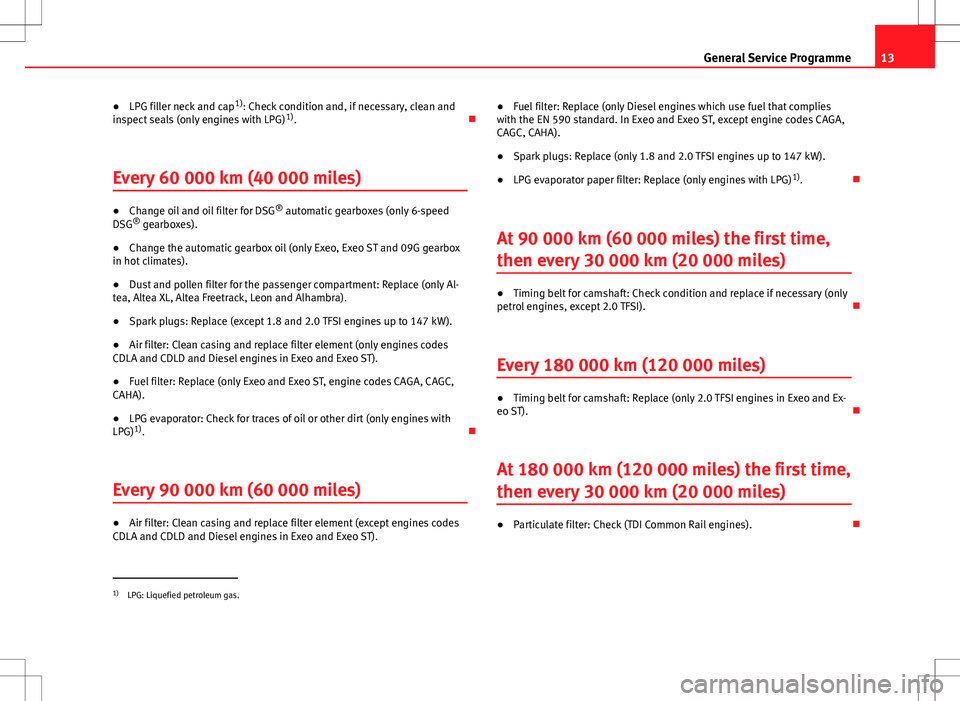

General Service Programme
● LPG filler neck and cap 1)
: Check condition and, if necessary, clean and
inspect seals (only engines with LPG) 1)
. Ð
Every 60 000 km (40 000 miles)
● Change oil and oil filter for DSG ®
automatic gearboxes (only 6-speed
DSG ®
gearboxes).
● Change the automatic gearbox oil (only Exeo, Exeo ST and 09G gearbox
in hot climates).
● Dust and pollen filter for the passenger compartment: Replace (only Al-
tea, Altea XL, Altea Freetrack, Leon and Alhambra).
● Spark plugs: Replace (except 1.8 and 2.0 TFSI engines up to 147 kW).
● Air filter: Clean casing and replace filter element (only engines codes
CDLA and CDLD and Diesel engines in Exeo and Exeo ST).
● Fuel filter: Replace (only Exeo and Exeo ST, engine codes CAGA, CAGC,
CAHA).
● LPG evaporator: Check for traces of oil or other dirt (only engines with
LPG) 1)
. Ð
Every 90 000 km (60 000 miles)
● Air filter: Clean casing and replace filter element (except engines codes
CDLA and CDLD and Diesel engines in Exeo and Exeo ST). ●
Fuel filter: Replace (only Diesel engines which use fuel that complies
with the EN 590 standard. In Exeo and Exeo ST, except engine codes CAGA,
CAGC, CAHA).
● Spark plugs: Replace (only 1.8 and 2.0 TFSI engines up to 147 kW).
● LPG evaporator paper filter: Replace (only engines with LPG) 1)
. Ð
At 90 000 km (60 000 miles) the first time,
then every 30 000 km (20 000 miles)
● Timing belt for camshaft: Check condition and replace if necessary (only
petrol engines, except 2.0 TFSI). Ð
Every 180 000 km (120 000 miles)
● Timing belt for camshaft: Replace (only 2.0 TFSI engines in Exeo and Ex-
eo ST). Ð
At 180 000 km (120 000 miles) the first time,
then every 30 000 km (20 000 miles)
● Particulate filter: Check (TDI Common Rail engines). Ð
1)
LPG: Liquefied petroleum gas.

17

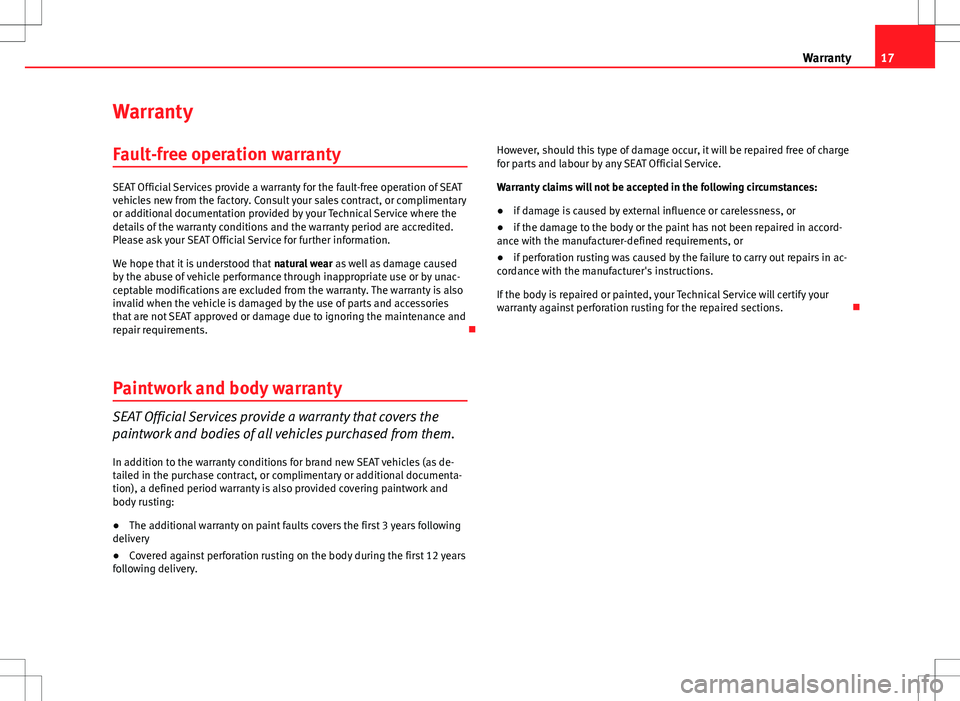

Warranty
Warranty Fault-free operation warranty
SEAT Official Services provide a warranty for the fault-free operation of SEAT
vehicles new from the factory. Consult your sales contract, or complimentary
or additional documentation provided by your Technical Service where the
details of the warranty conditions and the warranty period are accredited.
Please ask your SEAT Official Service for further information.
We hope that it is understood that natural wear as well as damage caused
by the abuse of vehicle performance through inappropriate use or by unac-
ceptable modifications are excluded from the warranty. The warranty is also
invalid when the vehicle is damaged by the use of parts and accessories
that are not SEAT approved or damage due to ignoring the maintenance and
repair requirements. Ð
Paintwork and body warranty
SEAT Official Services provide a warranty that covers the
paintwork and bodies of all vehicles purchased from them.
In addition to the warranty conditions for brand new SEAT vehicles (as de-
tailed in the purchase contract, or complimentary or additional documenta-
tion), a defined period warranty is also provided covering paintwork and
body rusting:
● The additional warranty on paint faults covers the first 3 years following
delivery
● Covered against perforation rusting on the body during the first 12 years
following delivery. However, should this type of damage occur, it will be repaired free of charge
for parts and labour by any SEAT Official Service.
Warranty claims will not be accepted in the following circumstances:
● if damage is caused by external influence or carelessness, or
● if the damage to the body or the paint has not been repaired in accord-
ance with the manufacturer-defined requirements, or
● if perforation rusting was caused by the failure to carry out repairs in ac-
cordance with the manufacturer's instructions.
If the body is repaired or painted, your Technical Service will certify your
warranty against perforation rusting for the repaired sections. Ð
