Page 121 of 282

119
Seats and storage compartments

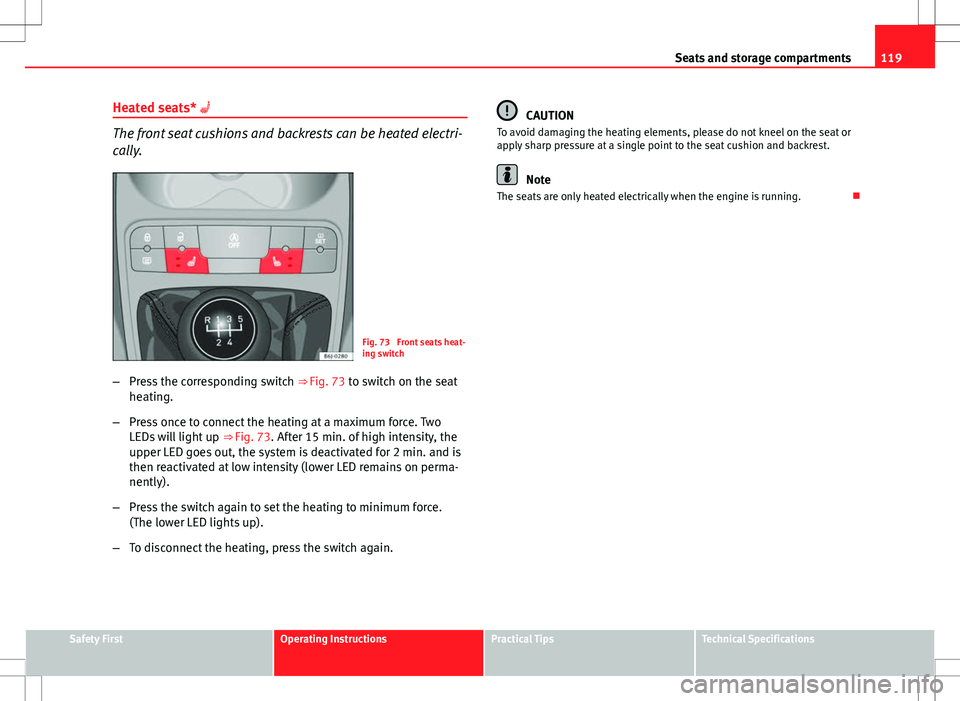

Heated seats* ο‘
The front seat cushions and backrests can be heated electri-
cally.
Fig. 73 Front seats heat-
ing switch
β Press the corresponding switch ββFig. 73 to switch on the seat
heating.
β Press once to connect the heating at a maximum force. Two
LEDs will light up ββFig. 73. After 15 min. of high intensity, the
upper LED goes out, the system is deactivated for 2 min. and is
then reactivated at low intensity (lower LED remains on perma-
nently).
β Press the switch again to set the heating to minimum force.
(The lower LED lights up).
β To disconnect the heating, press the switch again.
CAUTION
To avoid damaging the heating elements, please do not kneel on the seat or
apply sharp pressure at a single point to the seat cushion and backrest.
Note
The seats are only heated electrically when the engine is running. ο
Safety FirstOperating InstructionsPractical TipsTechnical Specifications
Page 122 of 282

120Seats and storage compartments

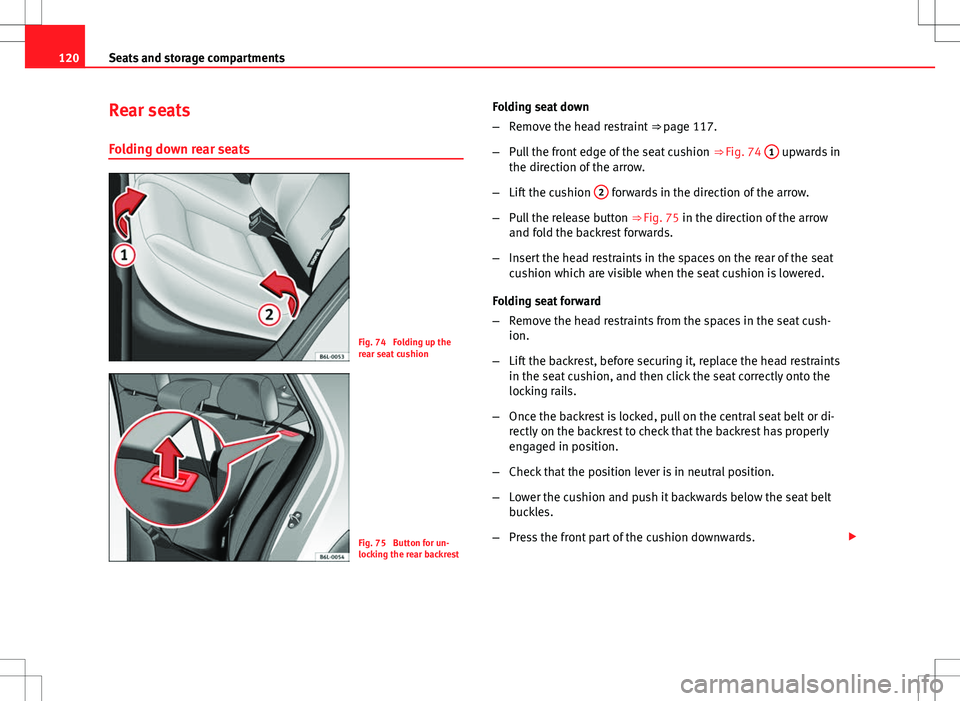

Rear seats
Folding down rear seats
Fig. 74 Folding up the
rear seat cushion
Fig. 75 Button for un-
locking the rear backrest Folding seat down
β
Remove the head restraint ββpage 117.
β Pull the front edge of the seat cushion ββFig. 74 1
upwards in
the direction of the arrow.
β Lift the cushion 2
forwards in the direction of the arrow.
β Pull the release button ββFig. 75 in the direction of the arrow
and fold the backrest forwards.
β Insert the head restraints in the spaces on the rear of the seat
cushion which are visible when the seat cushion is lowered.
Folding seat forward
β Remove the head restraints from the spaces in the seat cush-
ion.
β Lift the backrest, before securing it, replace the head restraints
in the seat cushion, and then click the seat correctly onto the
locking rails.
β Once the backrest is locked, pull on the central seat belt or di-
rectly on the backrest to check that the backrest has properly
engaged in position.
β Check that the position lever is in neutral position.
β Lower the cushion and push it backwards below the seat belt
buckles.
β Press the front part of the cushion downwards. ο£
Page 123 of 282

121
Seats and storage compartments

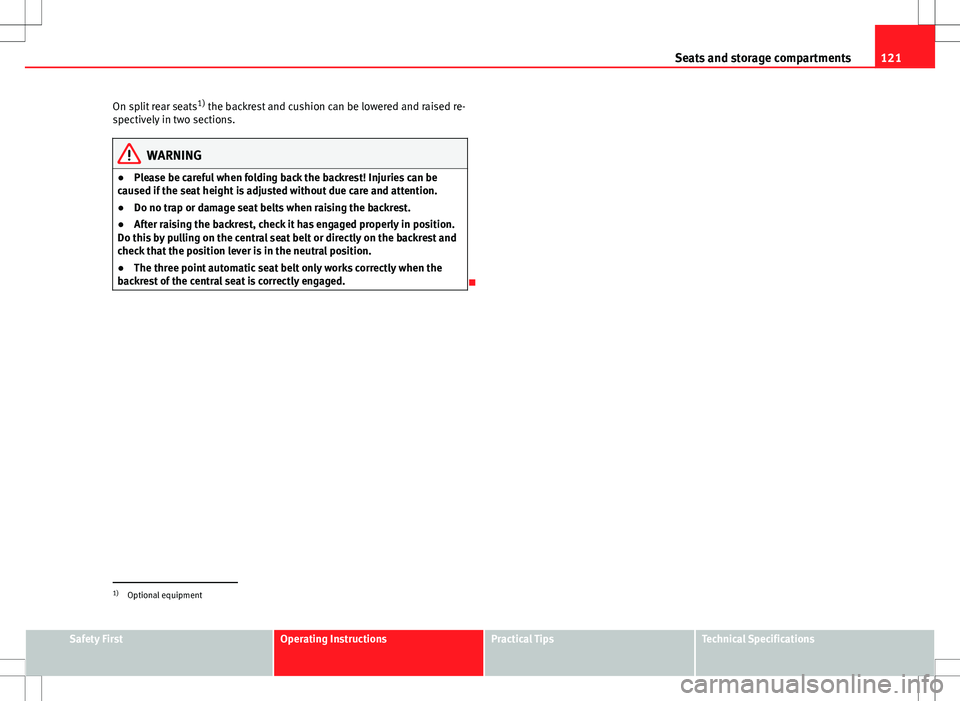

On split rear seats 1)
the backrest and cushion can be lowered and raised re-
spectively in two sections.
WARNING
β Please be careful when folding back the backrest! Injuries can be
caused if the seat height is adjusted without due care and attention.
β Do no trap or damage seat belts when raising the backrest.
β After raising the backrest, check it has engaged properly in position.
Do this by pulling on the central seat belt or directly on the backrest and
check that the position lever is in the neutral position.
β The three point automatic seat belt only works correctly when the
backrest of the central seat is correctly engaged.
ο
1) Optional equipment
Safety FirstOperating InstructionsPractical TipsTechnical Specifications
Page 124 of 282

122Seats and storage compartments

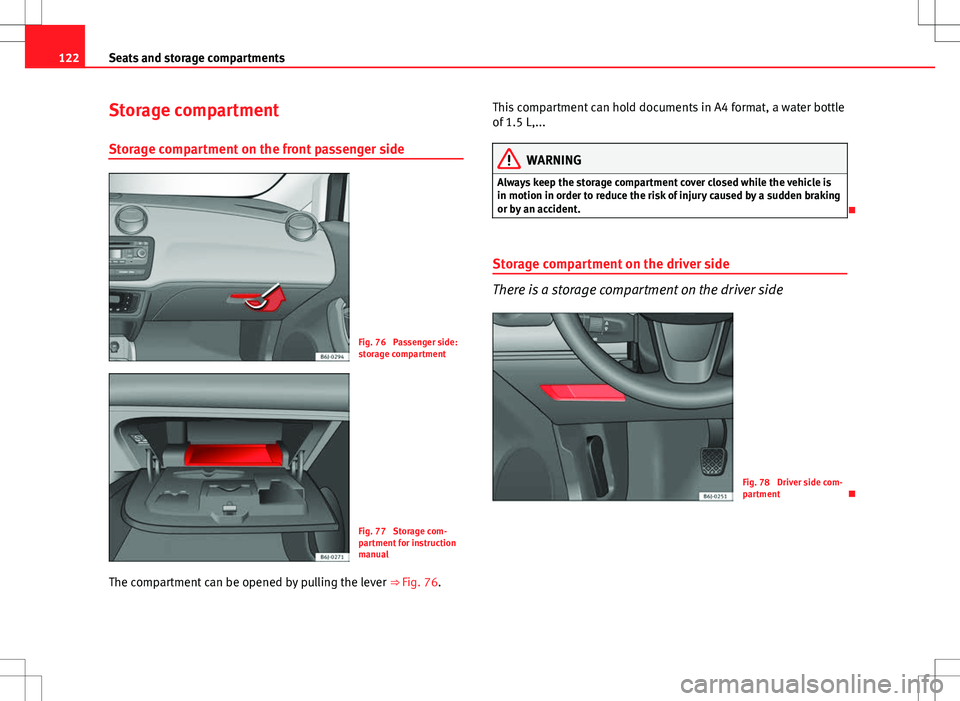

Storage compartment
Storage compartment on the front passenger side
Fig. 76 Passenger side:
storage compartment
Fig. 77 Storage com-
partment for instruction
manual
The compartment can be opened by pulling the lever ββFig. 76.This compartment can hold documents in A4 format, a water bottle
of 1.5 L,...
WARNING
Always keep the storage compartment cover closed while the vehicle is
in motion in order to reduce the risk of injury caused by a sudden braking
or by an accident.
ο
Storage compartment on the driver side
There is a storage compartment on the driver side
Fig. 78 Driver side com-
partment ο
Page 125 of 282

123
Seats and storage compartments

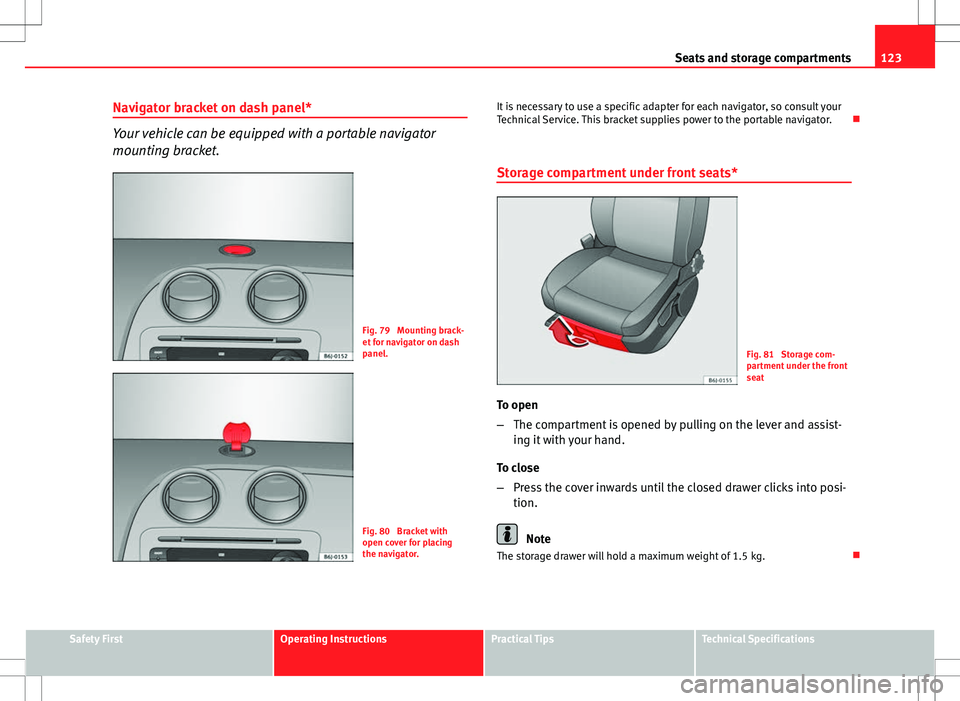

Navigator bracket on dash panel*
Your vehicle can be equipped with a portable navigator
mounting bracket.
Fig. 79 Mounting brack-
et for navigator on dash
panel.
Fig. 80 Bracket with
open cover for placing
the navigator. It is necessary to use a specific adapter for each navigator, so consult your
Technical Service. This bracket supplies power to the portable navigator.
ο
Storage compartment under front seats*
Fig. 81 Storage com-
partment under the front
seat
To open
β The compartment is opened by pulling on the lever and assist-
ing it with your hand.
To close
β Press the cover inwards until the closed drawer clicks into posi-
tion.
Note
The storage drawer will hold a maximum weight of 1.5 kg. ο
Safety FirstOperating InstructionsPractical TipsTechnical Specifications
Page 126 of 282

124Seats and storage compartments

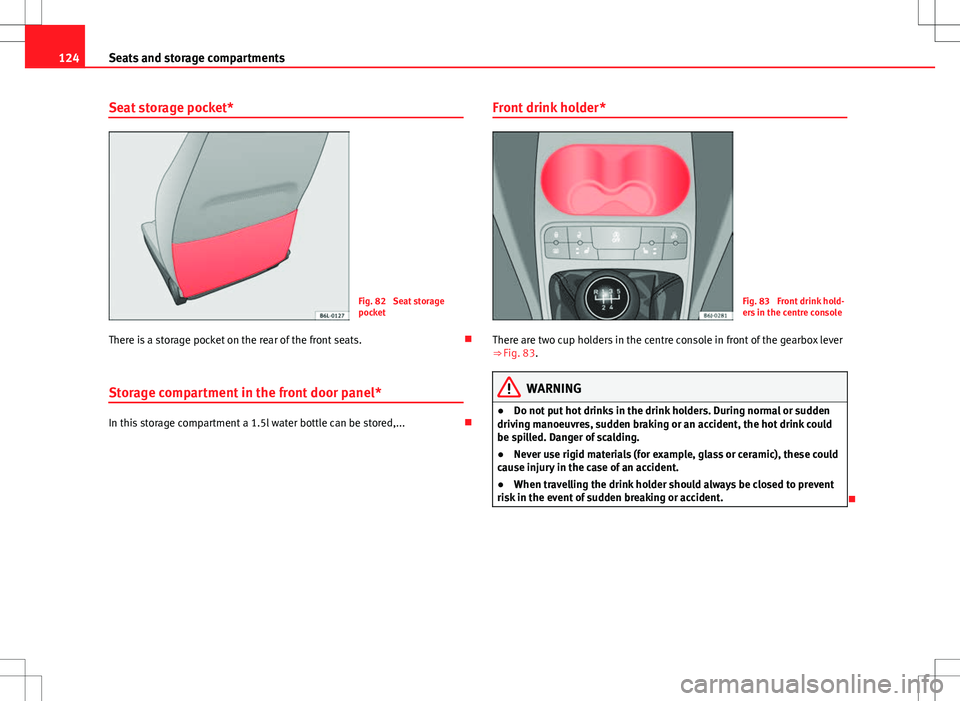

Seat storage pocket*
Fig. 82 Seat storage
pocket
There is a storage pocket on the rear of the front seats. ο
Storage compartment in the front door panel*
In this storage compartment a 1.5l water bottle can be stored,... οFront drink holder*
Fig. 83 Front drink hold-
ers in the centre console
There are two cup holders in the centre console in front of the gearbox lever
ββ Fig. 83.
WARNING
β Do not put hot drinks in the drink holders. During normal or sudden
driving manoeuvres, sudden braking or an accident, the hot drink could
be spilled. Danger of scalding.
β Never use rigid materials (for example, glass or ceramic), these could
cause injury in the case of an accident.
β When travelling the drink holder should always be closed to prevent
risk in the event of sudden breaking or accident.
ο
Page 127 of 282

125
Seats and storage compartments

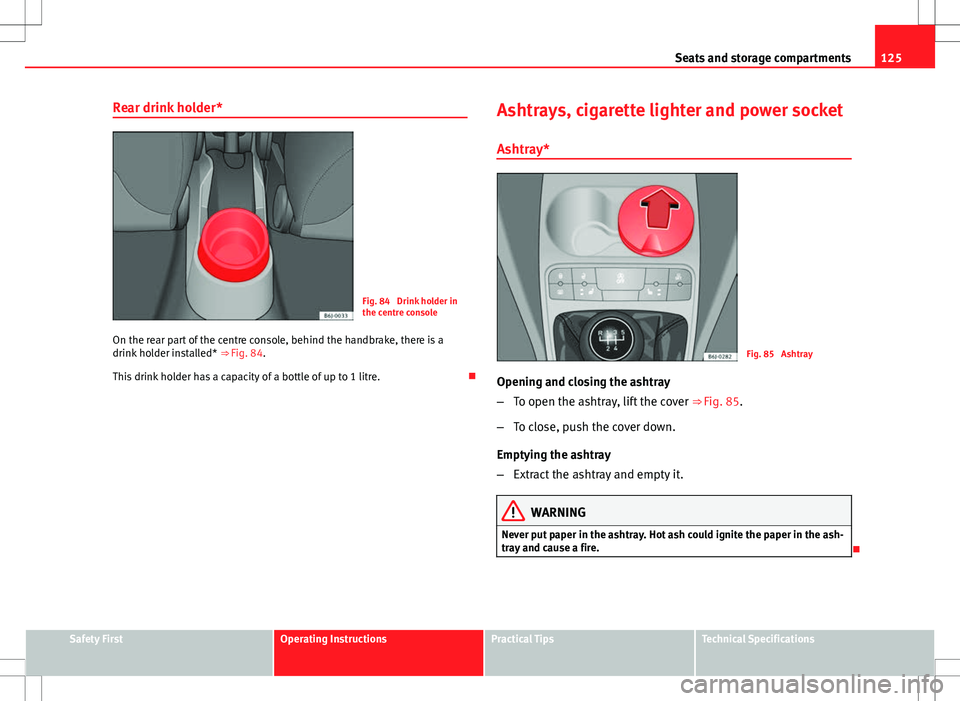

Rear drink holder*
Fig. 84 Drink holder in
the centre console
On the rear part of the centre console, behind the handbrake, there is a
drink holder installed* ββFig. 84.
This drink holder has a capacity of a bottle of up to 1 litre. οAshtrays, cigarette lighter and power socket
Ashtray*
Fig. 85 Ashtray
Opening and closing the ashtray
β To open the ashtray, lift the cover ββFig. 85.
β To close, push the cover down.
Emptying the ashtray
β Extract the ashtray and empty it.
WARNING
Never put paper in the ashtray. Hot ash could ignite the paper in the ash-
tray and cause a fire.
ο
Safety FirstOperating InstructionsPractical TipsTechnical Specifications
Page 128 of 282

126Seats and storage compartments
Cigarette lighter*
Fig. 86 Lighter
β Press on the cigarette lighter ββFig. 86 to activate it ββ
.
β Wait for the lighter to pop out slightly.
β Pull out the cigarette lighter and light the cigarette on the glow-
ing coil.
WARNING
β Improper use of the cigarette lighter can lead to serious injuries or
start a fire.
β Using the lighter carefully. Carelessness or negligence when using
the cigarette lighter can cause burns, risk of injury.
β The lighter only works when the ignition is turned on or the engine is
running. To avoid the risk of fire, never leave children alone inside the ve-
hicle.
ο Power socket
Fig. 87 Front power
socket
The 12 Volt cigarette lighter power socket can also be used for other electri-
cal components with a power rating of up to 120 Watt. When the engine is
switched off, however, the vehicle battery will discharge. For further infor-
mation see ββpage 190.
WARNING
The power sockets and the connected accessories will only operate when
the ignition is on or when the engine is running. Improper use of the
sockets or electrical accessories can lead to serious injuries or cause a
fire. To avoid the risk of injury, never leave children alone inside the vehi-
cle.
Note
β The use of electrical appliances with the engine switched off will cause a
battery discharge.
β Before using any electrical accessories, see the instructions in
ββpage 190. ο
Page 129 of 282

127
Seats and storage compartments

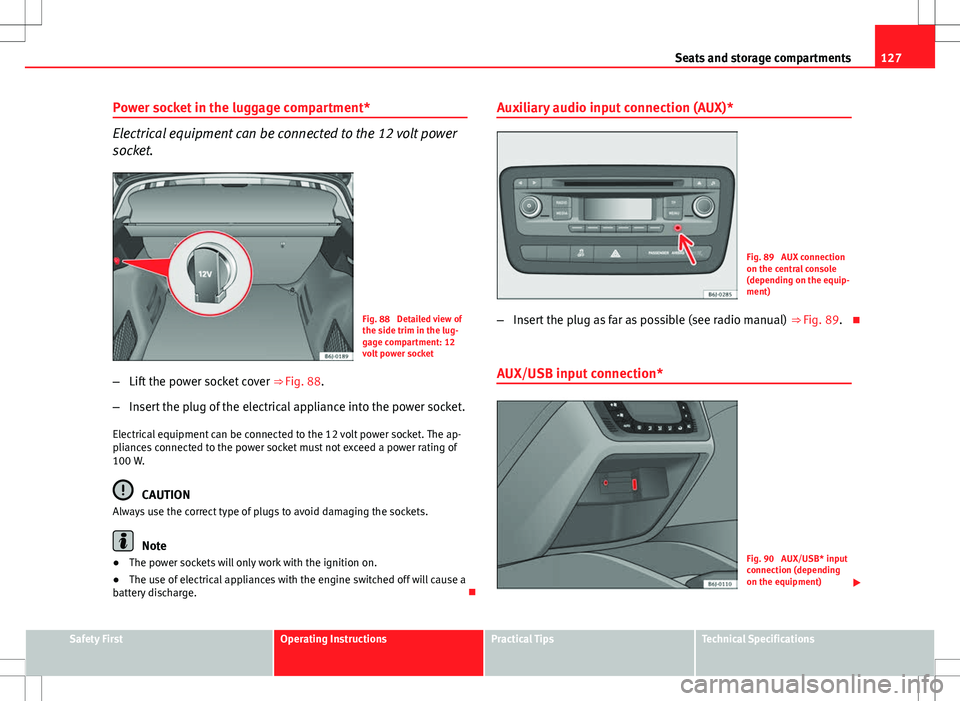

Power socket in the luggage compartment*
Electrical equipment can be connected to the 12 volt power
socket.
Fig. 88 Detailed view of
the side trim in the lug-
gage compartment: 12
volt power socket
β Lift the power socket cover ββFig. 88.
β Insert the plug of the electrical appliance into the power socket.
Electrical equipment can be connected to the 12 volt power socket. The ap-
pliances connected to the power socket must not exceed a power rating of
100 W.
CAUTION
Always use the correct type of plugs to avoid damaging the sockets.
Note
β The power sockets will only work with the ignition on.
β The use of electrical appliances with the engine switched off will cause a
battery discharge. οAuxiliary audio input connection (AUX)*
Fig. 89 AUX connection
on the central console
(depending on the equip-
ment)
β Insert the plug as far as possible (see radio manual) ββFig. 89.ο
AUX/USB input connection*
Fig. 90 AUX/USB* input
connection (depending
on the equipment) ο£
Safety FirstOperating InstructionsPractical TipsTechnical Specifications
Page 130 of 282

128Seats and storage compartments
For information concerning the use of this equipment, please see the Radio
handbook. ο
First-aid kit, warning triangle, fire
extinguisher Warning triangle*
Fig. 91 Housing for the
emergency warning trian-
gle in the luggage com-
partment.
The warning triangle is under the storage compartment which is located un-
der the luggage compartment floor.
Note
β The warning triangle is not part of the vehicle's standard equipment. οFirst-aid kit and fire extinguisher*
Fig. 92 Housing for the
first-aid kit in the lug-
gage compartment.
The first-aid kit can go in the storage compartment which is located under
the luggage compartment floor.
The fire extinguisher* is attached to the luggage compartment carpet with
Velcro.
Note
β The first-aid kit and the fire extinguisher are not part of the vehicle's
standard equipment.
β The first aid kit must comply with legal requirements.
β Observe the expiry date of the contents of the first aid kit. After it has
expired you should purchase a new one.
β The fire extinguisher must comply with legal requirements.
β Ensure that the fire extinguisher is fully functional. The fire extinguisher
should, therefore, be checked regularly. The sticker on the fire extinguisher
will inform you of the next date for checking.
β Before acquiring accessories and emergency equipment see the instruc-
tions in βAccessories and sparesβ ββ page 190. ο
