Seat Ibiza ST 2014 SOUND SYSTEM 1.X

30Settings menu
System and function settings (SETUP)
Introduction
Additional information and warnings:
● Safety notes  ⇒ page 4
● Unit overview ⇒ page 6
● Basic information on use ⇒ page 8 
Modifying the settings
Fig. 27 Additional ra-
dio functions
Fig. 28 SETUP menu:
main view of the SET-
UP menu functions. Displaying settings menus and changing settings
●
Press the equipment button MENU
⇒ Fig. 1
9 unit button in Radio or
Media mode.
● Press the SET
⇒ 
Fig. 27 unit button to open the SETUP menu ⇒ Fig. 28.
● Pressing one of the function buttons displays the corresponding set-
tings menu.
● Turn the setting knob ⇒ Fig. 1 8
to change the displayed setting.
● Changes are applied automatically.
● Press the MENU
unit button to close the
SETUP menu.
While volume settings are being adjusted, the currently active audio source
is played at the level of the setting as it changes.
Overview of available settings menus
Depending on the country, the unit and the vehicle equipment, there may
be differences in the variety of settings.
Function button: Effect: Following functions (next screen): Previous functions (previous screen)SKM SEEK MODE : Regulate the operation of the arrow buttons ⇒ 
Fig. 1 10 and
 to change the station in radio mode ⇒ page 10.

ALL: The arrow buttons allow you to browse through
all available sta-
tions (Display:  . to the left and right of the selected station
⇒ Fig. 4).
PRESET: The arrow buttons allow you to browse through only the sta-
tions stored to presets in the selected frequency band (Display:  . to
the left and right of the station buttons ⇒ Fig. 5).
RDSa)
: It is possible to switch off RDS-dependent services for travel in
areas where there is no RDS coverage (automatic station tracking, traffic
news TP) ⇒ page 10.
ON: RDS is switched on.OFF: RDS is deactivated and the AF function button is no longer
available in the SETUP menu. 

31
Settings menu
Function button: EffectAVa)
HIGH FREQ.: Define the setting for automatic station tracking
⇒ page 10.

ON: The unit always switches to the radio station's frequency that
offers the best reception as the vehicle travels from one area to the
next. As a result, regional programmes may be interrupted.
OFF: No frequency change takes place. The frequency tuned is ac-
tive until reception is interrupted.
VOL ON-VOLUME: Regulating the maximum switch on volume.
If the volume of the radio system, when switched off, was greater than the
limit set, the volume will be reduced to the value set.
If the volume of the radio system, when switched off, was lower than this
limit, the volume will not be modified.
GAL GALA: To set the speed-dependent volume adjustment ⇒ page 31.DIS DISPLAY LIGHT: To adjust the screen brightness.PDC PDC VOL ATTENU. : To reduce the volume of the current audio source to
a preset level when the parking distance warning system is active.
AUX: Settings for the use of an external audio source in the AUX - IN multi-
media socket ⇒ page 19.
AUX VOL LEVEL 1-3: Adjust the input volume of an external audio
source (AUX) to the output volume of the other audio sources.
AUX VOL LEVEL OFF: The AUX-IN multimedia socket will be deactiva-
ted and no longer displayed in the Media selection menu .
SFOb)
: Service Following. If this setting is activated (ON) and the reception
of the DAB station selected gets worse, this function automatically search-
es for another channel in DAB with the same station.
DTPb) DAB-TP: This setting only affects the DAb station currently selected if
the TP function has already been activated on the equipment (TP ON).
DTP OFF: Only FM traffic announcements (TA) interrupt the current
broadcast.
Function button: Effect DTP ON: Both FM and DAB traffic announcements interrupt the cur-
rent broadcast.
FMLb) DAB-FM Link: If this setting is activated (ON) and the reception of the
DAB station selected gets worse, and no other channel is available with
the same station, or when reception in DAB is deficient, this function auto-
matically searches for another channel in the FM band.
The change is not possible if the reception of the FM station is deficient or
the stations do not transmit information that established the relationship
between the DAB and FM stations. In this case it is not a faulty radio opera-
tion.
If the DAB reception is recovered with greater quality than the FM station it
will switch back from FM to DAB.
a) It is not available everywhere or for all radio models.
b) They are only available for radio models with DAB.
Functional mode description of speed-dependent volume adjustment
(GALA)
The GALA function automatically adjusts the volume in line with the speed
of the vehicle.
The degree to which the volume increases with speed (GALA) is set on a
scale between 1 and 7.
If a low value is set, the volume increases only slightly as the speed of the
vehicle increases. At a high setting the volume increases further. At 0,
speed-dependent volume adjustment is switched off. 

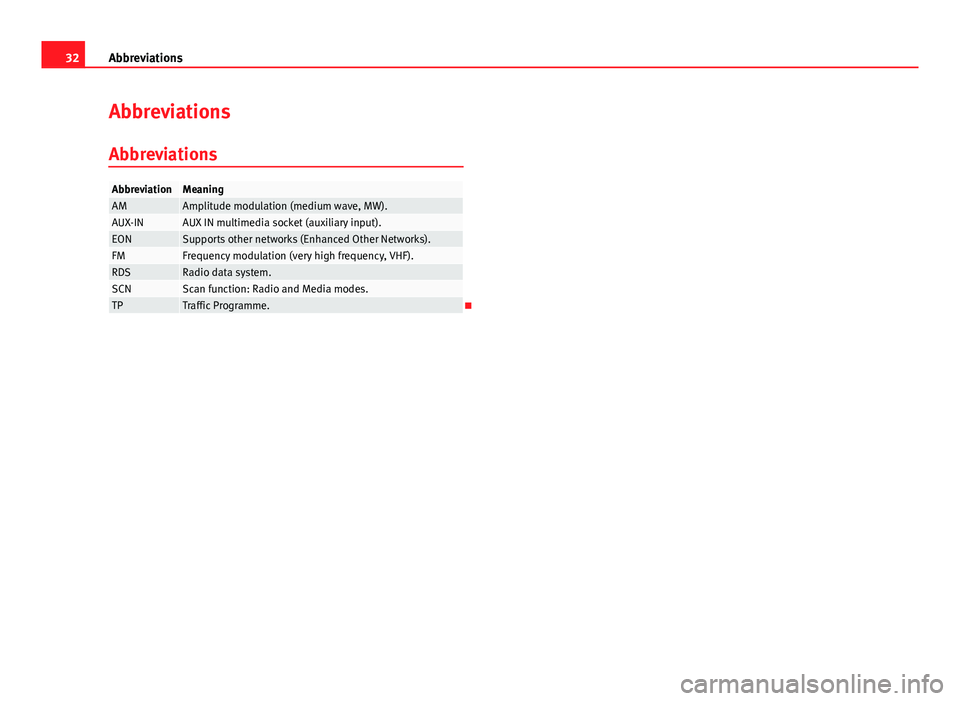

32Abbreviations
Abbreviations
Abbreviations
AbbreviationMeaningAMAmplitude modulation (medium wave, MW).AUX-INAUX IN multimedia socket (auxiliary input).EONSupports other networks (Enhanced Other Networks).FMFrequency modulation (very high frequency, VHF).RDSRadio data system.SCNScan function: Radio and Media modes.TPTraffic Programme.

Index
A
Additionaldisplays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Adjusting the output volume . . . . . . . . . . . . . . . 26
AM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Anti-theft code . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
AUX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 32
AUX-IN multimedia socket . . . . . . . . . . . . . . . . . 25
B
Base volume Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
C
CD - IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
CD mode See: MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
D
DAB canal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
programme tracking . . . . . . . . . . . . . . . . . . . 15 set of stations . . . . . . . . . . . . . . . . . . . . . . . . 15
station update . . . . . . . . . . . . . . . . . . . . . . . 16
tuning manually . . . . . . . . . . . . . . . . . . . . . . 16
Digital radio see: DAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
E
Energy management . . . . . . . . . . . . . . . . . . . . . . 9
EON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
External audio source (AUX) . . . . . . . . . . . . . . . 25
F
FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Function buttons (virtual buttons) . . . . . . . . . . . 8
Function settings . . . . . . . . . . . . . . . . . . . . . . . . 30
G General overview . . . . . . . . . . . . . . . . . . . . . . . . . 6
I
INFO (traffic announcement) . . . . . . . . . . . . . . . 18
Interference from a mobile telephone . . . . . . . . 8
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 L
LOW BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
M
Main menu MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Audio CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
AUX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
CD mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Changing folder . . . . . . . . . . . . . . . . . . . . . . 24
Changing media source . . . . . . . . . . . . . . . . 22
Changing track . . . . . . . . . . . . . . . . . . . . . . . 24
Fast forward . . . . . . . . . . . . . . . . . . . . . . . . . 24
Indications . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Media source selection menu . . . . . . . . . . . 22
MIX (random playback) . . . . . . . . . . . . . . . . 25
MP3 files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
NAV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Playback mode . . . . . . . . . . . . . . . . . . . . . . . 25
Playing order . . . . . . . . . . . . . . . . . . . . . . . . 20
Playlists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Portable navigator . . . . . . . . . . . . . . . . . . . . 27
Random playback (Mix) . . . . . . . . . . . . . . . . 25
Requirements . . . . . . . . . . . . . . . . . . . . . . . . 19
33

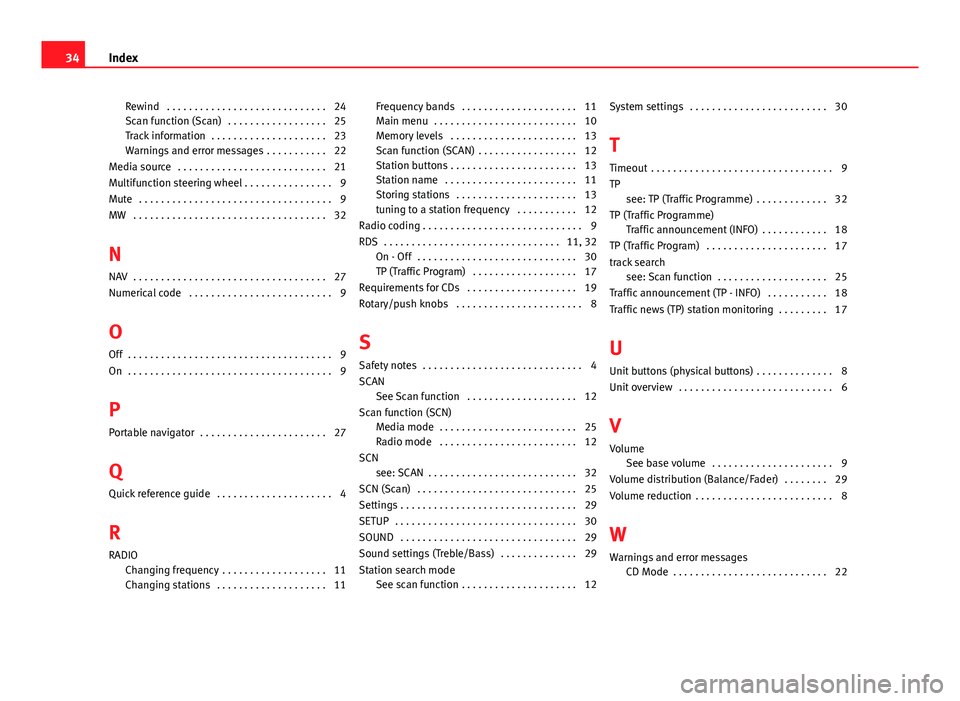

Index

Rewind . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Scan function (Scan) . . . . . . . . . . . . . . . . . . 25
Track information . . . . . . . . . . . . . . . . . . . . . 23
Warnings and error messages . . . . . . . . . . . 22
Media source . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Multifunction steering wheel . . . . . . . . . . . . . . . . 9
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
MW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
N
NAV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Numerical code . . . . . . . . . . . . . . . . . . . . . . . . . . 9
O
Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
P Portable navigator . . . . . . . . . . . . . . . . . . . . . . . 27
Q Quick reference guide . . . . . . . . . . . . . . . . . . . . . 4
R RADIO Changing frequency . . . . . . . . . . . . . . . . . . . 11
Changing stations . . . . . . . . . . . . . . . . . . . . 11 Frequency bands . . . . . . . . . . . . . . . . . . . . . 11
Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Memory levels . . . . . . . . . . . . . . . . . . . . . . . 13
Scan function (SCAN) . . . . . . . . . . . . . . . . . . 12
Station buttons . . . . . . . . . . . . . . . . . . . . . . . 13
Station name . . . . . . . . . . . . . . . . . . . . . . . . 11
Storing stations . . . . . . . . . . . . . . . . . . . . . . 13
tuning to a station frequency . . . . . . . . . . . 12
Radio coding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11, 32 On - Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
TP (Traffic Program) . . . . . . . . . . . . . . . . . . . 17
Requirements for CDs . . . . . . . . . . . . . . . . . . . . 19
Rotary/push knobs . . . . . . . . . . . . . . . . . . . . . . . 8
S Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SCAN See Scan function . . . . . . . . . . . . . . . . . . . . 12
Scan function (SCN) Media mode . . . . . . . . . . . . . . . . . . . . . . . . . 25
Radio mode . . . . . . . . . . . . . . . . . . . . . . . . . 12
SCN see: SCAN . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
SCN (Scan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Sound settings (Treble/Bass) . . . . . . . . . . . . . . 29
Station search mode See scan function . . . . . . . . . . . . . . . . . . . . . 12 System settings . . . . . . . . . . . . . . . . . . . . . . . . . 30
T
Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
TP see: TP (Traffic Programme) . . . . . . . . . . . . . 32
TP (Traffic Programme) Traffic announcement (INFO) . . . . . . . . . . . . 18
TP (Traffic Program) . . . . . . . . . . . . . . . . . . . . . . 17
track search see: Scan function . . . . . . . . . . . . . . . . . . . . 25
Traffic announcement (TP - INFO) . . . . . . . . . . . 18
Traffic news (TP) station monitoring . . . . . . . . . 17
U Unit buttons (physical buttons) . . . . . . . . . . . . . . 8
Unit overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
V
Volume See base volume . . . . . . . . . . . . . . . . . . . . . . 9
Volume distribution (Balance/Fader) . . . . . . . . 29
Volume reduction . . . . . . . . . . . . . . . . . . . . . . . . . 8
W Warnings and error messages CD Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
34 Index

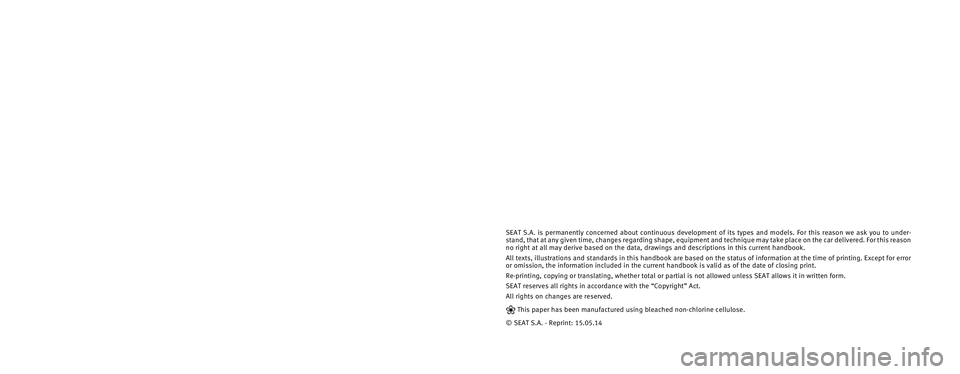

SEAT S.A. is permanently concerned about continuous development of its t\�ypes and models. For this reason we ask you to under-
stand, that at any given time, changes regarding shape, equipment and te\�chnique may take place on the car delivered. For this reason
no right at all may derive based on the data, drawings and descriptions \�in this current handbook.
All texts, illustrations and standards in this handbook are based on the\� status of information at the time of printing. Except for error
or omission, the information included in the current handbook is valid a\�s of the date of closing print.
Re-printing, copying or translating, whether total or partial is not all\�owed unless SEAT allows it in written form.
SEAT reserves all rights in accordance with the “Copyright” Act.
All rights on changes are reserved.
❀This paper has been manufactured using bleached non-chlorine cellulose.
© SEAT S.A. - Reprint: 15.05.14

SEAT SOUND SYSTEM 1.X
Owner ’s manual
6J0012720CB
Inglés
6J0012720CB (05.14) (GT9)
