Seat Ibiza ST 2015 Owner's manual

Technical specifications

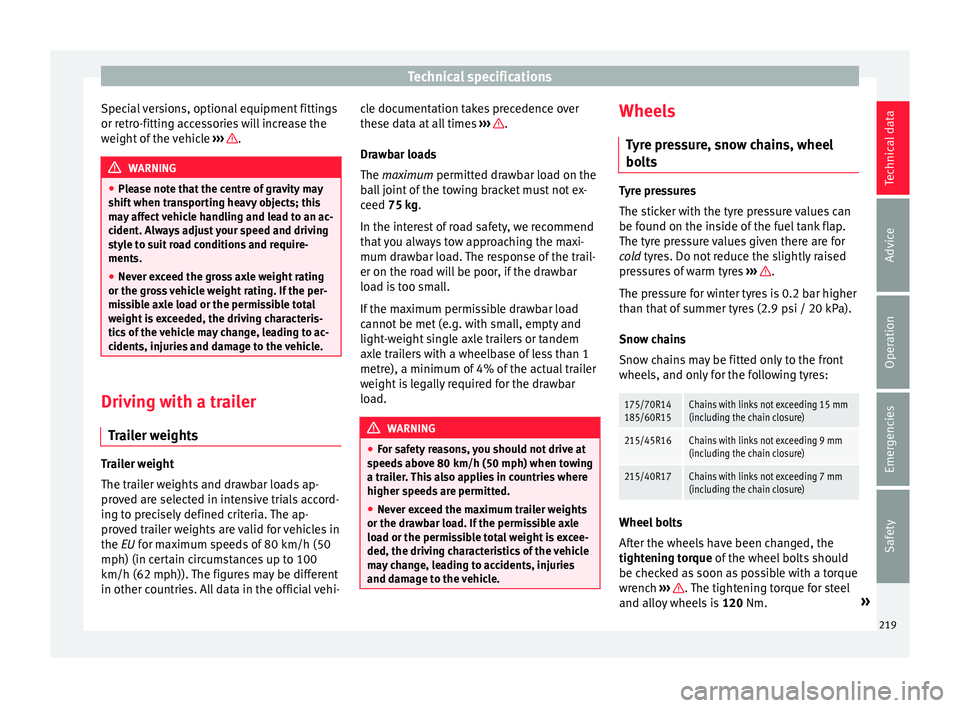

Special versions, optional equipment fittings
or r etr
o-fittin
g accessories will increase the
weight of the vehicle ››› .
WARNING
● Ple a

se note that the centre of gravity may
shift when transporting heavy objects; this
may affect vehicle handling and lead to an ac-
cident. Always adjust your speed and driving
style to suit road conditions and require-
ments.
● Never exceed the gross axle weight rating
or the gros
s vehicle weight rating. If the per-
missible axle load or the permissible total
weight is exceeded, the driving characteris-
tics of the vehicle may change, leading to ac-
cidents, injuries and damage to the vehicle. Driving with a trailer
Tr
ai

ler weights Trailer weight
The tr
ai
l

er weights and drawbar loads ap-
proved are selected in intensive trials accord-
ing to precisely defined criteria. The ap-
proved trailer weights are valid for vehicles in
the EU for maximum speeds of 80 km/h (50
mph) (in certain circumstances up to 100
km/h (62 mph)). The figures may be different
in other countries. All data in the official vehi- cle documentation takes precedence over
these dat

a at all times ››› .
Dr a
wb
ar loads
The maximum permitted drawbar load on the
ball joint of the towing bracket must not ex-
ceed 75 kg.
In the interest of road safety, we recommend
that you always tow approaching the maxi-
mum drawbar load. The response of the trail-
er on the road will be poor, if the drawbar
load is too small.
If the maximum permissible drawbar load
cannot be met (e.g. with small, empty and
light-weight single axle trailers or tandem
axle trailers with a wheelbase of less than 1
metre), a minimum of 4% of the actual trailer
weight is legally required for the drawbar
load. WARNING
● For s af

ety reasons, you should not drive at
speeds above 80 km/h (50 mph) when towing
a trailer. This also applies in countries where
higher speeds are permitted.
● Never exceed the maximum trailer weights
or the drawb
ar load. If the permissible axle
load or the permissible total weight is excee-
ded, the driving characteristics of the vehicle
may change, leading to accidents, injuries
and damage to the vehicle. Wheels
Ty
r

e pressure, snow chains, wheel
bolts Tyre pressures
The stic
k

er with the tyre pressure values can
be found on the inside of the fuel tank flap.
The tyre pressure values given there are for
cold tyres. Do not reduce the slightly raised
pressures of warm tyres ››› .
The pre s

sure for winter tyres is 0.2 bar higher
than that of summer tyres (2.9 psi / 20 kPa).
Snow chains
Snow chains may be fitted only to the front
wheels, and only for the following tyres:
175/70R14
185/60R15Chains with links not exceeding 15 mm
(including the chain closure)
215/45R16Chains with links not exceeding 9 mm
(including the chain closure)
215/40R17Chains with links not exceeding 7 mm
(including the chain closure) Wheel bolts
Af
t
er the wheel

s have been changed, the
tightening torque of the wheel bolts should
be checked as soon as possible with a torque
wrench ››› . The tightening torque for steel
and al lo
y

wheels is 120 Nm. »
219
Technical data
Advice
Operation
Emergencies
Safety

Technical data

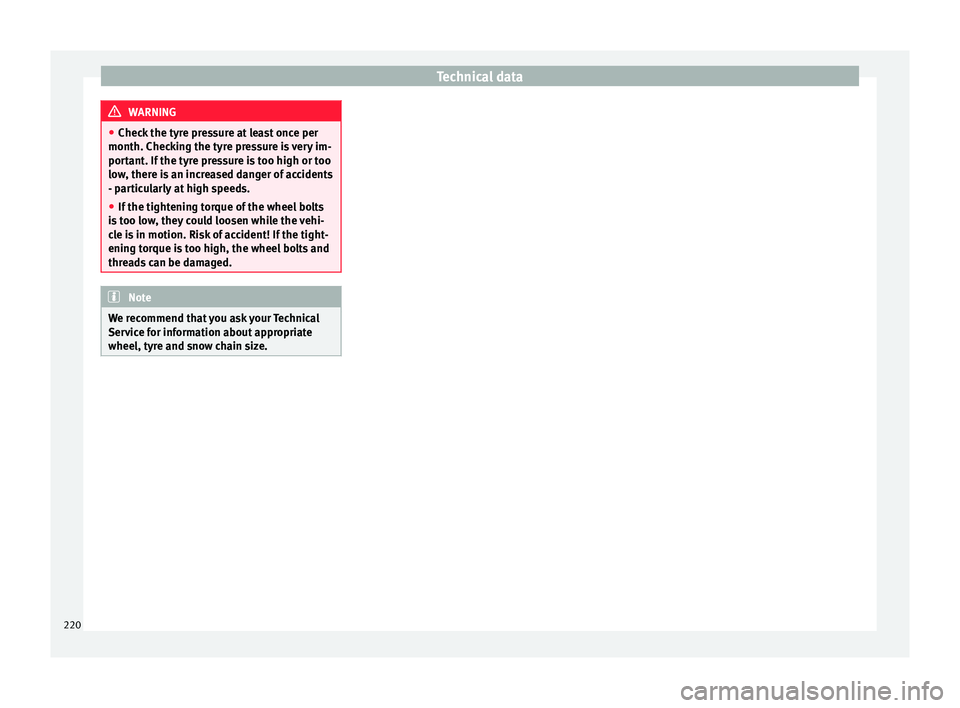

WARNING
● Check the ty
re pressure at least once per
month. Checking the tyre pressure is very im-
portant. If the tyre pressure is too high or too
low, there is an increased danger of accidents
- particularly at high speeds.
● If the tightening torque of the wheel bolts
is t
oo low, they could loosen while the vehi-
cle is in motion. Risk of accident! If the tight-
ening torque is too high, the wheel bolts and
threads can be damaged. Note
We recommend that you ask your Technical
Serv ic

e for information about appropriate
wheel, tyre and snow chain size. 220

Technical specifications

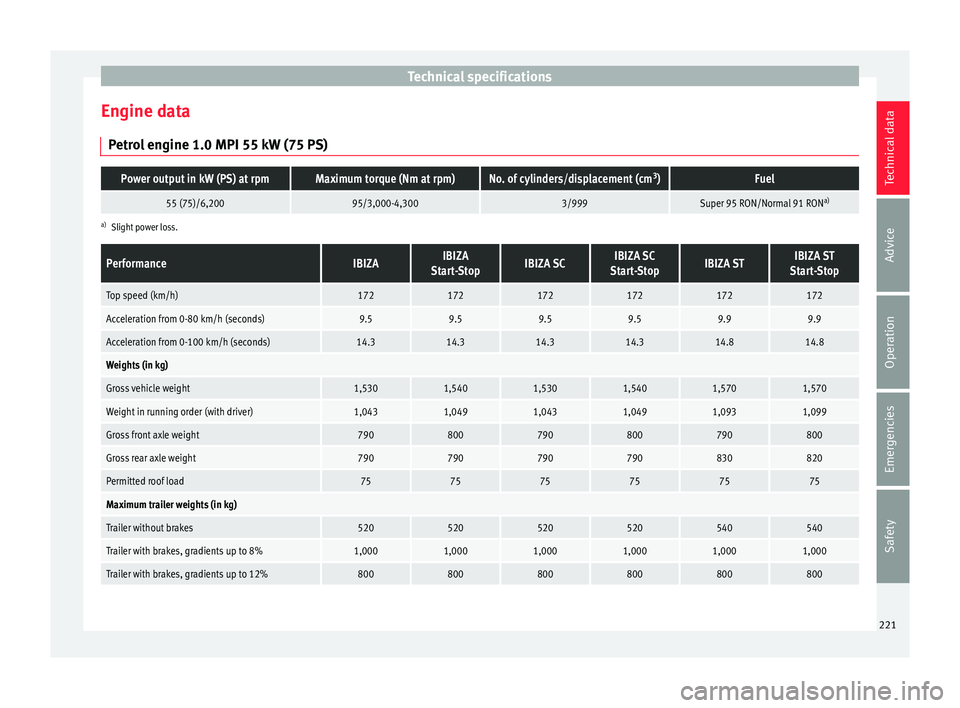

Engine data P etr
o
l engine 1.0 MPI 55 kW (75 PS)
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
55 (75)/6,20095/3,000-4,3003/999Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
PerformanceIBIZAIBIZA
Start-StopIBIZA SCIBIZA SC
Start-StopIBIZA STIBIZA ST
Start-Stop
Top speed (km/h)172172172172172172
Acceleration from 0-80 km/h (seconds)9.59.59.59.59.99.9
Acceleration from 0-100 km/h (seconds)14.314.314.314.314.814.8
Weights (in kg)
Gross vehicle weight1,5301,5401,5301,5401,5701,570
Weight in running order (with driver)1,0431,0491,0431,0491,0931,099
Gross front axle weight790800790800790800
Gross rear axle weight790790790790830820
Permitted roof load757575757575
Maximum trailer weights (in kg)
Trailer without brakes520520520520540540
Trailer with brakes, gradients up to 8%1,0001,0001,0001,0001,0001,000
Trailer with brakes, gradients up to 12%800800800800800800 221
Technical data
Advice
Operation
Emergencies
Safety

Technical data

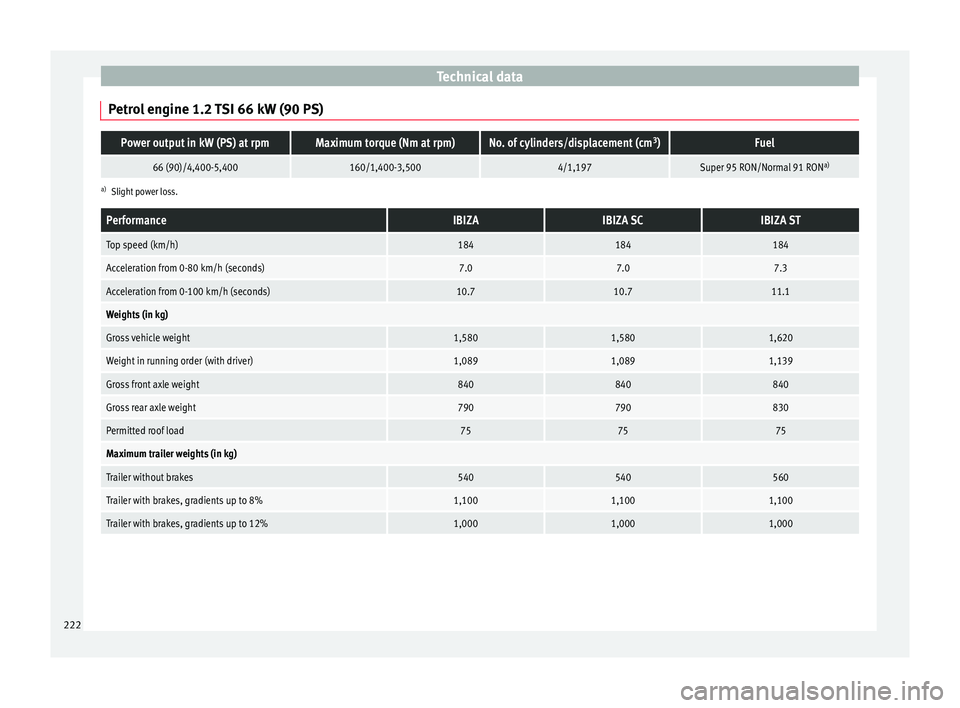

Petrol engine 1.2 TSI 66 kW (90 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
66 (90)/4,400-5,400160/1,400-3,5004/1,197Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
PerformanceIBIZAIBIZA SCIBIZA ST
Top speed (km/h)184184184
Acceleration from 0-80 km/h (seconds)7.07.07.3
Acceleration from 0-100 km/h (seconds)10.710.711.1
Weights (in kg)
Gross vehicle weight1,5801,5801,620
Weight in running order (with driver)1,0891,0891,139
Gross front axle weight840840840
Gross rear axle weight790790830
Permitted roof load757575
Maximum trailer weights (in kg)
Trailer without brakes540540560
Trailer with brakes, gradients up to 8%1,1001,1001,100
Trailer with brakes, gradients up to 12%1,0001,0001,000 222

Technical specifications

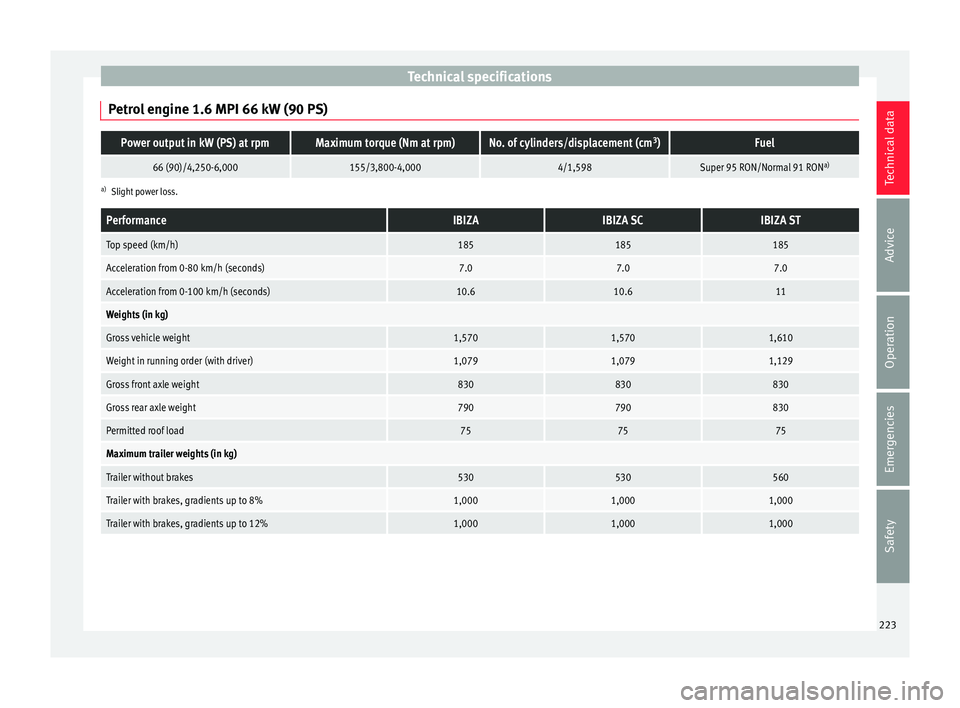

Petrol engine 1.6 MPI 66 kW (90 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
66 (90)/4,250-6,000155/3,800-4,0004/1,598Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
PerformanceIBIZAIBIZA SCIBIZA ST
Top speed (km/h)185185185
Acceleration from 0-80 km/h (seconds)7.07.07.0
Acceleration from 0-100 km/h (seconds)10.610.611
Weights (in kg)
Gross vehicle weight1,5701,5701,610
Weight in running order (with driver)1,0791,0791,129
Gross front axle weight830830830
Gross rear axle weight790790830
Permitted roof load757575
Maximum trailer weights (in kg)
Trailer without brakes530530560
Trailer with brakes, gradients up to 8%1,0001,0001,000
Trailer with brakes, gradients up to 12%1,0001,0001,000 223
Technical data
Advice
Operation
Emergencies
Safety

Technical data

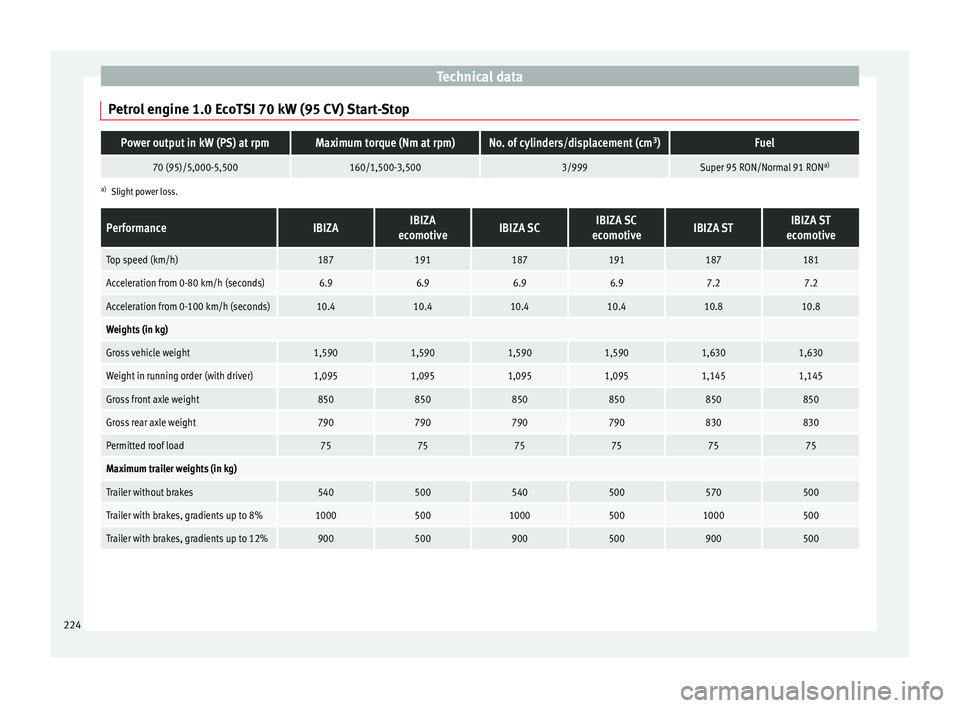

Petrol engine 1.0 EcoTSI 70 kW (95 CV) Start-StopPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
70 (95)/5,000-5,500160/1,500-3,5003/999Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
PerformanceIBIZAIBIZA
ecomotiveIBIZA SCIBIZA SC
ecomotiveIBIZA STIBIZA ST
ecomotive
Top speed (km/h)187191187191187181
Acceleration from 0-80 km/h (seconds)6.96.96.96.97.27.2
Acceleration from 0-100 km/h (seconds)10.410.410.410.410.810.8
Weights (in kg)
Gross vehicle weight1,5901,5901,5901,5901,6301,630
Weight in running order (with driver)1,0951,0951,0951,0951,1451,145
Gross front axle weight850850850850850850
Gross rear axle weight790790790790830830
Permitted roof load757575757575
Maximum trailer weights (in kg)
Trailer without brakes540500540500570500
Trailer with brakes, gradients up to 8%100050010005001000500
Trailer with brakes, gradients up to 12%900500900500900500 224

Technical specifications

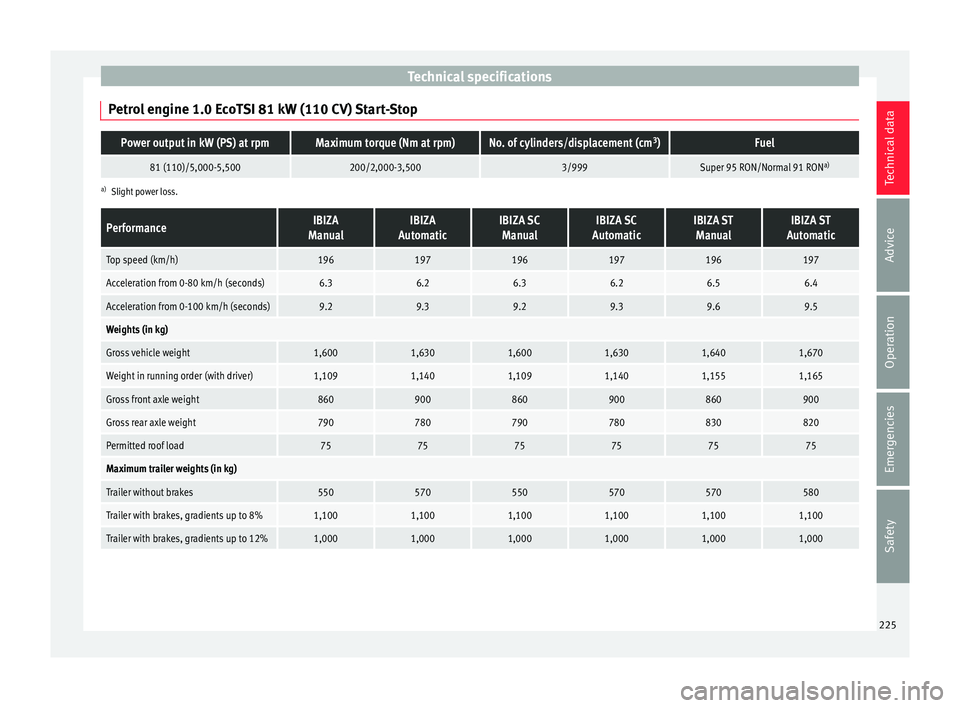

Petrol engine 1.0 EcoTSI 81 kW (110 CV) Start-StopPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
81 (110)/5,000-5,500200/2,000-3,5003/999Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
PerformanceIBIZA
ManualIBIZA
AutomaticIBIZA SC ManualIBIZA SC
AutomaticIBIZA ST ManualIBIZA ST
Automatic
Top speed (km/h)196197196197196197
Acceleration from 0-80 km/h (seconds)6.36.26.36.26.56.4
Acceleration from 0-100 km/h (seconds)9.29.39.29.39.69.5
Weights (in kg)
Gross vehicle weight1,6001,6301,6001,6301,6401,670
Weight in running order (with driver)1,1091,1401,1091,1401,1551,165
Gross front axle weight860900860900860900
Gross rear axle weight790780790780830820
Permitted roof load757575757575
Maximum trailer weights (in kg)
Trailer without brakes550570550570570580
Trailer with brakes, gradients up to 8%1,1001,1001,1001,1001,1001,100
Trailer with brakes, gradients up to 12%1,0001,0001,0001,0001,0001,000 225
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Petrol engine 1.2 TSI 81 kW (110 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
81 (110)/4,600-5,600175/1,400-4,0004/1,197Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
PerformanceIBIZAIBIZA SCIBIZA ST
Top speed (km/h)197197197
Acceleration from 0-80 km/h (seconds)6.26.26.5
Acceleration from 0-100 km/h (seconds)9.19.19.7
Weights (in kg)
Gross vehicle weight1,5901,5901,630
Weight in running order (with driver)1,1021,1021,152
Gross front axle weight860860850
Gross rear axle weight780780830
Permitted roof load757575
Maximum trailer weights (in kg)
Trailer without brakes550550570
Trailer with brakes, gradients up to 8%1,1001,1001,100
Trailer with brakes, gradients up to 12%1,1001,0001,100 226

Technical specifications

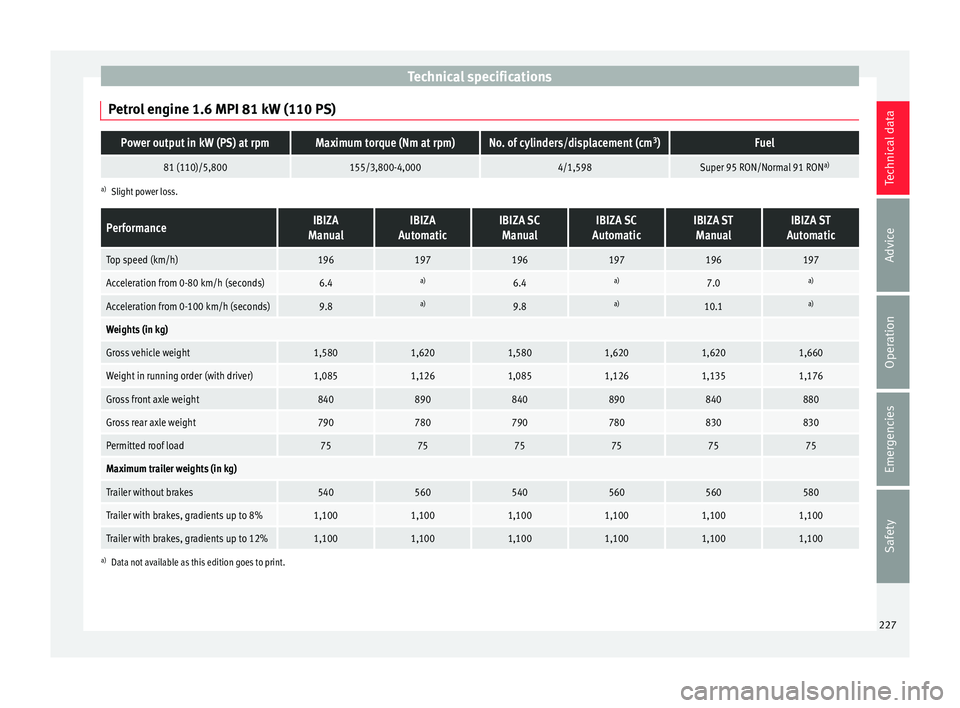

Petrol engine 1.6 MPI 81 kW (110 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
81 (110)/5,800155/3,800-4,0004/1,598Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
PerformanceIBIZA
ManualIBIZA
AutomaticIBIZA SC ManualIBIZA SC
AutomaticIBIZA ST ManualIBIZA ST
Automatic
Top speed (km/h)196197196197196197
Acceleration from 0-80 km/h (seconds)6.4a)6.4a)7.0a)
Acceleration from 0-100 km/h (seconds)9.8a)9.8a)10.1a)
Weights (in kg)
Gross vehicle weight1,5801,6201,5801,6201,6201,660
Weight in running order (with driver)1,0851,1261,0851,1261,1351,176
Gross front axle weight840890840890840880
Gross rear axle weight790780790780830830
Permitted roof load757575757575
Maximum trailer weights (in kg)
Trailer without brakes540560540560560580
Trailer with brakes, gradients up to 8%1,1001,1001,1001,1001,1001,100
Trailer with brakes, gradients up to 12%1,1001,1001,1001,1001,1001,100
a) Data not available as this edition goes to print. 227
Technical data
Advice
Operation
Emergencies
Safety

Technical data

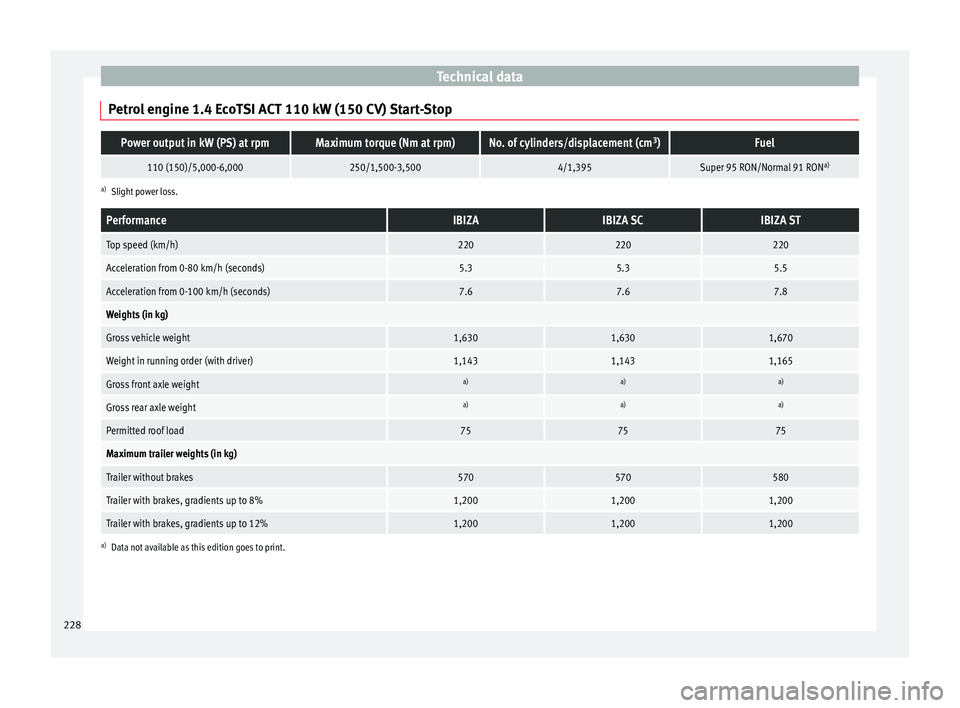

Petrol engine 1.4 EcoTSI ACT 110 kW (150 CV) Start-StopPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
110 (150)/5,000-6,000250/1,500-3,5004/1,395Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
PerformanceIBIZAIBIZA SCIBIZA ST
Top speed (km/h)220220220
Acceleration from 0-80 km/h (seconds)5.35.35.5
Acceleration from 0-100 km/h (seconds)7.67.67.8
Weights (in kg)
Gross vehicle weight1,6301,6301,670
Weight in running order (with driver)1,1431,1431,165
Gross front axle weighta)a)a)
Gross rear axle weighta)a)a)
Permitted roof load757575
Maximum trailer weights (in kg)
Trailer without brakes570570580
Trailer with brakes, gradients up to 8%1,2001,2001,200
Trailer with brakes, gradients up to 12%1,2001,2001,200
a)Data not available as this edition goes to print. 228
