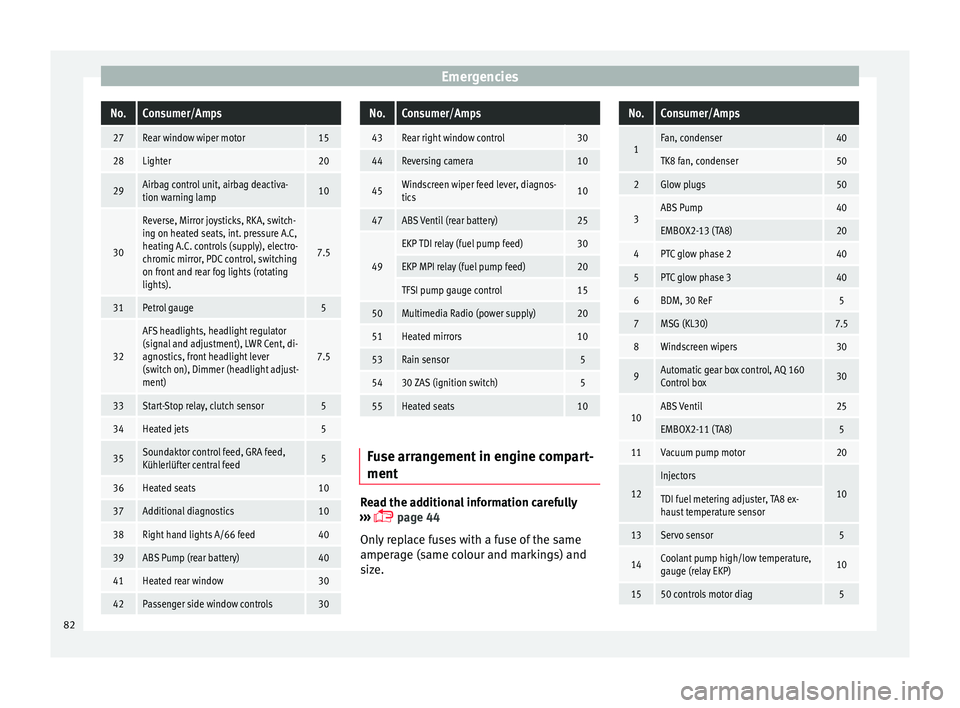

EmergenciesNo.Consumer/Amps
27Rear window wiper motor15
28Lighter20
29Airbag control unit, airbag deactiva-
tion warning lamp10
30
Reverse, Mirror joysticks, RKA, switch-
ing on heated seats, int. pressure A.C,
heating A.C. controls (supply), electro-
chromic mirror, PDC control, switching
on front and rear fog lights (rotating
lights).
7.5
31Petrol gauge5
32
AFS headlights, headlight regulator
(signal and adjustment), LWR Cent, di-
agnostics, front headlight lever
(switch on), Dimmer (headlight adjust-
ment)
7.5
33Start-Stop relay, clutch sensor5
34Heated jets5
35Soundaktor control feed, GRA feed,
Kühlerlüfter central feed5
36Heated seats10
37Additional diagnostics10
38Right hand lights A/66 feed40
39ABS Pump (rear battery)40
41Heated rear window30
42Passenger side window controls30
No.Consumer/Amps
43Rear right window control30
44Reversing camera10
45Windscreen wiper feed lever, diagnos-
tics10
47ABS Ventil (rear battery)25
49
EKP TDI relay (fuel pump feed)30
EKP MPI relay (fuel pump feed)20
TFSI pump gauge control15
50Multimedia Radio (power supply)20
51Heated mirrors10
53Rain sensor5
5430 ZAS (ignition switch)5
55Heated seats10
Fuse arrangement in engine compart-
ment
Read the additional information carefully
› ›
›

 page 44
Only replace fuses with a fuse of the same
amperage (same colour and markings) and
size.
No.Consumer/Amps
1Fan, condenser40
TK8 fan, condenser50
2Glow plugs50
3ABS Pump40
EMBOX2-13 (TA8)20
4PTC glow phase 240
5PTC glow phase 340
6BDM, 30 ReF5
7MSG (KL30)7.5
8Windscreen wipers30
9Automatic gear box control, AQ 160
Control box30
10ABS Ventil25
EMBOX2-11 (TA8)5
11Vacuum pump motor20
12
Injectors
10TDI fuel metering adjuster, TA8 ex-
haust temperature sensor
13Servo sensor5
14Coolant pump high/low temperature,
gauge (relay EKP)10
1550 controls motor diag5 82

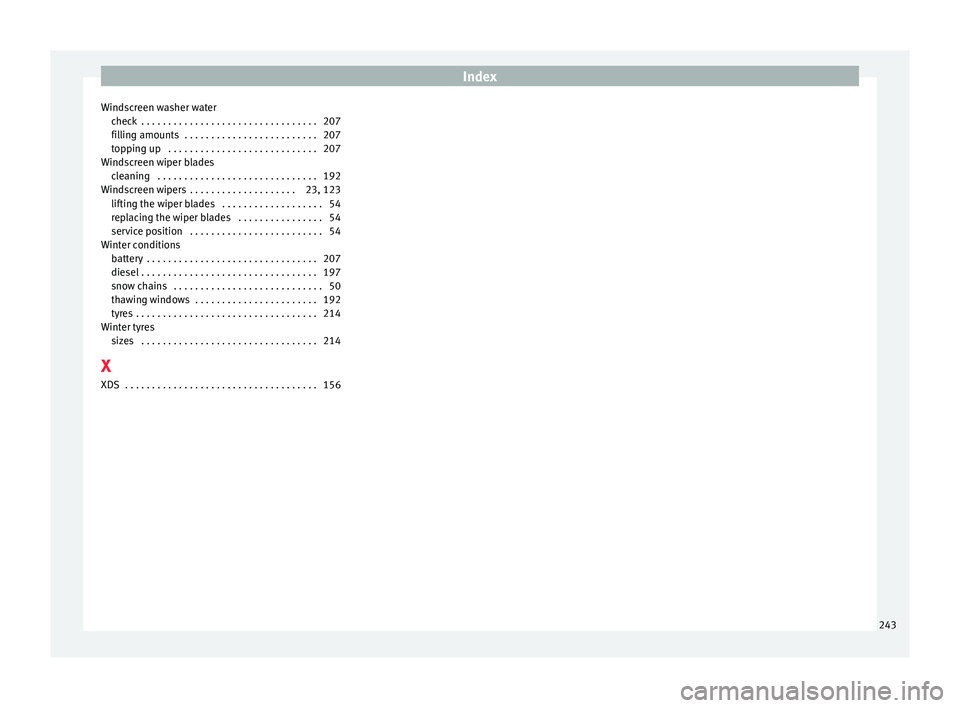

Index
Windscreen washer water chec
k
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
filling amounts . . . . . . . . . . . . . . . . . . . . . . . . . 207
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Windscreen wiper blades cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Windscreen wipers . . . . . . . . . . . . . . . . . . . . 23, 123 lifting the wiper blades . . . . . . . . . . . . . . . . . . . 54
replacing the wiper blades . . . . . . . . . . . . . . . . 54
service position . . . . . . . . . . . . . . . . . . . . . . . . . 54
Winter conditions battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
thawing windows . . . . . . . . . . . . . . . . . . . . . . . 192
tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Winter tyres sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
X XDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
243
