buttons Seat Leon 2018 MEDIA SYSTEM TOUCH - COLOUR

Radiothe DAB signal indicates the correspondingFM station. Once the corresponding FM sta-
tion has been found, FM
is displayed after the
station name. When reception for the corre- sponding DAB station returns, after a short
time the unit will switch back to DAB mode
and FM
will no longer be displayed.
Radio text
Some stations also broadcast additional text
information known as radio text. The INFO
button allows you to view the radio text.
Memory buttons
Fig. 12
Group of stored stations.
In the RADIO main menu, you can store sta-
tions from all available frequency wave-
lengths on the numbered function buttons.
These function buttons are called “memory buttons”.
Functions of the memory buttons
Selecting the sta-tion from the mem-
ory buttons
Press the memory button of the station you want.
The stored stations can only
be played by pressing the cor-
responding memory button,
provided it can be received at your current location.
Switching between
memory banks
Press the BAND function but-
ton

RadioStoring stationsStoring the
station being
listened to on
a memory
buttonHold down the desired memory but- ton until you hear the signal. The
station that you are listening to will
be stored in this memory button.Storing a sta-
tion on the list
of stationsPress the Stations function button to
open the list of stations. Select the
desired station (by holding a fingeron the touchscreen or holding down
the setup button) until the store dis-
play appears.
Press the memory button and, after the confirmation tone, the station will then be recorded on this memo-ry button.
To store more stations from the list, press Back and repeat the process.Deleting a
stored stationThe stored stations can be deleted
one by one or all at once in the FM,
AM and DAB setup menu.
Scan function (SCAN)
When the scan function is running, all availa-
ble stations on the current frequency band
are played in sequence for about 5 seconds each.
Starting and stopping the scan functionStarting the
scan functionPress the SETTINGS function button
and then select SCAN.Starting and stopping the scan functionStopping the
scan functionPress the  function button to
stop the scan function at the sta-
tion that is currently playing.OR: Briefly press the adjustment
knob.
Manually selecting a station with
the memory buttons or changing the screen also stops the scan
function.
Traffic information (TP)
Traffic information tracking with the TP func-
tion is only possible if the station is available.
The stations with the traffic information func-
tion are indicated in the Radio main menuand in the list of stations by the TP
symbol

RadioFunction button: functionSearch mode: determines the setup of the buttons
with arrows  and . This setting applies to all fre-
quency bands (FM, AM and DAB). Presets: all stored stations on the selected fre-
quency band can be selected with the arrow but-
tons. Stations: All available stations on the selected fre-
quency band can be selected with the arrow but-
tons.VIEW: to select the type of view of the DAB station
list. Set: hierarchical view of stations and ensembles in
alphabetical order. Stations:overall view of stations in alphabetical or-
der.Traffic station (TP): The TP function (traffic news sta-
tion tracking) is active

MediaFunction buttons of the main menu MediaFunction button: function
MEDIA
Click to select a different media input

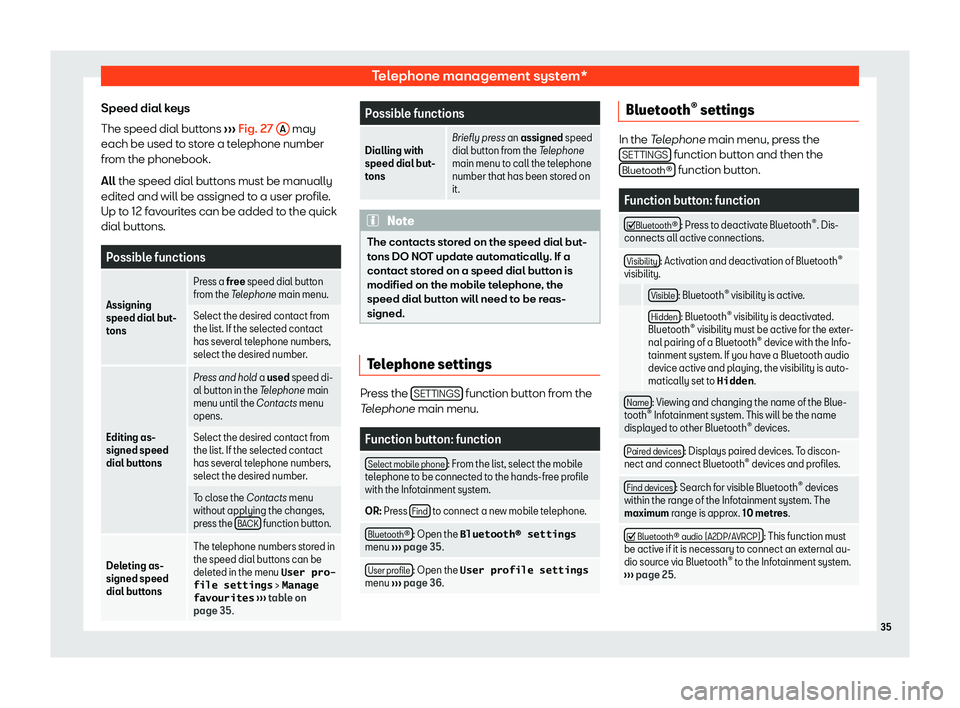

Telephone management system*Speed dial keys
The speed dial buttons

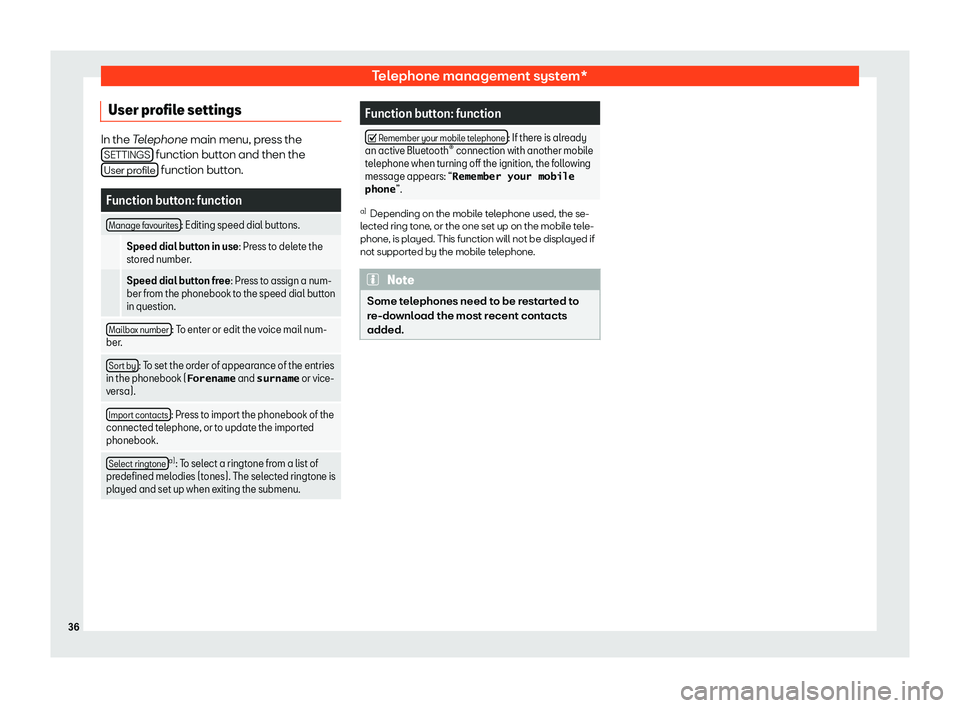

Telephone management system*User profile settings
In the Telephone main menu, press the
SETTINGS function button and then the
User profile function button.
Function button: functionManage favourites: Editing speed dial buttons. Speed dial button in use : Press to delete the
stored number. Speed dial button free : Press to assign a num-
ber from the phonebook to the speed dial button
in question.Mailbox number: To enter or edit the voice mail num-
ber.Sort by: To set the order of appearance of the entries
in the phonebook ( Forename and
surname or vice-
versa).Import contacts: Press to import the phonebook of the
connected telephone, or to update the imported
phonebook.Select ringtonea) : To select a ringtone from a list of
predefined melodies (tones). The selected ringtone is
played and set up when exiting the submenu.Function button: function Remember your mobile telephone: If there is already
an active Bluetooth

IndexMultimedia interfaceAUX-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
O Operating instructions checkboxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
function buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Unit buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operation Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27, 30
P Phone contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32, 33
enter telephone number . . . . . . . . . . . . . . . . . . . . 32
main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Phonebook shortcut keys see Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Play AUX-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
external data storage device (USB) . . . . . . . . . 24
Pop-up window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Q Quick reference guide . . . . . . . . . . . . . . . . . . . . . . . . . 7
R Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12RADIO filter by station type (PTY) . . . . . . . . . . . . . . . . . . . 13
frequency bands . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
memory buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
radio data services RDS . . . . . . . . . . . . . . . . . . . . 13
radio text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
scan function (SCAN) . . . . . . . . . . . . . . . . . . . . . . . 16
select, tune and store stations to memory . . . 15
station name and automatic station track- ing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
RDS TP (Traffic Program) . . . . . . . . . . . . . . . . . . . . . 16, 17
Requirements for memory cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
SD cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Rewind . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Rotary/push knobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Rotary knobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
S Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
SCAN
see scan function . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Scan function (SCAN) Radio mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
SD card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Bluetooth settings . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Bluetooth

IndexHFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
mobile telephone pairing . . . . . . . . . . . . . . . . . . . 29
pairing of mobile telephone . . . . . . . . . . . . . . . . 29
pairing via the Infotainment system . . . . . . . . . 29
settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
telephone management system . . . . . . . . 27, 30
user profile settings . . . . . . . . . . . . . . . . . . . . . . . . 36
Things to note
AUX mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Touchscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
TP (Traffic Program) traffic information station . . . . . . . . . . . . . . . . . . . 16
traffic news station . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Track search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Traffic news (TP) station tracking . . . . . . . . . . . . . . 17
Treble . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
U Unit buttons overview . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Unit buttons (physical buttons) . . . . . . . . . . . . . . . . . 8
Unit overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
USB cannot be read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
connecting an external data storage de- vice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
USB external data storage device
disconnect the storage device . . . . . . . . . . . . . 24
USB port 
iPad management . . . . . . . . . . . . . . . . . . . . . . . . . 24
iPhone management . . . . . . . . . . . . . . . . . . . . . . . 24
USB port 
iPod management . . . . . . . . . . . . . . . . . . . . . . . . . 24User profile
settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
V Volume see base volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
switch-on volume . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
traffic announcements . . . . . . . . . . . . . . . . . . . . . . 41
Volume distribution (Balance/Fader) . . . . . . . . . . 41
W Wireless communication interface . . . . . . . . . . . . 2545
