light Seat Leon 2020 User Guide

Instruments and warning/control lamps
Multifunction steering
wheel* Functions Fig. 78
Controls on the steering wheel. Fig. 79
Controls on the steering wheel. The steering wheel includes multifunction
modul
es fr
om where it is possible to control
the audio, telephone, navigation, voice con- trol and assist functions without the driver
needing to be distr

acted from the road.
Buttons available depending on the version Symbol Function
1 Turn: T
urn volume up/down
Pr
ess: Mute volume
2 Turn: Search in the instrument panel
menu. In Navigation mode
, turn to in-
crease/decrease map size in SEAT
Digital Cockpit
Press: Select the highlighted option in
the instrument panel

 Radio: Sear
ch for the previous/next
st
ation.
Media: Short press: previous/next
track; long press: fast forward/rewind
 Activate phone menu (answer call,
end call)
 Switch between media and radio
sour
ces

 Change the instrument panel menu
(pre

vious/next)

Operation
Opening and closing Set of v ehicl
e keys
Vehicle key Fig. 80
Vehicle key Fig. 81
Centre console: vehicle key socket. Key to the
››

› Fig. 80
Unlock the vehicle
1 Lock the vehicle
Unl
ock only the r

ear lid. Press the button
until all the turn signals on the vehicle
flash briefly. You have 2 minutes to open
the rear lid. Once this time has passed, it
will lock again. In addition, the lamp on
the key flashes.
Control lamp
Alarm button*. Only press in the event of
an emergency! When the alarm button is
pressed, the vehicle's sounds and the turn
signals light up for a short time. Press
again to disconnect.
With the vehicle key the vehicle may be
locked or unlocked remotely ››› page 101
.
The vehicle key includes an emitter and bat-
tery. The receiver is in the interior of the vehi-
cle. The range of the vehicle key with remote
control and new battery is several metres
around the vehicle.
If it is not possible to open or close the vehicle
using the remote control key, this should be
re-synchronised ››› page 100
or the battery
changed ››› page 100
.
Different keys belonging to the vehicle may
be used.
Control lamp on the vehicle key
When a button on the vehicle key is briefly
pressed, the indicator lamp flashes 4 ›››
Fig. 80 once briefly, but if the butt
on is
2 3
4
5 held down for a longer period it will flash sev-
er
al times, such as f
or convenience opening.
If the vehicle key control lamp does not light
up when the button is pressed, replace the
key's battery ››› page 100
.
Key socket*
Depending on the version there is a socket for
the key close to the start button ››› Fig. 81
.
Warning! Do not confuse with the location for
the emergency start ››› page 222
.
Spare key
To obtain a spare key and other vehicle keys,
the vehicle ID number is required.
Each new key contains a microchip which
must be coded with the data from the vehicle
electronic immobiliser. A vehicle key will not
work if it does not contain a microchip or the
microchip has not been encoded. This is also
true for keys which are specially cut for the
vehicle.
The vehicle keys or new spare keys can be
obtained from a SEAT Official Service, a spe-
cialised workshop or an approved key service
qualified to create this kind of key.
New keys or spare keys must be synchronised
before use ››› page 100
.
98

Lights

Switching on the side lights. Additionally, the following light functions can
be activat
ed by pressing on the correspond-
ing symbol.
When the function is activated, the corre-
sponding symbol lights up. To deactivate it,
you will need to press on the symbol again. 
 T

urning the fog lights* on or off

Lights
WARNING
Improper or lack of use of the turn signals,
or f or
getting to deactivate them can con-
fuse other road users. This could result in a
serious accident.

Lights
In the vehicle settings menu of the infotain-
ment syst em you can adjust the dur
ation of
the light switch-off delay, and activate and
deactivate the function.
Activating the “Coming Home” function
For vehicles with light and rain sensors.

Operation
7. Always take the vehicle key with you when you l eav
e the vehicle.
All turn signals flash simultaneously when the
hazard warning lights are switched on. The
two turn signal turn signal lamps   and the
turn signal lamp in the switch  will flash at
the same time. The simultaneous hazard
warning lights also work when the ignition is
switched off.
Emergency braking warning
If the vehicle brakes suddenly and continu-
ously at a speed of more than 80 km/h (50
mph), the brake light flashes several times per
second to warn the vehicles driving behind. If
you continue braking, the hazard warning
lights will come on automatically when the
vehicle comes to a standstill. They switch off
automatically when the vehicle starts to
move again. WARNING

Lights
With the ignition on and without light activa-
tion, the anal ogue instrument panel lighting
r
emains activated in daytime light conditions.
The lighting is reduced as the exterior light di-
minishes. In some cases, e.g. when driving
through a tunnel without the  function ac-
tive, the instrument panel lighting may even
switch off. The objective of this function is to
provide the driver with a visual indication that
he or she should activate the dipped beam.
If your vehicle is equipped with a digital in-
strument panel (Digital SEAT Cockpit), the
following message will appear Turn on the
lights on the instrument panel.
Interior and reading lights Fig. 104
Detail of roof lining: front lighting of
the passenger compartment.
Turning the interior lights on or off.

 Door contact connection.
The int
erior lights come on aut

omatically
when you unlock the vehicle, open a door
or disconnect the ignition.
The light goes out a few seconds after
closing all the doors, when locking the ve-
hicle or connecting the ignition. Reading light
The r
eading light is t

actile, each lens is turned
on and off individually by pressing in the re-
spective central area. In addition, the intensi-
ty of the light can be adjusted according to
the pressure exerted.
If you want to turn on the two lenses together
you must press the symbol
››› Fig. 104
.
Glove compartment and luggage com-
partment lighting*
When opening and closing the glove com-
partment on the front passenger side and the
rear lid, the respective light will automatically
switch on and off.
Footwell lighting*
The lights in the footwell area below the dash
(driver and front passenger sides) will switch
on when the doors are opened and will de- crease in intensity while driving. This intensity
can be adjust
ed thr

ough the infotainment
system menu using the function button  > Interior > Light ››› page 96
. Note
The reading lights go out when the vehicle
is cl osed and l

ocked or after a few minutes
of turning the ignition off. This prevents the
12-volt vehicle battery from discharging. 127

Operation

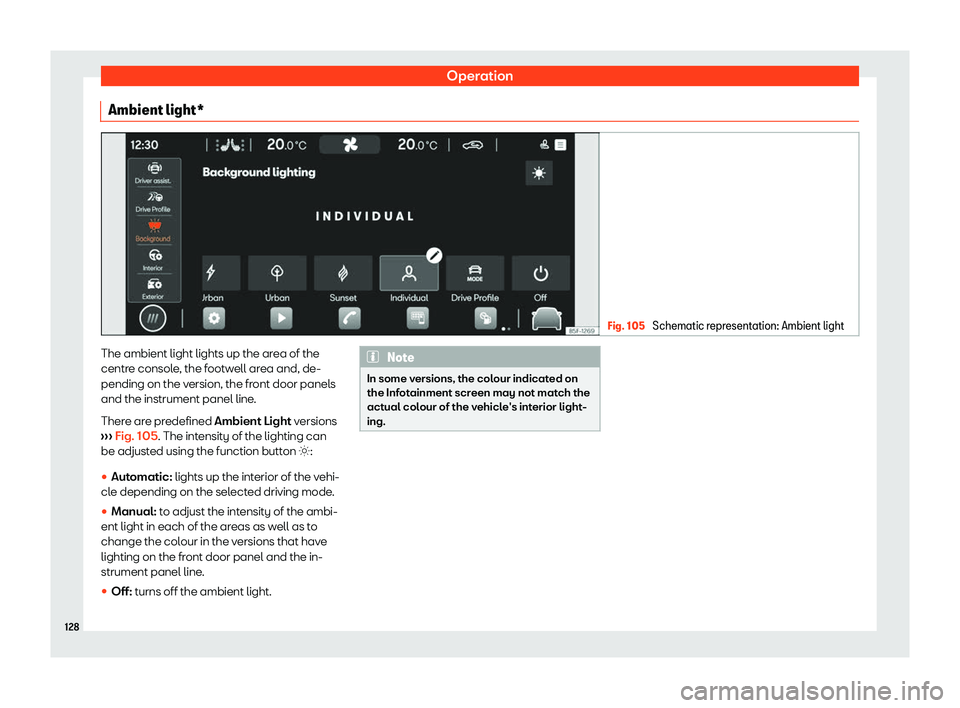

Ambient light* Fig. 105
Schematic representation: Ambient light The ambient light lights up the area of the
centr
e consol
e, the footwell area and, de-
pending on the version, the front door panels
and the instrument panel line.
There are predefined Ambient Light versions
››› Fig. 105. The intensity of the lighting can
be adjusted using the function button q :

Operation
USB power sockets
Depending on the equipment and the coun-
try, the v ehicl
e may also have USB connec-
tions exclusively for charging or as a power
socket.
These USB ports are located at the rear of
the console, between the front seats . These
connectors can work at a maximum power of
up to 10.5 W per port.
They are not intended for file playback.
230 volt power socket*
With the engine running, the power socket
››› Fig. 148 activates automatically as soon
as a connector is plugged in. If there is
enough power available, the socket can still
be used while the engine is off ››› Connect an electrical device: Open the co
v-
er and insert the plug int
o the power socket
as far as possible to unlock the built-in child
lock. The socket only supplies power once
the child lock is unlocked. LED on the power socket
Steady green
light: The childproof lock is unlocked.
The sock
et is r

eady to operate. LED on the power socket
Flashing green
light: The ignition is switched off, but
ther
e is enough po

wer available
to continue supplying the socket
with current for a maximum of 10
minutes. If the connector is un-
plugged before this time elap-
ses, the socket is disconnected
and cannot be used again until
the ignition is switched on again.
Flashing red
light: There is an anomaly, e.g. dis-
connection due t
o a curr

ent
surge or overheating. Disconnection due to overheating
When the t
emper

ature exceeds a certain val-
ue, the 230 volt socket inverter is automati-
cally disconnected. The disconnection pre-
vents overheating when the power consump-
tion of the connected devices is excessive or
the ambient temperature is very high. The
230-volt power supply can be used once
again after a cooling time. First unplug the
connector of the connected device and then
plug it back in again. This prevents the elec-
trical device from being switched on again if
this is not wanted. WARNING
The electrical system is under high voltage!

Air conditioning
Radio-operated remote control Fig. 151
Auxiliary heating: radio-operated re-
mot e contr
ol. Fig. 151
Swit

ch the auxiliary heater on
Switch the auxiliary heater off
Control lamp
If the buttons of the remote control are press-
ed unnecessarily, it could switch on the auxili-
ary heater involuntarily, even when it is out of
range or when the control lamp is flashing.
To switch on and off the independent heating,
the button must be pressed and held for ap-
proximately 1 second.
Control lamp on the remote control
When the buttons are pressed, the control
lamp on the remote control 1 provides the
user with diff er

ent information:


1 It lights up for approx. 2 seconds
