warning light Seat Leon 2020 User Guide

Operation
7. Always take the vehicle key with you when you l eav
e the vehicle.
All turn signals flash simultaneously when the
hazard warning lights are switched on. The
two turn signal turn signal lamps   and the
turn signal lamp in the switch  will flash at
the same time. The simultaneous hazard
warning lights also work when the ignition is
switched off.
Emergency braking warning
If the vehicle brakes suddenly and continu-
ously at a speed of more than 80 km/h (50
mph), the brake light flashes several times per
second to warn the vehicles driving behind. If
you continue braking, the hazard warning
lights will come on automatically when the
vehicle comes to a standstill. They switch off
automatically when the vehicle starts to
move again. WARNING

Operation
USB power sockets
Depending on the equipment and the coun-
try, the v ehicl
e may also have USB connec-
tions exclusively for charging or as a power
socket.
These USB ports are located at the rear of
the console, between the front seats . These
connectors can work at a maximum power of
up to 10.5 W per port.
They are not intended for file playback.
230 volt power socket*
With the engine running, the power socket
››› Fig. 148 activates automatically as soon
as a connector is plugged in. If there is
enough power available, the socket can still
be used while the engine is off ››› Connect an electrical device: Open the co
v-
er and insert the plug int
o the power socket
as far as possible to unlock the built-in child
lock. The socket only supplies power once
the child lock is unlocked. LED on the power socket
Steady green
light: The childproof lock is unlocked.
The sock
et is r

eady to operate. LED on the power socket
Flashing green
light: The ignition is switched off, but
ther
e is enough po

wer available
to continue supplying the socket
with current for a maximum of 10
minutes. If the connector is un-
plugged before this time elap-
ses, the socket is disconnected
and cannot be used again until
the ignition is switched on again.
Flashing red
light: There is an anomaly, e.g. dis-
connection due t
o a curr

ent
surge or overheating. Disconnection due to overheating
When the t
emper

ature exceeds a certain val-
ue, the 230 volt socket inverter is automati-
cally disconnected. The disconnection pre-
vents overheating when the power consump-
tion of the connected devices is excessive or
the ambient temperature is very high. The
230-volt power supply can be used once
again after a cooling time. First unplug the
connector of the connected device and then
plug it back in again. This prevents the elec-
trical device from being switched on again if
this is not wanted. WARNING
The electrical system is under high voltage!

Driving
level. The rest is kept until the end of the
journey.
The Int elligent Hybrid
App allows the user to
save electrical energy until reaching home
(charging point) with just “one click”. If this
option is not selected, the maximum amount
of electrical energy will be consumed until
the selected destination is reached. If the
user has no active route, the function will offer
the activation of a predictive route and BMA
mode from the widget itself with just one
click.
Show the active operating mode
The operating mode active at any given time
is displayed on the instrument cluster display,
e.g. B. WARNING
Switching to a different operating mode
whil e driving can distr

act you from traffic
conditions and cause accidents. Note
Information about the operating mode that
is curr ently activ

e is displayed on the in-
strument cluster display, along with the
charge level of the high-voltage battery. Troubleshooting
@
The E-MODE oper
ating mode is not
av
ailable
The indicator lamp lights up in white.
The E-MODE operating mode N (driving in
electric mode) cannot be used temporarily
because one or more conditions are not met.

Driving
 – P
arking l ock
When the P button is pressed, the drive
wheels are locked. Only press P when the ve-
hicle is stationary ››› .
T o pr

ess the P button you must press the
brake pedal simultaneously.
 – Reverse gear
Reverse gear must be engaged only when
the vehicle is stationary and the engine is
idling ››› .
T o engage r

everse gear R, you must press the
brake pedal simultaneously. The reverse
lights switch on when the reverse gear R is
selected and the ignition is on.
 – Neutral
In this position, the gear is in neutral.
Press the brake pedal to move the lever from
N to D/S when the vehicle is stationary or at
speeds below 3 km/h (2 mph) ››› .
 – P
ermanent f

orward drive position
The D/S position enables the gears to be op-
erated in normal mode (D) or sport mode (S).
To select Sport mode S, move the lever back-
wards. Pushing the lever again will select nor-
mal mode D. The selected driving mode is
displayed on the instrument panel screen.
In normal mode (D), the gearbox selects the
best gear ratio. This depends on the engine load, the road speed and the dynamic gear
control pr

ogramme (DCP).
Sport mode (S) should be selected for a
sporty driving style. This setting makes use of
the engine's maximum power output. When
accelerating the gear shifts will be noticea-
ble.
Under certain circumstances (e.g. on moun-
tain roads) it can be advantageous to switch
tiptronic mode ››› page 231
, to adapt the
gears to suit the road conditions.
Selector lever lock
In N, the lever lock prevents a gear range
from being engaged, and prevents the vehi-
cle from moving off accidentally.
Press and hold the brake pedal with your left
foot with the engine running.
As a reminder to the driver, when the lever is
in position N the following indication will be
shown on the screen:
When stationary, apply footbrake
while selecting a gear.
The lever is not locked if it is moved quickly
through position N (e.g. when shifting from R
to D). This makes it possible, for instance, to
“rock the vehicle backwards and forwards” if
it is stuck in snow or mud. The lever lock en-
gages automatically if the brake pedal is not
pressed and the lever is in position N for more than about one second at a speed of less
than 5 km/h (3 mph). WARNING

Driving
Steering Inf ormation r
elating to different ve-
hicle processes. Electro-mechanical power steering adapts
el
ectr

onically to the speed of the car, torque
and steering angle.
Even if the power steering fails or the engine
is stopped, it is possible to continue to rotate
the steering wheel as long as the key remains
in the ignition, but more force must be ap-
plied.
Progressive steering
Depending on the vehicle’s features, it may or
may not incorporate a progressive steering
system.
In city traffic you do not need to turn so much
on parking, manoeuvring or in very tight turns.
On the road or on the motorway, progressive
steering transmits, for example, in bends, a
sportier, more direct and noticeably more dy-
namic driving sensation. Control lamp v
It lights up red
Faulty steering.
Do not continue driving, stop the v
ehicle as soon as
possible and in a safe manner.
Take the vehicle to a specialised workshop and have
the fault repaired as soon as possible. v
It lights up yellow
Limited steering operation.
Driv e car

efully to a specialised workshop to have the
steering checked.
If the warning light does not come on again after re-
starting the engine and driving a short distance, it is
not necessary to check the steering.
OR: The 12-v olt batt
ery was disconnected and re-
connected.
Drive a short distance at 15-20 km / h (9-12 mph). v
It flashes yellow
The steering column is jammed.
When st opped, t

urn the steering wheel in both direc-
tions.
OR: The st eering column does not unlock or lock.
T
urn off the ignition and turn it on again. Consider the
messages shown on the instrument panel display.
Do not continue driving if the steering column re-
mains locked after switching on the ignition. Seek
specialist assistance. The control lamp should light up for a few
seconds when the ignition is s
wit

ched on. It
should go out once the engine is started. WARNING
Never ignore the warning lamps or messag-
es.

Driving
Note
If the lane departure warning with rear
cr oss tr
affic alert does not work as descri-
bed in this chapter, stop using it and con-
tact a specialised workshop. Control lamp
Fig. 188
Control lamp of the lane departure
w arning. Fig. 189
Control lamp of the lane departure
w arning. It lights up
It turns on once briefly: the lane departure warning is
activ at

ed and ready to operate, i.e. when activating
the system.
It lights up continuously: the lane departure warning
has det ect

ed a vehicle in the blind spot. Flashes
A vehicle has been detected in the adjacent lane and
the t urn signal has been engaged in the dir

ection of
the detected vehicle

Driver assistance systems
Lane departure warning (Side As-
sist) The lane departure warning uses radar sen-
sors t
o monit
or the areas behind the vehicle
››› page 9. The system does this by measur-
ing the vehicle's distance from other vehicles
and its speed differential. The lane departure
warning will not work at speeds of less than
approx. 15 km/h (9 mph).
The lane width is not detected individually,
but is rather pre-configured in the system.
Thus if you are driving in wide lanes or in be-
tween two lanes, the indications may be in-
correct. Furthermore, the system can detect
vehicles driving in the lane next to you (if
there are any), and can also detect station-
ary objects such as dividers, and thus give an
incorrect indication.
Light indication
The control lamp provides an indication on
the corresponding side regarding the traffic
situation behind the vehicle, if it is deemed to
be critical. The control lamp of the left-hand
side ››› Fig. 188
indicates the traffic situation
to the rear left of the vehicle, and the control
lamp of the right-hand side ››› Fig. 189
, indi-
cates the traffic situation to the rear right of
the vehicle. Keep the warning lamps zone of the lane de-
part
ur

e warning free of objects, adhesives or
the likes that may interfere with your visibility.
Lane assist Plus. The Lane Assist Plus function can be used by
activ
ating the

Lane Assist ››› page 261
and
Side Assist functions. In this case its functions
are expanded as described below.
If the driver initiates a lane change manoeu-
vre in a potential critical situation:

Driving
system itself, the rear and side environment of
the v ehicl
e using the rear sensors
››› page 242. It detects moving objects that
approach from behind, such as cars
››› Fig. 193.
If a critical situation is detected when the
door is opened, it will be alerted by an acous-
tic signal on the door speaker of the corre-
sponding side ››› Fig. 194
. Additionally, the
control lamp of the lane departure warning of
the corresponding door will flash. If the door
has already been opened and another road
user has been detected in a critical situation,
the control lamp of the lane departure warn-
ing on the corresponding side will light up
permanently.
The brightness of the door opening warning
indication cannot be adjusted.
When you want to access the vehicle for the
first time, with the doors closed and locked,
the function will be available 3 minutes after
the first opening of any of the doors. The
function will continue to be available as long
as the vehicle has the ignition connected and
is not moving.
After switching off the ignition, the function
will remain available for approximately 3 mi-
nutes. After that time, the control lamps will
light up indicating the deactivation of the
function. WARNING

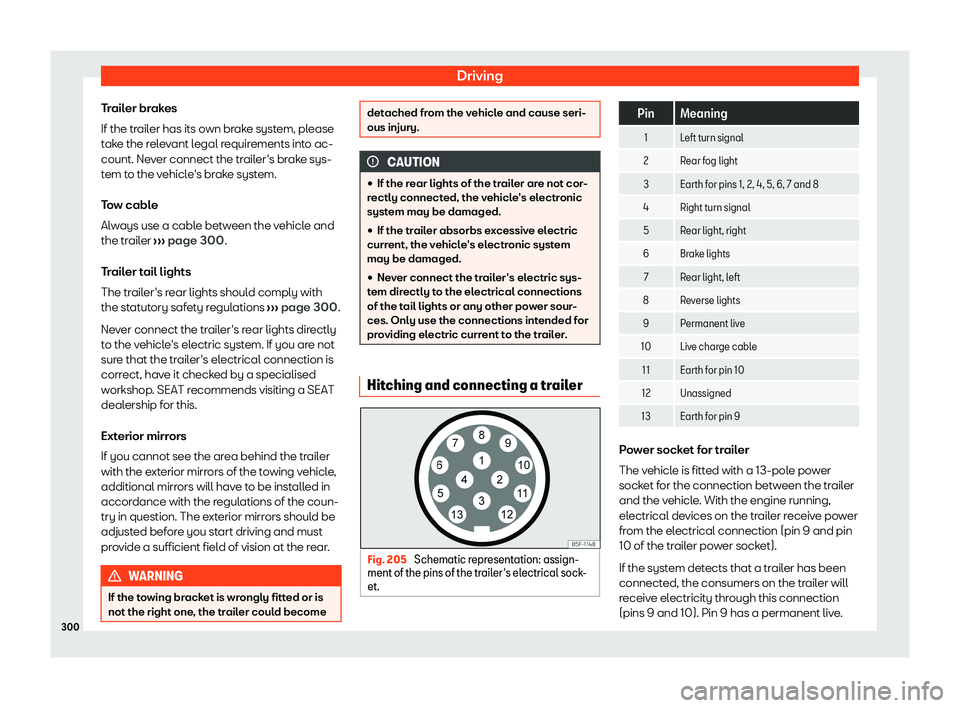

Driving
Trailer brakes
If the tr ail
er has its own brake system, please
take the relevant legal requirements into ac-
count. Never connect the trailer's brake sys-
tem to the vehicle's brake system.
Tow cable
Always use a cable between the vehicle and
the trailer ››› page 300
.
Trailer tail lights
The trailer's rear lights should comply with
the statutory safety regulations ››› page 300
.
Never connect the trailer's rear lights directly
to the vehicle's electric system. If you are not
sure that the trailer's electrical connection is
correct, have it checked by a specialised
workshop. SEAT recommends visiting a SEAT
dealership for this.
Exterior mirrors
If you cannot see the area behind the trailer
with the exterior mirrors of the towing vehicle,
additional mirrors will have to be installed in
accordance with the regulations of the coun-
try in question. The exterior mirrors should be
adjusted before you start driving and must
provide a sufficient field of vision at the rear. WARNING
If the towing bracket is wrongly fitted or is
not the right one , the tr

ailer could become detached from the vehicle and cause seri-
ous injury.
CAUTION

High-voltage battery
Charging cable for power sockets  V
alid for: hybrid vehicles Fig. 215
Charging cable for electrical sockets Fig. 216
On the charging cable for power
sock ets: Indicat
or lamps on the protection de-
vice. ›››
Fig. 2
16
:
Indicator lamp of the connector and the
power supply.
Control lamp of the protection device
1 2 Control lamp of the vehicle
F
ailur

e warning lamp
Charging cable information
Before using the charging cable, also follow
the instructions displayed on it and on the
rear of the protective device.
Protection device
The electronic protection device ››› Fig. 216
ensures that the charging connector does
not receive current until it is plugged in to the
vehicle's charging connector.
Self-check
When the charging cable is plugged into the
electrical socket, the protective device auto-
matically performs a self-test. During this
check, all warning and indicator lamps turn
on briefly and go out one after the other.
Upon completion, the operational status at
that time is displayed.
Operating displays
One or more indicator lamps ››› Fig. 216
1 ,
2 or
3 light up green.
3 4 Display
