Wheels and tyres
224Changing wheels around
If the front tyres are worn considerably more than the rear ones it is advisable
to change them around as shown ⇒page 223, fig. 152. All the tyres will then
last for about the same time.
Wheel balance
The wheels on new vehicles are balanced. However, various factors encoun-
tered in normal driving can cause them to become unbalanced, which results
in steering vibration.
Unbalanced wheels should be rebalanced, as they otherwise cause excessive
wear on steering, suspension and tyre s. A wheel must also be rebalanced
when a new tyre is fitted.
Incorrect wheel alignment
Incorrect wheel alignment causes excessiv e tyre wear, impairing the safety of
the vehicle. If tyres show excessive wear, you should have the wheel align-
ment checked by an Authorised Service Centre.
WARNING
There is a serious danger of accidents if a tyre bursts during driving!•
The tyres must be replaced at the latest when the tread is worn down to
the tread wear indicators. Failure to do so could result in an accident. Worn
tyres do not grip well at high speeds on wet roads. There is also a greater
risk of “aquaplaning”.
•
At continuously high speeds, a tyre with insufficient pressure flexes
more. This causes it to overheat. This can cause tread separation and tyre
blow-out. Risk of accident. Always observe the recommended tyre pres-
sures.
•
If tyres show excessive wear, you should have the running gear checked
by an Authorised Service Centre.
•
Keep chemicals such as oil, fuel and brake fluid away from tyres.
•
Damaged wheels and tyres must be replaced immediately!
For the sake of the environment
Under-inflated tyres will increase fuel consumption.Puncture proof tyres
Anti-puncture tyres allow you to continue driving even with a
punctured tyre, in the majority of cases.Vehicles that are factory-fitted with puncture proof tyres
21)
indicate
on the instrument panel when there is a loss of tyre pressure.
Driving with anti-puncture tyres (emergency gear)
– Leave the ESP/TCS (electronic stabilisation programme) switched on, or switch on ⇒page 173.
– Continue driving carefully and slowly (80 km/h maximum).
– Avoid sudden manoeuvres and sharp turns.
– Avoid driving over obstacles (for example kerbs) or potholes.
– Look out for the ESP/TCS intervening often, smoke coming from the tyres or the smell of rubber, the vehicle vibrating or a clat-
tering noise. If any of these occur, stop the vehicle.
The anti-puncture tyres have a tag on the side of the tyre, with the description:
“DSST”, “Eufonia”, “RFT”, “ROF”, “RSC”, “SSR” or “ZP”.
The sides of this type of tyre are reinforced. When the tyres lose air they are
supported on the sides (emergency driving).21)Depending upon version and country.
leon ingles.book Seite 224 Dienst ag, 11. September 2007 1:47 13

If and when239
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Note
The compressor should never be allowed to run for longer than 6 minutes.FusesChanging a fuse
If a fuse has blown it must be replaced
Fuse cover underneath the steering wheel
– Switch off the ignition and the component concerned.
– Identify the fuse for the failed component ⇒page 241.
– Take the plastic clip from inside the fuse cover, fit it onto the
blown fuse and pull the fuse out.
– Replace the blown fuse (which will have a melted metal strip) with a new fuse of the same ampere rating.
Fuse cover in engine compartment
– Switch off the ignition and the component concerned.
– Prise off the fuse cover in the engine compartment by pressing the tabs towards the centre of the cover ⇒fig. 161.
– Identify the fuse for the failed component ⇒page 241.
Fig. 160 Left side of dash
panel: Fuse box cover
Fig. 161 Fuse box cover
in engine compartment
leon ingles.book Seite 239 Dienst ag, 11. September 2007 1:47 13

If and when241
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Fuses on left side of dash panelFuses
Number Consumer Amperes
1 Diagnosis Switchboard/Instrument lights / Headlights switchboard/ Flowmeter/ Heated wipers 10
2 Engine control unit/ ABS-ESP switch
board/ Automatic gearbox/ Instrume nt panel/ Trailer switchboard/
Light switch / Brake sensor/ Power steering/ Right and left headlights 5
3 A ir b ag 5
4 Heating/ Reverse switch/ ASR-ESP switch/ Telephone/ Nozzles/ Electrochrome anti-dazzle mirror/ Tom-
tom navigator 5
5 Right xenon headlight 5
6 Left xenon headlight 5
7 Vacant
8 Vacant
9 Vacant
10 Vacant
11 Vacant
12 Central locking 15
13 Diagnosis/ Lights switch/ Rain sensor 10
14 Automatic gearbox / Heating/ ESP switchboard/ Automatic gearbox lever 5
15 Cable control unit 7,5
16 Vacant
17 Alarm 5
18 Vacant
19 Vacant
20 Vacant
leon ingles.book Seite 241 Dienst ag, 11. September 2007 1:47 13

If and when243
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Some of the electrical items listed in
the table are only fitted on certain
models or are optional extras. Please note that the above list, while correct at the time of printing, is subject
to alterations. If discrepancies should occur, please refer to the sticker on the
inside of the fuse cover for the correct information for your model.
Fuses layout, engine compartment, left partFuses45
Trailer bracket preinstallation 15
46 Vacant
47 Engine management 10
48 Engine management 10
49 Vacant
Number
Consumer Amperes
NumberConsumer Amperes
1 Clean 30
2 Steering column 5
3 Cable control unit 5
4A BS 30
5 AQ gearbox 15
6 Instrument panel 5
7 Vacant
8R ad io 15
9 Telephone/TomTom Navigator 5
leon ingles.book Seite 243 Dienstag, 11. September 2007 1:47 13

If and when245
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Position in engine compartment: Side boxFuses
Some of the electrical items listed in the table are only fitted on certain
models or are optional extras.
Please note that the above list, while correct at the time of printing, is subject
to alterations. 28
Ignition key 40
29 Electric windows (front and back)
50
Electric windows (front) 30
30 Ignition key 40
Number Consumer Amperes
B1 Alternator < 140 W
150
Alternator > 140 W 200
C1 Power steering servo 80
D1 Multi-terminal voltage supply “30”. Internal fuse box 100
E1 Ventilator < 500 W / Ventilator > 500 W 50 / 80
F1 PTCs (Supplementary electrical heating using air) 80
G1 PTC (Supplementary electrical heating using air) 40
H1 Central locking control unit
Number
Consumer Amperes
leon ingles.book Seite 245 Dienstag, 11. September 2007 1:47 13

If and when
258To w i n g a n d t o w - s t a r t i n gTo w - s t a r t i n g
The use of jump leads is preferable to tow-starting.We recommend that you do not t o w - s t a r t yo u r v e h i c l e . J u m p - s ta r t i n g
is preferable ⇒page 255.
However, if your vehicle has to be tow-started:
– Engage the 2
nd or the 3
rd gear.
– Keep the clutch pressed down.
– Switch on the ignition.
– Once both vehicles are moving, release the clutch.
– As soon as the engine starts, press the clutch and move the gear lever into neutral. This helps to prevent driving into the towing
vehicle.
WARNING
The risk of accidents is high when tow-starting. The vehicle being towed
can easily collide with the towing vehicle.
Caution
When tow-starting, fuel could enter the catalytic converter and damage it.
CommentsPlease observe the following points if you use a tow-rope:
Notes for the driver of the towing vehicle
– Drive slowly at first until the tow-rope is taut. Then accelerate gradually.
– Begin and change gears cautiously. If you are driving an auto- matic vehicle, accelerate gently.
– Remember that the brake servo and power steering are not working in the vehicle you are towing. Brake earlier than you
would normally, but with a more gentle pressure on the brake.
Notes for the driver of the towed vehicle
– Ensure that the tow-rope remains taut at all times when towing.Tow-rope or tow-bar
It is easier and safer to tow a vehicle with a tow-bar. You should only use a
tow-rope if you do not have a tow-bar.
A tow-rope should be slightly elastic to reduce the loading on both vehicles.
It is advisable to use a tow-rope made of synthetic fibre or similarly elastic
material.
Attach the tow-rope or the tow-bar only to the towing eyes provided or a
towing bracket.
Driving style
Towing requires some experience, espec ially when using a tow-rope. Both
drivers should be familiar with the te chnique required for towing. Inexperi-
enced drivers should not attempt to tow-start or tow away another vehicle.
leon ingles.book Seite 258 Dienst ag, 11. September 2007 1:47 13

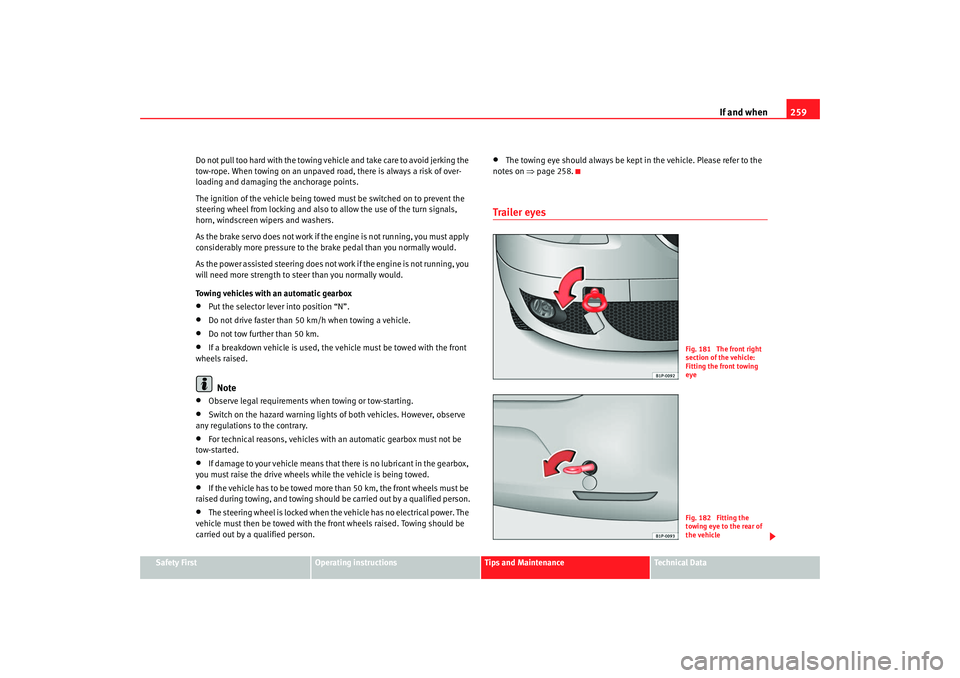

If and when259
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Do not pull too hard with the towing vehi
cle and take care to avoid jerking the
tow-rope. When towing on an unpaved road, there is always a risk of over-
loading and damaging the anchorage points.
The ignition of the vehicle being towed must be switched on to prevent the
steering wheel from locking and also to allow the use of the turn signals,
horn, windscreen wipers and washers.
As the brake servo does not work if th e engine is not running, you must apply
considerably more pressure to the brake pedal than you normally would.
As the power assisted steering does not wo rk if the engine is not running, you
will need more strength to steer than you normally would.
Towing vehicles with an automatic gearbox
•
Put the selector lever into position “N”.
•
Do not drive faster than 50 km/h when towing a vehicle.
•
Do not tow further than 50 km.
•
If a breakdown vehicle is used, the vehicle must be towed with the front
wheels raised.Note
•
Observe legal requirements when towing or tow-starting.
•
Switch on the hazard warning lights of both vehicles. However, observe
any regulations to the contrary.
•
For technical reasons, vehicles with an automatic gearbox must not be
tow-started.
•
If damage to your vehicle means that there is no lubricant in the gearbox,
you must raise the drive wheels while the vehicle is being towed.
•
If the vehicle has to be towed more than 50 km, the front wheels must be
raised during towing, and towing should be carried out by a qualified person.
•
The steering wheel is locked when the vehicle has no electrical power. The
vehicle must then be towed with the front wheels raised. Towing should be
carried out by a qualified person.
•
The towing eye should always be kept in the vehicle. Please refer to the
notes on ⇒page 258.
Trailer eyes
Fig. 181 The front right
section of the vehicle:
Fitting the front towing
eyeFig. 182 Fitting the
towing eye to the rear of
the vehicle
leon ingles.book Seite 259 Dienst ag, 11. September 2007 1:47 13

Index293
Convenience closing
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 110
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Convenience opening Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 64
Coolant Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Coolant level warning light . . . . . . . . . . . . . . . . . . . . . . . . . 75
Coolant Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Coolant temperature Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Safety instructions . . . . . . . . . . . . . . . . . . . . . 76
Cruise control system . . . . . . . . . . . . . . . . . . . . 167 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 77
Cruise control* Turning off the cruise control system . . . . . 169
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 42DDanger of fitting a child seat on the front passenger seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Diesel engine Winter driving . . . . . . . . . . . . . . . . . . . . . . . . 204
Diesel engine particulate filter* . . . . . . . . . . . . 179 Differential lock . . . . . . . . . . . . . . . . . . . . . . . . . 174
Differential lock fault (EDL)
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 79
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Dipped headlights . . . . . . . . . . . . . . . . . . . . . . . 112
Disabling front passenger airbag Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Disabling the airbag Disabling front passenger airbag . . . . . . . . . 44
Display (without warning or information texts) . 59
Displays in the Mult i-function display
Memory displays . . . . . . . . . . . . . . . . . . . . . . 62
Door lock cylinders . . . . . . . . . . . . . . . . . . . . . . 194
Door release lever . . . . . . . . . . . . . . . . . . . . . . . . 55
Doors Childproof locks . . . . . . . . . . . . . . . . . . . . . . . 98
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 82
Drive wheels traction control system . . . . . . . . 172
Driving Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 179
Economically / With Respect for the Environment . . . . . . . . . . . . . . . . . . . . . . . 183
With a trailer . . . . . . . . . . . . . . . . . . . . . . . . . 187
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . 179 Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Driving economically . . . . . . . . . . . . . . . . . . . . . 183
Driving programmes . . . . . . . . . . . . . . . . . . . . . 160
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Driving with an automati c gearbox / DSG automatic
gearbox* . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Driving with respect for the environment . . . . . 183 Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Dynamic headlight range control . . . . . . . . . . . 115
EEDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
EDS
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 78
Electric steering system warning light . . . . . . . . . . . . . . . . . . . . . . . . . 82
Electrical sockets . . . . . . . . . . . . . . . . . . . . . . . . 136
Electronic differential lock . . . . . . . . . . . . . . . . 174 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 78
Electronic immobiliser . . . . . . . . . . . . . . . . 83, 155 warning message . . . . . . . . . . . . . . . . . . . . . 64
Electronic stabilisation program . . . . . . . . . . . 173
Electronic stabilisation programme . . . . . . . . . . 81 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 154
Electronic stabilisation programme (ESP) warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 81
emergency manual locking . . . . . . . . . . . . . . . . . 96
Emergency opening Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Emission control system warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 81
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Engine compartment Working in the engine compartment . . . . . 204
leon ingles.book Seite 293 Dienst ag, 11. September 2007 1:47 13

Index
296PPaintwork
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Waxing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Parts replacement . . . . . . . . . . . . . . . . . . . . . . . 199
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 55
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202 Trips to foreign countries . . . . . . . . . . . . . . 179
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . 203
Petrol engines, starting . . . . . . . . . . . . . . . . . . 155
Physical principles of a frontal collision . . . . . . 21
Plastic key tab . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Pollen filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Puncture proof tyres . . . . . . . . . . . . . . . . . . . . . 224RRadio frequency remote control Changing the battery . . . . . . . . . . . . . . . . . 101
Radio navigation St eering wheel controls
audio + telephone version . . . . . . . . . . . . . . 88
audio version . . . . . . . . . . . . . . . . . . . . . . . . . 88
Radio wave remote control . . . . . . . . . . . . . . . . 100
Rain sensor* . . . . . . . . . . . . . . . . . . . . . . . . . . . 122 Rear fog light
Indication lamp . . . . . . . . . . . . . . . . . . . . . . 112
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 76
Rear interior lights . . . . . . . . . . . . . . . . . . . . . . 119
Rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Rear reading lights . . . . . . . . . . . . . . . . . . . . . . 119
Rear seat bench . . . . . . . . . . . . . . . . . . . . . . . . . 131
Rear window heating Heating element wires . . . . . . . . . . . . . . . . 194
Rear window wiper . . . . . . . . . . . . . . . . . . . . . . 123
Rear-view mirror . . . . . . . . . . . . . . . . . . . . . . . . 124
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Registration light . . . . . . . . . . . . . . . . . . . . . . . . 254
Remote control key Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Synchronising . . . . . . . . . . . . . . . . . . . . . . . 101
Removing and fitting the wheel . . . . . . . . . . . . 236
Repairs Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Replacement keys . . . . . . . . . . . . . . . . . . . . . . . . 99
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Reverse gear Manual gearbox . . . . . . . . . . . . . . . . . . . . . 158
RME fuel (biodiesel) . . . . . . . . . . . . . . . . . . . . . 203
Roll-back function Sliding/tilting roof . . . . . . . . . . . . . . . . . . . 110
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Roof aerial* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Roof carrier* . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Rubber seals . . . . . . . . . . . . . . . . . . . . . . . . . . . 194 Running in
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . 178
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Running in tyres . . . . . . . . . . . . . . . . . . . . . . . . 178
SSafe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety instructions Coolant temperature . . . . . . . . . . . . . . . . . . . 76
Safety notes Belt tension devices . . . . . . . . . . . . . . . . . . . 28
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 42
Disabling front passenger airbag . . . . . . . . 45
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 37
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 40
Using child seats . . . . . . . . . . . . . . . . . . . . . 47
Using seat belts . . . . . . . . . . . . . . . . . . . . . . 23
Safety system- safe . . . . . . . . . . . . . . . . . . . . . . . 93
Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Seat adjustment . . . . . . . . . . . . . . . . . . . . 127, 130
Seat belt position Pregnant women . . . . . . . . . . . . . . . . . . . . . . 26
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Seat belt release . . . . . . . . . . . . . . . . . . . . . . . . . 27
Seat belt warning lamp . . . . . . . . . . . . . . . . . . . . 19
leon ingles.book Seite 296 Dienst ag, 11. September 2007 1:47 13

Index297
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Incorrectly fastened . . . . . . . . . . . . . . . . . . . . 28
Not worn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 19
Seat belts protect . . . . . . . . . . . . . . . . . . . . . . . . 23
Seat heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Selective opening* . . . . . . . . . . . . . . . . . . . . . . . 94
Selector lever locking . . . . . . . . . . . . . . . . . . . . 160
Selector lever positions . . . . . . . . . . . . . . . . . . . 159
Self directional headlights . . . . . . . . . . . . . . . . 115
Service interval display . . . . . . . . . . . . . . . . . . . . 60
servotronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Shoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Sitting position Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Front passenger . . . . . . . . . . . . . . . . . . . . . . . 11
Incorrect sitting position . . . . . . . . . . . . . . . . 15
Passengers . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Sitting position, occupants . . . . . . . . . . . . . . . . . 10
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . . . . 109
Snow chains . . . . . . . . . . . . . . . . . . . . . . . 228, 265 Soot accumulation in the
diesel engine particulate
filter *
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Starting Petrol engines . . . . . . . . . . . . . . . . . . . 156
Starting the engine . . . . . . . . . . . . . . . . . 155, 156 After the fuel tank has been run dry . . . . . . 157
Steam cleaners . . . . . . . . . . . . . . . . . . . . . . . . . 192
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152 Steering lock . . . . . . . . . . . . . . . . . . . . . . . . 154
Steering wheel audio controls audio + telephone version . . . . . . . . . . . . . . 84
audio version . . . . . . . . . . . . . . . . . . . . . . . . . 84
Steering wheel controls Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Steering wheel height adjustment . . . . . . . . . . 152
Stowage area Other stowage areas . . . . . . . . . . . . . . . . . . 134
Stowage compartment Front passenger side . . . . . . . . . . . . . . . . . . 132
Stowage compartments Front left hand side seat . . . . . . . . . . . . . . . 133
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Sunroof blind Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 109
Switch Hazard warning lights . . . . . . . . . . . . . . . . . 116 Switches
Electric windows . . . . . . . . . . . . . . . . . . . . . 106
Electrical exterior mirrors . . . . . . . . . . . . . . 125
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 109
Switching off the engine . . . . . . . . . . . . . . . . . . 157
TTailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104 Emergency opening . . . . . . . . . . . . . . . . . . . 105
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 82
Tank fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
reserve indicator . . . . . . . . . . . . . . . . . . . . . . 57
tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . 57
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
TCS (Traction control system) Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 79
The danger of not using the seat belt . . . . . . . . 22
Tightening torque of wheel bo lts . . . . . . . . . . . 265
To fold down the seat back . . . . . . . . . . . . . . . . 131
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Tow starting Comments . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . 264
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 187
Towing bracket, fitting . . . . . . . . . . . . . . . . . . . 188
Towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
leon ingles.book Seite 297 Dienst ag, 11. September 2007 1:47 13
