If and when
242
21 Engine management 10
22 Blower control 40
23 Electric windows (front) 30
24 Vacant
25 Rear window heater 25
26 Rear electric windows 30
27 Engine (fuel control unit/pump relay) 15
28 Convenience controls 25
29 Vacant
30 Automatic gearbox 20
31 Vacuum pump 20
32 Vacant
33 Sunroof 30
34 Convenience controls 25
35 Vacant
36 Headlight washer system 20
37 Heated seats 30
38 Engine management 10
39 Vacant
40 Blower control 40
41 Rear wiper motor / Switchboard wiring 15
42 12 V socket/ Cigarette lighter 15
43 Trailer bracket preinstallation 15
44 Trailer bracket preinstallation 20
Number
Consumer Amperes

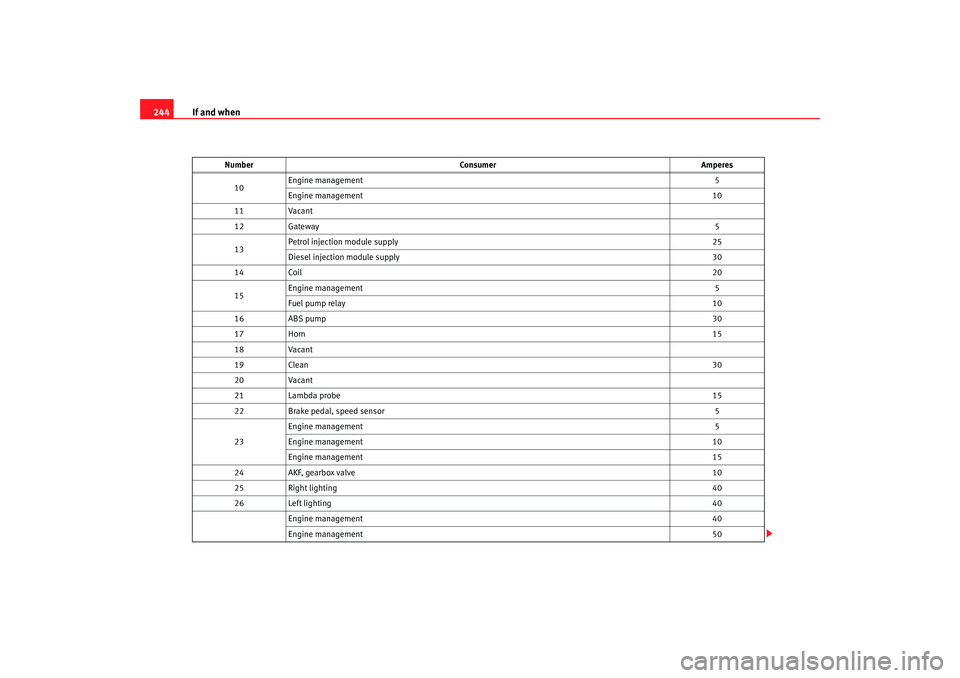

leon ingles.book Seite 242 Dienstag, 11. September 2007 1:47 13

If and when
244
10 Engine management
5
Engine management 10
11 Vacant
12 Gateway 5
13 Petrol injection module supply
25
Diesel injection module supply 30
14 Coil 20
15 Engine management
5
Fuel pump relay 10
16 ABS pump 30
17 Horn 15
18 Vacant
19 Clean 30
20 Vacant
21 Lambda probe 15
22 Brake pedal, speed sensor 5
23 Engine management
5
Engine management 10
Engine management 15
24 AKF, gearbox valve 10
25 Right lighting 40
26 Left lighting 40
Engine management 40
Engine management 50
Number
Consumer Amperes
