Checking and refilling levels
208•
Wait until no more steam, smoke or coolant is emitted from the bonnet,
then carefully open the bonnet.
•
When working in the engine compartment, always observe the safety
warnings ⇒ page 205.
Closing the bonnet– Raise the bonnet slightly.
– Release the bonnet stay and replace it in its support.
– At a height of about 30 cm let it fall so it is locked.If the bonnet does not close, do not press downwards. Open it once more and
let it fall as before.
WARNING
If the bonnet is not closed properly, it could open while you are driving and
completely obscure your view of the road. Risk of accident.•
After closing the bonnet, always check that it is properly secured. The
bonnet must be flush with the surrounding body panels.
•
If you notice that the bonnet latch is not secured when the vehicle is
moving, stop the vehicle immediately and close the bonnet properly. Risk
of accident.
Engine oilEngine oil specifications
The engine oil used must conform with exact specifications.Specifications
The engine comes with a special, high quality, multi grade oil that can be
used in all seasons of the year except for those regions affected by extreme
cold.
As the use of high quality oil is essential for the correct operation of the
engine and its long useful life, when topping up or replacement is necessary
use only those oils that conform to the requirements of the VW standards.
If it is not possible to find oil conforming to the VW standards then oil
conforming to the ACEA or API standards with an appropriate viscosity at
atmospheric temperature should be used in stead. The use of this type of oil
may have some repercussions on the performance of the engine for example,
long starting time, increased consumption and a higher emission level.
If a top up is required then different oils may be mixed as long as they all
conform to the VW standards.
The specifications (VW standards) set out in the following page should
appear on the container of the service oil; the container will display together
the different standards for petrol and diesel engines, the oil can be used for
both types of engines.
WARNING (continued)
leon_ingles Seite 208 Montag, 26. Januar 2009 4:29 16

Checking and refilling levels
214•
When the engine is warm or hot, th e cooling system is pressurised! Do
not unscrew the cap on the expansion t ank when the engine is hot. This is
a burn injury risk.Caution
•
When mixed with other additives the colour of G 12 will change to brown.
If this occurs you should have the coolant changed immediately. Failure to do
so will result in engine damage!
•
If a lot of coolant has been lost, wait for the engine to cool down before
putting in cold coolant. This avoids damaging the engine. Large coolant
losses are an indication of leaks in the cooling system. See a specialised
workshop immediately and have the cooling system checked. Otherwise,
there is a risk of engine damage.
Washer fluid and windscreen wiper bladesTopping up washer fluid

The water for cleaning the windscreen should always be
mixed with washer fluid.The windscreen washer and the headlight washing system are supplied with
fluid from the windscreen washer flui d container in the engine compartment.
The reservoir is located on the right-hand side of the engine compartment.
Plain water is not enough to clean the windscreen and headlights. We recom-
mend that you always add a product to the windscreen washer fluid.
Approved windscreen cleaning products exist on the market with high deter-
gent and anti-freeze properties, these may be added all-year-round. Please
follow the dilution instructions on the packaging.
WARNING (continued)
Fig. 142 In the engine
compartment: Cap of
windscreen washer fluid
reservoir.
leon_ingles Seite 214 Montag, 26. Januar 2009 4:29 16

Checking and refilling levels217
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Removing the wiper blade
– Lift the wiper arm away from the glass ⇒ fig. 144.
– Slide the blade adapter in the direction of the arrow and remove the blade ⇒fig. 144.
Fitting the wiper blade
– With one hand, hold the top end of the wiper arm.
– Place the blade as shown in the ⇒fig. 145 and slide the adapter
along until it fits into place.Check the condition of the wiper blade regularly. Change as required.
If the windscreen wiper scrapes, it should be replaced if damaged, or cleaned
if soiled.
If this is not sufficient, refer to a qualified workshop.
WARNING
Do not drive unless you have good visibility through all windows!•
Clean the windscreen wiper blades and all windows regularly.
•
The wiper blades should be changed once or twice a year.Caution
•
A damaged or dirty window wiper could scratch the rear window.
•
Never use fuel, nail varnish remover, paint thinner or similar products to
clean the window.
•
Never move the windscreen wiper by hand. This could cause damage.
Brake fluidChecking the brake fluid level
The brake fluid is checked at the intervals given in the service
schedule.– Read off the fluid level at the transparent brake fluid reservoir. It should always be between the “MIN” and “MAX” marks.The position of the brake fluid reservoir is shown in the corresponding engine
compartment diagram ⇒page 263. The brake fluid reservoir has a black and
yellow cap.
The brake fluid level drops slightly when the vehicle is being used as the
brake pads are automatically adjusted as they wear.
Fig. 146 In the engine
compartment: Brake fluid
reservoir cover
leon_ingles Seite 217 Montag, 26. Januar 2009 4:29 16

Checking and refilling levels219
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
BatteryWarnings on handling the battery
WARNING
Always be aware of the danger of injury and chemical burns as well as the
risk of accident or fire when working on the battery and the electrical
system:•
Wear eye protection. Protect your eyes , skin and clothing from acid and
particles containing lead.
•
Battery acid is very corrosive and caustic. Wear protective gloves and
eye protection. Do not tilt the batteries. This could spill acid through the
vents. Rinse battery acid from eyes immediately for several minutes with
clear water. Then seek medical care immediately. Neutralize any acid
splashes on the skin or clothing with a soapy solution, and rinse off with
plenty of water. If acid is swallowed by mistake, consult a doctor immedi-
ately.
•
Fires, sparks, naked lights and smoking are prohibited. When handling
cables and electrical equipment, avoid causing sparks and electrostatic charge. Never short the battery terminals. High-energy sparks can cause
injury.
•
A highly explosive mixture of gases is released when the battery is
under charge. The batteries should be charged in a well-ventilated room
only.
•
Keep children away from acid and batteries.
•
Before working on the electrical system, you must switch off the
engine, the ignition and all consumers. The negative cable on the battery
must be disconnected. When a light bulb is changed, you need only switch
off the light.
•
Deactivate the anti-theft alarm by unlocking the vehicle before you
disconnect the battery! The alar m will otherwise be triggered.
•
When disconnecting the battery from the vehicle electrical system,
disconnect first the negative ca ble and then the positive cable.
•
Switch off all electrical consumers before reconnecting the battery.
Reconnect first the positive cable and then the negative cable. Never
reverse the polarity of the connections. This could cause an electrical fire.
•
Never charge a frozen battery, or one which has thawed. This could
result in explosions and chemical burns. Always replace a battery which
has frozen. A flat battery can freeze at temperatures around 0°
•
Ensure that the vent hose is always connected to the battery.
•
Never use a defective battery. This may be fatally explosive. Replace a
damaged battery immediately.Caution
•
Never disconnect the battery if the ignition is switched on or if the engine
is running. This could damage the electrical system or electronic compo-
nents.
•
Do not expose the battery to direct sunlight over a long period of time, as
the intense ultraviolet radiation can damage the battery housing.

Wear eye protection

Battery acid is very corrosive and caustic. Wear protective
gloves and eye protection!

Fires, sparks, naked lights and smoking are prohibited!

A highly explosive mixture of gases is released when the bat-
tery is under charge.

Keep children away from acid and batteries!
WARNING (continued)
leon_ingles Seite 219 Montag, 26. Januar 2009 4:29 16

If and when
240
Fuse cover underneath the steering wheel
– Switch off the ignition and the component concerned.
– Identify the fuse corresponding to the damaged electric consumer ⇒page 242.
– Take the plastic clip from inside the fuse cover, fit it onto the
blown fuse and pull the fuse out.
– Replace the blown fuse (which will have a melted metal strip) with a new fuse of the same ampere rating.
Fuse cover in engine compartment
– Switch off the ignition and its failed electrical component.
– Prise off the fuse cover in the engine compartment by pressing the tabs towards the centre of the cover ⇒page 239, fig. 157 .
– Identify the fuse for the failed component ⇒page 242.
– Take the plastic clip from inside the fuse cover (at left-hand end of the dash panel), fit it onto the blown fuse and pull the fuse out.
– Replace the blown fuse (which will have a melted metal strip) with a new fuse of the same ampere rating.
– Carefully fit the fuse cover back on to ensure no water can enter
the fuse box.The individual electrical circuits are pr otected by fuses. The fuses are located
behind a cover at the left-hand end of the dash panel and on the left-hand
side of the engine compartment. The electric windows are protected by circuit breakers
. These reset automat-
ically after a few seconds when the ov erload (caused for example by frozen
windows) has been corrected.
Fuses colour code
WARNING
Never “repair” damaged fuses and neve r replace them with fuses with a
higher rating. Failure to comply could result in fire. This could also cause
damage to other parts of the electrical system.
Note
•
If a newly replaced fuse blows again after a short time, the electrical
system must be checked by a qualifi ed workshop as soon as possible.
Colour
Amperes
light brown
5
Red
10
Blue
15
Yellow
20
Natural (white)
25
Green
30
orange
40
Red
50
white
80
Blue
100
grey
150
violet
200
leon_ingles Seite 240 Montag, 26. Januar 2009 4:29 16

Index
284Bulb defect
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 80
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116, 156CCar care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . 183
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . 91 Automatic locking system for involuntary unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Automatic speed dependent locking and un- locking system* . . . . . . . . . . . . . . . . . . . . . 93
Emergency unlocking system . . . . . . . . . . . . 93
Selective unlocking system* . . . . . . . . . . . . 92
Unlocking system* . . . . . . . . . . . . . . . . . . . . 93
Central locking button Central locking . . . . . . . . . . . . . . . . . . . . . . . 94
unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Centre console with drinks holder . . . . . . . . . . 133
Cetane number . . . . . . . . . . . . . . . . . . . . . . . . . 204
Changing gear See Manual gearbox . . . . . . . . . . . . . . . . . . 160
Changing the lamps Main headlight lamps . . . . . . . . . . . . . . . . . 245
rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Changing the main headlight lamps
dipped beam lights . . . . . . . . . . . . . . . . . . . 246
main beam lights . . . . . . . . . . . . . . . . . . . . 247
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . 248
turn signal lamps . . . . . . . . . . . . . . . . . . . . 246 Changing the rear light lamps
Position light, fog ligh t and rear light on the
tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Changing the rear lights Indicator, side and brake lights on the bodywork . . . . . . . . . . . . . . . . . . . . . . . . . 249
luggage compartment lights . . . . . . . . . . . 251
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . 260
Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Checking battery electrolyte level . . . . . . . . . . 220
Checking engine oil level . . . . . . . . . . . . . . . . . 209
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Categorisation in groups . . . . . . . . . . . . . . . 47
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Groups 0 and 0+ . . . . . . . . . . . . . . . . . . . . . . 47
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . 50
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Child seats on the front passenger seat . . . . . . . . . . . . . 30
Cigarette lighter* . . . . . . . . . . . . . . . . . . . . . . . . 136
Cleaning alloy wheel rims . . . . . . . . . . . . . . . . 196
Cleaning and caring for your vehicle . . . . . . . . 191
Cleaning chrome . . . . . . . . . . . . . . . . . . . . . . . . 195
Cleaning engine compartment . . . . . . . . . . . . . 197
Cleaning steel wheel rims . . . . . . . . . . . . . . . . 196
Cleaning windows . . . . . . . . . . . . . . . . . . . . . . . 194
Climatic* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144 Climatronic
General notes . . . . . . . . . . . . . . . . . . . . . . . 152
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Cloth seat covers cleaning . . . . . . . . . . . . . . . . 198
Clothes hook . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Control lighting . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Controls Electric windows . . . . . . . . . . . . . . . . . . . . . 104
Light switches . . . . . . . . . . . . . . . . . . . . . . . 109
Convenience closing Sliding/tilting roof . . . . . . . . . . . . . . . . . . . 107
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Convenience opening Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 212, 213 Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Coolant Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Coolant level warning light . . . . . . . . . . . . . . . . . . . . . . . . . 75
Coolant Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Coolant temperature Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Safety instructions . . . . . . . . . . . . . . . . . . . . 76
Cruise control system . . . . . . . . . . . . . . . . . . . . 170 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 80
Cruise control* Turning off the cruise control system . . . . 173
leon_ingles Seite 284 Montag, 26. Januar 2009 4:29 16

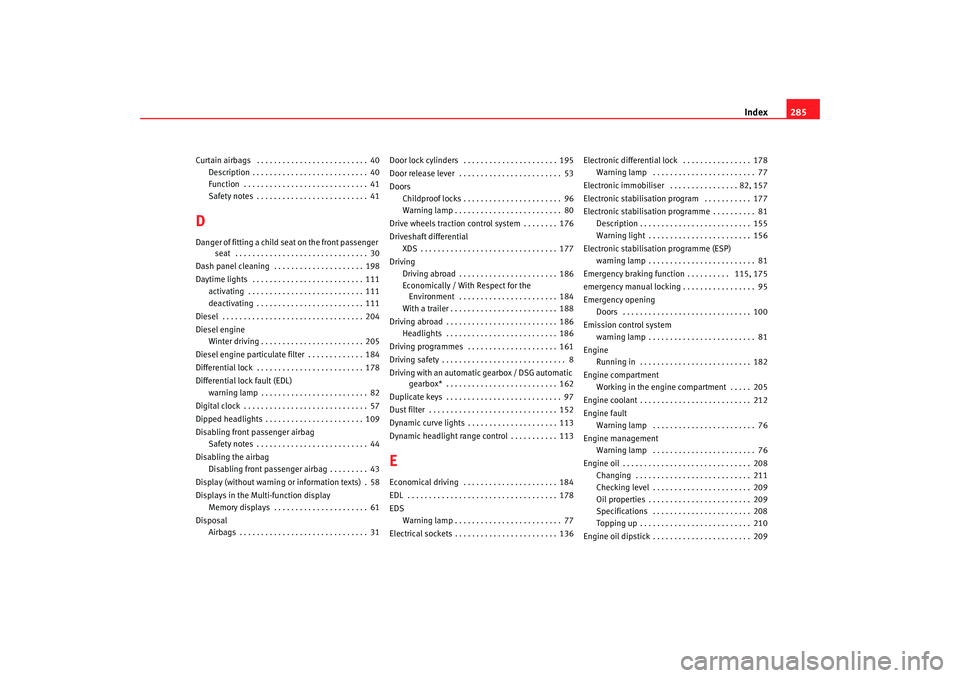

Index285
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 41DDanger of fitting a child seat on the front passenger seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Dash panel cleaning . . . . . . . . . . . . . . . . . . . . . 198
Daytime lights . . . . . . . . . . . . . . . . . . . . . . . . . . 111 activating . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
deactivating . . . . . . . . . . . . . . . . . . . . . . . . . 111
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Diesel engine Winter driving . . . . . . . . . . . . . . . . . . . . . . . . 205
Diesel engine particulate filter . . . . . . . . . . . . . 184
Differential lock . . . . . . . . . . . . . . . . . . . . . . . . . 178
Differential lock fault (EDL) warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 82
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Dipped headlights . . . . . . . . . . . . . . . . . . . . . . . 109
Disabling front passenger airbag Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Disabling the airbag Disabling front passenger airbag . . . . . . . . . 43
Display (without warning or information texts) . 58
Displays in the Multi-function display Memory displays . . . . . . . . . . . . . . . . . . . . . . 61
Disposal Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Door lock cylinders . . . . . . . . . . . . . . . . . . . . . . 195
Door release lever . . . . . . . . . . . . . . . . . . . . . . . . 53
Doors
Childproof locks . . . . . . . . . . . . . . . . . . . . . . . 96
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 80
Drive wheels traction control system . . . . . . . . 176
Driveshaft differential XDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Driving Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 186
Economically / With Respect for the Environment . . . . . . . . . . . . . . . . . . . . . . . 184
With a trailer . . . . . . . . . . . . . . . . . . . . . . . . . 188
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . 186 Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Driving programmes . . . . . . . . . . . . . . . . . . . . . 161
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Driving with an automati c gearbox / DSG automatic
gearbox* . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Dynamic curve lights . . . . . . . . . . . . . . . . . . . . . 113
Dynamic headlight range control . . . . . . . . . . . 113
EEconomical driving . . . . . . . . . . . . . . . . . . . . . . 184
EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
EDS Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 77
Electrical sockets . . . . . . . . . . . . . . . . . . . . . . . . 136 Electronic differential lock . . . . . . . . . . . . . . . . 178
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 77
Electronic immobiliser . . . . . . . . . . . . . . . . 82, 157
Electronic stabilisation program . . . . . . . . . . . 177
Electronic stabilisation programme . . . . . . . . . . 81 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Warning light . . . . . . . . . . . . . . . . . . . . . . . . 156
Electronic stabilisation programme (ESP) warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 81
Emergency braking function . . . . . . . . . . 115, 175
emergency manual locking . . . . . . . . . . . . . . . . . 95
Emergency opening Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Emission control system warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 81
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Engine compartment Working in the engine compartment . . . . . 205
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Engine fault Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 76
Engine management Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 76
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Checking level . . . . . . . . . . . . . . . . . . . . . . . 209
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . 209
Specifications . . . . . . . . . . . . . . . . . . . . . . . 208
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Engine oil dipstick . . . . . . . . . . . . . . . . . . . . . . . 209
leon_ingles Seite 285 Montag, 26. Januar 2009 4:29 16
