If and when
240
Fuse cover underneath the steering wheel
– Switch off the ignition and the component concerned.
– Identify the fuse corresponding to the damaged electric consumer ⇒page 242.
– Take the plastic clip from inside the fuse cover, fit it onto the
blown fuse and pull the fuse out.
– Replace the blown fuse (which will have a melted metal strip) with a new fuse of the same ampere rating.
Fuse cover in engine compartment
– Switch off the ignition and its failed electrical component.
– Prise off the fuse cover in the engine compartment by pressing the tabs towards the centre of the cover ⇒page 239, fig. 157 .
– Identify the fuse for the failed component ⇒page 242.
– Take the plastic clip from inside the fuse cover (at left-hand end of the dash panel), fit it onto the blown fuse and pull the fuse out.
– Replace the blown fuse (which will have a melted metal strip) with a new fuse of the same ampere rating.
– Carefully fit the fuse cover back on to ensure no water can enter
the fuse box.The individual electrical circuits are pr otected by fuses. The fuses are located
behind a cover at the left-hand end of the dash panel and on the left-hand
side of the engine compartment. The electric windows are protected by circuit breakers
. These reset automat-
ically after a few seconds when the ov erload (caused for example by frozen
windows) has been corrected.
Fuses colour code
WARNING
Never “repair” damaged fuses and neve r replace them with fuses with a
higher rating. Failure to comply could result in fire. This could also cause
damage to other parts of the electrical system.
Note
•
If a newly replaced fuse blows again after a short time, the electrical
system must be checked by a qualifi ed workshop as soon as possible.
Colour
Amperes
light brown
5
Red
10
Blue
15
Yellow
20
Natural (white)
25
Green
30
orange
40
Red
50
white
80
Blue
100
grey
150
violet
200
leon_ingles Seite 240 Montag, 26. Januar 2009 4:29 16

If and when241
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
•
If you replace a fuse with higher-rating fuse, you could cause damage to
another location in the electrical system.
•
Always keep some spare fuses in the vehicle. These are available from
SEAT dealers.
•
In addition to the fuses listed in the following tables, there are other fuses
which must be replaced by the Technical Service Workshop.
leon_ingles Seite 241 Montag, 26. Januar 2009 4:29 16

If and when
242Fuses on left side of dash panelFusesNumber
Consumer
Amperes
1
Diagnosis Switchboard/ Instrument lighting/
Headlight control switchboard/ Flowmeter/
Heated wipers/ Engine management/ AFS Head-
lamps
10
2
Engine control unit/ ABS-ESP switchboard/ Auto-
matic gearbox/ Instrument panel/ Trailer switch-
board/ Light switch / Brake sensor/ Power
steering/ Right an d left headlights
10
3
Airbag
5
4
Heating/ Reverse switch/ ASR-ESP switch/ Elec-
trochrome mirror/ Park Pilot/ Oil level sensor
5
5
Right xenon headlight
10
6
Left xenon headlight
10
7
Vacant
8
Vacant
9
Vacant
10
Vacant
11
Vacant
12
Central locking
15
13
Diagnosis/ Light switch/ Rain sensor/ Heated rear
window
10
14
Automatic gearbox / Heating/ Automatic gearbox
lever
10
15
Vacant
16
Va ca n t
17
Alarm
5
18
Va ca n t
19
Va ca n t
20
Va ca n t
21
Engine management
10
22
Fan switch
40
23
Electric windows (front)
30
24
BCM switchboard
20
25
Rear window heater
25
26
Rear electric windows
30
27
Engine (fuel control unit/pump relay)
15
28
Convenience controls
30
29
Va ca n t
30
Automatic gearbox
20
31
Vacuum pump
20
32
Va ca n t
33
Sunroof
25
34
Comfort switchboard/Central locking system
25
35
Va ca n t
36
Headlight washer system
20
37
Heated seats
30
38
Engine management
10
39
Va ca n t
Number
Consumer
Amperes
leon_ingles Seite 242 Montag, 26. Januar 2009 4:29 16

If and when243
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Some of the electrical items listed in
the table are only fitted on certain
models or are optional extras.
Please note that the above list, while correct at the time of printing, is subject
to alterations. If discrepancies should occur, please refer to the sticker on the
inside of the fuse cover for the co rrect information for your model.
Fuses layout, engine compartment, left partFuses
40
Fan switch
40
41
Rear wiper motor / Switchboard wiring
20
42
12 V socket/ Cigarette lighter
20
43
Trailer bracket preinstallation
15
44
Trailer bracket preinstallation
20
45
Trailer bracket preinstallation
15
46
Vacant
47
Engine management
10
48
Engine management
10
49
Vacant
Number
Consumer
Amperes
1
Windscreen wipers
30
2
DQ200 gearbox
30
3
Cable control unit
5
Number
Consumer
Amperes
4
ABS
20
5
AQ gearbox
15
6
Instrument panel/Steering column
5
7
Ignition key
40
8
Radio
15
9
Te l e p ho n e/ To m To m N a vi ga to r
5
10
Engine management
5
Engine management
10
11
Va ca n t
12
Electronic control unit
5
13
Petrol injection module supply
15
Diesel injection module supply
30
14
Coil
20
15
Engine management
5
Pump relay
10
16
Right lighting
30
17
Horn
15
18
Va ca n t
19
Clean
30
20
Water pump
10
Pressure sensor pump for 1.8 engine
20
21a)
Lambda probe
15
22
Brake pedal, speed sensor
5
Number
Consumer
Amperes
leon_ingles Seite 243 Montag, 26. Januar 2009 4:29 16

If and when
244Bulb changeGeneral notesBefore changing any bulb, first turn off the failed component.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a
reduction in the bulb life and conden sation on the mirror surface, thus
reducing efficiency.
A bulb should only be replaced by one of the same type. The type is inscribed
on the bulb, either on the glass part or on the base. It is highly recommended to keep a box of spare bulbs in the vehicle. At the
very least, the following spare bulbs, which are essential for road safety,
should be kept in the vehicle.
Main headlights
Dipped beam - H7
Main beam - H1
Position - W5W
Indicator - PY21W
Xenon headlights
23) / self-adjusting*
Dipped and full beam - D1S
24)
Daylight - P21W SLL
Position - W5W
Indicators -PY21W
Fog lights
Fog lights - H3
Fixed rear light
Stop/Position - P21W
25)
Indicator - P21W
23a)
Engine management
5
Engine management
10
Engine management
15
24
AKF, gearbox valve
10
25a)
ABS pump
40
26
Left lighting
30
27a)
Engine management
40
Engine management
50
28
Vacant
29a)
Electric windows (front and back)
50
Electric windows (front)
30
30
Ignition key
50
a)Ampere rating according to motorisationNumber
Consumer
Amperes
23)On this type of headlight, the bulb changes must be made by the SEAT dealer, given
that complex elements must be removed from the vehicle and a reset must be made
on the automatic control system incorporated.24)The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5
times more than that of halogen bulbs, this means that, except due to unusual circum-
stances, there is no need to change the bulbs for the whole life of the vehicle.25)Electronically controlled single filament bulb for Stop/side bulbs. If the bulb blows it
will not work in either position or Stop.
leon_ingles Seite 244 Montag, 26. Januar 2009 4:29 16

If and when245
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

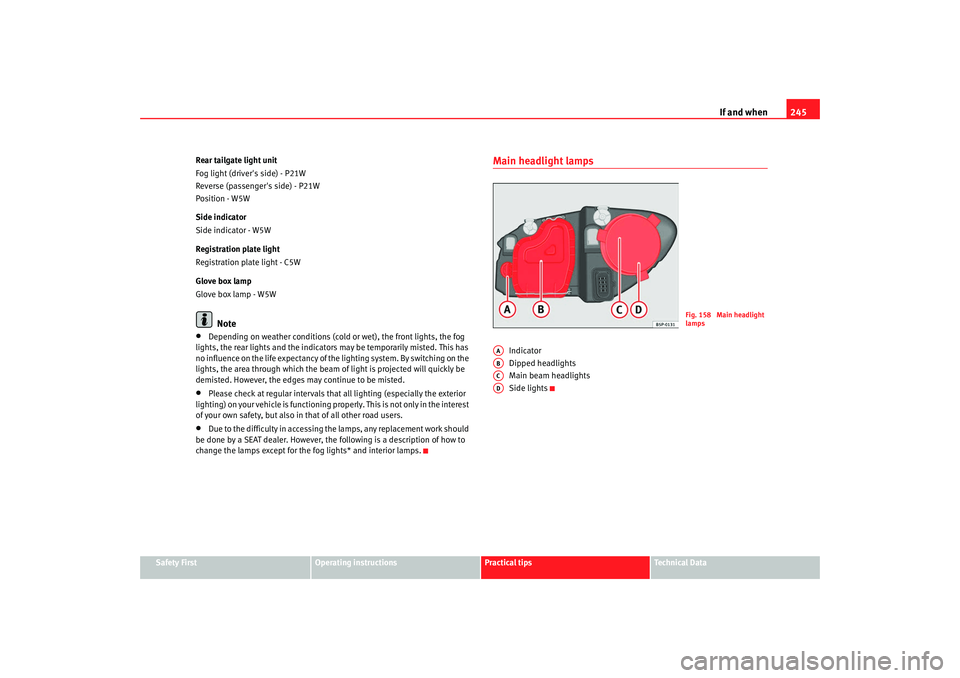

Rear tailgate light unit
Fog light (driver's side) - P21W
Reverse (passenger's side) - P21W
Position - W5W
Side indicator
Side indicator - W5W
Registration plate light
Registration plate light - C5W
Glove box lamp
Glove box lamp - W5W
Note
•
Depending on weather conditions (cold
or wet), the front lights, the fog
lights, the rear lights and the indicators may be temporarily misted. This has
no influence on the life expectancy of the lighting system. By switching on the
lights, the area through which the beam of light is projected will quickly be
demisted. However, the edges may continue to be misted.
•
Please check at regular intervals that all lighting (especially the exterior
lighting) on your vehicle is functioning properly. This is not only in the interest
of your own safety, but also in that of all other road users.
•
Due to the difficulty in accessing the lamps, any replacement work should
be done by a SEAT dealer. However, th e following is a description of how to
change the lamps except for the fog lights* and interior lamps.
Main headlight lamps
Indicator
Dipped headlights
Main beam headlights
Side lights
Fig. 158 Main headlight
lamps
AAABACAD
leon_ingles Seite 245 Montag, 26. Januar 2009 4:29 16

If and when

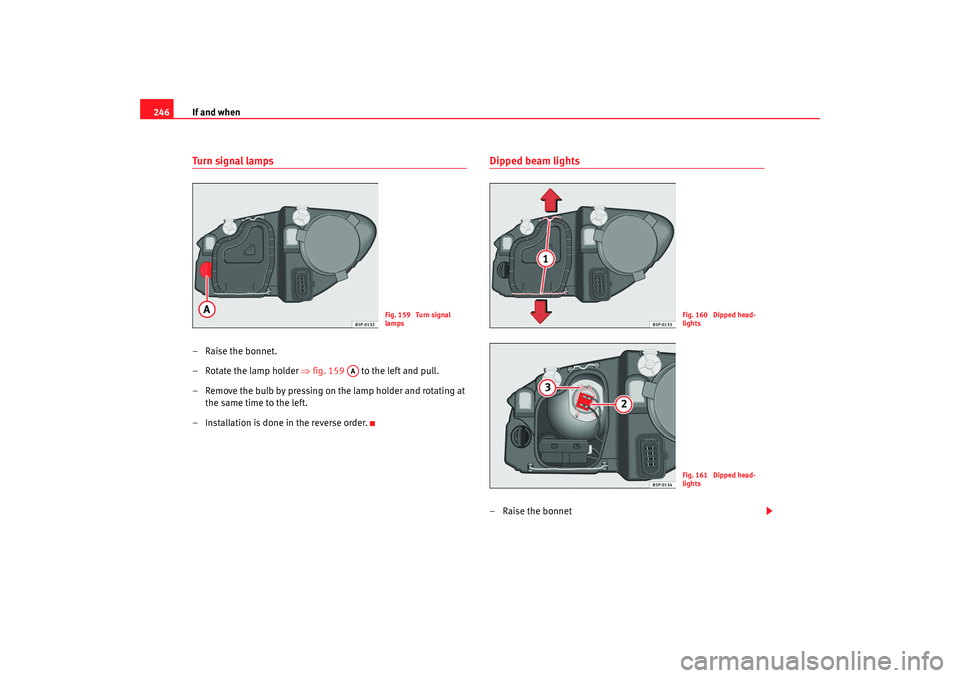

246Tu r n si g nal l a m ps– Raise the bonnet.
– Rotate the lamp holder ⇒fig. 159 to the left and pull.
– Remove the bulb by pressing on the lamp holder and rotating at the same time to the left.
– Installation is done in the reverse order.
Dipped beam lights–Raise the bonnet
Fig. 159 Turn signal
lamps
AA
Fig. 160 Dipped head-
lightsFig. 161 Dipped head-
lights
leon_ingles Seite 246 Montag, 26. Januar 2009 4:29 16

If and when247
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
– Remove the loops ⇒page 246, fig. 160 in the direction of
the arrow and remove the cover.
– Remove the connector ⇒page 246, fig. 161 from the bulb.
– Disengage the retainer spring ⇒ page 246, fig. 161 pressing
inwards to the right.
– Extract the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.Main beam lights
– Raise the bonnet
– Remove the cover ⇒fig. 162 by pulling on this.
– Remove the connector ⇒fig. 163 from the bulb.
– Press the spring ⇒fig. 163 inwards and to the right.
– Extract the bulb and fit the replacement so that it sits correctly into the cut-out on the reflector.
– Installation is done in the reverse order.
A1
A2
A3
Fig. 162 Main beam
headlights
Fig. 163 Main beam
headlights
AC
A1
A2
leon_ingles Seite 247 Montag, 26. Januar 2009 4:29 16

If and when

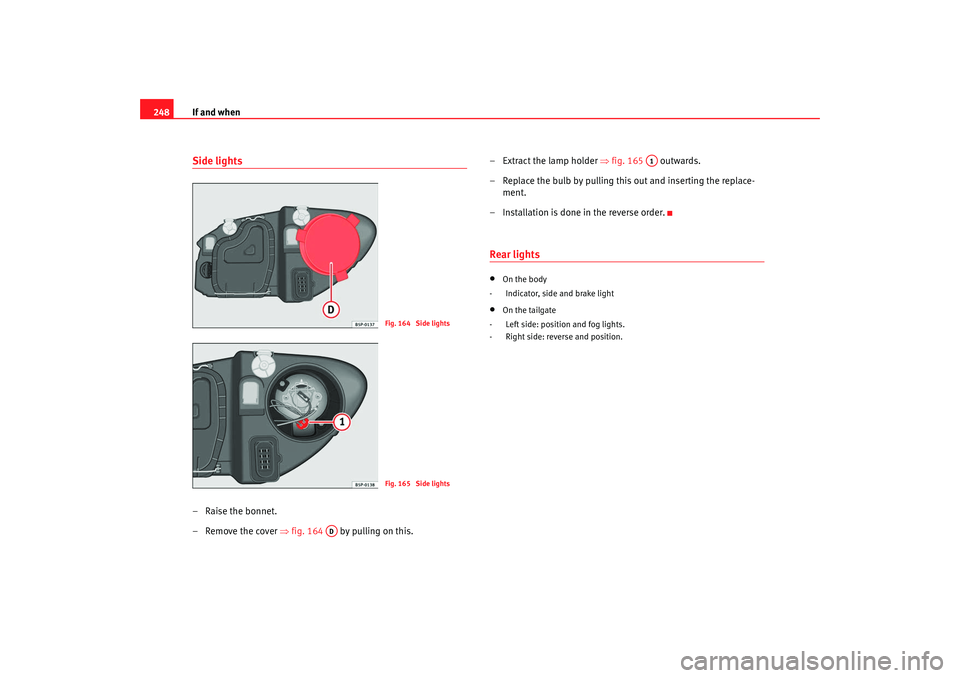

248Side lights– Raise the bonnet.
– Remove the cover ⇒fig. 164 by pulling on this. – Extract the lamp holder
⇒fig. 165 outwards.
– Replace the bulb by pulling this out and inserting the replace- ment.
– Installation is done in the reverse order.
Rear lights•
On the body
- Indicator, side and brake light
•
On the tailgate
- Left side: position and fog lights.
- Right side: reverse and position.
Fig. 164 Side lightsFig. 165 Side lights
AD
A1
leon_ingles Seite 248 Montag, 26. Januar 2009 4:29 16

If and when249
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

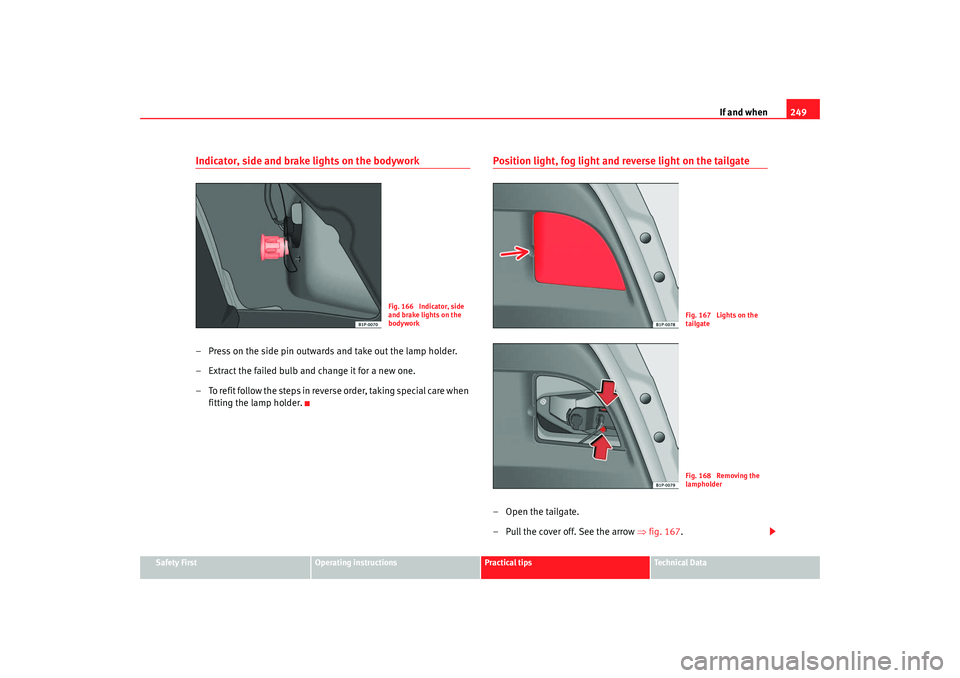

Indicator, side and brake lights on the bodywork– Press on the side pin outwards and take out the lamp holder.
– Extract the failed bulb and change it for a new one.
– To refit follow the steps in reverse order, taking special care when
fitting the lamp holder.
Position light, fog light and reverse light on the tailgate–Open the tailgate.
– Pull the cover off. See the arrow ⇒ fig. 167.
Fig. 166 Indicator, side
and brake lights on the
bodywork
Fig. 167 Lights on the
tailgateFig. 168 Removing the
lampholder
