238Care and cleaning
Care and cleaning
General information
Regular care helps to maintain the value of the vehicle.
Regular and careful care helps to maintain the value of the vehicle. This may
also be one of the requirements for upholding any warranty claims in the
event of corrosion or paint defects.
SEAT Official Services and specialist retailers carry stocks of suitable car
care materials. Please follow the instructions for use on the packaging.
WARNING
● Cleaning products and other materials used for car care can be dam-
aging to your health if misused.
● Always keep care products in a safe place, out of the reach of chil-
dren. Failure to comply could result in poisoning.
For the sake of the environment
● If possible, use environmentally friendly products.
● The remains of car care products should not be disposed of with ordina-
ry household waste. Care of vehicle exterior
Washing the vehicle
The longer substances such as insects, bird droppings, resinous tree sap,
road dirt, industrial deposits, tar, soot or road salt and other aggressive ma-
terials remain on the vehicle, the more damage they do to the paintwork.
High temperatures (for instance due to strong sunlight) further intensify the
corrosive effect.
After the period when salt is put on the roads it is important to have the un-
derside of the vehicle washed thoroughly.
Automatic car washes
Before going through a car wash, be sure to take the usual precautions such
as closing the windows and roof. If the vehicle has special accessories such
as spoilers or a roof carrier or two-way radio aerial, etc., it is advisable to
consult the car wash operator.
It is best to use a car wash without revolving bristles if possible.
Washing the vehicle with a high pressure cleaner
When washing the vehicle with a high-pressure cleaner, always follow the
operating instructions for the equipment. This applies particularly to the op-
erating pressure and the spraying distance. Do not hold the nozzle too
close to soft materials such as rubber hoses or seals. The same applies to
the parking aid sensors*, which are located in the rear bumper.
Do not use a nozzle that sprays the water out in a direct stream or one that
has a rotating jet for forcing off dirt. 

239
Care and cleaning
Washing the car by hand
When washing the car by hand, use plenty of water to soften the dirt first,
and rinse off as well as possible.
Then clean the vehicle with a soft sponge, glove or brush using only slight
pressure. You should start on the roof and work down. Special car shampoo
should only be used for very persistent dirt.
Rinse the sponge or glove thoroughly and often.
Wheels, sills and similar should be cleaned last. Use a second sponge for
this.
WARNING
● The vehicle should only be washed with the ignition switched off.
Failure to do so could result in an accident.
● Do not clean the underside of chassis, the inside of wheel arches or
wheel trims without protecting your hands and arms. You may cut your-
self on sharp-edged metal parts. Otherwise, there is a risk of sustaining
cuts.
● When washing the car during the winter season: water and ice in the
brake system can reduce braking effectiveness: risk of accident!
CAUTION
● Do not wash the vehicle in direct sunlight – otherwise the paint can be
damaged.
● Do not use sponges, abrasive household sponges or similar to clean in-
sect remains. This could damage the surface.
● Clean off stubborn dirt (insects, etc.) from the headlights at regular in-
tervals, for instance when filling the fuel tank. The headlights should only
be washed with water, do not wipe them with a dry cloth or sponge. It is
best to use soapy water. ●
Never wash tyres with a jet that sprays the water out in a direct stream.
This could damage the tyres even if the spray is kept at a distance and only
used for a very short time.
● Before washing the vehicle in an automatic car wash, please make sure
to retract the exterior mirrors to prevent them from being damaged. Electri-
cally retractable exterior mirrors must not be folded in or out by hand. Al-
ways use the electrical power control.
CAUTION
● If you wash the vehicle in an automatic car wash, proceed as follows to
lock and prevent the windscreen wiper blades from being pushed up to-
wards the top of the windscreen:
–the bonnet must be closed
– switch the ignition on and off
– press the windscreen wiper lever downwards briefly towards the front
(windscreen wiper function). The windscreen wiper blades will be
locked.
For the sake of the environment
The car should only be washed in special wash bays. This prevents oily wa-
ter from getting into the public drains. In some places, washing vehicles
anywhere else may be prohibited. 
Sensors and camera lenses
● Use a small brush to remove snow and a de-icer spray to remove ice.
● Clean the sensors with a solvent-free product and a soft, dry cloth.
● Moisten the camera lens using a standard alcohol-based glass cleaning
agent and clean the lens with a dry cloth. The area in front of the active
Lane Assist* lens area is normally cleaned with the windscreen washer. 
Safety FirstOperating instructionsPractical TipsTechnical specifications

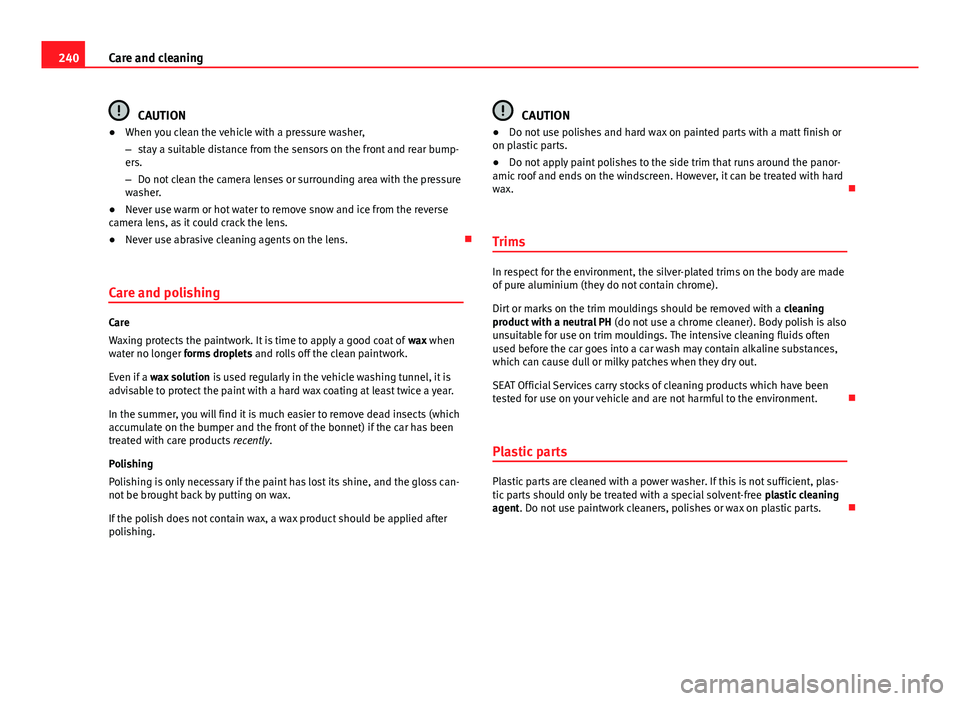

240Care and cleaning
CAUTION
● When you clean the vehicle with a pressure washer,
– stay a suitable distance from the sensors on the front and rear bump-
ers.
– Do not clean the camera lenses or surrounding area with the pressure
washer.
● Never use warm or hot water to remove snow and ice from the reverse
camera lens, as it could crack the lens.
● Never use abrasive cleaning agents on the lens. 
Care and polishing
Care
Waxing protects the paintwork. It is time to apply a good coat of wax when
water no longer forms droplets and rolls off the clean paintwork.
Even if a wax solution is used regularly in the vehicle washing tunnel, it is
advisable to protect the paint with a hard wax coating at least twice a year.
In the summer, you will find it is much easier to remove dead insects (which
accumulate on the bumper and the front of the bonnet) if the car has been
treated with care products recently.
Polishing
Polishing is only necessary if the paint has lost its shine, and the gloss can-
not be brought back by putting on wax.
If the polish does not contain wax, a wax product should be applied after
polishing.
CAUTION
● Do not use polishes and hard wax on painted parts with a matt finish or
on plastic parts.
● Do not apply paint polishes to the side trim that runs around the panor-
amic roof and ends on the windscreen. However, it can be treated with hard
wax. 
Trims
In respect for the environment, the silver-plated trims on the body are made
of pure aluminium (they do not contain chrome).
Dirt or marks on the trim mouldings should be removed with a cleaning
product with a neutral PH (do not use a chrome cleaner). Body polish is also
unsuitable for use on trim mouldings. The intensive cleaning fluids often
used before the car goes into a car wash may contain alkaline substances,
which can cause dull or milky patches when they dry out.
SEAT Official Services carry stocks of cleaning products which have been
tested for use on your vehicle and are not harmful to the environment. 
Plastic parts
Plastic parts are cleaned with a power washer. If this is not sufficient, plas-
tic parts should only be treated with a special solvent-free plastic cleaning
agent. Do not use paintwork cleaners, polishes or wax on plastic parts. 

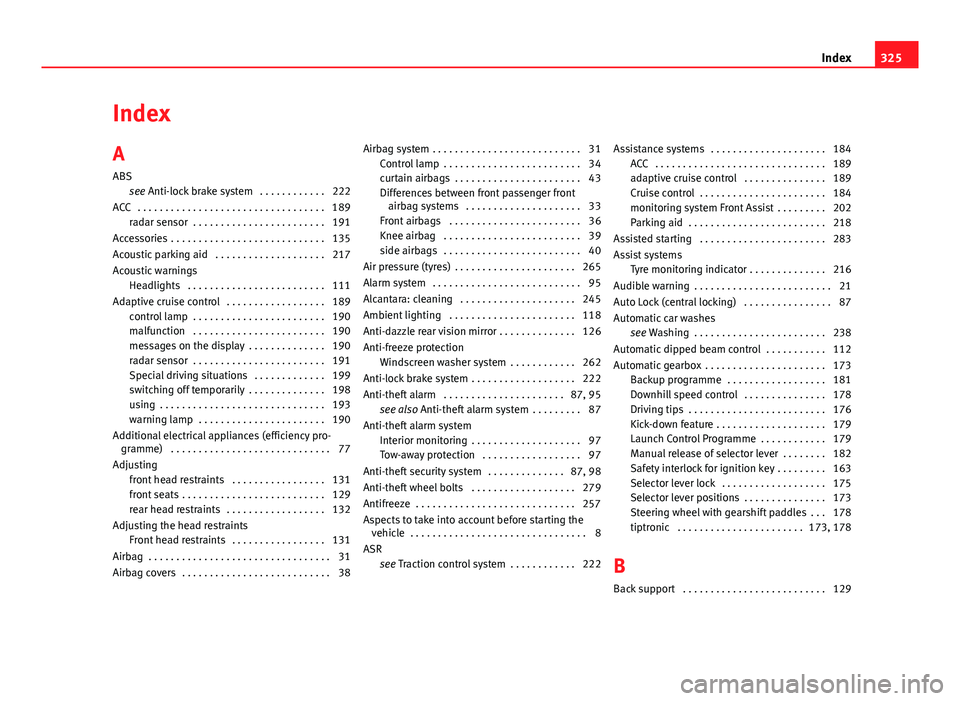

Index
A
ABSsee Anti-lock brake system . . . . . . . . . . . . 222
ACC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189 radar sensor . . . . . . . . . . . . . . . . . . . . . . . . 191
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Acoustic parking aid . . . . . . . . . . . . . . . . . . . . 217
Acoustic warnings Headlights . . . . . . . . . . . . . . . . . . . . . . . . . 111
Adaptive cruise control . . . . . . . . . . . . . . . . . . 189 control lamp . . . . . . . . . . . . . . . . . . . . . . . . 190
malfunction . . . . . . . . . . . . . . . . . . . . . . . . 190
messages on the display . . . . . . . . . . . . . . 190
radar sensor . . . . . . . . . . . . . . . . . . . . . . . . 191
Special driving situations . . . . . . . . . . . . . 199
switching off temporarily . . . . . . . . . . . . . . 198
using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
warning lamp . . . . . . . . . . . . . . . . . . . . . . . 190
Additional electrical appliances (efficiency pro- gramme) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Adjusting front head restraints . . . . . . . . . . . . . . . . . 131
front seats . . . . . . . . . . . . . . . . . . . . . . . . . . 129
rear head restraints . . . . . . . . . . . . . . . . . . 132
Adjusting the head restraints Front head restraints . . . . . . . . . . . . . . . . . 131
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 34
curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 43
Differences between front passenger frontairbag systems . . . . . . . . . . . . . . . . . . . . . 33
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . 36
Knee airbag . . . . . . . . . . . . . . . . . . . . . . . . . 39
side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 40
Air pressure (tyres) . . . . . . . . . . . . . . . . . . . . . . 265
Alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Alcantara: cleaning . . . . . . . . . . . . . . . . . . . . . 245
Ambient lighting . . . . . . . . . . . . . . . . . . . . . . . 118
Anti-dazzle rear vision mirror . . . . . . . . . . . . . . 126
Anti-freeze protection Windscreen washer system . . . . . . . . . . . . 262
Anti-lock brake system . . . . . . . . . . . . . . . . . . . 222
Anti-theft alarm . . . . . . . . . . . . . . . . . . . . . . 87, 95 see also Anti-theft alarm system . . . . . . . . . 87
Anti-theft alarm system Interior monitoring . . . . . . . . . . . . . . . . . . . . 97
Tow-away protection . . . . . . . . . . . . . . . . . . 97
Anti-theft security system . . . . . . . . . . . . . . 87, 98
Anti-theft wheel bolts . . . . . . . . . . . . . . . . . . . 279
Antifreeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Aspects to take into account before starting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
ASR see Traction control system . . . . . . . . . . . . 222 Assistance systems . . . . . . . . . . . . . . . . . . . . . 184
ACC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
adaptive cruise control . . . . . . . . . . . . . . . 189
Cruise control . . . . . . . . . . . . . . . . . . . . . . . 184
monitoring system Front Assist . . . . . . . . . 202
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 218
Assisted starting . . . . . . . . . . . . . . . . . . . . . . . 283
Assist systems Tyre monitoring indicator . . . . . . . . . . . . . . 216
Audible warning . . . . . . . . . . . . . . . . . . . . . . . . . 21
Auto Lock (central locking) . . . . . . . . . . . . . . . . 87
Automatic car washes see Washing . . . . . . . . . . . . . . . . . . . . . . . . 238
Automatic dipped beam control . . . . . . . . . . . 112
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . 173 Backup programme . . . . . . . . . . . . . . . . . . 181
Downhill speed control . . . . . . . . . . . . . . . 178
Driving tips . . . . . . . . . . . . . . . . . . . . . . . . . 176
Kick-down feature . . . . . . . . . . . . . . . . . . . . 179
Launch Control Programme . . . . . . . . . . . . 179
Manual release of selector lever . . . . . . . . 182
Safety interlock for ignition key . . . . . . . . . 163
Selector lever lock . . . . . . . . . . . . . . . . . . . 175
Selector lever positions . . . . . . . . . . . . . . . 173
Steering wheel with gearshift paddles . . . 178
tiptronic . . . . . . . . . . . . . . . . . . . . . . . 173, 178
B
Back support . . . . . . . . . . . . . . . . . . . . . . . . . . 129
325
Index

Clutch (warning lamp) . . . . . . . . . . . . . . . . . . . 181
Coming Home . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Consumption (fuel) . . . . . . . . . . . . . . . . . . . . . 305
Control lampAirbag system . . . . . . . . . . . . . . . . . . . . . . . . 34
Cruise control . . . . . . . . . . . . . . . . . . . . . . . 184
Tyre monitor indicator warning lamp . . . . 215
Tyre monitoring systems . . . . . . . . . . . . . . 215
Windscreen wiper fluid level . . . . . . . . . . . 120
Control lamps adaptive cruise control . . . . . . . . . . . . . . . 190
applying the brake . . . . . . . . . . . . . . . . . . . 162
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Control of function Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . 123
Controls and displays (overview) . . . . . . . . . . . 59
Control Units . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Convenience closing Panoramic sliding sunroof . . . . . . . . . . . . . 107
Convenience opening Panoramic sliding sunroof . . . . . . . . . . . . . 107
Convenience opening/closing . . . . . . . . . . . . 103
Cooling system Checking the coolant . . . . . . . . . . . . . . . . . 258
Coolant temperature gauge . . . . . . . . . . . . . 68
Topping up coolant . . . . . . . . . . . . . . . . . . 258
Cornering lights . . . . . . . . . . . . . . . . . . . . . . . . 112
Correct adjustment of front seat head re- straints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Correct adjustment of rear seat head restraints In-use and non-use positions . . . . . . . . . . . 15 Correct sitting position
front passenger . . . . . . . . . . . . . . . . . . . . . . 12
Incorrect sitting position . . . . . . . . . . . . . . . 15
passenger . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . 184 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 184
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 184
Cruise control system . . . . . . . . . . . . . . . . . . . . 184
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 44
D Danger of fitting a child seat on the front pas- senger seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Data recorder . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Daytime driving light . . . . . . . . . . . . . . . . . . . . 112
DEF (instrument panel) . . . . . . . . . . . . . . . . . . . 67
Depth of tread . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Diagnostic connection . . . . . . . . . . . . . . . . . . . 228
Diesel Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Particulate filter Diesel . . . . . . . . . . . . . . . . 230
Preheating . . . . . . . . . . . . . . . . . . . . . . . . . 163
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323
Dipped beam headlight . . . . . . . . . . . . . . . . . . 111
Direction of rotation (tyres) . . . . . . . . . . . . . . . 281
Disabling the airbag . . . . . . . . . . . . . . . . . . . . . . 45 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61, 62
Display/Easy Connect control panel: Cleaning . .242
Disposal
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Seat belt tensioners . . . . . . . . . . . . . . . . . . . 30
Distance control see adaptive cruise control . . . . . . . . . . . . 189
Door/rear lid warning . . . . . . . . . . . . . . . . . . . . . 73
Doors Childproof locks . . . . . . . . . . . . . . . . . . . . . . 95
Downhill speed control . . . . . . . . . . . . . . . . . . 178
Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Drink holders . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Driver see Correct sitting position . . . . . . . 11, 12, 13
Driver information system CD/radio display . . . . . . . . . . . . . . . . . . . . . 73
Door/rear lid warning . . . . . . . . . . . . . . . . . . 73
Engine oil temperature display . . . . . . . . . . 77
Operation via the windscreen wiper lever . 73
Outside temperature display . . . . . . . . . . . . 73
Driving With a trailer . . . . . . . . . . . . . . . . . . . . 234, 235
Driving abroad Headlights . . . . . . . . . . . . . . . . . . . . . . . . . 115
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Driving through water . . . . . . . . . . . . . . . . . . . 230
Dynamic headlight range control . . . . . . . . . . 117
327
Index

Folding table . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Fold the back seats . . . . . . . . . . . . . . . . . . . . . 137
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . 36Description . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 38
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Front Assist city emergency braking function . . . . . . . . 206
malfunction . . . . . . . . . . . . . . . . . . . . . . . . 203
messages on the display . . . . . . . . . . . . . . 203
radar sensor . . . . . . . . . . . . . . . . . . . . . . . . 204
see monitoring system Front Assist . . . . . 202
system limitations . . . . . . . . . . . . . . . . . . . 206
temporarily switching off . . . . . . . . . . . . . . 205
using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Front Assist Monitoring system malfunction . . . . . . . . . . . . . . . . . . . . . . . . 203
messages on the display . . . . . . . . . . . . . . 203
radar sensor . . . . . . . . . . . . . . . . . . . . . . . . 204
using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Front Assist Monitoring System city emergency braking function . . . . . . . . 206
system limitations . . . . . . . . . . . . . . . . . . . 206
temporarily switching off . . . . . . . . . . . . . . 205
Front seats see Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246 Consumption . . . . . . . . . . . . . . . . . . . . . . . 305
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Ethanol . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . 67
natural gas . . . . . . . . . . . . . . . . . . . . . . . . . 247 Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . 305
Full-LED headlights . . . . . . . . . . . . . . . . . . . . . 293
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Fuse box . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Identifying blown fuses . . . . . . . . . . . . . . . 293
Identifying by colours . . . . . . . . . . . . . . . . 292
Preparation before replacing . . . . . . . . . . . 293
Replacement . . . . . . . . . . . . . . . . . . . . . . . . 293
G Gear-change indicator . . . . . . . . . . . . . . . . . . . . 68
Gearbox DSG see Automatic gearbox . . . . . . . . . . . . . . . 173
Gear recommendation . . . . . . . . . . . . . . . . . . . . 68
Gearshift paddles (automatic gearbox) . . . . . 178
General overview of the engine compartment 309
Glass Cleaning/De-icing . . . . . . . . . . . . . . . . . . . 241
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Glove compartment lighting . . . . . . . . . . . . . . 118
H Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 167
Hazard warning lights . . . . . . . . . . . . . . . . . . . 113
Headlight range control . . . . . . . . . . . . . . . . . . 117
Headlights Changing a bulb . . . . . . . . . . . . . . . . . . . . . 293
Dipped beam headlights . . . . . . . . . . . . . . 111
Driving abroad . . . . . . . . . . . . . . . . . . . . . . 115 Headlight control . . . . . . . . . . . . . . . . . . . . 111
Headlight washers . . . . . . . . . . . . . . . . . . . 122
Side light . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Heated rear window . . . . . . . . . . . . . . . . . 155, 157
Hill driving assistant . . . . . . . . . . . . . . . . . . . . 168
Hill hold assist see Hill driving assistant . . . . . . . . . . . . . . 168
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
How to jump start description . . . . . . . . . . . . . 284
I
Identification plate . . . . . . . . . . . . . . . . . . . . . . 305
Identifying letters of engine . . . . . . . . . . . . . . 305
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Increase capacity of luggage compartment . . . . . . . . . . . . . . 137
Indicator Vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Inertia mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Information on emissions . . . . . . . . . . . . . . . . 305
Inspection service . . . . . . . . . . . . . . . . . . . . . . 253
Installation of exhaust gas filtration systems Catalytic converter . . . . . . . . . . . . . . . . . . . 230
Particulate filter Diesel . . . . . . . . . . . . . . . . 230
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . 61
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . 61 Display . . . . . . . . . . . . . . . . . . . . . . . . . . 61, 62
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . 61
Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Service interval display . . . . . . . . . . . . . . . . 65
Instrument panel lighting . . . . . . . . . . . . . . . . 117
329
Index

Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Parking system plus . . . . . . . . . . . . . . . . . . 219
Rear parking aid . . . . . . . . . . . . . . . . . . . . . 218
Sensors/Camera: cleaning . . . . . . . . . . . . 239
Towing bracket . . . . . . . . . . . . . . . . . . . . . . 221
Parking aid system see Parking aid . . . . . . . . . . . . . . . . . . . . . . 219
Parking light . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Parking (automatic gearbox) . . . . . . . . . . . . . . 176
Particulate filter (Diesel) . . . . . . . . . . . . . . . . . 230
Passenger see Correct sitting position . . . . . . . 11, 12, 13
Passenger's seat backrest folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
lifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Physical principles of a frontal collision . . . . . . 22
Plastic parts: Cleaning . . . . . . . . . . . . . . . 240, 242
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Power Management . . . . . . . . . . . . . . . . . . . . . 226
Power socket . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Preheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Pressure (tyres) . . . . . . . . . . . . . . . . . . . . . . . . . 265
Progressive steering . . . . . . . . . . . . . . . . . . . . 226
R Racks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Radar sensor . . . . . . . . . . . . . . . . . . . . . . . 191, 204
Radio display: cleaning . . . . . . . . . . . . . . . . . . 242
Radio transmitters . . . . . . . . . . . . . . . . . . . . . . 272 Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Control of function . . . . . . . . . . . . . . . . . . . 123
Rear lid automatic locking . . . . . . . . . . . . . . . . . . . . 100
Central locking system . . . . . . . . . . . . . . . . 100
Manual release in an emergency . . . . . . . 101
see also luggage compartment . . . . . . . . . 100
Rear lights Changing a bulb . . . . . . . . . . . . . . . . . . . . . 293
Rear seat folding down and lifting backrest . . . . . . . 138
Rear seat backrest folding down . . . . . . . . . . . . . . . . . . . . . . . . 138
lifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Rear vision mirror . . . . . . . . . . . . . . . . . . . . . . . 125
Rear vision mirrors Adjusting the exterior mirrors . . . . . . . . . . 125
see also Rear vision mirrors . . . . . . . . . . . . 126
Rear wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Reflective vests . . . . . . . . . . . . . . . . . . . . . . . . . 274
Refuelling natural gas . . . . . . . . . . . . . . . . . . . . . . . . . 250
Remote control See "Keys" . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Remote control key Unlocking/Locking . . . . . . . . . . . . . . . . . . . . 92
Remove the wheel cover . . . . . . . . . . . . . . . . . 278
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272 Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Replacement parts . . . . . . . . . . . . . . . . . . . . . . 272
Reservoir capacity Windscreen washer water reservoir . . . . . 125 Reset button (trip recorder) . . . . . . . . . . . . . . . . 67
Reset the trip recorder to zero . . . . . . . . . . . . . . 67
Retaining hooks . . . . . . . . . . . . . . . . . . . . . . . . 146
retractable rear shelf . . . . . . . . . . . . . . . . . . . . 140
Retrofitting a towing bracket . . . . . . . . . . . . . . 236
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . 61, 66
Reverse gear (automatic gearbox) . . . . . . . . . 173
Rims
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
RME (fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Roll-back function Panoramic sliding sunroof . . . . . . . . . . . . . 107
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Roof carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Roof carrier system . . . . . . . . . . . . . . . . . . . . . . 150
Roof load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151 technical data . . . . . . . . . . . . . . . . . . . . . . . 151
Running in New brake pads . . . . . . . . . . . . . . . . . . . . . 224
New engine . . . . . . . . . . . . . . . . . . . . . . . . . 230
New tyres . . . . . . . . . . . . . . . . . . . . . . . . . . 265
S Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safelock see Anti-theft security system . . . . . . . . . . . 87
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 child safety . . . . . . . . . . . . . . . . . . . . . . . . . . 48
child seats . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety first . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
332 Index

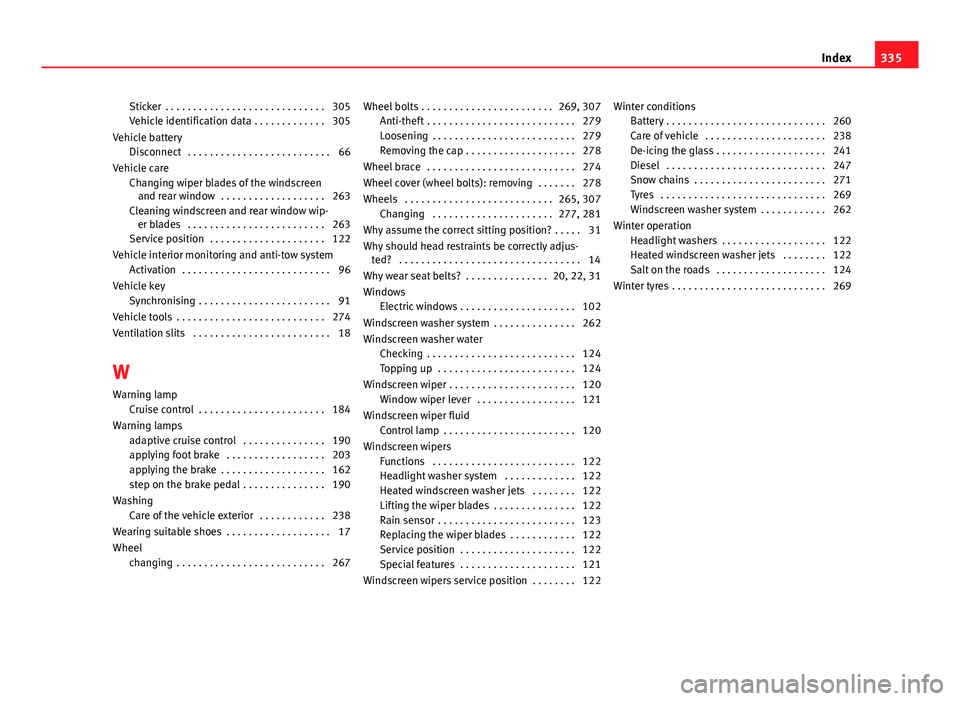

Sticker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305
Vehicle identification data . . . . . . . . . . . . . 305
Vehicle battery Disconnect . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Vehicle care Changing wiper blades of the windscreenand rear window . . . . . . . . . . . . . . . . . . . 263
Cleaning windscreen and rear window wip- er blades . . . . . . . . . . . . . . . . . . . . . . . . . 263
Service position . . . . . . . . . . . . . . . . . . . . . 122
Vehicle interior monitoring and anti-tow system Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Vehicle key Synchronising . . . . . . . . . . . . . . . . . . . . . . . . 91
Vehicle tools . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Ventilation slits . . . . . . . . . . . . . . . . . . . . . . . . . 18
W Warning lamp Cruise control . . . . . . . . . . . . . . . . . . . . . . . 184
Warning lamps adaptive cruise control . . . . . . . . . . . . . . . 190
applying foot brake . . . . . . . . . . . . . . . . . . 203
applying the brake . . . . . . . . . . . . . . . . . . . 162
step on the brake pedal . . . . . . . . . . . . . . . 190
Washing Care of the vehicle exterior . . . . . . . . . . . . 238
Wearing suitable shoes . . . . . . . . . . . . . . . . . . . 17
Wheel changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 267 Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . 269, 307
Anti-theft . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Loosening . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Removing the cap . . . . . . . . . . . . . . . . . . . . 278
Wheel brace . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Wheel cover (wheel bolts): removing . . . . . . . 278
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 265, 307 Changing . . . . . . . . . . . . . . . . . . . . . . 277, 281
Why assume the correct sitting position? . . . . . 31
Why should head restraints be correctly adjus- ted? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Why wear seat belts? . . . . . . . . . . . . . . . 20, 22, 31
Windows Electric windows . . . . . . . . . . . . . . . . . . . . . 102
Windscreen washer system . . . . . . . . . . . . . . . 262
Windscreen washer water Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . 124
Windscreen wiper . . . . . . . . . . . . . . . . . . . . . . . 120 Window wiper lever . . . . . . . . . . . . . . . . . . 121
Windscreen wiper fluid Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 120
Windscreen wipers Functions . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Headlight washer system . . . . . . . . . . . . . 122
Heated windscreen washer jets . . . . . . . . 122
Lifting the wiper blades . . . . . . . . . . . . . . . 122
Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . 123
Replacing the wiper blades . . . . . . . . . . . . 122
Service position . . . . . . . . . . . . . . . . . . . . . 122
Special features . . . . . . . . . . . . . . . . . . . . . 121
Windscreen wipers service position . . . . . . . . 122 Winter conditions
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Care of vehicle . . . . . . . . . . . . . . . . . . . . . . 238
De-icing the glass . . . . . . . . . . . . . . . . . . . . 241
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . 271
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Windscreen washer system . . . . . . . . . . . . 262
Winter operation Headlight washers . . . . . . . . . . . . . . . . . . . 122
Heated windscreen washer jets . . . . . . . . 122
Salt on the roads . . . . . . . . . . . . . . . . . . . . 124
Winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
335
Index
