Seats and head restraints
The armrest can be moved backwards and
f or
w
ards.
Folding down the passenger seat
back
rest* 3 Applies to the model: LEON ST
Fig. 148
Front passenger seat: lever for fold-
in g do
wn the b

ackrest. The front passenger seat can be folded down
t
o inc
r

ease the storage space.
● Pull lever 1
› ›
› Fig. 148
and push the seat
backrest 2 until the backrest is horizontal.
WARNING
When the front passenger seat is folded
down it c

annot be occupied. folding down and raising the rear seat
b
ac
k

rest 3 Applies to the model: LEON/LEON SC
Fig. 149
Clip to support the seat belt. Fig. 150
Backrest release lever. The backrests can be folded forward individu-
al
ly
or t

ogether. Folding the backrest forwards
– Place the side seat belts in the trim clip
›››
Fig. 149.
– Slide the head restraint(s) downwards
›››
page 141.
– Press the release lever ›››
Fig. 150 1 in the
dir ection of
the arr
ow.
– Fold the backrest forwards.
Conv
erting the table to a seat
– Raise the backrest until it engages in its
upright pos

ition ››› . The red marking on
the t ab
›
›
› Fig. 150 2 should no longer be
v i
s
ible when the backrest is properly se-
cured. WARNING
The safe driving chapter contains important
inform ation, tip

s, suggestions and warnings
that you should read and observe for your
own safety and the safety of your passengers
››› page 66. WARNING
● Mak e s

ure that the rear backrest is securely
locked in position so that the seat belt can
provide proper protection on the centre rear
seat.
● The rear backrest must always be securely
latc
hed so that objects stored in the luggage » 143
Technical data
Advice
Operation
Emergencies
Safety

Transport and practical equipment
●
For the r e
ar seat seat belts to offer the nec-
essary protection all the parts of the rear
backrest must be properly engaged. This is
particularly important in the case of the cen-
tre rear seat. If someone is seated in a seat
whose backrest is not properly engaged they
will fly forward, along with the backrest, dur-
ing an accident or a sudden driving or braking
manoeuvre.
● A red signal on the button 2 warns that
the bac k

rest is not engaged. Always check
that the red marking is not visible when the
backrest is in the upright position.
● When the rear seat backrest is lowered or is
not properly
engaged nobody else can travel
in the corresponding seats (not even a child). CAUTION
Serious damage can be caused to the vehicle
and other ob j

ects if the rear seat backrest is
lowered or lifted without due care and atten-
tion.
● Before lowering the rear seat backrest, al-
way
s adjust the front seats so that neither
the head restraints nor the cushions of the
rear backrest can hit them. Transport and practical
equipment
St or
ag

e compartments
Storage areas under the front seats* Fig. 153
Storage compartment under the
fr ont
se

ats. There is a storage compartment with a cover
u
nder e
ac

h front seat.
The drawer* is opened by pulling on the cov-
er ››› Fig. 153.
To close the drawer, press the cover until it
locks into position. WARNING
● The dra w

ers will hold a maximum weight of
1.5 kg. ●
Do not driv e w

ith the drawer cover open.
There is an injury risk for passengers if the
cargo is released in case of sudden braking or
an accident. Folding table*
3 Applies to the model: LEON ST
Fig. 154
Left-hand front seat: folding table. –
To open the tray, open it up in the direction
of the arr
o

w ››› Fig. 154. WARNING
● The fo l

ding trays may not be folded down
whilst the vehicle is in motion and anyone is
seated on the second row of seats. There is a
risk of injury during a sudden braking ma-
noeuvre! The tray must therefore be closed
and properly secured whilst the vehicle is in
motion. » 145
Technical data
Advice
Operation
Emergencies
Safety

Transport and practical equipment

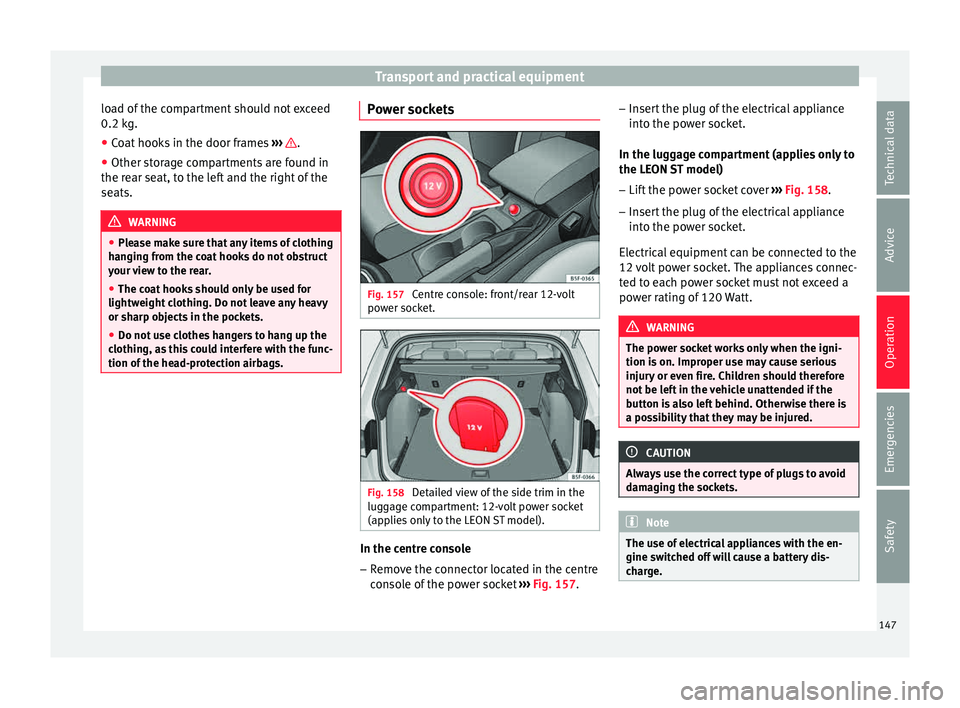

load of the compartment should not exceed
0.2 k g.
● Co
at hooks in the door frames ›››
.
● Other storage compartments are found in
the r e
ar se

at, to the left and the right of the
seats. WARNING
● Ple a

se make sure that any items of clothing
hanging from the coat hooks do not obstruct
your view to the rear.
● The coat hooks should only be used for
lightweight c
lothing. Do not leave any heavy
or sharp objects in the pockets.
● Do not use clothes hangers to hang up the
clothing, a
s this could interfere with the func-
tion of the head-protection airbags. Power sockets
Fig. 157
Centre console: front/rear 12-volt
po w
er soc

ket. Fig. 158
Detailed view of the side trim in the
lug g
ag

e compartment: 12-volt power socket
(applies only to the LEON ST model). In the centre console
– Remove the connector located in the centre
con
so

le of the power socket ››› Fig. 157. –
Insert
the plug of the electrical appliance
into the power socket.
In the luggage compartment (applies only to
the LEON ST model)
– Lift the power socket cover ›››
Fig. 158.
– Insert the plug of the electrical appliance
into the pow

er socket.
Electrical equipment can be connected to the
12 volt power socket. The appliances connec-
ted to each power socket must not exceed a
power rating of 120 Watt. WARNING
The power socket works only when the igni-
tion is on. Impr

oper use may cause serious
injury or even fire. Children should therefore
not be left in the vehicle unattended if the
button is also left behind. Otherwise there is
a possibility that they may be injured. CAUTION
Always use the correct type of plugs to avoid
dam agin

g the sockets. Note
The use of electrical appliances with the en-
gine swit c

hed off will cause a battery dis-
charge. 147
Technical data
Advice
Operation
Emergencies
Safety

Transport and practical equipment
– Att ac
h the s
traps to the rear lid A
› ›› .
WARNING
● The lugg ag

e compartment cover must al-
ways be fixed properly (risk of accident).
● The luggage compartment cover should not
be used as
a storage shelf. Articles placed on
this cover could cause injury to vehicle occu-
pants in an accident or if the brakes are ap-
plied suddenly. Retractable rear shelf
3 App
lies to the model: LEON ST Fig. 160
In the luggage compartment: Rear
shelf . Fig. 161
In the luggage compartment: remov-
ing the r e

ar shelf. Retracting the rear shelf
● Press the release catch of the rear shelf
(pr e
s

s) until it is released ››› Fig. 160 1 . The
shelf w
i
ll automatically move towards the
end and will retract completely.
Opening the rear shelf
● Pull the unfolded shelf evenly backwards.
Remov
ing the rear shelf
● Press the support of the rear shelf
›››
Fig. 161 1 in the direction of the arrow.
● Remove the rear shelf through the support
and up w
ar

ds.
● The rear shelf can be stored under the lug-
gage c
ompartment variable floor when the
latter is in the top position (except for vehi-
cles equipped with natural gas engine CNG)
››› page 150. Fitting the rear shelf
● Place the rear shelf in the housing provided
in the left
side cover.
● Engage the support of the rear shelf
›››
Fig. 161 1 in the right housing.
● Check that the support ››
›
Fig. 161 1 is
pr operly
en
gaged. WARNING
Animals, loose or unsecured or objects car-
ried on the re ar shelf

can cause serious injury
in case of sudden manoeuvring or braking or
in case of an accident.
● Do not leave hard, sharp or heavy objects
or in bags
on the rear shelf.
● Never carry animals on the rear shelf. 149
Technical data
Advice
Operation
Emergencies
Safety

Transport and practical equipment
Use of the net partition behind the
fr ont
se
at* 3 Applies to the model: LEON ST
Fig. 166
In the luggage compartment: pulling
out and sec
urin

g the net partition. Fig. 167
In the luggage compartment: remov-
in g the net
p

artition. Pulling out and securing the net partition
● Pull up handle ››
›
Fig. 166 2 to remove the
net fr
om the c
asing 4 .●
Hook in the net
p

artition on the right side
3 (magnified image).
● Hook in the net partition in the left side
hou s
in

g 1 pulling the rod.
The net p
ar
tition is properly assembled when
the T-shaped ends are firmly secured in the
corresponding housings 3 and
1 .
R etr
actin

g the net partition
● Unhook the rod from the housings 3 and
1 .
● Roll up the net into the casing 4 lowering
it w
ith

your hand.
Removing the net partition
● Fold the rear seat backrests forward.
● Press the left or right release catch
›››
Fig. 167 in the direction of the arrow 1 .
● Remove the casing from the support in the
dir ection of
the arr

ow ››› Fig. 167 2 .
Fittin g the net
p
artition
● Fold the rear seat backrests forward.
● Fit the casing in the right and left supports.
● Press the casing into the left and right sup-
ports in the op
posite direction to the arrow
››› Fig. 167 2 until it engages.
The r ed m
ark

ings on the release buttons
should no longer be visible. WARNING
● Alw a

ys secure objects, even when the net
partition is properly assembled.
● There should be nobody behind the assem-
bled p
artition when the vehicle is moving. CAUTION
Incorrect handling of the net partition could
cau se d

amage.
● Do not “release” the net partition when
lowerin
g it, as the net and other vehicle parts
could be damaged. Roll down the net parti-
tion by hand. 151
Technical data
Advice
Operation
Emergencies
Safety

Transport and practical equipment
Tailboard for transporting long items* Fig. 170
On the rear seat backrest: opening
the t ai
l
board. Fig. 171
In the luggage compartment: open-
in g the t
ai

lboard. On the rear seat, behind the central armrest,
ther
e i
s

a tailboard for transporting long
items in the interior, such as skis. To avoid soiling the interior, dirty objects
should be wr

apped (e.g. in a blanket) before
they are inserted through the tailboard.
When the armrest is down, nobody may trav-
el in the centre rear seat.
Opening the tailboard
● Lower the centre armrest.
● Pull the release lever in the direction of the
arrow and p
ush the tailboard cover
››› Fig. 170 1 down and forwards.
● Open the rear lid.
● Insert the long objects through the gap
fr om the lug
g

age compartment.
● Secure the objects with the seatbelt.
● Close the rear lid.
Clos
ing the tailboard
● Lift the tailboard cover until it engages. The
red mark
on the luggage compartment side
should never be visible.
● Close the rear lid.
● Lift the centre armrest if necessary. Note
The tailboard can also be opened from the
lugg ag

e compartment. To do so, press the re-
lease lever down, in the direction of the ar-
row, and the cover upwards ››› Fig. 171. Fastening rings*
Fig. 172
In the luggage compartment: fasten-
in g rin
g

s (LEON/LEON SC model except ver-
sions with spare wheel and CNG). Fig. 173
In the luggage compartment: fasten-
in g rin
g

s (LEON ST model). In the front and rear part of the luggage com-
p
ar
tment

there are fastening rings to secure
the luggage ››› Fig. 173. »
153
Technical data
Advice
Operation
Emergencies
Safety

Transport and practical equipment
CAUTION
Each hook is designed for a maximum load of
2.5 kg. Net bag*
Fig. 176
In the luggage compartment: net
b ag hook
ed up at
floor level (LEON ST model). Fig. 177
In the luggage compartment: rings
1 and hooks
2 for securing the net bag
(LE ON
S

T model). The luggage compartment prevents light lug-
g
ag
e fr

om moving. The net bag has a zip and
can be used to store small objects.
The net bag can be hooked up to the luggage
compartment in different ways.
Hooking the net bag into the luggage com-
partment floor
● As applicable, lift the front fastening rings
›››
Fig. 176 2 .
● Secure the net hooks to the fastening rings
2
› ›
› . The bag zip should be facing up-
w ar
d

s.
● Secure the net hooks to the fastening rings
1 .
Hook the net
b

ag next to the load threshold
● Secure the short net hooks to the fastening
rings
››› Fig. 177 1
› ›
› . The bag zip should
be f ac
in
g upwards.
● Secure the straps in the bag hooks 2 .
R emo
v

ing the net bag
The hooked up net bag is taut ››› .
● Remove the hooks and the net bag straps
fr om the f
a

stening rings and from the bag
hooks.
● Store the net bag in the luggage compart-
ment. WARNING
To secure the elastic net bag on the fastening
ring s

it must be stretched out. Once hooked
up it is taut. If the net bag is hooked up or un-
hooked incorrectly the hooks could cause in-
juries.
● Always secure the net hooks properly so
that they
do not suddenly release from the
fastening rings when hooking or unhooking
them.
● On hooking or unhooking them, protect
your eye
s and face in case the hooks are re-
leased suddenly.
● Always hook up the net bag hooks in the
desc
ribed order. If a hook is unexpectedly re-
leased the risk of injury is increased. 155
Technical data
Advice
Operation
Emergencies
Safety

Transport and practical equipment
Variable floor in the tilted position
When the v
ari
able floor is tilted you can ac-
cess the spare wheel/anti-puncture kit area.
● Lift the variable floor using handle
›››
Fig. 180 1 and pull it back until the front
of the floor h
a
s fully passed the tilted
grooves ››› Fig. 181 3 .
● Run the floor through these grooves with
the help of h
andl

e 1 as the rear seat back-
r e
s
t and until the floor is resting in the
grooves. WARNING
During a sudden driving or braking manoeu-
vre, or in the ev ent

of an accident, objects
could be flung though the interior and cause
serious or fatal injuries.
● Always secure objects, even when the lug-
gage c
ompartment floor is properly lifted.
● Only objects that do not protrude more
than 2/3 the height of
the floor may be car-
ried between the rear seat and the raised lug-
gage compartment floor.
● Only objects that do not weigh than ap-
prox
imately 7.5 kg may be carried between
the rear seat and the raised luggage compart-
ment floor. CAUTION
● The max imum w

eight that can be loaded on
the luggage compartment variable floor in
the top position is 150 kg. ●
Do not l et

the luggage compartment floor
fall when closing it. Always carefully guide it
downwards in a controlled manner. Other-
wise, the lining and the floor of the luggage
compartment could be damaged. Note
SEAT recommends the use of straps to secure
o b j

ects to retaining rings. Roof carrier
Intr oduction The vehicle roof has been designed to opti-
mi
se aer
ody

namics. For this reason, cross
bars or conventional roof carrier systems can-
not be secured to the roof water drains.
As the roof water drains are integrated in the
roof to reduce air resistance, only SEAT-ap-
proved cross bars and roof carrier systems
can be used.
Cases in which cross bars and the roof carri-
er system should be disassembled.
● When they are not used.
● When the vehicle is washed in a car wash.
● When the vehicle height exceeds the maxi-
mum height, for e x

ample, in some garages. WARNING
When heavy or bulky loads are transported
on the roof c

arrier system, car driving per-
formance is affected, as the centre of gravity
shifts and there is greater wind resistance.
● Always secure the load properly using belts
or retainin
g straps that are suitable and in a
good condition.
● Bulky, heavy, long or flat loads have a neg-
ative effect
on aerodynamics, the centre of
gravity and driving performance.
● Avoid sudden braking and manoeuvres.
● Adapt your speed and driving style at all
times t
o suit visibility, weather, road and traf-
fic conditions. CAUTION
● Remo v

e the cross bars and the roof carrier
system before entering a car wash.
● Vehicle height is increased by the installa-
tion of cr
oss bars or a roof carrier system and
the load secured on them. For this purpose,
check that your vehicle's height does not sur-
pass the headspace limit, for example, for un-
derpasses or for entering garage doors.
● Cross bars, a roof carrier system and the
load sec
ured on them should not interfere
with the roof aerial or hamper the path of the
panoramic sun roof ››› page 126 and the rear
lid.
● On opening the rear lid make sure that it
does not
knock into the roof load. » 157
Technical data
Advice
Operation
Emergencies
Safety

Air conditioning
Note
Always read the assembly instructions that
come w ith the c
rossbars and the roof carrier
system carefully and keep them in the vehi-
cle. Loading the roof carrier system
The load can only be secured if the crossbars
and the roof
c

arrier system are properly in-
stalled ››› .
Max imum authori

sed roof load
The maximum permissible roof load is 75 kg.
This figure comes from the combined weight
of the roof carrier, the cross bars and the load
itself on the roof ››› .
A lw
a

ys check the weight of the roof carrier
system, the cross bars and the weight of the
load to be transported and weigh them if
necessary. Never exceed the maximum au-
thorised roof load.
If you are using cross bars and a roof carrier
with a lower weight rating, you will not be
able to carry the maximum authorised roof
load. In this case, do not exceed the maxi-
mum weight limit for the roof carrier which is
listed in the fitting instructions. Distributing a load
Distrib

ute loads uniformly and secure them
correctly ››› .
Chec k
att

achments
Once the cross bars and roof carrier system
have been installed, check the bolted con-
nections and attachments after a short jour-
ney and subsequently with a certain frequen-
cy. WARNING
Exceeding the maximum authorised roof load
can r e

sult in accidents and considerable vehi-
cle damage.
● Never exceed the maximum authorised
load on the r
oof and on the axles or the vehi-
cle's maximum authorised weight.
● Never exceed the load capacity of the cross
bars
and the roof carrier system, even if the
maximum authorised roof load has not been
reached.
● Secure heavy items as far forward as possi-
ble and di
stribute the vehicle load uniformly. WARNING
If the load is loose or not secured, it could fall
from the r oof

carrier system or cause acci-
dents and injuries.
● Always use belts or retaining straps that
are suit
able and in a good condition.
● Secure the load properly. Air conditioning
He atin
g,

ventilation and cool-
ing
Introduction Read the additional information carefully
›› ›

 page 45
Viewing Climatronic information
On the screen of Climatronic control unit and
on the screen of the factory-fitted Easy Con-
nect system, the theoretical values of the
temperature zones are shown.
The unit of temperature measurement can be
changed in the Easy Connect system.
Dust and pollen filter
The dust and pollen filter with its activated
charcoal cartridge serves as a barrier against
impurities in the air taken into the vehicle in-
terior.
The dust and pollen filter must be changed
regularly so that air conditioner performance
is not adversely affected.
If the filter loses efficiency prematurely due
to use in areas with very high levels of air
pollution, the filter must be changed more
frequently than stated in the Service Sched-
ule. »
159
Technical data
Advice
Operation
Emergencies
Safety

Air conditioningFunc-
tion
buttonFunction
OFFSwitch off and switch on the Climatronic.
SETUP
The air conditioning settings submenu is
opened. It is possible to make the following
adjustments:
Function button Air conditioning profile.
: to ad-
just the level of the fan in AUTO mode. You
can choose between low, medium and
high.
Function button Automatic air recirculation
to
switch on and off automatic air recircula-
tion ››› page 163.
BACK
 function button to close the sub-
menu. Adjust using the Easy Connect sys-
t
em* 3 App
lies to vehicles with a Media System Plus/Navi
S
ystem.
In the Easy Connect system it is also possible
to perform various adjustments to the Clima-
tronic.
Open the air conditioner menu
● Press the Setup button.
On the t op of
the s

creen you can see and
change the current settings, such as, for ex-
ample, the temperature set for the driver side
and for that of passenger. Temperatures up to +22°C (+72°F) are shown with blue arrows,
and temperat

ures over +22°C (+72°F) with
red arrows.
To switch a function on or off, or to select a
submenu, you must press the corresponding
function button.
Function buttonFunction
Air condi-
tioning pro- fileAdjust the fan level in AUTO mode. You
can choose between low, medium and
high.
OFFClimatronic is switched off.
ONClimatronic is switched on.
SETUP
The air conditioning settings submenu
is opened. It is possible to make the fol-
lowing adjustments:
Function button Air conditioning profile.
: to
adjust the level of the fan in AUTO
mode. You can choose between low, me-
dium and high.
Function button Automatic air recirculation
to switch on and off automatic air recir-
culation
››› page 163.
BACK
 function button to close the
submenu.
Automatic
supplemen-
tary heating
Activate/deactivate the automatic acti-
vation of the supplementary heating for
colder countries (only for engines with
supplementary heating). With the option
deactivated, depending on the outside
temperature the heating may need more
time than normal to reach a comfortable
temperature. Air conditioning user instructions
The interior cooling system only works when
the engine i
s

running and fan is switched on.
The air conditioner operates most effectively
with the windows and the panoramic sliding
sunroof closed. However, if the vehicle has
heated up after standing in the sun for some
time, the air inside can be cooled more quick-
ly by opening the windows and the panoram-
ic sliding sunroof briefly.
Climatronic: change the temperature unit on
the screen of the radio or on the factory-fit-
ted navigation system
Changing the temperature display from Cel-
sius to Fahrenheit on radio or on the factory-
fitted navigation system is done using the
menu on the instrument panel
›››  page 31.
The cooling system cannot be activated
If the air conditioning system cannot be
switched on, this may be caused by the fol-
lowing: ● The engine is not running.
● The fan is switched off.
● The air conditioner fuse has blown.
● The outside temperature is lower than ap-
pro x

imately +3°C (+38°F). »
161
Technical data
Advice
Operation
Emergencies
Safety
