Seat Leon 5D 2016 Owner's manual

Wheels
Extraction of the spare wheel in vehi-
c l
e
s with SEAT SOUND 10 speakers
(with subwoofer)* Fig. 249
In the luggage compartment: re-
mo v
e the s

ubwoofer. To remove the spare wheel, you must first re-
mo
v
e the

subwoofer.
– Disassemble the subwoofer's
floor panel
(carpet) as follows:
– LEON/LEON SC model: first, p
ull the carpet
in the direction of the backrest and then
pull it upwards to remove it. LEON ST mod-
el: lift and secure the floor storage com-
partment as explained in ››› page 160.
– Disconnect the subwoofer’s
speaker cable
››› Fig. 249 1 . –
Turn the sec urin

g wheel in an anti-clock-
wise direction 2 .
– Remove the s ub
woofer
speaker and the
spare wheel.
– When re-mounting the spare tyre, place the
subwoofer

on the base of the wheel rim
with care. When doing so, the tip of the
“FRONT” arrow on the subwoofer should
point forward.
– Reconnect the speaker cable and firmly ro-
tate the sec

uring wheel clockwise so that
the subwoofer system and wheel are firmly
in place.
Winter service Winter ty
res –
Winter tyres must be fitted on al
l
four
wheels.
– Only use winter tyres that are approved for
your v

ehicle.
– Please note that the maximum permissible
speed for w

inter tyres may be lower than
for summer tyres.
– Also note that winter tyres are no longer ef-
fective when the

tread is worn down. –
After fittin
g the wheels you must always
check the tyre pressures. When doing so,
take into account the correct tyre pressures
listed on the rear of the front left door
frame ››› page 272.
In winter road conditions winter tyres will
considerably improve vehicle handling. The
design of summer tyres (width, rubber com-
pound, tread pattern) gives less grip on ice
and snow. This applies particularly to vehi-
cles equipped with wide section tyres or with
high speed tyres (code letters H, V or Y on
the sidewall).
Only use winter tyres of the correct type ap-
proved for your vehicle. The sizes of these
tyres are specified in the vehicle's docu-
ments (e.g. EC Certificate of Conformity or
COC 1)
). The vehicle documentation varies de-
pending on the country of residence. See al-
so ››› page 273.
Winter tyres lose a great deal of their proper-
ties when the tread is worn down to a depth
of 4 mm.
The performance of winter tyres is also se-
verely impaired by ageing, even if the tread is
still much deeper than 4 mm.
Winter tyres are subject to the following max-
imum speed limits according to speed rating
code letter: ››› »
1)
COC = certificate of conformity.
279
Technical data
Advice
Operation
Emergencies
Safety

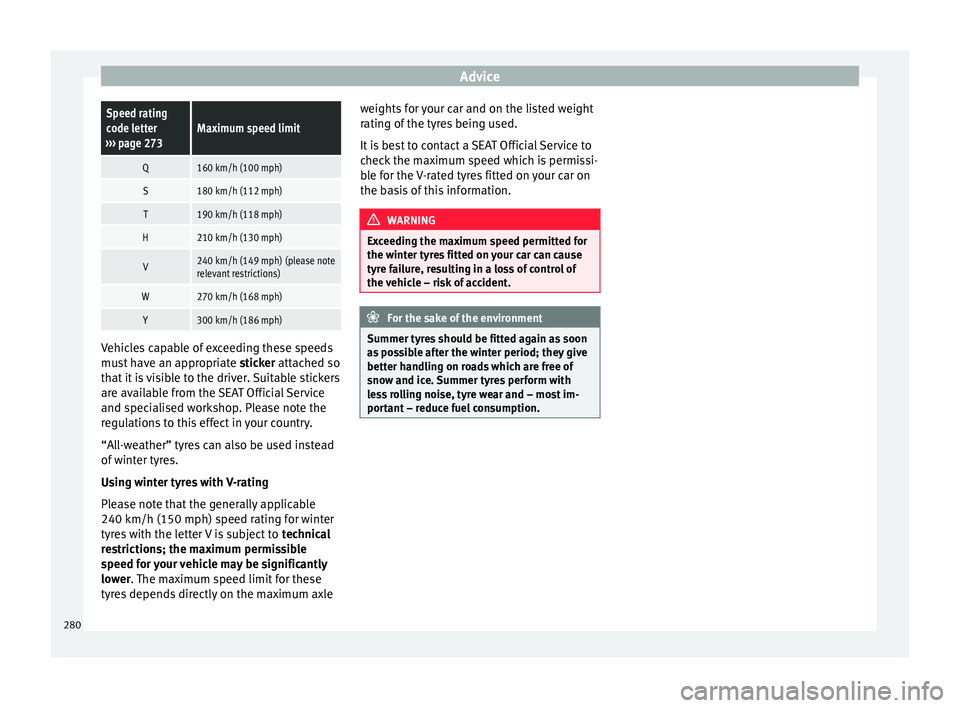

AdviceSpeed rating
code letter
››› page 273Maximum speed limit
Q160 km/h (100 mph)
S180 km/h (112 mph)
T190 km/h (118 mph)
H210 km/h (130 mph)
V240 km/h (149 mph) (please note
relevant restrictions)
W270 km/h (168 mph)
Y300 km/h (186 mph) Vehicles capable of exceeding these speeds
mu
s
t

have an appropriate sticker attached so
that it is visible to the driver. Suitable stickers
are available from the SEAT Official Service
and specialised workshop. Please note the
regulations to this effect in your country.
“All-weather” tyres can also be used instead
of winter tyres.
Using winter tyres with V-rating
Please note that the generally applicable
240 km/h (150 mph) speed rating for winter
tyres with the letter V is subject to technical
restrictions; the maximum permissible
speed for your vehicle may be significantly
lower. The maximum speed limit for these
tyres depends directly on the maximum axle weights for your car and on the listed weight
rating of

the tyres being used.
It is best to contact a SEAT Official Service to
check the maximum speed which is permissi-
ble for the V-rated tyres fitted on your car on
the basis of this information. WARNING
Exceeding the maximum speed permitted for
the wint er ty

res fitted on your car can cause
tyre failure, resulting in a loss of control of
the vehicle – risk of accident. For the sake of the environment
Summer tyres should be fitted again as soon
as po

ssible after the winter period; they give
better handling on roads which are free of
snow and ice. Summer tyres perform with
less rolling noise, tyre wear and – most im-
portant – reduce fuel consumption. 280

Technical specifications
Technical data
T ec
hnic
al specifications
Important The information in the vehicle documentation
alwa
y

s takes precedence over the informa-
tion in this Instruction Manual.
All technical specifications provided in this
documentation are valid for the standard
model in Spain. The vehicle data card inclu-
ded in the Maintenance Programme or the
vehicle registration documents shows which
engine is installed in the vehicle.
The figures may be different depending
whether additional equipment is fitted, for
different models, for special vehicles and for
other countries. Abbreviations used in the Technical Specifi-
cation
s

section
kWKilowatt, engine power measurement.
PSPferdestärke (horsepower), formerly used
to denote engine power.
rpmRevolutions per minute - engine speed.
NmNewton metres, unit of engine torque.
CZCetane number, indication of the diesel
combustion power.
RONResearch octane number, indication of
the knock resistance of petrol. Vehicle identification data
Fig. 250
Vehicle data sticker (luggage com-
p ar tment). Fig. 251
Chassis number. VIN in the Easy Connect
– Select: button 
 > function button SETUP
> Service > Chassis number .
Ch a
s

sis number
The VIN is located in the Easy Connect, on the
vehicle data sticker and under the wind-
screen, on the driver side ››› Fig. 251. Addi-
tionally, the chassis number is located in the
engine compartment, on the right-hand side.
The number is engraved on the top side rail,
and is partially covered.
Type plate
The type plate is located on the right side
door pillar. Vehicles for certain export coun-
tries do not have a type plate.
Vehicle data sticker
The vehicle data sticker is under the carpet
trim in the luggage compartment, in the »
281
Technical data
Advice
Operation
Emergencies
Safety

Technical data
spare wheel well. A sticker with the vehicle
d at
a i
s attached to the inside cover of the
Maintenance Programme.
The following information is provided on the
vehicle data sticker: ››› Fig. 250
Vehicle identification number (chassis
number)
Vehicle type, model, capacity, engine
type, finish, engine power and gearbox
type
Engine code, gearbox code, external
paint code and internal equipment code
Optional extras and PR numbers
Identifying letters
The identifying letters of the engine can be
viewed on the instrument panel when the en-
gine is switched off and the ignition is on.
● Hold down the 0.0/SET
4
› ›
› Fig. 120
but-
ton for more than 15 seconds.
Information on fuel consump-
tion
Fuel c

onsumption Approved consumption values are derived
fr
om me
a

surements performed or supervised
by certified EU laboratories, according to the 1 2
3
4 legislation in force at the time (for more infor-
m
ation, see the P
ub

lications Office of the Eu-
ropean Union on the EUR-Lex website: © Eu-
ropean Union, http://eur-lex.europa.eu/) and
apply to the specified vehicle characteristics.
The values relating to fuel consumption and
CO 2 emissions can be found in the documen-
tation provided to the purchaser of the vehi-
cle at the time of purchase.
Fuel consumption and CO 2 emissions depend
on the equipment/features of each individual
vehicle, as well as on the driving style, road
conditions, traffic conditions, environmental
conditions, load or number of passengers. Note
In practice, and considering all the factors
mentioned here, c on

sumption values can dif-
fer from those calculated in the current Euro-
pean regulations. Weights
Kerb weight refers to the basic model with a
f
uel
t

ank filled to 90% capacity and without
optional extras. The figure quoted includes
75 kg to allow for the weight of the driver.
Special versions, optional equipment fittings
or retro-fitting accessories will increase the
weight of the vehicle ››› . WARNING
● Ple a

se note that the centre of gravity may
shift when transporting heavy objects; this
may affect vehicle handling and lead to an ac-
cident. Always adjust your speed and driving
style to suit road conditions and require-
ments.
● Never exceed the gross axle weight rating
or the gros
s vehicle weight rating. If the per-
missible axle load or the permissible total
weight is exceeded, the driving characteris-
tics of the vehicle may change, which could
lead to accidents, injuries and damage to the
vehicle. Trailer mode
Tr
ai

ler weights Trailer weight
The tr
ai
l

er weights and drawbar loads ap-
proved are selected in intensive trials accord-
ing to precisely defined criteria. The ap-
proved trailer weights are valid for vehicles in
the EU for maximum speeds of 80 km/h (50
mph) (in certain circumstances up to 100
km/h (62 mph)). The figures may be different
in other countries. All data in the official vehi-
cle documentation takes precedence over
these data at all times ››› .
282

Technical specifications
Drawbar loads
The maximum permitt ed dr
a
wbar load on the
ball joint of the towing bracket must not ex-
ceed 80 kg.
In the interest of road safety, we recommend
that you always tow approaching the maxi-
mum drawbar load. The response of the trail-
er on the road will be poor, if the drawbar
load is too small.
If the maximum permissible drawbar load
cannot be met (e.g. with small, empty and
light-weight single axle trailers or tandem
axle trailers with a wheelbase of less than 1
metre), a minimum of 4% of the actual trailer
weight is legally required for the drawbar
load. WARNING
● For s af

ety reasons, you should not drive at
speeds above 80 km/h (50 mph) when towing
a trailer. This also applies in countries where
higher speeds are permitted.
● Never exceed the maximum trailer weights
or the drawb
ar load. If the permissible axle
load or the permissible total weight is excee-
ded, the driving characteristics of the vehicle
may change, leading to accidents, injuries
and damage to the vehicle. Wheels
Ty
r

e pressure, snow chains, wheel
bolts Tyre pressures
The stic
k

er with the tyre pressure values can
be found on the rear of the front left door
frame. The tyre pressure values given there
are for cold tyres. The slightly raised pres-
sures of warm tyres must not be reduced.
››› The pressure for win
t
er
tyres is 0.2 bar
(2.9 psi / 20 kPa) higher than that of summer
tyres.
Snow chains
Snow chains may be fitted only to the front
wheels, and only for the following tyres:
195/65 R15Chains with links of maximum 15 mm
205/55 R16Chains with links of maximum 15 mm
205/50 R17Chains with links of maximum 15 mm
225/45 R17Chains with links of maximum 9 mm
225/40 R18Chains with links of maximum 9 mm
225/35 R19Chains with links of maximum 7 mm
205/55 R17Snow chains are not permitted
225/45 R18Snow chains are not permitted Wheel bolts
Af
t
er the wheel

s have been changed, the
tightening torque of the wheel bolts should
be checked as soon as possible with a torque
wrench ››› . The tightening torque for steel
and al lo
y

wheels is 120 Nm. WARNING
● Check the ty

re pressure at least once per
month. Checking the tyre pressure is very im-
portant. If the tyre pressure is too high or too
low, there is an increased danger of accidents
- particularly at high speeds.
● If the tightening torque of the wheel bolts
is t
oo low, they could loosen while the vehi-
cle is in motion. Risk of accident! If the tight-
ening torque is too high, the wheel bolts and
threads can be damaged. Note
We recommend that you ask your Technical
Serv ic

e for information about appropriate
wheel, tyre and snow chain size. 283
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Engine data P etr
o
l engine 1.2 63 kW (86 PS)
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
63 (86)/4,300-5,300160/1,400-3,5004/1,197Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsLEONLEON SCLEON ST
Top speed (km/h)178 (V)178 (V)178 (V)
Acceleration from 0-80 km/h (seconds)7.67.57.8
Acceleration from 0-100 km/h (seconds)11.911.812.1
Maximum authorised weight (kg)1,7001,7001,800
Weight in running order (with driver) (kg)1,1881,1681,233
Maximum authorised weight on front axle (kg)890940880
Maximum authorised weight on rear axle (kg)860810970
Permitted roof load (kg)757575
Maximum trailer weight without brakes (kg)590580610
Weight of trailer with brakes, gradients up to 8% (kg)1,3001,3001,300
Weight of trailer with brakes, gradients up to 12% (kg)1,1001,1001,100 284

Technical specifications
Petrol engine 1.2 TSI 81 kW (110 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
81 (110)/4,600-5,600175/1,400-4,0004/1,197Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsLEONLEON SCLEON ST
ManualStart-StopManualStart-StopManualStart-Stop
Top speed (km/h)194 (V)194 (V)194 (V)194 (V)194 (V)194 (V)
Acceleration from 0-80 km/h (seconds)6.66.66.76.56.76.7
Acceleration from 0-100 km/h (seconds)9.99.910.19.810.110.1
Maximum authorised weight (kg)1,7401,7401,7101,7301,7901,800
Weight in running order (with driver) (kg)1,2131,2131,1861,1931,2401,247
Maximum authorised weight on front axle (kg)900900950950880890
Maximum authorised weight on rear axle (kg)890890810830960960
Permitted roof load (kg)757575757575
Maximum trailer weight without brakes (kg)600600590590620620
Weight of trailer with brakes, gradients up to 8% (kg)1,5001,5001,5001,5001,5001,500
Weight of trailer with brakes, gradients up to 12% (kg)1,3001,3001,3001,3001,3001,300 285
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Petrol engine 1.6 MPI 81 kW (110 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
81 (110)/5,800155/3,800-4,0004/1,598Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsLEON
manualLEON
automaticLEON SC manualLEON SC
automaticLEON ST manualLEON ST
automatic
Top speed (km/h)189 (IV)185 (V)189 (V)185 (V)189 (V)185 (V)
Acceleration from 0-80 km/h (seconds)6.77.46.67.56.97.6
Acceleration from 0-100 km/h (seconds)10.511.410.411.610.811.8
Maximum authorised weight (kg)1,7401,7701,7101,7301,7901,830
Weight in running order (with driver) (kg)1,1921,2301,1751,2101,2281,275
Maximum authorised weight on front axle (kg)880920940970870910
Maximum authorised weight on rear axle (kg)910900820810970970
Permitted roof load (kg)757575757575
Maximum trailer weight without brakes (kg)590610580600610630
Weight of trailer with brakes, gradients up to 8% (kg)1,4001,4001,4001,4001,4001,400
Weight of trailer with brakes, gradients up to 12% (kg)1,2001,2001,2001,2001,2001,200 286

Technical specifications
Petrol engine 1.0 TSI 85 kW (115 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
85 (115)/5,000-5,500200/2,000-3,5003/999Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsLEON
manualLEON
automaticLEON SC manualLEON SC
automaticLEON ST manualLEON ST
automatic
Top speed (km/h)202202202202202202
Acceleration from 0-80 km/h (seconds)6.66.66.56.56.86.8
Acceleration from 0-100 km/h (seconds)9.69.69.59.59.89.8
Maximum authorised weight (kg)1,7201,7401,7101,7401,7701,800
Weight in running order (with driver) (kg)1,2021,2251,1801,2031,2361,259
Maximum authorised weight on front axle (kg)890910940960880900
Maximum authorised weight on rear axle (kg)880880820830940950
Permitted roof load (kg)757575757575
Maximum trailer weight without brakes (kg)600610590600610620
Weight of trailer with brakes, gradients up to 8% (kg)1,3001,3001,3001,3001,3001,300
Weight of trailer with brakes, gradients up to 12% (kg)1,0001,0001,0001,0001,0001,100 287
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Petrol engine 1.4 92 kW (125 PS) Start-StopPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
92 (125)/5,000-6,000200/1,400-4,0004/1,395Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsLEONLEON SCLEON STLEON ST
X-PERIENCE
Top speed (km/h)203 (V&VI)203 (V&VI)203 (V&VI)200 (V&VI)
Acceleration from 0-80 km/h (seconds)6.26.16.46.6
Acceleration from 0-100 km/h (seconds)9.18.99.49.7
Maximum authorised weight (kg)1,7701,7501,8301,820
Weight in running order (with driver) (kg)1,2331,2131,2571,263
Maximum authorised weight on front axle (kg)920970910950
Maximum authorised weight on rear axle (kg)900830970920
Permitted roof load (kg)75757575
Maximum trailer weight without brakes (kg)610600620630
Weight of trailer with brakes, gradients up to 8% (kg)1,7001,7001,7001,700
Weight of trailer with brakes, gradients up to 12% (kg)1,4001,4001,4001,400 288
