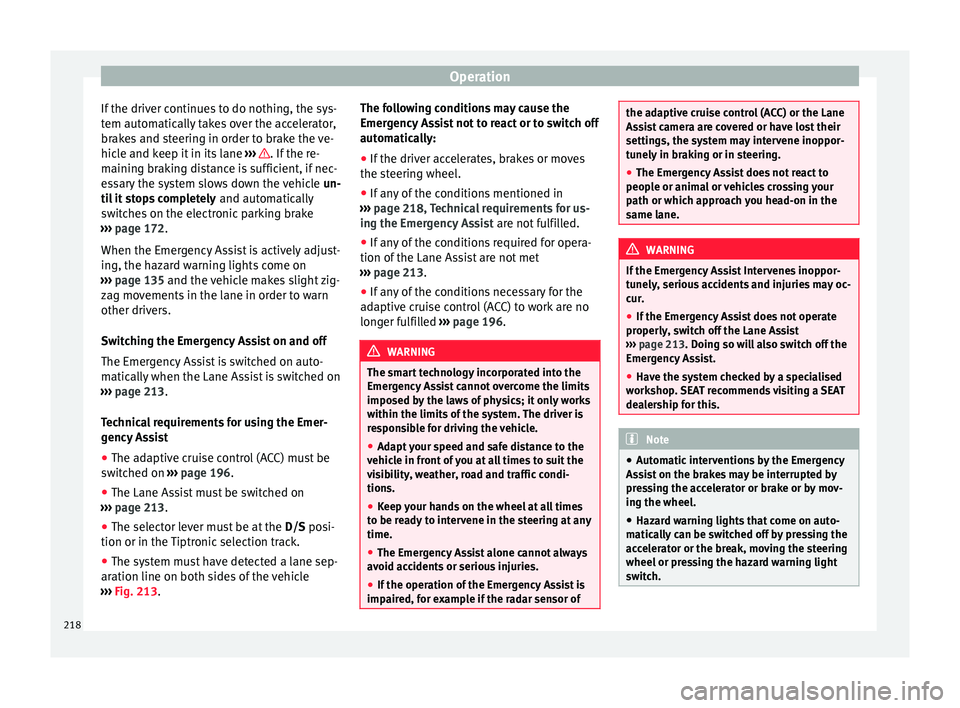

Operation
If the driver continues to do nothing, the sys-
t em aut
om
atically takes over the accelerator,
brakes and steering in order to brake the ve-
hicle and keep it in its lane ››› . If the re-
m ainin
g br

aking distance is sufficient, if nec-
essary the system slows down the vehicle un-
til it stops completely and automatically
switches on the electronic parking brake
››› page 172.
When the Emergency Assist is actively adjust-
ing, the hazard warning lights come on
››› page 135 and the vehicle makes slight zig-
zag movements in the lane in order to warn
other drivers.
Switching the Emergency Assist on and off
The Emergency Assist is switched on auto-
matically when the Lane Assist is switched on
››› page 213.
Technical requirements for using the Emer-
gency Assist ● The adaptive cruise control (ACC) must be
switc
hed on ››› page 196.
● The Lane Assist must be switched on
›››
page 213.
● The selector lever must be at the D/S posi-
tion or in the
Tiptronic selection track.
● The system must have detected a lane sep-
aration line on both side
s of the vehicle
››› Fig. 213. The following conditions may cause the
Emergency

Assist not to react or to switch off
automatically:
● If the driver accelerates, brakes or moves
the steerin
g wheel.
● If any of the conditions mentioned in
›››
page 218, Technical requirements for us-
ing the Emergency Assist are not fulfilled.
● If any of the conditions required for opera-
tion of the Lane Ass
ist are not met
››› page 213.
● If any of the conditions necessary for the
adaptiv
e cruise control (ACC) to work are no
longer fulfilled ››› page 196. WARNING
The smart technology incorporated into the
Emerg ency

Assist cannot overcome the limits
imposed by the laws of physics; it only works
within the limits of the system. The driver is
responsible for driving the vehicle.
● Adapt your speed and safe distance to the
vehicl
e in front of you at all times to suit the
visibility, weather, road and traffic condi-
tions.
● Keep your hands on the wheel at all times
to be re
ady to intervene in the steering at any
time.
● The Emergency Assist alone cannot always
avoid acc
idents or serious injuries.
● If the operation of the Emergency Assist is
impaired, f
or example if the radar sensor of the adaptive cruise control (ACC) or the Lane
Ass
i

st camera are covered or have lost their
settings, the system may intervene inoppor-
tunely in braking or in steering.
● The Emergency Assist does not react to
people or anim
al or vehicles crossing your
path or which approach you head-on in the
same lane. WARNING
If the Emergency Assist Intervenes inoppor-
t u nely

, serious accidents and injuries may oc-
cur.
● If the Emergency Assist does not operate
properly, sw
itch off the Lane Assist
››› page 213. Doing so will also switch off the
Emergency Assist.
● Have the system checked by a specialised
workshop
. SEAT recommends visiting a SEAT
dealership for this. Note
● Autom atic

interventions by the Emergency
Assist on the brakes may be interrupted by
pressing the accelerator or brake or by mov-
ing the wheel.
● Hazard warning lights that come on auto-
matica
lly can be switched off by pressing the
accelerator or the break, moving the steering
wheel or pressing the hazard warning light
switch. 218

Operation
WARNING
● Alw a
ys pay attention, also when looking
straight ahead, to traffic and the vehicle
surroundings. The assistance systems are not
a replacement for driver awareness. When in-
serting or removing the vehicle from a park-
ing space, or when performing similar ma-
noeuvres the driver always assumes the re-
sponsibility.
● Adapt your speed and driving style at all
times t
o suit visibility, weather, road and traf-
fic conditions.
● The ultrasound sensors have blind spots in
which ob
stacles and people are not regis-
tered. Pay special attention to children and
animals.
● Always keep visual control of the vehicle
surrou
ndings: use the mirrors for additional
help. CAUTION
Parking Aid functions may be negatively af-
fect ed b

y different factors that may lead to
damage to the vehicle or its immediate sur-
rounds:
● Under certain circumstances, the system
does not
detect or display certain objects:
– Objects such as chains, trailer draw bars,
fences, posts and thin trees.
– Objects that are located above the sen-
sors, such as protrusions in a wall. –
Ob j

ects with certain surfaces or struc-
tures, such as wire mesh fences or pow-
der snow.
● Certain surfaces of objects and garments
do not refl
ect the ultrasound sensors' sig-
nals. The system cannot detect, at least cor-
rectly, these objects or people wearing such
clothes.
● Ultrasound sensor signals may be affected
by e
xternal sound sources. In certain circum-
stances this may prevent them from detect-
ing people or objects.
● Please note that low obstacles detected by
the syst
em may no longer be registered by
the sensors as the car moves closer, so the
system will not give any further warning. In
certain circumstances, objects such as high
kerbs that could damage the bottom of the
vehicle are not detected either.
● If the first warning from the ParkPilot is ig-
nored, the v
ehicle could suffer considerable
damage.
● The knocks or damage on the radiator
grill
e, bumper, wheel arch and vehicle under-
body can adjust the orientation of the sen-
sors. This can affect the parking aid function.
Have the function checked by a specialised
workshop. Note
● In cer t

ain situations, the system can give a
warning even though there is no obstacle in
the detected area, e.g: –
with r ough or c

obbled floors or ground
with long grass;
– with external ultrasound sources, such as
cleaning vehicles or other vehicles;
– In downpours, intense snow or dense ex-
haust gases;
– if the registration plate (front or rear) is
not properly affixed to the bumper sur-
face;
– or in locations such as the brow of a hill.
● In order to guarantee good system opera-
tion, keep the ultr
asound sensors clean, free
of snow or ice, and do not cover them with
adhesives or other objects.
● If you use high-pressure or vapour equip-
ment to c
lean the ultrasound sensors, apply
it directly only very briefly and always from a
distance of more than 10 cm.
● Retrofitting of accessories to the vehicle,
such a
s a bicycle rack, may interfere with the
operation of the Parking Aid.
● In order to familiarise yourself with the sys-
tem, it i
s advised that you practice parking in
an area or car park that is free from traffic.
There must be good weather and light condi-
tions.
● The volume and tone of the warnings can
be modified, in addition t
o the indications
››› page 230.
● In vehicles without a driv
er information
system, these parameters can be modified in
a SEAT Official Service or in a specialised
workshop. 226

Driver assistance systems
●
Ple a
se observe information on towing a
trailer ››› page 230.
● The display on the Easy Connect screen
shows
a slight time delay. Rear parking aid*
The rear Parking Aid assists the driver in
park
in

g by means of audible warning
sounds.
Description
There are sensors integrated in the rear
bumper. When the sensors detect an obsta-
cle, you are alerted by audible warnings.
Make particularly sure that the sensors are
not covered by adhesives, residues and the
like, as this could affect the system's opera-
tion. Cleaning instructions ››› page 248.
The approximate measurement range of the
rear sensors is:
side area0.60 m
central area1.60 m As you approach the obstacle, the time inter-
v
al
betw

een the audible warnings will be re-
duced. When you reach around 0.30 m the
warning will be constant: Do not continue to
move forward (or backward) ››› in Generalinformation on page 226,
››
›
in General in-
f orm
ation on p
age 226 !
If you maintain separation from the obstacle,
the volume of the warning begins to reduce
after four seconds (does not affect the tone
of the constant warning).
Activating/Deactivating
When engaging reverse gear, the parking aid
is automatically switched on. This is con-
firmed with a short warning.
On disengaging reverse gear, the Parking Aid
system is disconnected immediately.
Parking system plus* Fig. 219
Represented area. Parking system plus assists you audibly and
v
i
s

ually when parking. There are sensors integrated in the front and
rear b

umpers. When they detect an obstacle,
you are alerted by audible warnings and visu-
ally on the Easy Connect system.
In the event of danger of a frontal collision,
the audible warnings come from the front of
the vehicle, and in the event of the danger of
a rear-end collision they come from the rear.
Make particularly sure that the sensors are
not covered by adhesives, residues and the
like, as this could affect the system's opera-
tion. Cleaning instructions ››› page 248.
The approximate measurement range of the
sensors is:
1.20 m
0.60 m
1.60 m
0.60 m
As you approach the obstacle, the time inter-
val between the audible warnings will be re-
duced. When you reach around 0.30 m the
warning will be constant: do not continue to
move forward (or backward)!
If you maintain separation from the obstacle,
the volume of the warning begins to reduce
after four seconds (does not affect the tone
of the constant warning). A B
C
D
227
Technical data
Advice
Operation
Emergencies
Safety

Operation
Moreover, with the SEAT Media System
Plu s/Nav
i
System radios, a yellow trail indi-
cates the vehicle's expected journey based
on the steering wheel angle.
Whenever the obstacle is located in the vehi-
cle’s direction of travel, the corresponding
audible warning will sound.
As the vehicle approaches an obstacle, the
segments are displayed closer to the vehicle.
When the penultimate segment is displayed,
this means that the vehicle has reached the
collision zone. In the collision zone, the ob-
stacles are represented in red, including
those out of the path. Do not continue to
move forward (or backward) ››› in General
inf orm
ation on p

age 226, ››› in General in-
f orm
ation on p
age 226 !
Adjusting the display and audible
warning
s The settings for the display and audible
w
arnin
g

s are controlled via the Easy Con-
nect*.
Automatic activation
 on – activates the Automatic activa-
tion option ›››
page 229.
 off – deactivates the Automatic ac-
tivation option ››› page 229. Front volume*
Volume in the fr

ont and rear area.
Front sound settings/sharpness*
Frequency (tone) of the sound in the front
area.
Rear volume*
Volume in the rear area.
Rear sound settings/sharpness*
Frequency (tone) of the sound in the rear
area.
Adjust volume
With the parking aid switched on, the active
audio/video source volume will be reduced
to the intensity of the selected setting.
Error messages When the Parking Aid is activated or when it
i
s
sw

itched on, if a message reporting a Park-
ing aid error is displayed on the instrument
panel, there is a fault in the system.
If the fault doesn't disappear before discon-
necting the ignition, next time that parking
aid is engaged in reverse, it will not be indi-
cated. Parking System Plus*
If there i

s a fault in the parking aid system a
message will appear on the instrument panel
indicating the error. In addition the  key
LED will blink.
If there is a fault in a sensor, the symbol  is
displayed on the Easy Connect display in
front of/behind the vehicle. If a rear sensor is
faulty, only the obstacles in the areas A and
B are displayed
››
›
Fig. 219. If a front sensor
is faulty, only the obstacles in the areas C and
D are displayed.
Hav e the f
au

lt corrected by a specialised
workshop without delay.
Towing bracket In vehicles equipped with a towing bracket
dev
ic
e fr

om the factory, when the trailer is
connected electrically, the Parking Aid rear
sensors will not be activated when reverse
gear is engaged, when the selector lever is
turned to position R or when the button  is
pressed.
Parking System Plus
The distance to possible obstacles at the rear
of the vehicle will not be displayed on the
screen and nor will it be indicated by means
of audible sound signals.
230

Care and maintenance
Automatic car washes
B ef
or
e going through a car wash, be sure to
take the usual precautions such as closing
the windows and roof. If the vehicle has spe-
cial accessories such as spoilers or a roof
rack or two-way radio aerial, etc., it is advisa-
ble to consult the car wash tunnel operator.
It is best to use a car wash without revolving
bristles if possible.
Washing the vehicle with a high pressure
cleaner
When washing the vehicle with a high-pres-
sure cleaner, always follow the operating in-
structions for the equipment. This applies
particularly to the operating pressure and the
spraying distance. Do not hold the nozzle too
close to soft materials such as rubber hoses
or seals. The same applies to the parking aid
sensors*, which are located in the rear bump-
er.
Do not use a nozzle that sprays the water out
in a direct stream or one that has a rotating
jet for forcing off dirt.
Stickers attached by the factory
Follow these directions to avoid damaging
the stickers:
● Do not use high pressure cleaners.
● To remove ice or snow from the stickers do
not use w
indow scrapers or ice scrapers. ●
Do not poli
sh the stickers.
● Do not use dirty cloths or sponges.
● Preferably wash using a soft sponge and
soft neutr
al soap.
Washing the car by hand
When washing the car by hand, use plenty of
water to soften the dirt first, and rinse off as
well as possible.
Then clean the vehicle with a soft sponge,
glove or brush using only slight pressure.
You should start on the roof and work down.
Special car soap should only be used for very
persistent dirt.
Rinse the sponge or glove thoroughly and of-
ten.
Wheels, sills and similar should be cleaned
last. Use a second sponge for this. WARNING
● The v ehic

le should only be washed with the
ignition switched off. Failure to follow this in-
struction could result in an accident.
● Do not clean the underside of chassis, the
inside of
wheel arches or wheel trims without
protecting your hands and arms. You may cut
yourself on sharp-edged metal parts. Other-
wise, there is a risk of sustaining cuts.
● When washing the car during the winter
season: w
ater and ice in the brake system
can reduce braking effectiveness: risk of acci-
dent! CAUTION
● Do not w a

sh the vehicle in direct sunlight –
otherwise the paint can be damaged.
● Do not use sponges, abrasive household
spong
es or similar to clean insect remains.
This could damage the surface.
● Clean off stubborn dirt (insects, etc.) from
the headlight
s at regular intervals, for in-
stance when filling the fuel tank. The head-
lights should only be washed with water, do
not wipe them with a dry cloth or sponge. It
is best to use soapy water.
● Never wash tyres with a jet that sprays the
water out
in a direct stream. This could dam-
age the tyres even if the spray is kept at a
distance and only used for a very short time.
● Before washing the vehicle in an automatic
car wa
sh, please make sure to retract the ex-
terior mirrors to prevent them from being
damaged. Electrically retractable exterior
mirrors must not be folded in or out by hand,
always use the electrical power control. CAUTION
● Bef or

e washing the vehicle in an automatic
car wash, please proceed as follows to lock
the wiper arms so that they are not moved to-
wards the top of the windscreen:
–the bonnet must be closed.
– switch the ignition on and off.
– press the windscreen wiper lever forward
briefly (windscreen washer function).
This will lock the wiper arms. » 247
Technical data
Advice
Operation
Emergencies
Safety

Advice
For the sake of the environment
The car should only be washed in special
wa sh b
ays. These areas are prepared to pre-
vent oily water from getting into the public
drains. In some places, washing vehicles out-
side the areas intended for this purpose is
prohibited. Camera sensors and lenses
●
Use a small brush to remove snow and a
de-icer s pr

ay to remove ice.
● Clean the sensors with a solvent-free prod-
uct and a sof t, dr

y cloth.
● Moisten the camera lens using a standard
alcohol-b
ased glass cleaning agent and
clean the lens with a dry cloth. In the active
lane assist*, the area in front of the lens is
normally cleaned with the windscreen wash-
er. CAUTION
● When y ou c

lean the vehicle with a pressure
washer:
–Stay a suitable distance from the sensors
on the front and rear bumpers.
– Do not clean the camera lenses or sur-
rounding area with the pressure washer.
● Never use warm or hot water to remove
snow and ic
e from the reverse camera lens,
as it could crack the lens. ●
Never u se abr

asive cleaning agents on the
lens. Waxing and polishing
Care
Wax
in

g protects the paintwork. It is time to
apply a coat of good wax when water no lon-
ger forms droplets and rolls off the clean
paintwork.
Even if a wax solution is used regularly in the
vehicle washing tunnel, it is advisable to pro-
tect the paint with a hard wax coating at least
twice a year.
In the summer, you will find it is much easier
to remove dead insects (which accumulate
on the bumper and the front of the bonnet) if
the car has been treated with care products
recently.
Polishing
Polishing is only necessary if the paint has
lost its shine, and the gloss cannot be
brought back by putting on wax.
If the polish does not contain wax, a wax
product should be applied after polishing. CAUTION
● Do not u se po

lishes and hard wax on pain-
ted parts with a matt finish or on plastic
parts.
● Do not apply paint polishes to the side trim
that ru
ns around the panoramic roof and ends
on the windscreen. However, it can be treated
with hard wax. Trims
In respect for the environment, the silver-
p
l
at

ed trims on the body are made of pure
aluminium (they do not contain chrome).
Dirt or marks on the trim mouldings should
be removed with a cleaning product with a
neutral PH (do not use a chrome cleaner).
Body polish is also unsuitable for use on trim
mouldings. The intensive cleaning fluids of-
ten used before the car goes into a car wash
may contain alkaline substances, which can
cause dull or milky patches when they dry
out.
SEAT Official Services carry stocks of cleaning
products which have been tested for use on
your vehicle and are not harmful to the envi-
ronment.
248

Wheels
Tyre monitoring indicator Fig. 246
Instrument panel: warning of loss of
ty r
e pr
essure. The tyre monitor indicator compares wheel
r
ev
o

lutions and, with this information, the
tread of each wheel using the ABS sensors. If
the rolling circumference of one or more
wheels has changed, the tyre monitoring in-
dicator will indicate this on the instrument
panel through a warning lamp and a warning
to the driver ››› Fig. 246. When only one spe-
cific tyre is affected, its position within the
vehicle will be indicated.
 Loss of pressure: Check left
tyre pressure!
Wheel tread change
The wheel tread changes when: ●
Tyr
e pressure is manually changed
● Tyre pressure is insufficient
● Tyre structure is damaged
● The vehicle is unbalanced because of a
load
● The wheel

s on an axle are subject to a
heavier lo
ad (e.g. with a heavy load).
● The vehicle is fitted with snow chains
● The temporary spare wheel is fitted
● The wheel on one axle is changed
There ma
y be a delay in the reaction of the
tyre  monitoring indicator or it may not in-
dicate anything under certain circumstances
(e.g. sporty driving, snow-covered or un-
paved roads, or when driving with snow
chains). Calibrating the tyre monitoring indica-
tor Fig. 247
Glove compartment: tyre control
sw it
c

h. After changing the tyre pressure or replacing
one or mor
e wheel
s, the ty

re monitoring indi-
cator must be recalibrated. Do the same, for
example, when the front and rear wheels are
swapped.
● Switch the ignition on.
● Store the new tyre pressure in the Easy
Connect sy
stem with the  button and the
f u
nction b
utton Setup
› ›
›
 page 27 or us-
ing the switch located in the glove compart-
ment 1)
››› Fig. 247.
When driving, the system self-calibrates the
tyre pressure provided by the driver and the
wheels fitted. After a long journey with varied »1)
In vehicles without the Infotainment system:
277
Technical data
Advice
Operation
Emergencies
Safety

Index
Index
A
ABS se
e
Anti-lock brake system . . . . . . . . . . . . . . . 176
ACC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196 radar sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . 150, 245
Adaptive cruise control . . . . . . . . . . . . . . . . . . . . 196 function to avoid overtaking on the wrongside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
indications on the display . . . . . . . . . . . . . . . . 198
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
radar sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
special driving situations . . . . . . . . . . . . . . . . . 205
warning and control lamp . . . . . . . . . . . . . . . . 198
Adaptive Cruise Control deactivating temporarily . . . . . . . . . . . . . . . . . 204
operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Additional electrical appliances (efficiency pro- gramme) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Adjusting front head restraints . . . . . . . . . . . . . . . . . . . . . . 69
front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Adjusting the head restraints front head restraints . . . . . . . . . . . . . . . . . . . . . 144
Adjustment CAR menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
front head restraints . . . . . . . . . . . . . . . . . . . . . 144
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
rear head restraints . . . . . . . . . . . . . . . . . 69, 144
seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 76
activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
deactivation of front airbag . . . . . . . . . . . . . . . . 80
description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 16, 78
functioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
head-protection airbags . . . . . . . . . . . . . . . . . . 18
knee airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Air conditioning Climatronic . . . . . . . . . . . . . . . . . . . . . . . . 45, 163
heating and fresh air . . . . . . . . . . . . . . . . . . . . . 48
manual air conditioning . . . . . . . . . . . . . . . . . . . 47
user instructions . . . . . . . . . . . . . . . . . . . . . . . . 165
Air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Air recirculation . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Alcantara: cleaning . . . . . . . . . . . . . . . . . . . . . . . 252
Anchoring the front tow line. . . . . . . . . . . . . . . . . . . . . . . . . 89
Anti-freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Anti-lock brake system . . . . . . . . . . . . . . . . . . . . . 176
Anti-puncture . . . . . . . . . . . . . . . . . . . . . . . . . . 56, 85
Anti-puncture kit . . . . . . . . . . . . . . . . . . . . . . . . 56, 85 check after 10 minutes . . . . . . . . . . . . . . . . . . . . 87
Anti-puncture set . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Anti-theft alarm . . . . . . . . . . . . . . . . . . . . . 116, 124 vehicle interior monitoring and anti-tow sys-tem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Anti-theft alarm system trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
see also Anti-theft alarm system . . . . . . . . . . . 116
Anti-theft security system . . . . . . . . . . 10, 116, 122
Anti-tow protection . . . . . . . . . . . . . . . . . . . . . . . 126
Aspects to take into account before starting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
ASR see Traction control system . . . . . . . . . . . . . . . 176 Assistance systems
ACC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
adaptive cruise control . . . . . . . . . . . . . . . . . . . 196
Auto Hold function . . . . . . . . . . . . . . . . . . . . . . 194
cruise control system . . . . . . . . . . . . . . . . . . . . 195
Emergency Assist . . . . . . . . . . . . . . . . . . . . . . . 217
Front Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
parking aid . . . . . . . . . . . . . . . . . . . . . . . 225, 227
Pedestrian Monitoring system . . . . . . . . . . . . . 212
Traffic Jam Assist . . . . . . . . . . . . . . . . . . . . . . . . 216
traffic sign detection system . . . . . . . . . . . . . . 222
tyre monitoring . . . . . . . . . . . . . . . . . . . . . . . . . 276
tyre monitoring indicator . . . . . . . . . . . . . . . . . 277
Assistance Systems fatigue detection . . . . . . . . . . . . . . . . . . . . . . . 224
tyre monitoring systems . . . . . . . . . . . . . . . . . 275
Assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Audible signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Audible warning signal seat belt not fastened . . . . . . . . . . . . . . . . . . . . 71
warning and control lamps . . . . . . . . . . . . . . . 109
Auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Auto Hold function . . . . . . . . . . . . . . . . . . . . . . . . 194
Auto Lock (central locking) . . . . . . . . . . . . . . . . . 116
Automatic car washes switching the Auto Hold function off . . . . . . . . 195
Automatic dipped beam control . . . . . . . . . . . . . 132
Automatic gear safety interlock for ignition key . . . . . . . . . . . . 167
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . 180 backup programme . . . . . . . . . . . . . . . . . . . . . 186
downhill speed control . . . . . . . . . . . . . . . . . . 185
driving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
kick-down feature . . . . . . . . . . . . . . . . . . . . . . . 184
launch control programme . . . . . . . . . . . . . . . . 184
manual release of selector lever . . . . . . . . . . . . 43
307

Index
Exterior rear view mirrors ext
erior
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 8
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
F Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Fatigue detection . . . . . . . . . . . . . . . . . . . . . . . . . 224
Filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Fluid Level control . . . . . . . . . . . . . . . . . . . . . . . . . 50
Fog light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Folding table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Four-wheel drive snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Four wheel drive . . . . . . . . . . . . . . . . . . . . . . . . . . 254
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 78
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Front Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207 City Emergency braking function . . . . . . . . . . . 211
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
on-screen messages . . . . . . . . . . . . . . . . . . . . 208
operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
radar sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
switching off temporarily . . . . . . . . . . . . . . . . . 210
system limitations . . . . . . . . . . . . . . . . . . . . . . 210
see also Front Assist Monitoring system . . . . . 207
Front Assist monitoring system malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
on-screen messages . . . . . . . . . . . . . . . . . . . . 208
operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Front Assist Monitoring system City Emergency braking function . . . . . . . . . . . 211
radar sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 208 Front Assist Monitoring System
switc hing off temporarily . . . . . . . . . . . . . . . . . 210
system limitations . . . . . . . . . . . . . . . . . . . . . . 210
Front passenger front airbag control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
deactivation . . . . . . . . . . . . . . . . . . . . . . . . . 17, 81
Front seat manual adjustment . . . . . . . . . . . . . . . . . . . . . . 14
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50, 258 consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
ethanol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
natural gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Fuel consumption switching off using inertia . . . . . . . . . . . . . . . . 188
why does fuel consumption increase? . . . . . . 189
Fuel tank cap opening and closing . . . . . . . . . . . . . . . . . . . . . 50
Fuel tank flap opening and closing . . . . . . . . . . . . . . . . . . . . . 50
Full-LED Headlights . . . . . . . . . . . . . . . . . . . . . . . . 93
Function Coming Home . . . . . . . . . . . . . . . . . . . . 134
Function Leaving Home . . . . . . . . . . . . . . . . . . . . 135
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54, 91 fuse box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
identifying blown fuses . . . . . . . . . . . . . . . . . . . 54
identifying by colours . . . . . . . . . . . . . . . . . . . . . 54
preparation before replacing . . . . . . . . . . . . . . . 54
replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
G
Gear-change indicator . . . . . . . . . . . . . . . . . . . . . . 32
Gearbox DSG see Automatic gearbox . . . . . . . . . . . . . . . . . . . 180 Gearbox lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Gear ch
ange . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
kick-down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . 179
manual gear change . . . . . . . . . . . . . . . . . . . . . . 42
Gear engaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Gear recommendation . . . . . . . . . . . . . . . . . . . . . . 32
Gearshift paddles (automatic gearbox) . . . . . . . 182
General instrument panel control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
controls and displays . . . . . . . . . . . . . . . . . . . . 103
engine compartment . . . . . . . . . . . . . . . . . . . . 262
warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Glove compartment . . . . . . . . . . . . . . . . . . . . . . . 149
H
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Hand brake See Parking brake . . . . . . . . . . . . . . . . . . . . . . 172
Handbrake warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Hazard warning lights . . . . . . . . . . . . . . . . . 25, 135
Head-on collisions and the laws of physics . . . . . 73
Head-protection airbags description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
safety instructions . . . . . . . . . . . . . . . . . . . . . . . 79
Headlight range control . . . . . . . . . . . . . . . . . . . . 137
Headlights changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . . 93
driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . 136
headlight washers . . . . . . . . . . . . . . . . . . . . . . 140
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
front head restraints . . . . . . . . . . . . . . . . . . . . . . 69
rear head restraints . . . . . . . . . . . . . . . . . . . . . . 69
311

Index
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107 par
ti
al . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
reset button . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
On-screen messages Front Assist monitoring system . . . . . . . . . . . . 208
One-touch opening and closing electric windows . . . . . . . . . . . . . . . . . . . . . . . . 128
Open and close . . . . . . . . . . . . . . . . . . . . . . . . . . 116 panoramic sliding sunroof . . . . . . . . . . . . . . . . 129
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
fuel tank flap . . . . . . . . . . . . . . . . . . . . . . 256, 257
panoramic sliding sunroof . . . . . . . . . . . . . . . . 129
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Opening and closing . . . . . . . . . . . . . . . . . . . . . . . 10 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
by remote control . . . . . . . . . . . . . . . . . . . . . . . 118
fuel tank flap . . . . . . . . . . . . . . . . . . . . . . 256, 257
in the door cylinder . . . . . . . . . . . . . . . . . . . . . . 10
rear lid of the luggage compartment . . . . . . . . 11
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
with the central locking switch . . . . . . . . . . . . 119
Opening manually rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Outside temperature . . . . . . . . . . . . . . . . . . . . . . . 32
P Paint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248 care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Paintwork code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281 Panoramic sliding sunroof
clos ing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
convenience closing . . . . . . . . . . . . . . . . . . . . . 130
convenience opening . . . . . . . . . . . . . . . . . . . . 130
convenience opening and closing . . . . . . . . . 128
fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
roll-back function . . . . . . . . . . . . . . . . . . . . . . . 130
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174, 183
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225 parking system plus . . . . . . . . . . . . . . . . . . . . . 227
surroundings warning . . . . . . . . . . . . . . . . . . . 227
Parking Aid adjusting the display and audible warnings . 230
automatic activation . . . . . . . . . . . . . . . . . . . . 229
fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
rear parking aid . . . . . . . . . . . . . . . . . . . . . . . . 227
sensors and camera: cleaning . . . . . . . . . . . . . 248
towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 230
visual indication . . . . . . . . . . . . . . . . . . . . . . . . 229
Parking aid system see Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 225
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172 activate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
automatic activation . . . . . . . . . . . . . . . . . . . . 173
automatic release . . . . . . . . . . . . . . . . . . . . . . . 173
emergency braking function . . . . . . . . . . . . . . 173
release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Parking distance warning system see Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 225
Parking (automatic gearbox) . . . . . . . . . . . . . . . . 183
ParkPilot see Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 225
Particulate filter (diesel) . . . . . . . . . . . . . . . . . . . 189
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Passenger see Correct sitting position . . . . . . . . . 66, 67, 68 Passenger door manual locking . . . . . . . . . . . . . . 11
Pas
senger seat backrest
folding down . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
lifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Pedestrian Monitoring system . . . . . . . . . . . . . . 212
Pedestrian protection see Pedestrian Monitoring system . . . . . . . . . 212
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Plastic parts: cleaning . . . . . . . . . . . . . . . . 249, 250
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Positioning seat belts during pregnancy . . . . . . . . . . . . . . . . . . . . . . . . 75
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Power Management . . . . . . . . . . . . . . . . . . . . . . . 255
Power socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Power steering see Electromechanical steering . . . . . . . . . . . . 253
Pre-heating system control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Preheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Preheating the engine . . . . . . . . . . . . . . . . . . . . . 171
Press & Drive starter button . . . . . . . . . . . . . . . . . . . . . . . . . . 169
starting the engine . . . . . . . . . . . . . . . . . . . . . . 171
Progressive steering . . . . . . . . . . . . . . . . . . . . . . 254
Puncture action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
R
Racks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Radar sensor . . . . . . . . . . . . . . . . . . . . . . . . 199, 208
Radio-operated remote control see Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
314
