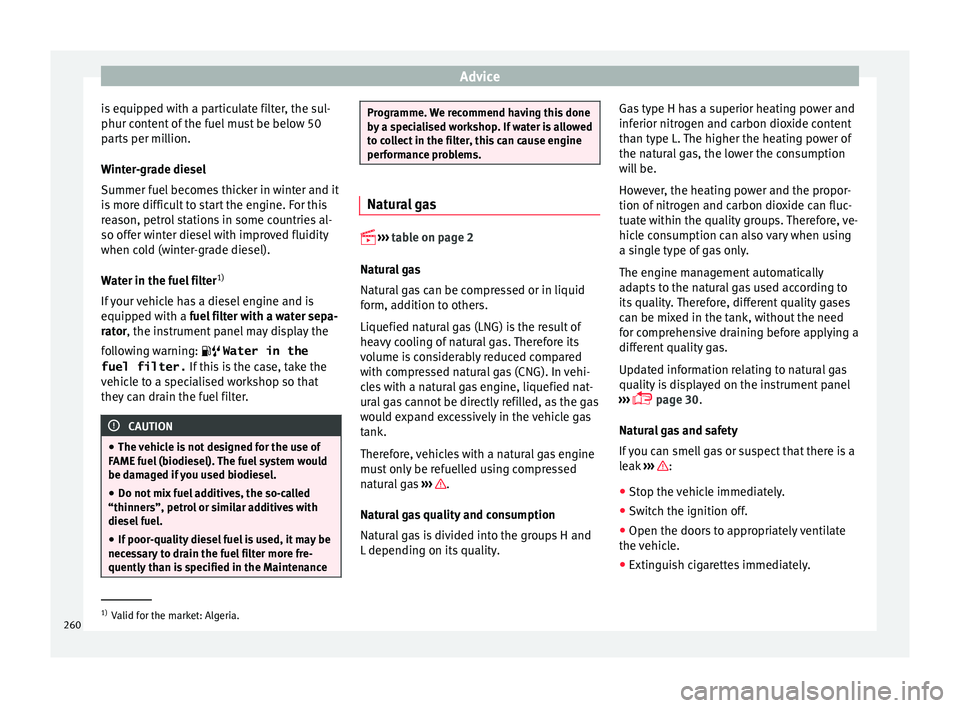

Advice
is equipped with a particulate filter, the sul-
phur c ont
ent
of the fuel must be below 50
parts per million.
Winter-grade diesel
Summer fuel becomes thicker in winter and it
is more difficult to start the engine. For this
reason, petrol stations in some countries al-
so offer winter diesel with improved fluidity
when cold (winter-grade diesel).
Water in the fuel filter 1)
If your vehicle has a diesel engine and is
equipped with a fuel filter with a water sepa-
rator, the instrument panel may display the
following warning:  Water in the
fuel filter. If this is the case, take the
vehicle to a specialised workshop so that
they can drain the fuel filter. CAUTION
● The v ehic

le is not designed for the use of
FAME fuel (biodiesel). The fuel system would
be damaged if you used biodiesel.
● Do not mix fuel additives, the so-called
“thinners”, petro
l or similar additives with
diesel fuel.
● If poor-quality diesel fuel is used, it may be
neces
sary to drain the fuel filter more fre-
quently than is specified in the Maintenance Programme. We recommend having this done
by
a s

pecialised workshop. If water is allowed
to collect in the filter, this can cause engine
performance problems. Natural gas


›› ›

table on page 2
Natural gas
Natural gas can be compressed or in liquid
form, addition to others.
Liquefied natural gas (LNG) is the result of
heavy cooling of natural gas. Therefore its
volume is considerably reduced compared
with compressed natural gas (CNG). In vehi-
cles with a natural gas engine, liquefied nat-
ural gas cannot be directly refilled, as the gas
would expand excessively in the vehicle gas
tank.
Therefore, vehicles with a natural gas engine
must only be refuelled using compressed
natural gas ››› .
Nat ur
a

l gas quality and consumption
Natural gas is divided into the groups H and
L depending on its quality. Gas type H has a superior heating power and
inferior nitrog

en and carbon dioxide content
than type L. The higher the heating power of
the natural gas, the lower the consumption
will be.
However, the heating power and the propor-
tion of nitrogen and carbon dioxide can fluc-
tuate within the quality groups. Therefore, ve-
hicle consumption can also vary when using
a single type of gas only.
The engine management automatically
adapts to the natural gas used according to
its quality. Therefore, different quality gases
can be mixed in the tank, without the need
for comprehensive draining before applying a
different quality gas.
Updated information relating to natural gas
quality is displayed on the instrument panel
›››  page 30.
Natural gas and safety
If you can smell gas or suspect that there is a
leak ››› :
● Stop the vehicle immediately.
● Switch the ignition off.
● Open the doors to appropriately ventilate
the v
ehic

le.
● Extinguish cigarettes immediately. 1)
Valid for the market: Algeria.
260

Checking and refilling levels
●
Tak e c
are not to cause short circuits in the
electrical system, especially when working
on the battery.
● If working inside the engine compartment,
remember that, ev
en when the ignition is
switched off, the radiator fan may start up au-
tomatically, and therefore there is a risk of in-
jury.
● Never cover the engine with additional in-
sul
ating materials such as a blanket. Risk of
fire!
● Do not unscrew the cap on the coolant ex-
pans
ion tank when the engine is hot. The
cooling system is under pressure.
● Protect face, hands and arms by covering
the cap with a l
arge, thick rag to protect
against escaping coolant and steam.
● If it is necessary to work in the engine com-
partment
while the engine is running, the ro-
tating components (for example, poly-V belt,
alternator, radiator fan) and the high voltage
ignition system are an additional hazard.
● Observe the following additional warnings
if work
on the fuel system or the electrical
system is necessary:
– Always disconnect the battery from the
on-board network.
– Do not smoke.
– Never work near naked flames.
– Always keep an approved fire extinguish-
er immediately available. CAUTION
When topping up fluids make sure the correct
fluid is p

ut into the correct filler opening, oth-
erwise this can cause serious malfunctions or
engine damage. For the sake of the environment
Inspect the ground underneath your vehicle
re gu

larly so that any leaks are detected at an
early stage. If you find spots of oil or other
fluids in the area where it was parked, have
your vehicle inspected at the workshop. Note
In right-hand drive vehicles* some brake flu-
id re ser

voirs are on the other side of the en-
gine compartment ››› Fig. 240. Opening the bonnet
Read the additional information carefully
› ›
›

 page 12
The bonnet is released from inside the vehi-
cle.
Check that the windscreen wiper arms are
not unfolded. Otherwise the paint may be
damaged.
The bonnet can only be unlocked when the
driver door is open. WARNING
Never open the bonnet if you see steam or
drips of

coolant being released from the en-
gine compartment. Failure to comply could
result in burns. Wait until no steam or coolant
can be seen before opening the bonnet. Closing the bonnet
–
Slightly lift the bonnet.
– Release the bonnet stay before pressing it
bac k

into its support.
– Carefully close the bonnet.
– Press the bonnet down until it locks into
plac

e.
– Make sure that the bonnet catches onto its
cla

sp. Do not press down too hard ››› .
WARNING
● For s af

ety reasons the bonnet must always
be completely closed when the vehicle is
moving. Therefore, after closing the bonnet,
always check that the locking element is
properly engaged. This is the case if the bon-
net is flush with the adjacent body panels.
● Should you notice that the bonnet is not
safely
secured when the vehicle is moving,
stop the vehicle immediately and close the
bonnet. Failure to follow this instruction
could result in an accident. 263
Technical data
Advice
Operation
Emergencies
Safety

Checking and refilling levels
could d amage the engine. If there is no
c oo
lant in the expansion tank, do not con-
tinue driving. You should obtain professio-
nal assistance ››› .
– If there is still some coolant in the expan-
sion t
ank, t

op up to the upper mark.
– Top up with coolant until the level becomes
stab

le.
– Screw the cap back on correctly.
Any lo
ss of coolant fluid normally indicates a
leak in the cooling system. Take the vehicle
straight to a specialised workshop to have
the cooling system examined. If there are no
leaks in the engine cooling system, a loss of
coolant can only occur if the coolant boils
and is forced out of the system as a result of
overheating. WARNING
● The coo lin

g system is under pressure. Do
not unscrew the cap on the coolant expan-
sion tank when the engine is hot: risk of
burns!
● The antifreeze and coolant fluid can be a
health h
azard. Therefore, the antifreeze
should be stored in the original container in a
safe place out of reach of children. Failure to
comply could result in poisoning.
● If working inside the engine compartment,
remember that, ev
en when the ignition is
switched off, the radiator fan may start up au- tomatically, and therefore there is a risk of in-
jury
. WARNING
If there is not enough anti-freeze in the cool-
ant sys

tem, the engine may fail leading to se-
rious damage.
● Please make sure that the percentage of
additiv
e is correct with respect to the lowest
expected ambient temperature in the zone in
which the vehicle is to be used.
● When the outside temperature is very low,
the cool
ant could freeze and the vehicle
would be immobilised. In this case, the heat-
ing would not work either and inadequately
dressed passengers could die of cold. CAUTION
Do not top up the expansion tank with cool-
ant fluid if it

is empty! Air could enter the
cooling system. In this case, stop driving.
Seek specialist assistance. Otherwise, there
is a risk of engine damage. CAUTION
The original additives should never be mixed
with c oo

lants which are not approved by
SEAT. Otherwise, you run the risk of causing
severe damage to the engine and the engine
cooling system.
● If the fluid in the expansion tank is not pur-
ple b
ut is, for example, brown, this indicates that the G13 additive has been mixed with an
ina
dequat

e coolant. The coolant must be
changed as soon as possible if this is the
case! This could result in serious faults and
engine damage. For the sake of the environment
Coolants and additives can contaminate the
en vir

onment. If any fluids are spilled, they
should be collected and correctly disposed
of, with respect to the environment. Brake fluid
Top
pin

g up brake fluid Read the additional information carefully
› ›
›

 page 52
Checking the brake fluid level
The brake fluid level must be between the
MIN and MAX markings.
However, if the brake fluid level goes down
noticeably in a short time, or drops below the
MIN mark, there may be a leak in the brake
system. Seek specialist assistance. A warn-
ing light on the instrument panel display
monitors the brake fluid level ››› page 109. »
267
Technical data
Advice
Operation
Emergencies
Safety

Wheels
CAUTION
● Some v ehic
les, for example those with the
Start-Stop system* are fitted with a special
battery (AGM-type or EFB-type battery). If any
other type of battery is fitted, the Start-Stop
function may be considerably reduced and
the vehicle may not stop on repeated occa-
sions.
● Make sure that the vent hose is always at-
tached t
o the original opening on the side of
the battery. Gases or battery acid can other-
wise escape and possibly cause damage.
● The battery holder and clamps must always
be correctly
secured.
● Before starting any work on the battery, al-
way
s observe the warnings listed under
››› page 269, Important safety warnings for
handling a vehicle battery .
● Do not forget to replace the battery cover-
ings, wher
e applicable. It is a protection for
high temperatures. This in turn extends the
vehicle service life. For the sake of the environment
 Batteries contain toxic substances includ-
in g s

ulphuric acid and lead. They must be
disposed of appropriately and must not be
disposed of with ordinary household waste.
Make sure disconnected batteries cannot tip
over. Sulphuric acid could be spilt! Wheels
Wheel s
and ty

res
General notes –
When driving with new tyr e
s, be especially
careful during the first 500 km (300 miles).
– If you have to drive over a kerb or similar
obs

tacle, drive very slowly and as near as
possible at a right angle to the obstacle.
– Check from time to time if the tyres are
dam ag

ed (punctures, cuts, cracks or
dents). Remove any foreign objects embed-
ded in the treads.
– Damaged wheels and tyres must be re-
plac

ed immediately.
– Keep grease, oil and fuel off the tyres.
– Replace any missing valve caps as soon as
poss

ible.
– Mark the wheels before taking them off so
that they

rotate in the same direction when
put back.
– When removed, the wheels or tyres should
be stor

ed in a cool, dry and preferably dark
place.
New tyres
New tyres do not give maximum grip straight
away and should therefore be “run in” by driving carefully and at moderate speeds for
about the firs

t 500 km (300 miles). This will
also increase the useful life of the tyres.
The tread depth of new tyres may vary, ac-
cording to the type and make of tyre and the
tread pattern.
Concealed damage
Damage to tyres and rims is often not readily
visible. If you notice unusual vibration or the
car pulling to one side, this may indicate that
one of the tyres is damaged. Reduce speed
immediately if there is any reason to suspect
that damage may have occurred. Inspect the
tyres for damage. If no external damage is
visible, drive slowly and carefully to the near-
est specialised workshop and have the car
inspected.
Tyres with directional tread pattern
An arrow on the tyre sidewall indicates the di-
rection of rotation on single drive tyres. Al-
ways note the direction of rotation indicated
when mounting the wheel. This guarantees
optimum grip and helps to avoid aquaplan-
ing, excessive noise and wear.
Retrofitting accessories
If you wish to change or fit wheels, rims or
wheel trims, we recommend that you consult
with a SEAT Official Service centre for advice
regarding current techniques.
271
Technical data
Advice
Operation
Emergencies
Safety

Advice
Tyre monitoring indicator If a light appears
The pressure in one or more tyres has
clearly reduced in comparison to the
tyre pressure set by the driver or the
tyre has structural damage.
Additionally, an audible warning can be heard and a text
message can be seen on the instrument panel display.
Stop! Reduce speed immediately! Stop the vehicle
safely as soon as possible. Avoid sudden manoeuvres
and braking! Check all tyres and pressures. Replace any
damaged tyres. If flashing

System malfunction
The control lamp flashes for approximately one minute
and then lights up permanently.
If tyre pressure is correct, switch the ignition off and on
again. If the control lamp remains lit up, the tyre moni-
toring indicator can be calibrated. Have the system
checked by a specialised workshop.
Several warning and control lamps light up
f
or a f
ew sec

onds when the ignition is switch-
ed on while the function is verified. They will
switch off after a few seconds. WARNING
When the tyres are inflated at different pres-
sur e

s or at a pressure that is too low then a
tyre may be damaged resulting in a loss of control of the vehicle and a serious or fatal
acc
ident

.
● If the warning lamp  lights up
, stop im-
mediately and check the tyres.
● If the tyres are inflated at different pres-
sure
s or if a tyre pressure is too low, this will
increase tyre wear, negatively affecting vehi-
cle stability and increasing braking distan-
ces.
● If tyres are inflated at different pressures or
a tyre pr
essure is too low, a tyre may be dam-
aged and burst resulting in a loss of control
of the vehicle.
● The driver is responsible for ensuring that
all
of the vehicle tyres are correctly inflated
to the right pressure. The recommended tyre
pressure is indicated on the label
››› page 283.
● The tyre monitoring system can only oper-
ate corr
ectly if all of the tyres are inflated to
the correct pressure when cold.
● Driving with tyres at the wrong pressure
can dam
age them and result in an accident.
Ensure that the tyre pressures of all the tyres
correspond to the vehicle load.
● Before starting a journey, always inflate
tyre
s to the correct pressure.
● Tyres with insufficient pressure are subjec-
ted to mor
e flexing. Due to this, the tyre
could become excessively hot, causing tread
separation and also tyre blow-out.
● With an overloaded vehicle at high speed,
the tyre
s can overheat and burst resulting in
a loss of vehicle control. ●
Ty r

e pressures which are too high or too
low reduce the useful life of the tyre, affect-
ing vehicle performance.
● If a tyre has not been punctured and it does
not hav
e to be changed immediately, drive to
the nearest specialised workshop at a moder-
ate speed and have the tyre checked and in-
flated to the correct pressure. WARNING
Observe the safety warnings ›
››
in Warning
and contr o
l lamps on page 109. Note
● If e x

cessively low tyre pressure is detected
with the ignition on, an audible warning will
sound. In the event that there is a fault in the
system, an audible warning will sound.
● Driving on dirt tracks for a long period of
time or driving in a s
porty style can tempora-
rily deactivate the TPMS. The control lamp
shows a fault, but disappears when road con-
ditions or the driving style change. 276

Technical specifications
Petrol engine 1.2 TSI 81 kW (110 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
81 (110)/4,600-5,600175/1,400-4,0004/1,197Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsLEONLEON SCLEON ST
ManualStart-StopManualStart-StopManualStart-Stop
Top speed (km/h)194 (V)194 (V)194 (V)194 (V)194 (V)194 (V)
Acceleration from 0-80 km/h (seconds)6.66.66.76.56.76.7
Acceleration from 0-100 km/h (seconds)9.99.910.19.810.110.1
Maximum authorised weight (kg)1,7401,7401,7101,7301,7901,800
Weight in running order (with driver) (kg)1,2131,2131,1861,1931,2401,247
Maximum authorised weight on front axle (kg)900900950950880890
Maximum authorised weight on rear axle (kg)890890810830960960
Permitted roof load (kg)757575757575
Maximum trailer weight without brakes (kg)600600590590620620
Weight of trailer with brakes, gradients up to 8% (kg)1,5001,5001,5001,5001,5001,500
Weight of trailer with brakes, gradients up to 12% (kg)1,3001,3001,3001,3001,3001,300 285
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Petrol engine 1.4 92 kW (125 PS) Start-StopPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
92 (125)/5,000-6,000200/1,400-4,0004/1,395Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsLEONLEON SCLEON STLEON ST
X-PERIENCE
Top speed (km/h)203 (V&VI)203 (V&VI)203 (V&VI)200 (V&VI)
Acceleration from 0-80 km/h (seconds)6.26.16.46.6
Acceleration from 0-100 km/h (seconds)9.18.99.49.7
Maximum authorised weight (kg)1,7701,7501,8301,820
Weight in running order (with driver) (kg)1,2331,2131,2571,263
Maximum authorised weight on front axle (kg)920970910950
Maximum authorised weight on rear axle (kg)900830970920
Permitted roof load (kg)75757575
Maximum trailer weight without brakes (kg)610600620630
Weight of trailer with brakes, gradients up to 8% (kg)1,7001,7001,7001,700
Weight of trailer with brakes, gradients up to 12% (kg)1,4001,4001,4001,400 288

Technical specifications
Petrol engine 1.8 132 kW (180 PS) Start-StopPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
132 (180)/5,100-6,200250/1,250-5,0004/1,798Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsLEON
ManualLEON
AutomaticLEON
Without
Start-StopLEON SC ManualLEON SC
AutomaticLEON SC Without
Start-StopLEON ST ManualLEON ST
Automatic
Top speed (km/h)226 (VI)224 (VI)224 (VI)226 (VI)224 (VI)224 (VI)226 (VI)224 (VI)
Acceleration from 0-80 km/h (seconds)5.55.35.35.45.25.25.75.6
Acceleration from 0-100 km/h (seconds)7.57.27.27.47.17.17.87.7
Maximum authorised weight (kg)1,8301,8501,8501,8301,8401,8401,9001,890
Weight in running order (with driver) (kg)1,3101,3271,3221,2901,3071,3021,3551,372
Maximum authorised weight on front axle (kg)9709909801,0201,0401,030960980
Maximum authorised weight on rear axle (kg)910910920860850860990960
Permitted roof load (kg)7575757575757575
Maximum trailer weight without brakes (kg)650660660640650650670680
Weight of trailer with brakes, gradients up to
8% (kg)1,8001,8001,8001,8001,8001,8001,8001,800
Weight of trailer with brakes, gradients up to
12% (kg)1,5001,5001,5001,5001,5001,5001,5001,500 291
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Diesel engine 2.0 110 kW (150 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
110 (150)/3,500-4,000340/1,750-3,0004/1,968Diesel according to standard EN 590, min.
51 CN
Outputs and weightsLEON
Start-StopLEON
AutomaticLEON SC
Start-StopLEON SC
AutomaticLEON ST
Start-StopLEON ST
AutomaticLEON ST
All-wheel driveLEON ST
X-PERIENCE 4WD
Top speed (km/h)215 (VI)213 (VI)215 (VI)213 (VI)215 (VI)213 (VI)211 (VI)208 (VI)
Acceleration from 0-80 km/h (seconds)6.16.06.06.06.26.26.36.3
Acceleration from 0-100 km/h (seconds)8.48.48.38.38.68.68.78.7
Maximum authorised weight (kg)1,8201,8501,8101,8101,9101,9402,0102,050
Weight in running order (with driver) (kg)1,3051,3351,2851,3051,3581,3881,4741,491
Maximum authorised weight on front axle (kg)1,0001,0301,0501,0701,0001,0301,0101,070
Maximum authorised weight on rear axle (kg)8708708107909609601,0501,030
Permitted roof load (kg)7575757575757575
Maximum trailer weight without brakes (kg)650660640650670690730740
Weight of trailer with brakes, gradients up to
8% (kg)1,8001,8001,8001,8001,8001,8001,9002,000
Weight of trailer with brakes, gradients up to
12% (kg)1,6001,6001,6001,6001,6001,6001,7002,000302

Technical data
Diesel engine 2.0 135 kW (184 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
135 (184)/3,500-4,000380/1,750-3,0004/1,968Diesel according to standard EN 590, min.
51 CN
Outputs and weightsLEON
Start-StopLEON
AutomaticLEON SC
Start-StopLEON SC
AutomaticLEON ST
Start-StopLEON ST
AutomaticLEON ST
X-PERIENCE 4WD
Top speed (km/h)228 (VI)226 (VI)228 (VI)226 (VI)228 (VI)226 (VI)224 (VI)
Acceleration from 0-80 km/h (seconds)5.75.75.65.65.95.94.9
Acceleration from 0-100 km/h (seconds)7.57.57.47.47.87.87.1
Maximum authorised weight (kg)1,8801,9001,8601,8901,9701,9902,080
Weight in running order (with driver) (kg)1,3701,3901,3501,3701,4151,4351,529
Maximum authorised weight on front axle (kg)1,0201,0401,0701,0901,0101,0301,110
Maximum authorised weight on rear axle (kg)9109108408501,0101,0101,020
Permitted roof load (kg)75757575757575
Maximum trailer weight without brakes (kg)680690670680700710750
Weight of trailer with brakes, gradients up to
8% (kg)1,8001,8001,8001,8001,8001,8002,000
Weight of trailer with brakes, gradients up to
12% (kg)1,6001,6001,6001,6001,6001,6002,000304
