The essentials
you only need to change the oil when the ve-
hic l
e so r
equires. To calculate this change
(max. 2 years), the vehicle's conditions of
use and individual driving styles are consid-
ered. The advance warning first appears 20
days before the date established for the cor-
responding service. The kilometres (miles)
remaining until the next service are always
rounded up to the nearest 100 km (miles)
and the time is given in complete days. The
current service message cannot be viewed
until 500 km after the last service. Prior to
this, only lines are visible on the display.
Inspection reminder
When the Service date is approaching, when
the ignition is switched on a Service remind-
er is displayed.
Vehicles without text messages : a span-
ner  will be displayed on the instrument
panel plus an indication in km.
The kilometres indicated are the maximum
number of kilometres that can be travelled
until the next service. After a few seconds,
the display mode changes. A clock symbol
appears and the number of days until the
next service is due.
Vehicles with text messages : Service in
--- km or --- days will be shown on the
instrument panel display. Service due
When the servic
e date is due, an audible
warning is given when the ignition is switch-
ed on and the spanner displayed on the
screen flashes for a few seconds .
Vehicles with text messages : Service now
will be shown on the instrument panel dis-
play.
Reading a service notification
With the ignition switched on, the engine off
and the vehicle at a standstill, the current
service notification can be read:
Press and hold the button ›››
 Fig. 120
4 for more than 5 seconds to consult the serv-
ic
e me
s

sage.
When the service date has passed , a minus
sign is displayed in front of the number of kil-
ometres or days.
Vehicles with text messages : the following
message is displayed: Service --- km
(miles) or --- days ago .
The time can also be set via the  button
and S
ETUP function button in the Easy Con-
nect sy
s

tem ›››
 page 110.
Resetting service interval display
If the service was not carried out by a SEAT
dealership, the display can be reset as fol-
lows: ●
Switc
h off the ignition, press and hold but-
ton ›››
 Fig. 120
4 .
● Switch ignition back on.
● Release the 4
› ››
 Fig. 120
b
utton and
press it again for the next 20 seconds. Note
● The serv ic

e message disappears after a few
seconds, when the engine is started or when OK/RESET is pressed on the windscreen wiper
lev er

, or OK on the multifunction steering
wheel.
● In v
ehicles with the LongLife system in
which the batt
ery has been disconnected for
a long period of time, it is not possible to cal-
culate the date of the next service. Therefore
the service interval display may not be cor- rect. In this case, bear in mind the maximum
service intervals permitted in the ››› Book-
let Maintenance Programme.
● If you reset the display manually, the next
servic
e interval will be indicated as in vehi-
cles with fixed service intervals. For this rea-
son we recommend that the service interval
display be reset by a SEAT authorised Dealer. 38

Safe driving
●
Adjus t
the driver's seat so that there is at
least 25 cm distance between the centre of
the chest and the centre of the steering
wheel ››› Fig. 82. If you are sitting closer than
25 cm, the airbag system cannot protect you
properly.
● If your physical constitution prevents you
from maint
aining the minimum distance of 25
cm, contact a specialised workshop. The
workshop will help you decide if special spe-
cific modifications are necessary.
● When driving, always hold the steering
wheel with both h
ands on the outside of the
ring at the 9 o'clock and 3 o'clock positions.
This reduces the risk of injury when the driver
airbag is triggered.
● Never hold the steering wheel at the 12
o'clock
position, or in any other manner (e.g.
in the centre of the steering wheel). In such
cases, if the airbag is triggered, you may sus-
tain injuries to the arms, hands and head.
● To reduce the risk of injury to the driver
during sud
den braking manoeuvres or an ac-
cident, never drive with the backrest tilted far
back! The airbag system and seat belts can
only provide optimal protection when the
backrest is in an upright position and the
driver is wearing his or her seat belt correct-
ly.
● Adjust the head restraint properly to ach-
ieve optima
l protection. Adjusting the steering wheel position
Read the additional information carefully
›› ›

 page 16. WARNING
● Never a dju

st the position of the steering
wheel when the vehicle is moving, as this
could cause an accident.
● Move the lever up firmly so the steering
wheel pos
ition does not accidentally change
during driving. risk of accident!
● Make sure you are capable of reaching and
firmly ho
lding the upper part of the steering
wheel: risk of accident!
● If you adjust the steering wheel so that it
points t
owards your face, the driver airbag
will not protect you properly in the event of
an accident. Make sure that the steering
wheel points towards your chest. Correct sitting position for front pas-
sen
g
er For your own safety and to reduce the risk of
injur
y
in the ev

ent of an accident, we recom-
mend the following adjustments for the front
passenger:
– Move the front passenger seat back as far
as po

ssible ››› .–
Mo v
e the se

at backrest to an upright posi-
tion so that your back rests completely
against it.
– Adjust the head restraint so that its upper
edge is

at the same level as the top of your
head, or as close as possible to the same
level as the top of your head ››› page 69.
– Always keep both feet in the footwell in
front of

the front passenger seat.
– Fasten your seat belt securely ›››
page 71.
It is possible to deactivate the front passen-
ger airbag in exceptional circumstances
››› page 80.
Adjusting the front passenger seat
››› page 143. WARNING
● An incorr ect

sitting position of the front
passenger can lead to severe injuries.
● Adjust the front passenger seat so that
there is
at least 25 cm between your chest
and the dash panel. If you are sitting closer
than 25 cm, the airbag system cannot protect
you properly.
● If your physical constitution prevents you
from maint
aining the minimum distance of 25
cm, contact a specialised workshop. The
workshop will help you decide if special spe-
cific modifications are necessary. » 67
Technical data
Advice
Operation
Emergencies
Safety

Fuses and bulbs
Change the front bulbs Dip ped he
a
dlight bulbFig. 102
Dipped beam headlights. Fig. 103
Dipped beam headlights. –
Raise the bonnet.
– Move the loops ››
›
Fig. 102 1 in the direc-
tion of the arr
o
w and remove the cover. –
Remov
e connector ››› Fig. 103 2 from the
b u
l
b.
– Unclip the retainer spring ›››
Fig. 103 3 pressing inwards to the right.
– Extract the bulb and fit the replacement so
th at
the lug on the b

ase fits into the recess
on the reflector.
Day light bulb Fig. 104
Day light bulb. –
Raise the bonnet.
– Turn the bulb holder ››
›
Fig. 104 1 to the
l ef
t
and pull.
– Remove the bulb by pressing on the bulb
holder and t

urning it anti-clockwise at the
same time.
– Installation involves all of the above steps
in rever

se sequence. Turn signal bulb
Fig. 105
Turn signal bulb. Fig. 106
Turn signal bulb. –
Raise the bonnet.
– Move the loop ››
›
Fig. 105 1 in the direc-
tion of the arr
o
w and remove the cover.
– Turn the bulb holder ›››
Fig. 106 2 anti-
c loc
k
wise and pull. »
95
Technical data
Advice
Operation
Emergencies
Safety

Emergencies
– Remo
v
e the bulb by pressing on the bulb
holder and turning it anti-clockwise at the
same time.
– Installation involves all of the above steps
in rever

se sequence.

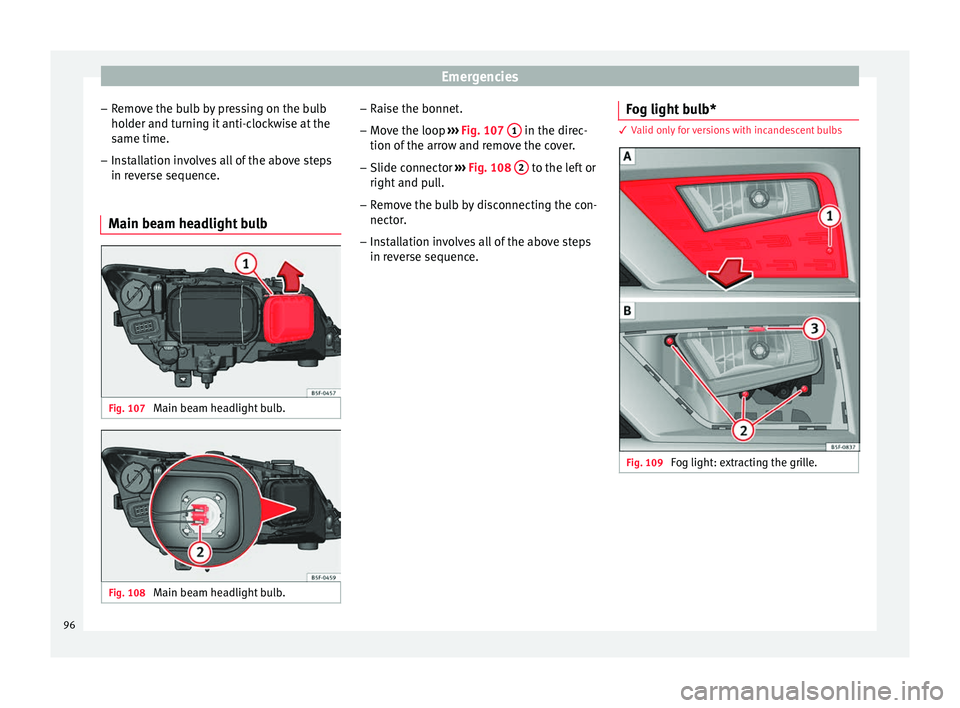

Main beam headlight bulb Fig. 107
Main beam headlight bulb. Fig. 108
Main beam headlight bulb. –
Rai
se the bonnet

.
– Move the loop ›››
Fig. 107 1 in the direc-
tion of the arr
o
w and remove the cover.
– Slide connector ›››
Fig. 108 2 to the left or
right and p
u
ll.
– Remove the bulb by disconnecting the con-
nector.
– In

stallation involves all of the above steps
in rever
se sequence. Fog light bulb* 3 Valid only for versions with incandescent bulbs
Fig. 109
Fog light: extracting the grille.96

Fuses and bulbs
Fig. 110
Fog light: remove the bulb holder Follow the steps indicated:
Remo
v
e the screw ››› Fig. 109 1  fr
om
the f og light

grille using a screwdriver
and extract the grille.
Remove the 3 screws ››› Fig. 109 2 .
R emo
v

e the metal clip situated on the
upper part of the fog light by pulling
away from the vehicle 3  and t
ake
the f og light

out.
Remove the connector ››› Fig. 110 1 from the bulb.
T
urn the b
u

lb holder 2 anti-clockwise
and p u
l

l.
Remove the bulb by pressing on the
bulb holder and turning it anticlockwise
at the same time.
Installation involves all of the above
steps in reverse sequence.
Check that the bulb works properly.
1.
2.
3.
4.
5.
6.
7.
8. Note
● Due to the difficulty of accessing fog light
bu l

bs, have them replaced at a Technical
Service or specialised workshop.
● LED fog light bulbs should be replaced by
speci
alised personnel. Changing incandescent rear
light b
u

lbs
Rear lights summary Tail lights on side panel
Turn signalPY21W NA LL
Side light and brake lightP21W LL
Tail lights on the rear lid
Left side
Side lights2x W5W LL
Fog lightsH21 W
Right side
Side lights2x W5W LL
Reverse lightP21W LL The table corresponds to a right-hand traffic
v
ehic
l

e. The position of lights may vary ac-
cording to the country.
97
Technical data
Advice
Operation
Emergencies
Safety

Emergencies
Rear bulbs (in the side panel) Fig. 111
Luggage compartment: location of
the bo lt
sec
uring the tail light unit. Remove
the rear light unit from side panel. Fig. 112
Retaining tabs on reverse side of tail
light. –
Check which of the bulbs is defective.
– Open the rear lid.
– Remove the cover by prying the flat side of
a s c
r

ewdriver into the recess and remove
the cover from the opening ››› Fig. 111 1 .
– Carefully loosen the screw located behind
the c o
v

er with a screwdriver, turning it anti-
clockwise ››› Fig. 111 2 .
– Tilt the light in the direction of the arrows
unti
l

it comes out of its housing (positions
3 and
4 )
››
› Fig. 111
.
– Remove the bulb holder ›››
Fig. 112 unlock-
ing the retaining tabs 1 .
– Change the damaged bulb.
– To refit follow the steps in reverse order,
tak
in

g special care when fitting the bulb
holder. The securing tabs must click into
place. CAUTION
Take care when removing the rear light unit to
mak e s

ure there is no damage to the paint-
work or any of its components. Note
Make sure you have a soft cloth ready to
pl ac

e under the glass on the rear light unit, to
avoid any scratches. 98

Emergencies
The rear lid must be open to change the
b u
l
bs.
– Remove the rear lid cover in the direction
indicated ›

›› Fig. 115.
– Turn the bulb holder anti-clockwise in the
direction of the arr

ow 1
› ››
Fig. 116
.
– R
emove the bulb holder from its housing
2 .
– Replace the defective bulb and return the
bu
l

b holder to its housing, following the
same steps in reverse order.
– Check that the new bulb works properly.
Changing number plate light bulbs Fig. 117
In the rear bumper: number plate
light . Fig. 118
Number plate light: Remove the bulb
hol der
. Follow the steps indicated:
1. Press the number plate light in the direc-
tion of the arr
o

w ››› Fig. 117.
2. Remove the number plate bulb slightly.
3. In the connector lock, turn ›››
Fig. 118 to-
wards the arrow 1 and pull the connec-
t or
.
4.
Rotate the bulb holder in the direction of
arrow 2 and extract it with the bulb.
5. Replace the defective bulb with a new bu
l

b with the same features.
6. Insert the bulb holder in the number plate light and turn in the op
posite direction of
arrow 2 until it stops.
7. Plug the connector into the bulb holder. Note
Depending on how equipped the vehicle is,
the number pl at

e lights may be LEDs. LEDs
have an estimated life that exceeds than that
of the car. If a light with LEDs fails, go to an
authorised workshop for replacement. 100

Opening and closing
The battery is located to the rear of the vehi-
c l
e k
ey, under a cover.
Changing the battery
● Unfold the vehicle key blade ›››
page 117.
● Remove the cover from the back of the ve-
hicle k
ey ››› Fig. 132 in the direction of the ar-
row ››› .
● Extract the battery from the compartment
u s
in

g a suitable thin object ››› Fig. 133.
● Place the new battery in the compartment
as sho
wn ››› Fig. 133, pressing in the oppo-
site direction to that shown by the arrow
››› .
● Fit the cover as shown ››
›
Fig. 132 , pressing
it onto the vehicle key casing in the opposite
direction to that shown by the arrow until it
clicks into place. CAUTION
● If the b att

ery is not changed correctly, the
vehicle key may be damaged.
● Use of unsuitable batteries may damage
the vehic
le key. For this reason, always re-
place the dead battery with another of the
same voltage, size and specifications.
● When fitting the battery, check that the po-
larity i
s correct. For the sake of the environment
Please dispose of your used batteries correct-
ly and w ith r

espect for the environment. Synchronising the vehicle key
If the button
 is pressed frequently outside
of the v

ehicle range, it is possible that the ve-
hicle can no longer be locked or unlocked us-
ing the key. In this case, the key must be re-
synchronised as described below:
● Unfold the vehicle key blade ››
›

page 117.
● If necessary, remove the cover from the
driver door lev
er ›››
 page 10.
● Press the  button on the vehicle key. For
thi s, it
mu

st remain with the vehicle.
● Open the vehicle within one minute using
the key b
lade. The key has been synchron-
ised.
● If necessary, fit the cap. Childproof lock 3
Applies to vehicles with 5 doors: Fig. 134
Childproof lock on the left hand side
door . The childproof lock prevents the rear doors
fr
om bein
g opened fr

om the inside. This sys-
tem prevents minors from opening a door ac-
cidentally while the vehicle is running.
This function is independent of the vehicle
electronic opening and locking systems. It
only affects rear doors. It can only be activa-
ted and deactivated manually, as described
below:
Activating the childproof lock
– Unlock the vehicle and open the door in
which y

ou wish to activate the childproof
lock.
– With the door open, rotate the groove in
the door usin

g the ignition key, clockwise
for the left hand side doors ››› Fig. 134 and »
123
Technical data
Advice
Operation
Emergencies
Safety

Operation
anti-clockwise for the right hand side
door s.
D e
activating the childproof lock
– Unlock the vehicle and open the door
whose chi

ldproof lock you want to deacti-
vate.
– With the door open, rotate the groove in
the door usin

g the ignition key, anti-clock-
wise for the left hand side doors ››› Fig. 134
and clockwise for the right hand side
doors.
Once the childproof lock is activated, the
door can only be opened from the outside.
The childproof lock can be activated or deac-
tivated by inserting the key in the groove
when the door is open, as described above.
Anti-theft alarm system* Des
cription The anti-theft alarm makes it more difficult to
br
e
ak

into the vehicle or steal it.
The anti-theft alarm is automatically turned
on when the vehicle is locked with the key.
● The turn signal light will flash twice on
opening and deactiv
ating the alarm. ●
The turn sign
al light will flash once on clos-
ing and activating the alarm.
When does the system trigger an alarm?
The anti-theft alarm siren will be triggered for
about 30 seconds accompanied by sound
and optical (flashing) warning signals and
will be repeated about ten times when the
vehicle is locked and the following unauthor-
ised actions are attempted:
● Opening a door that is mechanically un-
locked u
sing the vehicle key without switch-
ing on the ignition in the next 15 seconds (in
certain markets, such as the Netherlands,
there is no 15 second waiting time and the
alarm is activated immediately on opening
the door).
● A door is opened.
● The bonnet is opened.
● The rear lid is opened.
● When the ignition is switched on with a
non-authorised k
ey.
● When the vehicle battery is disconnected.
● Movement inside the vehicle (in vehicles
with interior monit
oring ››› page 126).
● When the vehicle is towed (in vehicles with
anti-tow sy
stem ››› page 126).
● When the vehicle is raised (in vehicles with
anti-to w sy

stem ››› page 126). ●
When the v ehic

le is transported on a ferry
or by rail (vehicles with an anti-tow system or
vehicle interior monitoring ››› page 126).
● When a trailer connected to the anti-theft
alarm sys
tem is disconnected.
How to turn OFF the alarm
Unlock the vehicle with the unlocking button
on the key or turn on the ignition with a valid
key. Note
● Aft er 28 d

ays, the indicator light will be
switched off to prevent the battery from ex-
hausting if the vehicle has been left parked
for a long period of time. The alarm system
remains activated.
● If, after the audible warning goes off, an-
other monitored ar
ea is accessed (e.g. the
rear lid is opened after a door has been
opened), the alarm is triggered again.
● The anti-theft alarm is not activated when
the vehic
le is locked from within using the
central locking button  .
● If the driver door is unlocked mechanically
with the k ey

, only the driver door is unlocked,
the rest of the doors remain locked. Only
when the ignition has been turned on will the
other doors be available - but not unlocked -
and the central locking button will be activa-
ted. 124

Checking and refilling levels
CAUTION
● Do not mi x
cleaning products recommen-
ded by SEAT with other products. This could
lead to flocculation and may block the wind-
screen washer jets.
● When topping up service fluids, make abso-
lutely c
ertain that you fill the fluids into the
correct reservoirs. Using the wrong fluids
could cause serious malfunctions and engine
damage!
● Not having windscreen wiper fluid reduces
vis
ibility through the windscreen, and leads
to loss of visibility in headlights in models
with headlight washer. Battery
Gener a
l

informationRead the additional information carefully
› ›
›

 page 52.
The battery is located in the engine compart-
ment and is almost maintenance-free. It is
checked as part of the Inspection Service.
Nevertheless, check the terminals are clean
and have the correct tightening torque, espe-
cially in summer and winter.
Disconnecting the battery
The battery should only be disconnected in
exceptional cases. When the battery is dis- connected, some of the vehicle's functions
are “los

t” (››› table on page 269). These
functions will require resetting after the bat-
tery is reconnected.
Deactivate the anti-theft alarm* before you
disconnect the battery Otherwise the alarm
will be triggered.
FunctionReprogramming
One-touch function of
the electric windows››› page 128, One-touch
opening and closing*.
Remote control key
If the vehicle does not re-
spond to the key, they
should be synchronised
››› page 123.
Digital clock››› page 106.
ESC warning lampAfter driving for a few me-
tres, the warning lamp goes
out again. If the vehicle is not used for long periods
The
v
ehic

le has a system for monitoring the
current consumption when the engine is left
unused for long periods of time ››› page 255.
Some functions, such as the interior lights, or
the remote door opening, may be temporarily
disabled to prevent the battery from running
flat. These functions will come back on as
soon as the ignition is switched on and the
engine started. Winter conditions
During the w

inter, the starting power may be
reduced, and if necessary, the battery should
be charged ››› in Important safety warn-
in g
s

for handling a vehicle battery on
page 270
Important safety warnings for han-
dling a v
ehicle battery All work on batteries requires specialist
kno
wl
edg

e. Please refer to a SEAT Official
Service or a workshop specialising in batter-
ies: risk of burns or exploding battery!
The battery must not be opened. Never try to
change the fluid level of the battery. Other-
wise explosive gas is released from the bat-
tery that could cause an explosion. 
Wear eye protection.

Battery acid is very corrosive and caustic. Wear
protective gloves and eye protection. In the event
of electrolyte splashes, rinse off with plenty of
water.

Fires, sparks, open flames and smoking are pro-
hibited.

The battery should only be charged in a well-ven-
tilated zone. Risk of explosion!

Keep children away from acid and batteries!»
269
Technical data
Advice
Operation
Emergencies
Safety
