Technical specifications

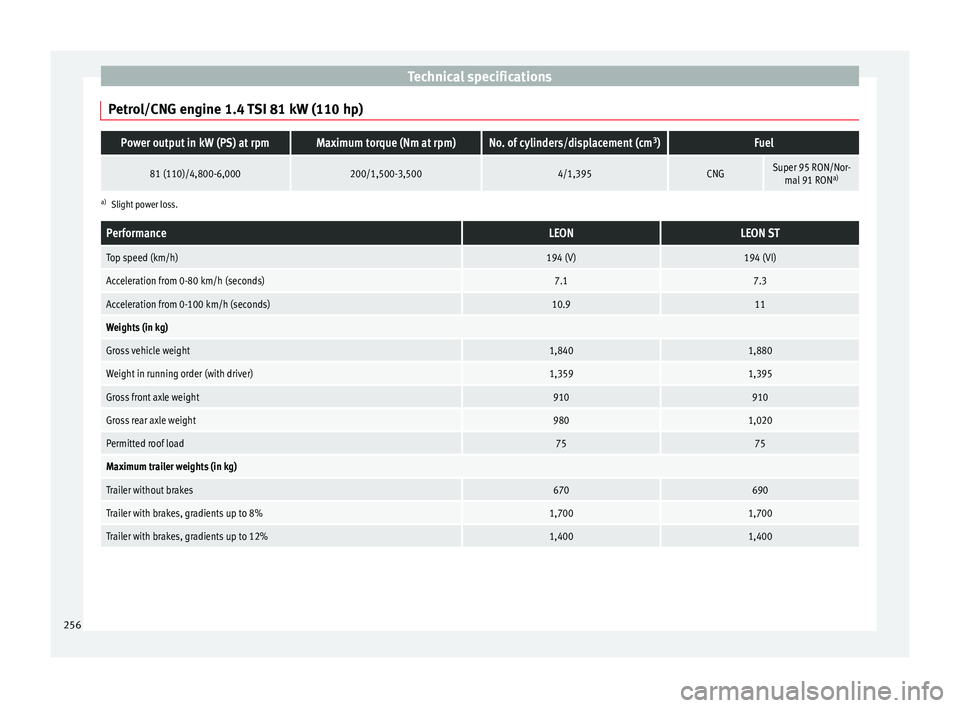

Petrol/CNG engine 1.4 TSI 81 kW (110 hp)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
81 (110)/4,800-6,000200/1,500-3,5004/1,395CNGSuper 95 RON/Nor-
mal 91 RON a)
a)
Slight power loss.
PerformanceLEONLEON ST
Top speed (km/h)194 (V)194 (VI)
Acceleration from 0-80 km/h (seconds)7.17.3
Acceleration from 0-100 km/h (seconds)10.911
Weights (in kg)
Gross vehicle weight1,8401,880
Weight in running order (with driver)1,3591,395
Gross front axle weight910910
Gross rear axle weight9801,020
Permitted roof load7575
Maximum trailer weights (in kg)
Trailer without brakes670690
Trailer with brakes, gradients up to 8%1,7001,700
Trailer with brakes, gradients up to 12%1,4001,400 256

Technical specifications

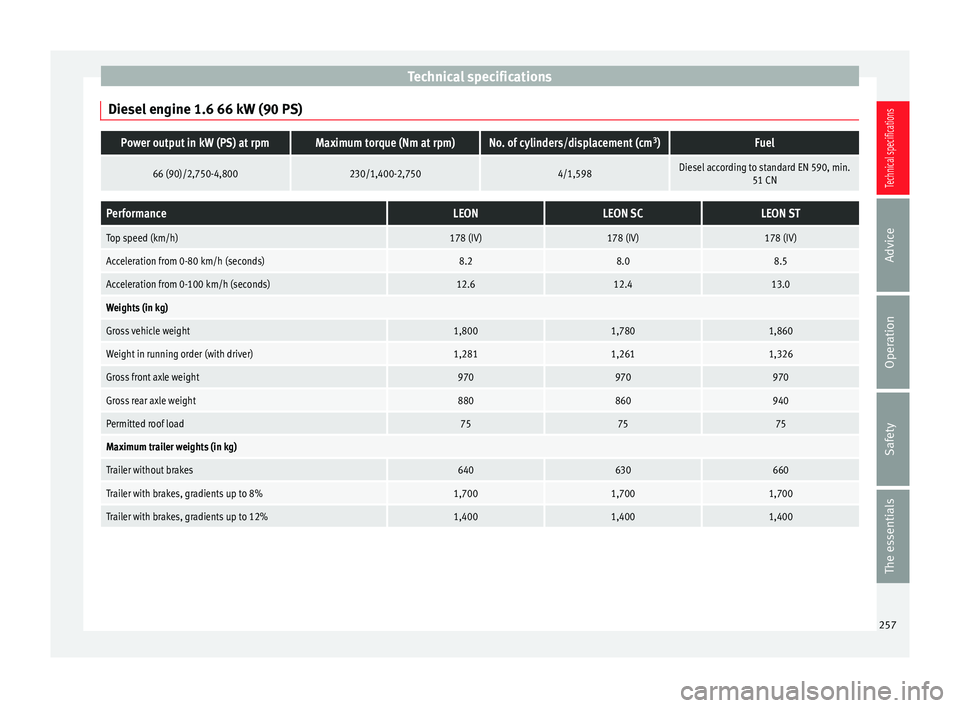

Diesel engine 1.6 66 kW (90 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
66 (90)/2,750-4,800230/1,400-2,7504/1,598Diesel according to standard EN 590, min.
51 CN
PerformanceLEONLEON SCLEON ST
Top speed (km/h)178 (IV)178 (IV)178 (IV)
Acceleration from 0-80 km/h (seconds)8.28.08.5
Acceleration from 0-100 km/h (seconds)12.612.413.0
Weights (in kg)
Gross vehicle weight1,8001,7801,860
Weight in running order (with driver)1,2811,2611,326
Gross front axle weight970970970
Gross rear axle weight880860940
Permitted roof load757575
Maximum trailer weights (in kg)
Trailer without brakes640630660
Trailer with brakes, gradients up to 8%1,7001,7001,700
Trailer with brakes, gradients up to 12%1,4001,4001,400 257
Technical specifications
Advice
Operation
Safety
The essentials

Technical specifications
Diesel engine 1.6 77 kW (105 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
77 (105)/3,000-4,000250/1,750-2,7504/1,598Diesel according to standard EN 590, min.
51 CN
PerformanceLEON
ManualLEON
Start-StopLEON
AutomaticLEON SC ManualLEON SC
Start-StopLEON SC
AutomaticLEON ST ManualLEON ST
Start-StopLEON ST
Automatic
Top speed (km/h)191 (V)192 (V)191 (VI)191 (V)192 (V)191 (VI)191 (V)191 (V)191 (VI)
Acceleration from 0-80 km/h (sec-
onds)7.37.37.37.27.27.27.57.57.4
Acceleration from 0-100 km/h (sec-
onds)10.710.710.710.610.610.611.111.111.0
Weights (in kg)
Gross vehicle weight1,7901,8001,8101,7801,7901,8001,8601,8601,890
Weight in running order (with driv-
er)1,2811,2861,3061,2611,2661,2861,3261,3311,351
Gross front axle weight9709801,000970970990970970990
Gross rear axle weight870870860860870860940940950
Permitted roof load757575757575757575
Maximum trailer weights (in kg)
Trailer without brakes640640650630630640660660670
Trailer with brakes, gradients up to
8%1,8001,8001,8001,8001,8001,8001,8001,8001,800
Trailer with brakes, gradients up to
12%1,5001,5001,5001,5001,5001,5001,5001,5001,500 258

Technical specifications
Diesel engine 1.6 77 kW (105 HP) All-Wheel DrivePower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
77 (105)/3,000-4,000250/1,750-2,7504/1,598Diesel according to standard EN 590, min.
51 CN
PerformanceLEON ST
manual gearbox
Top speed (km/h)187 (VI)
Acceleration from 0-80 km/h (seconds)7.5
Acceleration from 0-100 km/h (seconds)12
Weights (in kg)
Gross vehicle weight1,980
Weight in running order (with driver)1,455
Gross front axle weight1,010
Gross rear axle weight1,020
Permitted roof load75
Maximum trailer weights (in kg)
Trailer without brakes720
Trailer with brakes, gradients up to 8%1,900
Trailer with brakes, gradients up to 12%1,700 259
Technical specifications
Advice
Operation
Safety
The essentials

Technical specifications
Diesel engine 1.6 81 kW (110 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
81 (110)/3,200-4,000250/1,500-3,0004/1,598Diesel according to standard EN 590, min.
51 CN
PerformanceLEON
Start-StopLEON
EcomotiveLEON
Ecomo- tive a)LEON SC
Start-StopLEON SC
EcomotiveLEON SC Ecomo- tive a)LEON ST
Start-StopLEON ST
EcomotiveLEON ST Ecomo- tive a)
Top speed (km/h)192 (V)199 (V)200 (V)192 (V)199 (V)200 (V)191 (V)199 (V)200 (V)
Acceleration from 0-80 km/h (seconds)7.3777.36.96.97.57.17.1
Acceleration from 0-100 km/h (seconds)10.710.510.510.710.410.411.110.610.6
Weights (in kg)
Gross vehicle weight1,7701,7701,7301,7501,7501,7301,8701,7901,790
Weight in running order (with driver)1,2601,2601,2601,2401,2401,2401,3051,2801,280
Gross front axle weight970970960970970950980950950
Gross rear axle weight850850820830830830940890890
Permitted roof load757575757575757575
Maximum trailer weights (in kg)
Trailer without brakes630630630620620620650640640
Trailer with brakes, gradients up to 8%1,3001,3001,3001,3001,3001,3001,8001,3001,300
Trailer with brakes, gradients up to 12%1,0001,0001,0001,0001,0001,0001,5001,0001,000
a)
Valid for the market: The Netherlands. 260

Technical specifications
Diesel engine 1.6 81 kW (110 HP) All-Wheel DrivePower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
81 (110)/3,200-4,000250/1,500-3,0004/1,598Diesel according to standard EN 590, min.
51 CN
PerformanceLEON STLEON ST
X-PERIENCE 4WD
Top speed (km/h)187 (VI)187 (VI)
Acceleration from 0-80 km/h (seconds)7.57.2
Acceleration from 0-100 km/h (seconds)1211.6
Weights (in kg)
Gross vehicle weight2,0002,210
Weight in running order (with driver)1,4551,472
Gross front axle weight1,0001,010
Gross rear axle weight1,0501,050
Permitted roof load7575
Maximum trailer weights (in kg)
Trailer without brakes720740
Trailer with brakes, gradients up to 8%1,9001,900
Trailer with brakes, gradients up to 12%1,7001,700 261
Technical specifications
Advice
Operation
Safety
The essentials

Technical specifications

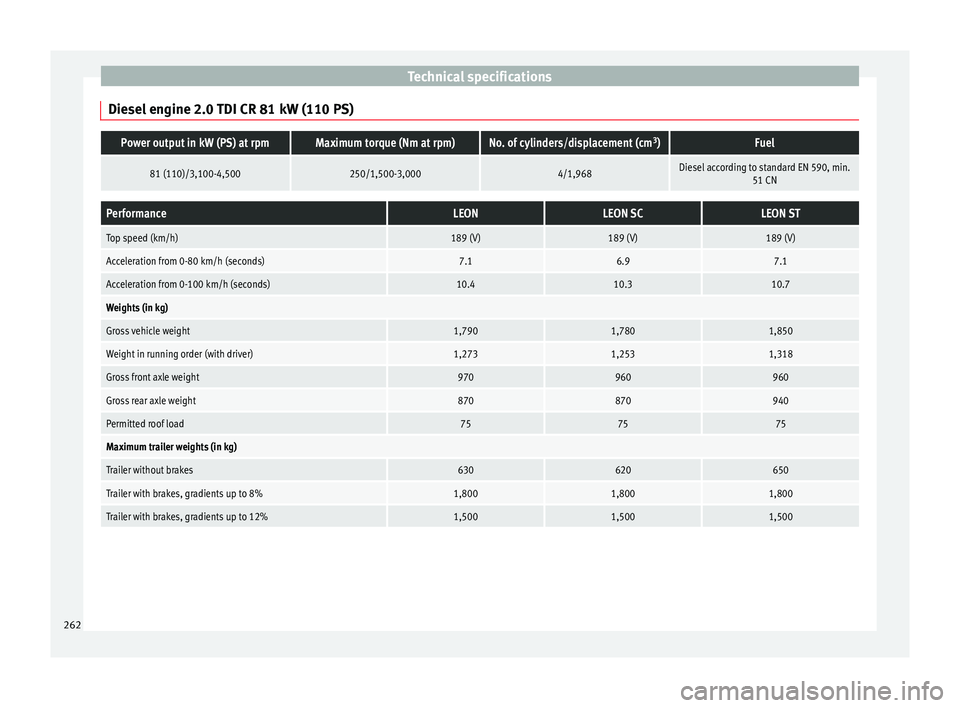

Diesel engine 2.0 TDI CR 81 kW (110 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
81 (110)/3,100-4,500250/1,500-3,0004/1,968Diesel according to standard EN 590, min.
51 CN
PerformanceLEONLEON SCLEON ST
Top speed (km/h)189 (V)189 (V)189 (V)
Acceleration from 0-80 km/h (seconds)7.16.97.1
Acceleration from 0-100 km/h (seconds)10.410.310.7
Weights (in kg)
Gross vehicle weight1,7901,7801,850
Weight in running order (with driver)1,2731,2531,318
Gross front axle weight970960960
Gross rear axle weight870870940
Permitted roof load757575
Maximum trailer weights (in kg)
Trailer without brakes630620650
Trailer with brakes, gradients up to 8%1,8001,8001,800
Trailer with brakes, gradients up to 12%1,5001,5001,500262

Technical specifications

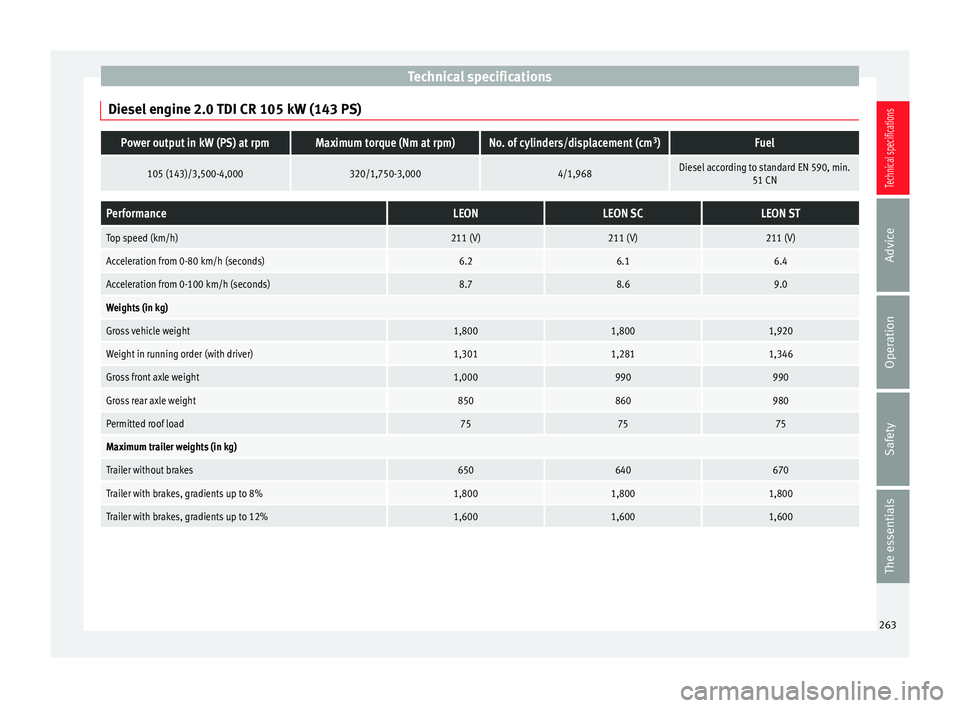

Diesel engine 2.0 TDI CR 105 kW (143 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
105 (143)/3,500-4,000320/1,750-3,0004/1,968Diesel according to standard EN 590, min.
51 CN
PerformanceLEONLEON SCLEON ST
Top speed (km/h)211 (V)211 (V)211 (V)
Acceleration from 0-80 km/h (seconds)6.26.16.4
Acceleration from 0-100 km/h (seconds)8.78.69.0
Weights (in kg)
Gross vehicle weight1,8001,8001,920
Weight in running order (with driver)1,3011,2811,346
Gross front axle weight1,000990990
Gross rear axle weight850860980
Permitted roof load757575
Maximum trailer weights (in kg)
Trailer without brakes650640670
Trailer with brakes, gradients up to 8%1,8001,8001,800
Trailer with brakes, gradients up to 12%1,6001,6001,600 263
Technical specifications
Advice
Operation
Safety
The essentials

Technical specifications
Diesel engine 2.0 110 kW (150 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
110 (150)/3,500-4,000320/1,750-3,0004/1,968Diesel according to standard EN 590, min.
51 CN
PerformanceLEON
ManualLEON
Start-StopLEON
AutomaticLEON SC ManualLEON SC
Start-StopLEON SC
AutomaticLEON ST ManualLEON ST
Start-StopLEON ST
Automatic
Top speed (km/h)215 (VI)215 (VI)211 (VI)215 (VI)215 (VI)211 (VI)215 (VI)215 (VI)211 (VI)
Acceleration from 0-80 km/h (sec-
onds)6.16.16.06.06.06.06.26.26.2
Acceleration from 0-100 km/h (sec-
onds)8.48.48.48.38.38.38.68.68.6
Weights (in kg)
Gross vehicle weight1,8001,8101,8401,8001,8101,8301,9101,9201,950
Weight in running order (with driver)1,3001,3051,3351,2801,2851,3151,3451,3501,380
Gross front axle weight1,0001,0001,03099099010209909901,020
Gross rear axle weight850860860860870860970980980
Permitted roof load757575757575757575
Maximum trailer weights (in kg)
Trailer without brakes650650660640640650670650690
Trailer with brakes, gradients up to
8%1,8001,8001,8001,8001,8001,8001,8001,8001,800
Trailer with brakes, gradients up to
12%1,6001,6001,6001,6001,6001,6001,6001,6001,600 264

Technical specifications

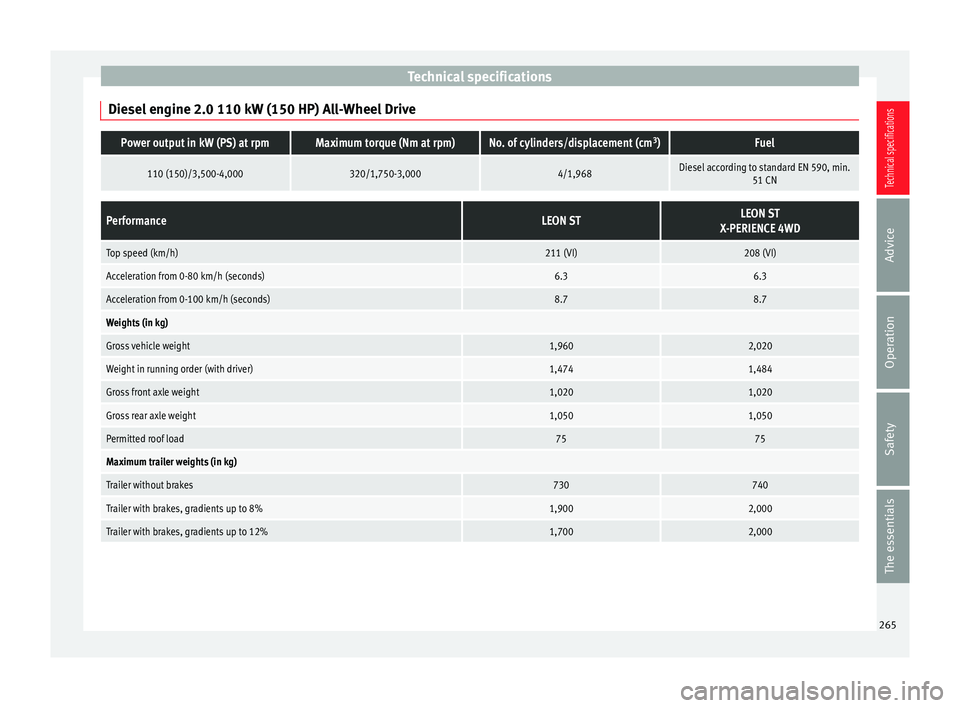

Diesel engine 2.0 110 kW (150 HP) All-Wheel DrivePower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
110 (150)/3,500-4,000320/1,750-3,0004/1,968Diesel according to standard EN 590, min.
51 CN
PerformanceLEON STLEON ST
X-PERIENCE 4WD
Top speed (km/h)211 (VI)208 (VI)
Acceleration from 0-80 km/h (seconds)6.36.3
Acceleration from 0-100 km/h (seconds)8.78.7
Weights (in kg)
Gross vehicle weight1,9602,020
Weight in running order (with driver)1,4741,484
Gross front axle weight1,0201,020
Gross rear axle weight1,0501,050
Permitted roof load7575
Maximum trailer weights (in kg)
Trailer without brakes730740
Trailer with brakes, gradients up to 8%1,9002,000
Trailer with brakes, gradients up to 12%1,7002,000 265
