Operation
●
Do not put hot drinks in the drink holders.
During normal or sudden driving manoeuvres,
sudden braking or an accident, the hot drink
could be spilled. Danger of scalding. CAUTION
When driving, do not leave open cans in the
cup holders. The drink might be spilt on brak-
ing, for example, and could damage the vehi-
cle. Drink holders
Fig. 115
Centre console: front drink holders. Front drink holders
– Place drinks in the holder ››› Fig. 115 .
Pl ac
ement of two drinks is possible. There
is also the possibility of placing larger plas-
tic bottles in the trims of the doors. WARNING
● Do not place any hot drinks in the drink
holder while the vehicle is moving. Hot drinks
could spill and cause burns, which may cause
an accident.
● Do not use hard china cups or glasses.
These could cause injury in the event of an
accident. CAUTION
You should avoid putting open drinks con-
tainers in the cup holders. The drinks could
otherwise spill over and cause damage to e.g.
the electrical equipment or the seat covers. Glove box
Fig. 116
Glove compartment Opening/closing
– To open the glove compartment, pull the
handle in the direction of the arrow.
– To close the glove compartment, move the
cover upwards until it engages.
Depending on the vehicle equipment, the CD
player is located in the glove compartment.
Separate operating instructions are enclosed
for this equipment in the corresponding In-
struction Manual. WARNING
The cover of the glove compartment should
always be closed while driving. Failure to fol-
low this instruction could result in an acci-
dent. Other storage compartments
You will find more object holders, compart-
ments and supports in other parts of the ve-
hicle:
● In the top of the glove compartment in ve-
hicles that do not have a CD reader. The load
of the compartment should not exceed
1.2 kg.
● In the centre console under the centre arm-
rest*.
● In the driver side panel there is a remova-
ble box for access to fuses and relays. The
112

Transport and practical equipment
Removing the net partition
● Fold the rear seat backrests forward.
● Press the left or right release catch
››› Fig. 125 in the direction of the arrow 1 .
● Remove the casing from the support in the
direction of the arrow ››› Fig. 125 2 .
Fitting the net partition
● Fold the rear seat backrests forward.
● Fit the casing in the right and left supports.
● Press the casing into the left and right sup-
ports in the opposite direction to the arrow
››› Fig. 125 2 until it engages.
The red markings on the release buttons
should no longer be visible. WARNING
● Always secure objects, even when the net
partition is properly assembled.
● There should be nobody behind the assem-
bled partition when the vehicle is moving. CAUTION
Incorrect handling of the net partition could
cause damage. ● Do not “release” the net partition when
lowering it, as the net and other vehicle parts
could be damaged. Roll down the net parti-
tion by hand. Use of the net partition with the rear
seat backrests lowered
3 Applies to the model: LEON ST
Fig. 126
Assembling the net partition in the
rear seat backrests. Fig. 127
In the luggage compartment: net
partition hooked into the rear seat backrests. Fitting the net partition
● Fold the rear seat backrests forward. ●
Remove the net partition from the side sup-
ports.
● Place the net casing in the rail slots in the
direction of the arrows ››› Fig. 126 1 .
● Push the casing towards the left side of the
vehicle in the direction of arrow ››› Fig. 126
2 and as far as it will go.
● Check that the net is secure.
Pulling out and securing the net partition
● Pull up handle ››› Fig. 127 2 to remove the
net from the casing ››› Fig. 127 4 .
● Hook in the net partition on the right side
››› Fig. 127 3 (magnified image).
● Hook in the net partition in the left side
housing ››› Fig. 127 1 pulling the rod.
The net partition is properly assembled when
the T-shaped ends are firmly secured in the
corresponding housings ››› Fig. 127 3 and
1 .
Retracting the net partition
● Remove the rod from the housings in the
trims of the roof side members.
● Roll up the net into the casing ››› Fig. 127
4 lowering it with your hand.
»
117Technical specifications
Advice
Operation
Safety
The essentials

Advice
Automatic car washes
Before going through a car wash, be sure to
take the usual precautions such as closing
the windows and roof. If the vehicle has spe-
cial accessories such as spoilers or a roof
rack or two-way radio aerial, etc., it is advisa-
ble to consult the car wash tunnel operator.
It is best to use a car wash without revolving
bristles if possible.
Washing the vehicle with a high pressure
cleaner
When washing the vehicle with a high-pres-
sure cleaner, always follow the operating in-
structions for the equipment. This applies
particularly to the operating pressure and the
spraying distance . Do not hold the nozzle too
c lo
se to soft materials such as rubber hoses
or seals. The same applies to the parking aid
sensors*, which are located in the rear bump-
er.
Do not use a nozzle that sprays the water out
in a
direct stream or one that has a rotating
jet for forcing off dirt.
Washing the car by hand
When washing the car by hand, use plenty of
water to soften the dirt first, and rinse off as
well as possible.
Then clean the vehicle with a soft sponge,
glove
or brush using only slight pressure.
You should start on the roof and work down. Special car
soap
should only be used for very
persistent dirt.
Rinse the sponge or glove thoroughly and of-
ten.
Wheels, sills and similar should be cleaned
last. Use a second sponge for this. WARNING
● The vehicle should only be washed with the
ignition switched off. Failure to follow this in-
struction could result in an accident.
● Do not clean the underside of chassis, the
inside of wheel arches or wheel trims without
protecting your hands and arms. You may cut
yourself on sharp-edged metal parts. Other-
wise, there is a risk of sustaining cuts.
● When washing the car during the winter
season: water and ice in the brake system
can reduce braking effectiveness: risk of acci-
dent! CAUTION
● Do not wash the vehicle in direct sunlight –
otherwise the paint can be damaged.
● Do not use sponges, abrasive household
sponges or similar to clean insect remains.
This could damage the surface.
● Clean off stubborn dirt (insects, etc.) from
the headlights at regular intervals, for in-
stance when filling the fuel tank. The head-
lights should only be washed with water, do not wipe them with a dry cloth or sponge. It
is best to use soapy water.
● Never wash tyres with a jet that sprays the
water out in a direct stream. This could dam-
age the tyres even if the spray is kept at a
distance and only used for a very short time.
● Before washing the vehicle in an automatic
car wash, please make sure to retract the ex-
terior mirrors to prevent them from being
damaged. Electrically retractable exterior
mirrors must not be folded in or out by hand,
always use the electrical power control. CAUTION
● Before washing the vehicle in an automatic
car wash, please proceed as follows to lock
the wiper arms so that they are not moved to-
wards the top of the windscreen:
–the bonnet must be closed.
– switch the ignition on and off.
– press the windscreen wiper lever forward
briefly (windscreen washer function).
This will lock the wiper arms. For the sake of the environment
The car should only be washed in special
wash bays. These areas are prepared to pre-
vent oily water from getting into the public
drains. In some places, washing vehicles out-
side the areas intended for this purpose is
prohibited. 184

Care and maintenance
Camera sensors and lenses ●
Use a small brush to remove snow and a
de-icer spray to remove ice.
● Clean the sensors with a solvent-free prod-
uct and a soft, dry cloth.
● Moisten the camera lens using a standard
alcohol-based glass cleaning agent and
clean the lens with a dry cloth. In the active
lane assist*, the area in front of the lens is
norm al
ly cleaned with the windscreen wash-
er. CAUTION
● When you clean the vehicle with a pressure
washer:
–Stay a suitable distance from the sensors
on the front and rear bumpers.
– Do not clean the camera lenses or sur-
rounding area with the pressure washer.
● Never use warm or hot water to remove
snow and ice from the reverse camera lens,
as it could crack the lens.
● Never use abrasive cleaning agents on the
lens. Care and polishing
Care
Waxing protects the paintwork. It is time to
apply a
coat of good wax when water no lon- ger forms droplets
and rolls off the clean
paintwork.
Even if a wax solution is used regularly in the
vehicle washing tunnel, it is advisable to pro-
tect the paint with a hard wax coating at least
twice a year.
In the summer, you will find it is much easier
to remove dead insects (which accumulate
on the bumper and the front of the bonnet) if
the car has been treated with care products
recently .
P o

lishing
Polishing is only necessary if the paint has
lost its shine, and the gloss cannot be
brought back by putting on wax.
If the polish does not contain wax, a wax
product should be applied after polishing. CAUTION
● Do not use polishes and hard wax on pain-
ted parts with a matt finish or on plastic
parts.
● Do not apply paint polishes to the side trim
that runs around the panoramic roof and ends
on the windscreen. However, it can be treated
with hard wax. Trims
In respect for the environment, the silver-
plated trims on the body are made of pure
aluminium (they do not contain chrome).
Dirt or marks on the trim mouldings should
be removed with a cleaning product with a
neutr
a

l PH (do not use a chrome cleaner).
Body polish is also unsuitable for use on trim
mouldings. The intensive cleaning fluids of-
ten used before the car goes into a car wash
may contain alkaline substances, which can
cause dull or milky patches when they dry
out.
SEAT Official Services carry stocks of cleaning
products which have been tested for use on
your vehicle and are not harmful to the envi-
ronment.
Plastic parts Plastic parts are cleaned with a power wash-
er. If this is not sufficient, plastic parts
should only be treated with a special solvent-
free
plastic cleaning agent
. Do not
u
se paint-
work cleaners, polishes or wax on plastic
parts.
185
Technical specifications
Advice
Operation
Safety
The essentials

Advice

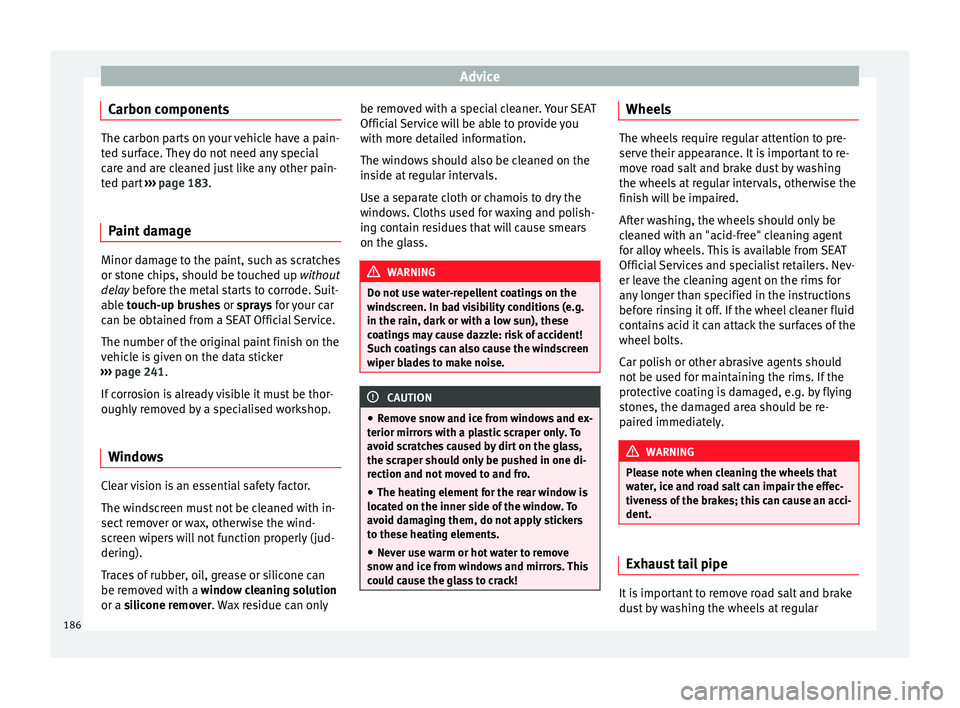

Carbon components The carbon parts on your vehicle have a pain-
ted surface. They do not need any special
care and are cleaned just like any other pain-
ted part
››› page 183.
P aint
damage Minor damage to the paint, such as scratches
or stone chips, should be touched up without
delay
before the metal starts to corrode. Suit-
ab l

e touch-up brushes or sprays for your car
can be obtained from a SEAT Official Service.
The number of the original paint finish on the
vehicle is given on the data sticker
››› page 241
.
If corrosion is already visible it must be thor-
oughly removed by a specialised workshop.
Windows Clear vision is an essential safety factor.
The windscreen must not be cleaned with in-
sect remover or wax, otherwise the wind-
screen wipers will not function properly (jud-
dering).
Traces of rubber, oil, grease or silicone can
be removed with a
window cleaning solution
or a silicone remover. Wax residue can only be remo
ved with a special cleaner. Your SEAT
Official Service will be able to provide you
with more detailed information.
The windows should also be cleaned on the
inside at regular intervals.
Use a separate cloth or chamois to dry the
windows. Cloths used for waxing and polish-
ing contain residues that will cause smears
on the glass. WARNING
Do not use water-repellent coatings on the
windscreen. In bad visibility conditions (e.g.
in the rain, dark or with a low sun), these
coatings may cause dazzle: risk of accident!
Such coatings can also cause the windscreen
wiper blades to make noise. CAUTION
● Remove snow and ice from windows and ex-
terior mirrors with a plastic scraper only. To
avoid scratches caused by dirt on the glass,
the scraper should only be pushed in one di-
rection and not moved to and fro.
● The heating element for the rear window is
located on the inner side of the window. To
avoid damaging them, do not apply stickers
to these heating elements.
● Never use warm or hot water to remove
snow and ice from windows and mirrors. This
could cause the glass to crack! Wheels
The wheels require regular attention to pre-
serve their appearance. It is important to re-
move road salt and brake dust by washing
the wheels at regular intervals, otherwise the
finish will be impaired.
After washing, the wheels should only be
cleaned with an "acid-free" cleaning agent
for alloy wheels. This is available from SEAT
Official Services and specialist retailers. Nev-
er leave the cleaning agent on the rims for
any longer than specified in the instructions
before rinsing it off. If the wheel cleaner fluid
contains acid it can attack the surfaces of the
wheel bolts.
Car polish or other abrasive agents should
not be used for maintaining the rims. If the
protective coating is damaged, e.g. by flying
stones, the damaged area should be re-
paired immediately.
WARNING
Please note when cleaning the wheels that
water, ice and road salt can impair the effec-
tiveness of the brakes; this can cause an acci-
dent. Exhaust tail pipe
It is important to remove road salt and brake
dust by washing the wheels at regular
186

Advice
Wheels
Wheels and tyres General notes –
When driving with new tyres, be especially
car
eful during the first 500 km (300 miles).
– If you have to drive over a kerb or similar
obstacle, drive very slowly and as near as
possible at a right angle to the obstacle.
– Check from time to time if the tyres are
damaged (punctures, cuts, cracks or
dents). Remove any foreign objects embed-
ded in the treads.
– Damaged wheels and tyres must be re-
placed immediately.
– Keep grease, oil and fuel off the tyres.
– Replace any missing valve caps as soon as
possible.
– Mark the wheels before taking them off so
that they rotate in the same direction when
put back.
– When removed, the wheels or tyres should
be stored in a cool, dry and preferably dark
place.
New tyres
New tyres do not give maximum grip straight
a w

ay and should therefore be “run in” by driving carefully and at moderate speeds for
about the first 500 km (300 miles). This will
also increase the useful life of the tyres.
The tread depth of new tyres may
v
ary, ac-
cording to the type and make of tyre and the
tread pattern.
Concealed damage
Damage to tyres and rims is often not readily
visible. If you notice unusual vibration
or the
car pulling to one side, this may indicate that
one of the tyres is damaged. Reduce speed
immediately if there is any reason to suspect
that damage may have occurred. Inspect the
tyres for damage. If no external damage is
visible, drive slowly and carefully to the near-
est specialised workshop and have the car
inspected.
Tyres with directional tread pattern
An arrow on the tyre sidewall indicates the di-
rection of rotation on single drive tyres. Al-
ways note the direction of rotation indicated
when mounting the wheel. This guarantees
optimum grip and helps to avoid aquaplan-
ing, excessive noise and wear.
Retrofitting Accessories
If you wish to change or fit wheels, rims or
wheel trims, we recommend that you consult
with a SEAT Official Service centre for advice
regarding current techniques. Useful life of tyres Correct inflation pressures and sensible driv-
ing habits will increase the useful life of your
tyres.
– Check tyre pressure at least once a month,
and also prior to any long trip.
– The tyre pressure should only be checked
when the tyres are cold. Do not reduce the
pressure of warm tyres.
– Adjust tyre pressure to the load being car-
ried by the vehicle.
– In vehicles with a tyre pressure indicator,
save the pressure of modified tyres
››› page 212 , ››
›
page 208.
– Avoid fast cornering and hard acceleration.
– Inspect the tyres for irregular wear from
time to time.
The useful life of your tyres depends on the
following factors:
Tyre pressure
Tyre pressure values are indicated on the
sticker on the inside of the fuel tank flap.
Insufficient or excessive pressure greatly re-
duces the useful life of the tyres and adverse-
ly affects vehicle performance and ride. Cor-
rect inflation pressures are very important,
especially at high speeds.
208

Advice
WARNING
The tyres must be replaced at the latest when
the tread is worn down to the tread wear indi-
cators. Failure to follow this instruction could
result in an accident.
● Especially in difficult driving conditions
such as wet or icy roads. It is important that
the tyre tread be as deep as possible and be
approximately the same on the tyres of both
the front and the rear axles.
● The scant driving safety due to insufficient
tread depth is particularly evident in vehicle
handling, when there is a risk of “aquaplan-
ing” in deep puddles of water and when driv-
ing through corners, and braking is also ad-
versely affected.
● The speed has to be adapted accordingly,
otherwise there is a risk of losing control over
the vehicle. Changing wheels

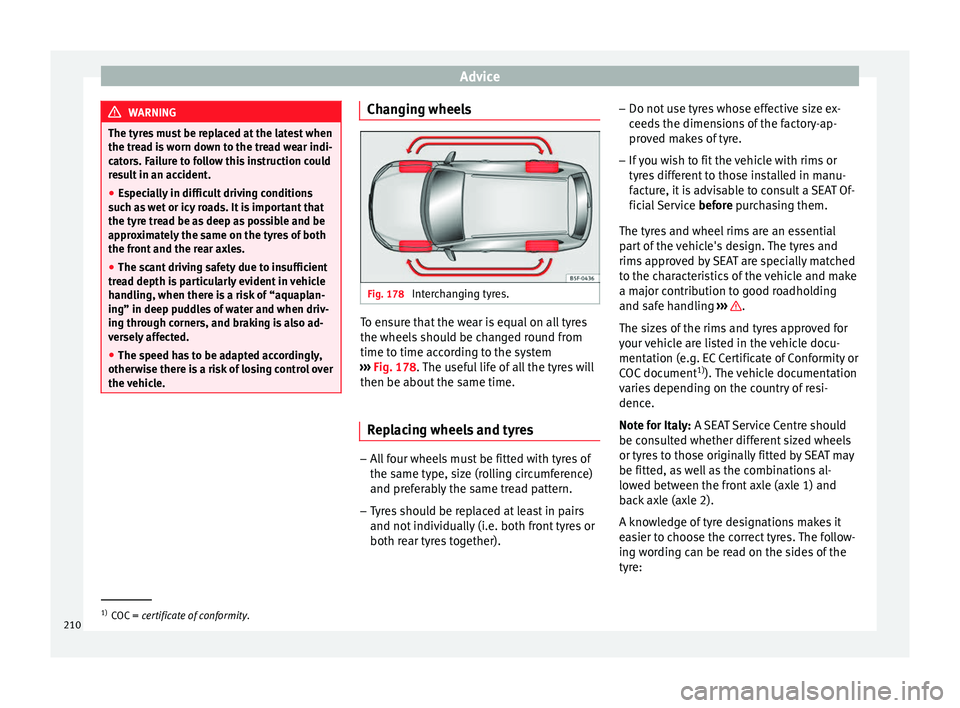

Fig. 178
Interchanging tyres. To ensure that the wear is equal on all tyres
the wheels should be changed round from
time to time according to the system
››› Fig. 178 . The useful life of all the tyres will
then be about the s
ame time.
Replacing wheels and tyres –
All four wheels must be fitted with tyres of
the same type, size (rolling circumference)
and preferably the same tread pattern.
– Tyres should be replaced at least in pairs
and not individually (i.e. both front tyres or
both rear tyres together). –
Do not use tyres whose effective size ex-
ceeds the dimensions of the factory-ap-
proved makes of tyre.
– If you wish to fit the vehicle with rims or
tyres different to those installed in manu-
facture, it is advisable to consult a SEAT Of-
ficial Service before purchasing them.
The ty r

es and wheel rims are an essential
part of the vehicle's design. The tyres and
rims approved by SEAT are specially matched
to the characteristics of the vehicle and make
a major contribution to good roadholding
and safe handling ››› .
The sizes of the rims and tyres approved for
your vehicle are listed in the vehicle docu-
mentation (e.g. EC Certificate of Conformity or
COC document 1)
). The vehicle documentation
varies depending on the country of resi-
dence.
Note for Italy: A SEAT Service Centre should
be c on

sulted whether different sized wheels
or tyres to those originally fitted by SEAT may
be fitted, as well as the combinations al-
lowed between the front axle (axle 1) and
back axle (axle 2).
A knowledge of tyre designations makes it
easier to choose the correct tyres. The follow-
ing wording can be read on the sides of the
tyre: 1)
COC = certificate of conformity.
210

Wheels
205/55 R16 91V
This contains the following information:205Tyre width in mm
55Height/width ratio in %
RTyre construction: Radial
16Rim diameter in inches
91Load rating code
VSpeed index The
manufacturing date
is also indicated on
the ty

re sidewall (possibly only on the inner
part):
DOT... 2212...
it means, for example, that the tyre was man-
ufactured in the 22nd week of 2012.
But note that with some types of tyre, the ac-
tual tyre size can differ from the nominal size
marked on the tyre (for instance 205/55 R 16
91 W), and there may be significant differen-
ces in the contours of the tyres, even though
the tyres are marked with the same nominal
size designation. When replacing the tyres,
it is therefore important to make sure that
the actual size of the new tyres does not ex-
ceed the dimensions of the factory-approved
makes of tyre.
Failure to observe this requirement can af-
fect the clearance needed for the tyres. If the tyres rub against the bodywork, in certain
circumstances the tyres , suspension or
bodywork and pipes may be damaged, and
vehicle safety could be severely impaired
››› .
If you use tyres that are approved by SEAT
you can be sure that the actual tyre dimen-
sions will be correct for your vehicle. If you
decide to fit a different type of tyre, you must
obtain the appropriate manufacturer's certif-
icate from the tyre retailer to confirm that
the tyres are suitable for your vehicle. Keep
this certificate in a safe place.
Your SEAT Official Service will be able to ad-
vise you on which tyres may be fitted to your
vehicle.
It is best to have all servicing of wheels and
tyres performed by a specialised workshop.
They are familiar with the procedure and
have the necessary special tools and spare
parts as well as the proper facilities for dis-
posing of the old tyres respecting the envi-
ronment. WARNING
● It is very important to ensure that the tyres
you have chosen have adequate clearance.
When selecting replacement tyres, do not re-
ly entirely on the nominal tyre size marked on
the tyre, since the effective tyre size can dif-
fer significantly depending on the manufac-
turer. Inadequate tyre clearance can result in
damage to the tyres or the vehicle, causing a serious safety risk. Risk of accident! It may
also invalidate the vehicle's registration for
use on public roads.
●
Avoid running the vehicle on tyres that are
more than 6 years old. If you have no alterna-
tive, you should drive slowly and with extra
care at all times.
● If wheel trims are fitted after the car is pur-
chased, ensure that there is an adequate flow
of air for cooling the brake system. For the sake of the environment
Old tyres must be disposed of according to
the laws in the country concerned. Note
● Never mount used tyres if you are not sure
of their “previous history”.
● For technical reasons, it is not generally
possible to use the wheels from other vehi-
cles. In some cases, this may also be true for
the same model of wheel. Wheel bolts
The
wheel bolts
ar
e m
atched to the rims.
When installing different wheels (for instance
alloy wheels or wheels with winter tyres) it is
important to use the correct wheel bolts with
the right length and correctly shaped bolt
heads. This ensures that wheels are fitted »
211
Technical specifications
Advice
Operation
Safety
The essentials

Index
Before starting the vehicle . . . . . . . . . . . . . . . . . . 37
Belt tightening . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Bench seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 198
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146 Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
New brake pads . . . . . . . . . . . . . . . . . . . . . . . . 146
Braking Brake assist system . . . . . . . . . . . . . . . . . . . . . 143
Moving off on hills . . . . . . . . . . . . . . . . . . . . . . 147
C Carbon components: Cleaning . . . . . . . . . . . . . . 186
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Care of vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Care (paint care) . . . . . . . . . . . . . . . . . . . . . . . . . . 185
CAR menu Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . 141
CCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
CD-ROM player (navigation) . . . . . . . . . . . . . . . . 112
Central locking Anti-theft alarm . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Central locking switch . . . . . . . . . . . . . . . . . . . . 85
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . 91
Manual locking . . . . . . . . . . . . . . . . . . . . . . . . . 228
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Remote control key . . . . . . . . . . . . . . . . . . . . . . . 84
Selective unlocking system . . . . . . . . . . . . . . . . 84
Sliding/tilting sunroof . . . . . . . . . . . . . . . . . . . . 91
Central locking system . . . . . . . . . . . . . . . . . . . . . . 82
Cetane number (diesel fuel) . . . . . . . . . . . . . . . . 196 Changing
of windscreen wiper and window washerblades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . . . 233 Bulb sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Changing gear Engaging gears (manual gearbox) . . . . . . . . . 132
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . 132
Changing main headlight turn signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Changing the battery of the vehicle key . . . . . . . . . . . . . . . . . . . . . . . . 86
Changing the main beam headlight bulb main beam headlight . . . . . . . . . . . . . . . . . . . . 236
Changing the main headlight bulb day light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
dipped light . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Child-proof lock Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . 90
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Child seat Categorisation in groups . . . . . . . . . . . . . . . . . . 58
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
safety instructions . . . . . . . . . . . . . . . . . . . . . . . 57
Top Tether system . . . . . . . . . . . . . . . . . . . . . 59, 61
City Emergency braking function . . . . . . . . . . . . . 165
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183 Alcantara . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Carbon components . . . . . . . . . . . . . . . . . . . . . 186
Display/Easy Connect control panel . . . . . . . . 187
Exhaust pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Leather . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
of Changing windscreen wiper and windowwasher blades . . . . . . . . . . . . . . . . . . . . . . . . 230
Plastic parts . . . . . . . . . . . . . . . . . . . . . . 185, 187
Radio display . . . . . . . . . . . . . . . . . . . . . . . . . . 187 Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Trim parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Trims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Washing the vehicle . . . . . . . . . . . . . . . . . . . . . 183
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Cleaning/De-icing the windows . . . . . . . . . . . . . 186
Cleaning the upholstery Natural leather . . . . . . . . . . . . . . . . . . . . . . . . . 188
Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Close . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 Panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . . 92
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Panoramic sliding sunroof . . . . . . . . . . . . . . . . . 92
Panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . . 92
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Clutch (warning lamp) . . . . . . . . . . . . . . . . . . . . . 139
Coming Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Control lamp Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Tyre monitor indicator warning lamp . . . . . . . 212
Tyre monitoring systems . . . . . . . . . . . . . . . . . 212
Control lamps Adaptive cruise control . . . . . . . . . . . . . . . . . . 152
Control of function Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Controls and displays (overview) . . . . . . . . . . . . . 65
Convenience closing Panoramic sliding sunroof . . . . . . . . . . . . . . . . . 93
Convenience opening Panoramic sliding sunroof . . . . . . . . . . . . . . . . . 93
Convenience opening/closing . . . . . . . . . . . . . . . 91
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
270

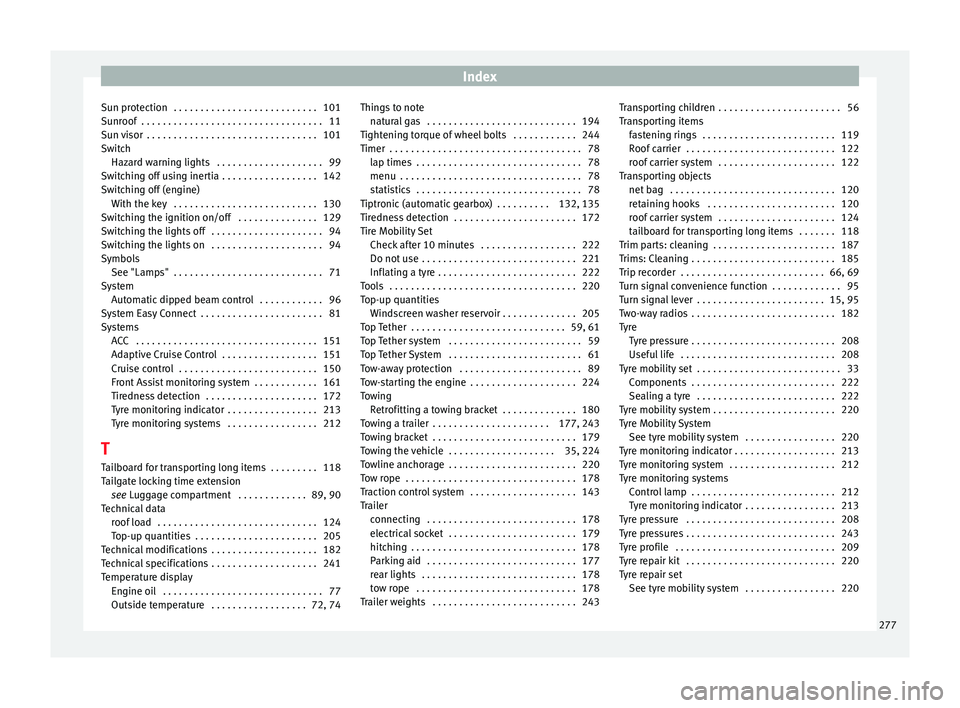

Index
Sun protection . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Sun visor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Switch Hazard warning lights . . . . . . . . . . . . . . . . . . . . 99
Switching off using inertia . . . . . . . . . . . . . . . . . . 142
Switching off (engine) With the key . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Switching the ignition on/off . . . . . . . . . . . . . . . 129
Switching the lights off . . . . . . . . . . . . . . . . . . . . . 94
Switching the lights on . . . . . . . . . . . . . . . . . . . . . 94
Symbols See "Lamps" . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
System Automatic dipped beam control . . . . . . . . . . . . 96
System Easy Connect . . . . . . . . . . . . . . . . . . . . . . . 81
Systems ACC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Adaptive Cruise Control . . . . . . . . . . . . . . . . . . 151
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Front Assist monitoring system . . . . . . . . . . . . 161
Tiredness detection . . . . . . . . . . . . . . . . . . . . . 172
Tyre monitoring indicator . . . . . . . . . . . . . . . . . 213
Tyre monitoring systems . . . . . . . . . . . . . . . . . 212
T Tailboard for transporting long items . . . . . . . . . 118
Tailgate locking time extension see Luggage compartment . . . . . . . . . . . . . 89, 90
T ec
hnical data
roof load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Top-up quantities . . . . . . . . . . . . . . . . . . . . . . . 205
Technical modifications . . . . . . . . . . . . . . . . . . . . 182
Technical specifications . . . . . . . . . . . . . . . . . . . . 241
Temperature display Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Outside temperature . . . . . . . . . . . . . . . . . . 72, 74 Things to note
natural gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Tightening torque of wheel bolts . . . . . . . . . . . . 244
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 lap times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Tiptronic (automatic gearbox) . . . . . . . . . . 132, 135
Tiredness detection . . . . . . . . . . . . . . . . . . . . . . . 172
Tire Mobility Set Check after 10 minutes . . . . . . . . . . . . . . . . . . 222
Do not use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Inflating a tyre . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Top-up quantities Windscreen washer reservoir . . . . . . . . . . . . . . 205
Top Tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59, 61
Top Tether system . . . . . . . . . . . . . . . . . . . . . . . . . 59
Top Tether System . . . . . . . . . . . . . . . . . . . . . . . . . 61
Tow-away protection . . . . . . . . . . . . . . . . . . . . . . . 89
Tow-starting the engine . . . . . . . . . . . . . . . . . . . . 224
Towing Retrofitting a towing bracket . . . . . . . . . . . . . . 180
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . 177, 243
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Towing the vehicle . . . . . . . . . . . . . . . . . . . . 35, 224
Towline anchorage . . . . . . . . . . . . . . . . . . . . . . . . 220
Tow rope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Traction control system . . . . . . . . . . . . . . . . . . . . 143
Trailer connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
electrical socket . . . . . . . . . . . . . . . . . . . . . . . . 179
hitching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
tow rope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . . 243 Transporting children . . . . . . . . . . . . . . . . . . . . . . . 56
Transporting items
fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . 119
Roof carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
roof carrier system . . . . . . . . . . . . . . . . . . . . . . 122
Transporting objects net bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
retaining hooks . . . . . . . . . . . . . . . . . . . . . . . . 120
roof carrier system . . . . . . . . . . . . . . . . . . . . . . 124
tailboard for transporting long items . . . . . . . 118
Trim parts: cleaning . . . . . . . . . . . . . . . . . . . . . . . 187
Trims: Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Trip recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . 66, 69
Turn signal convenience function . . . . . . . . . . . . . 95
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . 15, 95
Two-way radios . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Tyre Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Useful life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Tyre mobility set . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Sealing a tyre . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Tyre mobility system . . . . . . . . . . . . . . . . . . . . . . . 220
Tyre Mobility System See tyre mobility system . . . . . . . . . . . . . . . . . 220
Tyre monitoring indicator . . . . . . . . . . . . . . . . . . . 213
Tyre monitoring system . . . . . . . . . . . . . . . . . . . . 212
Tyre monitoring systems Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Tyre monitoring indicator . . . . . . . . . . . . . . . . . 213
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Tyre profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Tyre repair set See tyre mobility system . . . . . . . . . . . . . . . . . 220
277
