parking sensors Seat Leon SC 2015 Owner's manual

Fuses and bulbsNo.Consumers/Amps
13Driving mode.15
14Air conditioner fan30
17Instrument panel5
18Rear camera7.5
214x4 Haldex Control Unit15
22Trailer15
23Right lights40
24Electric sunroof30
25Left door30
26Heated seats20
28Trailer25
31Left lights40
32Parking aid control unit7.5
33Airbag5
34Reverse switch, clima sensor, electro-
chromic mirror7.5
35Diagnosis, headlight control unit,
headlight adjuster10
36Front camera, Radar10
38Trailer25
39Right door30
4012V socket20
No.Consumers/Amps
42Central locking40
43Interior light30
44Trailer15
45Electric driver's seat15
47Rear window wiper15
49Starter motor; clutch sensor5
53Heated rear window30
Fuse arrangement in engine compartment
No.Consumers/Amps
1ESP control unit40/20
2ESP control unit40
3Engine control unit (diesel/pet-
rol)30/15
4Engine sensors5/10
5Engine sensors7.5/10
6Brake light sensor5
7Engine power supply5/10
8Lambda probe10/15
9Engine5/10/20
10Fuel pump control unit10/15/20
11PTC40
No.Consumers/Amps
12PTC40
13Automatic gearbox control unit15/30
15Horn15
16Fuel pump control unit5/15/20
17Engine control unit7.5
18Terminal 30 (positive reference)5
19Front windscreen washer30
20Alarm horn10
22Engine control unit5
23Starter motor30
24PTC40
31Electronic differential CUPRA15
CAUTION
● Alw a

ys carefully remove the fuse box cov-
ers and refit them correctly to avoid problems
with your vehicle.
● Protect the fuse boxes when open to avoid
the entry of
dust or humidity. Dirt and humid-
ity inside fuse boxes can cause damage to
the electrical system. » 93
Technical data
Advice
Operation
Emergencies
Safety

Operation
WARNING
● Alw a
ys pay attention, also when looking
straight ahead, to traffic and the vehicle
surroundings. The assistance systems are not
a replacement for driver awareness. When in-
serting or removing the vehicle from a park-
ing space, or when performing similar ma-
noeuvres the driver always assumes the re-
sponsibility.
● Adapt your speed and driving style at all
times t
o suit visibility, weather, road and traf-
fic conditions.
● The ultrasound sensors have blind spots in
which ob
stacles and people are not regis-
tered. Pay special attention to children and
animals.
● Always keep visual control of the vehicle
surrou
ndings: use the rear vision mirrors for
additional help. CAUTION
Parking Aid functions may be negatively af-
fect ed b

y different factors that may lead to
damage to the vehicle or its immediate sur-
rounds:
● Under certain circumstances, the system
does not
detect or display certain objects:
– Objects such as chains, trailer draw bars,
fences, posts and thin trees.
– Objects that are located above the sen-
sors, such as protrusions in a wall. –
Ob j

ects with certain surfaces or struc-
tures, such as wire mesh fences or pow-
der snow.
● Certain surfaces of objects and garments
do not refl
ect the ultrasound sensors' sig-
nals. The system cannot detect, at least cor-
rectly, these objects or people wearing such
clothes.
● Ultrasound sensor signals may be affected
by e
xternal sound sources. In certain circum-
stances this may prevent them from detect-
ing people or objects.
● Please note that low obstacles detected by
the syst
em may no longer be registered by
the sensors as the car moves closer, so the
system will not give any further warning. In
certain circumstances, objects such as high
kerbs that could damage the bottom of the
vehicle are not detected either.
● If the first warning from the Park Pilot is ig-
nored, the v
ehicle could suffer considerable
damage.
● The knocks or damage on the radiator
grill
e, bumper, wheel arch and vehicle under-
body can adjust the orientation of the sen-
sors. This can affect the parking aid function.
Have the function checked by a specialised
workshop. Note
● In cer t

ain situations, the system can give a
warning even though there is no obstacle in
the detected area, e.g: –
with r ough or c

obbled floors or ground
with long grass;
– with external ultrasound sources, such as
cleaning vehicles or other vehicles;
– In downpours, intense snow or dense ex-
haust gases;
– if the registration plate (front or rear) is
not properly affixed to the bumper sur-
face;
– or in locations such as the brow of a hill.
● In order to guarantee good system opera-
tion, keep the ultr
asound sensors clean, free
of snow or ice, and do not cover them with
adhesives or other objects.
● If you use high-pressure or vapour equip-
ment to c
lean the ultrasound sensors, apply
it directly only very briefly and always from a
distance of more than 10 cm.
● Retrofitting of accessories to the vehicle,
such a
s a bicycle carrier, may interfere with
the operation of the Parking Aid.
● In order to familiarise yourself with the sys-
tem, it i
s advised that you practice parking in
an area or car park that is free from traffic.
There must be good weather and light condi-
tions.
● The volume and tone of the warnings can
be modified, in addition t
o the indications
››› page 216.
● In vehicles without a driv
er information
system, these parameters can be modified in
a SEAT Official Service or in a specialised
workshop. 212

Driver assistance systems
●
Ple a
se observe information on towing a
trailer ››› page 216.
● The display on the Easy Connect screen
shows

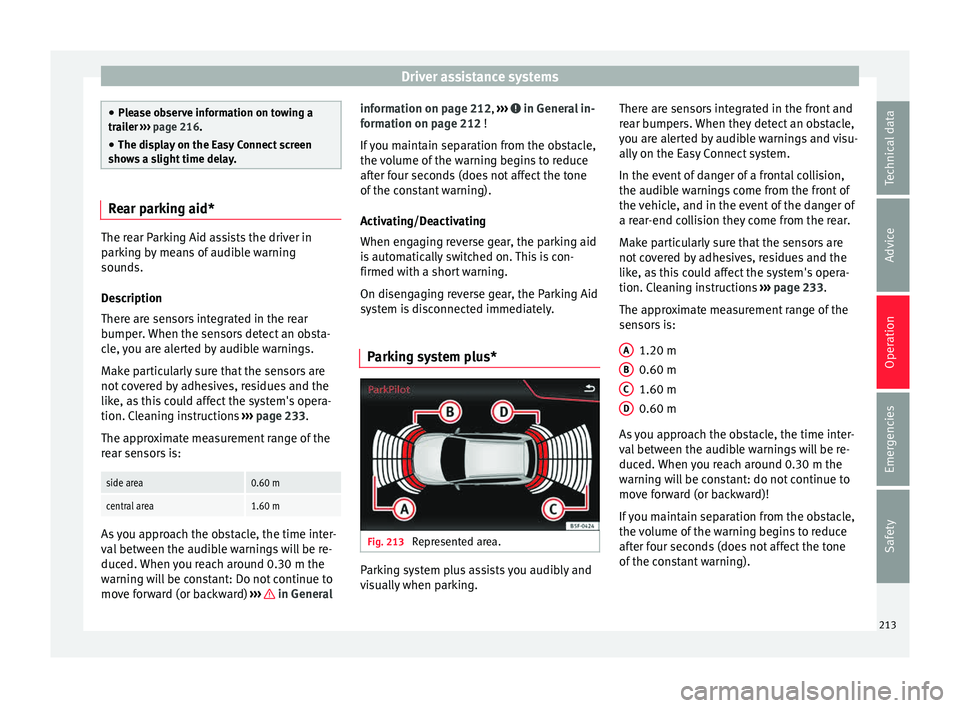

a slight time delay. Rear parking aid*
The rear Parking Aid assists the driver in
park
in

g by means of audible warning
sounds.
Description
There are sensors integrated in the rear
bumper. When the sensors detect an obsta-
cle, you are alerted by audible warnings.
Make particularly sure that the sensors are
not covered by adhesives, residues and the
like, as this could affect the system's opera-
tion. Cleaning instructions ››› page 233.
The approximate measurement range of the
rear sensors is:
side area0.60 m
central area1.60 m As you approach the obstacle, the time inter-
v
al
betw

een the audible warnings will be re-
duced. When you reach around 0.30 m the
warning will be constant: Do not continue to
move forward (or backward) ››› in Generalinformation on page 212,
››
›
in General in-
f orm
ation on p
age 212 !
If you maintain separation from the obstacle,
the volume of the warning begins to reduce
after four seconds (does not affect the tone
of the constant warning).
Activating/Deactivating
When engaging reverse gear, the parking aid
is automatically switched on. This is con-
firmed with a short warning.
On disengaging reverse gear, the Parking Aid
system is disconnected immediately.
Parking system plus* Fig. 213
Represented area. Parking system plus assists you audibly and
v
i
s

ually when parking. There are sensors integrated in the front and
rear b

umpers. When they detect an obstacle,
you are alerted by audible warnings and visu-
ally on the Easy Connect system.
In the event of danger of a frontal collision,
the audible warnings come from the front of
the vehicle, and in the event of the danger of
a rear-end collision they come from the rear.
Make particularly sure that the sensors are
not covered by adhesives, residues and the
like, as this could affect the system's opera-
tion. Cleaning instructions ››› page 233.
The approximate measurement range of the
sensors is:
1.20 m
0.60 m
1.60 m
0.60 m
As you approach the obstacle, the time inter-
val between the audible warnings will be re-
duced. When you reach around 0.30 m the
warning will be constant: do not continue to
move forward (or backward)!
If you maintain separation from the obstacle,
the volume of the warning begins to reduce
after four seconds (does not affect the tone
of the constant warning). A B
C
D
213
Technical data
Advice
Operation
Emergencies
Safety

Operation
Moreover, with the SEAT Media System
Plu s/Nav
i
System radios, a yellow trail indi-
cates the vehicle's expected journey based
on the steering wheel angle.
Whenever the obstacle is located in the vehi-
cle’s direction of travel, the corresponding
audible warning will sound.
As the vehicle approaches an obstacle, the
segments are displayed closer to the vehicle.
When the penultimate segment is displayed,
this means that the vehicle has reached the
collision zone. In the collision zone, the ob-
stacles are represented in red, including
those out of the path. Do not continue to
move forward (or backward) ››› in General
inf orm
ation on p

age 212, ››› in General in-
f orm
ation on p
age 212 !
Adjusting the display and audible
warning
s The settings for the display and audible
w
arnin
g

s are controlled via the Easy Con-
nect*.
Automatic activation
 on – activates the Automatic activa-
tion option ›››
page 215.
 off – deactivates the Automatic ac-
tivation option ››› page 215. Front volume*
Volume in the fr

ont and rear area.
Front sound settings/sharpness*
Frequency (tone) of the sound in the front
area.
Rear volume*
Volume in the rear area.
Rear sound settings/sharpness*
Frequency (tone) of the sound in the rear
area.
Adjust volume
With the parking aid switched on, the active
audio/video source volume will be reduced
to the intensity of the selected setting.
Error messages When the Parking Aid is activated or when it
i
s
sw

itched on, if a message reporting a Park-
ing aid error is displayed on the instrument
panel, there is a fault in the system.
If the fault doesn't disappear before discon-
necting the ignition, next time that parking
aid is engaged in reverse, it will not be indi-
cated. Parking System Plus*
If there i

s a fault in the parking aid system a
message will appear on the instrument panel
indicating the error. In addition the  key
LED will blink.
If there is a fault in a sensor, the symbol  is
displayed on the Easy Connect display in
front of/behind the vehicle. If a rear sensor is
faulty, only the obstacles in the areas A and
B are displayed
››
›
Fig. 213. If a front sensor
is faulty, only the obstacles in the areas C and
D are displayed.
Hav e the f
au

lt corrected by a specialised
workshop without delay.
Towing bracket In vehicles equipped with a towing bracket
dev
ic
e fr

om the factory, when the trailer is
connected electrically, the Parking Aid rear
sensors will not be activated when reverse
gear is engaged, when the selector lever is
turned to position R or when the button  is
pressed.
Parking System Plus
The distance to possible obstacles at the rear
of the vehicle will not be displayed on the
screen and nor will it be indicated by means
of audible sound signals.
216

Advice
Automatic car washes
B ef
or
e going through a car wash, be sure to
take the usual precautions such as closing
the windows and roof. If the vehicle has spe-
cial accessories such as spoilers or a roof
rack or two-way radio aerial, etc., it is advisa-
ble to consult the car wash tunnel operator.
It is best to use a car wash without revolving
bristles if possible.
Washing the vehicle with a high pressure
cleaner
When washing the vehicle with a high-pres-
sure cleaner, always follow the operating in-
structions for the equipment. This applies
particularly to the operating pressure and the
spraying distance. Do not hold the nozzle too
close to soft materials such as rubber hoses
or seals. The same applies to the parking aid
sensors*, which are located in the rear bump-
er.
Do not use a nozzle that sprays the water out
in a direct stream or one that has a rotating
jet for forcing off dirt.
Washing the car by hand
When washing the car by hand, use plenty of
water to soften the dirt first, and rinse off as
well as possible.
Then clean the vehicle with a soft sponge,
glove or brush using only slight pressure.
You should start on the roof and work down. Special car
soap shou ld only be used for very
persistent dirt.
Rinse the sponge or glove thoroughly and of-
ten.
Wheels, sills and similar should be cleaned
last. Use a second sponge for this. WARNING
● The v ehic

le should only be washed with the
ignition switched off. Failure to follow this in-
struction could result in an accident.
● Do not clean the underside of chassis, the
inside of
wheel arches or wheel trims without
protecting your hands and arms. You may cut
yourself on sharp-edged metal parts. Other-
wise, there is a risk of sustaining cuts.
● When washing the car during the winter
season: w
ater and ice in the brake system
can reduce braking effectiveness: risk of acci-
dent! CAUTION
● Do not w a

sh the vehicle in direct sunlight –
otherwise the paint can be damaged.
● Do not use sponges, abrasive household
spong
es or similar to clean insect remains.
This could damage the surface.
● Clean off stubborn dirt (insects, etc.) from
the headlight
s at regular intervals, for in-
stance when filling the fuel tank. The head-
lights should only be washed with water, do not wipe them with a dry cloth or sponge. It
is
be

st to use soapy water.
● Never wash tyres with a jet that sprays the
water out
in a direct stream. This could dam-
age the tyres even if the spray is kept at a
distance and only used for a very short time.
● Before washing the vehicle in an automatic
car wa
sh, please make sure to retract the ex-
terior mirrors to prevent them from being
damaged. Electrically retractable exterior
mirrors must not be folded in or out by hand,
always use the electrical power control. CAUTION
● Bef or

e washing the vehicle in an automatic
car wash, please proceed as follows to lock
the wiper arms so that they are not moved to-
wards the top of the windscreen:
–the bonnet must be closed.
– switch the ignition on and off.
– press the windscreen wiper lever forward
briefly (windscreen washer function).
This will lock the wiper arms. For the sake of the environment
The car should only be washed in special
wa sh b

ays. These areas are prepared to pre-
vent oily water from getting into the public
drains. In some places, washing vehicles out-
side the areas intended for this purpose is
prohibited. 232

Index
Multi-collision Brake . . . . . . . . . . . . . . . . . . . . . . 179
M u
ltimedi
a . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
N Natural gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245 Fuel tank cap . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
LNG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . 242, 245
smell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
special features . . . . . . . . . . . . . . . . . . . . . . . . 242
Natural leather cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Navigation system CD-ROM player . . . . . . . . . . . . . . . . . . . . . . . . . 146
Net bag luggage compartment . . . . . . . . . . . . . . . . . . . 155
Net partition . . . . . . . . . . . . . . . . . . . . . . . . 151, 152
Noises Adaptive cruise control . . . . . . . . . . . . . . . . . . 188
brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
refuelling natural gas . . . . . . . . . . . . . . . . . . . . 243
tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60, 255
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
O
Octane rating (petrol) . . . . . . . . . . . . . . . . . . . . . . 243
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107 partial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Reset button . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
On-screen messages front assist monitoring system . . . . . . . . . . . . 198
One-touch opening and closing Electric windows . . . . . . . . . . . . . . . . . . . . . . . . 126 Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
fuel
tank flap . . . . . . . . . . . . . . . . . . . . . . 241, 242
Panoramic sliding sunroof . . . . . . . . . . . . . . . . 126
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Opening and closing . . . . . . . . . . . . . . . . . . 11, 116 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
by remote control . . . . . . . . . . . . . . . . . . . . . . . 118
fuel tank flap . . . . . . . . . . . . . . . . . . . . . . 241, 242
in the door cylinder . . . . . . . . . . . . . . . . . . . . . . 11
Panoramic sliding sunroof . . . . . . . . . . . . . . . . 126
rear lid of the luggage compartment . . . . . . . . 12
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
with the central locking switch . . . . . . . . . . . . 119
Opening manually rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Outside temperature . . . . . . . . . . . . . . . . . . . . . . . 33
P Paint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233 care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Paintwork code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Panoramic sliding sunroof closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
convenience closing . . . . . . . . . . . . . . . . . . . . . 127
convenience opening . . . . . . . . . . . . . . . . . . . . 127
convenience opening and closing . . . . . . . . . 125
fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
roll-back function . . . . . . . . . . . . . . . . . . . . . . . 127
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166, 171
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211 adjusting the display and audible warnings . 216
automatic activation . . . . . . . . . . . . . . . . . . . . 215
fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216 Parking system plus . . . . . . . . . . . . . . . . . . . . . 213
rear p
arking aid . . . . . . . . . . . . . . . . . . . . . . . . 213
sensors and camera: cleaning . . . . . . . . . . . . . 233
surroundings warning . . . . . . . . . . . . . . . . . . . 213
towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 216
visual indication . . . . . . . . . . . . . . . . . . . . . . . . 215
Parking aid system see Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 211
Parking distance warning system see Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 211
Parking (automatic gearbox) . . . . . . . . . . . . . . . . 171
ParkPilot see Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 211
Particulate filter (Diesel) . . . . . . . . . . . . . . . . . . . 176
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Passenger see Correct sitting position . . . . . . . . . 67, 68, 69
Passenger door manual locking . . . . . . . . . . . . . . 12
Passenger seat backrest folding down . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
lifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Plastic parts: cleaning . . . . . . . . . . . . . . . . 233, 235
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Positioning seat belts during pregnancy . . . . . . . . . . . . . . . . . . . . . . . . 76
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Power Management . . . . . . . . . . . . . . . . . . . . . . . 239
Power socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Power steering see Electromechanical steering . . . . . . . . . . . . 238
Pre-heating system control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
299
