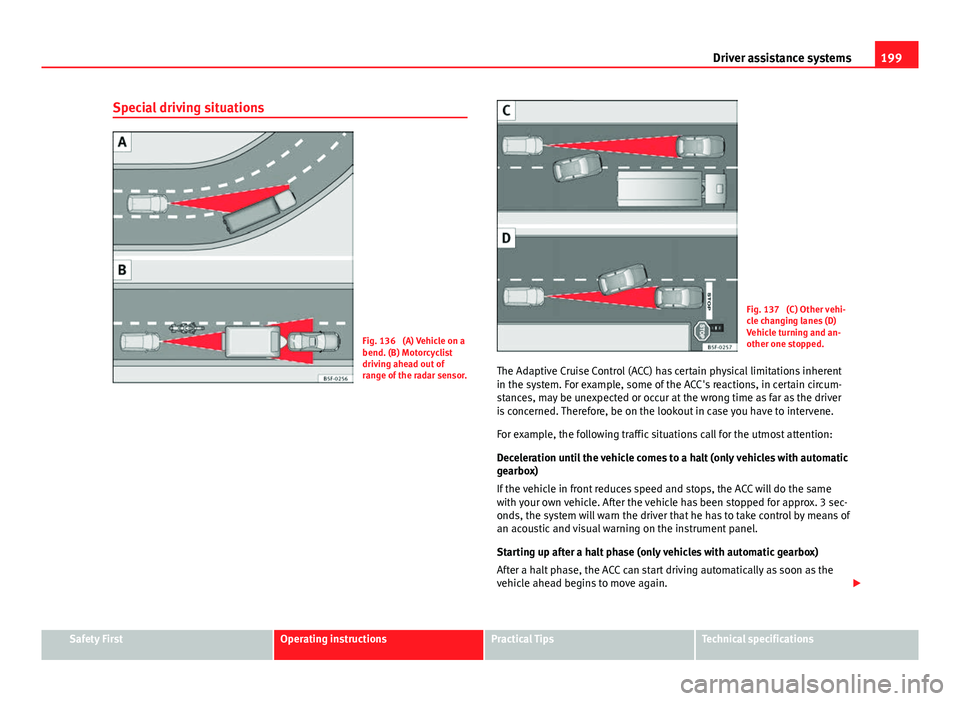

Page 201 of 339

Seat Leon Sportstourer 2013  Owners manual 199
Driver assistance systems
Special driving situations
Fig. 136  (A) Vehicle on a
bend. (B) Motorcyclist
driving ahead out of
range of the radar sensor.
Fig. 137  (C) Other vehi-
cle changing lanes

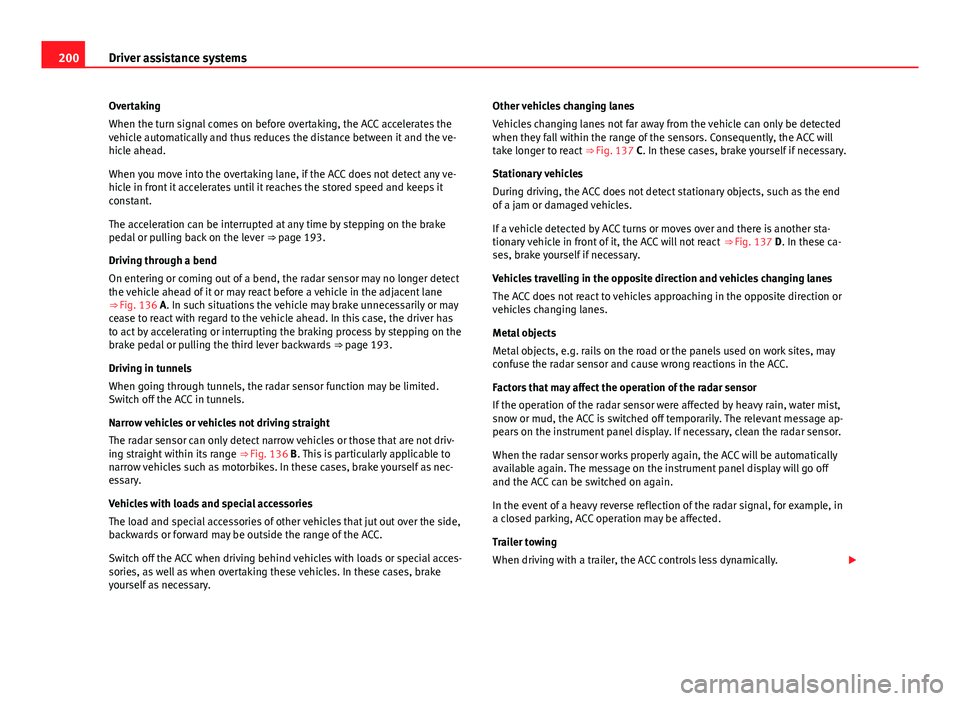

Page 202 of 339

Seat Leon Sportstourer 2013  Owners manual 200Driver assistance systems
Overtaking
When the turn signal comes on before overtaking, the ACC accelerates the
vehicle automatically and thus reduces the distance between it and the ve-
hicle ahead.

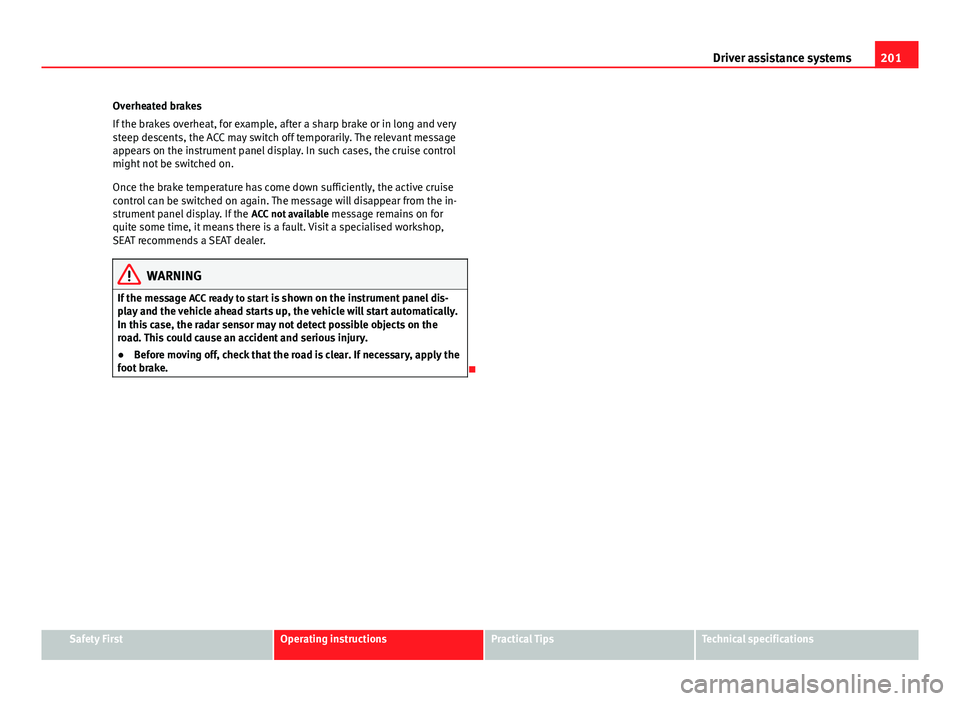

Page 203 of 339

Seat Leon Sportstourer 2013  Owners manual 201
Driver assistance systems
Overheated brakes
If the brakes overheat, for example, after a sharp brake or in long and very
steep descents, the ACC may switch off temporarily. The relevant message
ap

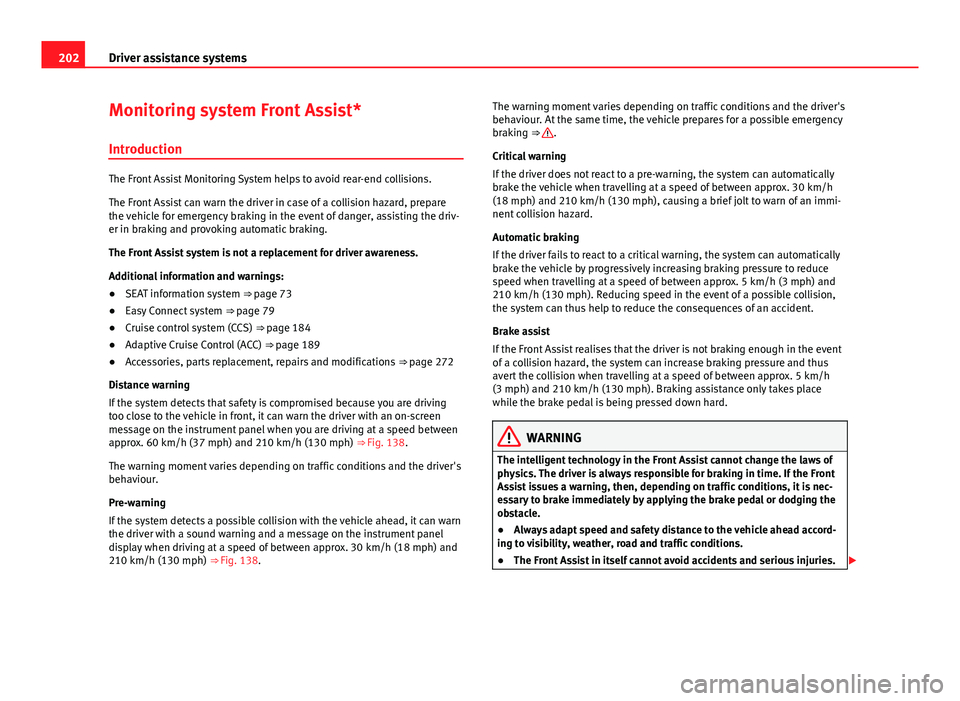

Page 204 of 339

Seat Leon Sportstourer 2013  Owners manual 202Driver assistance systems
Monitoring system Front Assist*
Introduction
The Front Assist Monitoring System helps to avoid rear-end collisions.
The Front Assist can warn the driver in case of a colli

Page 205 of 339

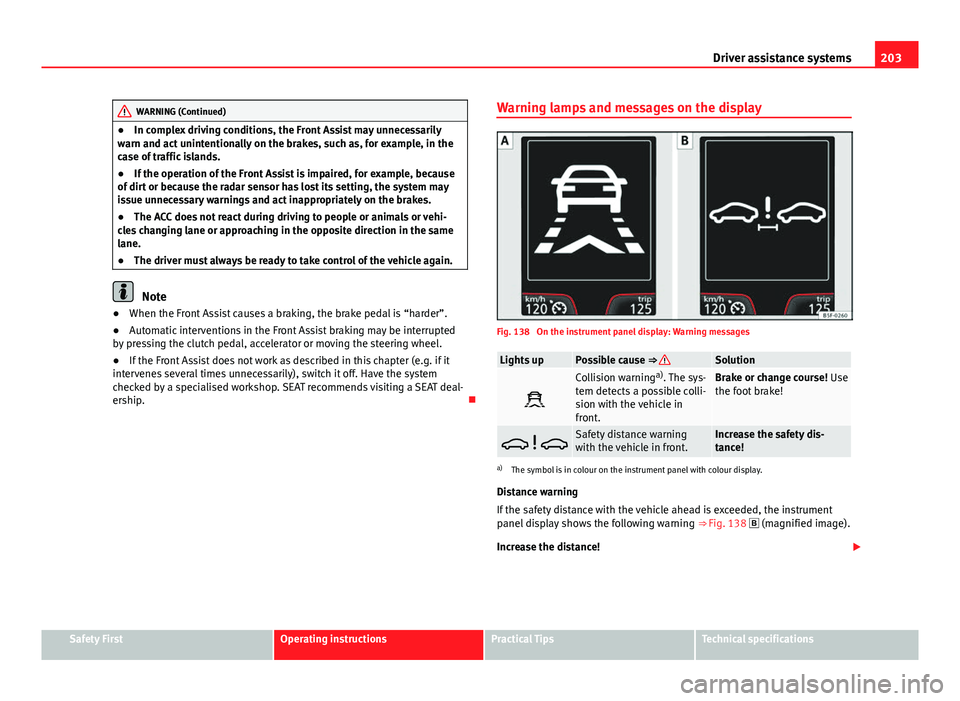

Seat Leon Sportstourer 2013  Owners manual 203
Driver assistance systems
WARNING (Continued)
● In complex driving conditions, the Front Assist may unnecessarily
warn and act unintentionally on the brakes, such as, for example, in the
case of

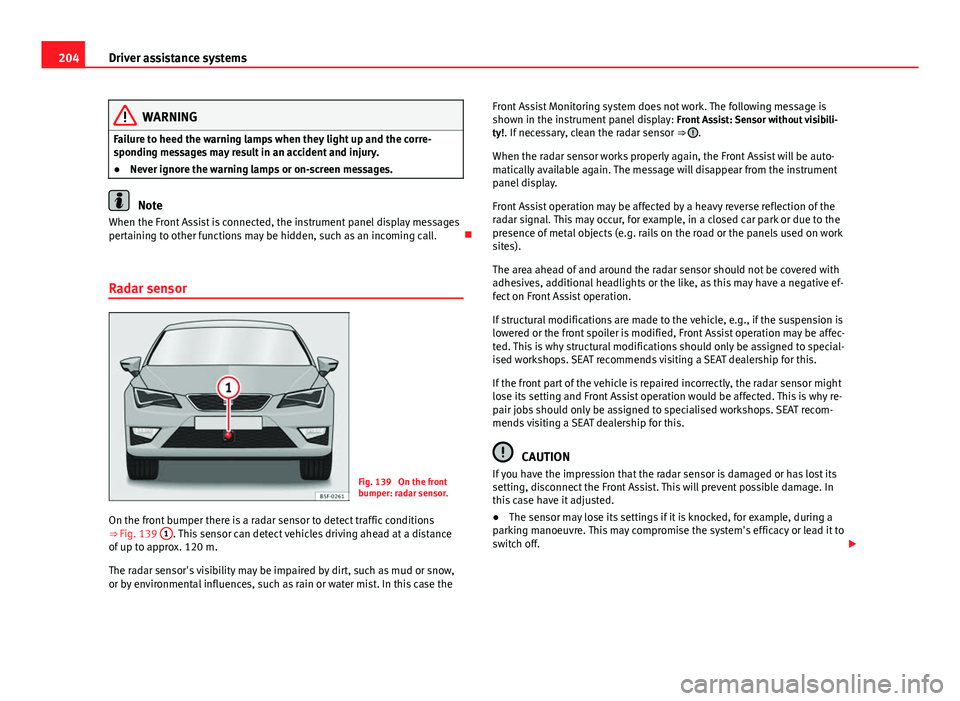

Page 206 of 339

Seat Leon Sportstourer 2013  Owners manual 204Driver assistance systems
WARNING
Failure to heed the warning lamps when they light up and the corre-
sponding messages may result in an accident and injury.
● Never ignore the warning lamps or o

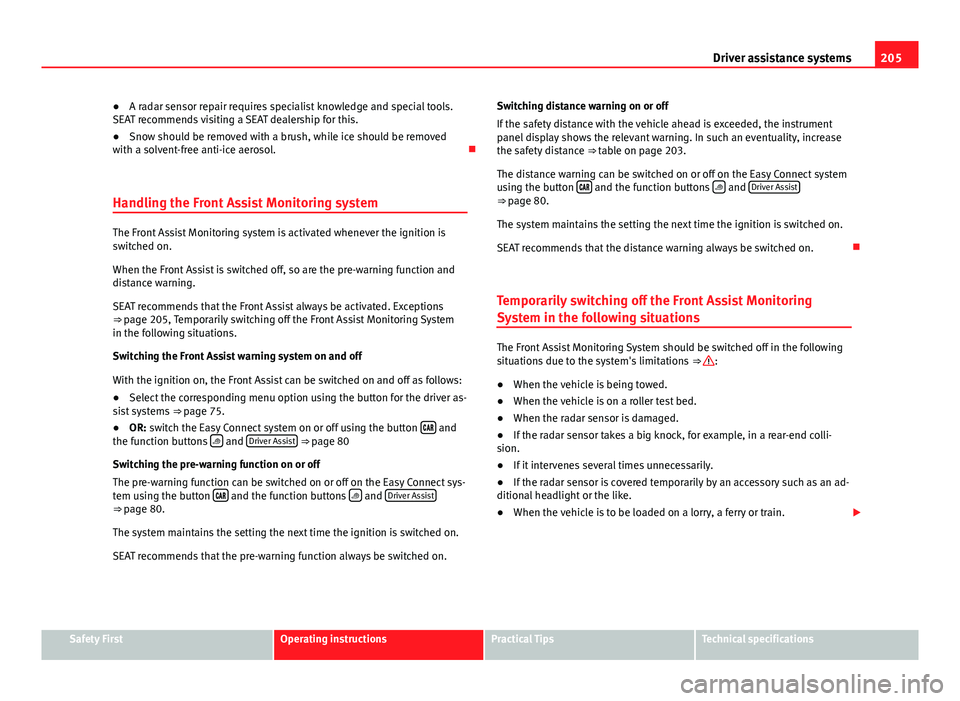

Page 207 of 339

Seat Leon Sportstourer 2013  Owners manual 205
Driver assistance systems
● A radar sensor repair requires specialist knowledge and special tools.
SEAT recommends visiting a SEAT dealership for this.
● Snow should be removed with a brush, w

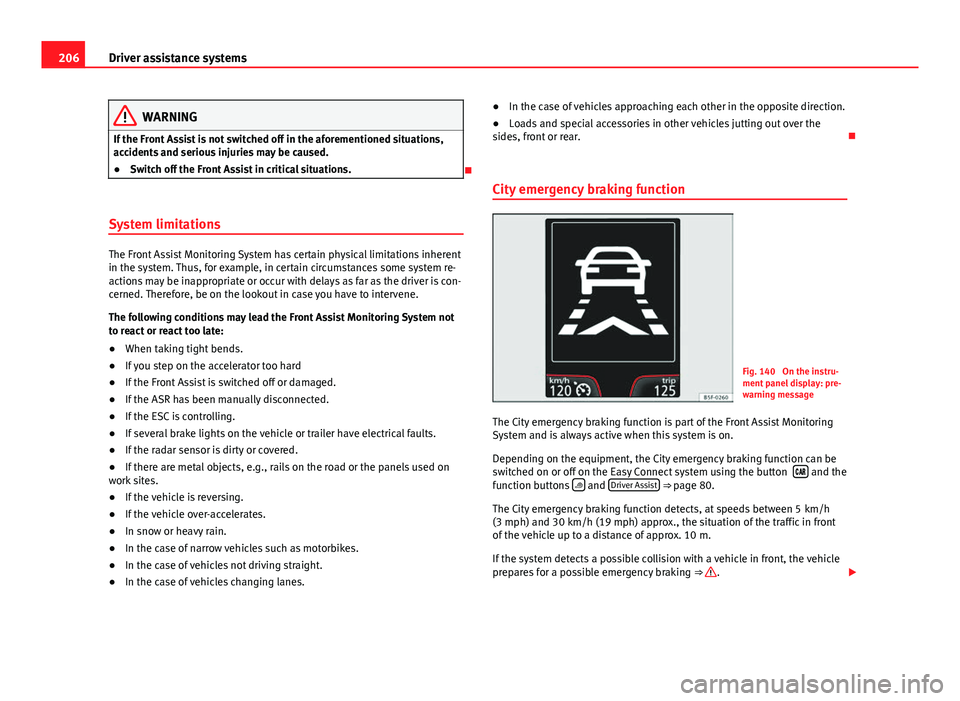

Page 208 of 339

Seat Leon Sportstourer 2013  Owners manual 206Driver assistance systems
WARNING
If the Front Assist is not switched off in the aforementioned situations,
accidents and serious injuries may be caused.
● Switch off the Front Assist in critical

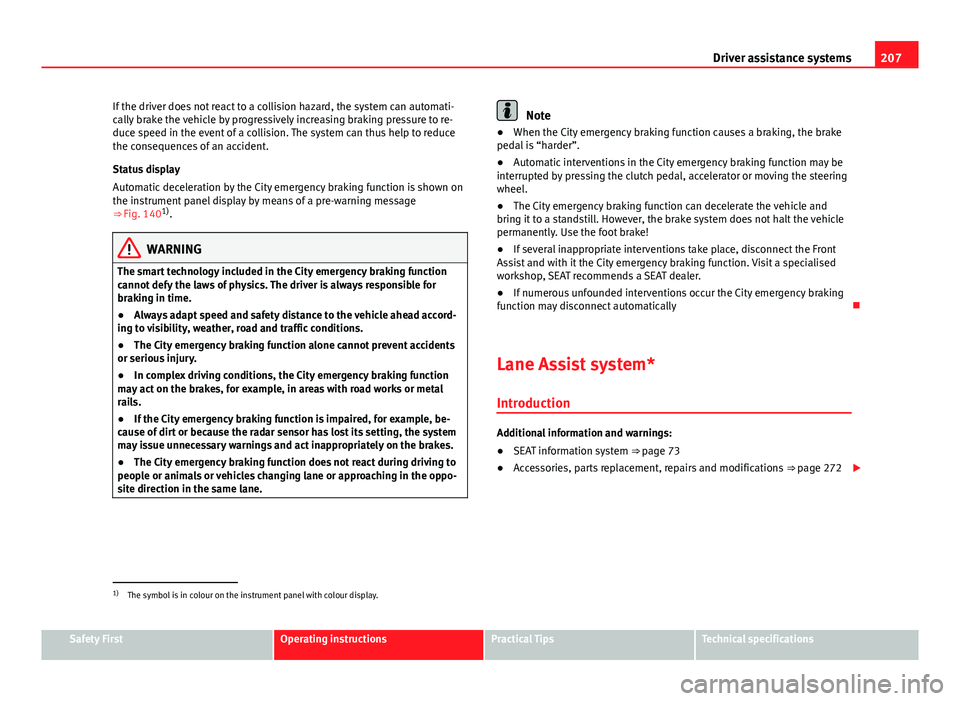

Page 209 of 339

Seat Leon Sportstourer 2013  Owners manual 207
Driver assistance systems
If the driver does not react to a collision hazard, the system can automati-
cally brake the vehicle by progressively increasing braking pressure to re-
duce speed in the

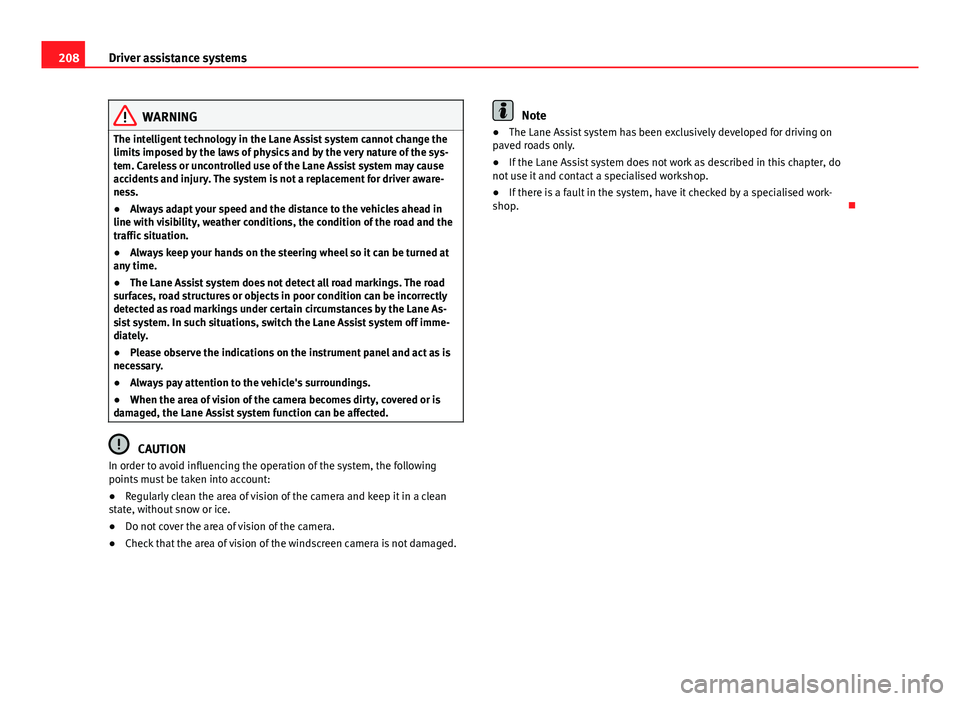

Page 210 of 339

Seat Leon Sportstourer 2013  Owners manual 208Driver assistance systems
WARNING
The intelligent technology in the Lane Assist system cannot change the
limits imposed by the laws of physics and by the very nature of the sys-
tem. Careless or un
