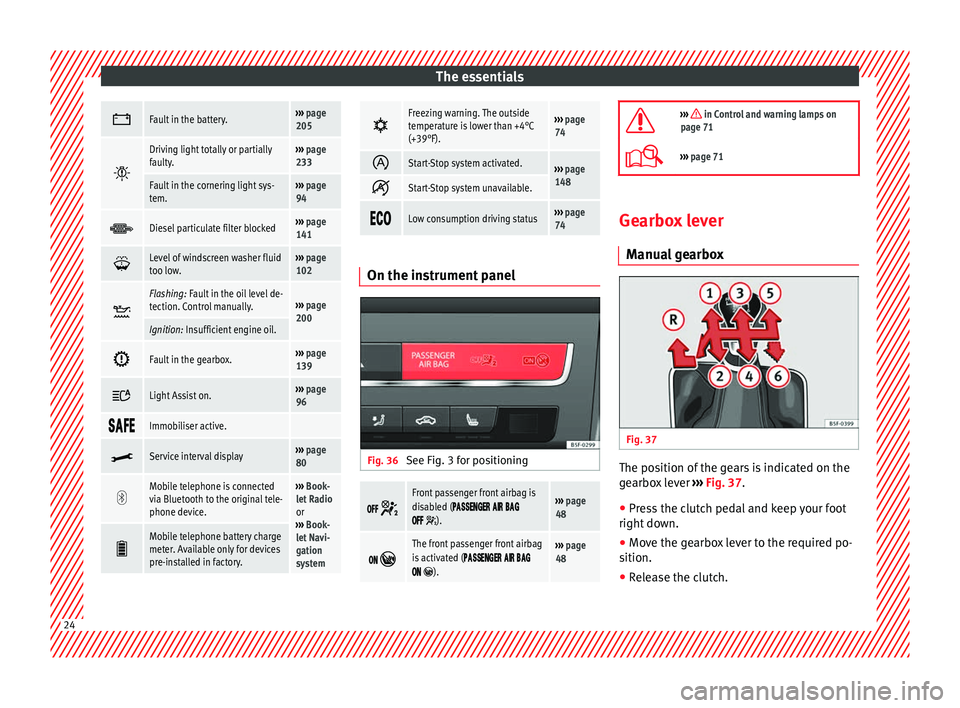

The essentials
Fault in the battery.›››
page
205 
Driving light totally or partially
faulty.›››
page
233
Fault in the cornering light sys-
tem.››› page
94 
Diesel particulate filter blocked›››
page
141 
Level of windscreen washer fluid
too low.›››
page
102 
Flashing: Fault in the oil level de-
tection. Control manually.›››
page
200
Ignition: Insufficient engine oil. 
Fault in the gearbox.›››
page
139 
Light Assist on.›››
page
96 
Immobiliser active.

Service interval display›››
page
80 
Mobile telephone is connected
via Bluetooth to the original tele-
phone device.›››
Book-
let Radio
or
››› Book-
let Navi-
gation
system 
Mobile telephone battery charge
meter. Available only for devices
pre-installed in factory. 
Freezing warning. The outside
temperature is lower than +4°C
(+39°F).›››
page
74 
Start-Stop system activated.›››
page
148 
Start-Stop system unavailable.

Low consumption driving status›››
page
74 On the instrument panel
Fig. 36
See Fig. 3 for positioning 

Front passenger front airbag is
disabled (  
 ).
››› page
48 

The front passenger front airbag
is activated (  
 ).
››› page
48 
››› in Control and warning lamps on
page 71
››› page 71 Gearbox lever
Manual gearbox Fig. 37
The position of the gears is indicated on the
gearbox lever
››› Fig. 37 .
● Pr e

ss the clutch pedal and keep your foot
right down.
● Move the gearbox lever to the required po-
sition.
● Release the clutch. 24

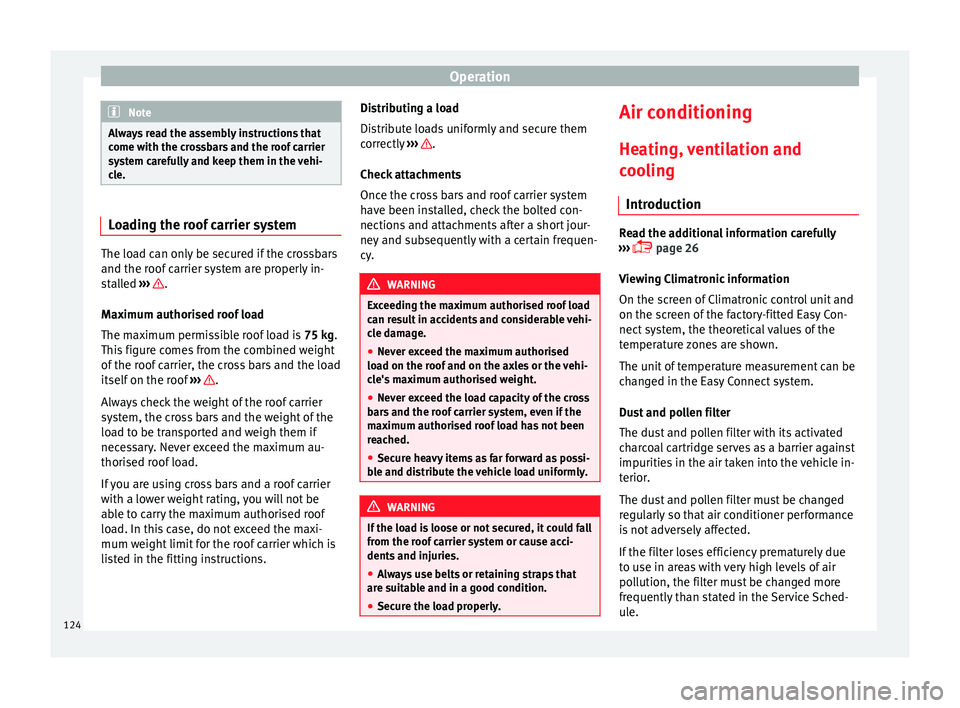

Operation
Note
Always read the assembly instructions that
come with the crossbars and the roof carrier
system carefully and keep them in the vehi-
cle. Loading the roof carrier system
The load can only be secured if the crossbars
and the roof carrier system are properly in-
stalled
››› .
Maximum authorised roof load
The maximum permissible roof load is 75 kg.
This figure comes from the combined weight
of the roof carrier, the cross bars and the load
itself on the roof ››› .
Always check the weight of the roof carrier
system, the cross bars and the weight of the
load to be transported and weigh them if
necessary. Never exceed the maximum au-
thorised roof load.
If you are using cross bars and a roof carrier
with a lower weight rating, you will not be
able to carry the maximum authorised roof
load. In this case, do not exceed the maxi-
mum weight limit for the roof carrier which is
listed in the fitting instructions. Distributing a load
Distribute loads uniformly and secure them
correctly
››› .
Check attachments
Once the cross bars and roof carrier system
have been installed, check the bolted con-
nections and attachments after a short jour-
ney and subsequently with a certain frequen-
cy. WARNING
Exceeding the maximum authorised roof load
can result in accidents and considerable vehi-
cle damage.
● Never exceed the maximum authorised
load on the roof and on the axles or the vehi-
cle's maximum authorised weight.
● Never exceed the load capacity of the cross
bars and the roof carrier system, even if the
maximum authorised roof load has not been
reached.
● Secure heavy items as far forward as possi-
ble and distribute the vehicle load uniformly. WARNING
If the load is loose or not secured, it could fall
from the roof carrier system or cause acci-
dents and injuries.
● Always use belts or retaining straps that
are suitable and in a good condition.
● Secure the load properly. Air conditioning
Heating, ventilation and
cooling Introduction Read the additional information carefully
›››  page 26
Viewing Climatronic information
On the screen of Climatronic control unit and
on the screen of the factory-fitted Easy Con-
nect system, the theoretical values of the
temperature zones are shown.
The unit of temperature measurement can be
changed in the Easy Connect system.
Dust and pollen filter
The dust and pollen filter with its activated
charcoal cartridge serves as a barrier against
impurities in the air taken into the vehicle in-
terior.
The dust and pollen filter must be changed
regularly so that air conditioner performance
is not adversely affected.
If the filter loses efficiency prematurely due
to use in areas with very high levels of air
pollution, the filter must be changed more
frequently than stated in the Service Sched-
ule.
124

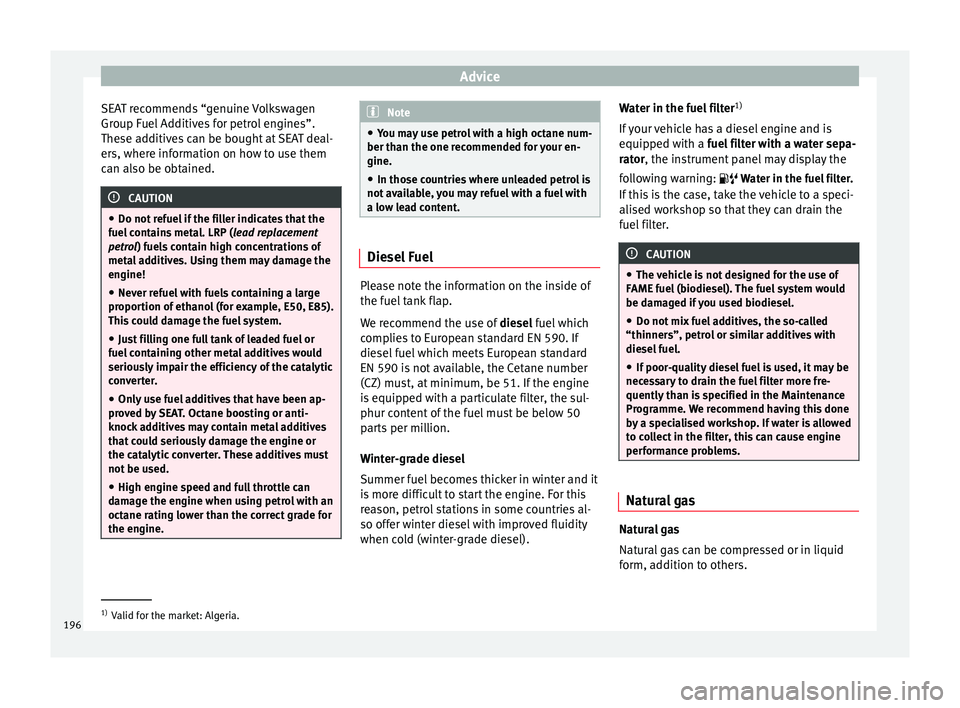

Advice
SEAT recommends “genuine Volkswagen
Group Fuel Additives for petrol engines”.
These additives can be bought at SEAT deal-
ers, where information on how to use them
can also be obtained. CAUTION
● Do not refuel if the filler indicates that the
fuel contains metal. LRP ( lead replacement
petrol) fuels contain high concentrations of
met a
l additives. Using them may damage the
engine!
● Never refuel with fuels containing a large
proportion of ethanol (for example, E50, E85).
This could damage the fuel system.
● Just filling one full tank of leaded fuel or
fuel containing other metal additives would
seriously impair the efficiency of the catalytic
converter.
● Only use fuel additives that have been ap-
proved by SEAT. Octane boosting or anti-
knock additives may contain metal additives
that could seriously damage the engine or
the catalytic converter. These additives must
not be used.
● High engine speed and full throttle can
damage the engine when using petrol with an
octane rating lower than the correct grade for
the engine. Note
● You may use petrol with a high octane num-
ber than the one recommended for your en-
gine.
● In those countries where unleaded petrol is
not available, you may refuel with a fuel with
a low lead content. Diesel Fuel
Please note the information on the inside of
the fuel tank flap.
We recommend the use of
diesel fuel which
c omp

lies to European standard EN 590. If
diesel fuel which meets European standard
EN 590 is not available, the Cetane number
(CZ) must, at minimum, be 51. If the engine
is equipped with a particulate filter, the sul-
phur content of the fuel must be below 50
parts per million.
Winter-grade diesel
Summer fuel becomes thicker in winter and it
is more difficult to start the engine. For this
reason, petrol stations in some countries al-
so offer winter diesel with improved fluidity
when cold (winter-grade diesel). Water in the fuel filter
1)
If your vehicle has a diesel engine and is
equipped with a
fuel filter with a water sepa-
rator, the instrument panel may display the
following warning:  Water in the fuel filter.
If thi

s is the case, take the vehicle to a speci-
alised workshop so that they can drain the
fuel filter. CAUTION
● The vehicle is not designed for the use of
FAME fuel (biodiesel). The fuel system would
be damaged if you used biodiesel.
● Do not mix fuel additives, the so-called
“thinners”, petrol or similar additives with
diesel fuel.
● If poor-quality diesel fuel is used, it may be
necessary to drain the fuel filter more fre-
quently than is specified in the Maintenance
Programme. We recommend having this done
by a specialised workshop. If water is allowed
to collect in the filter, this can cause engine
performance problems. Natural gas
Natural gas
Natural gas can be compressed or in liquid
form, addition to others.
1)
Valid for the market: Algeria.
196

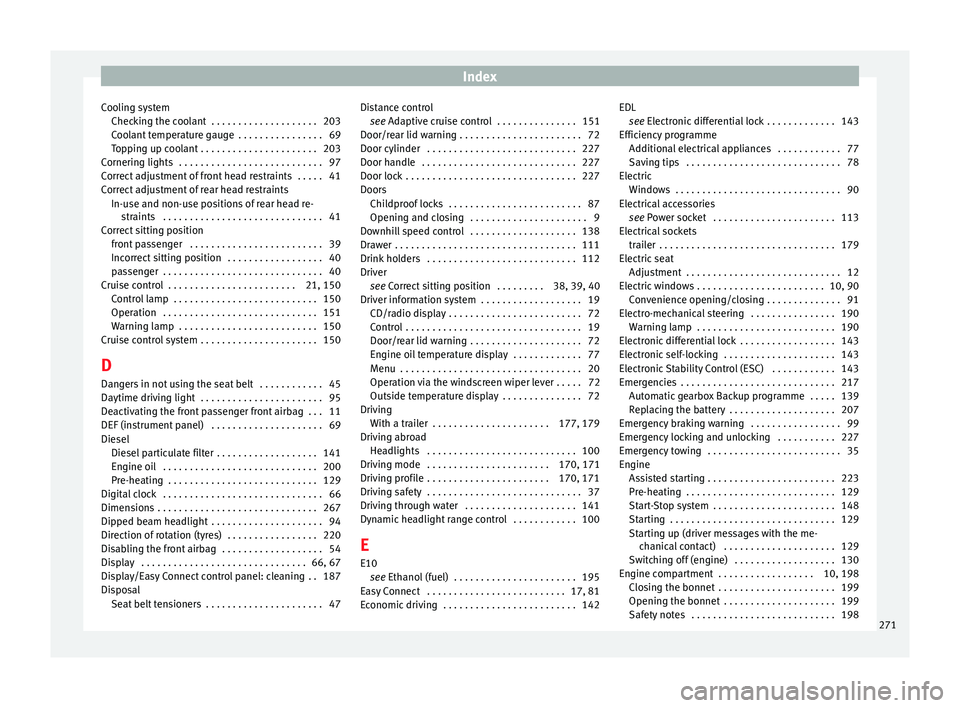

Index
Cooling system Checking the coolant . . . . . . . . . . . . . . . . . . . . 203
Coolant temperature gauge . . . . . . . . . . . . . . . . 69
Topping up coolant . . . . . . . . . . . . . . . . . . . . . . 203
Cornering lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Correct adjustment of front head restraints . . . . . 41
Correct adjustment of rear head restraints In-use and non-use positions of rear head re-straints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Correct sitting position front passenger . . . . . . . . . . . . . . . . . . . . . . . . . 39
Incorrect sitting position . . . . . . . . . . . . . . . . . . 40
passenger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . 21, 150 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Cruise control system . . . . . . . . . . . . . . . . . . . . . . 150
D Dangers in not using the seat belt . . . . . . . . . . . . 45
Daytime driving light . . . . . . . . . . . . . . . . . . . . . . . 95
Deactivating the front passenger front airbag . . . 11
DEF (instrument panel) . . . . . . . . . . . . . . . . . . . . . 69
Diesel Diesel particulate filter . . . . . . . . . . . . . . . . . . . 141
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Pre-heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Dipped beam headlight . . . . . . . . . . . . . . . . . . . . . 94
Direction of rotation (tyres) . . . . . . . . . . . . . . . . . 220
Disabling the front airbag . . . . . . . . . . . . . . . . . . . 54
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66, 67
Display/Easy Connect control panel: cleaning . . 187
Disposal Seat belt tensioners . . . . . . . . . . . . . . . . . . . . . . 47 Distance control
see Adaptive cruise control . . . . . . . . . . . . . . . 151
Door/r e
ar lid warning . . . . . . . . . . . . . . . . . . . . . . . 72
Door cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Door handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Door lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Doors Childproof locks . . . . . . . . . . . . . . . . . . . . . . . . . 87
Opening and closing . . . . . . . . . . . . . . . . . . . . . . 9
Downhill speed control . . . . . . . . . . . . . . . . . . . . 138
Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Drink holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Driver see
Correct sitting position . . . . . . . . . 38, 39, 40
Driver information system . . . . . . . . . . . . . . . . . . . 19 CD/radio display . . . . . . . . . . . . . . . . . . . . . . . . . 72
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Door/rear lid warning . . . . . . . . . . . . . . . . . . . . . 72
Engine oil temperature display . . . . . . . . . . . . . 77
Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Operation via the windscreen wiper lever . . . . . 72
Outside temperature display . . . . . . . . . . . . . . . 72
Driving With a trailer . . . . . . . . . . . . . . . . . . . . . . 177, 179
Driving abroad Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Driving mode . . . . . . . . . . . . . . . . . . . . . . . 170, 171
Driving profile . . . . . . . . . . . . . . . . . . . . . . . 170, 171
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Driving through water . . . . . . . . . . . . . . . . . . . . . 141
Dynamic headlight range control . . . . . . . . . . . . 100
E
E10 see Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . 195
E a

sy Connect . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 81
Economic driving . . . . . . . . . . . . . . . . . . . . . . . . . 142 EDL
see Electronic differential lock . . . . . . . . . . . . . 143
Effic iency

programme
Additional electrical appliances . . . . . . . . . . . . 77
Saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Electric Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Electrical accessories see
Power socket . . . . . . . . . . . . . . . . . . . . . . . 113
Electrical sockets trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Electric seat Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . 10, 90 Convenience opening/closing . . . . . . . . . . . . . . 91
Electro-mechanical steering . . . . . . . . . . . . . . . . 190 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Electronic differential lock . . . . . . . . . . . . . . . . . . 143
Electronic self-locking . . . . . . . . . . . . . . . . . . . . . 143
Electronic Stability Control (ESC) . . . . . . . . . . . . 143
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217 Automatic gearbox Backup programme . . . . . 139
Replacing the battery . . . . . . . . . . . . . . . . . . . . 207
Emergency braking warning . . . . . . . . . . . . . . . . . 99
Emergency locking and unlocking . . . . . . . . . . . 227
Emergency towing . . . . . . . . . . . . . . . . . . . . . . . . . 35
Engine Assisted starting . . . . . . . . . . . . . . . . . . . . . . . . 223
Pre-heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Start-Stop system . . . . . . . . . . . . . . . . . . . . . . . 148
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Starting up (driver messages with the me-chanical contact) . . . . . . . . . . . . . . . . . . . . . 129
Switching off (engine) . . . . . . . . . . . . . . . . . . . 130
Engine compartment . . . . . . . . . . . . . . . . . . 10, 198 Closing the bonnet . . . . . . . . . . . . . . . . . . . . . . 199
Opening the bonnet . . . . . . . . . . . . . . . . . . . . . 199
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . 198 271

Index

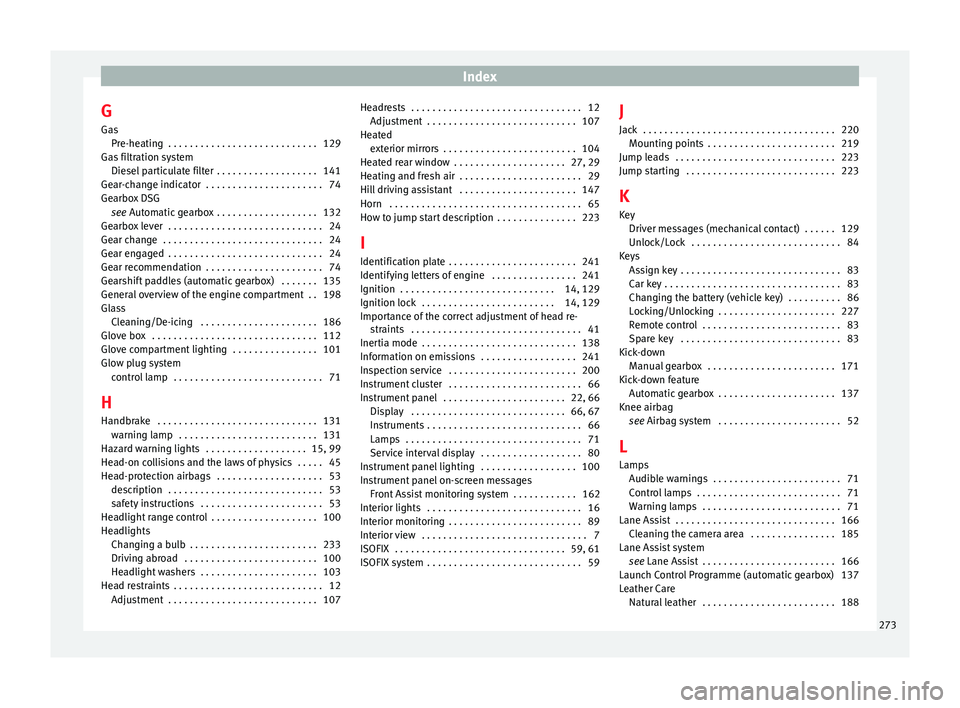

G
Gas Pre-heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Gas filtration system Diesel particulate filter . . . . . . . . . . . . . . . . . . . 141
Gear-change indicator . . . . . . . . . . . . . . . . . . . . . . 74
Gearbox DSG see Automatic gearbox . . . . . . . . . . . . . . . . . . . 132
Ge arbo
x lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Gear change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Gear engaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Gear recommendation . . . . . . . . . . . . . . . . . . . . . . 74
Gearshift paddles (automatic gearbox) . . . . . . . 135
General overview of the engine compartment . . 198
Glass Cleaning/De-icing . . . . . . . . . . . . . . . . . . . . . . 186
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Glove compartment lighting . . . . . . . . . . . . . . . . 101
Glow plug system control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
H Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131 warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Hazard warning lights . . . . . . . . . . . . . . . . . . . 15, 99
Head-on collisions and the laws of physics . . . . . 45
Head-protection airbags . . . . . . . . . . . . . . . . . . . . 53 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
safety instructions . . . . . . . . . . . . . . . . . . . . . . . 53
Headlight range control . . . . . . . . . . . . . . . . . . . . 100
Headlights Changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . 233
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . 100
Headlight washers . . . . . . . . . . . . . . . . . . . . . . 103
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107 Headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Heated exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 104
Heated rear window . . . . . . . . . . . . . . . . . . . . . 27, 29
Heating and fresh air . . . . . . . . . . . . . . . . . . . . . . . 29
Hill driving assistant . . . . . . . . . . . . . . . . . . . . . . 147
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
How to jump start description . . . . . . . . . . . . . . . 223
I Identification plate . . . . . . . . . . . . . . . . . . . . . . . . 241
Identifying letters of engine . . . . . . . . . . . . . . . . 241
Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 129
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . 14, 129
Importance of the correct adjustment of head re- straints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Inertia mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Information on emissions . . . . . . . . . . . . . . . . . . 241
Inspection service . . . . . . . . . . . . . . . . . . . . . . . . 200
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 66
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . 22, 66 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66, 67
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Service interval display . . . . . . . . . . . . . . . . . . . 80
Instrument panel lighting . . . . . . . . . . . . . . . . . . 100
Instrument panel on-screen messages Front Assist monitoring system . . . . . . . . . . . . 162
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Interior monitoring . . . . . . . . . . . . . . . . . . . . . . . . . 89
Interior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59, 61
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 J
Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220 Mounting points . . . . . . . . . . . . . . . . . . . . . . . . 219
Jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Jump starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
K
Key Driver messages (mechanical contact) . . . . . . 129
Unlock/Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Keys Assign key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Car key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Changing the battery (vehicle key) . . . . . . . . . . 86
Locking/Unlocking . . . . . . . . . . . . . . . . . . . . . . 227
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Spare key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Kick-down Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . 171
Kick-down feature Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . 137
Knee airbag see Airbag system . . . . . . . . . . . . . . . . . . . . . . . 52
L
Lamps Audib

le warnings . . . . . . . . . . . . . . . . . . . . . . . . 71
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166 Cleaning the camera area . . . . . . . . . . . . . . . . 185
Lane Assist system see Lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . 166
Lau nc

h Control Programme (automatic gearbox) 137
Leather Care Natural leather . . . . . . . . . . . . . . . . . . . . . . . . . 188
273

Index

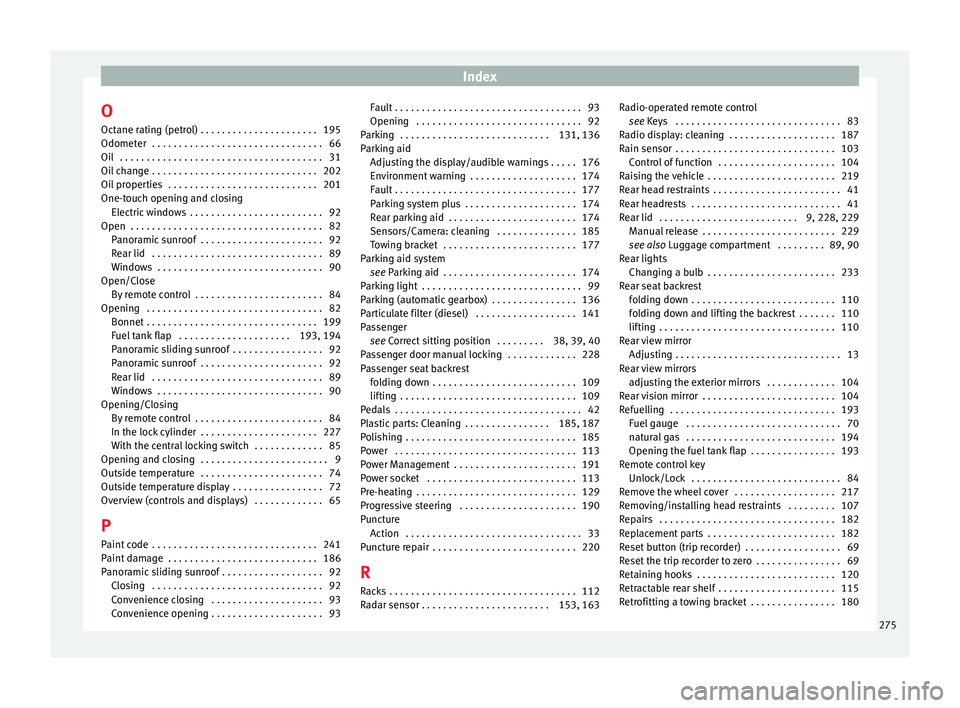

O Octane rating (petrol) . . . . . . . . . . . . . . . . . . . . . . 195
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
One-touch opening and closing Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . 92
Open . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 Panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . . 92
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Open/Close By remote control . . . . . . . . . . . . . . . . . . . . . . . . 84
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Fuel tank flap . . . . . . . . . . . . . . . . . . . . . 193, 194
Panoramic sliding sunroof . . . . . . . . . . . . . . . . . 92
Panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . . 92
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Opening/Closing By remote control . . . . . . . . . . . . . . . . . . . . . . . . 84
In the lock cylinder . . . . . . . . . . . . . . . . . . . . . . 227
With the central locking switch . . . . . . . . . . . . . 85
Opening and closing . . . . . . . . . . . . . . . . . . . . . . . . 9
Outside temperature . . . . . . . . . . . . . . . . . . . . . . . 74
Outside temperature display . . . . . . . . . . . . . . . . . 72
Overview (controls and displays) . . . . . . . . . . . . . 65
P Paint code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Paint damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Panoramic sliding sunroof . . . . . . . . . . . . . . . . . . . 92 Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Convenience closing . . . . . . . . . . . . . . . . . . . . . 93
Convenience opening . . . . . . . . . . . . . . . . . . . . . 93 Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131, 136
Parking aid Adjusting the display/audible warnings . . . . . 176
Environment warning . . . . . . . . . . . . . . . . . . . . 174
Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Parking system plus . . . . . . . . . . . . . . . . . . . . . 174
Rear parking aid . . . . . . . . . . . . . . . . . . . . . . . . 174
Sensors/Camera: cleaning . . . . . . . . . . . . . . . 185
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 177
Parking aid system see Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 174
P ark
ing light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Parking (automatic gearbox) . . . . . . . . . . . . . . . . 136
Particulate filter (diesel) . . . . . . . . . . . . . . . . . . . 141
Passenger see
Correct sitting position . . . . . . . . . 38, 39, 40
Passenger door manual locking . . . . . . . . . . . . . 228
Passenger seat backrest folding down . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
lifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Plastic parts: Cleaning . . . . . . . . . . . . . . . . 185, 187
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Power Management . . . . . . . . . . . . . . . . . . . . . . . 191
Power socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Pre-heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Progressive steering . . . . . . . . . . . . . . . . . . . . . . 190
Puncture Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Puncture repair . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
R Racks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Radar sensor . . . . . . . . . . . . . . . . . . . . . . . . 153, 163 Radio-operated remote control
see
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Radio display: cleaning . . . . . . . . . . . . . . . . . . . . 187
Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103 Control of function . . . . . . . . . . . . . . . . . . . . . . 104
Raising the vehicle . . . . . . . . . . . . . . . . . . . . . . . . 219
Rear head restraints . . . . . . . . . . . . . . . . . . . . . . . . 41
Rear headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 228, 229 Manual release . . . . . . . . . . . . . . . . . . . . . . . . . 229
see also
Luggage compartment . . . . . . . . . 89, 90
Rear lights Changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . 233
Rear seat backrest folding down . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
folding down and lifting the backrest . . . . . . . 110
lifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Rear view mirror Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Rear view mirrors adjusting the exterior mirrors . . . . . . . . . . . . . 104
Rear vision mirror . . . . . . . . . . . . . . . . . . . . . . . . . 104
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193 Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
natural gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Opening the fuel tank flap . . . . . . . . . . . . . . . . 193
Remote control key Unlock/Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Remove the wheel cover . . . . . . . . . . . . . . . . . . . 217
Removing/installing head restraints . . . . . . . . . 107
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Replacement parts . . . . . . . . . . . . . . . . . . . . . . . . 182
Reset button (trip recorder) . . . . . . . . . . . . . . . . . . 69
Reset the trip recorder to zero . . . . . . . . . . . . . . . . 69
Retaining hooks . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Retractable rear shelf . . . . . . . . . . . . . . . . . . . . . . 115
Retrofitting a towing bracket . . . . . . . . . . . . . . . . 180
275
