The essentialsMenuSubmenuPossible settingDescription
Mirrors and wind-
screen wipersMirrorsSynchronised regulation, lower the rear-view mirror when reversing, fold in after park-
ing, rear-view mirror heating, dim in the dark››› page 21,
››› page 151
Windscreen wipersActivate and deactivate automatic windscreen wipers in case of rain, wipe when re-
versing››› page 32
Opening and clos-
ing
Electric windows controlConvenience opening, automatic closure in case of rain, automatic closure with cen-
tral locking››› page 137
Central locking systemUnlocking doors, automatic lock/unlock when driving, “Easy Open” audible confir-
mation, “Easy Entry” convenient entry function, automatic opening of the rear lid, in-
terior monitoring››› page 125
Instrument panel–
Current consumption, average consumption, volume to refuel, convenience consum-
ers, ECO Advice, travelling time, distance travelled, average speed, digital speed dis-
play, speed warning, oil temperature, coolant temperature, reset data “when setting
off”, reset data for “total calculation”, traffic signal detection
››› page 36
Date and time–Time source, time, select time zone, time format, date, date format–
Units–Distance, speed, temperature, volume, fuel consumption, GNC consumption, electric
consumption, pressure–
Service–Chassis number, date of next SEAT service inspection, date of next oil change service››› page 44
Factory settings
AllRestore all settings–
IndividualLights, driver assistance, parking and manoeuvring, background lighting, rear view
mirrors and windscreen wipers, opening and closing, instrument panel– 
››› in CAR menu on page 120
35

The essentials
Personalising the displays
In the E a
sy
Connect system you can adjust
which of the possible displays of the MFD can
be shown on the instrument panel display
with the  button and the
S
ET
TINGS function
b utt
on ›

››  page 120.
Data summary
MenuFunction
Current fuel
consumption
The current fuel consumption dis-
play operates throughout the jour-
ney, in litres/100 km; and with the
engine running and the vehicle
stopped, in litres/hour.
Average fuel consumption a)
After turning on the ignition, aver-
age fuel consumption in li-
tres/100 km will be displayed after
travelling about 100 metres. Other-
wise horizontal lines are displayed.
The value shown is updated approxi-
mately every 5 seconds.
ACT®
*: Depending on the equip-
ment, number of active cylinders.
Operating range a)
Approximate distance in km that can
still be travelled with the fuel re-
maining in the tank, assuming the
same style of driving is maintained.
This is calculated using the current
fuel consumption.
Travelling
timeThis indicates the hours (h) and mi-
nutes (min) since the ignition was
switched on.
MenuFunction
JourneyDistance covered in km (m) after
switching on the ignition.
CNG quality
Whenever you refuel the quality of
the natural gas is automatically veri-
fied and is displayed when the igni-
tion is switched on. The display is
made in a percentage of between
70% and 100%. The greater the per-
centage displayed the lower the con-
sumption may be.
Average
speed
The average speed will be shown af-
ter a distance of about 100 metres
has been travelled. Otherwise hori-
zontal lines are displayed. The value
shown is updated approximately ev-
ery 5 seconds.
Digital dis-play of
speedCurrent speed displayed in digital
format.
Speed warn-
ing at ---
km/h or Speed
warning at
--- mphIf the stored speed is exceeded (be-
tween 30 - 250 km/h, or 19 -
155 mph), an audible warning is
given together with a visual warn-
ing.
Detection of
traffic
signsThe traffic signs detected are dis-
played.
Oil tempera- tureUpdated engine oil temperature dig-
ital display
Coolant tem-
perature
gaugeDigital display of the current temper-
ature of the liquid coolant.
MenuFunction
Convenience consumersInformation about the vehicle’s
main convenience consumers. It is
displayed by means of a consump-
tion indicator bar.
Eco tipsTips on how to save fuel.
Reset data “when set-
ting off”Reset journey data when setting off.
Reset data
for “total
calculation”Reset travel journey to zero.
a) In vehicles with a natural gas engine, range and average con-
sumption refer only to data or natural gas consumption. If you
are in “petrol mode”, the information of both data only appears
on the dash panel and not on the multifunction screen.
Storing a speed with the speed warning
● Select the display Speed warning at
--- km/h (---
mph)
● Press the button 
 on the windscreen
w iper l
ev
er or the button  on the multifunc-
tion s t
eerin
g wheel to store the current speed
and activate the warning.
● To switch system on: adjust to the desired
speed within 5 sec
onds using the rocker
switch  on the windscreen wiper lever or
b y
t

urning the thumbwheel on the multifunc-
tion steering wheel. Next, press the button  or
 again or wait several seconds.
The s peed i
s

stored and the warning activa-
ted. » 39

The essentials
When the vehicle is at a standstill or when
tr av
el
ling at very low speeds, the tempera-
ture displayed may be higher than the true
outside temperature as a result of the heat
produced by the engine.
The temperatures measured range from
-40°C to +50°C (-40°F to +122°F).
Engine oil temperature display Vehicles without multifunction steering
wheel
● Press the rocker switch ›
››

Fig. 43 2 until
the m ain menu ap
pe
ars. Enter into Driving
data . With the button 2 move to the oil
t emper
at

ure gauge.
Vehicles with multifunction steering wheel
● Enter the submenu Driving data and
turn the thumbwheel
until the oil tempera-
ture display appears.
The engine reaches its operating temperature
when in normal driving conditions, the oil
temperature is between 80°C (180°F) and
120°C (250°F) . If the engine is required to
work hard and the outside temperature is
high, the engine oil temperature can in-
crease. This does not present any problem as
long as the warning lamps  ›››
table on
page 48 or  ››› table on page 48 do not
appear on the display. Additional consumers ●
Operation with the windscreen wiper lever*:
Pre s

s the rocker switch ››› Fig. 43 2 until the
main menu ap pe
ars. Enter into the section
Driving data . With the rocker switch,
move to the display Convenience con-
sumers .
● Operation with the multi-function steering
wheel*:
move with the buttons 
 or
  to Driving data
and enter with
OK. Turn
the right thumbwheel until the Conven-
ience consumers display appears.
In addition, a scale will inform you of the cur-
rent sum of all the additional appliances.
Saving tips Tips on how to save fuel will be displayed in
c
ondition
s

that increase fuel consumption.
Follow them to reduce consumption. The indi-
cations appear automatically only with the ef-
ficiency programme. After a time, the tips will
disappear automatically.
If you wish to hide a saving tip immediately
after it appears, press any button on the
windscreen wiper lever*/multifunction steer-
ing wheel*. Note
● If y

ou hide a saving tip, it will reappear af-
ter you switch the ignition on again.
● The saving tips do not appear in all situa-
tions, but
rather with a large separation of
time. Speed warning device
The speed warning device warns the driver
when they h
av

e exceeded the pre-set speed
limit by 3 km/h (2 mph). An audible warning
signal sounds, and the warning lamp  and
the driver message Speed limit excee-
ded! will be displayed simultaneously on the
instrument panel. The warning lamp 
switches off when reducing speed below the
stored maximum limit.
Speed warning programming is recommen-
ded if you wish to be reminded of a maxi-
mum speed, such as when travelling in a
country with different speed limits or for a
maximum speed for winter tyres.
Setting speed limit warning
You can use the radio or the Easy Connect* to
set, alter or cancel the speed limit warning.
● Vehicles with radio : pres
s the button SETUP > control button  Driver Assistant
>
Speed warning . » 43

The essentials
Ignition:  Do not carry on
driving! Engine coolant level
too low, coolant temperature
too high
››› page
274
Flashing: Fault in the engine
coolant system.  
Do not continue driving!
Engine oil pressure too low. If
the warning lamp flashes,
stop driving, even if the oil
level is correct. Do not even
run the engine at idle speed!
››› page
272 
Fault in the battery.›››
page
277 
Driving light totally or partially
faulty.›››
page
103
Fault in the cornering light
system.››› page
140 
Diesel particulate filter
blocked›››
page
203 
Level of windscreen washer
fluid too low.›››
page
148 
Flashing: Fault in the oil level
detection. Control manually.
›››
page
272
Ignition: Insufficient engine
oil. 
Fault in the gearbox.›››
page
198 
Light Assist on.›››
page
142 
Immobiliser active.›››
page
131 
Service interval display›››
page 44 
Mobile telephone is connec-
ted via Bluetooth to the origi-
nal telephone device.›››
page
121
››› page
123
››› Booklet
Audio or
navigation
system 
Mobile telephone battery
charge meter. Available only
for devices pre-installed in fac-
tory.

Freezing warning. The outside
temperature is lower than
+4°C (+39°F).›››
page 42 
Start-Stop system activated.›››
page
205 
Start-Stop system unavailable.

Low consumption driving sta-
tus›››
page
115 
›››
page 115 On the instrument panel
Fig. 53
Warning lamp for disabling the front
p a
s

senger airbag. 

Front passenger front airbag
is disabled (  
 ).
››› page
90 

The front passenger front air-
bag is activated ( 
  ).
››› page
90 
››› in Activation and deactivation of
front passenger airbag* on page 89
››› page 89 49

Operation

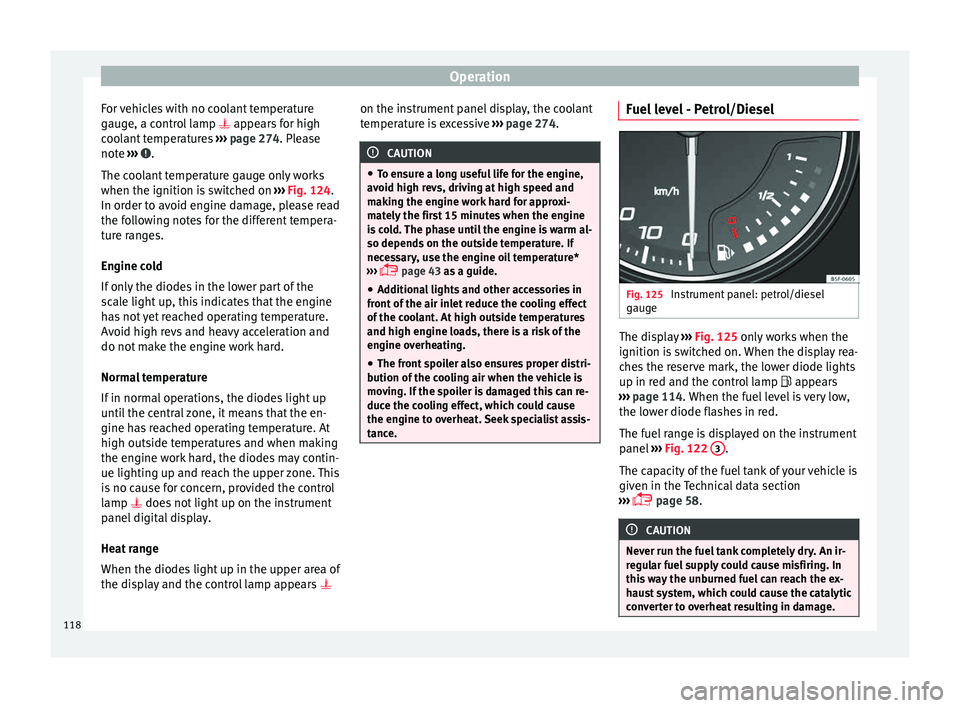

For vehicles with no coolant temperature
g aug
e, a c
ontrol lamp  appears for high
coolant temperatures ››› page 274. Please
note ››› .
The c oo
l

ant temperature gauge only works
when the ignition is switched on ››› Fig. 124.
In order to avoid engine damage, please read
the following notes for the different tempera-
ture ranges.
Engine cold
If only the diodes in the lower part of the
scale light up, this indicates that the engine
has not yet reached operating temperature.
Avoid high revs and heavy acceleration and
do not make the engine work hard.
Normal temperature
If in normal operations, the diodes light up
until the central zone, it means that the en-
gine has reached operating temperature. At
high outside temperatures and when making
the engine work hard, the diodes may contin-
ue lighting up and reach the upper zone. This
is no cause for concern, provided the control
lamp  does not light up on the instrument
panel digital display.
Heat range
When the diodes light up in the upper area of
the display and the control lamp appears on the instrument panel display, the coolant
temperat

ure is excessive ››› page 274. CAUTION
● To en s

ure a long useful life for the engine,
avoid high revs, driving at high speed and
making the engine work hard for approxi-
mately the first 15 minutes when the engine
is cold. The phase until the engine is warm al-
so depends on the outside temperature. If
necessary, use the engine oil temperature*
›››  page 43 as a guide.
● Additional lights and other accessories in
front of
the air inlet reduce the cooling effect
of the coolant. At high outside temperatures
and high engine loads, there is a risk of the
engine overheating.
● The front spoiler also ensures proper distri-
bution of the c
ooling air when the vehicle is
moving. If the spoiler is damaged this can re-
duce the cooling effect, which could cause
the engine to overheat. Seek specialist assis-
tance. Fuel level - Petrol/Diesel
Fig. 125
Instrument panel: petrol/diesel
g aug
e The display
››
› Fig. 125
only works when the
ignition is switched on. When the display rea-
ches the reserve mark, the lower diode lights
up in red and the control lamp  appears
››› page 114. When the fuel level is very low,
the lower diode flashes in red.
The fuel range is displayed on the instrument
panel ››› Fig. 122 3 .
The c ap
ac

ity of the fuel tank of your vehicle is
given in the Technical data section
›››  page 58. CAUTION
Never run the fuel tank completely dry. An ir-
re gu

lar fuel supply could cause misfiring. In
this way the unburned fuel can reach the ex-
haust system, which could cause the catalytic
converter to overheat resulting in damage. 118

Driving
WARNING
● Never ru n the en
gine in confined spaces, as
the exhaust gases are poisonous. CAUTION
Avoid high engine speeds, full throttle and
extr eme lo

ad conditions until the engine has
reached its normal operating temperature,
otherwise this can damage the engine. For the sake of the environment
Do not warm up the engine by idling it. You
shoul d driv

e off as soon as you start the en-
gine. This will help avoid unnecessary ex-
haust emissions. Note
● If it i

s difficult to turn the ignition key to
the position 1 , move the steering wheel to
both side s
to release the steering lock.
● When starting from cold, the engine may be
a little noisy
for the first few seconds until oil
pressure has built up in the hydraulic valve
lifters. This is quite normal, and no cause for
concern.
● If the vehicle battery is disconnected and
reconnect
ed, the key must remain in the posi-
tion 1 for around 5 seconds before starting
up.
● Vehic

les with automatic gearbox without
electronic
brake, depending on the country:
after switching off the ignition, you can only remove the ignition key if the selector lever is
in pos
ition “P” (p

arking lock). Next, the se-
lector lever is locked. Switching off the engine with the key
Switching off the engine
– Stop the vehicle.
– Turn the ignition key to position
›› ›

Fig. 191 1 .
Eng agin
g the steering wheel lock
In vehicles with automatic gearbox, the igni-
tion key can only be removed when the selec-
tor lever is in position P.
– Remove the key from the ignition in posi-
tion ›››

Fig. 191 1
› ›
› .
– Turn the steering wheel until you hear it en-
gag
e.
P

ossible vehicle theft is prevented with the
steering lock engaged. WARNING
● Never sw it

ch the engine off until the vehi-
cle is stationary. The brake servo and power
steering functions will not be completely cov-
ered under warranty. More force may also be
needed to turn the steering wheel or to brake.
As you cannot steer and brake in the normal manner, there is a greater risk of accidents
and serious
injur

y.
● Never remove the key from the ignition if
the vehic
le is in motion. Otherwise, the steer-
ing could suddenly lock, making it impossible
to steer the vehicle: risk of accident!
● Always take the key with you when you
leav
e the vehicle. This is particularly impor-
tant if there are children in the vehicle, as
they might otherwise be able to start the en-
gine or use power-operated equipment (e.g.
the electric windows), which could cause in-
juries. CAUTION
If the engine has been running under high
loa d f

or a long time, there is a risk of heat
building up in the engine compartment after
it has been switched off; this could cause en-
gine damage. For this reason, you should idle
the engine for approximately 2 minutes be-
fore you switch it off. Note
● Aft er the en

gine is switched off the radiator
fan may run on for up to 10 minutes, even if
the ignition is switched off. It is also possible
that the fan turns itself on once more if the
coolant temperature increases due to the
heat accumulated in the engine compartment
or due to its prolonged exposure to solar ra-
diation. » 179
Technical data
Advice
Operation
Emergencies
Safety

Checking and refilling levels
could d amage the engine. If there is no
c oo
lant in the expansion tank, do not con-
tinue driving. You should obtain professio-
nal assistance ››› .
– If there is still some coolant in the expan-
sion t
ank, t

op up to the upper mark.
– Top up with coolant until the level becomes
stab

le.
– Screw the cap back on correctly.
Any lo
ss of coolant fluid normally indicates a
leak in the cooling system. Take the vehicle
straight to a specialised workshop to have
the cooling system examined. If there are no
leaks in the engine cooling system, a loss of
coolant can only occur if the coolant boils
and is forced out of the system as a result of
overheating. WARNING
● The coo lin

g system is under pressure. Do
not unscrew the cap on the coolant expan-
sion tank when the engine is hot: risk of
burns!
● The antifreeze and coolant fluid can be a
health h
azard. Therefore, the antifreeze
should be stored in the original container in a
safe place out of reach of children. Failure to
comply could result in poisoning.
● If working inside the engine compartment,
remember that, ev
en when the ignition is
switched off, the radiator fan may start up au- tomatically, and therefore there is a risk of in-
jury
. WARNING
If there is not enough anti-freeze in the cool-
ant sys

tem, the engine may fail leading to se-
rious damage.
● Please make sure that the percentage of
additiv
e is correct with respect to the lowest
expected ambient temperature in the zone in
which the vehicle is to be used.
● When the outside temperature is very low,
the cool
ant could freeze and the vehicle
would be immobilised. In this case, the heat-
ing would not work either and inadequately
dressed passengers could die of cold. CAUTION
Do not top up the expansion tank with cool-
ant fluid if it

is empty! Air could enter the
cooling system. In this case, stop driving.
Seek specialist assistance. Otherwise, there
is a risk of engine damage. CAUTION
The original additives should never be mixed
with c oo

lants which are not approved by
SEAT. Otherwise, you run the risk of causing
severe damage to the engine and the engine
cooling system.
● If the fluid in the expansion tank is not pur-
ple b
ut is, for example, brown, this indicates that the G13 additive has been mixed with an
ina
dequat

e coolant. The coolant must be
changed as soon as possible if this is the
case! This could result in serious faults and
engine damage. For the sake of the environment
Coolants and additives can contaminate the
en vir

onment. If any fluids are spilled, they
should be collected and correctly disposed
of, with respect to the environment. Brake fluid
Top up br
ak

e fluid Read the additional information carefully
› ›
›

 page 61
Checking the brake fluid level
The brake fluid level must be between the
MIN and MAX markings.
However, if the brake fluid level goes down
noticeably in a short time, or drops below the
MIN mark, there may be a leak in the brake
system. Seek specialist assistance. A warn-
ing light on the instrument panel display
monitors the brake fluid level ››› page 119. »
275
Technical data
Advice
Operation
Emergencies
Safety

Wheels
CAUTION
● Some v ehic
les, for example those with the
Start-Stop system* are fitted with a special
battery (AGM-type or EFB-type battery). If any
other type of battery is fitted, the Start-Stop
function may be considerably reduced and
the vehicle may not stop on repeated occa-
sions.
● Make sure that the vent hose is always at-
tached t
o the original opening on the side of
the battery. Gases or battery acid can other-
wise escape and possibly cause damage.
● The battery holder and clamps must always
be correctly
secured.
● Before starting any work on the battery, al-
way
s observe the warnings listed under
››› page 277, Important safety warnings for
handling a vehicle battery .
● Do not forget to replace the battery cover-
ings, wher
e applicable. It is a protection for
high temperatures. This in turn extends the
vehicle service life. For the sake of the environment
 Batteries contain toxic substances includ-
in g s

ulphuric acid and lead. They must be
disposed of appropriately and must not be
disposed of with ordinary household waste.
Make sure disconnected batteries cannot tip
over. Sulphuric acid could be spilt! Wheels
Wheel s
and ty

res
General notes –
When driving with new tyr e
s, be especially
careful during the first 500 km (300 miles).
– If you have to drive over a kerb or similar
obs

tacle, drive very slowly and as near as
possible at a right angle to the obstacle.
– Check from time to time if the tyres are
dam ag

ed (punctures, cuts, cracks or
dents). Remove any foreign objects embed-
ded in the treads.
– Damaged wheels and tyres must be re-
plac

ed immediately.
– Keep grease, oil and fuel off the tyres.
– Replace any missing valve caps as soon as
poss

ible.
– Mark the wheels before taking them off so
that they

rotate in the same direction when
put back.
– When removed, the wheels or tyres should
be stor

ed in a cool, dry and preferably dark
place.
New tyres
New tyres do not give maximum grip straight
away and should therefore be “run in” by driving carefully and at moderate speeds for
about the firs

t 500 km (300 miles). This will
also increase the useful life of the tyres.
The tread depth of new tyres may vary, ac-
cording to the type and make of tyre and the
tread pattern.
Concealed damage
Damage to tyres and rims is often not readily
visible. If you notice unusual vibration or the
car pulling to one side, this may indicate that
one of the tyres is damaged. Reduce speed
immediately if there is any reason to suspect
that damage may have occurred. Inspect the
tyres for damage. If no external damage is
visible, drive slowly and carefully to the near-
est specialised workshop and have the car
inspected.
Tyres with directional tread pattern
An arrow on the tyre sidewall indicates the di-
rection of rotation on single drive tyres. Al-
ways note the direction of rotation indicated
when mounting the wheel. This guarantees
optimum grip and helps to avoid aquaplan-
ing, excessive noise and wear.
Retrofitting accessories
If you wish to change or fit wheels, rims or
wheel trims, we recommend that you consult
with a SEAT Official Service centre for advice
regarding current techniques.
279
Technical data
Advice
Operation
Emergencies
Safety

Index
audible warning signal . . . . . . . . . . . . . . . . . . 119
c rui
se c
ontrol system (CCS) . . . . . . . . . . . . . . . 209
depress the brake . . . . . . . . . . . . . . . . . . . . . . . 210
diesel particulate filter . . . . . . . . . . . . . . . . . . . 203
electromechanical steering . . . . . . . . . . . . . . . 198
emission control . . . . . . . . . . . . . . . . . . . . . . . . 203
engine management . . . . . . . . . . . . . . . . . . . . 203
engine pre-heating/fault system . . . . . . . . . . . 203
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
gear change . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
instrument panel . . . . . . . . . . . . . . . . . . . . . 47, 49
instrument panel display . . . . . . . . . . . . . . . . . . 48
Lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
seat belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
tyre monitoring system . . . . . . . . . . . . . . . . . . 284
Controls and displays general instrument panel . . . . . . . . . . . . . . . . . 113
Controls for the windows . . . . . . . . . . . . . . . 18, 136
Controls on the steering wheel operating the audio, telephone and naviga-tion system . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Convenience closing panoramic sliding sunroof . . . . . . . . . . . . . . . . 139
Convenience opening panoramic sliding sunroof . . . . . . . . . . . . . . . . 139
Coolant checking level . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Cooling coolant temperature gauge . . . . . . . . . . . . . . . 117
Cooling system checking coolant . . . . . . . . . . . . . . . . . . . . . . . 274
topping up coolant . . . . . . . . . . . . . . . . . . . . . . 274
Cornering lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143 Correct position . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
fr
ont passenger . . . . . . . . . . . . . . . . . . . . . . . . . 76
Correct sitting position rear seat passengers . . . . . . . . . . . . . . . . . . . . . 77
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . 45, 209 operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Cruise control system . . . . . . . . . . . . . . . . . . . . . . 209 warning and indication lamp . . . . . . . . . . . . . . 209
D Dangers in not using the seat belt . . . . . . . . . . . . 82
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Data label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
Deactivating the front passenger front airbag . . . 23
Deactivation of front airbag . . . . . . . . . . . . . . . . . . 89
Defective bulbs changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . 103
Detachable ball assembling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
checking attachment . . . . . . . . . . . . . . . . . . . . 249
placing in standby position . . . . . . . . . . . . . . . 247
removing . . . . . . . . . . . . . . . . . . . . . . . . . 249, 250
standby position . . . . . . . . . . . . . . . . . . . . . . . . 247
Diesel diesel particulate filter . . . . . . . . . . . . . . . . . . . 203
engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
preheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Diesel particulate filter . . . . . . . . . . . . . . . . . . . . 203 malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Direction of rotation tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114, 115 Display of traffic signs on the instrument panel
activate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
deactivate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Disposal belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Distance control see Adaptive cruise control . . . . . . . . . . . . . . . 214
Door cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Door handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Door lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Door release lever . . . . . . . . . . . . . . . . . . . . . . . . 113
Doors childproof locks . . . . . . . . . . . . . . . . . . . . . . . . 133
opening and closing . . . . . . . . . . . . . . . . . . . . . 15
Downhill speed control . . . . . . . . . . . . . . . . . . . . 196
Downhill speed control function . . . . . . . . . . . . . 196
Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Drink holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Driver see Correct sitting position . . . . . . . . . 75, 76, 77
Driver-side general instrument panel left-hand drive . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
right-hand drive . . . . . . . . . . . . . . . . . . . . . . . . . 10
Driver information system engine oil temperature display . . . . . . . . . . . . . 43
operation through the windscreen wiper lever . 36
Driving driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . 146
economical . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
with a trailer . . . . . . . . . . . . . . . . . . 251, 253, 254
with trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Driving abroad headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Driving data data summary . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
memories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
317

Index
Driving mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Driv in
g pr
ofile . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Driving through water . . . . . . . . . . . . . . . . . . . . . 204
DSG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Dust and pollen filter . . . . . . . . . . . . . . . . . . . . . . 173
Dynamic lights range control . . . . . . . . . . . . . . . . 146
E E10 see Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . 266
Easy Connect . . . . . . . . . . . . . . . . . . . . . . . . 33, 120
Efficiency program additional consumers . . . . . . . . . . . . . . . . . . . . 43
saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Electrical accessories see Power socket . . . . . . . . . . . . . . . . . . . . . . . 159
Electrical socket trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Electric windows . . . . . . . . . . . . . . . . . . . . . . 18, 136 convenience opening and closing . . . . . . . . . 137
Electromechanical steering . . . . . . . . . . . . . . . . . 198 lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Electronic differential lock control . . . . . . . . . . . 187
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . 15
Electronic parking brake . . . . . . . . . . . . . . . . . . . 183
Electronic self-locking . . . . . . . . . . . . . . . . . . . . . 187
Electronic Stability Control (ESC) . . . . . . . . . . . . 187
Electronic torque management (XDS) . . . . . . . . . 187
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 anti-puncture kit . . . . . . . . . . . . . . . . . . . . . . . . . 95
automatic gearbox emergency program . . . . . 197
bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . 66
emergency towing of the vehicle . . . . . . . . . . . . 69
fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
hazard warning lights . . . . . . . . . . . . . . . . . . . 145 jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
manual u
nlocking and locking . . . . . . . . . . . . . 97
puncture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
replacing a blown fuse . . . . . . . . . . . . . . . . . . . . 63
replacing the battery . . . . . . . . . . . . . . . . . . . . 278
vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Emergency Assist . . . . . . . . . . . . . . . . . . . . . . . . . 228 switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Emergency braking assistance system indications on the display . . . . . . . . . . . . . . . . 210
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
radar sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
switching off temporarily . . . . . . . . . . . . . . . . . 213
system limitations . . . . . . . . . . . . . . . . . . . . . . 214
Emergency braking function . . . . . . . . . . . . . . . . 184
Emergency braking warning . . . . . . . . . . . . . . . . 145
Emergency operation front passenger door . . . . . . . . . . . . . . . . . . . . . 16
selector lever . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Emission control system catalytic converter . . . . . . . . . . . . . . . . . . . . . . 203
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
diesel particulate filter . . . . . . . . . . . . . . . . . . . 203
Emissions data . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Engine assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . 70
noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
preheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Start-Stop system . . . . . . . . . . . . . . . . . . . . . . . 205
starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
starting up (driver messages with the mechan- ical contact) . . . . . . . . . . . . . . . . . . . . . . . . . . 178
switching off (key) . . . . . . . . . . . . . . . . . . . . . . 179 Engine and ignition
automatic ignition switch-off . . . . . . . . . . . . . . 180
My Beat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
preheating the engine . . . . . . . . . . . . . . . . . . . 181
starting the engine . . . . . . . . . . . . . . . . . . . . . . 181
starting the engine with Press & Drive . . . . . . 181
stopping the engine . . . . . . . . . . . . . . . . . . . . . 182
Engine compartment . . . . . . . . . . . . . . . . . . 17, 270 battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61, 277
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . 61, 275
closing the bonnet . . . . . . . . . . . . . . . . . . . . . . 271
coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 60, 274
engine oil . . . . . . . . . . . . . . . . . . . . . 59, 272, 273
opening the bonnet . . . . . . . . . . . . . . . . . . . . . 271
safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
windscreen washer reservoir . . . . . . . . . . 61, 276
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . . . . 60
G 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Engine data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Engine fault control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Engine management . . . . . . . . . . . . . . . . . . . . . . 202 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 59, 272 changing . . . . . . . . . . . . . . . . . . . . . . . . . 272, 274
checking oil level . . . . . . . . . . . . . . . . . . . . . . . 273
consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
inspection service . . . . . . . . . . . . . . . . . . . . . . 272
maintenance intervals . . . . . . . . . . . . . . . . . . . 272
oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
specifications . . . . . . . . . . . . . . . . . . . . . . 60, 272
temperature display . . . . . . . . . . . . . . . . . . . . . . 43
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
318
