Seat Leon Sportstourer 2018 MEDIA SYSTEM PLUS - NAVI SYSTEM - NAVI SYSTEM PLUS

Audio and Media ModeAudio and Media Mode
Radio Mode Related videoFig. 22
Radio mode
RADIO main menu
Fig. 23
RADIO main menu.
Fig. 24
Radio mode: station list (FM).
Press the infotainment button 
and then se-
lect the Radio
context to open the RADIO
main menu

Audio and Media ModeDisplay: MeaningAFoffThe tracking of alternative frequencies isdisabled.Note

Audio and Media ModeStation list order
Stations that are available at a certain time are displayed on the station list screen ( STA-
TIONLIST function button). This list may be
ordered by station group, by genre or alpha- betically

Audio and Media ModeIf reception of the currently selected DAB sta-tion is lost (e.g. no DAB reception available), the Infotainment system attempts to find the
station and tune to it on the other available frequency bands. If the station still cannot be
found, the radio will be muted. Automatic sta- tion tracking can be activated in the DAB set-
tings in the following modes

Audio and Media Modewavelengths on the numbered function but-tons. These function buttons are called “memory buttons”.Functions of the memory buttons
Selecting the
station from
the memory
buttons
Press the memory button corre- sponding to the desired station.The stored stations can only beplayed by pressing the corre-
sponding memory button provided
it can be received at your current location.
Change mem-
ory bank
Move your finger over the screen
from left to right or vice-versa.OR: Press one of the function but-
tons

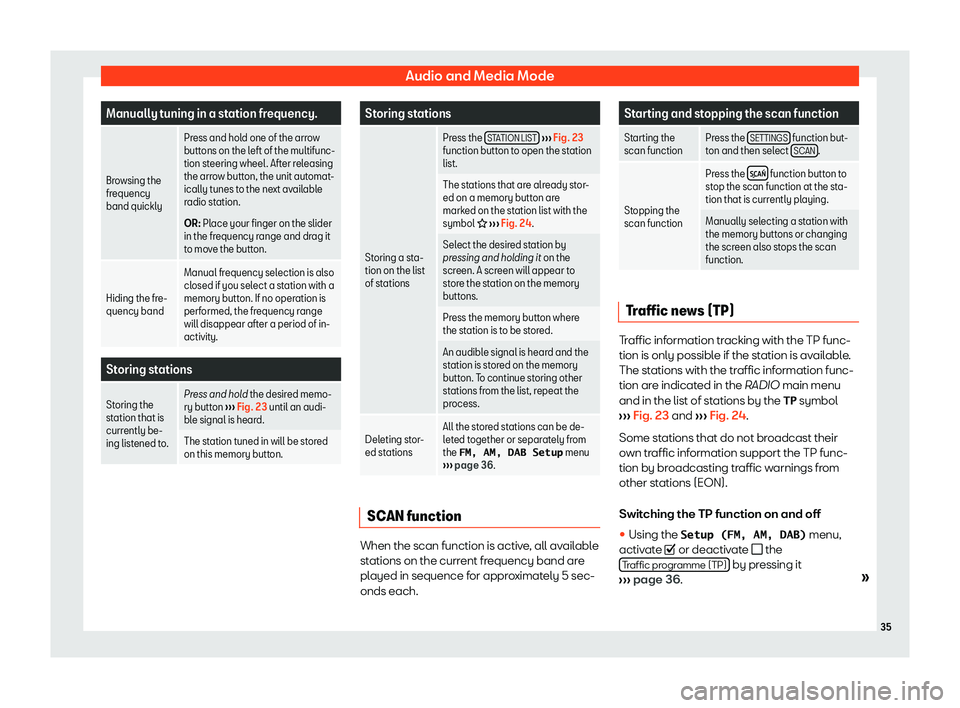

Audio and Media ModeManually tuning in a station frequency.
Browsing the
frequency
band quickly
Press and hold one of the arrow
buttons on the left of the multifunc-
tion steering wheel. After releasing
the arrow button, the unit automat-
ically tunes to the next available
radio station.OR: Place your finger on the slider
in the frequency range and drag it
to move the button.
Hiding the fre-
quency band
Manual frequency selection is also closed if you select a station with a
memory button. If no operation is
performed, the frequency range
will disappear after a period of in- activity.Storing stationsStoring the
station that is
currently be-
ing listened to.Press and hold the desired memo-
ry button

Audio and Media ModeActive TP function and station selection
Traffic warnings are played in Audio mode.
If a station is selected without the TP
function
in FM mode , the radio tries to find stations
with this function in the background. If no sta- tion is found, this will be indicated half way up
the left of the screen .
In AM mode or media mode , the unit will al-
ways automatically tune to a traffic news sta- tion in the background, provided that one isavailable. This procedure may take some
time, depending on the situation.
Incoming traffic announcement
In active Audio mode, an incoming traffic an-
nouncement will play automatically.
During the traffic announcement, a pop-up
window is displayed and the radio changes,
depending on the case, to the traffic news
station (EON).
The media mode is paused and the volume is adjusted to the preset level

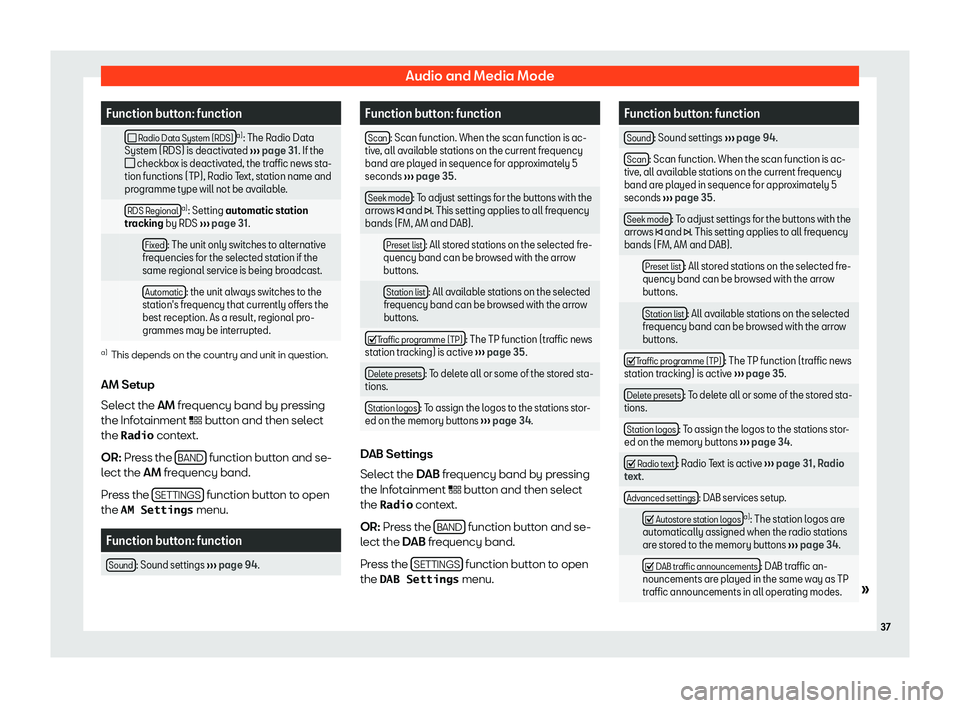

Audio and Media ModeFunction button: function  Radio Data System (RDS)a)
: The Radio Data
System (RDS) is deactivated

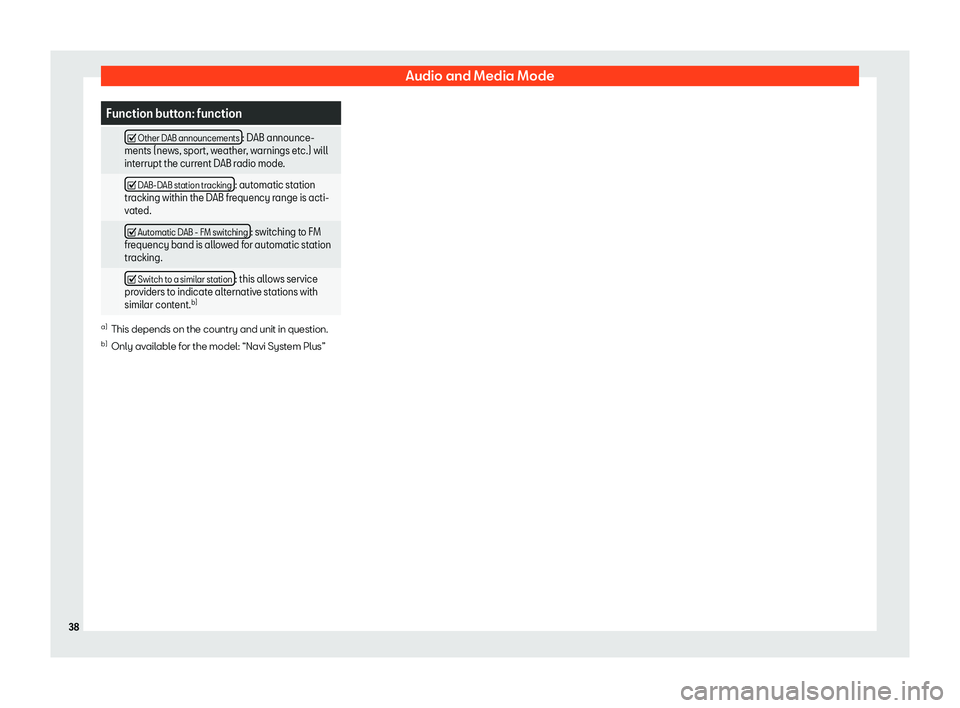

Audio and Media ModeFunction button: function  Other DAB announcements: DAB announce-
ments (news, sport, weather, warnings etc.) will
interrupt the current DAB radio mode.  DAB-DAB station tracking: automatic station
tracking within the DAB frequency range is acti-
vated.  Automatic DAB - FM switching: switching to FM
frequency band is allowed for automatic station
tracking.  Switch to a similar station: this allows service
providers to indicate alternative stations with
similar content. b)a)
This depends on the country and unit in question.
b)
Only available for the model: “Navi System Plus”
38

Audio and Media ModeMedia modeRelated videoFig. 29
Media mode
Introduction
“Media sources ” are audio sources contain-
ing audio files on various different data stor-
age devices (e.g. CD, memory card, externalMP3 player). These audio files can be played
by the Infotainment system via their corre- sponding drives or audio input sockets (inter-nal CD drive, memory card slot, AUX-IN multi-
media socket etc.).
Copyright
Audio and video files on data storage devices are usually protected by intellectual property
rights, as per the corresponding national and
international laws. Be aware of the current le-gal provisions!
Note
