Seat Leon Sportstourer 2018 Owner's manual
Manufacturer: SEAT, Model Year: 2018, Model line: Leon Sportstourer, Model: Seat Leon Sportstourer 2018Pages: 392, PDF Size: 8.12 MB
Page 361 of 392
Technical specifications
Petrol engines
1.4 TSI Start-Stop
1.4 TSI Start-
St op AC
T
Page 362 of 392
Technical data
Petrol engines
1.5 Start-Stop
1.5 Start-Stop ACT

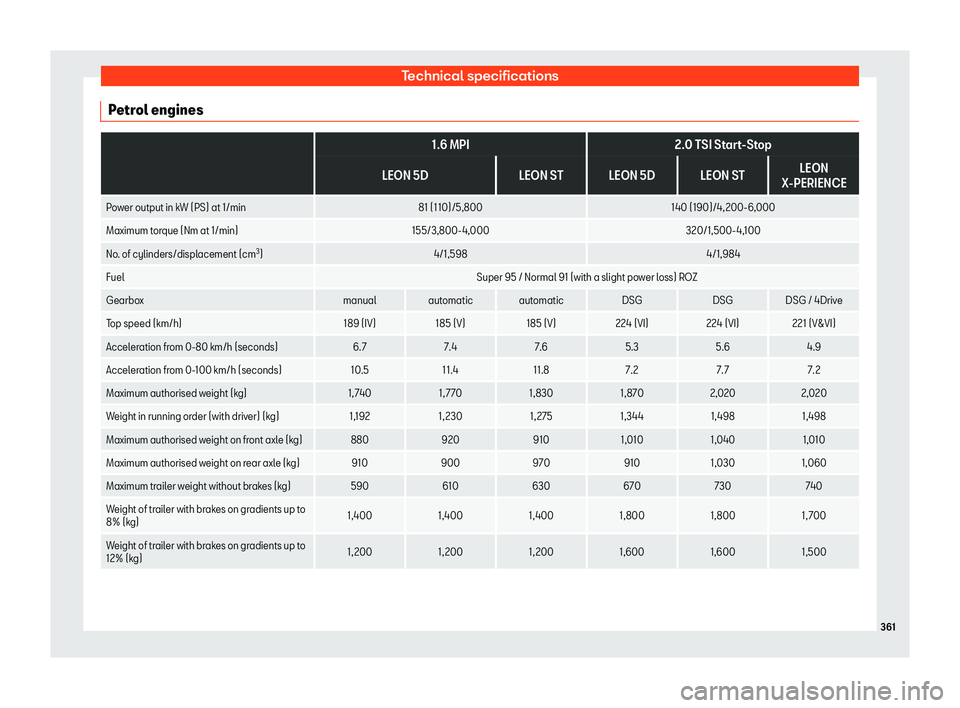

Page 363 of 392
Technical specifications
Petrol engines
1.6 MPI
2.0 TSI Start-Stop
LEON 5D LEON ST LEON 5D LEON ST LEON
X-PERIENCE
Power output in kW (PS) at 1/min 81 (110)/5,800140 (190)/4,200-6,000
Maximum torque (Nm at 1/min) 155/3,800-4,000320/1,500-4,100
No. of cylinders/displacement (cm 3
) 4/1,598 4/1,984
Fuel Super 95 / Normal 91 (with a slight power loss) ROZ
Gearbox manual automatic automatic DSGDSG DSG / 4Drive
Top speed (km/h) 189 (IV)185 (V)185 (V)224 (VI) 224 (VI) 221 (V&VI)
Acceleration from 0-80 km/h (seconds) 6. 77.47.65.3 5.6 4.9
Acceleration from 0-100 km/h (seconds) 10.511.411.8 7.27. 7 7.2
Maximum authorised weight (kg) 1, 7401, 7701,830 1,8702,020 2,020
Weight in running order (with driver) (kg) 1,1921,230 1,2751,344 1,498 1,498
Maximum authorised weight on front axle (kg) 880 9209101,010 1,040 1,010
Maximum authorised weight on rear axle (kg) 910 9009709101,030 1,060
Maximum trailer weight without brakes (kg) 590610630 670730 740
Weight of trailer with brakes on gradients up to
8% (k g) 1,400
1,400 1,4001,800 1,800 1,700
W
eight of trailer with brakes on gradients up to
12% (kg) 1,200
1,
2001,200 1,600 1,600 1,500 361
Page 364 of 392
Technical data
Petrol engines
2.0 TSI
2.0 TSI Start-Stop
LEON 5D LEON 5D LEON ST LEON 5D LEON ST
Power output in kW (PS) at 1/min 213 (290)/5,900-6,500213 (290)/5,900-6,400 213 (290)/5,900-6,500
Maximum torque (Nm at 1/min) 350/1,850-5,800350/1, 700-5,800 350/1,850-5,800
No. of cylinders/displacement (cm 3
) 4/1,984 4/1,984 4/1,984
Fuel Super 98 / Super 95 (with a slight power loss) ROZ
Gearbox DSGDSGDSG DSG DSG
Top speed (km/h) 250 (VI)250 (VI)250 (VI) 250 (VI) 250 (VI)
Acceleration from 0-80 km/h (seconds) 4.44.44.4 4.4 4.4
Acceleration from 0-100 km/h (seconds) 5. 75. 75.9 5. 75.9
Maximum authorised weight (kg) 1,9201,9102,000 1,9102,020
Weight in running order (with driver) (kg) 1,4311,4211,466 1,4211,478
Maximum authorised weight on front axle (kg) 1,0601,0501,0201,050 1,040
Maximum authorised weight on rear axle (kg) 9109101,030 9101,030
Maximum trailer weight without brakes (kg)

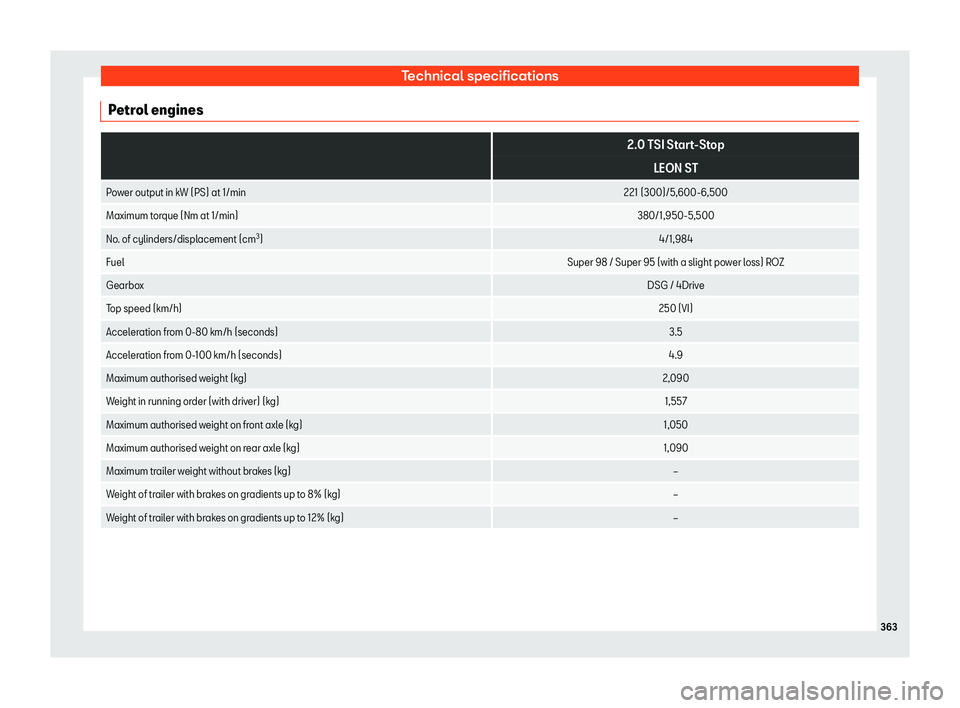

Page 365 of 392
Technical specifications
Petrol engines
2.0 TSI Start-Stop
LEON ST
Power output in kW (PS) at 1/min 221 (300)/5,600-6,500
Maximum torque (Nm at 1/min) 380/1,950-5,500
No. of cylinders/displacement (cm 3
) 4/1,984
Fuel Super 98 / Super 95 (with a slight power loss) ROZ
Gearbox DSG / 4Drive
Top speed (km/h) 250 (VI)
Acceleration from 0-80 km/h (seconds) 3.5
Acceleration from 0-100 km/h (seconds) 4.9
Maximum authorised weight (kg) 2,090
Weight in running order (with driver) (kg) 1,557
Maximum authorised weight on front axle (kg) 1,050
Maximum authorised weight on rear axle (kg) 1,090
Maximum trailer weight without brakes (kg)
Page 366 of 392
Technical data
Natural gas/petrol engines
1.5 TGI Start-Stop
LEON 5D LEON ST
Power output in kW (PS) at 1/min 96 (131)/5,000
Maximum torque (Nm at 1/min) 200/1,400-4,000
No. of cylinders/displacement (cm 3
)
Fuel CNG
Super 95 / Normal 91 (with a slight power loss) ROZ
Gearbox manualautomatic manualautomatic
Top speed (km/h) 194 (V)194 (VII) 194 (V)194 (VII)
Acceleration from 0-80 km/h (seconds) 7.17.17.3 7.3
Acceleration from 0-100 km/h (seconds) 10.910.9 1111
Maximum authorised weight (kg) 1,8101,840 1,850 1,880
Weight in running order (with driver) (kg) 1,3011,334 1,342 1,374
Maximum authorised weight on front axle (kg) 920950 910950
Maximum authorised weight on rear axle (kg) 940940990 980
Maximum trailer weight without brakes (kg) 650660 670680
Weight of trailer with brakes on gradients up to 8% (kg) 1, 7001, 700 1, 700 1, 700
Weight of trailer with brakes on gradients up to 12% (kg) 1,4001,400 1,400 1,400364 4/1,498

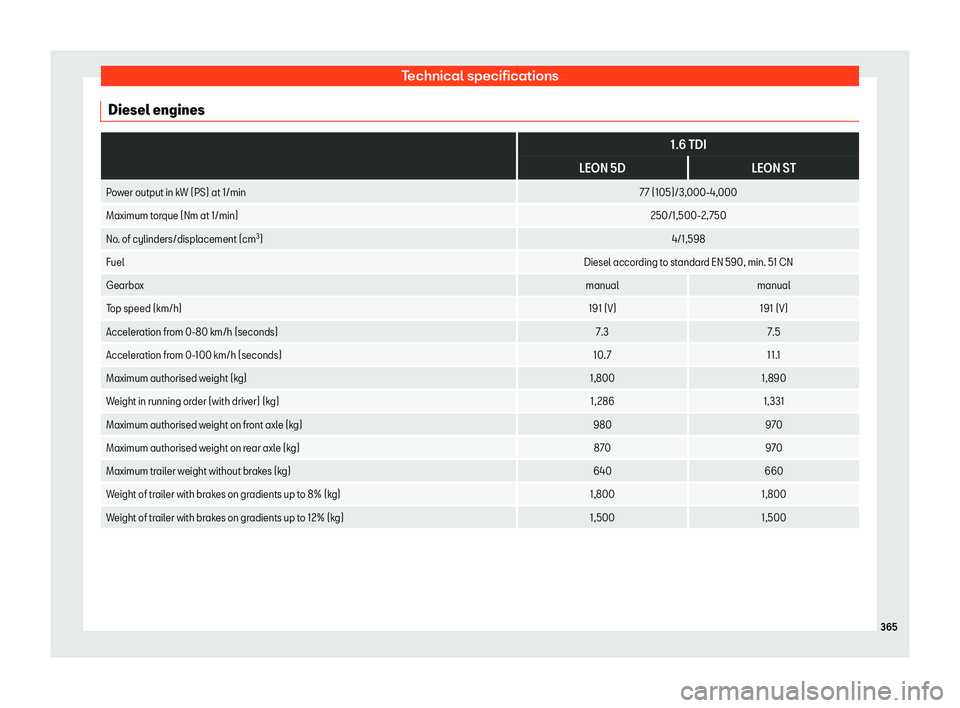

Page 367 of 392
Technical specifications
Diesel engines
1.6 TDI
LEON 5D LEON ST
Power output in kW (PS) at 1/min 77 (105)/3,000-4,000
Maximum torque (Nm at 1/min) 250/1,500-2, 750
No. of cylinders/displacement (cm 3
) 4/1,598
Fuel Diesel according to standard EN 590, min. 51 CN
Gearbox manualmanual
Top speed (km/h) 191 (V)191 (V)
Acceleration from 0-80 km/h (seconds) 7.37.5
Acceleration from 0-100 km/h (seconds) 10. 711.1
Maximum authorised weight (kg) 1,8001,890
Weight in running order (with driver) (kg) 1,2861,331
Maximum authorised weight on front axle (kg) 980970
Maximum authorised weight on rear axle (kg) 870970
Maximum trailer weight without brakes (kg) 640660
Weight of trailer with brakes on gradients up to 8% (kg) 1,8001,800
Weight of trailer with brakes on gradients up to 12% (kg) 1,5001,500 365
Page 368 of 392
Technical data
Diesel engines
1.6 TDI Start-Stop
LEON 5D LEON STLEON X-PERIENCE
Power output in kW (PS) at 1/min 85 (115)/3,250-4,000
Maximum torque (Nm at 1/min) 250/1,500-3,250
No. of cylinders/displacement (cm 3
) 4/1,598
Fuel Diesel according to standard EN 590, min. 51 CN
Gearbox manual DSG manual manual / 4Drive DSG manual manual / 4Drive
Top speed (km/h) 197 (V) 197 (VII) 197 (V) 197 (VII) 197 (VII) 193 (V) 208 (VII)
Acceleration from 0-80 km/h (seconds) 6.8 6.86.8 6.8 6.96.9 6.3
Acceleration from 0-100 km/h (seconds) 9.8 9.89.9 9.910.0 10.0 8. 7
Maximum authorised weight (kg) 1,8701,890 1,920 2,0201,8501,950 2,020
Weight in running order (with driver) (kg) 1,311 1,3391,352 1,482 1,3801,382 1,494
Maximum authorised weight on front axle
(k g) 980
1,010 970 1,
0001,000 9801,000
Maximum authorised weight on rear axle
(kg) 940
9301,000 1,
0701,000 1,020 1,070
Maximum trailer weight without brakes
(kg) 650
660 670 7
40690 690 740
Weight of trailer with brakes on gradients
up to 8% (kg) 1,800
1,800 1,8001,8001,8001,800 1,900
Weight of trailer with brakes on gradients
up to 12% (kg) 1,500
1,500 1,5001,5001,5001,500 1, 700366

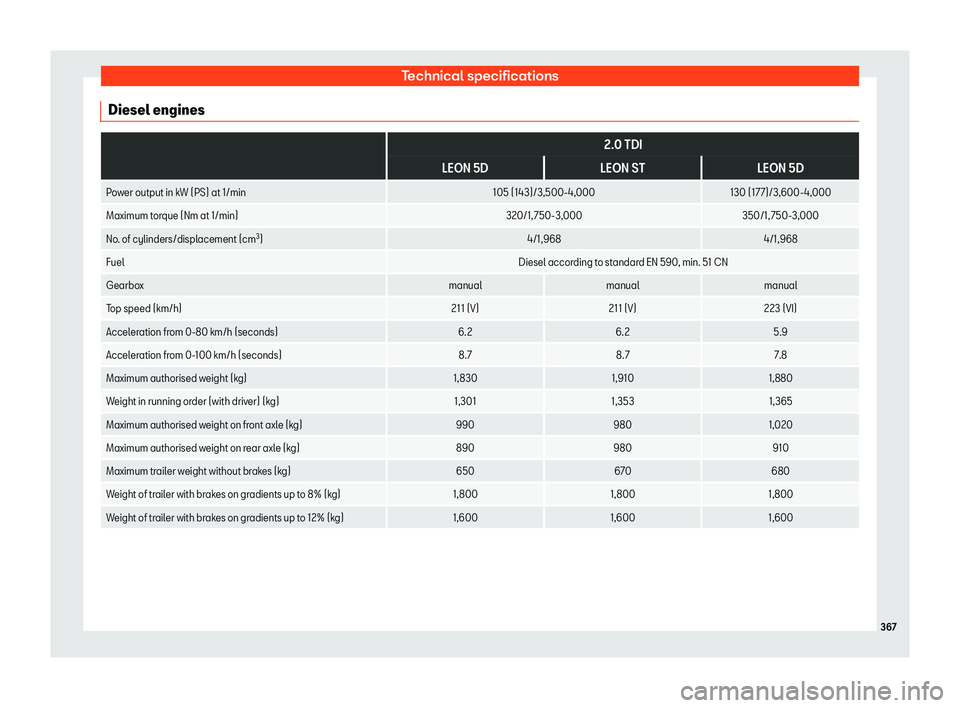

Page 369 of 392
Technical specifications
Diesel engines
2.0 TDI
LEON 5D LEON STLEON 5D
Power output in kW (PS) at 1/min 105 (143)/3,500-4,000130 (177)/3,600-4,000
Maximum torque (Nm at 1/min) 320/1, 750-3,000350/1, 750-3,000
No. of cylinders/displacement (cm 3
) 4/1,9684/1,968
Fuel Diesel according to standard EN 590, min. 51 CN
Gearbox manualmanual manual
Top speed (km/h) 211 (V)211 (V)223 (VI)
Acceleration from 0-80 km/h (seconds) 6.26.2 5.9
Acceleration from 0-100 km/h (seconds) 8. 78. 7 7.8
Maximum authorised weight (kg) 1,8301,9101,880
Weight in running order (with driver) (kg) 1,3011,353 1,365
Maximum authorised weight on front axle (kg) 9909801,020
Maximum authorised weight on rear axle (kg) 890980 910
Maximum trailer weight without brakes (kg) 650670680
Weight of trailer with brakes on gradients up to 8% (kg) 1,8001,800 1,800
Weight of trailer with brakes on gradients up to 12% (kg) 1,6001,600 1,600 367
Page 370 of 392
Technical data
Diesel engines
2.0 TDI Start-Stop
LEON 5D LEON STLEON X-PERIENCE
Power output in kW (PS) at 1/min 110 (150)/3,500-4,000
Maximum torque (Nm at 1/min) 340/1, 750-3,000
No. of cylinders/displacement (cm 3
) 4/1,968
Fuel Diesel according to standard EN 590, min. 51 CN
Gearbox manualDSGmanual manual / 4Drive DSG DSG / 4Drive
Top speed (km/h) 215 (VI) 211 (VI) 215 (VI) 211 (VI) 213 (VI) 205 (VI)
Acceleration from 0-80 km/h (seconds) 6.16.0 6.2 5. 76.2 5.8
Acceleration from 0-100 km/h (seconds) 8.48.48.6 8.88.6 8.9
Maximum authorised weight (kg) 1,8501,890 1,9402,080 1,980 2,080
Weight in running order (with driver) (kg) 1,3321,3721,385 1,540 1,425 1,552
Maximum authorised weight on front axle (kg) 1,000 1,0401,000 1,0601,040 1,060
Maximum authorised weight on rear axle (kg) 900 9009901,070 990 1,070
Maximum trailer weight without brakes (kg) 660680690 750710 750
Weight of trailer with brakes on gradients up to
8% (k g) 1,800
1,8001,8001,900 1,800 2,000
W
eight of trailer with brakes on gradients up to
12% (kg) 1,600
1,
6001,600 1, 7001,600 2,000368
