Page 31 of 392
The essentials

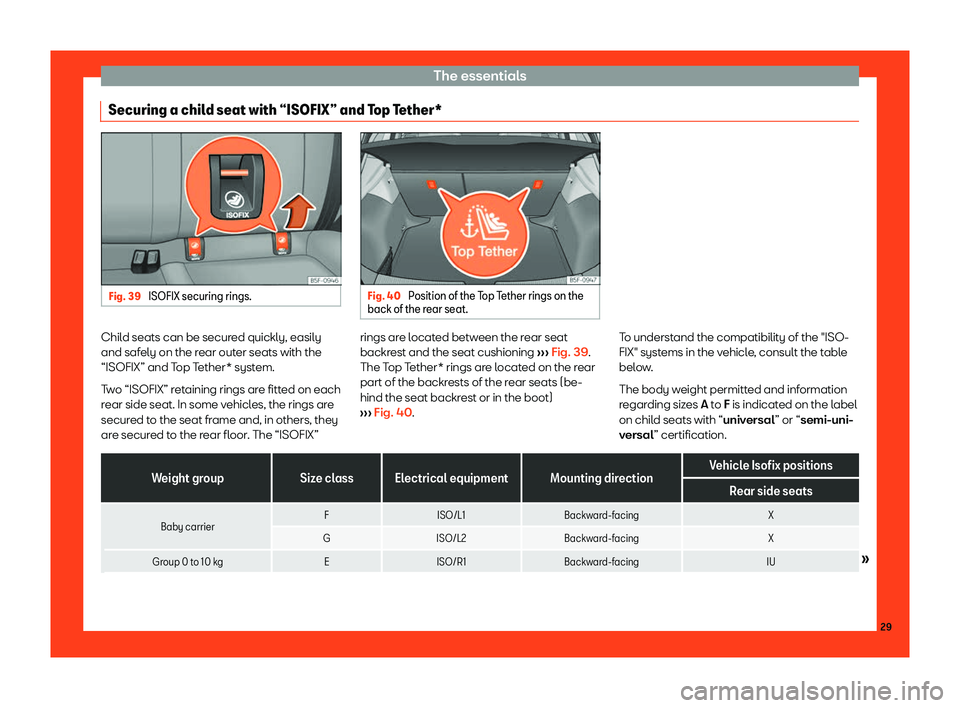

Securing a child seat with “ISOFIX” and Top Tether* Fig. 39
ISOFIX securing rings. Fig. 40
Position of the Top Tether rings on the
back of the rear seat. Child seats can be secured quickly, easily
and saf
ely on the r
ear out
er seats with the
“ISOFIX” and Top Tether* system.
Two “ISOFIX” retaining rings are fitted on each
rear side seat. In some vehicles, the rings are
secured to the seat frame and, in others, they
are secured to the rear floor. The “ISOFIX” rings are located between the rear seat
backrest and the seat cushioning
Page 32 of 392
The essentials

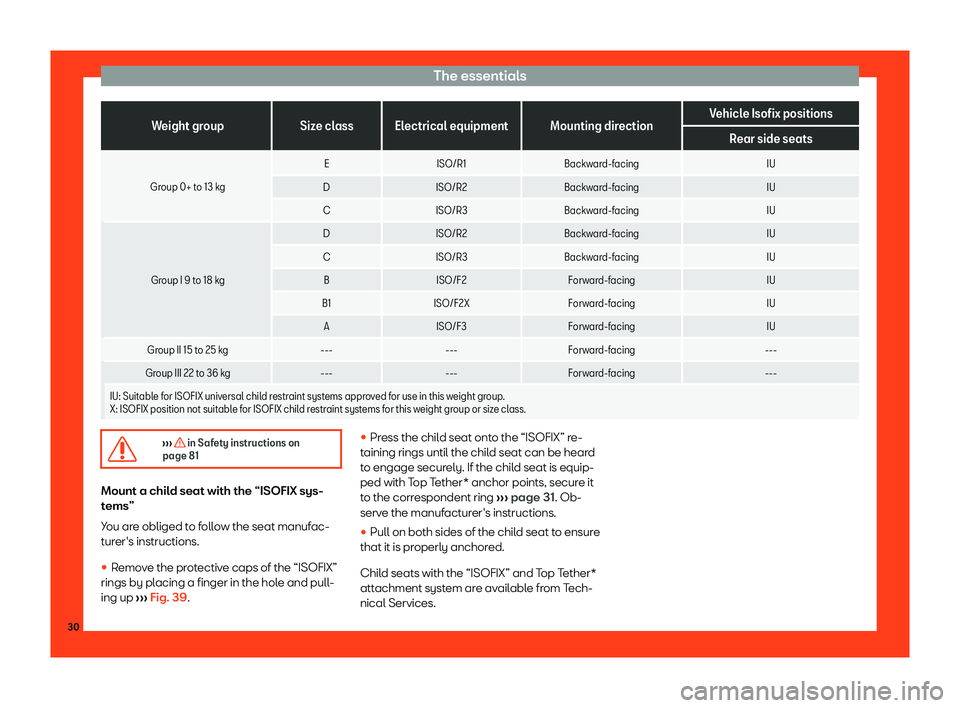

Weight group
Size class Electrical equipment Mounting direction Vehicle Isofix positions
Rear side seats
Group 0+ to 13 kg E
ISO/R1 Backward-facing IU
D ISO/R2 Backward-facing IU
C ISO/R3 Backward-facing IU
Group I 9 to 18 kg D
ISO/R2 Backward-facing IU
C ISO/R3 Backward-facing IU
B ISO/F2 Forward-facing IU
B1 ISO/F2X Forward-facing IU
A ISO/F3 Forward-facing IU
Group II 15 to 25 kg ------Forward-facing ---
Group III 22 to 36 kg
------Forward-facing ---
IU: Suitable for ISOFIX universal child restraint systems approved for use in this weight group.
X : ISOFIX position not suit
abl
e for ISOFIX child restraint systems for this weight group or size class.
Page 33 of 392
The essentials
Securing a child seat with the Top
T ether* r
et
aining strapsFig. 41
Retainer strap: correct adjustment and
fitting. Fig. 42
Rear part of the rear seats: securing
rings for the T op T
ether strap. Child seats with the Top Tether system come
with a str
ap f
or securing the seat t
o the vehi-
cle anchor point, located at the back of the
rear seat backrest and provide greater re-
straint.
The objective of this strap is to reduce for-
ward movements of the child seat in a crash,
to reduce the risk of injuries to the head from
hitting the inside of the vehicle.
Using the Top Tether in rear-facing moun-
ted seats
Currently, there are very few rear-facing child
safety seats that have Top Tether. Please
carefully read and follow the seat manufac-
turer instructions to learn the proper way to
install the Top Tether strap. Securing the retainer strap
Page 34 of 392
The essentials

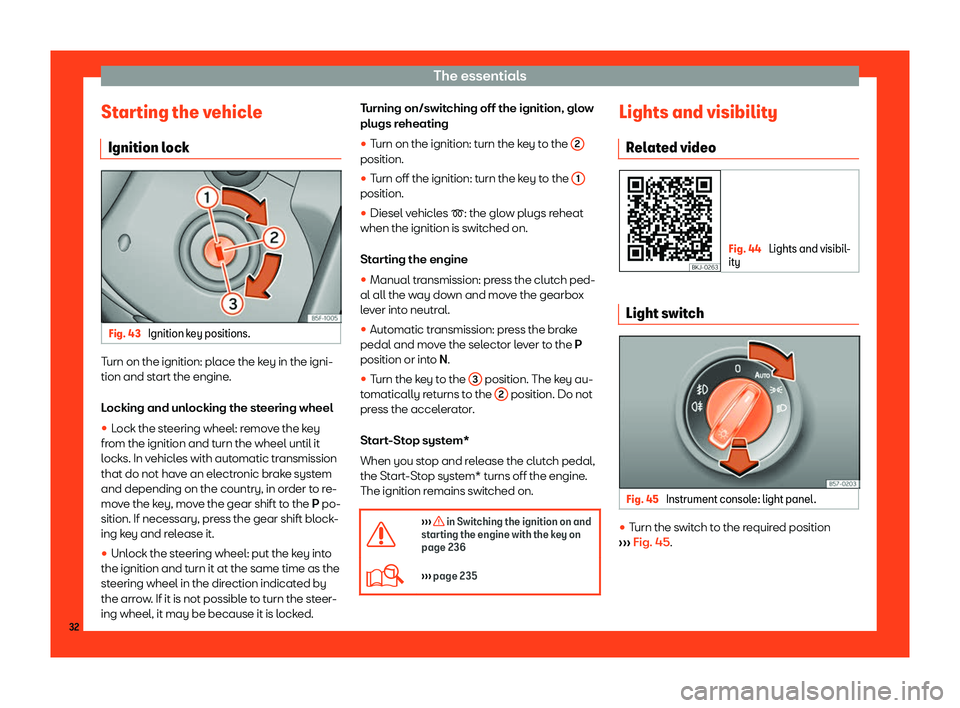

Starting the vehicle Ignition l ock Fig. 43
Ignition key positions. Turn on the ignition: place the key in the igni-
tion and st
art the engine
.
L
ocking and unlocking the steering wheel
