122Starting, changing gears, parking
For the sake of the environment
Do not warm the engine at idle speed; start driving immediately if the visi-
bility is OK. This helps the engine reach operating temperature faster and
reduces emissions.
Note
Electrical components with a high power consumption are switched off tem-
porarily when the engine starts.
Note
When the engine is started cold, there may be strong vibrations for a few
moments for technical reasons. This is quite normal, and no cause for con-
cern.
Note
Natural gas engines always start up with petrol, as a certain operating tem-
perature is required for running with gas. Once the required operating tem-
perature is reached, the engine will change to operate with natural gas.
Stopping the engine
Complete operations only in the sequence given.1.Stopping the vehicle completely ⇒ .
2.Press the brake pedal and keep pressed until step 4 has been
completed.
3.In automatic gearboxes, put the selector lever in position P4.Apply the handbrake firmly ⇒ page 134.5.Turn the key in the ignition lock to position ⇒ Fig. 83 0.6.With a manual gearbox, put the vehicle in first or reverse gear.
WARNING
Never switch off the engine while the vehicle is moving. You may lose
control of the vehicle and there is a risk of serious accident.
● The airbags and belt tensioners do not work when the ignition is
switched off.
● The brake servo does not work when the engine is not running. To
stop, the brake pedal must be pressed with more force.
● As the power steering does not work if the engine is not running, you
will need more strength to steer than normally.
● If the key is removed from the ignition, the steering may lock and it
will not be possible to steer the vehicle.
CAUTION
If the engine has been driven at high speed for a prolonged period of time,
it may overheat when turned off. To avoid engine damage, allow the engine
to run for approximately 2 minutes in neutral before switching it off.
Note
● In vehicles with automatic gearbox, the key can only be removed when
the selector lever is in position P.
● After stopping the engine, the engine compartment fan may continue
running for a few minutes, even when the ignition has been switched off or
the key removed. The radiator fan is automatically switched off.
Electronic immobilizer
The gear lock prevents the engine from being started with an unauthorised
key and the vehicle being moved.
The vehicle key has a built-in chip. It automatically deactivates the immobil-
izer when the key is inserted into the ignition lock.
Page 126 of 308
124Starting, changing gears, parking
Changing gear
Introduction
When reverse gear is engaged and the ignition is switched on the following
takes place:
● Reverse lights light up.
● The rear wiper blade performs one movement when the windscreen wip-
er is activated.
● If necessary, connect the parking distance warning system.
Additional information and warnings:
● Detail of the centre console ⇒ page 12
● Instruments ⇒ page 17
● Braking, stopping and parking ⇒ page 134
● Parking distance warning system ⇒ page 149
● Electronic power control and exhaust gases purification system
⇒ page 236
● Emergency locking and unlocking ⇒ page 243
WARNING
Rapid acceleration can cause loss of traction and skidding, especially on
slippery ground. This could cause loss of control of the vehicle resulting
in an accident and considerable damage.
● Use rapid acceleration only when visibility, weather, road conditions
and traffic permit.
WARNING
Do not allow the brakes to “rub” for a prolonged period of time, or press
the brake pedal frequently or for long periods of time. Continuous brak-
ing heats up the brakes. This could significantly reduce braking power,
increase braking distance or even result in the total failure of the brake
system.
CAUTION
● Never make the brakes “slip” by pressing the pedal gently, if it is not
really necessary to brake. This will increase wear.
● Reduce speed or reduce the gear when faced with steep and long
slopes. This allows you to use the engine braking effect and to reduce the
strain on the brake system. Otherwise, the brakes may overheat and fail.
Only use the brakes to reduce speed or to stop.
Page 127 of 308
125
Starting, changing gears, parking
Warning and control lamps
If lit upPossible causeSolution
(red)Fault in the automatic gear-
box.
Do not drive on!
Seek professional advice. Fail-
ure to do so could result in
considerable damage to the
transmission ⇒ page 132.
(yellow)
In the automatic gearbox
the gears can engage incor-
rectly.
Switch the ignition on and off.
When the control lamp does
not light up, find the nearest
specialised workshop and
have the automatic gearbox
checked.
The automatic gearbox
overheats temporarily.
Let the transmission cool with
the gearbox lever in the posi-
tion . When the control lamp
does not light up, find the
nearest specialised workshop
and have the automatic gear-
box checked.
If lit upPossible causeSolution
Place the automatic gear-
box lever in the position
and do not press the brake
pedal.Press the brake pedal to select
a gear range.
Together with the yellow
control lamp for the temper-
ature of the transmission
: the automatic gearbox
overheats.
Press brake pedal and let the
transmission cool. Avoid
pressing the accelerator.
When the control lamp does
not light up, find the nearest
specialised workshop and
have the automatic gearbox
checked.
Together with the turn sig-
nal display in the instru-
ment panel display: the au-
tomatic gearbox lever is not
in the position , indication
to start the engine.
Move the gearbox lever to the
position and start the en-
gine.
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical Data
Page 128 of 308
126Starting, changing gears, parking
If
flash- ingPossible causeSolution
An automatic gearbox in the
vehicle does not guarantee
that the vehicle will not roll
away.
Apply the handbrake.
In the instrument panel dis-
play, in addition to the control
lamp requesting the brake
pedal to be pressed : Indica-
tion to start the engine.
Move the gearbox lever to the po-
sition and start the engine.
On the instrument panel dis-
play: Whilst driving in a for-
ward direction, try to move the
automatic gearbox lever to the
position .Stop the vehicle and move the
gearbox lever to the position in
order to subsequently change to
the position .
On the instrument panel dis-
play: The automatic gearbox
lever was placed in the posi-
tion or , but the brake pedal
was not pressed.Press the brake pedal, move the
gearbox lever to the position ,
and subsequently to the required
position or .
When switching on the ignition some warning and control lamps light up for
a short time to check the operations. They will switch off after a few sec-
onds.
Page 130 of 308
128Starting, changing gears, parking
Manual gearbox: Engaging gears
Fig. 86 Gear shift pat-
tern of a 5-speed manual
gearbox
The position of each of the gears is shown on the gear stick ⇒ Fig. 86.
● Keep the clutch pedal pushed all the way down.
● Move the gearbox lever to the required position
⇒
.
● Release the clutch pedal to engage clutch.
In some countries, it is necessary to press the clutch pedal to the floor to
start the engine.
Selecting reverse gear
● Engage reverse gear only when the vehicle is stopped.
● Keep the clutch pedal pushed all the way down
⇒
.
● Move the gear lever into the neutral position.
● Move the gear stick to the right and then backwards to reverse gear R
.
● Release the clutch pedal to engage clutch. Shifting down a gear
Shifting down a gear while driving must be carried out gear by gear, i.e. to
the gear immediately preceding the current gear and at an engine speed
that is not excessive
⇒
. At high speeds, or high engine speeds, skipping
one or various gears when shifting down a gear can cause damage to the
clutch and the gearbox, even if the clutch is not engaged during the process
⇒
.
WARNING
When the engine is running, the vehicle will start to move as soon as a
gear is engaged and the clutch released.
● Never engage the reverse gear when a vehicle is moving forward.
WARNING
As a consequence of shifting down a gear incorrectly, you may lose con-
trol of the vehicle and cause an accident with serious consequences.
CAUTION
If, at high speeds or high engine speeds the gear lever is shifted down to a
gear that is too low, serious damage can be caused to the clutch and gear-
box. This also applies if you press the clutch pedal and it does not engage.
CAUTION
To prevent damage and avoid premature wear, please observe the follow-
ing:
● While driving, do not leave your hand resting on the gear stick. The pres-
sure applied by your hand is transmitted to the gearbox selector forks.
● Always ensure that the vehicle is completely stopped before engaging
the reverse gear.

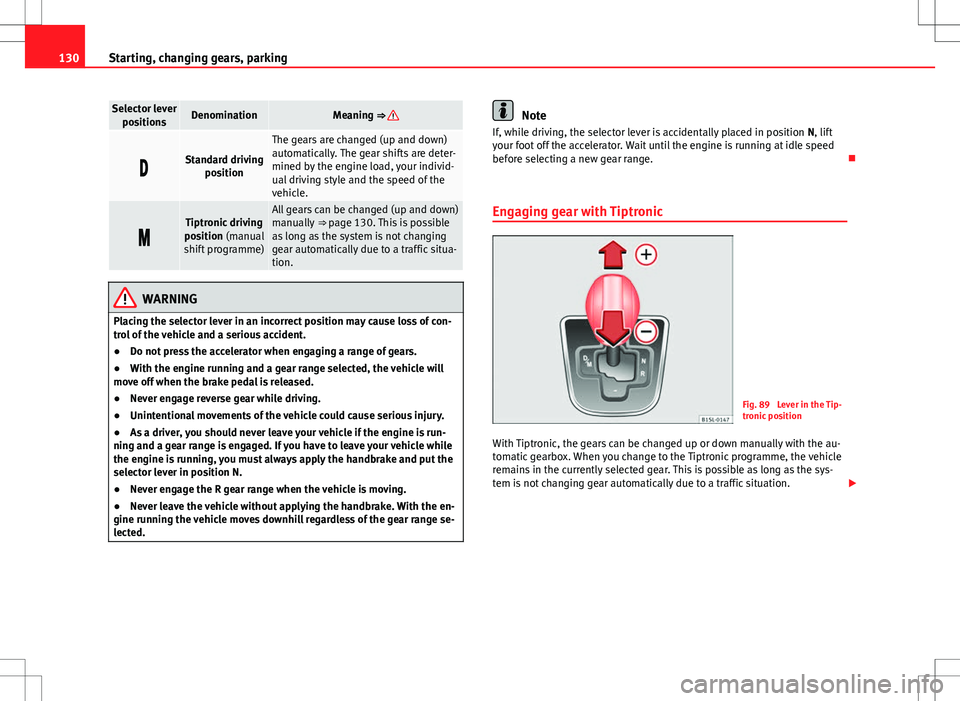

Page 132 of 308
130Starting, changing gears, parking
Selector lever
positionsDenominationMeaning ⇒
Standard driving position
The gears are changed (up and down)
automatically. The gear shifts are deter-
mined by the engine load, your individ-
ual driving style and the speed of the
vehicle.
Tiptronic driving
position (manual
shift programme)All gears can be changed (up and down)
manually ⇒ page 130. This is possible
as long as the system is not changing
gear automatically due to a traffic situa-
tion.
WARNING
Placing the selector lever in an incorrect position may cause loss of con-
trol of the vehicle and a serious accident.
● Do not press the accelerator when engaging a range of gears.
● With the engine running and a gear range selected, the vehicle will
move off when the brake pedal is released.
● Never engage reverse gear while driving.
● Unintentional movements of the vehicle could cause serious injury.
● As a driver, you should never leave your vehicle if the engine is run-
ning and a gear range is engaged. If you have to leave your vehicle while
the engine is running, you must always apply the handbrake and put the
selector lever in position N.
● Never engage the R gear range when the vehicle is moving.
● Never leave the vehicle without applying the handbrake. With the en-
gine running the vehicle moves downhill regardless of the gear range se-
lected.
Note
If, while driving, the selector lever is accidentally placed in position N, lift
your foot off the accelerator. Wait until the engine is running at idle speed
before selecting a new gear range.
Engaging gear with Tiptronic
Fig. 89 Lever in the Tip-
tronic position
With Tiptronic, the gears can be changed up or down manually with the au-
tomatic gearbox. When you change to the Tiptronic programme, the vehicle
remains in the currently selected gear. This is possible as long as the sys-
tem is not changing gear automatically due to a traffic situation.
Page 133 of 308
131
Starting, changing gears, parking
Using Tiptronic
● Place the lever in the position D to the left on the Tiptronic shift gate M
⇒
in Automatic gearbox: engaging a gear on page 130.
● Press the lever forwards + or backwards – to move up or down a gear
⇒ Fig. 89.
● Place the lever back to the position M to the left on the Tiptronic shift
gate, to leave Tiptronic mode ⇒
in Automatic gearbox: engaging a gear
on page 130.
With the lever in the position D, and pressing forwards +
or backwards –the Tiptronic programme can be selected
M.
CAUTION
● When accelerating, the gearbox automatically shifts up into the next
gear shortly before the maximum engine speed is reached.
● When reducing speed manually, the gear box only shifts gear when the
engine can no longer exceed the maximum engine speed.
Driving with an automatic gearbox
The gearbox changes up or down gears automatically as the vehicle moves.
Driving down hills
The steeper the gradient, the lower the gear you will need to select. The low-
est gears increase the engine braking work. Never go down hills with the se-
lector lever in neutral N.
● You should reduce speed accordingly.
● Place the lever in the position D to the left on the Tiptronic shift gate M
⇒ page 130.
● Gently pull the selector lever back –
to change down a gear. Starting when going up a slope
The steeper the gradient, the lower the gear you will need.
When stopping on a slope with a gear range engaged, the vehicle must be
prevented from rolling backwards by always pressing the brake pedal or
pulling the handbrake lever up. When starting, release the brake pedal or
the handbrake ⇒
.
Kickdown
The kickdown system provides maximum acceleration when the gear selec-
tor lever is in the position D, or in the Tiptronic position M.
When the accelerator pedal is pressed right down, the automatic gearbox
will shift down to a lower gear, depending on road speed and engine speed.
This takes advantage of the maximum acceleration of the vehicle ⇒
.
When the accelerator is pressed to the floor, the automatic gearbox shifts to
the next gear only after the engine reaches the specified maximum engine
speed.
WARNING
Rapid acceleration can cause loss of traction and skidding, especially on
slippery ground. This could cause loss of control of the vehicle resulting
in an accident and serious injury.
● Always adapt your driving style to suit the flow of traffic.
● Only use the kickdown function or rapid acceleration if visibility,
weather, road and traffic conditions so permit.
● Never put other road users in danger by accelerating or with your
driving style.
CAUTION
If you stop on a hill with a gear range engaged, do not try to prevent the
vehicle from rolling back by pressing on the accelerator. Otherwise, the au-
tomatic gearbox may overheat causing damage.
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical Data
Page 134 of 308
132Starting, changing gears, parking
Automatic gearbox malfunction
Back-up programme
When automatic gearbox warning and control lamps light up on the instru-
ment panel, there may be a system malfunction ⇒ page 124. In the event of
some faults the automatic gearbox functions using a backup programme.
When the backup programme is activated, it is possible to drive the vehicle,
however, at low speeds and within a selected range of gears.
With the manual gearbox, in some cases it is not possible to drive with all
the gears.
In all cases the automatic gearbox must be checked at a specialised work-
shop.
Automatic gearbox overheating
The automatic gearbox can overheat with a prolonged start up, or when
stopping and starting continuously. This overheating is displayed with a
warning lamp in the instrument panel. Additionally, an audible warning
can be heard. Stop and let the gearbox cool ⇒
.
The vehicle moves forward or back despite having selected a gear range
When the vehicle does not move in the required direction, the system may
not have the gear range correctly engaged. Press the brake pedal and en-
gage the gear range again. If the vehicle still does not move in the required
direction, there is a system malfunction. Seek specialist assistance and
have the system checked.
CAUTION
● When the gearbox is displayed as overheating for the first time, the vehi-
cle must be parked safely or must be driven at a speed of more than 20 km/
h (12 mph).
● When the warning lamp lights up and the audible warning is sounded,
the vehicle must be parked safely and the engine switched off. Let the gear-
box cool down.
● To prevent damage to the gearbox, driving must only be continued when
the warning lamps are no longer lit up. While the gearbox is overheated,
starting up and driving at walking speed should be avoided.
Recommended gear display
In some vehicles, the recommended gear for reducing fuel consumption is
displayed on the instrument panel display:
DisplayMeaning
Optimum gear.
Recommendation to change up a gear.
Recommendation to change down a gear.
WARNING
The recommended gear display is intended as a guideline only; it should
never replace the driver's attention to driving carefully.
● Responsibility for selecting the correct gear for each situation contin-
ues to lie with the driver, for example when overtaking or climbing a hill.
Page 136 of 308
134Starting, changing gears, parking
Braking, stopping and parking
Introduction
The assisted braking systems are the electronic distribution of the brake
force (EBV), the anti-lock brake system (ABS), the brake assist system (BAS),
the electronic differential lock (EDL), the traction control (TC), the traction
control system (ASR) and the electronic stability control (ESC*).
Additional information and warnings:
● Wheels and tyres ⇒ page 210
● Accessories, parts replacement, repairs and modifications ⇒ page 222
WARNING
Driving with worn brake pads or a faulty brake system may lead to seri-
ous accident.
● If you believe the brake pads to be worn or the brake system to be
faulty, immediately refer to a specialised workshop to check the brake
pads and replace the worn brake pads.
WARNING
Careless parking can cause serious injury.
● Never remove the key from the ignition if the vehicle is in motion. The
steering lock may engage and locked the steering wheel making the vehi-
cle impossible to control.
● Always park your vehicle so that no part of the exhaust system can
come in contact with flammable materials (such as wood, leaves, spilled
fuel, dried grass, etc).
WARNING (Continued)
● Always apply the handbrake when you leave your vehicle and when
you park.
● Never leave children or disabled people alone in the vehicle. They
could release the electronic parking brake, activate the selector lever or
gear stick and start the vehicle moving. This could result in serious acci-
dent.
● Always take all the keys with you whenever you leave the vehicle. The
engine could accidentally be started and electrical equipment such as
the windows could accidentally be operated resulting in serious injury.
● Never leave children or disabled people alone in the vehicle. They
could be trapped in the vehicle in an emergency and will not be able to
get themselves to safety. For example, depending on the time of the
year, temperatures inside a locked and closed vehicle can be extremely
high or extremely low resulting in serious injuries and illness or even
death, particularly for young children.
CAUTION
● Special care should be taken when parking in areas with high kerbs or
fixed barriers. Objects protruding from the ground may damage the bumper
or other parts of the vehicle during manoeuvres. To avoid damage, stop be-
fore the wheels touched the barrier or kerb.
● Special attention is required when driving through entrances, over
ramps, kerbs or other objects. The vehicle underbody, bumpers, mudguards
and running gear, and the engine and exhaust system could be damaged as
you drive over these objects.
Page 138 of 308
136Starting, changing gears, parking
WARNING (Continued)
your speed and drive carefully to a Specialised workshop close by to
check the brake system. During the following journey, avoid sudden brak-
ing and manoeuvres.
● If the ABS warning lamp does not go out or if it lights while driv-
ing, the ABS is malfunctioning. The vehicle can only be stopped using
normal braking without ABS. The protection provided by the ABS is not
available. Visit a specialised workshop as soon as possible.
CAUTION
Failure to heed the warning lamps when they appear may result in faults in
the vehicle.
Handbrake
Fig. 90 Between the
front seats: Handbrake Using the handbrake
●
Pull firmly in an upwards direction on the handbrake lever while press-
ing the button.
● The handbrake is applied when the control lamp lights up on the in-
strument panel ⇒ page 135 when the ignition is switched on.
Releasing the handbrake
● Pull gently in an upwards direction on the handbrake lever and press the
lock button ⇒ Fig. 90 (arrow).
● Move the handbrake lever downwards keeping the lock button pressed.
WARNING
The incorrect use of the handbrake may result in a serious accident.
● Never use the handbrake to brake the vehicle except in an emergency.
The braking distance is considerably longer, because braking is only ap-
plied to the rear wheels. Always use the foot brake.
● Never drive with the handbrake gently applied. This can overheat the
brake, affecting the brakes system. This also causes premature wear on
the rear brake pads.
● Never accelerate from the engine compartment with the engine run-
ning and a gear engaged. The vehicle could move, even if the handbrake
is applied.
Note
If the vehicle moves at a speed superior to 6 km/h (4 mph) with the hand-
brake applied, an audible warning is sounded.
Parking
When parking your vehicle, all legal requirements should be observed.
