buttons Seat Mii 2012 Owner's manual

11
Vehicle interior
Legend for the Fig. 5: Light switch  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
– Light off or daytime driving light - -
– Side/dipped lights  
– Fog lights  
Headlamp range adjustment  . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Air outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Lever for . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
– Main beam headlights 
– Headlight flasher 
– Turn signals 
– Cruise control system (CCS)  –  –  – /+ – /- 152
Instrument panel:
– Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
– Digital display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
– Indicator lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Windscreen wiper/ windscreen wash lever . . . . . . . . . . . . . . . . . .91
– Windscreen wipers  – 
– Intermittent wipe 
– “Brief wipe” x
– Windscreen wipers 
– Automatic windscreen wash/wipe 
– Rear window wiper 
– Automatic rear window wash/wipe 
– Lever with buttons for controlling the SEAT information
system - , / . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Horn (works only when the ignition is on)
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
1
234
5
6
789
Steering column adjustment lever
. . . . . . . . . . . . . . . . . . . . . . . . . . 48
Driver front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Storage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108101112
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical Data

19
Instrument panel
Rev counter (with the engine running, in thousands of revo-
lutions per minute).
The beginning of the red zone of the rev counter indicates
the maximum speed in any gear after running-in and with
the engine hot. However, it is advisable to change up a gear
or move the selector lever to D (or lift your foot off the accel-
erator) before the needle reaches the red zone ⇒ 
.
Clock set button .
– If necessary, change the time display by pressing the top
and bottom buttons of the rocker switch ⇒ Fig. 11 B
.
– Press the button  to change the hour, so that it is flash-
ing.
– To continue setting the time, press button 0.0/SET
. Hold
button down to scroll through the numbers quickly.
– Press the button 
again to change the minutes, so that
it is flashing.
– To continue setting the time, press button 0.0/SET
. Hold
button down to scroll through the numbers quickly.
– Press button 
again to end the clock setting.
CAUTION
● When the engine is cold, avoid high revs and heavy acceleration and do
not make the engine work hard.
● To prevent damage to the engine, the rev counter needle should only re-
main in the red zone for a short period of time.
For the sake of the environment
Changing up a gear in time reduces fuel consumption and noise. 5
6
Note
On the screen of the SEAT Portable System (supplied by SEAT) ⇒ page 222
the other instruments can be seen, such as an outside temperature indica-
tor. 
Display messages
A variety of information can be viewed on the instrument panel display
⇒  Fig. 9 and ⇒  Fig. 10 2, depending on the vehicle equipment:
● Warning and information messages
● Odometer
● Time
● Outside temperature
● Selector lever positions ⇒ page 124
● Recommended gear (manual gearbox) ⇒ page 124
● Multifunction display (MFI) ⇒ page 22
● Service interval display ⇒ page 21
● Start-Stop system status display ⇒ page 160
● Fuel gauge ⇒ page 171
● Seat belt status display for rear seats ⇒ page 57
Warning and information messages
The system runs a check on certain components and functions when the ig-
nition is switched on and while the vehicle is moving. Faults in the opera-
tion are displayed on the screen using red and yellow symbols on the in-
strument panel display ( ⇒ page 15) and, in some cases, with audible warn-
ings. The display may vary according to the type of instrument panel fitted. 
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical Data

23
Instrument panel
With the ignition switched on, and memory 1 or 2 displayed, briefly press
OK to change from one memory to another.
1
Trip memo-
ry (for a
single jour-
ney).
The memory stores the values for the journey and the con-
sumption from the moment the ignition is switched on un-
til it is switched off again.
If the journey is broken for more than 2 hours, the memory
is automatically erased. If the journey is continued in less
than 2 hours after the ignition is switched off, the new da-
ta is added to the data already stored in the memory.
2Total mem-
ory (for all
journeys).
The memory stores the values of any number of journeys,
until it counts a total of 19 hours and 59 minutes of driv-
ing, or 1999.9 km or miles of driving, depending on the
type of instrument panel fitted. On reaching either of these
limits, the memory is automatically erased and starts to
count from 0 again.
Possible displays
MenuFunctionTimeCurrent time in hours (h) and minutes (min).Journey durationThis indicates the hours (h) and minutes (min)
since the ignition was switched on.
Current fuel consump-
tionThe current fuel consumption display operates
throughout the journey, in litres/100 km; and with
the engine running and the vehicle stopped, in li-
tres/hour.
Average fuel consump-
tionAfter turning on the ignition, average fuel con-
sumption in litres/100 km will be shown after trav-
elling approximately 100 metres. Otherwise hori-
zontal lines are displayed. The value shown is up-
dated approximately every 5 seconds.
Distance to empty (the
distance you can trav-
el with the remaining
fuel)Approximate distance in km that can still be travel-
led with the fuel remaining in the tank, assuming
the same style of driving is maintained. This is cal-
culated using the current fuel consumption.
MenuFunctionDistance coveredDistance travelled, after ignition is switched on, in
km.
Average speedAfter starting the ignition, the average speed will
be shown after a distance of approximately 100
metres has been travelled. Otherwise horizontal
lines are displayed. The value shown is updated
approximately every 5 seconds.
Digital display of
speedCurrent speed displayed digitally.
Liquid coolant temper-
ature digital displayDigital display of the current temperature of the en-
gine liquid coolant.
Warning at --- km/hIf the stored speed is exceeded (between
30-250 km/h, or 18-155 mph), an audible warning
is given together with a visual warning.
Changing between display modes
● Press the rocker switch in the windscreen wiper lever.
Storing a speed for the speed warning
● Select the display Speed warning at --- km/h.
● Press OK
on the windscreen wiper lever to store the current speed and
switch off the warning.
● In addition, set the required speed by pressing the rocker switch on the
windscreen wiper lever or buttons 
or  on the multifunction steering
wheel for 5 seconds. Next, press OK again or wait a few seconds. The
speed is stored and the warning activated.
● To switch off , press OK
. The stored speed is deleted.
Manually erasing memory 1 or 2
● Select the memory to be erased.
● Press and hold the eject button OK
for approximately 2 seconds.

Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical Data

30Unlocking and locking
Note
If the buttons of the vehicle key are pressed ⇒ Fig. 12 or one of the central
locking buttons ⇒ page 33 is pressed repeatedly in short succession, the
central locking briefly disconnects as protection against overloading. The
vehicle is then unlocked. Lock the vehicle if necessary. 
Vehicle mechanical key
Fig. 13 Vehicle mechani-
cal key
The vehicle key set may include a mechanical key ⇒ Fig. 13.
Duplicate keys
To obtain a spare key and other vehicle keys, the vehicle chassis number is
required.
Each new key must contain a microchip and be coded with the data from the
electronic vehicle immobilizer. In vehicle key will not work if it does not con-
tain microchip or the microchip has not been encoded. This is also true for
keys cut for the vehicle. The vehicle keys or new spare keys can be obtained from a SEAT dealership,
a Specialised workshop or approved key service qualified to create this kind
of key.

Control lamp on the vehicle key
Fig. 14 Control lamp on
the vehicle key
When a button on the vehicle key is pressed, the control lamp flashes
⇒  Fig. 14 (arrow) once briefly. If the button is pressed and held, the indica-
tor blinks several times, for example: for the convenience opening function.
When the control lamp does not light upon pushing a button, change the
batteries of the vehicle key ⇒ page 31. 

34Unlocking and locking
FunctionNecessary operationsLock the vehicle, by
pushing the central
locking button:– Turn off the ignition and turn it on again.
– Push the central locking button .
Use the key to lock the
vehicle:– Turn off the ignition and turn it on again.
OR: Remove the key from the ignition.
– Open any door just once.
– Lock the vehicle with the key.
Note
If the buttons of the vehicle key are pressed ⇒ page 28 or one of the central
locking buttons ⇒ Fig. 19 is pressed repeatedly in short succession, the
central locking briefly disconnects as protection against overloading. In this
case, the vehicle remains unlocked for about. 30 seconds. If no doors or the
rear lid are opened during this time, the vehicle will subsequently become
locked automatically. 
Locking and unlocking the vehicle from the exterior
Fig. 17 Buttons on the
vehicle key
Fig. 18 Vehicle mechani-
cal key
Central locking
FunctionHandling the buttons
on the vehicle
⇒ Fig. 17Handling the vehicle key
⇒ Fig. 17 in the lock cylinder or
with the vehicle mechanical key
⇒ Fig. 18.
Unlocking the
vehicle.Press button .Insert the vehicle key into the
lock cylinder of the driver door
and turn the key
in an anticlock-
wise direction.
Locking the ve-
hicle.Press button .Insert the vehicle key into the
lock cylinder of the driver door
and turn the key
in a clockwise
direction. 

35
Unlocking and locking
FunctionHandling the buttons
on the vehicle
⇒ Fig. 17Handling the vehicle key
⇒ Fig. 17 in the lock cylinder or
with the vehicle mechanical key
⇒ Fig. 18.
Unlocking the
rear lid.Press button .Insert the vehicle key into the
lock cylinder of the driver door
and turn the key
in an anticlock-
wise direction.
Locking the rear
lid.Press button .Insert the vehicle key into the
lock cylinder of the driver door
and turn the key
in a clockwise
direction.
Attention: Depending on the operating of the central locking set by the Spe-
cialised workshop, in order to unlock all the doors and the rear lid, press
the button 
twice.
The vehicle key only locks and unlocks the vehicle if it is within range of the
vehicle and if the battery has enough power.
● Upon locking the vehicle, all turn signals will flash once in confirmation.
● Upon unlocking the vehicle, all turn signals will flash twice in confirma-
tion.
If the turn signals do not flash in confirmation, at least one of the doors or
the rear lid has been left unlocked.
If the driver door is open, the vehicle cannot be locked with the key. If you
unlock the vehicle without opening any doors or the rear lid, it will lock
again automatically after a few seconds. This function prevents the vehicle
from remaining unlocked if the unlocking button is pressed by mistake. Mechanical locking
FunctionHandling the vehicle mechanical key
⇒ Fig. 18
in the lock cylinder.
Locking the driver door
manually.
To unlock, insert the vehicle key into the lock cyl-
inder of the driver door and turn the key in an
anticlockwise direction.
To lock, insert the vehicle key into the lock cylin-
der of the driver door and turn the key in a clock-
wise direction.
Locking and unlocking
the rear lid.
To unlock, insert the vehicle key into the lock cyl-
inder of the driver door and turn the key in an
anticlockwise direction.
To lock, insert the vehicle key into the lock cylin-
der of the driver door and turn the key in a clock-
wise direction.
If the driver door is open, the vehicle cannot be locked with the vehicle key. 
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical Data

43

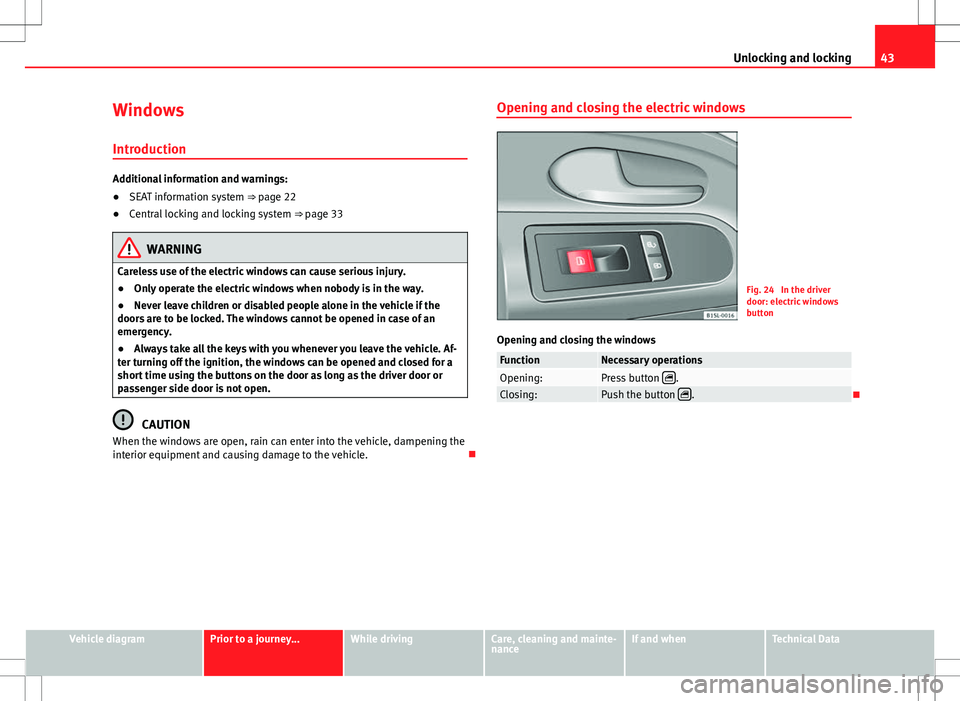

Unlocking and locking
Windows Introduction
Additional information and warnings:
● SEAT information system ⇒  page 22
● Central locking and locking system ⇒ page 33
WARNING
Careless use of the electric windows can cause serious injury.
● Only operate the electric windows when nobody is in the way.
● Never leave children or disabled people alone in the vehicle if the
doors are to be locked. The windows cannot be opened in case of an
emergency.
● Always take all the keys with you whenever you leave the vehicle. Af-
ter turning off the ignition, the windows can be opened and closed for a
short time using the buttons on the door as long as the driver door or
passenger side door is not open.
CAUTION
When the windows are open, rain can enter into the vehicle, dampening the
interior equipment and causing damage to the vehicle. Opening and closing the electric windows
Fig. 24 In the driver
door: electric windows
button
Opening and closing the windows
FunctionNecessary operationsOpening:Press button .Closing:Push the button .
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical Data

153
Driver assistance systems
Cruise control system operation
Fig. 95 Turn signal and
main beam headlights
lever on the left of the
steering column: CCS
buttons and controls
FunctionControl position, control
operations ⇒ Fig. 95Action
Switching on the
cruise control sys-
tem.Control B in the position
.
The system is switched on.
After switching on, no
speeds are stored and no
regulator has yet been
placed.
Switching on the
cruise control sys-
tem.Press button A in the
area .The current speed is stor-
ed and maintained.
Temporarily
switching off the
cruise control sys-
tem.Place control B in the po-
sition  .
OR:. Press the brake or
clutch pedal.The cruise control system
is switched off temporari-
ly. The speed setting will
remain stored.
Switching the
speed setting
back on.Press button A in the
area  .The stored speed is
reached again and main-
tained.
FunctionControl position, control
operations ⇒ Fig. 95Action
Increasing the
stored speed (dur-
ing CCS setting).
Press the button A in the
area  briefly to in-
crease speed in shot
measures of about. 1 km/
h (1 mph) and store.
The vehicle accelerates ac-
tively until it reaches the
new stored speed.
Keep button A pressed in
the area  for a long
time to continually in-
crease speed until releas-
ing and storing.
Reducing the stor-
ed speed (during
CCS setting).
Press the button A in the
area  briefly to reduce
the stored speed in shot
measures of about. 1 km/
h (1 mph) and store.
Reduce speed without
braking, by interrupting
the accelerator until reach-
ing the new stored speed.
Keep button A pressed in
the area  for a long
time to continually de-
crease stored speed until
releasing and storing.
Switching off the
cruise control sys-
tem.Control B in the position
.The system is switched off.
The stored speed is de-
leted.
Travelling down hills with the CCS
When travelling down hills the CCS cannot maintain a constant speed. Slow
the vehicle down using the brake pedal and reduce gears if required.
Automatic off
The cruise control system (CCS) is switched off automatically or temporarily: 
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical Data

238Practical information
If and when
Practical information
Frequently asked questions
If you suspect that the vehicle has a fault or is damaged when using it, be-
fore consulting a SEAT dealership or a specialised workshop, carefully read
the following instructions. Similarly, the terms in the alphabetical index
“Things to note” or “Checklist” may be of help.
ProblemPossible causes,
among othersPossible solution
The engine does
not start.
The vehicle battery is
flat.– Carry out the jump start
⇒ page 273.
– Charge the battery
⇒ page 193.
You are using an incor-
rect vehicle key.Use the correct key
⇒ page 28.
The fuel tank level is
insufficient.Refuel ⇒ page 171.
The vehicle cannot
be locked or un-
locked with the
key.
– Vehicle key battery is
flat.
– Too far away from
the vehicle.
– Buttons pressed out-
side the radius of
reach.– Change the battery
⇒ page 28.
– Move closer to the vehicle.
– Synchronize the vehicle
key ⇒ page 28.
– Manually lock or unlock
the vehicle ⇒ page 243.
Unusual noises.
Engine cold, City Safe-
ty Assist system, steer-
ing column electronic
lock.See entry “Noises” in the de-
tailed alphabetical index.
ProblemPossible causes,
among othersPossible solution
Handling is
strange.
Assistance systems ac-
tive.See entry “Assistance sys-
tems” in the detailed alpha-
betical index.
You are using an incor-
rect tyre pressure.Check the tyre pressure
⇒ page 210.
Damage to the wheel
trims or tyres.
Inspect wheel trims and
tyres regularly for damage
⇒ page 210 and replace
them if necessary
⇒ page 250.
Vehicle has no
jack, spare wheel
or tire mobility set
present.Equipment subject to
the vehicle.
No direct solution, depends
on the equipment. In this
case, you should contact a
SEAT Dealership
⇒ page 246.
Surface not correct-
ly illuminated.
– Headlights covered
for driving on the left-
hand side or right-
hand side.
– Headlight adjust-
ment too high.
– Faulty bulbs.
– Dipped headlights
switched off.– Cover the headlights for
driving on the left-hand side
or right-hand side
⇒ page 84.
– Adjust the headlight range
⇒ page 84.
– Change the bulbs
⇒ page 264.
– Switch on the dipped
headlights ⇒ page 84. 

Driving abroadCheck list . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Driving advice Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . 217
Temporary spare wheel . . . . . . . . . . . . . . . 217
Driving in winter Fuel consumption . . . . . . . . . . . . . . . . . . . . 146
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . 220
Tread depth . . . . . . . . . . . . . . . . . . . . . . . . . 216
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . 214
Windscreen washer bottle . . . . . . . . . . . . . 200
Driving through water . . . . . . . . . . . . . . . . . . . . 27
Driving tips Driving a loaded vehicle . . . . . . . . . . . . . . . 97
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
E
Ecological driving . . . . . . . . . . . . . . . . . . . . . . . 144
Economic driving . . . . . . . . . . . . . . . . . . . . . . . 144
EDL See "Brake assist systems" . . . . . . . . . . . . 140
Electrical components . . . . . . . . . . . . . . . 117, 241
Electrical consumers . . . . . . . . . . . . . . . . . . . . 118
Electrical power socket . . . . . . . . . . . . . . . . . . 117
Electric windows Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
see Windows . . . . . . . . . . . . . . . . . . . . . . . . 43
Electronic differential lock system (EDL) . . . . 140 Electronic immobilizer . . . . . . . . . . . . . . . . . . . 122
Electronic Stability Control (ESC) . . . . . . . . . . 139
Emergency brake indicator . . . . . . . . . . . . . . . 241
Emergency locking and unlocking . . . . . . . . . 243
Driver door . . . . . . . . . . . . . . . . . . . . . . . . . 243
Passenger door . . . . . . . . . . . . . . . . . . . . . 244
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Emission control system Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 236
Engaging gears Automatic gearbox . . . . . . . . . . . . . . . . . . . 129
Manual gearbox . . . . . . . . . . . . . . . . . . . . . 128
Engine Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Running-in . . . . . . . . . . . . . . . . . . . . . . . . . 223
Engine and ignition . . . . . . . . . . . . . . . . . . . . . 119 12 Volt sockets . . . . . . . . . . . . . . . . . . . . . . 117
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . 120
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . 122
Starting the engine . . . . . . . . . . . . . . . . . . 121
Stopping the engine . . . . . . . . . . . . . . . . . 122
Unauthorised vehicle key . . . . . . . . . . . . . 120
Engine compartment . . . . . . . . . . . . . . . . . . . . 180 Engine coolant . . . . . . . . . . . . . . . . . . . . . . 189
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . 182
Vehicle battery . . . . . . . . . . . . . . . . . . . . . . 193
Water box . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . 189 Checking the level . . . . . . . . . . . . . . . . . . . 191
Filler mouth . . . . . . . . . . . . . . . . . . . . . . . . . 191
G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . 190
G 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 Refilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Specifications . . . . . . . . . . . . . . . . . . . . . . . 190
Temperature gauge . . . . . . . . . . . . . . . . . . 189
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 189
Engine management . . . . . . . . . . . . . . . . . . . . 236 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 236
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185 changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Checking the oil level . . . . . . . . . . . . . . . . . 186
Consumption . . . . . . . . . . . . . . . . . . . . . . . 187
Dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Filler mouth . . . . . . . . . . . . . . . . . . . . . . . . . 186
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Specifications . . . . . . . . . . . . . . . . . . . . . . . 185
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . 186
Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139 see Electronic Stability Control (ESC) . . . . 139
Event Data Recorder . . . . . . . . . . . . . . . . . . . . . 227
Exhaust gas purification system . . . . . . . . . . . 236
Exterior aerial . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 95 Controlling function . . . . . . . . . . . . . . . . . . . 96
folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Vehicle care . . . . . . . . . . . . . . . . . . . . . . . . 200
Exterior views . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
F
FAQs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Fault Parking distance warning system . . . . . . . 150
295
Index
