Emergencies
Fire extinguisher
A fire extinguisher can be stored in a holder
in the passenger seat footwell.
The fire extinguisher must conform to legal
requirements, be ready for use and be
checked regularly. Check the certification
seal on the extinguisher. WARNING
Loose objects in the vehicle interior can be vi-
olently thrown in case of a sudden manoeu-
vre or braking and especially in accidents
causing serious injury.
● Secure or store fire extinguishers, first aid
kit, reflective vests and warning triangle se-
curely in the vehicle. Protecting yourself and securing the
vehicle
Fig. 121
Dash panel: Button for switching the
hazard lights warning system on and off. Always fulfil legal requirements for securing a
broken down vehicle. In a number of coun-
tries it is now obligatory, for example, to turn
on the hazard warning lights and use a re-
flective safety vest
››› page 170.
For your own safety and that of other passen-
gers, the following points should be ob-
served in the order given:
Park the vehicle a safe distance from
traffic and on suitable ground ››› .
Turn on the hazard warning lights with
the button 
››› Fig. 121.
Apply the handbrake firmly ››› page 89.
Put the gearbox lever in neutral or the
selector lever in position N ››› page 93.
1.
2.
3.
4. Switch off the engine and remove the
key from the ignition.
Have all occupants leave the vehicle and
move to safety, for example behind a
guard rail.
When leaving the vehicle, take all keys
with you.
Place an emergency warning triangle to
indicate the position of your vehicle to
other road users.
Allow the engine to cool and check if a
specialist is required.
When being towed with the hazard warning
lights on, a change in direction or traffic lane
can be indicated as usual using the turn sig-
nal lever. The hazard lights will be interrup-
ted temporarily.
Examples of when to use the hazard warning
lights:
● If the vehicles ahead suddenly slow down
or reach the end of a traffic jam, to warn the
vehicles behind.
● In case of an emergency.
● If the vehicle breaks down.
● When tow-starting or towing.
Always comply with the applicable laws re-
garding the use of hazard warning lights.
If the hazard warning lights are not working,
you must use an alternative method of »
5.
6.
7.
8.
9.
171Technical specifications
Advice
Operation
Safety

Emergencies
Connect the battery clamps so they have
good metal-to-metal contact with the battery
terminals.
If the engine fails to start, switch off the start-
er after about 10 seconds and try again after
about 1 minute. WARNING
● Please note the safety warnings referring to
working in the engine compartment
››› page 143.
● The b att
ery providing assistance must have
the same voltage as the flat battery (12V) and
approximately the same capacity (see imprint
on battery). Failure to comply could result in
an explosion.
● Never use jump leads when one of the bat-
teries is frozen. Danger of explosion! Even af-
ter the battery has thawed, battery acid could
leak and cause chemical burns. If a battery
freezes, it should be replaced.
● Keep sparks, flames and lighted cigarettes
away from batteries, danger of explosion.
Failure to comply could result in an explo-
sion.
● Observe the instructions provided by the
manufacturer of the jump leads.
● Do not connect the negative cable from the
other vehicle directly to the negative terminal
of the flat battery. The gas emitted from the
battery could be ignited by sparks. Danger of
explosion. ●
Do not attach the negative cable from the
other vehicle to parts of the fuel system or to
the brake line.
● The non-insulated parts of the battery
clamps must not be allowed to touch. The
jump lead attached to the positive battery
terminal must not touch metal parts of the ve-
hicle, this can cause a short circuit.
● Position the leads in such a way that they
cannot come into contact with any moving
parts in the engine compartment.
● Do not lean on the batteries. This could re-
sult in chemical burns. Note
The vehicles must not touch each other, oth-
erwise electricity could flow as soon as the
positive terminals are connected. Towing and tow starting
Introduction When towing or tow starting, respect the le-
gal requirements.
For technical reasons, it is not possible to
tow a vehicle if the battery is flat. WARNING
A vehicle with a flat battery should never be
towed.
● Never remove the key from the ignition
lock. Otherwise, the steering wheel lock
could suddenly lock. The vehicle would not
be controlled and a serious accident could
ensue. WARNING
When towing the vehicle, the handling and
braking efficiency change considerably.
Please observe the following instructions to
minimise the risk of serious accidents and in-
jury:
● As the driver of the vehicle being towed:
– The brake must be depressed must hard-
er as the brake servo does not operate.
Always remain aware to avoid collision
with the towing vehicle.
– More strength is required at the steering
wheel as the power steering does not op-
erate when the engine is switched off.
● As the driver of the towing vehicle:
– Accelerate gently and carefully.
– Avoid sudden braking and manoeuvres.
– Brake well in advance than usual and
brake gently.
» 183
Technical specifications
Advice
Operation
Safety

Advice

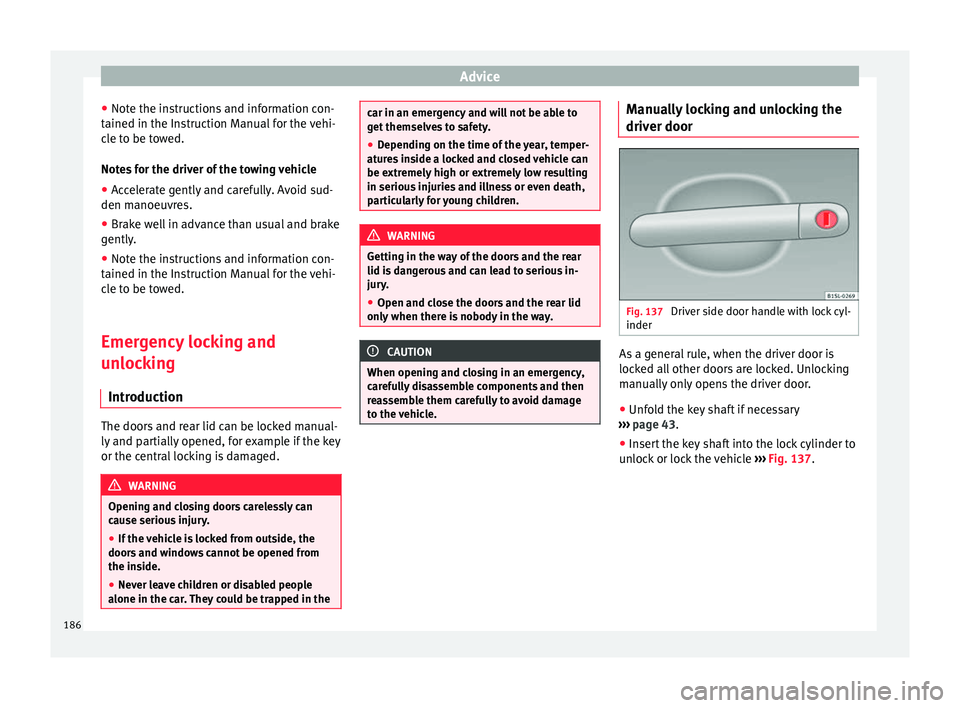

● Note the instructions and information con-
tained in the Instruction Manual for the vehi-
cle to be towed.
Notes for the driver of the towing vehicle
● Accelerate gently and carefully. Avoid sud-
den manoeuvres.
● Brake well in advance than usual and brake
gently.
● Note the instructions and information con-
tained in the Instruction Manual for the vehi-
cle to be towed.
Emergency locking and
unlocking
Introduction The doors and rear lid can be locked manual-
ly and partially opened, for example if the key
or the central locking is damaged.
WARNING
Opening and closing doors carelessly can
cause serious injury.
● If the vehicle is locked from outside, the
doors and windows cannot be opened from
the inside.
● Never leave children or disabled people
alone in the car. They could be trapped in the car in an emergency and will not be able to
get themselves to safety.
●
Depending on the time of the year, temper-
atures inside a locked and closed vehicle can
be extremely high or extremely low resulting
in serious injuries and illness or even death,
particularly for young children. WARNING
Getting in the way of the doors and the rear
lid is dangerous and can lead to serious in-
jury.
● Open and close the doors and the rear lid
only when there is nobody in the way. CAUTION
When opening and closing in an emergency,
carefully disassemble components and then
reassemble them carefully to avoid damage
to the vehicle. Manually locking and unlocking the
driver door
Fig. 137
Driver side door handle with lock cyl-
inder As a general rule, when the driver door is
locked all other doors are locked. Unlocking
manually only opens the driver door.
● Unfold the key shaft if necessary
››› page 43 .
● Inser
t the key shaft into the lock cylinder to
unlock or lock the vehicle ››› Fig. 137
.
186

Emergencies
Manually locking the passenger side
door Fig. 138
To the front of the passenger side
door: Emergency lock, hidden by a rubber
cap. Fig. 139
Emergency locking of the vehicle us-
ing the vehicle key The passenger door can be manually locked.
● Door open. ●
Remove the rubber cap to the front of the
door. The rubber cap is marked with a lock
symbol  ››› Fig. 138 .
● Unf o
ld the key shaft if necessary
››› page 43
.
● Insert the key shaft horizontally into the
opening and moved the coloured lever for-
ward ››› Fig. 139.
● Rep

lace the rubber cap and close the door.
● Check if the door is locked.
● Have the vehicle checked by a specialised
workshop. Note
The doors can be opened and unlocked indi-
vidually from the inside by pulling the inside
door handle. If necessary, pull the inner door
release lever twice ››› page 45. Emergency unlocking the rear lid
Fig. 140
From the luggage compartment:
Emergency unlocking of the booth hatch. ●
If necessary, fold the rear seat bench back-
rest forward ››› page 64 .
● Remo

ve equipment to access the inside of
the rear lid.
● Unfold the key shaft ››› page 43.
● Insert the key shaft into the rear lid open-
ing ››› Fig. 140 and press the release lever in
the direction of
the arrow to unlock the rear
lid.
187
Technical specifications
Advice
Operation
Safety

Fuses and bulbs
CAUTION
● Damaged or dirty windscreen wipers could
scratch the glass.
● If products containing solvents, rough
sponges or sharp objects are used to clean
the blades, the graphite layer will be dam-
aged.
● Never use fuel, nail varnish remover, paint
thinner or similar products to clean the win-
dows. Note
If wax deposits, other cleaning products from
the automatic car wash, or other care prod-
ucts, are left on the windscreen and the rear
window, the blades can scratch the glass. Re-
move wax deposits with a special product or
cleaning cloths. Fuses and bulbs
Fuses Introduction Due to the constant updating of vehicles,
fuse assignments based on equipment and
the use of the same fuse for various electrical
components, it is not possible to provide an
up-to-date summary of the fuse positions for
the electrical components at the time of
printing this manual. For detailed information
about the fuse positions, please consult a
technical service.
In general, a fuse can be assigned to various
electrical components. Likewise, an electrical
component can be protected by several
fuses.
Only replace fuses when the cause of the
problem has been solved. If a newly inserted
fuse blows after a short time, you must have
the electrical system checked by a special-
ised workshop as soon as possible.
WARNING
The high voltages in the electrical system can
give serious electrical shocks, causing burns
and even death!
● Never touch the electrical wiring of the igni-
tion system. ●
Take care not to cause short circuits in the
electrical system. WARNING
Using unsuitable fuses, repairing fuses or
bridging a current circuit without fuses can
cause a fire and serious injury.
● Never use a fuse with a higher value. Only
replace fuses with a fuse of the same amper-
age (same colour and markings) and size.
● Never repair a fuse.
● Never replace a fuse by a metal strip, staple
or similar. CAUTION
● To prevent damage to the vehicle's electric
system, before replacing a fuse always turn
off the ignition, the lights and all electrical
elements and remove the key from the igni-
tion.
● If you replace a fuse with higher-rating
fuse, you could cause damage to another part
of the electrical system.
● Protect the fuse boxes when open to pre-
vent the entry of dust or humidity as they can
damage the electrical system. Note
One component may have more than one
fuse. » 189Technical specifications
Advice
Operation
Safety

Advice
CAUTION
● After changing a bulb, if the rubber covers
are not replaced correctly on the headlamp
framework, the electrical installation may be damaged, especially if water is allowed to en-
ter.
● Remove the ignition key before working on
the electric system. Otherwise, a short circuit could occur. ●
Switch off the lights and the parking light
before changing a bulb.
● Take good care to avoid damaging any com-
ponents. Replacing the bulbs in the headlights
Fig. 146
In the engine compartment: Rear view of
the front left headlight with rubber cover: A dip-
ped beam and main beam headlights, B side
lights and daytime driving lights and C turn sig-
nal There is no need to remove the headlight to
replace bulbs.Complete operations only in the sequence given:
Fig. 146ABC
Dipped beam and main beam headlightsSide light and daytime driving lightTurn signals (front)
1.Open the bonnet 
››› page 143.
2.
Remove the bulb connector H4. Remove the rubber cover using
the tabs.Turn the bulb holder in an anticlockwise direction as far as it will go and remove it, along with the bulb, pulling backwards.Press the retaining clip D downwards in the direction of the ar-
row, and unclip sideways and remove it. 192

Index
Index
A
Abroad Extended stay abroad with your vehicle . . . . . 135
Sale of vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 135
ABS See "Brake assist systems" . . . . . . . . . . . . . . . 104
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Additional equipment . . . . . . . . . . . . . . . . . . . . . 119
Adjust Headlight range . . . . . . . . . . . . . . . . . . . . . . . . . 58
Adjustment Correct sitting position . . . . . . . . . . . . . . . . . . . . . 6
Front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
rear head restraints . . . . . . . . . . . . . . . . . . . . . . . 9
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Airbags description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 21 activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Cleaning dash panel . . . . . . . . . . . . . . . . . . . . 133
Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Deactivating the front passenger front airbag . 24
Deactivating using the key switch . . . . . . . . . . . 24
Differences between front passenger front air-bag systems . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
functioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Locking the vehicle after airbag deployment . . 46
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Use of child seats . . . . . . . . . . . . . . . . . . . . . . . . 24
Vehicle care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133 Air conditioner
Air recirculation . . . . . . . . . . . . . . . . . . . . . . . . . 84
Air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Things to note . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
User instructions . . . . . . . . . . . . . . . . . . . . . . . . 82
Air conditioning system . . . . . . . . . . . . . . . . . . . . . 80 Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Air recirculation . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 How it works . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
switch off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
temporarily switch off . . . . . . . . . . . . . . . . . . . . . 84
Air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Alternator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Aluminium care . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Anodized surfaces . . . . . . . . . . . . . . . . . . . . . . . . 129
Anti-lock brake system (ABS) . . . . . . . . . . . . . . . 104
Anti-theft bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Anti-theft locking bolts . . . . . . . . . . . . . . . . . . . . 174
Anti-theft wheel locking bolts . . . . . . . . . . . . . . . 175
Antifreeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Aspects to take into account before starting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ASR see Brake assist systems . . . . . . . . . . . . . . . . . 104
Assistance systems Brake assist system (BAS) . . . . . . . . . . . . . . . . 104
Cruise control system (CCS) . . . . . . . . . . . . . . . 107
Electronic differential lock system (EDL) . . . . . 104
Electronic stability control (ESC) . . . . . . . . . . . 103
Optical parking system (OPS) . . . . . . . . . . . . . 107
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Parking distance warning system . . . . . . . . . . 106
Safety Assist (City Safety Assist function) . . . . 110
Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 Traction control system (ASR) . . . . . . . . . . . . . 104
Traction Control (TC) . . . . . . . . . . . . . . . . . . . . . 104
Assist systems Anti-lock brake system (ABS) . . . . . . . . . . . . . . 104
Audible warnings Control and warning lamps . . . . . . . . . . . . . . . . 39
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Seat belt not fastened . . . . . . . . . . . . . . . . . . . . 12
Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Automatic belt retainer . . . . . . . . . . . . . . . . . . . . . 16
Automatic car wash . . . . . . . . . . . . . . . . . . . . . . . 126
Automatic device disconnection . . . . . . . . . . . . . 157
automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 93
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 95 driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Ignition key removal lock . . . . . . . . . . . . . . . . . . 87
Kickdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
starting on a slope . . . . . . . . . . . . . . . . . . . . . . . 97
stopping on a slope . . . . . . . . . . . . . . . . . . . . . . 97
Axle loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
B BAS see Brake assist systems . . . . . . . . . . . . . . . . . 104
Battery Change in the vehicle key . . . . . . . . . . . . . . . . . 44
Discharging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
drains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
See Vehicle battery . . . . . . . . . . . . . . . . . . . . . . 154
Battery acid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Before starting the vehicle . . . . . . . . . . . . . . . . . . . 5
Belt tensioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Service and disposal . . . . . . . . . . . . . . . . . . . . . 17
Belt tension limiter . . . . . . . . . . . . . . . . . . . . . . . . . 16
Bench . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
205

Index
Cleaning dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Engine compartment . . . . . . . . . . . . . . . . . . . . 131
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
See "Care of your vehicle" . . . . . . . . . . . . . . . . 125
wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Windscreen wiper blades . . . . . . . . . . . . . . . . . 188
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Closing Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
from the exterior . . . . . . . . . . . . . . . . . . . . . . . . . 46
from the inside . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Sliding/tilting electric panoramic sunroof . . . . 53
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Code number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Collection of end-of-life vehicles . . . . . . . . . . . . . 136
Compartments boot variable floor . . . . . . . . . . . . . . . . . . . . . . . 76
Centre console . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Glove compartment . . . . . . . . . . . . . . . . . . . 68, 69
Other storage compartments . . . . . . . . . . . . . . . 70
Passenger side . . . . . . . . . . . . . . . . . . . . . . . 68, 69
Sunglasses storage compartment . . . . . . . . . . . 68
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Conformity certification . . . . . . . . . . . . . . . . . . . . 136
Consumption How it is determined . . . . . . . . . . . . . . . . . . . . 198
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
control lamp on the driver door . . . . . . . . . . . . . . . . . . . . . . . . 49
Vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Control lamp Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Brake pad wear warning . . . . . . . . . . . . . . . . . . 89 Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . 101
Checking the engine oil level . . . . . . . . . . . . . 147
City Safety Assist function . . . . . . . . . . . . . . . . 111
Cruise control system (CCS) . . . . . . . . . . . . . . . 108
Emission control system . . . . . . . . . . . . . . . . . 101
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . 150
Engine management . . . . . . . . . . . . . . . . . . . . 101
Engine oil sensor . . . . . . . . . . . . . . . . . . . . . . . 147
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Hill hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Steering column lock . . . . . . . . . . . . . . . . . . . . . 85
Control lamps Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Controlling function Electric exterior mirrors . . . . . . . . . . . . . . . . . . . 63
Control units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121 Reprogramming . . . . . . . . . . . . . . . . . . . . . . . . 121
Convenience functions Reprogramming . . . . . . . . . . . . . . . . . . . . . . . . 121
Coolant See engine coolant . . . . . . . . . . . . . . . . . . . . . . 150
Correct sitting position for vehicle occupants . . . . 6
Crossing a river Salt water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Cruise control system . . . . . . . . . . . . . . . . . . . . . . 107
Cruise control system (CCS) Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Curb weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
D Damaged tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Dangers in not using the seat belt . . . . . . . . . . . . 14 Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Airbag system . . . . . . . . . . . . . . . . . . . . . . 21, 133
Data link connector (DLC) . . . . . . . . . . . . . . . . . . 122
Data registry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Data storage during the journey . . . . . . . . . . . . . 121
Data stored by the control units . . . . . . . . . . . . . 121
Daytime driving light . . . . . . . . . . . . . . . . . . . . . . . 57
De-icing the door lock cylinder . . . . . . . . . . . . . . 130
De-icing the locks . . . . . . . . . . . . . . . . . . . . . . . . . 130
Deadlock "Safe" security system . . . . . . . . . . . . . . . . . . . . 48
Device disconnection . . . . . . . . . . . . . . . . . . . . . . 157
Diagnostics connection . . . . . . . . . . . . . . . . . . . . 122
Differential lock See "Brake assist systems" . . . . . . . . . . . . . . . 104
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Dipped beam headlights . . . . . . . . . . . . . . . . . . . . 56
Dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . 37
Disposal Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Belt tensioner . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
End-of-life vehicle . . . . . . . . . . . . . . . . . . . . . . . 136
Door release lever interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Childproof locks . . . . . . . . . . . . . . . . . . . . . . . . . 50
Emergency locking and unlocking . . . . . . . . . . 186
Drink holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Centre console . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Drinks bottles see Drink holders . . . . . . . . . . . . . . . . . . . . . . . . 70
Driving Data storage . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . 102
207

Index
Driving through water . . . . . . . . . . . . . . . . . . . 103
Driving with an automatic gearbox . . . . . . . . . . 96
Ecological . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Economical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Fuel level too low . . . . . . . . . . . . . . . . . . . . . . . 141
Parking downhill . . . . . . . . . . . . . . . . . . . . . . . . . 91
Parking uphill . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
starting on a slope . . . . . . . . . . . . . . . . . . . . . . . 97
stopping on a slope . . . . . . . . . . . . . . . . . . . . . . 97
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Driving abroad Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Driving advice Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Temporary spare wheel . . . . . . . . . . . . . . . . . . 165
Driving in winter Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . 101
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Tread depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Windscreen washer bottle . . . . . . . . . . . . . . . . 129
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Driving through water . . . . . . . . . . . . . . . . . . . . . 103
Driving tips For a loaded vehicle . . . . . . . . . . . . . . . . . . . . . . 65
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
E Ecological driving . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Economical driving . . . . . . . . . . . . . . . . . . . . . . . . . 99
EDL See "Brake assist systems" . . . . . . . . . . . . . . . 104
electrical devices . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Electrical devices . . . . . . . . . . . . . . . . . . . . . 73, 172 Electric windows
Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
see Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Electronic differential lock system (EDL) . . . . . . 104
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . 88
Electronic stability control (ESC) . . . . . . . . . . . . . 103
Emergency brake indicator . . . . . . . . . . . . . . . . . 172
Emergency locking and unlocking . . . . . . . . . . . 186 Driver door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Passenger door . . . . . . . . . . . . . . . . . . . . . . . . . 187
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Emission control system Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Engaging gears Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . 95
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 94
Engine Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Running-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Engine and ignition . . . . . . . . . . . . . . . . . . . . . . . . 86 12 Volt sockets . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Starting the engine . . . . . . . . . . . . . . . . . . . . . . 87
Stopping the engine . . . . . . . . . . . . . . . . . . . . . . 88
Unauthorised vehicle key . . . . . . . . . . . . . . . . . 86
Engine compartment . . . . . . . . . . . . . . . . . . . . . . 143 Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . 150
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Vehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . 154
Water box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 Checking the level . . . . . . . . . . . . . . . . . . . . . . 151
Filler neck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . . . 150 G 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Refilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Temperature gauge . . . . . . . . . . . . . . . . . . . . . 150
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Engine management . . . . . . . . . . . . . . . . . . . . . . 101 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146 changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Checking the oil level . . . . . . . . . . . . . . . . . . . . 148
Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Filler neck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Environment Environmental friendliness . . . . . . . . . . . . . . . . 99
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Event Data Recorder . . . . . . . . . . . . . . . . . . . . . . . 121
Exhaust gas purification system . . . . . . . . . . . . . 101
Exterior aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Controlling function . . . . . . . . . . . . . . . . . . . . . . 63
folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Vehicle care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
F Fastening seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Fault Parking distance warning system . . . . . . . . . . 106
Fault memory Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Faults Air conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . 83
208

Index
Filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . . . 139 At the filling station . . . . . . . . . . . . . . . . . . . . . 137
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . . . 171
First-aid kit Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
First aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 see First aid kit . . . . . . . . . . . . . . . . . . . . . . . . . 170
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Fluids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Front airbags See "Airbag system" . . . . . . . . . . . . . . . . . . . . . . 21
Front passenger airbag See "Airbag system" . . . . . . . . . . . . . . . . . . . . . . 21
Front passenger front airbag Deactivating using the key switch . . . . . . . . . . . 24
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137 Information on consumption . . . . . . . . . . . . . . 198
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Type of fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Fuel consumption Economical driving . . . . . . . . . . . . . . . . . . . . . . . 99
¿Why does it increase? . . . . . . . . . . . . . . . . . . . 102
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Fuel tank flap close . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
open . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189 Fuse box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Identifying blown fuses . . . . . . . . . . . . . . . . . . 191
Identifying by colours . . . . . . . . . . . . . . . . . . . . 190
Preparation before replacing . . . . . . . . . . . . . . 191
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 191 G
Glove compartment
see Compartments . . . . . . . . . . . . . . . . . . . . 68, 69
H Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Hazard warning lights . . . . . . . . . . . . . . . . . . . . . 171
Head-on collisions and the laws of physics . . . . . 14
Headlamp range adjustment . . . . . . . . . . . . . . . . . 35
Headlight range control . . . . . . . . . . . . . . . . . . . . . 58
Headlights Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Headlight washers . . . . . . . . . . . . . . . . . . . . . . . 61
Heated rear window . . . . . . . . . . . . . . . . . . . . . . . . 82
Heated seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Heating and ventilation system Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
See also Air conditioning system . . . . . . . . . . . 80
High pressure cleaning apparatus . . . . . . . . . . . 127
Hill driving assistant . . . . . . . . . . . . . . . . . . . . . . 114
Hill hold Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Start-Stop system . . . . . . . . . . . . . . . . . . . . . . . 115
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
I Identification number . . . . . . . . . . . . . . . . . . . . . 197
Identification plate . . . . . . . . . . . . . . . . . . . . . . . . 197
Ignition See "Engine and ignition" . . . . . . . . . . . . . . . . . 86
Ignition key see vehicle key . . . . . . . . . . . . . . . . . . . . . . . 43, 44
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 Key removal lock . . . . . . . . . . . . . . . . . . . . . . . . . 87
Unauthorised vehicle key . . . . . . . . . . . . . . . . . 86 Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Immobilizer
Operating fault . . . . . . . . . . . . . . . . . . . . . . . . . . 86
In case of a breakdown Securing the vehicle . . . . . . . . . . . . . . . . . . . . . 171
In case of an emergency Hazard warning lights . . . . . . . . . . . . . . . . . . . 171
In case of a breakdown . . . . . . . . . . . . . . . . . . 171
Protecting yourself and securing the vehicle . 171
In case of emergency . . . . . . . . . . . . . . . . . . . . . . 170
Information on consumption . . . . . . . . . . . . . . . . 198
InSP Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Instrument panel Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Display control functions . . . . . . . . . . . . . . . . . . 41
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Service interval display . . . . . . . . . . . . . . . . . . . 38
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
In the event of an emergency Fire extinguishers . . . . . . . . . . . . . . . . . . . . . . . 170
First aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Warning triangle . . . . . . . . . . . . . . . . . . . . . . . . 170
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 see Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
J Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174 Raising the vehicle . . . . . . . . . . . . . . . . . . . . . . 177
K key see vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . 44
209
