The essentials
Securing the child seat with the lower anchor points (ISOFIX) Fig. 26
On the vehicle seat: identification var-
iants of
the anchor points for the child seats Each seat of the rear seat bench has
two r
e-
tainers named lower anchor points.
Overview of ISOFIX installation
In compliance with European directive
ECE 16, The following table details the instal-
lation possibilities for ISOFIX child seats with
the lower anchor points in each of the vehicle
seats.
The permitted body weight for the child seat
or information regarding size A to G is indica- ted on the label on the child seat with “uni-
vers
al” or “semi-universal” certification.

Group (weight category)
Group 0: up to 10 kgGroup 0: up to 10 kgGroup 1: 9 to 18 kgGroup 0+: up to 13 kg
Installation directionfacing backwards
(in the direction opposite to travel)facing backwards
(in the direction opposite to travel)facing backwards
(in the direction opposite to trav- el)facing forwards
(in the direction of travel)
SizeFGCDECDABB1
installed on front passenger seatSeat does not have anchor points, ISOFIX securing is not possible
Installed on the rear seat benchIL-SUIL-SUIL-SUIUF/IL-SU IL-SU: se
at suitable for installing an ISOFIX
c hi

ld seat with certification “semi-universal”,
take note of the list of vehicles of the manu-
facturer of the child seat. IUF: seat suitable for the installation of an
ISOFIX c
hild seat with certification “univer-
sal” and with Top Tether retaining strap. Child seats with rigid mounting
For the ins
tallation of a child seat with rigid
mounting auxiliary introduction elements can
be used. These elements facilitate fitting and
protect the upholstery. They form part of the » 19

The essentials
supply volume of the child seat or can be ac-
quir ed at
a
SEAT dealership. If necessary,
these elements are inserted in both anchor
points of the vehicle ››› in Safety instruc-
tion s on p
ag

e 65.
● Observe the manufacturer's instructions
when inst
alling and removing the child seat
››› in Safety instructions on page 65.
● Press the child seat onto the retaining rings
› ›
›

Fig. 26 in the direction of the arrow. The
child seat must be safely engaged and click
audibly into place.
● Pull on both sides of the child seat to en-
sure th
at it is secure.
Child seat with adjustable retaining straps
● Observe the manufacturer's instructions
when inst
alling and removing the child seat
››› in Safety instructions on page 65.
● Place the child seat on the seat cushion
and att ac
h the r

etaining strap hooks to the
retaining rings ››› Fig. 26.
● Tighten the straps evenly using the corre-
sponding a
djustment device. The child seat
must sit flush against the vehicle seat.
● Pull on both sides of the child seat to en-
sure th
at it is secure.


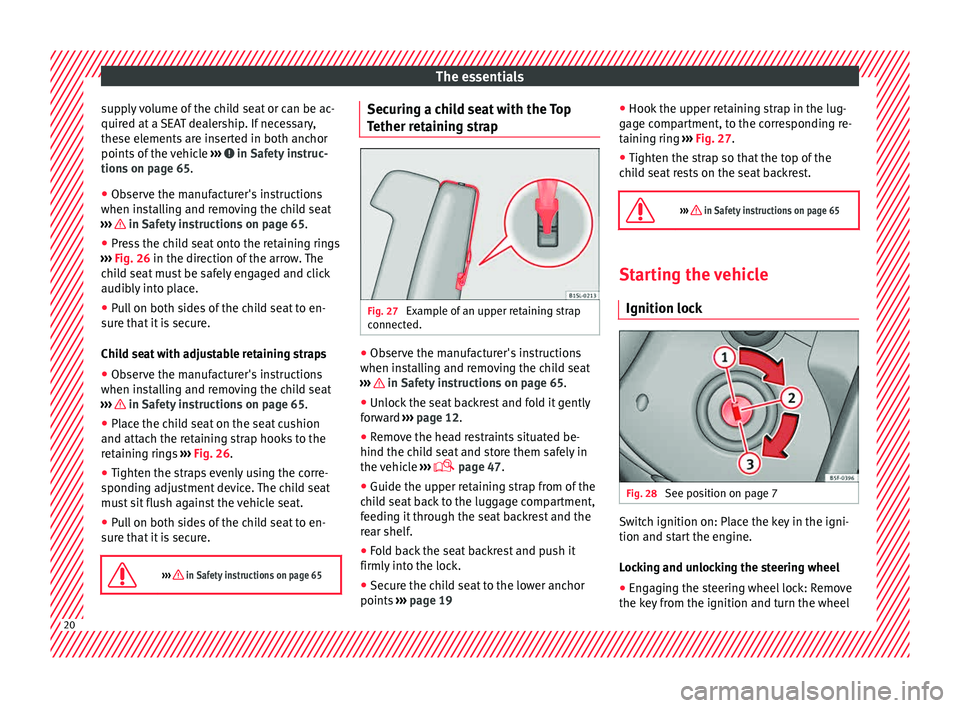

››› in Safety instructions on page 65 Securing a child seat with the Top
T
ether r
et

aining strap Fig. 27
Example of an upper retaining strap
c onnect
ed. ●
Observe the manufacturer's instructions
when in s
t

alling and removing the child seat
››› in Safety instructions on page 65.
● Unlock the seat backrest and fold it gently
f or
w

ard ››› page 12.
● Remove the head restraints situated be-
hind the chil
d seat and store them safely in
the vehicle ›››
 page 47.
● Guide the upper retaining strap from of the
chil
d seat back to the luggage compartment,
feeding it through the seat backrest and the
rear shelf.
● Fold back the seat backrest and push it
firmly int
o the lock.
● Secure the child seat to the lower anchor
points ››

› page 19 ●
Hook the upper r
etaining strap in the lug-
gage compartment, to the corresponding re-
taining ring ››› Fig. 27.
● Tighten the strap so that the top of the
chil
d seat rests on the seat backrest.

››› in Safety instructions on page 65 Starting the vehicle
Ignition lock Fig. 28
See position on page 7 Switch ignition on: Place the key in the igni-
tion and s
t
ar

t the engine.
Locking and unlocking the steering wheel
● Engaging the steering wheel lock: Remove
the key fr
om the ignition and turn the wheel20

The essentials
until it locks. In vehicles with an automatic
g e
arbo
x, the gear lever must be in the P posi-
tion in order to remove the key. If necessary,
press the locking key on the selector lever
and release it again.
● Unlocking the steering wheel: Put the key
into the ignition and turn it
at the same time
as the steering wheel in the direction indica-
ted by the arrow. If it is not possible to turn
the steering wheel, it may be because it is
locked.
Turning on/switching off the ignition, glow
plugs reheating
● Switch ignition on: Turn the key to the 2position.
●
Switch ignition off. Turn the key to the 1position.
●
Diesel vehicles : The glo
w p
lugs reheat
when the ignition is switched on
Starting the engine
● Manual gearbox: press the clutch pedal all
the way
down and move the gearbox lever in-
to neutral.
● Automatic gearbox: Press the brake pedal
and move the sel
ector lever to the P position
or into N.
● Turn the key to the 3 position. The key au-
t om
atic

ally returns to the 2 position. Do not
pr e
s
s the accelerator. Start-Stop System*
When you s

top and release the clutch pedal,
the Start-Stop system* turns off the engine.
The ignition remains switched on.

››› in Switching on the ignition and
starting the engine on page 130
››› page 130 Lights and visibility
Light sw
it

ch Fig. 29
See position on page 7 Turn the switch to the required position
› ›
›

Fig. 29.
Sym-
bolIgnition switched
offIgnition is
switched on 
Fog lights, dipped
beam and side lights
off.Light off or daytime
driving light on.

Side light on.

Dipped beam head-
light offDipped beam
switched on.

Front fog lights: mov
e the switch to the
first position, from positions  or  .
 Rear fog light: move the switch completely
from positions  or .
Switching off fog lights: Push the switch or
turn it to the  position.

››› in Switching lights on and off on
page 102
››› page 102 21

The essentials

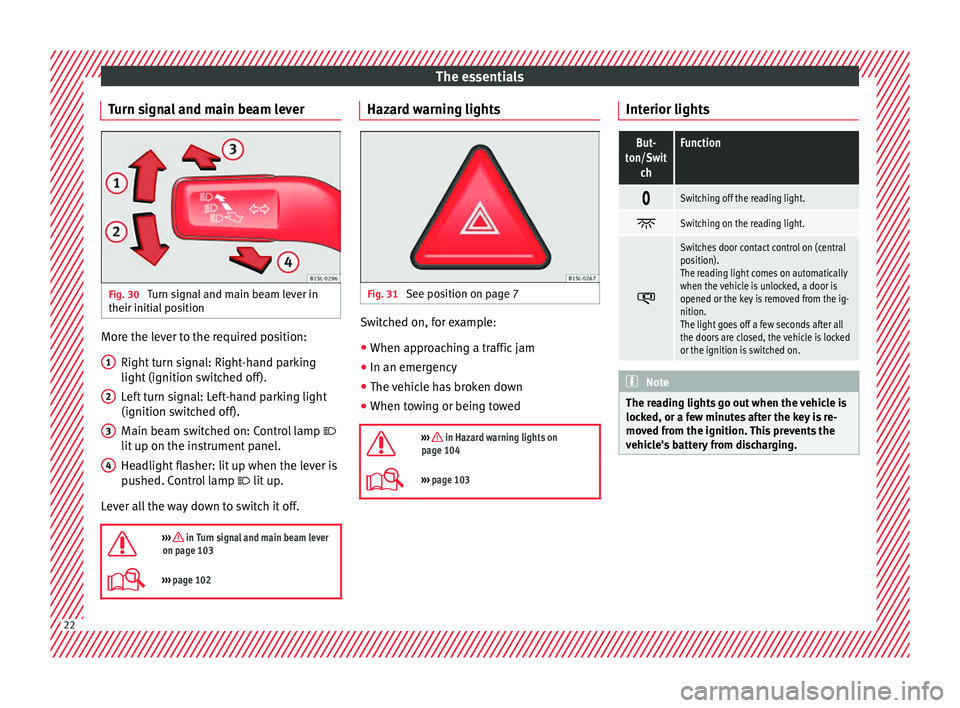

Turn signal and main beam lever Fig. 30
Turn signal and main beam lever in
their initi al
po
sition More the lever to the required position:
Right t
urn s

ignal: Right-hand parking
light (ignition switched off).
Left turn signal: Left-hand parking light
(ignition switched off).
Main beam switched on: Control lamp 
lit up on the instrument panel.
Headlight flasher: lit up when the lever is
pushed. Control lamp  lit up.
Lever all the way down to switch it off.

››› in Turn signal and main beam lever
on page 103
››› page 102 1
2
3
4 Hazard warning lights
Fig. 31
See position on page 7 Switched on, for example:
● When approaching a traffic jam
● In an emergency
● The vehicle has broken down
● When towing or being towed

››› in Hazard warning lights on
page 104
››› page 103 Interior lights
But-
ton/Swit chFunction 
Switching off the reading light.

Switching on the reading light.

Switches door contact control on (central
position).
The reading light comes on automatically
when the vehicle is unlocked, a door is
opened or the key is removed from the ig-
nition.
The light goes off a few seconds after all
the doors are closed, the vehicle is locked
or the ignition is switched on.
Note
The reading lights go out when the vehicle is
lock ed, or a f

ew minutes after the key is re-
moved from the ignition. This prevents the
vehicle's battery from discharging. 22

The essentials
Windscreen wipers and window wiper
b l
a
de Fig. 32
Operating the windscreen wiper and
r e
ar w

iper
More the lever to the required position:
0 Windscreen wiper off.
1
Windscreen interval wipe.
2
Slow wipe.
3
Continuous wipe.
4
Brief wipe - short wipe. Hold the lever
down for more time to increase the wipe
frequency.
5
Automatic wipe for cleaning wind-
screens with the lever up.
6
Interval wipe for rear window. The wiper
will wipe the window approximately ev-
ery six seconds.
More the lever to the required position:
7 Automatic wipe for cleaning rear win-
dows with the lever pressed.

›››
page 106
››› page 44 SEAT information system
Intr oduction With the ignition switched on it is possible to
ac
c
e

ss different messages via the display on
the instrument panel display.
The number of messages displayed on the in-
strument panel display will vary according to
the vehicle electronics and equipment.
A specialised workshop will be able to pro-
gramme or modify additional functions, ac-
cording to the vehicle equipment. SEAT rec-
ommends taking your car in for technical
service. WARNING
Any distraction may lead to an accident, with
the risk of

injury. ●
Do not c on

sult the messages on the instru-
ment panel screen when driving. Note
On the screen of the SEAT Portable System
(s up p

lied by SEAT) ›››
 page 164 other
functions of the vehicle can be seen. Management of indications on the
dis
p

lay Fig. 33
Windscreen wiper lever: control but-
t on
s. Calling up options
● Switch the ignition on.
● If a message or vehicle symbol is dis-
p l
a

yed, press OK/RESET (
››
› Fig. 33 A ).
● Press the top or bottom part of the rocker
sw it
c

h ››› Fig. 33 B until the desired option
ap pe
ar
s. 23

The essentials
Multifunction display (MFI) The multifunction display (MFI) has two auto-
matic
memorie
s: 1 - Partial memory and 2 -
Total memory . The selected memory will be
shown in the lower right-hand corner of the
display.
With the ignition switched on, and memory 1 or
2 displayed, briefly press OK to change from
one memory to another.
1
Trip memo-
ry (for a
single jour-
ney).
The memory stores the values for the
journey and the consumption from
the moment the ignition is switched
on until it is switched off again.
If the journey is broken for more than
2 hours, the memory is automatically
erased. If the journey is continued in
less than 2 hours after the ignition is
switched off, the new data is added to
the data already stored in the memo-
ry.
2Total mem-
ory (for all
journeys).
The memory stores the values of any
number of journeys, until it counts a
total of 19 hours and 59 minutes of
driving, or 1999.9 km or miles of driv-
ing, depending on the type of instru-
ment panel fitted. On reaching either
of these limits, the memory is auto-
matically erased and starts to count
from 0 again. Possible displays
MenuFunction
TimeCurrent time in hours (h) and minutes
(min).
Journey du-
rationThis indicates the hours (h) and mi-
nutes (min) since the ignition was
switched on.
Current
fuel con-
sumptionThe current fuel consumption display
operates throughout the journey, in
l/100 km; with the engine running
and the vehicle stopped, in l/hour.
Average
fuel con-
sumptionAfter turning on the ignition, average
fuel consumption in litres/100 km will
be displayed after travelling about
100 metres. Otherwise horizontal
lines are displayed. The value shown
is updated approximately every 5 sec-
onds.
Operating rangeApproximate distance in km that can
still be travelled with the fuel remain-
ing in the tank, assuming the same
style of driving is maintained. This is
calculated using the current fuel con-
sumption.
Distance coveredDistance travelled, after ignition is
switched on, in km.
Average
speedThe average speed will be shown after
a distance of about 100 metres has
been travelled. Otherwise horizontal
lines are displayed. The value shown
is updated approximately every 5 sec-
onds.
MenuFunction
Digital
display of
speedCurrent speed displayed digitally.
Liquid coolant
temperature
digital
displayDigital display of the current tempera-
ture of the engine liquid coolant.
Warning at
--- km/hIf the stored speed is exceeded (be-
tween 30 - 250 km/h, or 18 -
155 mph), an audible warning is giv-
en together with a visual warning. Changing between display modes
● Press the rocker switch in the windscreen
w iper l
ev

er.
Storing a speed for the speed warning
● Select the display Speed warning at
--- km/h .
● Pre

ss OK on the windscreen wiper lever to
s t
or

e the current speed and switch off the
warning.
● In addition, set the required speed by
pres
sing the rocker switch on the windscreen
wiper lever or  or
 buttons on the multi-
f u
nction s

teering wheel for 5 seconds. Next,
press OK again or wait a few seconds. The
s peed i
s

stored and the warning activated.
● To switch off , pres
s OK . The stored speed is
del et
ed. 24

The essentials
Manually erasing memory 1 or 2
● Select the memory to be erased.
● Press and hold the eject button OK for ap-
pr o
x
imately 2 seconds. Note
On the screen of the SEAT Portable System
(sup p

lied by SEAT) ›››
 page 164 other
functions of the multifunction display can be
seen. Cruise control
Oper atin
g the c

ruise control system
(CCS)* Fig. 34
See position on page 7 ●
Switching on the CCS: Move switch
› ›
›

Fig. 34 1 to .
The system is on. If no s
peed h as been programmed, the system will
not contr
ol it.
● Activating the CCS: Press button ›››
Fig. 34
2 in the  ar
e
a. The current speed is
memorised and controlled.
● Temporarily switching off the CCS: Move
switc
h ››› Fig. 34 1 to 
 or push the
br ak
e. The cruise control system is switched
off temporarily.
● Reactivating the CCS: Press button
›››
Fig. 34 2 in 
. The memorised speed
i s
saved and controlled again.
● Increasing stored speed during CCS regula-
tion: pres
s button 2 in 

. The vehicle ac-
c
elerates until the new stored speed.
● Reducing stored speed during CCS regula-
tion: pres
s button 2 in  t
o lower the
s peed b
y 1 km/h (1 mph). Speed is reduced
until reaching the new stored speed.
● Switching off the CCS: Move switch
›››
Fig. 34 1 to .
The system is disconnec-
t ed and the memori
sed speed is deleted.

››› in Cruise control operation on
page 151
››› page 151 Warning lamps
On the in s
trument

panel The control and warning lamps are indicators
of w
arnin

gs, ››› , faults
››› or certain func-
tions. Some c
ontrol and warning lamps come
on when the ignition is switched on, and
switch off when the engine starts running, or
while driving.
When certain control and warning lamps are
lit, an audible warning is also heard.
SymbolMeaning ››› See 
Handbrake applied.
›››
page
132   Do not continue driving!
The brake fluid level is too low
or there is a fault in the brake
system. 
it lights up:
 Do not continue
driving!
The liquid coolant level is too
low,
the engine liquid coolant tem-
perature is too high or
there is a fault in the liquid cool-
ant system.
››› page
189
flashes: engine coolant system
faulty.››› page
189  
Do not continue driving!
Engine oil pressure too low.››› page
186» 25

The essentialsSymbolMeaning
››› See 
lights up or flashes:
 Do not
continue driving!
Fault in the steering.››› page
128 
On the instrument panel: driver
or passenger has not fastened
seat belt.
›››
page
51 
Instrument panel display: a pas-
senger in the rear seats has fas-
tened their seat belt.

A passenger in the rear seats
has not fastened their seat belt.›››
page
51 
Faulty generator.›››
page
193
Vehicles with the Start-Stop sys-
tem: it is necessary to start the
engine manually.››› page
156 
flashes in addition to the rest of
the segments of the fuel gauge:
Fuel tank almost empty.›››
page
180
SymbolMeaning ››› See 
flashes quickly:
the City Safety
Assist system function* brakes
automatically or has braked au-
tomatically. Or:
flashes slowly: City Safety Assist
function is not currently availa-
ble.
››› page
152  
The City Safety Assist* function
has been connected manually. It
switches off after 5 seconds.
 
flashes: The City Safety Assist*
function has been manually dis-
connected.


after the ignition is switched on:
indication that the end of the
period for an inspection to be
performed is approaching.››› page
86 
it lights up:
ESC* faulty or
switched off by the system. AL-
TERNATIVELY:
flashes: ESC* or ASR regulating.
››› page
132 it lights up:
Traction Control*
faulty or switched off by the sys-
tem. ALTERNATIVELY:
flashes: Traction Control* regu-
lator operating. 
ABS faulty or does not work.

Rear fog light switched on.›››
page
101
SymbolMeaning ››› See 
lights up or flashes:
fault in cat-
alytic converter.››› page
145 
Fault in engine management.

lights up or flashes:
fault in the
steering system.››› page
128 
Fuel tank almost empty.›››
page
180 
Fault in airbag system and seat
belt tensioners.›››
page
58 
it lights up:
the Start-Stop sys-
tem is enabled. ALTERNATIVELY:
flashes: the Start-Stop system is
not available.
››› page
156 
The Start-Stop system is ena-
bled but the engine cannot be
automatically stopped.

Tyre pressure* too low›››
page
203 
Left or right turn signal.›››
page
101
Hazard warning lights on.››› page
69 
Cruise control operating.›››
page
151 
Main beam on or flasher on.›››
page
101 
The natural gas engine coolant
temperature is too low.
26

The essentials
WARNING
If the warning lamps are ignored, the vehicle
ma y
stall in traffic, or may cause accidents
and severe injuries.
● Never ignore the warning lamps.
● Stop the vehicle safely as soon as possible.
● Park the vehicle away from traffic and en-
sure th
at there are no highly flammable ma-
terials under the vehicle that could come into
contact with the exhaust system (e.g. dry
grass, fuel).
● A faulty vehicle represents a risk of acci-
dent for the driv
er and for other road users. If
necessary, switch on the hazard warning
lamps and put out the warning triangle to ad-
vise other drivers.
● Before opening the bonnet, switch off the
engine and al
low it to cool.
● In any vehicle, the engine compartment is a
hazar
dous area and could cause severe inju-
ries ›››
 page 184. CAUTION
Failure to heed the warning lamps when they
appe ar m

ay result in faults in the vehicle. Gearbox lever
M anua
l

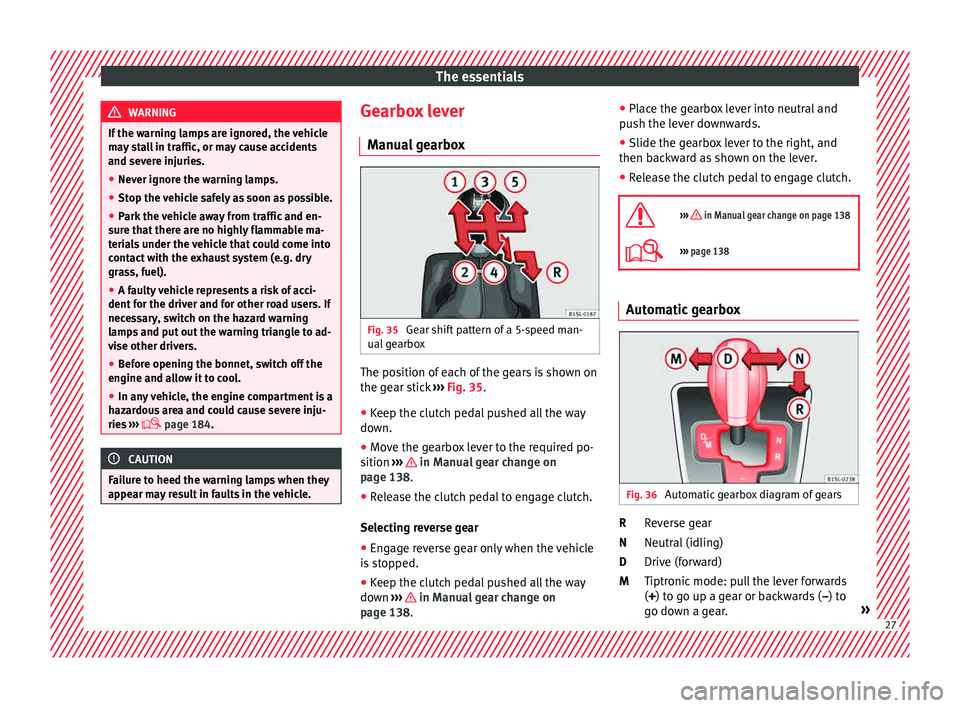

gearbox Fig. 35
Gear shift pattern of a 5-speed man-
ual g
e

arbox The position of each of the gears is shown on
the g
e
ar s

tick ››› Fig. 35.
● Keep the clutch pedal pushed all the way
down.
● Mov

e the gearbox lever to the required po-
sition ››

› in Manual gear change on
p ag
e 138
.
● Release the clutch pedal to engage clutch.
Selecting r
everse gear
● Engage reverse gear only when the vehicle
is s
topped.
● Keep the clutch pedal pushed all the way
down ››

› in Manual gear change on
p ag
e 138
. ●
Place the g
earbox lever into neutral and
push the lever downwards.
● Slide the gearbox lever to the right, and
then back
ward as shown on the lever.
● Release the clutch pedal to engage clutch.

››› in Manual gear change on page 138
››› page 138 Automatic gearbox
Fig. 36
Automatic gearbox diagram of gears Reverse gear
Neutr
al
(idlin

g)
Drive (forward)
Tiptronic mode: pull the lever forwards
(+) to go up a gear or backwards ( –) to
go down a gear. »
R
N
D
M
27

The essentials
››› in Automatic gear change on
page 139
››› page 139 Air conditioning
Ho w doe
s

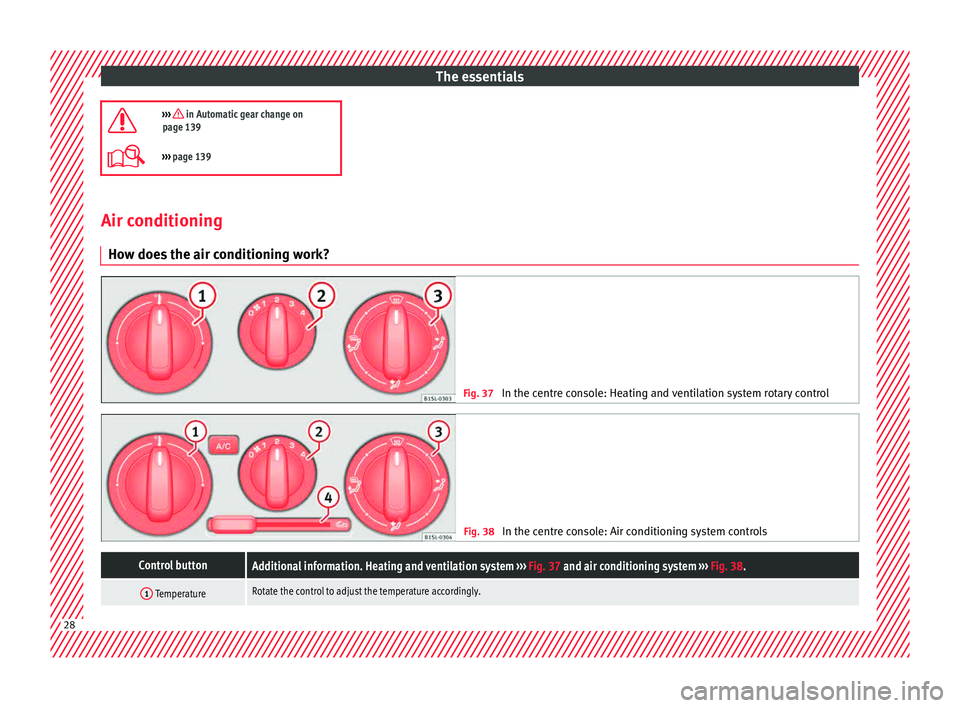

the air conditioning work? Fig. 37
In the centre console: Heating and ventilation system rotary control Fig. 38
In the centre console: Air conditioning system controls
Control buttonAdditional information. Heating and ventilation system ››› Fig. 37 and air conditioning system ››› Fig. 38.
1 TemperatureRotate the control to adjust the temperature accordingly.28
