charging Seat Mii 2016 Owner's manual

The essentials
● In an emer g
ency
● The
vehicle has broken down
● When towing or being towed

››› in Hazard warning lights on
page 106
››› page 106 Interior lights
Side lights: Function

Switching off the reading light.

Switching on the reading light.

Switches door contact control on (central po-
sition).
The reading light comes on automatically
when the vehicle is unlocked, a door is
opened or the key is removed from the igni-
tion.
The light goes off a few seconds after all the
doors are closed, the vehicle is locked or the
ignition is switched on.
Note
The reading lights go out when the vehicle is
lock ed, or a f

ew minutes after the key is re-
moved from the ignition. This prevents the
vehicle's battery from discharging. Windscreen wipers and window wiper
b
l
a

de Fig. 32
Operating the windscreen wiper and
r e
ar w

iper
More the lever to the required position:
0 Windscreen wiper off.
1
Windscreen interval wipe.
2
Slow wipe.
3
Continuous wipe.
4
Brief wipe - short wipe. Hold the lever
down for more time to increase the wipe
frequency.
5
Automatic wipe for cleaning wind-
screens with the lever up.
6
Interval wipe for rear window. The wiper
will wipe the window approximately ev-
ery six seconds.
More the lever to the required position:
7 Automatic wipe for cleaning rear win-
dows with the lever pressed.

›››
page 108
››› page 45 SEAT information system
Intr oduction With the ignition switched on it is possible to
ac
c
e

ss different messages via the display on
the instrument panel display.
The number of messages displayed on the in-
strument panel display will vary according to
the vehicle electronics and equipment.
A specialised workshop will be able to pro-
gramme or modify additional functions, ac-
cording to the vehicle equipment. SEAT rec-
ommends taking your car in for technical
service. WARNING
Any distraction may lead to an accident, with
the risk of

injury.22

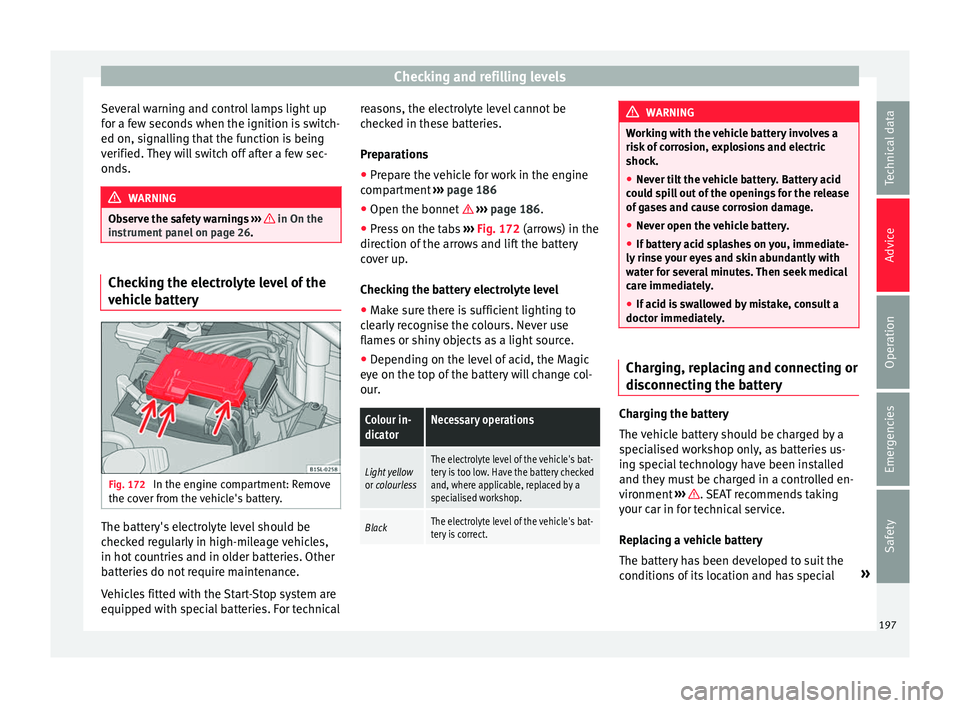

Checking and refilling levels
Several warning and control lamps light up
f or a f
ew sec
onds when the ignition is switch-
ed on, signalling that the function is being
verified. They will switch off after a few sec-
onds. WARNING
Observe the safety warnings ›››
in On the
ins trument
panel on page 26. Checking the electrolyte level of the
vehic
l

e battery Fig. 172
In the engine compartment: Remove
the c o
v

er from the vehicle's battery. The battery's electrolyte level should be
c
hec
k

ed regularly in high-mileage vehicles,
in hot countries and in older batteries. Other
batteries do not require maintenance.
Vehicles fitted with the Start-Stop system are
equipped with special batteries. For technical reasons, the electrolyte level cannot be
check

ed in these batteries.
Preparations ● Prepare the vehicle for work in the engine
compar
tment ››› page 186
● Open the bonnet  ›››
page 186.
● Press on the tabs ›››
Fig. 172 (arrows) in the
direction of the arrows and lift the battery
cover up.
Checking the battery electrolyte level
● Make sure there is sufficient lighting to
cle
arly recognise the colours. Never use
flames or shiny objects as a light source.
● Depending on the level of acid, the Magic
eye on the top of
the battery will change col-
our.
Colour in-
dicatorNecessary operations
Light yellow
or colourlessThe electrolyte level of the vehicle's bat-
tery is too low. Have the battery checked
and, where applicable, replaced by a
specialised workshop.
BlackThe electrolyte level of the vehicle's bat-
tery is correct. WARNING
Working with the vehicle battery involves a
risk of

corrosion, explosions and electric
shock.
● Never tilt the vehicle battery. Battery acid
coul
d spill out of the openings for the release
of gases and cause corrosion damage.
● Never open the vehicle battery.
● If battery acid splashes on you, immediate-
ly rinse
your eyes and skin abundantly with
water for several minutes. Then seek medical
care immediately.
● If acid is swallowed by mistake, consult a
doctor immediat
ely. Charging, replacing and connecting or
di
s
c

onnecting the battery Charging the battery
The
v
ehic

le battery should be charged by a
specialised workshop only, as batteries us-
ing special technology have been installed
and they must be charged in a controlled en-
vironment ››› . SEAT recommends taking
y our c
ar in f

or technical service.
Replacing a vehicle battery
The battery has been developed to suit the
conditions of its location and has special »
197
Technical data
Advice
Operation
Emergencies
Safety

Advice
safety features. If the battery must be re-
p l
ac
ed, consult a technical service for infor-
mation on electromagnetic compatibility, the
size and maintenance, performance and
safety requirements of the new battery in
your vehicle before you purchase one. SEAT
recommends you have the battery replaced
by a technical service.
Use only maintenance-free genuine batteries
conforming to TL 825 06 and VW 7 50 73
Standards. These standards must be dated
April 2008 or later.
Vehicles fitted with the Start-Stop system are
equipped with a special battery. Therefore,
this battery must only be replaced by another
with the same specifications.
Disconnecting the vehicle's battery
If you must disconnect the battery from the
electrical system, please note the following:
● Switch off the ignition and all electrical
equipment.
● The v

ehicle must be unlocked before dis-
connecting the b
attery, otherwise the alarm
will be triggered.
● First disconnect the negative cable and
then the positiv
e ››› .
C onnectin
g the
vehicle's battery
● Before reconnecting the battery, switch off
the engine and all
electrical devices. ●
First
reconnect the positive cable and then
the negative ››› .
Diff er
ent
control lamps may light up after
connecting the battery and switching the ig-
nition on. They will be turned off after a short
trip at a speed of between 15-20 km/h
(10-12 mph). If the warning indicators remain
lit, please visit a specialised workshop to
have the vehicle checked.
If the battery has been disconnected for a
long time, it is possible that the next service
date is not displayed or calculated correctly
››› page 88. Respect the maximum service in-
tervals permitted ››› Booklet Maintenance
Programme.
Automatic device disconnection
The intelligent vehicle electrical system auto-
matically implements a range of measures to
prevent the battery from discharging when
high demands are made on it:
● The idling speed is increased so that the al-
ternat
or provides more electricity.
● Where necessary, the power to the most
power
ful devices is reduced or even com-
pletely disconnected.
● On starting the engine, the power supply
from the 12-v
olt power sockets and the ciga-
rette lighter may be interrupted for a short
time. The on-board management program cannot
alway

s prevent the battery from running flat.
For example, if the ignition is left on for a
long period with the engine off or if the side
lights or parking lights are left on while the
vehicle is stationary.
Why the battery runs flat:
● When stationary for a long time without
star
ting the engine, particularly if the ignition
is switched on.
● Use of electrical devices with the engine
switc
hed off. WARNING
Incorrectly securing the battery or using the
wron g b

attery can cause short-circuits, fire
and serious injuries.
● Always use only maintenance-free batter-
ies, prot
ected to prevent a leak, and whose
properties, specifications and size corre-
spond to the standard battery. WARNING
A highly explosive mixture of gases is re-
le a

sed when the battery is under charge.
● The batteries should be charged in a well-
ventil
ated room only.
● Never charge a frozen or recently thawed
batter
y. A flat battery can also freeze at tem-
peratures close to 0 °C (+32 °F).
● Always replace a battery which has frozen. 198

Index
Boot hatch emer g
ency
locking and unlocking . . . . . . . . . . . 10
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . 139
Brake assist systems . . . . . . . . . . . . . . . . . . . . . . 139
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Brake fluid specification . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137 brake assist systems . . . . . . . . . . . . . . . . . . . . 139
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
brake fluid level . . . . . . . . . . . . . . . . . . . . . . . . 194
brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
brake servo . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
changing the brake fluid . . . . . . . . . . . . . . . . . 194
control and warning lamps . . . . . . . . . . . . . . . 138
running in new brake pads . . . . . . . . . . . . . . . 142
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . 139, 142
Brake system fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Brake systems . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Braking brake assist system . . . . . . . . . . . . . . . . . . . . . 139
Bulb fault see "Changing bulbs" . . . . . . . . . . . . . . . . . . . . 79
C Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 windscreen washer liquid . . . . . . . . . . . . . . . . 195
Capacity natural gas tank . . . . . . . . . . . . . . . . . . . . . . . . 185
Caring for paintwork . . . . . . . . . . . . . . . . . . . . . . . 173
Caring for the vehicle exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . 152 control and warning lamps . . . . . . . . . . . . . . . 151
malfunction in the operation . . . . . . . . . . . . . . 152 CCS
see cruise c ontrol . . . . . . . . . . . . . . . . . . . . . . . . 24
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 emergency locking . . . . . . . . . . . . . . . . . . . . . . . . 9
opening doors individually . . . . . . . . . . . . . . . . 95
Central locking system after airbag deployment . . . . . . . . . . . . . . . . . . 95
description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
remote control key . . . . . . . . . . . . . . . . . . . . . . . 95
Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . 36, 72 subsequent tasks . . . . . . . . . . . . . . . . . . . . . . . . 41
wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
number plate light . . . . . . . . . . . . . . . . . . . . . . . 83
rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
side turn signal . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Changing gear . . . . . . . . . . . . . . . . . . . . . . . . . . . 143 automatic gear change . . . . . . . . . . . . . . . . . . 145
control and warning lamps . . . . . . . . . . . . . . . 144
engaging the gears (automatic gearbox) . . . . 145
tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Changing the blades . . . . . . . . . . . . . . . . . . . . . . . 75
Changing the wiper blades . . . . . . . . . . . . . . . . . . 45
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . 43
Child safety seat securing with the seat belt . . . . . . . . . . . . . . . . 18
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 66 disabling the front passenger front airbag . . . . 15
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . 18, 69
mounting child seats . . . . . . . . . . . . . . . . . . . . . 17
mounting systems . . . . . . . . . . . . . . . . . . . . . . . 17
on the front passenger seat . . . . . . . . . . . . . . . . 68
on the rear seats . . . . . . . . . . . . . . . . . . . . . . . . . 69 regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
safety
instructions . . . . . . . . . . . . . . . . . . . . 16, 65
top Tether system . . . . . . . . . . . . . . . . . . . . . . . . 19
transporting children in the vehicle . . . . . . . . . 67
weight categories . . . . . . . . . . . . . . . . . . . . . . . . 67
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . 120
City Safety Assist function . . . . . . . . . . . . . . . . . . 156 control and warning lamps . . . . . . . . . . . . . . . 157
function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
special driving situations . . . . . . . . . . . . . . . . . 159
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 compartments . . . . . . . . . . . . . . . . . . . . . . . . . 177
dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
engine compartment . . . . . . . . . . . . . . . . . . . . 175
fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
padding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
seatbelts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
textile covers . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
washing the vehicle . . . . . . . . . . . . . . . . . . . . . 171
washing the vehicle with high pressure clean-ers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Cleaning the vehicle high pressure cleaners . . . . . . . . . . . . . . . . . . . 172
climatronic air recirculation . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Climatronic air distribution . . . . . . . . . . . . . . . . . . . . . . . . . . 28
AUTO (automatic mode) . . . . . . . . . . . . . . . . . . . 27blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
cooling mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
disconnecting . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
regulating the temperature . . . . . . . . . . . . . . . . 27
removing ice from the windows . . . . . . . . . . . . . 28
218

Index
wheel balancing . . . . . . . . . . . . . . . . . . . . . . . . 205
wheel s
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
w
ith compulsory direction of rotation . . . . . . . . 41
with directional tread pattern . . . . . . . . . . . . . 208
Tyre tread depth . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Tyre wear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
U Unfastening the seat belt . . . . . . . . . . . . . . . . . . . 56
Unfasten the seat belt . . . . . . . . . . . . . . . . . . . . . . 13
Unlocking and locking . . . . . . . . . . . . . . . . . . . . . . . 8 by remote control . . . . . . . . . . . . . . . . . . . . . . . . 95
doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
from the inside . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Upholstery cleaning textile covers . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Upholstery: cleaning upholstery . . . . . . . . . . . . . . . . . . . . . . . . 176, 177
V Valve caps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Vehicle chassis number . . . . . . . . . . . . . . . . . . . . . . . . 210
data label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
identification data . . . . . . . . . . . . . . . . . . . . . . 210
identification number . . . . . . . . . . . . . . . . . . . . 210
loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
raising . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Vehicle battery . . . . . . . . . . . . . . . . . . . . . . . 33, 196 acid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . 43
automatic device disconnection . . . . . . . . . . . 198
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
checking the battery electrolyte level . . . . . . . 197
connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197 control and warning lamps . . . . . . . . . . . . . . . 196
disc
harging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
disconnecting . . . . . . . . . . . . . . . . . . . . . . . . . . 197
preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
running flat . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Vehicle care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 airbag modules (dash panel) . . . . . . . . . . . . . 178
aluminium wheel rims . . . . . . . . . . . . . . . . . . . 174
anodized surfaces . . . . . . . . . . . . . . . . . . . . . . 174
antenna incorporated in window . . . . . . . . . . . 180
chrome wheel rims . . . . . . . . . . . . . . . . . . . . . . 174
cleaning wheels . . . . . . . . . . . . . . . . . . . . . . . . 174
dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
de-icing the door lock cylinder . . . . . . . . . . . . 175
engine compartment . . . . . . . . . . . . . . . . . . . . 175
exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 172
interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
protection of vehicle undercarriage . . . . . . . . 175
rubber seals . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
vehicle paintwork . . . . . . . . . . . . . . . . . . . . . . . 173
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Wooden trim . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Vehicle care products . . . . . . . . . . . . . . . . . . . . . . 170
Vehicle code vehicle data label . . . . . . . . . . . . . . . . . . . . . . . 210
Vehicle data label . . . . . . . . . . . . . . . . . . . . . . . . . 210
Vehicle key set . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . 36, 70 components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Vibrations steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
W Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Warning triangle . . . . . . . . . . . . . . . . . . . . . . 70, 106
Washin
g the vehicle . . . . . . . . . . . . . . . . . . . . . . . 171
sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Water box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Wax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . 72, 212 anti-theft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
caps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
loosening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
tightening torque . . . . . . . . . . . . . . . . . . . . . . . . 38
Wheel load capacity . . . . . . . . . . . . . . . . . . . . . . . 208
Wheel rims beadlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
bolted trims . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Wheels . . . . . . . . . . . . . . . . . . . . . . . . 199, 201, 211 changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36, 40
changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . 72
hubcaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
spare wheel or temporary spare wheel . . . . . . 206
storing the replaced wheel . . . . . . . . . . . . . . . 206
Wheels and tyres speed rating . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Wheel trim hubcaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
remove . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Wheel trims full hub caps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 removing ice . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Window wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 window wiper lever . . . . . . . . . . . . . . . . . . . . . . 108
Window wiper blade . . . . . . . . . . . . . . . . . . . . . . . . 22
226
