dimensions Seat Mii 2016 Owner's manual

Table of Contents
Advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Care and maintenance . . . . . . . . . . . . . . . . . . . . 164
Accessories, replacement of parts and modifi-
c ation
s
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Caring for and cleaning the vehicle exterior . . . 170
Caring for and cleaning the vehicle interior . . . 176
Notes for the user . . . . . . . . . . . . . . . . . . . . . . . . 179
Checking and refilling levels . . . . . . . . . . . . . . . 181
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Windscreen washer reservoir . . . . . . . . . . . . . . 195
Vehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Wheels and tyres . . . . . . . . . . . . . . . . . . . . . . . . 199
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Technical data . . . . . . . . . . . . . . . . . . . . . . . . 210
Technical features . . . . . . . . . . . . . . . . . . . . . . . 210
Important information . . . . . . . . . . . . . . . . . . . . 210
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Engine data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
4

Advice
WARNING
The use of worn or damaged wheel rims could
mak e driv
ing more dangerous and result in
serious accidents and damage.
● Only wheel rims which have been approved
for use w
ith your vehicle should be used.
● Inspect wheel rims regularly for damage
and repl
ace as required. WARNING
If the bolted joints of wheel rims with bolted
ring trims ar

e not correctly tightened or loos-
ened, this could result in serious accident.
● Never loosen the bolted joints of wheel
rims with bo
lted ring trims.
● Any work relating to wheel rims with bolted
rims shoul
d be carried out at specialised
workshop. SEAT recommends taking your car
in for technical service. Note
A SEAT Service Centre should be consulted to
find out whether wheel s

or tyres of different
sizes to those originally fitted by SEAT can be
fitted, and to find out about the combinations
allowed between the front axle (axle 1) and
the rear axle (axle 2). Replacement of wheel rims and new
ty
r
e

s New tyres
● When tyres are new, drive with extreme
caution f or the fir

st 600 km, as all tyres need
to be run-in. Tyres which have not been run
in do not have such good grip or ››› brak-
ing c ap

acity ››› .
● All four wheels must be fitted with radial
tyr e

s of the same type, size (rolling circumfer-
ence) and the same tread pattern.
● The tread depth of new tyres may vary, ac-
cor din

g to the type and make of tyre and the
tread pattern.
Replacing tyres
● Where possible, always replace both
wheels on an ax
le (both wheels on the front
axle or both wheels on the rear axle) ››› .
● Only replace used tyres with those author-
i sed b
y

SEAT for the corresponding type vehi-
cle. Pay special attention to size, diameter,
and maximum load and speed capacity.
● Never use tyres which are larger than SEAT
appro
ved tyres. If the tyres are too big, they
may knock or rub against the chassis or other
components, resulting in damage. WARNING
New tyres do not give maximum grip and will
not h av

e reached their maximum braking ca-
pacity to start with, and therefore need run-
ning in.
● To prevent accidents and major damage,
extreme c
aution should be taken for the first
600 km. WARNING
There should be adequate space between the
tyr e

s and the vehicle in accordance with the
vehicle design. If this is not the case, the
tyres may rub against parts of the running
gear, chassis or brake lines, leading to faults
in the brake system or to tread detachment,
and the risk of burst tyres.
● The true tyre dimension should not be
great
er than the dimensions of tyres manu-
factured and approved by SEAT and should
not rub against parts of the vehicle. Note
Although tyres may be shown as being the
same s iz

e, the true dimensions of different
types of tyre may vary with respect to the
nominal size, or tread patterns may be differ-
ent. Note
If you use tyres that are approved by SEAT,
you c an be s

ure that the true tyre dimensions202

Technical data

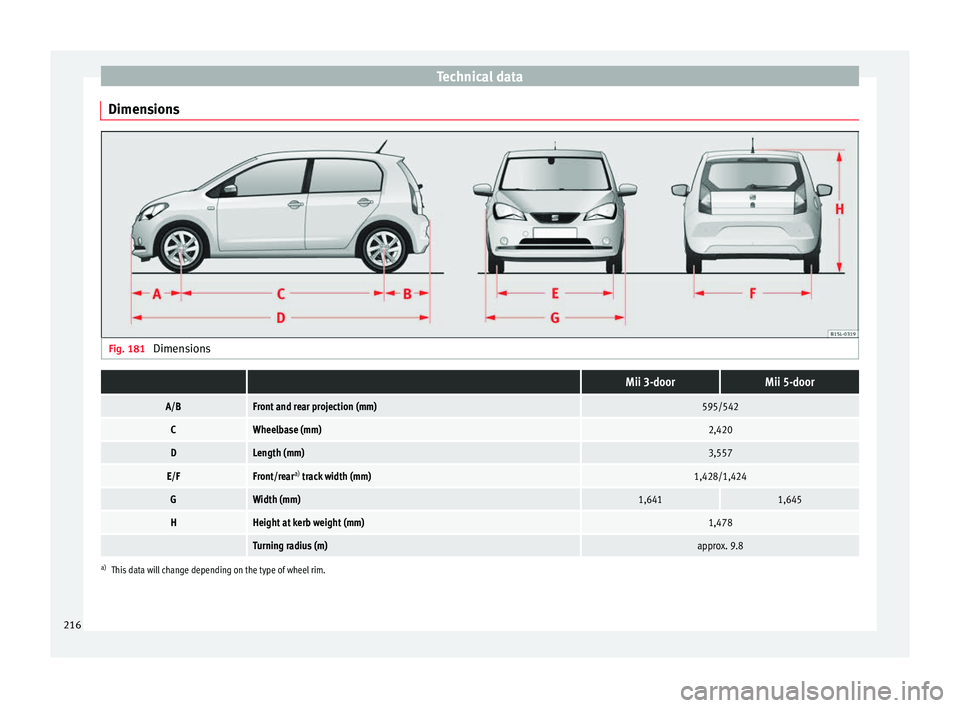

Dimensions Fig. 181
Dimensions Mii 3-doorMii 5-door
A/BFront and rear projection (mm)595/542
CWheelbase (mm)2,420
DLength (mm)3,557
E/FFront/rear a)
track width (mm)1,428/1,424
GWidth (mm)1,6411,645
HHeight at kerb weight (mm)1,478
Turning radius (m)approx. 9.8
a) This data will change depending on the type of wheel rim.
216

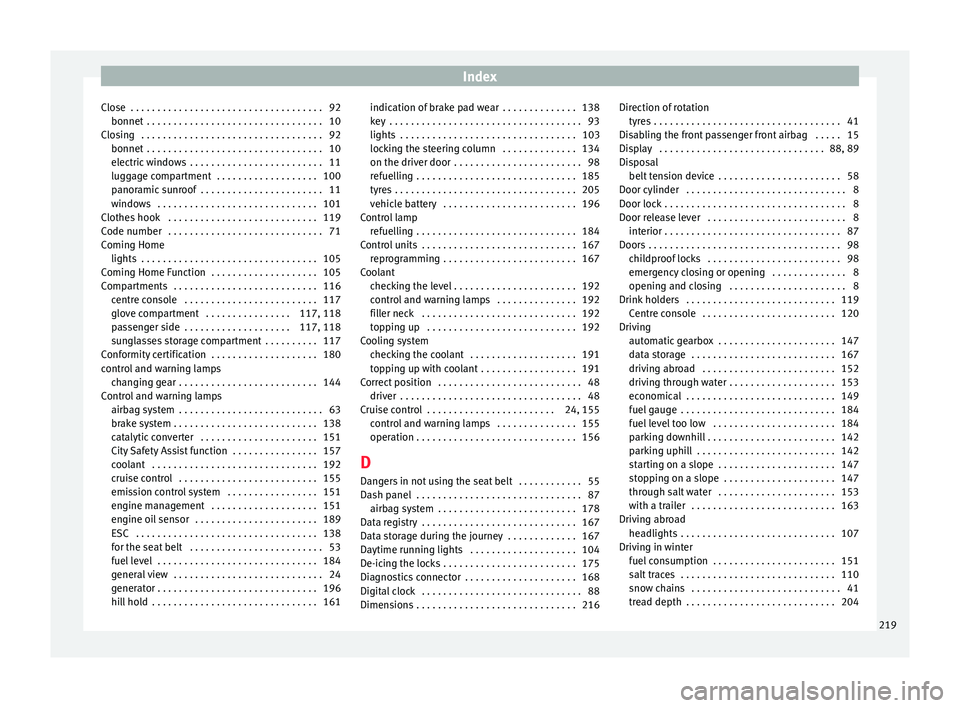

Index
Close . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
C lo
sing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
electric windows . . . . . . . . . . . . . . . . . . . . . . . . . 11
luggage compartment . . . . . . . . . . . . . . . . . . . 100
panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . . 11
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Clothes hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Code number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Coming Home lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Coming Home Function . . . . . . . . . . . . . . . . . . . . 105
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . 116 centre console . . . . . . . . . . . . . . . . . . . . . . . . . 117
glove compartment . . . . . . . . . . . . . . . . 117, 118
passenger side . . . . . . . . . . . . . . . . . . . . 117, 118
sunglasses storage compartment . . . . . . . . . . 117
Conformity certification . . . . . . . . . . . . . . . . . . . . 180
control and warning lamps changing gear . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Control and warning lamps airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
catalytic converter . . . . . . . . . . . . . . . . . . . . . . 151
City Safety Assist function . . . . . . . . . . . . . . . . 157
coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . 155
emission control system . . . . . . . . . . . . . . . . . 151
engine management . . . . . . . . . . . . . . . . . . . . 151
engine oil sensor . . . . . . . . . . . . . . . . . . . . . . . 189
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
for the seat belt . . . . . . . . . . . . . . . . . . . . . . . . . 53
fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
general view . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
hill hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161 indication of brake pad wear . . . . . . . . . . . . . . 138
key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
lights
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
locking the steering column . . . . . . . . . . . . . . 134
on the driver door . . . . . . . . . . . . . . . . . . . . . . . . 98
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
vehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . 196
Control lamp refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Control units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167 reprogramming . . . . . . . . . . . . . . . . . . . . . . . . . 167
Coolant checking the level . . . . . . . . . . . . . . . . . . . . . . . 192
control and warning lamps . . . . . . . . . . . . . . . 192
filler neck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Cooling system checking the coolant . . . . . . . . . . . . . . . . . . . . 191
topping up with coolant . . . . . . . . . . . . . . . . . . 191
Correct position . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . 24, 155 control and warning lamps . . . . . . . . . . . . . . . 155
operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
D Dangers in not using the seat belt . . . . . . . . . . . . 55
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Data registry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Data storage during the journey . . . . . . . . . . . . . 167
Daytime running lights . . . . . . . . . . . . . . . . . . . . 104
De-icing the locks . . . . . . . . . . . . . . . . . . . . . . . . . 175
Diagnostics connector . . . . . . . . . . . . . . . . . . . . . 168
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216 Direction of rotation
tyre s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Disabling the front passenger front airbag . . . . . 15
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88, 89
Disposal belt tension device . . . . . . . . . . . . . . . . . . . . . . . 58
Door cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Door lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Door release lever . . . . . . . . . . . . . . . . . . . . . . . . . . 8 interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 childproof locks . . . . . . . . . . . . . . . . . . . . . . . . . 98
emergency closing or opening . . . . . . . . . . . . . . 8
opening and closing . . . . . . . . . . . . . . . . . . . . . . 8
Drink holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119 Centre console . . . . . . . . . . . . . . . . . . . . . . . . . 120
Driving automatic gearbox . . . . . . . . . . . . . . . . . . . . . . 147
data storage . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . 152
driving through water . . . . . . . . . . . . . . . . . . . . 153
economical . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
fuel level too low . . . . . . . . . . . . . . . . . . . . . . . 184
parking downhill . . . . . . . . . . . . . . . . . . . . . . . . 142
parking uphill . . . . . . . . . . . . . . . . . . . . . . . . . . 142
starting on a slope . . . . . . . . . . . . . . . . . . . . . . 147
stopping on a slope . . . . . . . . . . . . . . . . . . . . . 147
through salt water . . . . . . . . . . . . . . . . . . . . . . 153
with a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Driving abroad headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Driving in winter fuel consumption . . . . . . . . . . . . . . . . . . . . . . . 151
salt traces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
tread depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
219

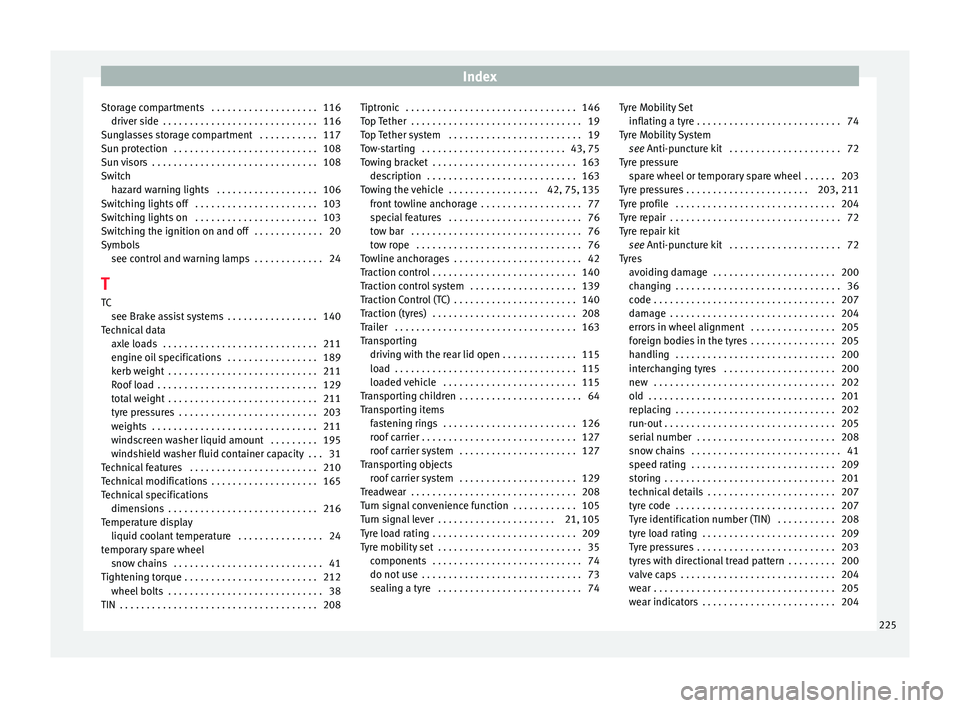

Index
Storage compartments . . . . . . . . . . . . . . . . . . . . 116 driv er s
ide
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Sunglasses storage compartment . . . . . . . . . . . 117
Sun protection . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Switch hazard warning lights . . . . . . . . . . . . . . . . . . . 106
Switching lights off . . . . . . . . . . . . . . . . . . . . . . . 103
Switching lights on . . . . . . . . . . . . . . . . . . . . . . . 103
Switching the ignition on and off . . . . . . . . . . . . . 20
Symbols see control and warning lamps . . . . . . . . . . . . . 24
T TC see Brake assist systems . . . . . . . . . . . . . . . . . 140
Technical data axle loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
engine oil specifications . . . . . . . . . . . . . . . . . 189
kerb weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Roof load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
total weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 203
weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
windscreen washer liquid amount . . . . . . . . . 195
windshield washer fluid container capacity . . . 31
Technical features . . . . . . . . . . . . . . . . . . . . . . . . 210
Technical modifications . . . . . . . . . . . . . . . . . . . . 165
Technical specifications dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Temperature display liquid coolant temperature . . . . . . . . . . . . . . . . 24
temporary spare wheel snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Tightening torque . . . . . . . . . . . . . . . . . . . . . . . . . 212 wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
TIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208 Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Top T
ether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Top Tether system . . . . . . . . . . . . . . . . . . . . . . . . . 19
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 43, 75
Towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . 163 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Towing the vehicle . . . . . . . . . . . . . . . . . 42, 75, 135 front towline anchorage . . . . . . . . . . . . . . . . . . . 77
special features . . . . . . . . . . . . . . . . . . . . . . . . . 76
tow bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
tow rope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Towline anchorages . . . . . . . . . . . . . . . . . . . . . . . . 42
Traction control . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Traction control system . . . . . . . . . . . . . . . . . . . . 139
Traction Control (TC) . . . . . . . . . . . . . . . . . . . . . . . 140
Traction (tyres) . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Transporting driving with the rear lid open . . . . . . . . . . . . . . 115
load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
loaded vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 115
Transporting children . . . . . . . . . . . . . . . . . . . . . . . 64
Transporting items fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . 126
roof carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
roof carrier system . . . . . . . . . . . . . . . . . . . . . . 127
Transporting objects roof carrier system . . . . . . . . . . . . . . . . . . . . . . 129
Treadwear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Turn signal convenience function . . . . . . . . . . . . 105
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . 21, 105
Tyre load rating . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Tyre mobility set . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
do not use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
sealing a tyre . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 Tyre Mobility Set
inflating a ty re . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Tyre Mobility System see Anti-puncture kit . . . . . . . . . . . . . . . . . . . . . 72
Tyre pressure spare wheel or temporary spare wheel . . . . . . 203
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . 203, 211
Tyre profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Tyre repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Tyre repair kit see Anti-puncture kit . . . . . . . . . . . . . . . . . . . . . 72
Tyres avoiding damage . . . . . . . . . . . . . . . . . . . . . . . 200
changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
errors in wheel alignment . . . . . . . . . . . . . . . . 205
foreign bodies in the tyres . . . . . . . . . . . . . . . . 205
handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
interchanging tyres . . . . . . . . . . . . . . . . . . . . . 200
new . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
old . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
run-out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
serial number . . . . . . . . . . . . . . . . . . . . . . . . . . 208
snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
speed rating . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
technical details . . . . . . . . . . . . . . . . . . . . . . . . 207
tyre code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Tyre identification number (TIN) . . . . . . . . . . . 208
tyre load rating . . . . . . . . . . . . . . . . . . . . . . . . . 209
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 203
tyres with directional tread pattern . . . . . . . . . 200
valve caps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
wear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . 204
225
