Operation
It lights up
Fault in the
emission control
system.Reduce speed and drive carefully to
the nearest specialised workshop to
have the engine checked.

Flashes
Combustion
fault which could
damage the cat-
alytic converter.Reduce speed and drive carefully to
the nearest specialised workshop to
have the engine checked.
Several warning and control lamps light up
f
or a f
ew sec

onds when the ignition is switch-
ed on, signalling that the function is being
verified. They will switch off after a few sec-
onds. CAUTION
Always pay attention to any lit control lamps
and to the c orr

esponding descriptions and in-
structions to avoid damage to the vehicle. Note
Whereas the control lamps may remain lit 
or  , ther

e may be engine problems, fuel
consumption may increase and the engine
may lose power Catalytic converter
The catalytic converter permits the subse-
quent tr
e

atment of the exhaust gases thus
reducing contaminating gas emissions. To
ensure a longer working life for the exhaust
system and catalytic converter in a petrol en-
gine:
● Always use unleaded petrol.
● Never run the fuel tank completely dry.
● Do not top up with too much engine oil
›››
page 188.
● Do not tow-start the vehicle; use the starter
cab l

es ›››
 page 43.
If you should notice misfiring, uneven run-
ning or loss of power when the car is moving,
reduce speed immediately. Have the car in-
spected by a specialised workshop. If this
happens, unburnt fuel can enter the exhaust
system and escape into the atmosphere. The
catalytic converter can also be damaged by
overheating. For the sake of the environment
Even when the emission control system is
work in

g perfectly, there may be a smell of
sulphur under certain conditions. This de-
pends on the sulphur content of the fuel
used. Driving tips
Driv in
g abr

oad In some countries, certain safety regulations
and requir
ements

are in force relating to ex-
haust gas emissions, which differ from the
technical characteristics of the vehicle. Be-
fore travelling abroad, SEAT recommends you
consult a technical service about the legal re-
quirements and the following points:
● Does the vehicle need technical modifica-
tions f

or driving abroad, for example, adjust-
ment of the headlamps?
● Does the vehicle have all the tools, diag-
nostic
s equipment and spare parts required
for inspections and repairs?
● Are there any SEAT dealers in the destina-
tion countr
y?
● For petrol vehicles: Is unleaded petrol avail-
able at
the right octane rating?
● For diesel engines: is diesel fuel available
with a low s
ulphur content?
● Are a suitable engine oil ( ›››

page 188) and
other engine fluids complying with SEAT
specifications available in the destination
country?
● Are special tyres required in the destination
countr
y?
152

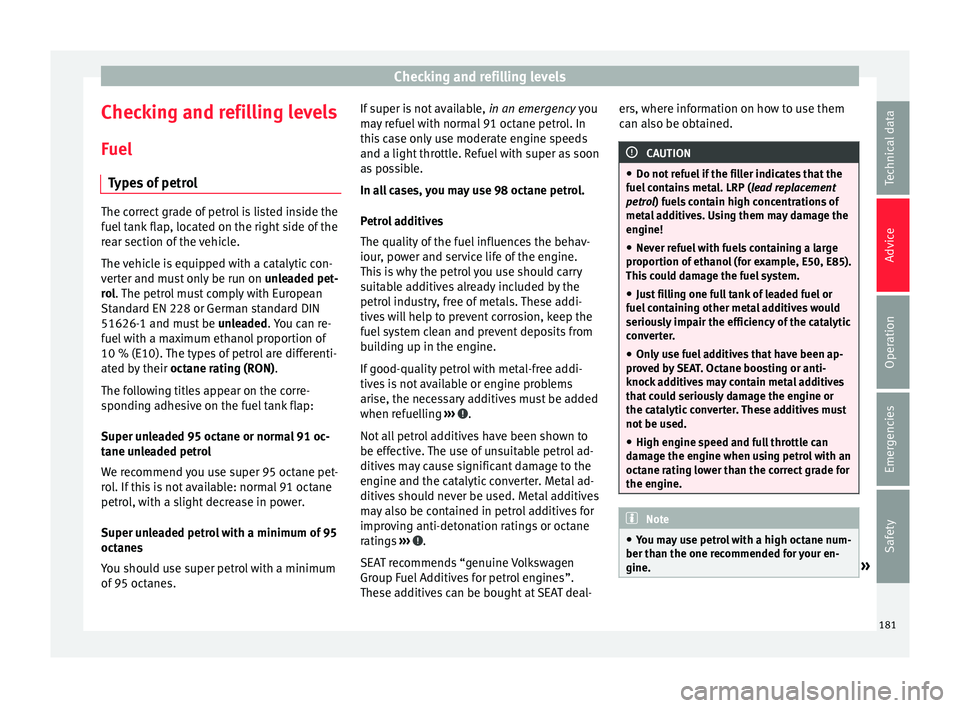

Checking and refilling levels
Checking and refilling levels
F uel
T y
pes of petrol The correct grade of petrol is listed inside the
fuel
t

ank flap, located on the right side of the
rear section of the vehicle.
The vehicle is equipped with a catalytic con-
verter and must only be run on unleaded pet-
rol. The petrol must comply with European
Standard EN 228 or German standard DIN
51626-1 and must be unleaded. You can re-
fuel with a maximum ethanol proportion of
10 % (E10). The types of petrol are differenti-
ated by their octane rating (RON).
The following titles appear on the corre-
sponding adhesive on the fuel tank flap:
Super unleaded 95 octane or normal 91 oc-
tane unleaded petrol
We recommend you use super 95 octane pet-
rol. If this is not available: normal 91 octane
petrol, with a slight decrease in power.
Super unleaded petrol with a minimum of 95
octanes
You should use super petrol with a minimum
of 95 octanes. If super is not available,
in an emergency y
ou
may refuel with normal 91 octane petrol. In
this case only use moderate engine speeds
and a light throttle. Refuel with super as soon
as possible.
In all cases, you may use 98 octane petrol.
Petrol additives
The quality of the fuel influences the behav-
iour, power and service life of the engine.
This is why the petrol you use should carry
suitable additives already included by the
petrol industry, free of metals. These addi-
tives will help to prevent corrosion, keep the
fuel system clean and prevent deposits from
building up in the engine.
If good-quality petrol with metal-free addi-
tives is not available or engine problems
arise, the necessary additives must be added
when refuelling ››› .
Not al
l

petrol additives have been shown to
be effective. The use of unsuitable petrol ad-
ditives may cause significant damage to the
engine and the catalytic converter. Metal ad-
ditives should never be used. Metal additives
may also be contained in petrol additives for
improving anti-detonation ratings or octane
ratings ››› .
S EA
T r

ecommends “genuine Volkswagen
Group Fuel Additives for petrol engines”.
These additives can be bought at SEAT deal- ers, where information on how to use them
can also be o

btained. CAUTION
● Do not r ef

uel if the filler indicates that the
fuel contains metal. LRP ( lead replacement
petrol) fuels contain high concentrations of
metal additives. Using them may damage the
engine!
● Never refuel with fuels containing a large
proportion of
ethanol (for example, E50, E85).
This could damage the fuel system.
● Just filling one full tank of leaded fuel or
fuel c
ontaining other metal additives would
seriously impair the efficiency of the catalytic
converter.
● Only use fuel additives that have been ap-
prov
ed by SEAT. Octane boosting or anti-
knock additives may contain metal additives
that could seriously damage the engine or
the catalytic converter. These additives must
not be used.
● High engine speed and full throttle can
damag
e the engine when using petrol with an
octane rating lower than the correct grade for
the engine. Note
● You m a

y use petrol with a high octane num-
ber than the one recommended for your en-
gine. » 181

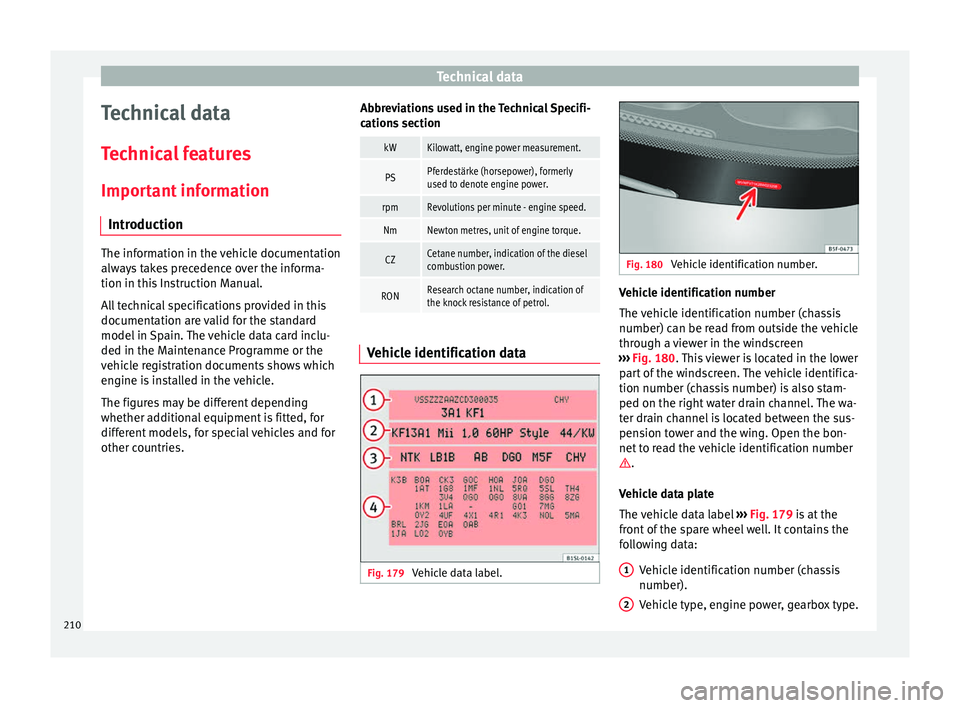

Technical data
Advice
Operation
Emergencies
Safety

Technical data
Technical data
T ec
hnic
al features
Important information Introduction The information in the vehicle documentation
alwa
y

s takes precedence over the informa-
tion in this Instruction Manual.
All technical specifications provided in this
documentation are valid for the standard
model in Spain. The vehicle data card inclu-
ded in the Maintenance Programme or the
vehicle registration documents shows which
engine is installed in the vehicle.
The figures may be different depending
whether additional equipment is fitted, for
different models, for special vehicles and for
other countries. Abbreviations used in the Technical Specifi-
cation
s

section
kWKilowatt, engine power measurement.
PSPferdestärke (horsepower), formerly
used to denote engine power.
rpmRevolutions per minute - engine speed.
NmNewton metres, unit of engine torque.
CZCetane number, indication of the diesel
combustion power.
RONResearch octane number, indication of
the knock resistance of petrol. Vehicle identification data
Fig. 179
Vehicle data label. Fig. 180
Vehicle identification number. Vehicle identification number
The
v
ehic
le identification number (chassis
number) can be read from outside the vehicle
through a viewer in the windscreen
››› Fig. 180. This viewer is located in the lower
part of the windscreen. The vehicle identifica-
tion number (chassis number) is also stam-
ped on the right water drain channel. The wa-
ter drain channel is located between the sus-
pension tower and the wing. Open the bon-
net to read the vehicle identification number
 .
Vehicle data plate
The vehicle data label ››› Fig. 179 is at the
front of the spare wheel well. It contains the
following data:
Vehicle identification number (chassis
number).
Vehicle type, engine power, gearbox type.
1 2
210

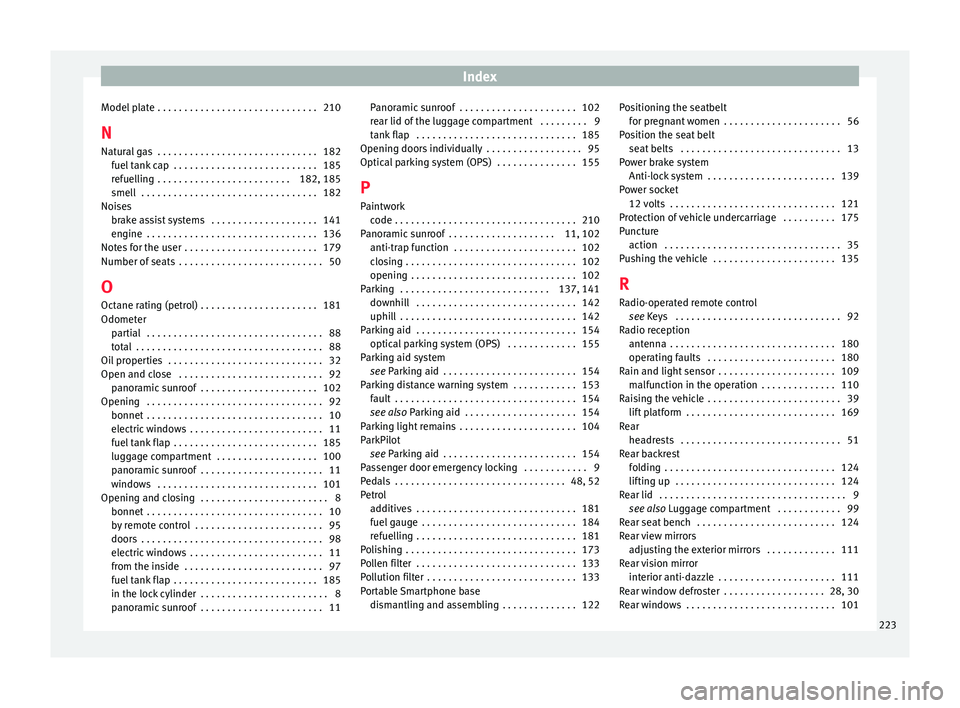

Index
Model plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
N Nat ur
al
gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
fuel tank cap . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . 182, 185
smell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Noises brake assist systems . . . . . . . . . . . . . . . . . . . . 141
engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Notes for the user . . . . . . . . . . . . . . . . . . . . . . . . . 179
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
O
Octane rating (petrol) . . . . . . . . . . . . . . . . . . . . . . 181
Odometer partial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Open and close . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . 102
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
electric windows . . . . . . . . . . . . . . . . . . . . . . . . . 11
fuel tank flap . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
luggage compartment . . . . . . . . . . . . . . . . . . . 100
panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . . 11
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Opening and closing . . . . . . . . . . . . . . . . . . . . . . . . 8 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
by remote control . . . . . . . . . . . . . . . . . . . . . . . . 95
doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
electric windows . . . . . . . . . . . . . . . . . . . . . . . . . 11
from the inside . . . . . . . . . . . . . . . . . . . . . . . . . . 97
fuel tank flap . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
in the lock cylinder . . . . . . . . . . . . . . . . . . . . . . . . 8
panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . . 11 Panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . 102
rear lid of
the luggage compartment . . . . . . . . . 9
tank flap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Opening doors individually . . . . . . . . . . . . . . . . . . 95
Optical parking system (OPS) . . . . . . . . . . . . . . . 155
P Paintwork code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Panoramic sunroof . . . . . . . . . . . . . . . . . . . . 11, 102 anti-trap function . . . . . . . . . . . . . . . . . . . . . . . 102
closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137, 141 downhill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
uphill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154 optical parking system (OPS) . . . . . . . . . . . . . 155
Parking aid system see Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 154
Parking distance warning system . . . . . . . . . . . . 153 fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
see also Parking aid . . . . . . . . . . . . . . . . . . . . . 154
Parking light remains . . . . . . . . . . . . . . . . . . . . . . 104
ParkPilot see Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 154
Passenger door emergency locking . . . . . . . . . . . . 9
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48, 52
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Pollen filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Pollution filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Portable Smartphone base dismantling and assembling . . . . . . . . . . . . . . 122 Positioning the seatbelt
for pre gnant women . . . . . . . . . . . . . . . . . . . . . . 56
Position the seat belt seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Power brake system Anti-lock system . . . . . . . . . . . . . . . . . . . . . . . . 139
Power socket 12 volts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Protection of vehicle undercarriage . . . . . . . . . . 175
Puncture action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Pushing the vehicle . . . . . . . . . . . . . . . . . . . . . . . 135
R
Radio-operated remote control see Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Radio reception antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
operating faults . . . . . . . . . . . . . . . . . . . . . . . . 180
Rain and light sensor . . . . . . . . . . . . . . . . . . . . . . 109 malfunction in the operation . . . . . . . . . . . . . . 110
Raising the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 39 lift platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Rear headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Rear backrest folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
lifting up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 see also Luggage compartment . . . . . . . . . . . . 99
Rear seat bench . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Rear view mirrors adjusting the exterior mirrors . . . . . . . . . . . . . 111
Rear vision mirror interior anti-dazzle . . . . . . . . . . . . . . . . . . . . . . 111
Rear window defroster . . . . . . . . . . . . . . . . . . . 28, 30
Rear windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
223
