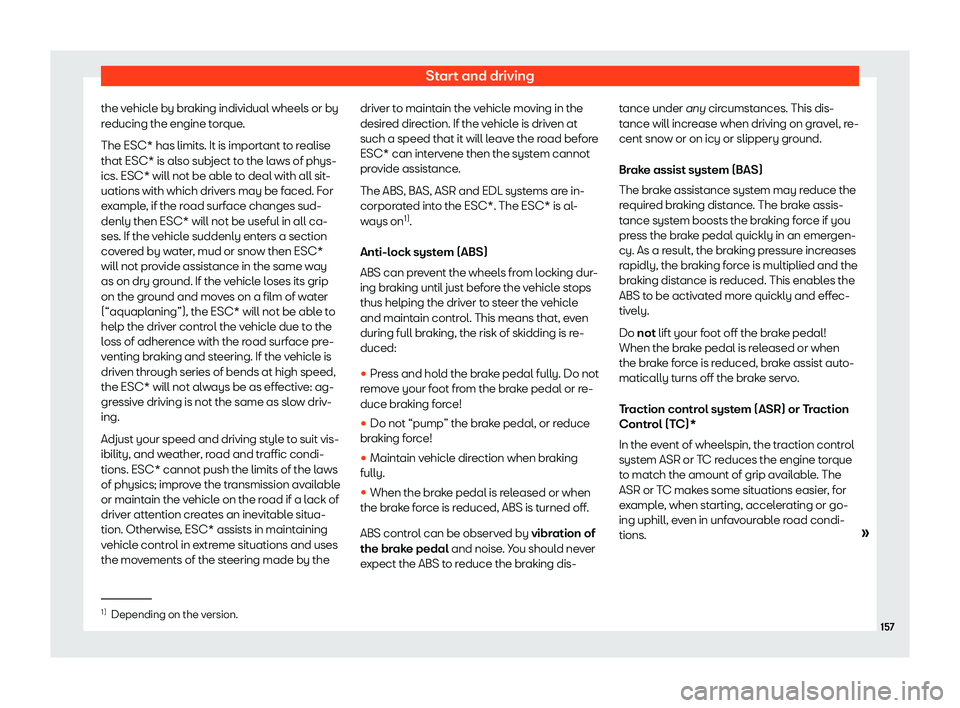

Start and driving
the vehicle by braking individual wheels or by
r educing the engine t
or
que.
The ESC* has limits. It is important to realise
that ESC* is also subject to the laws of phys-
ics. ESC* will not be able to deal with all sit-
uations with which drivers may be faced. For
example, if the road surface changes sud-
denly then ESC* will not be useful in all ca-
ses. If the vehicle suddenly enters a section
covered by water, mud or snow then ESC*
will not provide assistance in the same way
as on dry ground. If the vehicle loses its grip
on the ground and moves on a film of water
(“aquaplaning”), the ESC* will not be able to
help the driver control the vehicle due to the
loss of adherence with the road surface pre-
venting braking and steering. If the vehicle is
driven through series of bends at high speed,
the ESC* will not always be as effective: ag-
gressive driving is not the same as slow driv-
ing.
Adjust your speed and driving style to suit vis-
ibility, and weather, road and traffic condi-
tions. ESC* cannot push the limits of the laws
of physics; improve the transmission available
or maintain the vehicle on the road if a lack of
driver attention creates an inevitable situa-
tion. Otherwise, ESC* assists in maintaining
vehicle control in extreme situations and uses
the movements of the steering made by the driver to maintain the vehicle moving in the
desired direction. If the v
ehicle is driven at
such a speed that it will leave the road before
ESC* can intervene then the system cannot
provide assistance.
The ABS, BAS, ASR and EDL systems are in-
corporated into the ESC*. The ESC* is al-
ways on 1)
.
Anti-lock system (ABS)
ABS can prevent the wheels from locking dur-
ing braking until just before the vehicle stops
thus helping the driver to steer the vehicle
and maintain control. This means that, even
during full braking, the risk of skidding is re-
duced:
Driving
Electronic differential lock (EDS)
EDL is av ail
abl
e when driving in straight lines
under normal conditions. When the EDL de-
tects wheelspin, it brakes the spinning wheel
and directs the power to the other one. To
prevent the disc brake of the braked wheel
from overheating, the EDL cuts out automati-
cally if subjected to excessive loads. The EDL
will switch on again automatically when the
brake has cooled down. WARNING
Driving at high speed on icy, slippery or wet
ground can r esult in l
oss of vehicle control
and serious injury to the driver and passen-
gers.
