check engine Seat Mii 2018 Owner's manual
[x] Cancel search | Manufacturer: SEAT, Model Year: 2018, Model line: Mii, Model: Seat Mii 2018Pages: 256, PDF Size: 4.92 MB
Page 8 of 256
Table of Contents
Engine management and exhaust gas puri-
fication syst em . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
168
Driving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
169
Driver assistance systems . . . . . . . . . . . . . . . . 170
Start-Stop system . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Cruise control system (CCS)* . . . . . . . . . . . . . . 171
Parking distance warning system* . . . . . . . . . 172
City safety assist (Safety Assist)* . . . . . . . . . . . 174
Hill driving assistant* . . . . . . . . . . . . . . . . . . . . . . . 179
Towing bracket device . . . . . . . . . . . . . . . . . . . . 179
Driving with a trailer . . . . . . . . . . . . . . . . . . . . . . . . 179
Practical tips . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Care and maintenance . . . . . . . . . . . . . . . . . . . 180
Accessories, replacement of parts and
modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 180
Checking and refilling levels . . . . . . . . . . . . . 186
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . 186
Filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 193
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 195
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 200
Windscreen washer reservoir . . . . . . . . . . . . . . . 201
Vehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Wheels and tyres . . . . . . . . . . . . . . . . . . . . . . . . . 206
Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 206
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217 Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
217
Service intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Additional service offers . . . . . . . . . . . . . . . . . . . . 219
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Vehicle maintenance . . . . . . . . . . . . . . . . . . . . . 220
Maintenance and cleaning . . . . . . . . . . . . . . . . . 220 Information for the user . . . . . . . . . . . . . . 226
Information for the user . . . . . . . . . . . . . . . . . . . 226
Information stored in control units . . . . . . . . . . 226
Other important information . . . . . . . . . . . . . . . . 227
Information about the EU Directive
2014/53/EU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 229
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . 233 Technical features . . . . . . . . . . . . . . . . . . . . . . . . 233
Important information . . . . . . . . . . . . . . . . . . . . . . 233
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 234
Engine data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Vehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 239
6
Page 188 of 256
Practical tips
Checking and refilling lev-
el s
Fuel Identification of the fuel 1)Fig. 176
Identification of fuels according to Eu-
r opean Union (EU) Dir
ectiv
e 2014/94/Fuels are identified with different symbols.
Depending on the fuel, the diff
erent symbol
s
are on the pump and the tank lid of your vehi-
cle. The identification serves to prevent con-
fusion when choosing the fuel.
Petrol with ethanol (“E” stands for Etha-
nol). The number indicates the percent-
1 age of ethanol in the petrol. “E5” means,
f
or e
x
ample, an ethanol ratio of 5% max.
Diesel with biodiesel (“B” stands for Bio-
diesel). The number indicates the per-
centage of biodiesel in the diesel. “B7”
means, for example, a proportion of bio-
diesel of max. 7%.
Natural gas: “CNG” means Compressed
Natural Gas.
Type of petrol Applies to v
ehicl
es: with petrol engine
The correct grade of petrol is listed inside the
fuel tank flap.
The vehicle is equipped with a catalytic con-
verter and must only be run on unleaded
petrol. The petrol must comply with the
standard EN 228 and be sulphur-free. Fuels
with a 10% ethanol ratio can be refuelled
(E10) 2)
. The types of petrol are differentiated
by using the octane numbers (RON) or via
the anti-knock index (AKI).
The following pieces of text show the infor-
mation included in the corresponding stickers
on the tank lid (examples): 2 3 Super unleaded petrol 95 octane petrol or
normal 91 oct
ane petr
ol at l
east
We recommend refuelling with super 95 oc-
tane petrol (91 AKI). If not available: normal 91
octane petrol (87 AKI) (with a slight power
loss).
Super unleaded petrol, 95 octanes at
least
You should use super 95 octane petrol (91
AKI) at least.
If super is not available, if necessary, use nor-
mal 91 octane petrol (87 AKI). In this case only
use moderate engine speeds and a light
throttle. Refuel with super as soon as possi-
ble.
Unleaded super plus 98 octane petrol or
super 95 octane petrol at least
We recommend refuelling with super plus 98
octane petrol (93 AKI). If not available: super
95 octane petrol (91 AKI) (with a slight power
loss).
If super is not available, if necessary, use nor-
mal 91 octane petrol (87 AKI). In this case only
use moderate engine speeds and a light 1)
Depending on country
2) Follow the regulations of the country you are
driving in.
186

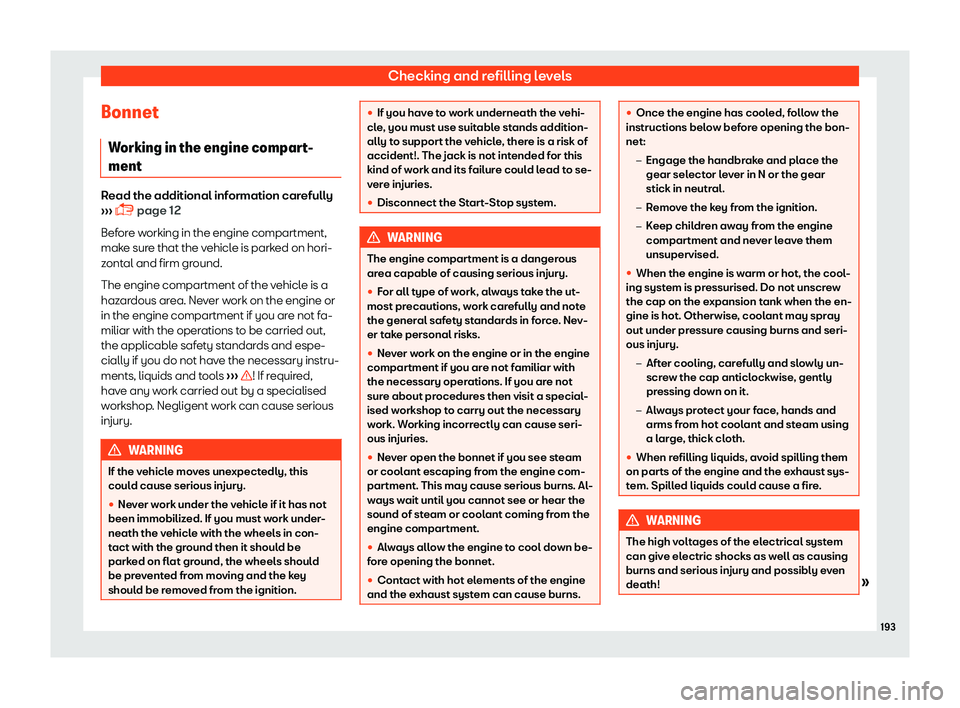

Page 195 of 256
Checking and refilling levels
Bonnet W orking in the engine compar
t
-
ment Read the additional information carefully
Page 199 of 256
Checking and refilling levels
For the sake of the environment
The oil level must never be above zone A .
Otherwise oil can be drawn in thr ough the
cr
ankcase breather and leak into the at-
mosphere via the exhaust system. Engine oil consumption
The consumption of engine oil can be differ-
ent from one engine t
o another and can v
ary
during the useful life of the engine.
Depending on how you drive and the condi-
tions in which the vehicle is used, oil con-
sumption can be up to 1 ltr./2000 km. In the
case of new vehicles, the consumption can
exceed this figure over 5,000 kilometres. For
this reason the engine oil level must be
checked at regular intervals, preferably when
filling the tank and before a journey.
When the engine is working hard, for instance
during sustained high-speed motorway cruis-
ing in summer or when climbing mountain
passes, the oil level should preferably be kept
within area

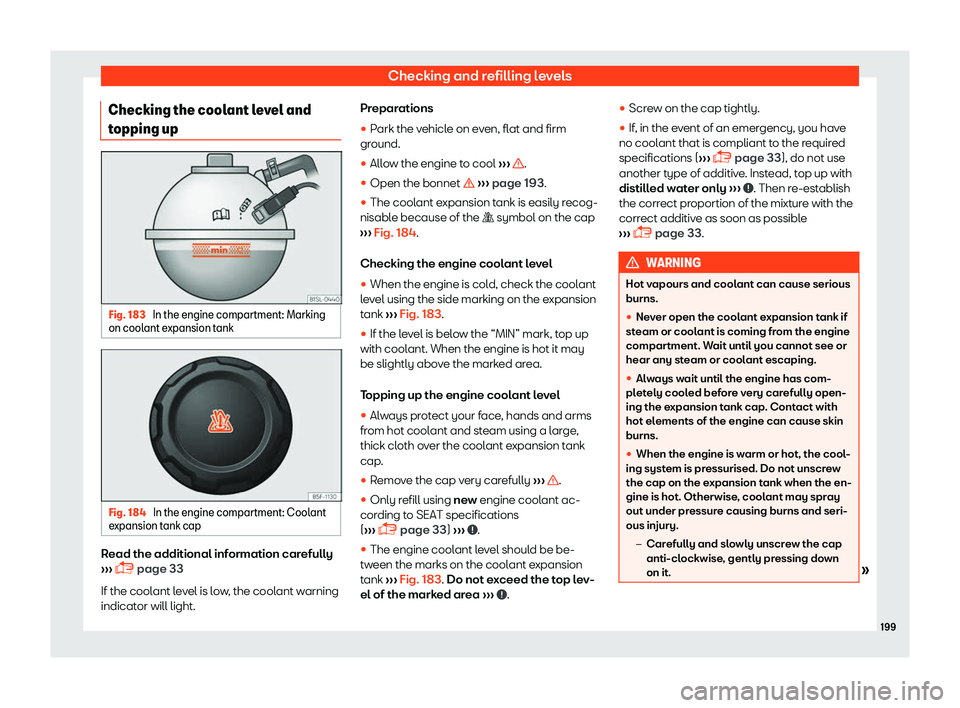

Page 201 of 256
Checking and refilling levels
Checking the coolant level and
t opping up Fig. 183
In the engine compartment: Marking
on cool ant expansion t
ankFig. 184
In the engine compartment: Coolant
e xpansion t ank cap Read the additional information carefully
Page 243 of 256
Index
special care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
the r adio scr
een . . . . . . . . . . . . . . . . . . . . . . . . . . .
223
trims/covers . . . . . . . . . . . . . . . . . . . . . . . . . . 222, 223
washing the vehicle . . . . . . . . . . . . . . . . . . . . . . . 220
wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 222
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
windscreen wipers . . . . . . . . . . . . . . . . . . . . . . . . 222
Climatronic adjusting the temperature . . . . . . . . . . . . . . . . . . 29
air distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 29
air recirculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
AUTO (automatic mode) . . . . . . . . . . . . . . . . . . . 29
controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 29
cooling mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
29
fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . 29
removing ice from windows . . . . . . . . . . . . . . . . . 29
switch off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 29
Close . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . 92 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . 12
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 92 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . 12
electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
luggage compartment . . . . . . . . . . . . . . . . . . . . 100
panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 13
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
101
Clothes hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 118
Code number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 71
Coming Home Function . . . . . . . . . . . . . . . . . . . . . 105
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
115 centre console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
glove compartment . . . . . . . . . . . . . . . . . . . . . . . . 117
passenger side . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Sunglasses storage compartment . . . . . . . . . 117
Conformity certification . . . . . . . . . . . . . . . . . . . . . 228 Control and warning lamps . . . . . . . . . . . . . . . . . . . 27
airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
br
ake system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . 168
changing gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
City Safety Assist function . . . . . . . . . . . . . . . . . 175
coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 198
cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
cruise control system . . . . . . . . . . . . . . . . . . . . . . 171
emission control system . . . . . . . . . . . . . . . . . . . 168
engine management . . . . . . . . . . . . . . . . . . . . . . 168
engine oil sensor . . . . . . . . . . . . . . . . . . . . . . . . . . 195
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 152
for the seat belt . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
54
fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
hill hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 170
indication of brake pad wear . . . . . . . . . . . . . . 152
key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . 93
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . 103
locking the steering column . . . . . . . . . . . . . . . 164
on the driver door . . . . . . . . . . . . . . . . . . . . . . . . . . 98
overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 27
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190, 191
tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 212
vehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Controls for the windows . . . . . . . . . . . . . . . . . 13, 101
Control units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
226 reprogramming . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Coolant checking the level . . . . . . . . . . . . . . . . . . . . . . . . . 199
control and warning lamps . . . . . . . . . . . . . . . . 198
filler neck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 199
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 199 Cooling system
checking the coolant . . . . . . . . . . . . . . . . . . . . . . 198
t
opping up with coolant . . . . . . . . . . . . . . . . . . . 198
Correct position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
49
Correct sitting position driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 49
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 171 control and warning lamps . . . . . . . . . . . . . . . . . 171
operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 172
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . 171
D Dangers in not using the seat belt . . . . . . . . . . . . 56
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 87
Data registry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Data storage during the journey . . . . . . . . . . . . 226
Daytime running lights . . . . . . . . . . . . . . . . . . . . . . 104
Diagnostics connector . . . . . . . . . . . . . . . . . . . . . . 226
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 237
Direction of rotation tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 42
Disabling the front passenger front airbag . . . . 17
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
88, 89
Disposal belt tension device . . . . . . . . . . . . . . . . . . . . . . . . . 59
Door cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 10
Door lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 10
Door release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 87
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . 98 childproof locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Emergency closing or opening . . . . . . . . . . . . . 10
opening and closing . . . . . . . . . . . . . . . . . . . . . . . . 10
241
Page 244 of 256
Index
Drink holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118 Centr e consol
e . . . . . . . . . . . . . . . . . . . . . . . . . . . .
119
Driver see Correct sitting position . . . . . . . . . . . . . . . . . 49
Driving automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . 161
data storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
driving through water . . . . . . . . . . . . . . . . . . . . . . 169
economical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
166
fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 190
fuel level too low . . . . . . . . . . . . . . . . . . . . . . . . . . 190
parking downhill . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
parking uphill . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 153
safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 48
starting on a slope . . . . . . . . . . . . . . . . . . . . . . . . . 162
stopping on a slope . . . . . . . . . . . . . . . . . . . . . . . 162
through salt water . . . . . . . . . . . . . . . . . . . . . . . . . 169
with a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Driving abroad headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 107
Driving in winter fuel consumption . . . . . . . . . . . . . . . . . . . . . . . . . . 167
snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
42
traces of salt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
110
tread depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 211
tyre pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Driving through water . . . . . . . . . . . . . . . . . . . . . . . 169
Driving tips For a loaded vehicle . . . . . . . . . . . . . . . . . . . . . . . 114
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 132
Dynamic headlight range control . . . . . . . . . . . . 107 E
E10 see Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . 187
EDL see El
ectronic differential lock . . . . . . . . . . . . . 156
EDS see "Brake assist system" . . . . . . . . . . . . . . . . . . 158
Electrical devices . . . . . . . . . . . . . . . . . . . . . . . . 120, 121
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 101
closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 101
opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 101
see Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Electronic differential lock . . . . . . . . . . . . . . . . . . . 156
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . . . 151 operating fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Electronic Stability Control (ESC) . . . . . . . . . . . . 156
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 70 bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 36
changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . 37
emergency towing of the vehicle . . . . . . . . . . . 43
fire extinguishers . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
first aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 70
fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 35
hazard warning lights . . . . . . . . . . . . . . . . . . . . . 106
jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
puncture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
replacing a blown fuse . . . . . . . . . . . . . . . . . . . . . 35
vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
warning triangle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Emergency closing or opening driver door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 10
passenger door . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
11 Emergency locking and unlocking . . . . . . . . . . . . 77
rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 12
Emer
gency unlocking
rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 12
Emission control system control and warning lamps . . . . . . . . . . . . . . . . 168
Emissions data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Engine assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 150
running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 165
Start-Stop system . . . . . . . . . . . . . . . . . . . . . . . . . 170
Engine and ignition . . . . . . . . . . . . . . . . . . . . . . . . . . 149 12 Volt sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 151
starting the engine . . . . . . . . . . . . . . . . . . . . . . . . 149
stopping the engine . . . . . . . . . . . . . . . . . . . . . . . 150
unauthorised vehicle key . . . . . . . . . . . . . . . . . . 149
Engine compartment . . . . . . . . . . . . . . . . . . . . . 12, 193 battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34, 202
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34, 200
coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33, 198
engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32, 197
windscreen washer reservoir . . . . . . . . . . 34, 201
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 checking the level . . . . . . . . . . . . . . . . . . . . . . . . . 198
G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 33
G 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . 33
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 33
temperature display . . . . . . . . . . . . . . . . . . . . . . . 198
Engine data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Engine management . . . . . . . . . . . . . . . . . . . . . . . . 168 control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
242
Page 245 of 256
Index
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 32, 195 changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 195
checking oil l e
vel . . . . . . . . . . . . . . . . . . . . . . . . . . 196
consumption . . . . . . . . . . . . . . . . . . . . . . . . . . 196, 197
control and warning lamps . . . . . . . . . . . . . . . . 195
dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 196
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
195
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 197
Environment environmental compatibility . . . . . . . . . . . . . . . 165
Environmental ecological driving . . . . . . . . . . . . . . . . . . . . . . . . . 166
Environmental tips refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 191
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 180 safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 61
ESC electronic stability control . . . . . . . . . . . . . . . . . 156
Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 187
Event Data Recorder . . . . . . . . . . . . . . . . . . . . . . . . 226
Exhaust gas purification system . . . . . . . . . . . . . 168
Exterior mirrors adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 15
Exterior rear view mirrors control of the function . . . . . . . . . . . . . . . . . . . . . . 111
electric exterior mirrors . . . . . . . . . . . . . . . . . . . . . 111
exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 111
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 8
F Fabrics: cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Fault parking distance warning system . . . . . . . . . . 174 Fault memory
connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
r
eading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 226
Filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . . . 189, 191
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
First-aid kit storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 70
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 53
Fluid level control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . 23
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 63
Front passenger front airbag control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
disabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 17
disconnection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 64
Front seats manual adjustment . . . . . . . . . . . . . . . . . . . . . . . . 112
manually adjusting . . . . . . . . . . . . . . . . . . . . . . . . . 14
Front wiper blades change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 47
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 47
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 32, 186 ethanol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 187
identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 186
natural gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 186
savings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 166
Fuel gauge control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 190
Fuel tank cap opening and closing . . . . . . . . . . . . . . . . . . . . . . . . 32
Fuel tank flap opening and closing . . . . . . . . . . . . . . . . . . . . . . . . 32 Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 35, 78
fuse box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 79
identifying bl
own fuses . . . . . . . . . . . . . . . . . . . . . 35
identifying by colours . . . . . . . . . . . . . . . . . . . . . . 35
preparation before replacing . . . . . . . . . . . . . . . 35
replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 35
G
Gearbox lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Gear change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 28 automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 28
changing gears manually . . . . . . . . . . . . . . . . . 159
gear recommendation . . . . . . . . . . . . . . . . . . . . 163
manual gear change . . . . . . . . . . . . . . . . . . . . . . . 28
putting the vehicle in gear (manual gear-box) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 159
Gear engaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 28
General instrument panel instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
203
Glove compartment . . . . . . . . . . . . . . . . . . . . . . . . . 117
H
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Hazard warning lights . . . . . . . . . . . . . . . . . . . . 23, 106
Head-on collisions and their laws of physics . 56
Headlight range control . . . . . . . . . . . . . . . . . . . . . 107
Headlights driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Head rest adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 112
Head restraints adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 112
rear head restraints . . . . . . . . . . . . . . . . . . . . . . . . 52
243
