belt Seat Tarraco 2018 Owner's manual

Table of Contents
Table of Contents The essential s
. . . . . . . . . . . . . . . . . . . . . . . . . .
7
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Driver-side general instrument panel
(left-hand driv
e) . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Driver-side general instrument panel
(right-hand drive)
. . . . . . . . . . . . . . . . . . . . . . . . . 10
Passenger-side general instrument pan-
el (left-hand driv
e) . . . . . . . . . . . . . . . . . . . . . . . . 11
Passenger-side general instrument pan-
el (right-hand drive)
. . . . . . . . . . . . . . . . . . . . . . 12
Centre console . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Interior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
How it works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Unlocking and locking . . . . . . . . . . . . . . . . . . . . . . 15
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 22
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 25
Starting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 32
Lights and visibility . . . . . . . . . . . . . . . . . . . . . . . . . 32
Easy Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
35
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Gearbox lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 41
Fluid level control . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Emergency call service* . . . . . . . . . . . . . . . . . . . 50
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 51
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 52
Action in the event of a puncture . . . . . . . . . . . 52
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
57
Emergency towing of the vehicle . . . . . . . . . . . 57
How to jump start . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Changing the wiper blades . . . . . . . . . . . . . . . . 60
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
62
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Advice about driving . . . . . . . . . . . . . . . . . . . . . . . . 62
Correct position of the vehicle occu-
pants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 63
Pedal area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Why wear a seat belt . . . . . . . . . . . . . . . . . . . . . . . 66
How to properly adjust your seat belt . . . . . . 69
Seat belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . 71
System PreCrash* . . . . . . . . . . . . . . . . . . . . . . . . . 72
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Airbag safety instructions . . . . . . . . . . . . . . . . . . . 76
Deactivating airbags . . . . . . . . . . . . . . . . . . . . . . . 78
Transporting children safely . . . . . . . . . . . . . . 79
Safety for children . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 81
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84Self-help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Emergency equipment . . . . . . . . . . . . . . . . . . . . . 84
Tyre repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 84
Manual unlocking/locking . . . . . . . . . . . . . . . . . . 86
Changing the windscreen wiper blades . . . . 87
Tow-starting and towing . . . . . . . . . . . . . . . . . . . . 87
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 91
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97 Controls and displays . . . . . . . . . . . . . . . . . . . . 97
General instrument panel . . . . . . . . . . . . . . . . . . 96 Instruments and warning/control
lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .

98
Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Using the instrument panel . . . . . . . . . . . . . . . . . 112
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Multifunction steering wheel . . . . . . . . . . . . . . . . 114
Opening and closing . . . . . . . . . . . . . . . . . . . . . . 117
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Anti-theft alarm system* . . . . . . . . . . . . . . . . . . . 126
Rear lid (luggage compartment) . . . . . . . . . . . 129
Controls for the windows . . . . . . . . . . . . . . . . . . . 131
Sunroof* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 133
Lights and visibility . . . . . . . . . . . . . . . . . . . . . . . . 136
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . 136
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 144
Windscreen wiper and window wiper sys-
tems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 144
Mirr

or . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 146
Seats and head restraints . . . . . . . . . . . . . . . . 148
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 148
Adjusting the headrests . . . . . . . . . . . . . . . . . . . . 150
Seat functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 153
Transport and practical equipment . . . . . . 158
Carrying objects . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Luggage compartment . . . . . . . . . . . . . . . . . . . . . 159
Net partition* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 167
Roof carrier* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 169
Storage compartment . . . . . . . . . . . . . . . . . . . . . 171
Drink holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Ashtray, lighter and power sockets . . . . . . . . . 176
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Heating, ventilation and cooling . . . . . . . . . . . . 178
Auxiliary heater (additional heater)* . . . . . . . . 184
5

The essentials
Fig. 22
Correct seat belt and head restraint
positions, view ed fr
om front and the side.To adjust the seat belt around your shoulders,
adjust the height of the seats or the height of
the belt.
The shoul
der part of the seat belt shoul
d be
w

ell centred over it, never over the neck. The
seat belt lies flat and fits comfortably on the
upper part of the body.
The lap part of the seat belt lies across the
pelvis, never across the stomach. The seat
belt lies flat and fits comfortably on the pel-
vis.

The essentials
Securing child seats with the seat belt Fig. 36
On rear seats: possible assemblies of chil-
dren seats. Figure

The essentials

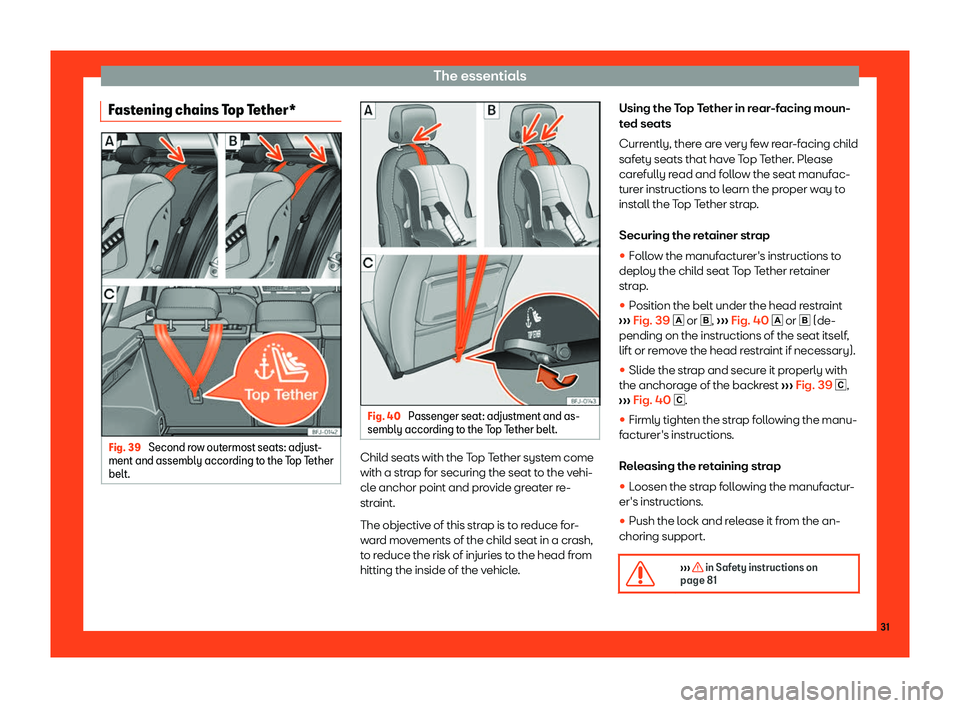

Fastening chains Top Tether* Fig. 39
Second row outermost seats: adjust-
ment and assembly accor ding to the T
op Tether
belt. Fig. 40
Passenger seat: adjustment and as-
sembly accor ding to the T

op Tether belt. Child seats with the Top Tether system come
with a str
ap f
or securing the seat t

o the vehi-
cle anchor point and provide greater re-
straint.
The objective of this strap is to reduce for-
ward movements of the child seat in a crash,
to reduce the risk of injuries to the head from
hitting the inside of the vehicle. Using the Top Tether in rear-facing moun-
ted seats
Currently, ther

e are very few rear-facing child
safety seats that have Top Tether. Please
carefully read and follow the seat manufac-
turer instructions to learn the proper way to
install the Top Tether strap.
Securing the retainer strap

Seat belts
Rear seat belts fastened display* Fig. 88
Dashboard: left rear seat occupied
and corr esponding seat belt f ast
ened display.Depending on the model version, when the
ignition is s
wit
ched on, the seat belt st

atus
display

Safety
Important safety instructions for
the use of seat belts

Seat belts
The effects of the laws of physics in the case
of a head-on collision ar e easy t
o e
xplain: the
moment a vehicle starts moving, a type of en-
ergy called “kinetic energy” starts acting on
both the vehicle and its passengers.
The amount of “kinetic energy” depends on
the speed of the vehicle and on the weight of
the vehicle and of its passengers. The higher
they are, the more energy there is to be “ab-
sorbed” in the event of an accident.
The most significant factor, however, is the
speed of the vehicle. If the speed doubles
from 25 km/h (15 mph) to 50 km/h (30 mph),
for example, the corresponding kinetic ener-
gy is multiplied by four.
Given that the passengers of the vehicle in
our example do not have their seat belts fas-
tened, in the event of a collision the entire
amount of the passengers

Safety
Fig. 93
Position of seat belt during pregnancy. Properly worn seat belts hold the vehicle oc-
cupants in the position that most pr
ot
ects
them in the e
vent of an accident or sudden
braking

Seat belts
from hard areas of the body to soft areas
(e.g. the st
omach).

Safety
The belt pre-tensioners work in combination
with the airbag syst em. In case of o
v
erturn,
the pre-tensioners do not activate unless the
head airbags are deployed.
Reversible seat belt tensioning
In specific driving situations, a reversible ten-
sioning of the seat belts might take place
