Page 7 of 408
Table of Contents
Table of Contents The essential s
. . . . . . . . . . . . . . . . . . . . . . . . . .
7
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Driver-side general instrument panel
(left-hand driv
e) . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Driver-side general instrument panel
(right-hand drive)
. . . . . . . . . . . . . . . . . . . . . . . . . 10
Passenger-side general instrument pan-
el (left-hand driv
e) . . . . . . . . . . . . . . . . . . . . . . . . 11
Passenger-side general instrument pan-
el (right-hand drive)
. . . . . . . . . . . . . . . . . . . . . . 12
Centre console . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Interior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
How it works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Unlocking and locking . . . . . . . . . . . . . . . . . . . . . . 15
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 22
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 25
Starting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 32
Lights and visibility . . . . . . . . . . . . . . . . . . . . . . . . . 32
Easy Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
35
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Gearbox lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 41
Fluid level control . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Emergency call service* . . . . . . . . . . . . . . . . . . . 50
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 51
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 52
Action in the event of a puncture . . . . . . . . . . . 52
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
57
Emergency towing of the vehicle . . . . . . . . . . . 57
How to jump start . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Changing the wiper blades . . . . . . . . . . . . . . . . 60
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
62
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Advice about driving . . . . . . . . . . . . . . . . . . . . . . . . 62
Correct position of the vehicle occu-
pants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 63
Pedal area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Why wear a seat belt . . . . . . . . . . . . . . . . . . . . . . . 66
How to properly adjust your seat belt . . . . . . 69
Seat belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . 71
System PreCrash* . . . . . . . . . . . . . . . . . . . . . . . . . 72
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Airbag safety instructions . . . . . . . . . . . . . . . . . . . 76
Deactivating airbags . . . . . . . . . . . . . . . . . . . . . . . 78
Transporting children safely . . . . . . . . . . . . . . 79
Safety for children . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 81
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84Self-help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Emergency equipment . . . . . . . . . . . . . . . . . . . . . 84
Tyre repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 84
Manual unlocking/locking . . . . . . . . . . . . . . . . . . 86
Changing the windscreen wiper blades . . . . 87
Tow-starting and towing . . . . . . . . . . . . . . . . . . . . 87
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 91
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97 Controls and displays . . . . . . . . . . . . . . . . . . . . 97
General instrument panel . . . . . . . . . . . . . . . . . . 96 Instruments and warning/control
lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
98
Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Using the instrument panel . . . . . . . . . . . . . . . . . 112
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Multifunction steering wheel . . . . . . . . . . . . . . . . 114
Opening and closing . . . . . . . . . . . . . . . . . . . . . . 117
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Anti-theft alarm system* . . . . . . . . . . . . . . . . . . . 126
Rear lid (luggage compartment) . . . . . . . . . . . 129
Controls for the windows . . . . . . . . . . . . . . . . . . . 131
Sunroof* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 133
Lights and visibility . . . . . . . . . . . . . . . . . . . . . . . . 136
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . 136
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 144
Windscreen wiper and window wiper sys-
tems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 144
Mirr
or . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 146
Seats and head restraints . . . . . . . . . . . . . . . . 148
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 148
Adjusting the headrests . . . . . . . . . . . . . . . . . . . . 150
Seat functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 153
Transport and practical equipment . . . . . . 158
Carrying objects . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Luggage compartment . . . . . . . . . . . . . . . . . . . . . 159
Net partition* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 167
Roof carrier* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 169
Storage compartment . . . . . . . . . . . . . . . . . . . . . 171
Drink holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Ashtray, lighter and power sockets . . . . . . . . . 176
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Heating, ventilation and cooling . . . . . . . . . . . . 178
Auxiliary heater (additional heater)* . . . . . . . . 184
5

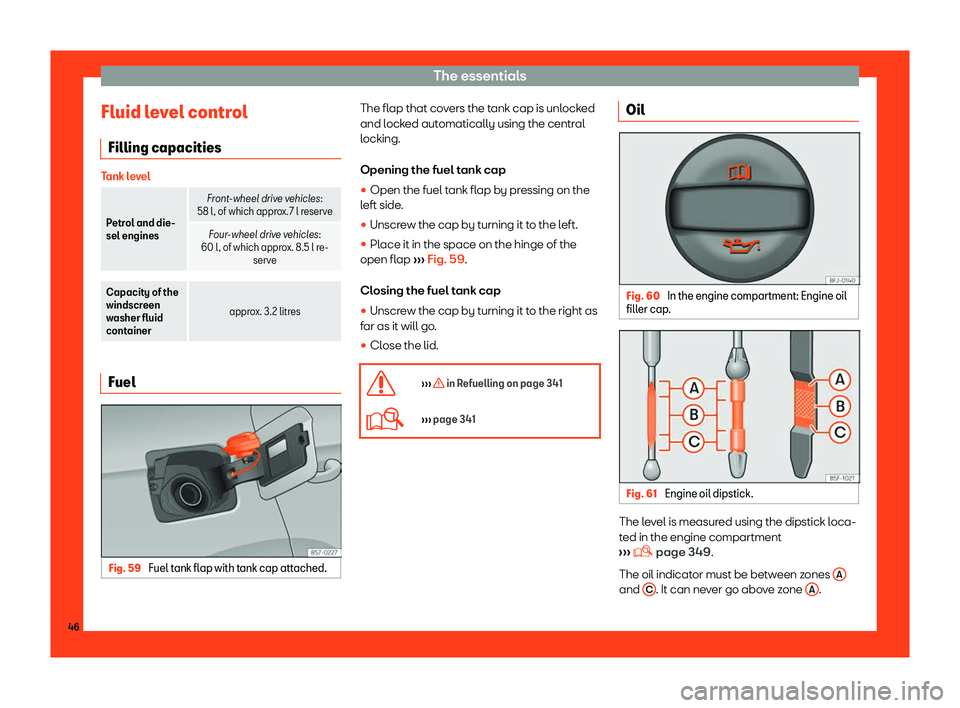

Page 48 of 408
The essentials
Fluid level control Filling capacities Tank level
Petrol and die-
sel engines
Front-wheel drive vehicles:
58 l , of which appr
o
x. 7 l reserve
Four-wheel drive vehicles:
60 l, of which appr o
x. 8.5 l re-
serve Capacity of the
windscreen
w
asher fluid
cont
ainer approx. 3.2 litresFuel
Fig. 59
Fuel tank flap with tank cap attached. The flap that covers the tank cap is unlocked
and l
ocked aut
omatically using the central
locking.
Opening the fuel tank cap

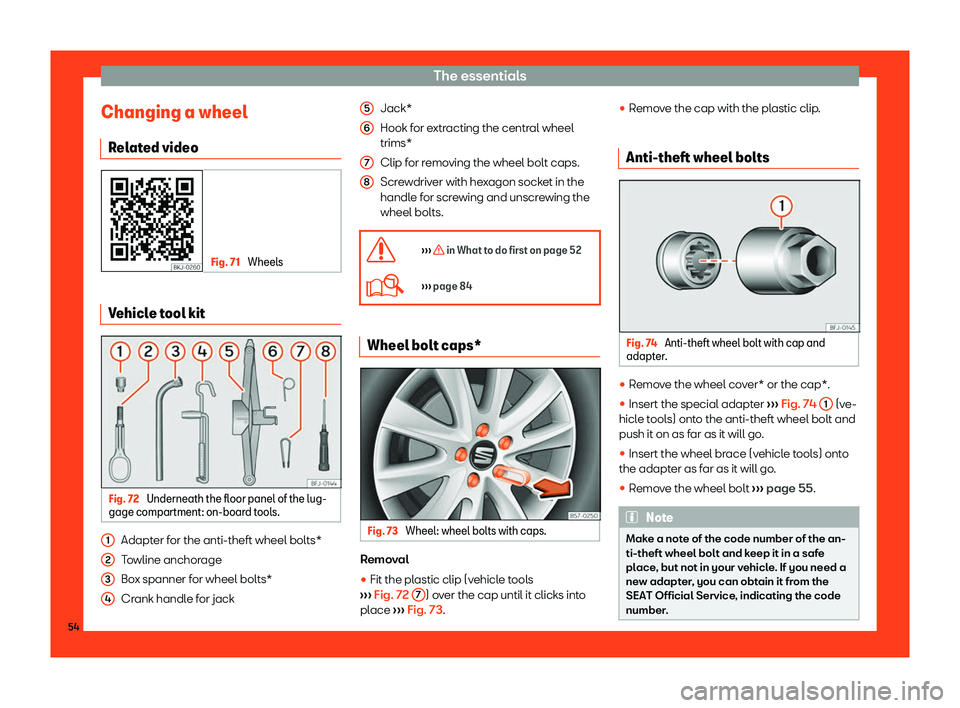

Page 56 of 408
The essentials
Changing a wheel R el
at
ed video Fig. 71
Wheels Vehicle tool kit
Fig. 72
Underneath the floor panel of the lug-
gage compartment: on-boar d t
ool
s.Adapter for the anti-theft wheel bolts*
T
o
wline anchor
age
Box spanner for wheel bolts*
Crank handle for jack
1 2
3
4 Jack*
Hook f
or e
xtr
acting the central wheel
trims*
Clip for removing the wheel bolt caps.
Screwdriver with hexagon socket in the
handle for screwing and unscrewing the
wheel bolts.

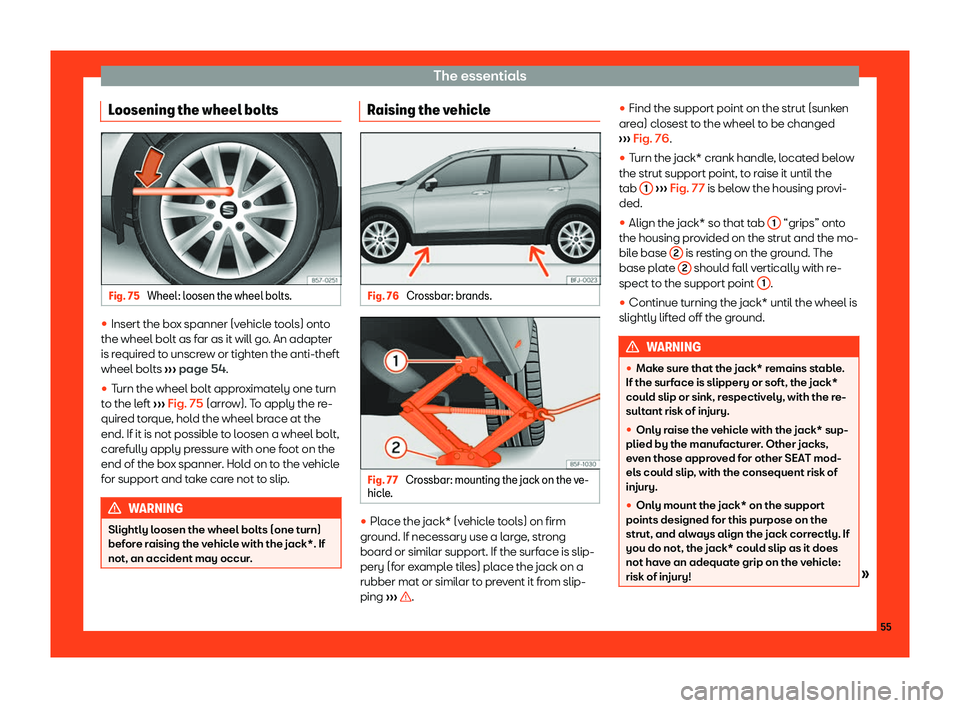

Page 57 of 408
The essentials
Loosening the wheel bolts Fig. 75
Wheel: loosen the wheel bolts.

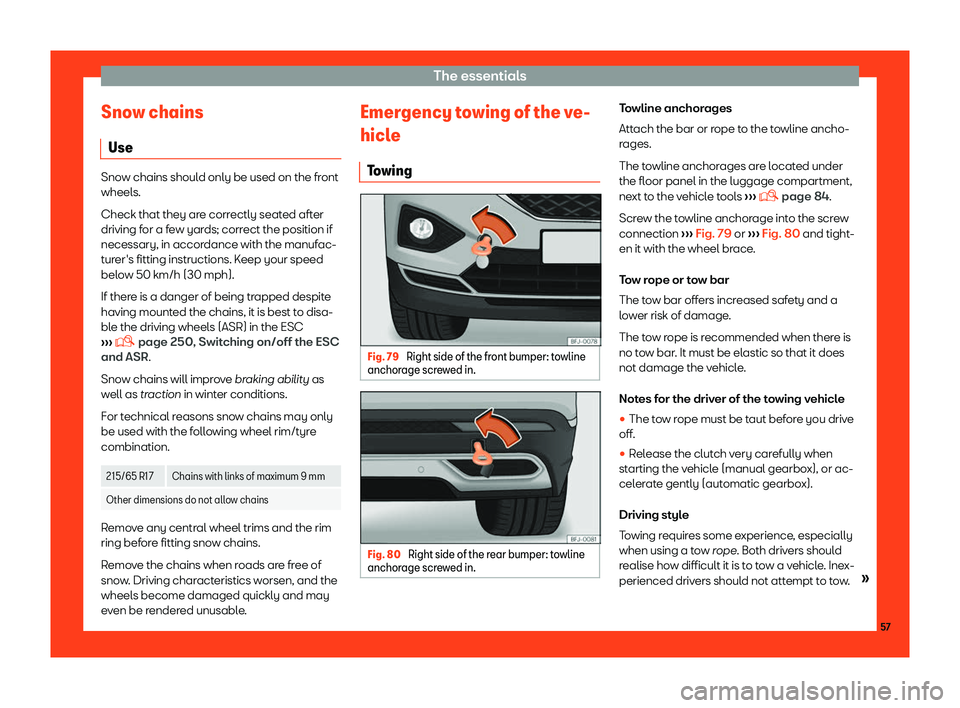

Page 59 of 408
The essentials
Snow chains Use Snow chains should only be used on the front
wheels.
Check that they ar e corr
ectly seated after
driving for a few yards; correct the position if
necessary, in accordance with the manufac-
turer
Page 60 of 408
The essentials
Do not pull too hard with the towing vehicle
and t ak
e car
e to avoid jerking the tow rope.
When towing on an unpaved road, there is al-
ways a risk of overloading and damaging the
anchorage points.
Switch on the ignition so that the turn signals,
windscreen wipers and windscreen washer
can work. Ensure that the steering wheel is
unlocked and moves freely.
Place the gear lever in neutral on vehicles
with a manual gearbox. With an automatic
gearbox, place the lever in N.
To brake, press the brake pedal firmly. The
brake servo does not work when the engine is
switched off.
The power steering only works when the igni-
tion is switched on and the vehicle is moving,
provided that the battery is sufficiently
charged. Otherwise, it will need more force.
Ensure that the tow rope remains taut at all
times.

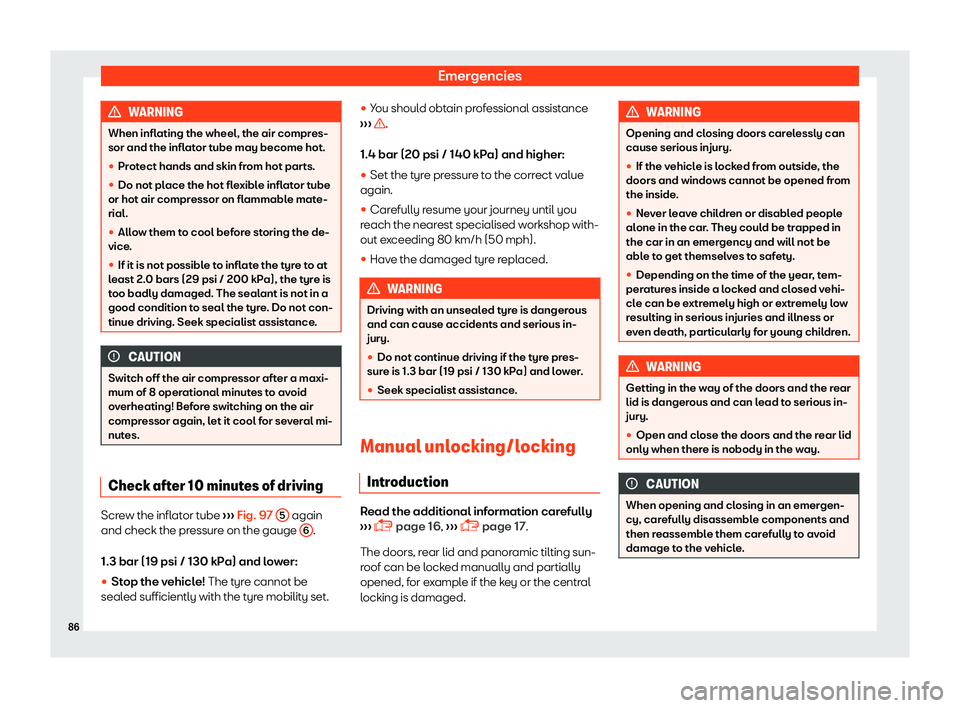

Page 88 of 408
Emergencies
WARNING
When inflating the wheel, the air compres-
sor and the inflat or t
ube may become hot.

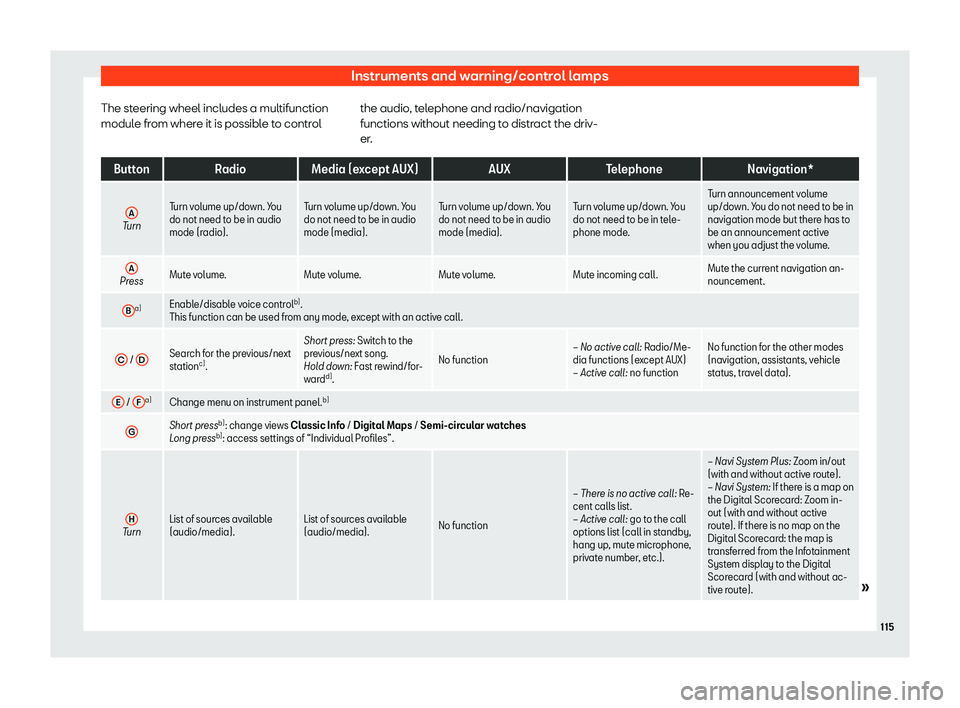

Page 117 of 408
Instruments and warning/control lamps
The steering wheel includes a multifunction
modul e fr
om wher
e it is possible to control the audio, telephone and radio/navigation
functions without needing to distract the driv-
er
. Button
RadioMedia (except AUX) AUXTelephone Navigation*
A Turn
Turn volume up/down. You
do not need to be in audio
mode (radio). T
urn volume up/down. You
do not need to be in audio
mode (media). Turn v
olume up/down. You
do not need to be in audio
mode (media). Turn v
olume up/down. You
do not need to be in tel e-
phone mode. Turn announcement volume
up/down. Y
ou do not need t
o be in
navigation mode but there has to
be an announcement active
when you adjust the volume.
A Press
Mute volume.
Mute volume.Mute volume. Mute incoming call.Mute the current navigation an-
nouncement.
B a)
Enable/disable voice control b)
.
This function can be used from any mode , e
xcept with an active call.
C /
D Search for the previous/next
station
c)
. Short pr
ess:
Swit
ch t o the
previous/next song.
Hold down: Fast rewind/for-
ward d)
. No function
Page 234 of 408
Infotainment System
Only 3 of these items of information can be
displ ayed at the same time
, but the user
chooses which t
o display, and in what order,
by moving the finger vertically over the dials.
Press the Next button to display the L
ap
timer menu 1)
.
Offr
oad*
If the corresponding equipment is available,
the information that appears is the following:
Compass.
Turning angle of steered wheels.
Coolant temperature.
Lubricating oil temperature
Only 2 of these items of information can be
displayed at the same time, but the user
chooses which to display, and in what order,
by moving the finger vertically over the dials.
Consumers
By pressing the CONSUMERS button, informa-
tion on the st atus of the v
ehicle
Page 251 of 408
Start and driving
The control lamps light up together when the
ignition is s wit
ched on and shoul
d turn off af-
ter approximately 2 seconds. This is the time
taken for the function check.
Hydraulic Brake Assist (HBA) Electronic Stability Control (ESC)
The ESC helps to impr
o
ve safety. It reduces
the tendency to skid and improves the stabili-
ty and roadholding of the vehicle. The ESC
detects critical handling situations, such as
vehicle understeer or oversteer, or wheelspin
on the driving wheels. It stabilises the vehicle
by braking individual wheels or by reducing
the engine torque. The warning lamp will
flash on the instrument panel when the ESC is
intervening !.
The ESC includes the anti-lock brake system
(ABS), the hydraulic brake assist (HBA), the
traction control system (ASR), electronic dif-
ferential lock (EDS), electronic torque control
(XDS) and tractor-trailer sway mitigation*.
ESC also helps stabilise the vehicle by
changing the torque.
Anti-lock brake system (ABS)
ABS prevents the wheels from locking up un-
der braking until the vehicle has reached a
virtual standstill. You can continue to steer the
vehicle even when the brakes are on full.
Keep your foot on the brake pedal and do not pump the brakes. You will feel the brake pedal
pulsat
e whil
e the ABS is working.
Hydraulic Brake Assist (HBA)
The brake assist system can reduce the re-
quired braking distance. The braking force is
automatically boosted if you press the brake
pedal quickly in an emergency. You must
keep pressing the brake pedal until the dan-
ger has passed.
Traction control system (ASR)
In the event of wheelspin, the traction control
system reduces the engine torque to match
the amount of grip available. This helps the
car to start moving, accelerate or climb a
gradient.
Electronic differential lock (EDL)
When the EDL detects wheelspin, it brakes
the spinning wheel and directs the power to
the other driven wheel. This function is active
up to approximately 100 km/h (62 mph).
To prevent the disc brake of the braked wheel
from overheating, the EDL cuts out automati-
cally if subjected to excessive loads. The ve-
hicle can still be driven. The EDL will switch on
again automatically when the brake has
cooled down. Tractor-trailer sway mitigation*
If the vehicle is pulling a tr
ailer, it will control
the following: tractor-trailers tend to sway.
When the swaying of the trailer is felt by the
vehicle and detected by the ESC, it will auto-
matically brake the towing vehicle within the
limits of the system and mitigate the sway.
Tractor-trailer sway mitigation is not available
in all countries.
Electronic torque management (XDS)
When taking a curve, the driveshaft differen-
tial mechanism allows the outer wheel to turn
at a higher speed than the inner wheel. In this
way, the wheel that is turning faster (outer
wheel) receives less drive torque than the in-
ner wheel. This may mean that in certain sit-
uations the torque delivered to the inner
wheel is too high, causing the wheels to spin.
On the other hand, the outer wheel is receiv-
ing a lower drive torque than it could transmit.
This causes an overall loss of lateral grip on
the front axle, resulting in understeer or
“lengthening” of the trajectory.
The XDS system can detect and correct this
effect via the sensors and signals of the ESC.
Via the ESC, the XDS will brake the inside
wheel and counter the excess driving torque
of that wheel. This means that the driver
