Seat Tarraco 2020 Owner's manual

High-voltage battery

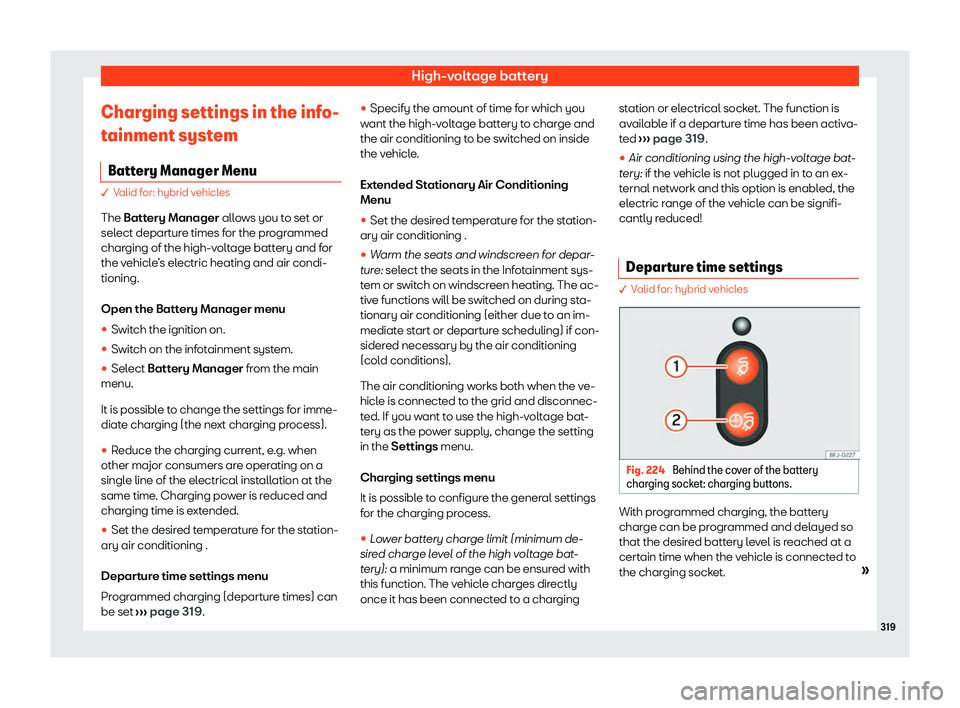

Charging settings in the info-
t ainment syst
em
Battery Manager Menu  V
alid for: hybrid vehicles
The
Battery Manager allows you to set or
select departure times for the programmed
charging of the high-voltage battery and for
the vehicle’s electric heating and air condi-
tioning.
Open the Battery Manager menu

Practical tips

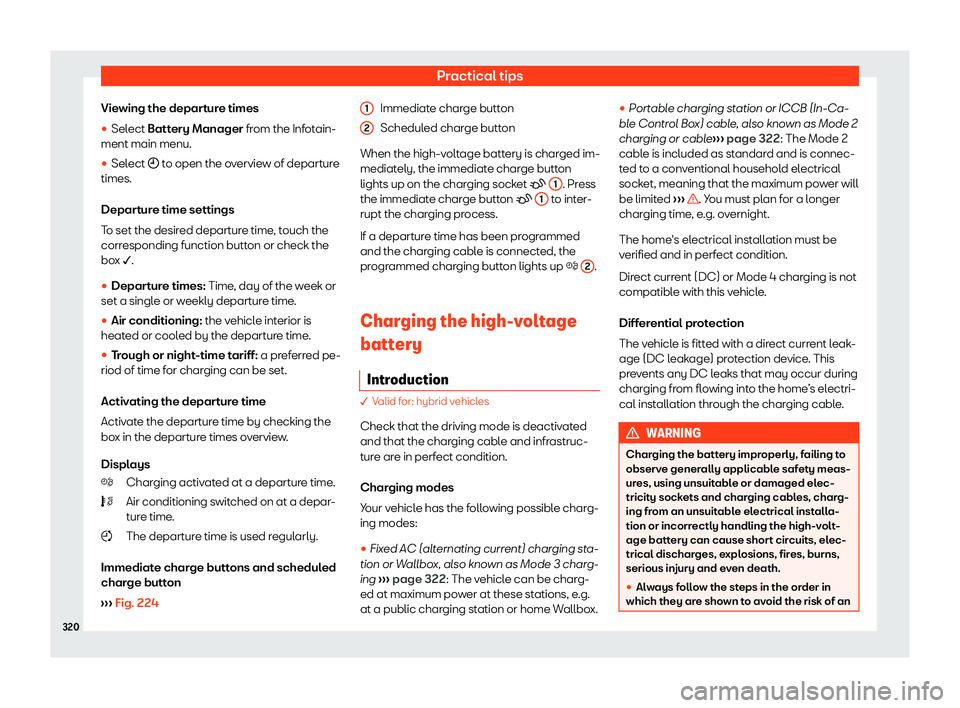

Viewing the departure times

High-voltage battery
electrical discharge and serious injury
caused by the r
esidual ener
gy present in
the charging accumulator. Never pull on
the mains connector during charging.

Practical tips

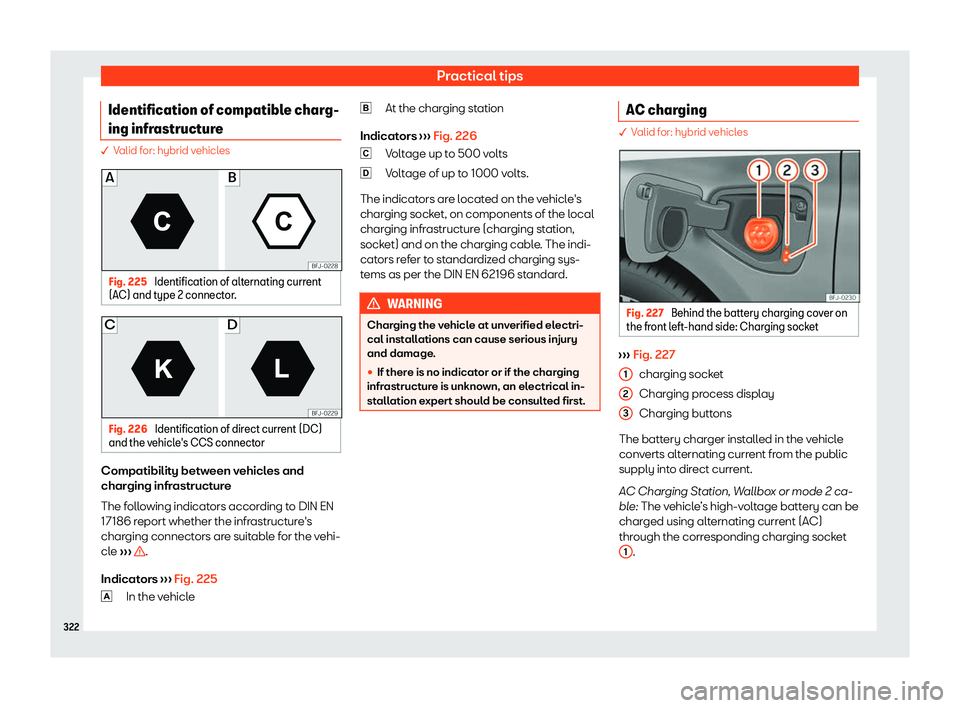

Identification of compatible charg-
ing infr astruct
ure V
alid for: hybrid vehicles Fig. 225
Identification of alternating current
(AC) and t ype 2 connect

or.Fig. 226
Identification of direct current (DC)
and the v ehicl

e

High-voltage battery

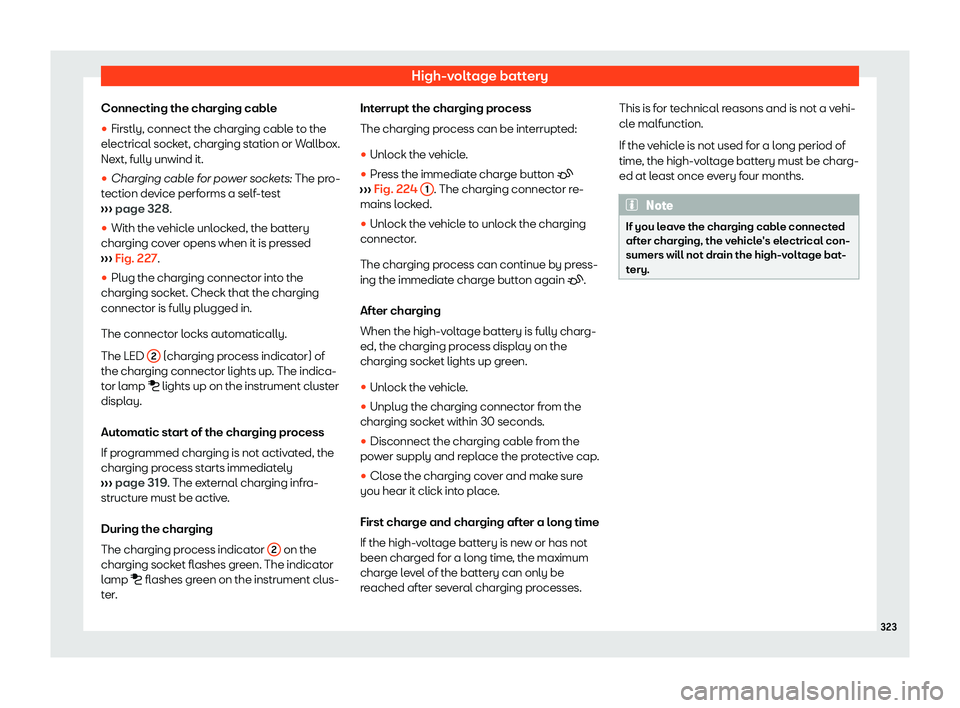

Connecting the charging cable

Practical tips
Charging process display  V
alid for: hybrid vehicles Fig. 228
Behind the cover of the battery
char ging sock
et: charging process display Fig. 229
On the inside of the cover of the bat-
t ery char

ging socket: sticker with information
on the charging process display. The charging process indicator is an LED
› ›

› Fig. 228
1 located on the charging sock-
et that sho ws the st
atus of the charging proc-
ess.
A sticker on the battery charging cover pro-
vides information on the meaning of the LEDs
››› Fig. 229.
charging process displays:
Green LED ››› Fig. 229
:
Always on: Charge completed success-
fully.
Turn signals: The high-voltage battery is
charging.
1 2 Short flashes: Programmed charging is
activ
e

. The charging process has not yet
started.
Yellow LED ››› Fig. 229
:
Turn signals: The parking lock P has not
been enabled.
Briefly lights up: The charging connector
has been plugged into the charging sock-
et and the vehicle has detected it.
Always on: No electrical network has
been detected. Arrange an inspection of
the power supply and network. Seek pro-
fessional assistance.
Red LED ››› Fig. 229
:
Turn signals: Error in the charging system.
The charging process cannot start or has
paused.
Always on: The charging connector has
not been locked. Unplug the charging
connector and plug it back in to the
charging socket, making sure it is proper-
ly inserted. If the problem persists, check
the compatibility of the cable or ask a
professional for help. Note
If the charging process display permanent-
ly indicat es an err

or in the power supply or
vehicle’s charging system, you should seek
professional assistance. 3
4
5
6
324

High-voltage battery
Troubleshooting  V
alid for: hybrid vehicles

Practical tips
Manual release of the charging connector
The pull er f
or the manual release is located
on the left hand side of the engine compart-
ment (between the left wing panel and the
engine bonnet hinge), above the charging
socket ››› Fig. 230
.

High-voltage battery

Practical tips
CAUTION
Follow the manufacturer’s instructions and
indications when using the char ging st
a-
tion. Note
Charging with a 16 A charging cable is not
possibl e in some char

ging stations that
support 32 A. This depends on the features
of the charging station.
