light Seat Tarraco 2020 Owner's Guide

Braking and parking
camera, it can also be accessed by means of
the driv er assist
ance systems key located on
the main beam headlight lever.
Open the Assistants menu.

Driving
Brake blending 1)
The br ak
e energy recuperation can generate
a braking effect. This braking effect depends
on the selected driving programme and the
level of charge of the high-voltage battery.
If the braking effect caused by the recupera-
tion is very intense, the vehicle’s brake lights
with turn on. The electric engine, when oper-
ating as an alternator, can generate braking
torque on the front wheels based on the RPM
and the temperature and charge level of the
high-voltage battery.
These variable parameters cause fluctuating
electric decelerations which are hydraulical-
ly compensated according to the driver’s de-
sires. This function is called “brake blending”
and it combines mechanical braking with the
engine brake effect. WARNING
Driving at high speed on icy, slippery wet
gr ound can r

esult in loss of vehicle control
and serious injury to the driver and passen-
gers.

Help with parking and manoeuvring
Determine the length of the trailer's draw-
bar
In or der f
or the trailer manoeuvre assistant to
determine the length of the trailer’s drawbar,
drive the vehicle-trailer set through some
turning manoeuvres or curves. The more pre-
cisely the length of the drawbar is deter-
mined, the wider the angles that will be avail-
able when manoeuvring. The assistant subdi-
vides the maximum available end stops of the
angle indicator into four levels: approx. 30°,
45°, 60° and 75°. Note
For technical reasons, the trailer manoeu-
vr e assist

ant cannot always correctly de-
tect trailers with LED technology taillights. Operating
Fig. 212
Rotary exterior mirror controls.: adjust
the tr ail

er angle. Fig. 213
Instrument panel display: engage re-
v erse gear Key of the Fig. 2
12

,
››› Fig. 213
:
Rotary exterior mirror controls.
Trailer orientation to the left
Trailer orientation to the right
Move the vehicle in the direction of the
towing device.
Actual trailer position
Target trailer position
Angle indicator zero position
Manoeuvre with the tow vehicle and trailer
set
The system requirements must be met
››› page 296.

Help with parking and manoeuvring
Views of the peripheral vision sys-
t em (modes) Fig. 216
Display on the top view system
scr een:  Fr
ont camera: off-road view.  Rear
camera: off-road view. Depending on the equipment: connect-
ing and disconnecting the P
arkPil

ot
sound.
Exiting the Area View system screen:
Adjust the display: bright, contrast and
colour.
The selected view is displayed on the right
side of the screen. The reduced aerial view 

 shown on the right side displays the view
framed in yell

ow. In addition, the right margin
of the screen displays the menu options pos-
sible and the views (the so-called “modes”)
of the camera in question. The active view
(mode) at the time is highlighted.
The red lines are indicate a distance of ap-
prox. 40 cm away from the vehicle.
Aerial views (bird's eye view)
Main mode:
The vehicle and its immediate vicinity
seen from above are shown. Depending
on the equipment, the ParkPilot's path
may also be displayed.
Three-dimensional views: The vehicle and its vicinity seen from
above are shown.
The vehicle and its vicinity seen from
above are shown obliquely.
The vehicle and its vicinity seen obli-
quely are shown.
Swipe the infotainment system display with
your finger in the direction of the arrows to
change the angle of vision in the three-di-
mensional views of the vehicle and its vicinity.
Front camera views (front view) Cross traffic. This visualization helps to
monitor traffic to the left, front and right
L



 of the vehicle and can be used, for ex-
ample
, when exiting garages or narrow
exits.
Angle parking. The area in front of the
vehicle is shown. Orientation lines are
shown to give guidance.
Off-road. The area directly in front of the
vehicle seen from above is shown. For
example, on a slope, in order to see the
area directly in front of the vehicle.
Side camera views (side view) Right and left sides. The areas located
directly to the side of the vehicle seen
from above are represented in order to
navigate possible obstacles more pre-
cisely.The driver’s or passenger's side seen
from above is shown. This makes it
possible to visualize the blind spots
along the vehicle.
Rear camera views (rear view) Angle parking. The area behind the vehi-
cle is shown. Auxiliary lines are shown to
give guidance.Parallel parking. The area directly be-
hind the vehicle is shown. The coloured
boxes and auxiliary lines serve as orien-
tation.
Off-road or hitching a trailer function.
The vehicle's rear is presented. »








 301

Driving
Technical requirements Vehicles that are f
act ory-mounted with a
towing device meet all the technical and le-
gal requirements for driving with a trailer
››› page 313.
If the vehicle is retrofitted with a towing
bracket, only a bracket that is authorised for
the maximum authorised load of the trailer
that is to be towed may be fitted. The towing
bracket must be suitable for the vehicle and
the trailer and must be properly secured to
the vehicle's chassis. Only use a towing
bracket that has been authorised by SEAT for
this vehicle. Always check and take into ac-
count the towing bracket manufacturer's in-
structions.
Towing bracket fitted on the bumper
Never fit a towing bracket to the bumper or to
the area where the bumper is mounted. The
towing bracket should not impair the bum-
per's function. Do not make modifications or
repairs to the exhaust system or the brake
system. Make regular checks to ensure that
the towing bracket is secure.
Engine cooling system
Driving with a trailer increases the load on the
engine and cooling system. The cooling sys-
tem should have sufficient coolant and be
prepared for the additional effort involved in
driving with a trailer. Trailer brakes
If the tr
ail

er has its own brake system, please
take the relevant legal requirements into ac-
count. Never connect the trailer's brake sys-
tem to the vehicle's brake system.
Tow cable
Always use a cable between the vehicle and
the trailer ››› page 309
.
Trailer tail lights
The trailer's rear lights should comply with
the statutory safety regulations ››› page 309
.
Never connect the trailer's rear lights directly
to the vehicle's electric system. If you are not
sure that the trailer's electrical connection is
correct, have it checked by a specialised
workshop. SEAT recommends visiting a SEAT
dealership for this.
Exterior mirrors
If you cannot see the area behind the trailer
with the exterior mirrors of the towing vehicle,
additional mirrors will have to be installed in
accordance with the regulations of the coun-
try in question. The exterior mirrors should be
adjusted before you start driving and must
provide a sufficient field of vision at the rear.
Trailer maximum electricity consumption
Never exceed the values indicated! Europe, Asia, Africa, South America and Central
America Brake lights (total)
84 Watts
Turn signal (on each side) 42 Watts
Side lights (on each side) 50 Watts
Reverse lights (in total) 42 Watts
Rear fog light 42 Watts Australia
Brake lights (total)
108 Watts
Turn signal (on each side) 54 Watts
Side lights (on each side) 100 Watts
Reverse lights (in total) 54 Watts
Rear fog light 54 Watts WARNING
If the towing bracket is wrongly fitted or is
not the right one , the tr

ailer could become
detached from the vehicle and cause seri-
ous injury. CAUTION

Practical tips
Charging process display  V
alid for: hybrid vehicles Fig. 228
Behind the cover of the battery
char ging sock
et: charging process display Fig. 229
On the inside of the cover of the bat-
t ery char

ging socket: sticker with information
on the charging process display. The charging process indicator is an LED
› ›

› Fig. 228
1 located on the charging sock-
et that sho ws the st
atus of the charging proc-
ess.
A sticker on the battery charging cover pro-
vides information on the meaning of the LEDs
››› Fig. 229.
charging process displays:
Green LED ››› Fig. 229
:
Always on: Charge completed success-
fully.
Turn signals: The high-voltage battery is
charging.
1 2 Short flashes: Programmed charging is
activ
e

. The charging process has not yet
started.
Yellow LED ››› Fig. 229
:
Turn signals: The parking lock P has not
been enabled.
Briefly lights up: The charging connector
has been plugged into the charging sock-
et and the vehicle has detected it.
Always on: No electrical network has
been detected. Arrange an inspection of
the power supply and network. Seek pro-
fessional assistance.
Red LED ››› Fig. 229
:
Turn signals: Error in the charging system.
The charging process cannot start or has
paused.
Always on: The charging connector has
not been locked. Unplug the charging
connector and plug it back in to the
charging socket, making sure it is proper-
ly inserted. If the problem persists, check
the compatibility of the cable or ask a
professional for help. Note
If the charging process display permanent-
ly indicat es an err

or in the power supply or
vehicle’s charging system, you should seek
professional assistance. 3
4
5
6
324

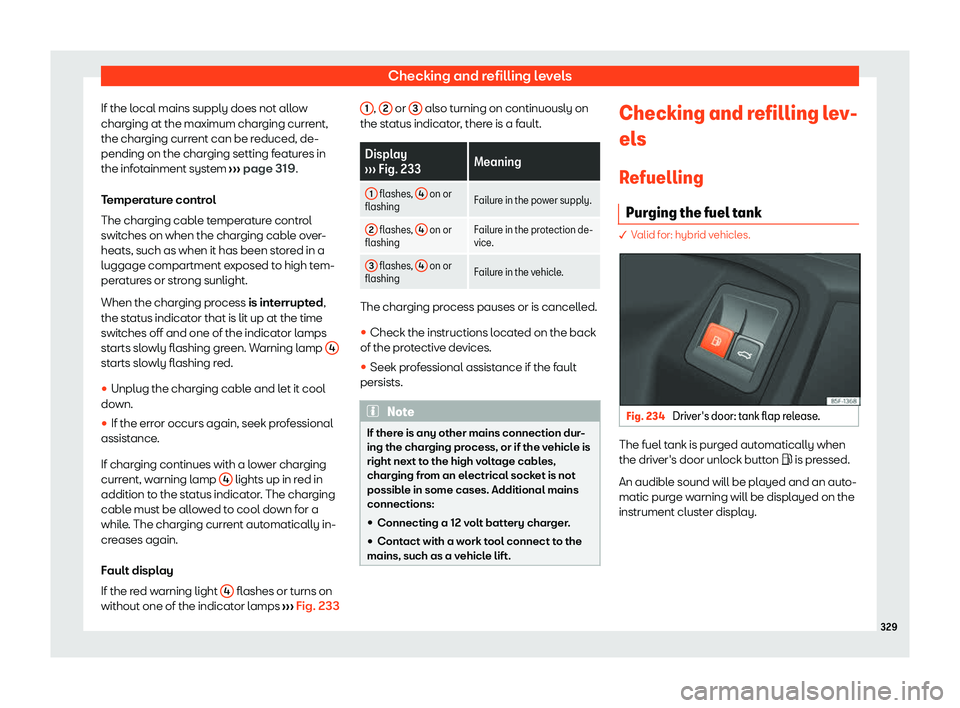

Checking and refilling levels
If the local mains supply does not allow
char ging at the maximum char
ging current,
the charging current can be reduced, de-
pending on the charging setting features in
the infotainment system ››› page 319
.
Temperature control
The charging cable temperature control
switches on when the charging cable over-
heats, such as when it has been stored in a
luggage compartment exposed to high tem-
peratures or strong sunlight.
When the charging process is interrupted,
the status indicator that is lit up at the time
switches off and one of the indicator lamps
starts slowly flashing green. Warning lamp 4starts slowly flashing red.

Practical tips
Super unleaded petrol 95 octane petrol or
normal 91 oct ane petr
ol at least
We recommend refuelling with super 95 oc-
tane petrol (91 AKI). If not available, normal 91
octane petrol (87 AKI) (with a slight power
loss) may be used.
Super unleaded petrol, 95 octanes at
least
You should use super 95 octane petrol (91
AKI) at least.
If super is not available, if necessary, use nor-
mal 91 octane petrol (87 AKI). In this case only
use moderate engine speeds and a light
throttle. Refuel with super as soon as possi-
ble.
Unleaded super plus 98 octane petrol or
super 95 octane petrol at least
We recommend refuelling with super plus 98
octane petrol (93 AKI). If not available: super
95 octane petrol (91 AKI) (with a slight power
loss).
If super is not available, if necessary, use nor-
mal 91 octane petrol (87 AKI). In this case only
use moderate engine speeds and a light
throttle. Refuel with super as soon as possi-
ble. CAUTION

Practical tips

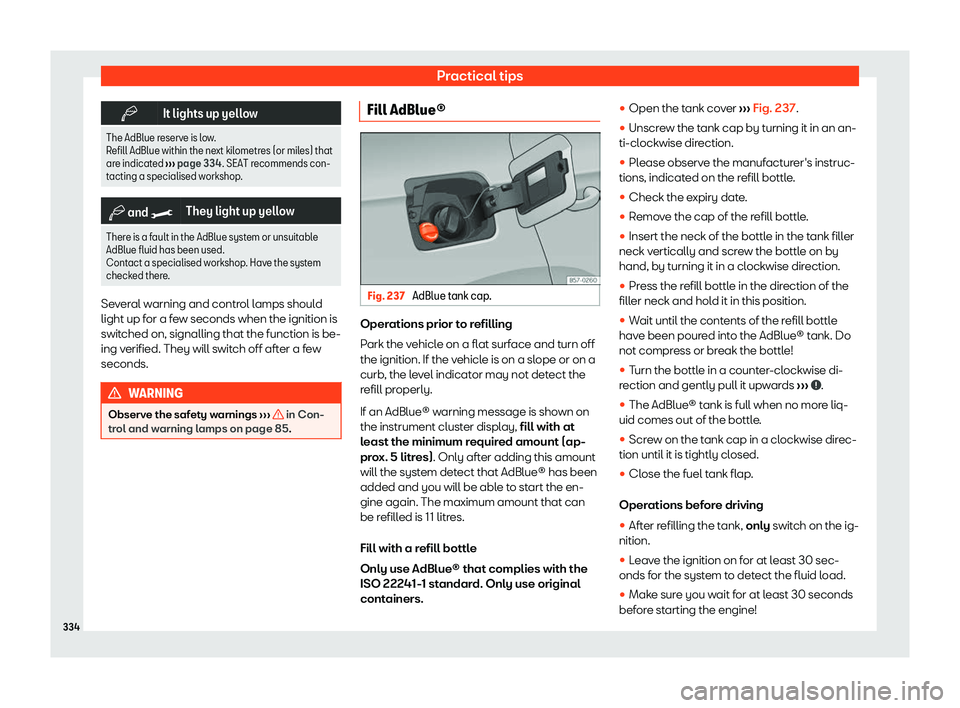

b
It lights up yellow
The AdBlue reserve is low.
R efill AdBlue within the ne
xt kilometres (or miles) that
are indicated

Practical tips
Brake fluid Check and r efill the br
ake fluidFig. 246
Engine compartment: brake fluid res-
erv oir cap

. The brake fluid reservoir is located in the en-
gine compartment
››

› page 340
.
Checking the brake fluid level
The brake fluid level must be between the 
and  markings.
However, if the brake fluid level goes down
noticeably in a short time, or drops below the mark, there may be a leak in the brake system. Seek specialist assistance. A warning
light on the instrument panel display monitors
the brake fluid level ››› page 84
.
In right-hand drive vehicles the brake fluid
reservoir is on the other side of the engine
compartment. Changing brake fluid
We r

ecommend that you have the brake fluid
changed by a Technical Service. WARNING
If the brake fluid level is low or unsuita-
bl e/ol

d brake fluid is used, the brake sys-
tem may fail or braking power may be re-
duced.
