Driving
k

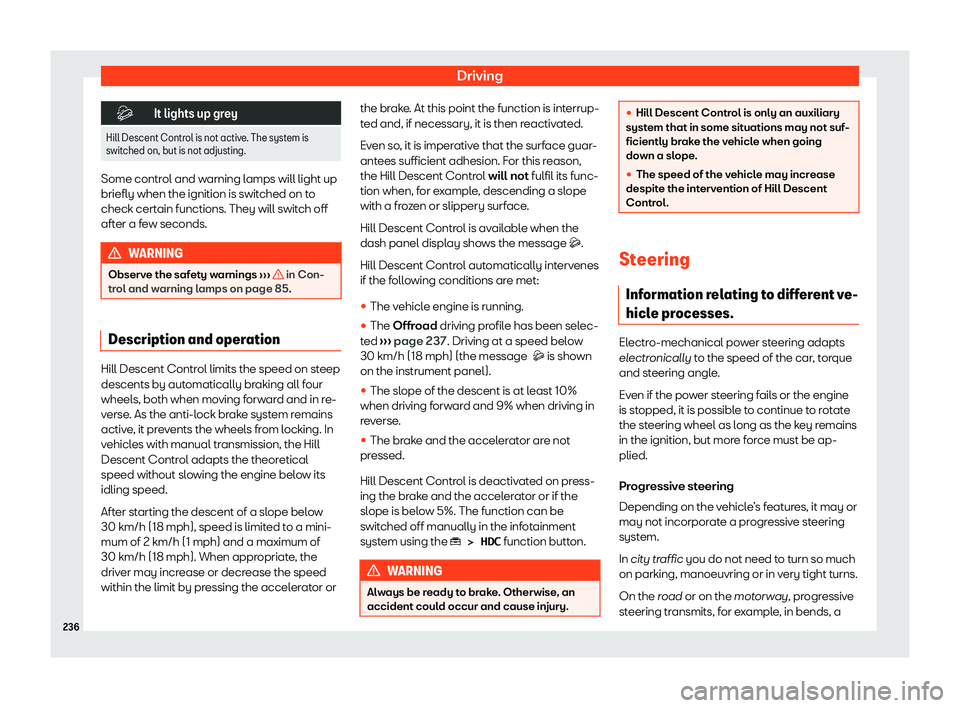

It lights up grey
Hill Descent Control is not active. The system is
s wit
ched on, but is not adjusting. Some control and warning lamps will light up
briefly when the ignition is s
wit

ched on to
check certain functions. They will switch off
after a few seconds. WARNING
Observe the safety warnings ››

› in Con-
tr ol and w
arning lamps on page 85. Description and operation
Hill Descent Control limits the speed on steep
descents by aut
omatically br

aking all four
wheels, both when moving forward and in re-
verse. As the anti-lock brake system remains
active, it prevents the wheels from locking. In
vehicles with manual transmission, the Hill
Descent Control adapts the theoretical
speed without slowing the engine below its
idling speed.
After starting the descent of a slope below
30 km/h (18 mph), speed is limited to a mini-
mum of 2 km/h (1 mph) and a maximum of
30 km/h (18 mph). When appropriate, the
driver may increase or decrease the speed
within the limit by pressing the accelerator or the brake. At this point the function is interrup-
ted and, if necessary, it is then r

eactivated.
Even so, it is imperative that the surface guar-
antees sufficient adhesion. For this reason,
the Hill Descent Control will not fulfil its func-
tion when, for example, descending a slope
with a frozen or slippery surface.
Hill Descent Control is available when the
dash panel display shows the message k .
Hill Descent Control automatically intervenes
if the following conditions are met:

Start and driving
sportier, more direct and noticeably more dy-
namic driving sensation.
St eering assist
This help assists the driv
er in critical situa-
tions. It recommends turning the steering
wheel to perform a corrective manoeuvre
(counter-steering), turning slightly to avoid
skidding ››› .
WARNING
Steering assist helps the driver in critical
sit uations. The driv

er is the person who has
to control the vehicle's steering at all times. Control lamp
v
It lights up red
Faulty steering.
Do not continue driving, st op the v

ehicle as soon as
possible and in a safe manner.
Take the vehicle to a specialised workshop and have
the fault repaired as soon as possible. v
It lights up yellow
Limited steering operation.
Driv e car

efully to a specialised workshop to have the
steering checked.
If the warning light does not come on again after re-
starting the engine and driving a short distance, it is
not necessary to check the steering.
OR: The 12-v olt batt
ery was disconnected and re-
connected.
Drive a short distance at 15-20 km / h (9-12 mph). v
It flashes yellow
The steering column is jammed.
When st opped, t

urn the steering wheel in both direc-
tions.
OR: The st eering column does not unlock or lock.
T
urn off the ignition and turn it on again. Consider the
messages shown on the instrument panel display.
Do not continue driving if the steering column re-
mains locked after switching on the ignition. Seek
specialist assistance. The control lamp should light up for a few
seconds when the ignition is s
wit

ched on. It
should go out once the engine is started. WARNING
Never ignore the warning lamps or messag-
es.

Driving
Technical requirements Vehicles that are f
act ory-mounted with a
towing device meet all the technical and le-
gal requirements for driving with a trailer
››› page 313.
If the vehicle is retrofitted with a towing
bracket, only a bracket that is authorised for
the maximum authorised load of the trailer
that is to be towed may be fitted. The towing
bracket must be suitable for the vehicle and
the trailer and must be properly secured to
the vehicle's chassis. Only use a towing
bracket that has been authorised by SEAT for
this vehicle. Always check and take into ac-
count the towing bracket manufacturer's in-
structions.
Towing bracket fitted on the bumper
Never fit a towing bracket to the bumper or to
the area where the bumper is mounted. The
towing bracket should not impair the bum-
per's function. Do not make modifications or
repairs to the exhaust system or the brake
system. Make regular checks to ensure that
the towing bracket is secure.
Engine cooling system
Driving with a trailer increases the load on the
engine and cooling system. The cooling sys-
tem should have sufficient coolant and be
prepared for the additional effort involved in
driving with a trailer. Trailer brakes
If the tr
ail

er has its own brake system, please
take the relevant legal requirements into ac-
count. Never connect the trailer's brake sys-
tem to the vehicle's brake system.
Tow cable
Always use a cable between the vehicle and
the trailer ››› page 309
.
Trailer tail lights
The trailer's rear lights should comply with
the statutory safety regulations ››› page 309
.
Never connect the trailer's rear lights directly
to the vehicle's electric system. If you are not
sure that the trailer's electrical connection is
correct, have it checked by a specialised
workshop. SEAT recommends visiting a SEAT
dealership for this.
Exterior mirrors
If you cannot see the area behind the trailer
with the exterior mirrors of the towing vehicle,
additional mirrors will have to be installed in
accordance with the regulations of the coun-
try in question. The exterior mirrors should be
adjusted before you start driving and must
provide a sufficient field of vision at the rear.
Trailer maximum electricity consumption
Never exceed the values indicated! Europe, Asia, Africa, South America and Central
America Brake lights (total)
84 Watts
Turn signal (on each side) 42 Watts
Side lights (on each side) 50 Watts
Reverse lights (in total) 42 Watts
Rear fog light 42 Watts Australia
Brake lights (total)
108 Watts
Turn signal (on each side) 54 Watts
Side lights (on each side) 100 Watts
Reverse lights (in total) 54 Watts
Rear fog light 54 Watts WARNING
If the towing bracket is wrongly fitted or is
not the right one , the tr

ailer could become
detached from the vehicle and cause seri-
ous injury. CAUTION

Practical tips
Brake fluid Check and r efill the br
ake fluidFig. 246
Engine compartment: brake fluid res-
erv oir cap

. The brake fluid reservoir is located in the en-
gine compartment
››

› page 340
.
Checking the brake fluid level
The brake fluid level must be between the 
and  markings.
However, if the brake fluid level goes down
noticeably in a short time, or drops below the mark, there may be a leak in the brake system. Seek specialist assistance. A warning
light on the instrument panel display monitors
the brake fluid level ››› page 84
.
In right-hand drive vehicles the brake fluid
reservoir is on the other side of the engine
compartment. Changing brake fluid
We r

ecommend that you have the brake fluid
changed by a Technical Service. WARNING
If the brake fluid level is low or unsuita-
bl e/ol

d brake fluid is used, the brake sys-
tem may fail or braking power may be re-
duced.
