engine Seat Tarraco 2020 Owner's manual

Table of Contents
Table of Contents Gener al vie
ws of the vehicle . . . . . . . . 7
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Overview (left hand drive) . . . . . . . . . . . . . . . . 9
Overview (right hand drive) . . . . . . . . . . . . . . . 10
Interior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Advice about driving . . . . . . . . . . . . . . . . . . . . . . . . 12
Correct sitting position of vehicle occu-
pants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Pedal area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
The whys and wherefores of seat belts . . . . . 17
How to properly adjust your seat belt . . . . . . 20
Seat belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . 22
PreCrash system* . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Operation of the airbags . . . . . . . . . . . . . . . . . . . 27
Transporting children safely . . . . . . . . . . . . . . 32
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42Self-help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Information, assistance and emergency
call service* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Emergency equipment . . . . . . . . . . . . . . . . . . . . . 43

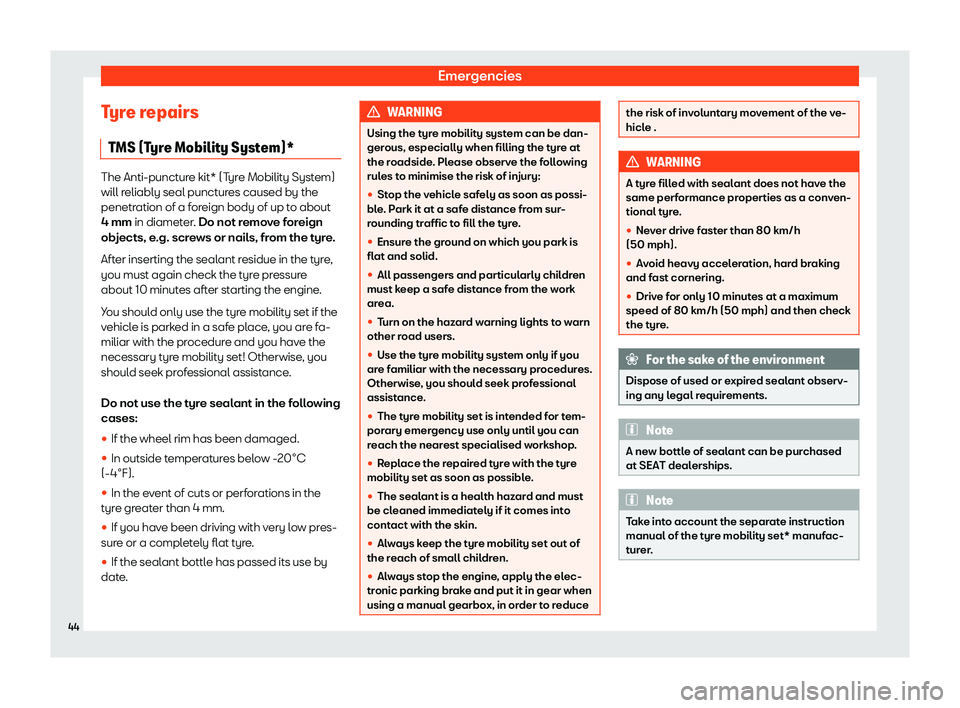

Tyre repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Changing the windscreen wiper blades . . . . 51 Jump start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Tow start and towing . . . . . . . . . . . . . . . . . . . . . . . 54
Fuses and bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
59
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 Controls and displays . . . . . . . . . . . . . . . . . . . . 65
Interior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Instruments and warning/control
lamps
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Using the instrument panel . . . . . . . . . . . . . . . . . 82
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Infotainment system . . . . . . . . . . . . . . . . . . . . . . . . 86
Multifunction steering wheel* . . . . . . . . . . . . . . 91
Opening and closing . . . . . . . . . . . . . . . . . . . . . . 92
Set of vehicle keys . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Anti-theft alarm system* . . . . . . . . . . . . . . . . . . . 101
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Window controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Sunroof* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Vehicle lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Windscreen wiper and rear window wiper
systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Mirr

ors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Sun protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127 Seats and headrests . . . . . . . . . . . . . . . . . . . . . . 128
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
128
Headrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Seat functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Transport and practical equipment . . . . . . 139
Storing objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Luggage compartment . . . . . . . . . . . . . . . . . . . . . 140
Net partition* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Roof carrier* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Storage compartment . . . . . . . . . . . . . . . . . . . . . 150
Power sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Heating, ventilation and cooling . . . . . . . . . . . . 157
Auxiliary heating and ventilation* . . . . . . . . . . . 166
Infotainment system . . . . . . . . . . . . . . . . . . 171
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
First steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Overview and controls . . . . . . . . . . . . . . . . . . . . . 175
General instructions for use . . . . . . . . . . . . . . . . 176
Data transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
SEAT CONNECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Full Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
WLAN access point* . . . . . . . . . . . . . . . . . . . . . . . . 191
Infotainment operation . . . . . . . . . . . . . . . . . . . 194
voice control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Radio/Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Navigation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Telephone interface . . . . . . . . . . . . . . . . . . . . . . . . 210
Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Start and driving . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Starting and stopping the engine . . . . . . . . . . . 217
Start-Stop system* . . . . . . . . . . . . . . . . . . . . . . . . . 222
Operating mode selection . . . . . . . . . . . . . . . . . . 225 5

Table of Contents
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Automatic gearbox/DSG automatic gear-
bo x* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
228
Gear
-change recommendation . . . . . . . . . . . . 235
Hill Descent Control (HDC) . . . . . . . . . . . . . . . . . 235
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
SEAT Drive Profiles* . . . . . . . . . . . . . . . . . . . . . . . . 237
Driving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Driver assistance systems . . . . . . . . . . . . . . . . 243
General notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Drive assist sensors and cameras . . . . . . . . . . 244
Cruise control system (CCS)* . . . . . . . . . . . . . . 247
Speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Emergency brake assistance system (Front
Assist)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
ACC - Adaptive Cruise Control* . . . . . . . . . . . 254
Proactive speed adjustment . . . . . . . . . . . . . . . . 260
Lane Assist* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Driving Assist (Travel Assist) . . . . . . . . . . . . . . . . . 264
Emergency Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Side Assist with Rear Cross Traffic Alert
(RCT
A)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Braking and parking . . . . . . . . . . . . . . . . . . . . . . . 273
Braking system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Stabilisation and brake assistance sys-
tems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
8
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
Help with parking and manoeuvring . . . . . 282
Assisted parking system (Park Assist)* . . . . . . 282
Parking aid parking and manoeuvring
(ParkPil
ot) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
Parking System Plus* . . . . . . . . . . . . . . . . . . . . . . . 291
Rear parking aid* . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Trailer Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296 Peripheral view system (Top View Cam-
era)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
R

everse Assist (Rear View Camera)* . . . . . . . 302
Towing bracket device* . . . . . . . . . . . . . . . . . . . 306
Trailer mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306
Electrically unlocking trailer hook* . . . . . . . . . 313
Retrofitting a towing bracket . . . . . . . . . . . . . . . 315
Practical tips . . . . . . . . . . . . . . . . . . . . . . . . . . . 316
High-voltage battery . . . . . . . . . . . . . . . . . . . . . 316
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . 316
Conservation of the high-voltage bat-
tery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 318
Char

ging settings in the infotainment sys-
tem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 319
Char

ging the high-voltage battery . . . . . . . . . 320
Charging cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . 326
Checking and refilling levels . . . . . . . . . . . . . 329
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Fuel types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 331
AdBlue® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333
Engine management and emissions control
system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . 337
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
Cooling syst

em . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Windscreen washer reservoir . . . . . . . . . . . . . . . 346
12-volt battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
Energy management . . . . . . . . . . . . . . . . . . . . . . . 351
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
Wheels and tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
Tyre pressure monitor system . . . . . . . . . . . . . . . 360
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 361 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 364
SEAT Maintenance Programme . . . . . . . . . .
364
Service intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 364 Additional service offers . . . . . . . . . . . . . . . . . . . . 366
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367
Vehicle maintenance . . . . . . . . . . . . . . . . . . . . . 367
Maintenance and cleaning . . . . . . . . . . . . . . . . . 367
Accessories and modifications to the ve-
hicle
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 373
Accessories, spare parts and repair work . . . 373
Information for the user . . . . . . . . . . . . . . 375
Information for the user . . . . . . . . . . . . . . . . . . . 375
Information stored by the control units . . . . . . 375
Other important information . . . . . . . . . . . . . . . . 375
Information about the EU Directive
2014/53/EU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 376
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . 380
Indications about the technical data . . . . 380
Important information . . . . . . . . . . . . . . . . . . . . . . 380
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387
6

Emergencies
Tyre repairs T MS (T
yre Mobility System)* The Anti-puncture kit* (Tyre Mobility System)
will r
eliably seal punct

ures caused by the
penetration of a foreign body of up to about
4 mm in diameter. Do not remove foreign
objects, e.g. screws or nails, from the tyre.
After inserting the sealant residue in the tyre,
you must again check the tyre pressure
about 10 minutes after starting the engine.
You should only use the tyre mobility set if the
vehicle is parked in a safe place, you are fa-
miliar with the procedure and you have the
necessary tyre mobility set! Otherwise, you
should seek professional assistance.
Do not use the tyre sealant in the following
cases:

Self-help
Jump start: description Fig. 43
Diagram of connections for vehicles
without St art
-Stop system. Fig. 44
Diagram of connections for vehicles
with St art

-Stop system. Jump lead terminal connections
Swit

ch off the ignition of both vehicles
››› .
1. Connect one end of the r
ed

jump lead to
the positive + terminal of the vehicle
with the fl at batt
ery A
› ›
› Fig. 43
.
Connect the other end of the red jump
lead to the positive terminal + in the ve-
hicl e pr

oviding assistance B .
In v ehicl
es without a Start-Stop system:
connect one end of the black jump lead
to the negative terminal – of the vehicle
pr o

viding the current B
› ›
› Fig. 43
.
In vehicles with a Start-stop system:
connect one end of the black jump lead X to a suitable ground terminal, to a sol-
id piece of met al in the engine bl

ock, or
to the engine block itself ››› Fig. 44
.
Connect the other end of the black jump
lead X to a solid metal component bol-
t ed t

o the engine block or to the engine
block itself of the vehicle with the flat
battery. Do not connect it to a point near
the battery A .
P osition the l

eads in such a way that
they cannot come into contact with any
moving parts in the engine compart-
ment.
Starting Start the engine of the vehicle with the
boosting battery and let it run at idling
speed.
2.
3.
4a.
4b.
5.
6.
7.
Start the engine of the vehicle with the
flat batt

ery and wait for 2 or 3 minutes
until the engine is running.
Removing the jump leads Before you remove the jump leads,
switch off the dipped beam headlights if
they are switched on.
Turn on the heater blower and heated
rear window in the vehicle with the flat
battery. This helps minimise voltage
peaks which are generated when the
leads are disconnected.
When the engine is running, disconnect
the leads in reverse order to the details
given above.
Make sure the battery clamps have sufficient
metal-to-metal contact with the battery ter-
minals.
If the engine fails to start after about 10 sec-
onds, switch off the starter and try again after
about 1 minute. WARNING

Self-help
deactivated. If the vehicle has no power
supply or ther
e is an el
ectric system fault,
the engine must be jump-started
››› page 52 to deactivate the electronic
parking brake and the electronic lock of the
steering column. Front towline anchorage
Fig. 45
On the right side of the front bumper:
r emo

ve the cover. Fig. 46
On the right side of the front bumper:
t o

wline anchorage in position. The housing of the removable towline an-
chor
age is on the right side of the fr

ont bump-
er underneath a cover ››› Fig. 45
.
The towing eye should always be kept in the
vehicle.
Bear in mind the instructions for towing
››› page 55.
Fitting the towline anchorage

Instruments and warning/control lamps
Digital dashboard (SEAT Digital Cockpit) Fig. 54
SEAT Digital Cockpit on the instrument
panel (cl assic vie
w). Details of the instruments:
Engine cool ant t

emperature display
››› page 80
Revolution counter. Revolutions per mi-
nute the engine is running ››› page 78
.
Gear engaged or position of the selec-
tor lever currently selected
Screen display ››› page 70
Speedometer
Digital speed display
Fuel gauge ››› page 79
.
Information Profile ››› page 67
.
1 2
3
4
5
6
7
8 The Digital SEAT Cockpit is an instrument
panel digit
al with monochr
ome screen in col-
our high resolution. It has a 3 views accessi-
ble using the button  of the multifunction
st eering wheel. By sel

ecting different infor-
mation profiles, indications other than the
classic circular instruments can be displayed,
such as navigation data, multimedia informa-
tion or travel data.
The 3 views are:

Instruments and warning/control lamps
Digital dashboard (SEAT Digital Cockpit)  V
alid for: hybrid vehicles Fig. 55
SEAT Digital Cockpit on the instrument
panel (cl assic vie
w). Details of the instruments
››

› Fig. 55
:
Battery charge level indicator
››› page 79
Rev counter and Powermeter. Revolu-
tions per minute the engine is running
››› page 78.
Gear engaged or position of the selec-
tor lever currently selected
Screen display ››› page 70
Speedometer
Digital speed display
Fuel gauge ››› page 79
.
Information Profile ››› page 67
.
1 2
3
4
5
6
7
8 Navigation map in the SEAT Digital
Cockpit*
Depending on the features, the SEAT Digital
Cockpit can displ
ay a det

ailed map. To do
this, select the Navigation option in the
menu on the instrument panel ››› page 71
.
Depending on the features or the navigation
map, it can be shown in the SEAT Digital
Cockpit or on the infotainment system or on
both at the same time. If it is displayed only in
the infotainment system, the SEAT Digital
Cockpit will only display the arrows for ma-
noeuvres. Transfer of navigation map
The map is tr
ansf

erred from the infotainment
system to the SEAT Digital Cockpit and vice
versa using the map transfer button.
Using the right thumbwheel of the multifunc-
tion steering wheel, in the Navigation menu,
you can transfer the map back to the info-
tainment system.
69

Operation

v Tr
avel Assist On/Off ››› page 264

v Side Assist On/Off ››› page 268

v Navigation.

v Audio.

v Telephone.

v Vehicle status. ››› page 73
Service Menu In the Service menu various settings can be
adjust
ed depending on the f

eatures.
Open the Service menu
To open up the Service menu, select the
Range information profile while in the Driv-
ing data menu, and keep the  key press-
ed on the multifunction st eering wheel f

or ap-
proximately 4 seconds. When it is released,
the Service menu will be displayed. Now
you can browse through the menu using the
keys on the multifunction steering wheel as
usual.
Restart the service interval display
Select the Service menu and follow the in-
structions on the screen of the instrument
panel. Restart the oil service
Select the
Restore Oil service menu and
f

ollow the instructions on the instrument pan-
el display.
Restart journey data
Select the Reset trip menu and follow the
instructions on the instrument panel display
to reset the value.
Identifying letters on engine (LDM)
Select the menu Engine code . The identify-
ing letters of the engine will be shown on the
instrument cluster display at the bottom left.
Setting the clock
Select the Time menu and set the correct
time by turning the right thumbwheel of the
multifunction steering wheel.
Driving data indicator (multifunc-
tion display) The display of the travel data (multifunction
displ
ay) sho

ws different values about the
journey and the consumption. Change from one display to another

Instruments and warning/control lamps
Charge: Char ging z
one. Indicates the
amount of charge generated and the
maximum charge.
Power %: Electric traction zone. Indi-
cates the percentage of power used and
the maximum amount of power currently
available.
The power meter shows the usage level of
the electric drive. The power meter bar shows
the current usage level.
A finer coloured border indicates how much
the propulsion can currently be used. De-
pending on the selected driving program and
the current availability of electrical power,
the boundaries of the different colours can
vary.
The following displays can be seen on the
Power meter:
››› Fig. 58
The vehicle recovers electrical energy
Electric drive switched on / Boost (the ve-
hicle runs for a short time at the maximum
power of the electric motor and combus-
tion engine).
The combustion engine must be running.
Green
Blue
A B
C Battery level indicator
 V
alid for: hybrid vehicles Fig. 59
Instrument panel: battery level indica-
t or

. The small arrow next to the battery symbol
indicat
es which side of the v

ehicle the charg-
ing cover is on. Note

Operation
Control lamps Contr ol and w
arning lampsThe control and warning lamps are indicators
of w
arnings
›

›› , faults or certain functions.
Some contr ol and w
arning lamps come on
when the ignition is switched on, and switch
off when the engine starts running, or while
driving.
Depending on the model, additional text
messages may be viewed on the instrument
panel display. These may be purely informa-
tive or they may be advising of the need for
action ››› page 66, Instrument panel
.
Depending upon the equipment fitted in the
vehicle, instead of a warning lamp, some-
times a symbol may be displayed on the in-
strument panel.
When certain control and warning lamps are
lit, an audible warning is also heard.
Red warning lamps
