Driving
Automatic gearbox/DSG au-
t omatic gearbo
x*
Introduction Your vehicle is equipped with an electronical-
ly contr
oll
ed manual gearbox. Torque be-
tween the engine and the gearbox is trans-
mitted via two independent clutches. They
replace the torque converter found on con-
ventional automatic gearboxes and allow for
smooth, uninterrupted acceleration of the ve-
hicle.
The Tiptronic system allows the driver to
change gears manually ››› page 230,
Changing gear in Tiptronic mode*.
Control lamps
It lights up green
The brake is not pressed.
T o sel
ect a gear range, press the brake pedal.
Flashes green
The selector lever locking button is not engaged.
The v ehicl
e is prevented from moving forwards. En-
gage the selector lever lock. Selector lever positions
Fig. 166
Selector lever lock. Fig. 167
Selector lever lock (hybrid vehicles). The selector lever position is shown when the
corr
esponding sign lights up
. With the selec-
tor lever in the manual gearbox positions M, D
and S, the engaged gear is also shown on the
display.
– Parking l
ock
When the lever is put in this position, the drive
wheels are locked. The lever must only be put
in P when the vehicle is stationary ››› .
T o put the l
ever in P or take it out of P , the
locking button must be pressed and held and
the brake pedal pressed simultaneously.
– Reverse gear
Reverse gear must be engaged only when
the vehicle is stationary and the engine is
idling ››› .
T o mo
ve the lever to position R, the lock but-
ton must be pressed and held while pressing
the brake pedal at the same time. The reverse
lights come on when the lever is in the R posi-
tion with the ignition on.
– Neutral
With the lever in this position, the gear is in
neutral.
Press the brake pedal to move the lever from
N to D/S when the vehicle is stationary or at
speeds below 3 km/h (2 mph) ››› .
– P
ermanent f
orward drive position
The lever in the D/S position enables the
gears to be operated in normal mode (D) or
sport mode (S). To select Sport mode S,
move the lever backwards. Pushing the lever
again will select normal mode D. The
228
Page 281 of 405

Braking and parking
If the running gear or brake system is modi-
fied, the eff ectiv
eness of the ABS could be se-
verely limited.
Hydraulic Brake Assist (HBA)
The brake assist system can reduce the re-
quired braking distance. The braking force is
automatically boosted if you press the brake
pedal quickly in an emergency. You must
keep pressing the brake pedal until the dan-
ger has passed.
Traction control system (ASR)
In the event of the wheels spinning, the ASR
reduces the engine torque to adapt to the
road condition. This helps the car to start
moving, accelerate or climb a gradient.
Electronic differential lock (EDL)
When the EDL detects wheelspin, it brakes
the spinning wheel and directs the power to
the other driven wheel. This function is active
up to approximately 100 km/h (62 mph).
To prevent the disc brake of the braked wheel
from overheating, the EDL cuts out automati-
cally if subjected to excessive loads. The ve-
hicle can still be driven. The EDL will switch on
again automatically when the brake has
cooled down. Tractor-trailer sway mitigation*
If the vehicl
e is pulling a trailer, it will control
the following: tractor-trailers tend to sway.
When the swaying of the trailer is felt by the
vehicle and detected by the ESC, it will auto-
matically brake the towing vehicle within the
limits of the system and mitigate the sway.
Tractor-trailer sway mitigation is not available
in all countries ››› page 312
.
Electronic engine torque management
(XDS)
When taking a curve, the driveshaft differen-
tial allows the outer wheel to turn at a higher
speed than the inner wheel. In this way, the
wheel that is turning faster (outer wheel) re-
ceives less drive torque than the inner wheel.
This may mean that in certain situations the
torque delivered to the inner wheel is too
high, causing the wheels to spin. On the other
hand, the outer wheel is receiving a lower
drive torque than it could transmit. This can
cause a loss of grip on the drive axle, in this
case the front axle, which results in under-
steer or “lengthening” of the trajectory.
The XDS can detect and correct this effect
via the sensors and signals of the ESC.
Via the ESC, the XDS will brake the inside
wheel and counter the excess driving torque of that wheel. This means that the requested
traject
ory is much more precise.
XDS works in combination with the ESC and is
always active, even when ASR is switched off,
or when the ESC is in Sport mode or discon-
nected.
Multi-collision brake
The multi-collision brake consists of automat-
ic braking activated by the Airbag control
unit. It is activated when, in the event of an
accident, the Airbag control unit detects de-
celerations above the activation level, and
braking is managed by the ESC system.
In the event of an accident, the multi-collision
brake can help the driver by braking to avoid
the risk of skidding during the accident and
causing other collisions.
The following actions control automatic brak-
ing during the accident:
Page 282 of 405

Driving
Brake blending 1)
The br ak
e energy recuperation can generate
a braking effect. This braking effect depends
on the selected driving programme and the
level of charge of the high-voltage battery.
If the braking effect caused by the recupera-
tion is very intense, the vehicle’s brake lights
with turn on. The electric engine, when oper-
ating as an alternator, can generate braking
torque on the front wheels based on the RPM
and the temperature and charge level of the
high-voltage battery.
These variable parameters cause fluctuating
electric decelerations which are hydraulical-
ly compensated according to the driver’s de-
sires. This function is called “brake blending”
and it combines mechanical braking with the
engine brake effect. WARNING
Driving at high speed on icy, slippery wet
gr ound can r
esult in loss of vehicle control
and serious injury to the driver and passen-
gers.
Page 384 of 405

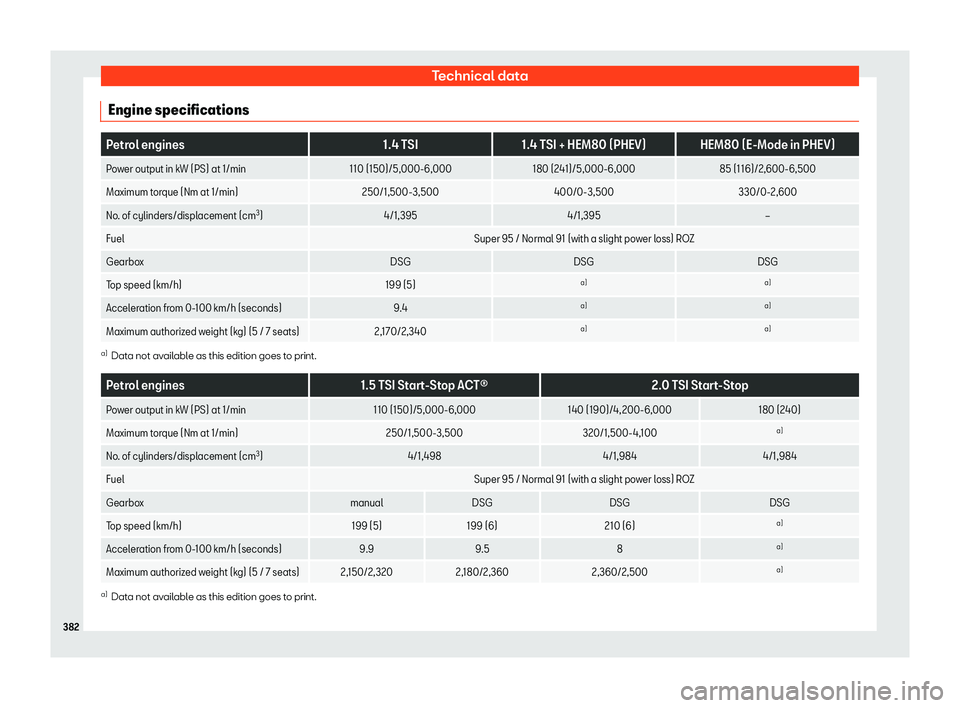

Technical data
Engine specifications Petrol engines
1.4 TSI1.4 TSI + HEM80 (PHEV) HEM80 (E-Mode in PHEV)
Power output in kW (PS) at 1/min 110 (150)/5,000-6,000180 (241)/5,000-6,000 85 (116)/2,600-6,500
Maximum torque (Nm at 1/min) 250/1,500-3,500400/0-3,500330/0-2,600
No. of cylinders/displacement (cm 3
) 4/1,395 4/1,395
Page 385 of 405

Indications about the technical data
Diesel engines
2.0 TDI CR Start-Stop2.0 TDI CR Start-Stop
Power output in kW (PS) at 1/min 110 (150)/3,500-4,000110 (150)/3,000-4,200 147 (200)/3,600-4,100
Maximum torque (Nm at 1/min) 340/1, 750-3,000360/1,600-2, 750400/1, 750-3,500
No. of cylinders/displacement (cm 3
) 4/1,968 4/1,968 4/1,968
Fuel Diesel according to standard EN 590, min. 51 CN
Gearbox manualDSGDSG
Top speed (km/h) 199 (5)196 (6) 210 (6)
Acceleration from 0-100 km/h (seconds) 10.210.1 7.8
Maximum authorized weight (kg) (5/7 seats) 2,230/2,4002,270/2,4402,380 / 2,520 383
Page 393 of 405
