technical data Seat Toledo 2013 User Guide

239
Technical Data
Petrol engine 1.2 55 kW (75 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel55 (75)/ 5400112/37503/1198Super 95 RON a)
/Normal 91 RON b)a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
PerformanceTop speed (km/h)175 (5)Acceleration from 0-80 km/h (seconds)9.3Acceleration from 0-100 km/h (seconds)13.9Consumption (l/100 km) / CO 2 emissions (g/km)Urban cycle8.1/187Extra-urban cycle4.6/107Combined5.9/137Weights (in kg)Gross vehicle weight1595Weight in running order (with driver)1135Gross front axle weight800Gross rear axle weight830Permitted roof load75Maximum trailer weights (in kg)Trailer without brakes560Trailer with brakes, gradients up to 8%950Trailer with brakes, gradients up to 12%750
Safety FirstOperating instructionsPractical TipsTechnical specifications

240Technical Data
Petrol engine 1.2 TSI 63 kW (85 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel63 (85)/ 4800160/ 1500-35004/1197Super 95 RON a)
/Normal 91 RON b)a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
PerformanceTop speed (km/h)183Acceleration from 0-80 km/h (seconds)7.6Acceleration from 0-100 km/h (seconds)11.8Consumption (l/100 km) / CO 2 emissions (g/km)Urban cycle6.5/151Extra-urban cycle4.4/103Combined5.1/119Weights (in kg)Gross vehicle weight1615Weight in running order (with driver)1155Gross front axle weight820Gross rear axle weight830Permitted roof load75Maximum trailer weights (in kg)Trailer without brakes570Trailer with brakes, gradients up to 8%1100Trailer with brakes, gradients up to 12%900

241
Technical Data
Petrol engine 1.2 TSI 77 kW (105 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel77 (105)/ 5000175/ 1550-41004/1197Super 95 RON a)
/Normal 91 RON b)a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
PerformanceTop speed (km/h)195Acceleration from 0-80 km/h (seconds)7.1Acceleration from 0-100 km/h (seconds)10.3
Consumption (l/100 km) / CO 2 emissions (g/km)without Start-Stopwith Start-Stopwith Start-Stop +
185 tyre
Urban cycle6.9/1606.4/1496.3/146Extra-urban cycle4.6/1074.3/1004.2/98Combined5.4/1255.1/1185/116Weights (in kg)Gross vehicle weight1635Weight in running order (with driver)1175Gross front axle weight840Gross rear axle weight830Permitted roof load75Maximum trailer weights (in kg)Trailer without brakes580Trailer with brakes, gradients up to 8%1200Trailer with brakes, gradients up to 12%1100
Safety FirstOperating instructionsPractical TipsTechnical specifications

242Technical Data
Petrol engine 1.6 77 kW (105 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel77 (105)/ 5600153/38004/1598Super 95 RON a)a)
Research Octane Number = Anti-detonation rating of the petrol.
PerformanceTop speed (km/h)193Acceleration from 0-80 km/h (seconds)7.2Acceleration from 0-100 km/h (seconds)10.6Consumption (l/100 km) / CO 2 emissions (g/km)Urban cycle8.9/212Extra-urban cycle4.9/116Combined6.4/152Weights (in kg)Gross vehicle weight1615Weight in running order (with driver)1155Gross front axle weight820Gross rear axle weight830Permitted roof load75Maximum trailer weights (in kg)Trailer without brakes570Trailer with brakes, gradients up to 8%1200Trailer with brakes, gradients up to 12%1000

243
Technical Data
Petrol engine 1.4 90 kW (122 PS) Automatic
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel90 (122)/ 5000200/ 1500-40004/1390Super 95 RON a)
/Normal 91 RON b)a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
PerformanceTop speed (km/h)206Acceleration from 0-80 km/h (seconds)6.4Acceleration from 0-100 km/h (seconds)9.5Consumption (l/100 km) / CO 2 emissions (g/km)Urban cycle7.4/172Extra-urban cycle4.8/112Combined5.8/134Weights (in kg)Gross vehicle weight1690Weight in running order (with driver)1230Gross front axle weight900Gross rear axle weight820Permitted roof load75Maximum trailer weights (in kg)Trailer without brakes610Trailer with brakes, gradients up to 8%1200Trailer with brakes, gradients up to 12%1200
Safety FirstOperating instructionsPractical TipsTechnical specifications

244Technical Data
Diesel Engine 1.6 CR 66 kW (90 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel
66 (90)/ 4200230/ 1500-25004/1598Diesel according to standard EN 590,
Min. 51 CN
PerformanceManualAutomaticTop speed (km/h)184 (5)184 (6)Acceleration from 0-80 km/h (seconds)7.97.9Acceleration from 0-100 km/h (seconds)12.012.2Consumption (l/100 km) / CO 2 emissions (g/km)Urban cycle5.6/1475.6/146Extra-urban cycle3.7/973.9/103Combined4.4/1144.5/118Weights (in kg)Gross vehicle weight17251745Weight in running order (with driver)12651285Gross front axle weight930950Gross rear axle weight830830Permitted roof load7575Maximum trailer weights (in kg)Trailer without brakes630640Trailer with brakes, gradients up to 8%12001200Trailer with brakes, gradients up to 12%12001200

245
Technical Data
Diesel Engine 1.6 CR 77 kW (105 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel
77 (105)/ 4400250/ 1500-25004/1598Diesel according to standard EN 590,
Min. 51 CN
PerformanceTop speed (km/h)190Acceleration from 0-80 km/h (seconds)7.1Acceleration from 0-100 km/h (seconds)10.4
Consumption (l/100 km) / CO 2 emissions (g/km)without Start-Stopwith Start-Stopwith Start-Stop +
185 tyre
Urban cycle6/1584.9/1294.8/126Extra-urban cycle3.7/983.5/923.4/90Combined4.6/1204/1063.9/104Weights (in kg)Gross vehicle weight1725Weight in running order (with driver)1265Gross front axle weight930Gross rear axle weight830Permitted roof load75Maximum trailer weights (in kg)Trailer without brakes630Trailer with brakes, gradients up to 8%1200Trailer with brakes, gradients up to 12%1200
Safety FirstOperating instructionsPractical TipsTechnical specifications

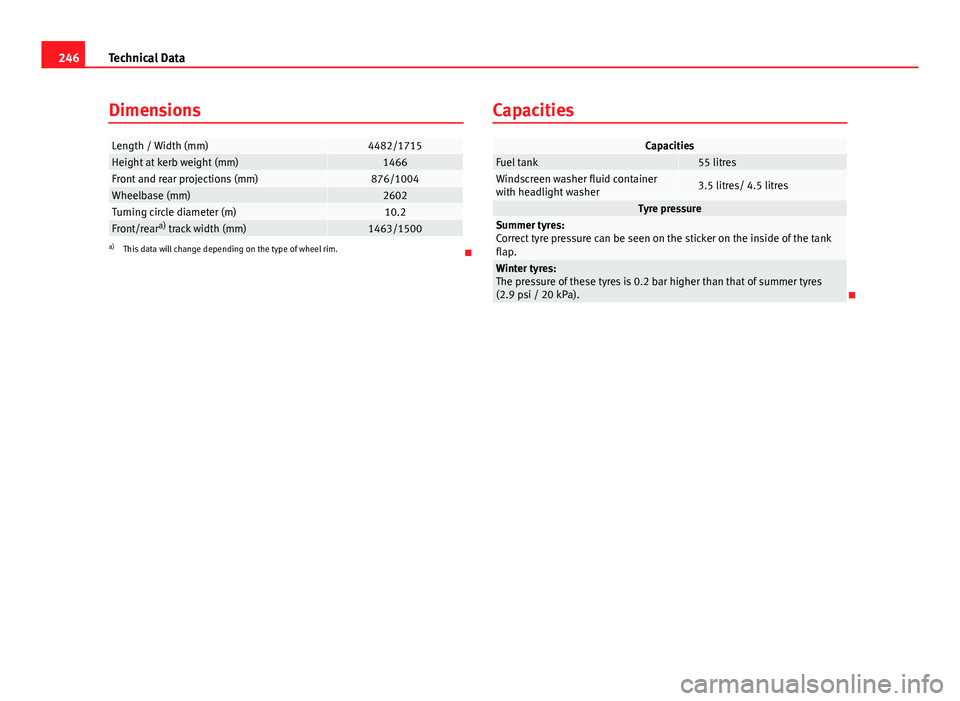

246Technical Data
Dimensions
Length / Width (mm)4482/1715Height at kerb weight (mm)1466Front and rear projections (mm)876/1004Wheelbase (mm)2602Turning circle diameter (m)10.2Front/reara)
track width (mm)1463/1500a) This data will change depending on the type of wheel rim.









Capacities
CapacitiesFuel tank 55 litresWindscreen washer fluid container
with headlight washer 3.5 litres/ 4.5 litres
Tyre pressureSummer tyres:
Correct tyre pressure can be seen on the sticker on the inside of the tank
flap.
Winter tyres:
The pressure of these tyres is 0.2 bar higher than that of summer tyres
(2.9 psi / 20 kPa).


head restraints . . . . . . . . . . . . . . . . . . . . . . 112
heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Selector lever see selector lever positions . . . . . . . . . . . . 147
Selector lever positions . . . . . . . . . . . . . . . . . . 147
Service display . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Setting clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Settings exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 109
Interior rear vision mirror with manual anti-dazzle adjustment . . . . . . . . . . . . . . . . . . 109
light range control . . . . . . . . . . . . . . . . . . . . 99
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 40
Sitting position driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Sitting position for vehicle occupants . . . . . . . 10
Snow chains . . . . . . . . . . . . . . . . . . . . . . . 202, 237
Spare changing a wheel . . . . . . . . . . . . . . . . . . . . 207
Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 see speedometer . . . . . . . . . . . . . . . . . . . . . 58
START-STOP description . . . . . . . . . . . . . . . . . . . . . . . . . 154
jump-starting . . . . . . . . . . . . . . . . . . . . . . . 216
Starting the engine . . . . . . . . . . . . . . . . . . . . . 141 Starting with jump leads
jump-starting . . . . . . . . . . . . . . . . . . . . . . . 214
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . 140
Steering wheel controls . . . . . . . . . . . . . . . . . . . 78
Storage luggage compartment . . . . . . . . . . . . . . . . 115
Storage compartment . . . . . . . . . . . . . . . . . . . 123
Summary control lamps . . . . . . . . . . . . . . . . . . . . . . . . 69
controls and displays . . . . . . . . . . . . . . . . . . 55
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104 see sun visors . . . . . . . . . . . . . . . . . . . . . . . 104
Switching off the engine . . . . . . . . . . . . . . . . . 142
T Technical data . . . . . . . . . . . . . . . . . . . . . . . . . 238
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . 233
Temperature selection heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
The danger of not using the seat belt . . . . . . . . 23
Tightening torque of wheel bolts . . . . . . . . . . 237
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146 see automatic gearbox . . . . . . . . . . . . . . . 148
Tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Topping up coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . 187
windscreen washer . . . . . . . . . . . . . . . . . . 190
Top Tether system . . . . . . . . . . . . . . . . . . . . . . . 52
Tow-away protection system . . . . . . . . . . . . . . . 92
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216 Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . 236
Towline anchorage . . . . . . . . . . . . . . . . . . . . . . 218
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Traction control . . . . . . . . . . . . . . . . . . . . . . . . . 145
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164 Towing a trailer . . . . . . . . . . . . . . . . . . . . . . 165
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . 236
Transport roof carrier . . . . . . . . . . . . . . . . . . . . . . . . . 119
Transporting children . . . . . . . . . . . . . . . . . . . . . 46
Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Trip counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Tyre repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Tyres see Wheels and tyres . . . . . . . . . . . . . . . . . 198
U Underbody sealant . . . . . . . . . . . . . . . . . . . . . . 176
Unlocking central locking system . . . . . . . . . . . . . . . . . 87
remote control . . . . . . . . . . . . . . . . . . . . . . . 90
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
V
Vehicle interior monitoring . . . . . . . . . . . . . . . . 92
Vehicle status see Auto-check system . . . . . . . . . . . . . . . . 68
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . 207
253
Index
