Self-help
– Lower the vehicle.
– Tighten the wheel bolts firmly in diagonal sequence with the
box spanner and then the anti-theft wheel bolt ⇒ page 209.
– Replace the hub cap and/or the bolt covers.
Note
● All bolts must be clean and turn easily.
● Never grease or oil the wheel bolts!
● Note the direction of rotation when putting on a tyre with directional
tread pattern ⇒ page 196. 
After changing a wheel
Tasks that must be carried out after changing a wheel.
– Place the wheel with the defective tyre in the spare wheel well
and secure it using a special bolt ⇒ page 199.
– Put the vehicle tools back in their storage location.
– Check the tyre pressure of the newly fitted spare wheel as soon
as possible.
– Have the tightening torque of the wheel bolts checked as soon
as possible with a torque wrench.
– Have the flat tyre replaced or ask an Official Service about the
possibility of repair.
Note
● If you notice that the wheel bolts are rusty and difficult to turn when
changing a wheel, they must be replaced before having the tightening tor-
que checked.
● Drive carefully and at moderate speeds until the tightening torque of the
wheel bolts has been checked. 
Loosening and tightening wheel bolts
Fig. 138 Changing a
wheel: Loosening wheel
bolts
Loosening wheel bolts
– Fit the box spanner as far as it will go over the wheel bolt 1)
.
– Grip the end of the box spanner and turn the wheel bolt about
one turn anti-clockwise ⇒ Fig. 138.
Tightening wheel bolts
– Fit the box spanner as far as it will go over the wheel bolt 1)
. 
1)
The corresponding adapter is required to unscrew or tighten the anti-theft wheel bolts
⇒ page 211.
Safety FirstOperating instructionsPractical TipsTechnical specifications

210Self-help
–Grip the box spanner as close to the end as possible and tight-
en the bolt firmly by turning clockwise.
WARNING
The wheel bolts should only be loosened slightly (about one turn) before
raising the vehicle with the jack. Risk of accident!
Note
If the wheel bolt is very tight, it may be possible to loosen it by pushing
down the end of the box spanner carefully with your foot. Hold on to the ve-
hicle for support and take care not to slip. 
Raising the vehicle
Fig. 139 Changing a
wheel: Jacking points
Fig. 140 Fitting the jack
To place the jack, locate the jacking point under the door sill clos-
est to the wheel to be changed ⇒ Fig. 139. The jacking point is di-
rectly underneath the stamp on the door sill.
– Turn the crank handle on the jack to wind it up under the jack-
ing point until its claw is directly below the jacking point of the
door sill.
– Adjust the jack so that its claw surrounds the jacking point on
the door sill ⇒ Fig. 140 - B underneath the stamp on the door
sill.
– Make sure that the base of the jack is entirely supported on a
flat surface and that it is vertical ⇒ Fig. 140 to the point where
the claw surrounds the jacking point on the door sill.
– Continue to wind up the jack using the crank handle until the
defective wheel is clear off the ground. 

211
Self-help
Anti-theft wheel bolts*

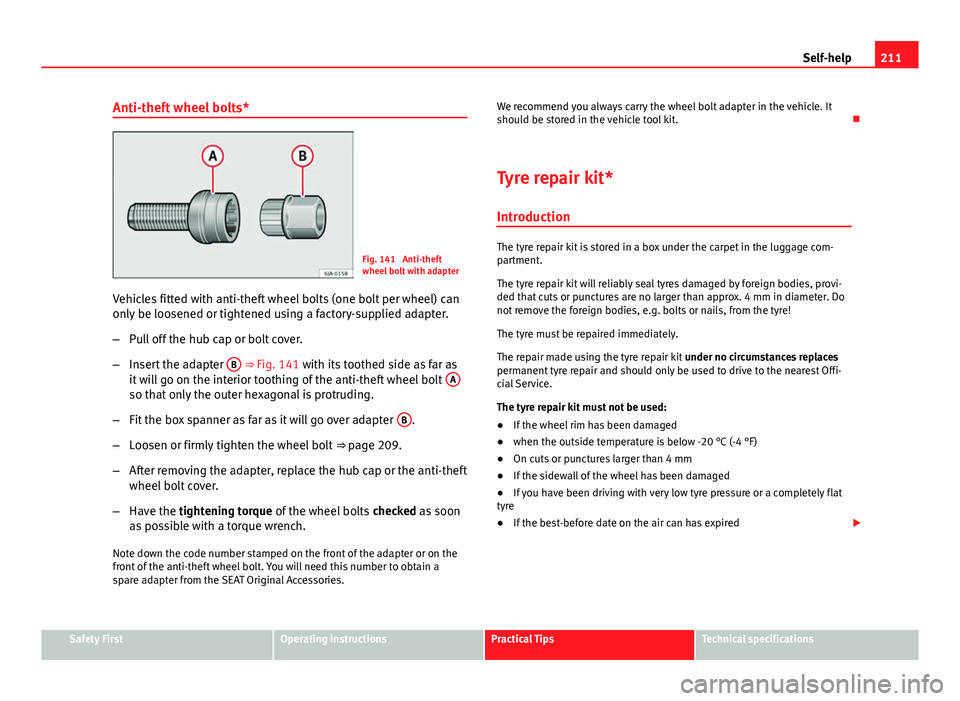

Fig. 141 Anti-theft
wheel bolt with adapter
Vehicles fitted with anti-theft wheel bolts (one bolt per wheel) can
only be loosened or tightened using a factory-supplied adapter.
– Pull off the hub cap or bolt cover.
– Insert the adapter B
⇒ Fig. 141 with its toothed side as far as
it will go on the interior toothing of the anti-theft wheel bolt A
so that only the outer hexagonal is protruding.
– Fit the box spanner as far as it will go over adapter B
.
– Loosen or firmly tighten the wheel bolt ⇒ page 209.
– After removing the adapter, replace the hub cap or the anti-theft
wheel bolt cover.
– Have the tightening torque of the wheel bolts checked as soon
as possible with a torque wrench.
Note down the code number stamped on the front of the adapter or on the
front of the anti-theft wheel bolt. You will need this number to obtain a
spare adapter from the SEAT Original Accessories. We recommend you always carry the wheel bolt adapter in the vehicle. It
should be stored in the vehicle tool kit.

Tyre repair kit* Introduction
The tyre repair kit is stored in a box under the carpet in the luggage com-
partment.
The tyre repair kit will reliably seal tyres damaged by foreign bodies, provi-
ded that cuts or punctures are no larger than approx. 4 mm in diameter. Do
not remove the foreign bodies, e.g. bolts or nails, from the tyre!
The tyre must be repaired immediately.
The repair made using the tyre repair kit under no circumstances replaces
permanent tyre repair and should only be used to drive to the nearest Offi-
cial Service.
The tyre repair kit must not be used:
● If the wheel rim has been damaged
● when the outside temperature is below -20 °C (-4 °F)
● On cuts or punctures larger than 4 mm
● If the sidewall of the wheel has been damaged
● If you have been driving with very low tyre pressure or a completely flat
tyre
● If the best-before date on the air can has expired 
Safety FirstOperating instructionsPractical TipsTechnical specifications

212Self-help
WARNING
● If you have a puncture in moving traffic, switch on the hazard warning
lights and place the warning triangle at the obligatory distance. Observe
the applicable local legal regulations. This is for your own safety and that
of other road users.
● If you have a flat tyre, stop the vehicle well away from moving traffic.
Choose a location that is as level and solid as possible.
● A tyre filled with sealant does not have the same performance proper-
ties as a conventional tyre.
● Do not drive faster than 80 km/h (50 mph).
● Avoid heavy acceleration, hard braking and fast cornering.
● Check the tyre pressure after 10 minutes of driving!
● The sealant is harmful to health and must be immediately rinsed from
affected skin.
For the sake of the environment
Used or out-of-date sealant must be disposed of in line with environmental
protection regulations.
Note
● Observe the instructions for use provided by the tyre repair kit manufac-
turer.
● A new can of sealant can be acquired from the selection of SEAT Original
Accessories.
● Change the tyre repaired using the tyre repair kit as soon as possible or
ask an Official Service about the possibility of repair. Tyre repair kit components

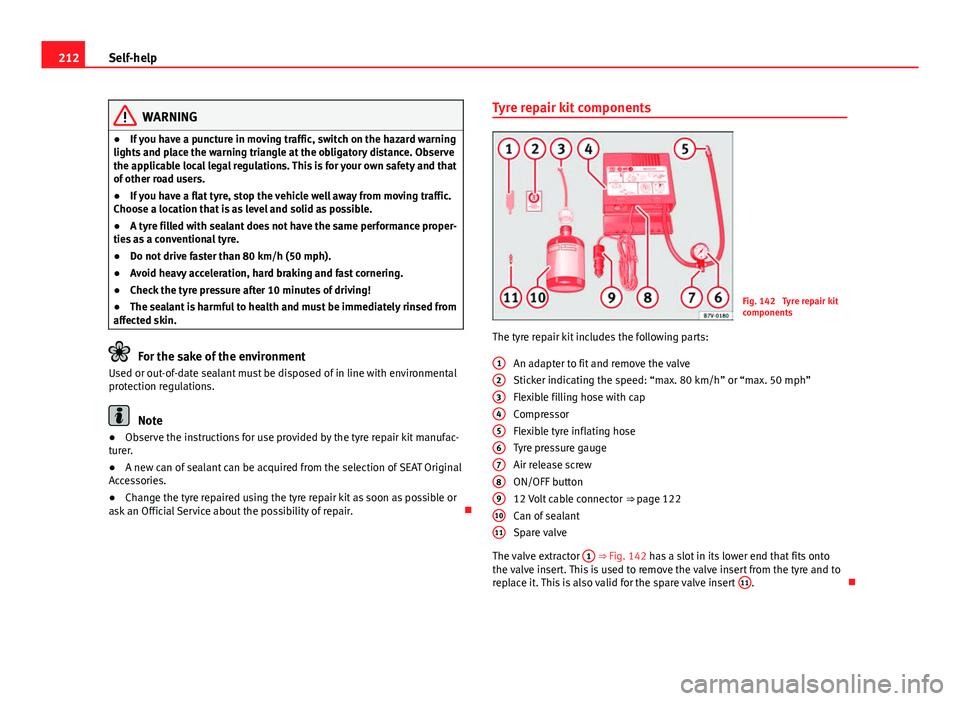

Fig. 142 Tyre repair kit
components
The tyre repair kit includes the following parts:
An adapter to fit and remove the valve
Sticker indicating the speed: “max. 80 km/h” or “max. 50 mph”
Flexible filling hose with cap
Compressor
Flexible tyre inflating hose
Tyre pressure gauge
Air release screw
ON/OFF button
12 Volt cable connector ⇒ page 122
Can of sealant
Spare valve
The valve extractor 1

⇒  Fig. 142 has a slot in its lower end that fits onto
the valve insert. This is used to remove the valve insert from the tyre and to
replace it. This is also valid for the spare valve insert 11
.
1
234567891011

213
Self-help
Before using the tyre repair kit
The following jobs must be performed before using the tyre repair
kit:
– If you have a flat tyre, stop the vehicle well away from moving
traffic. Stop on flat, solid ground.
– All vehicle occupants should leave the vehicle. Vehicle occu-
pants should waiting in a safe place, e.g. behind the roadside
crash barrier) while the wheel is being changed.
– Switch off the ignition and engage neutral or move the selector
lever on the automatic gearbox to position P.
– Apply the handbrake firmly.
– Check whether the tyre can be repaired using the tyre repair kit
⇒ page 211.
– If towing a trailer, unhitch it.
– Take the tyre repair kit out of the luggage compartment.
– Fix the sticker 2
⇒ Fig. 142 ⇒ 
page 212 onto the dash panel
where the driver will see it.
– Do not remove the foreign body, e.g. bolts or nails, from the
tyre.
– Unscrew the tyre valve cap.
– Using the valve extractor 1
, unscrew the valve insert and place
it onto a clean surface (cloth, paper, etc.) Filling and inflating the tyre
Filling the tyre
–
Shake the tyre sealant can 10
⇒ Fig. 142 ⇒ page 212 thorough-
ly several times.
– Attach the flexible filling hose 3
onto the can 10. The foil seal-
ing the can will be automatically pierced.
– Remove the cap from the flexible filling hose 3
and insert the
open end as far as it will go into the tyre valve.
– Hold the can 10
upside down and fill the complete contents of
the can into the tyre.
– Remove the empty can from the tyre.
– Screw the valve insert back into the tyre valve using the valve
extractor 1
.
Inflating the tyre
– Screw the tyre filling hose 5
⇒ Fig. 142 ⇒ page 212 firmly onto
the tyre valve.
– Make sure that the bleed screw 7
is closed.
– Start the vehicle engine and leave it running.
– Plug the connector 9
into the 12-volt power socket.
– Turn the air compressor on with the switch 8
.
– Leave the air compressor running until the tyre pressure has
reached 2.0-2.5 bar (29-36 psi / 200-250 kPa). Max. operating
time for the compressor is 8 minutes ⇒ 
!
Safety FirstOperating instructionsPractical TipsTechnical specifications

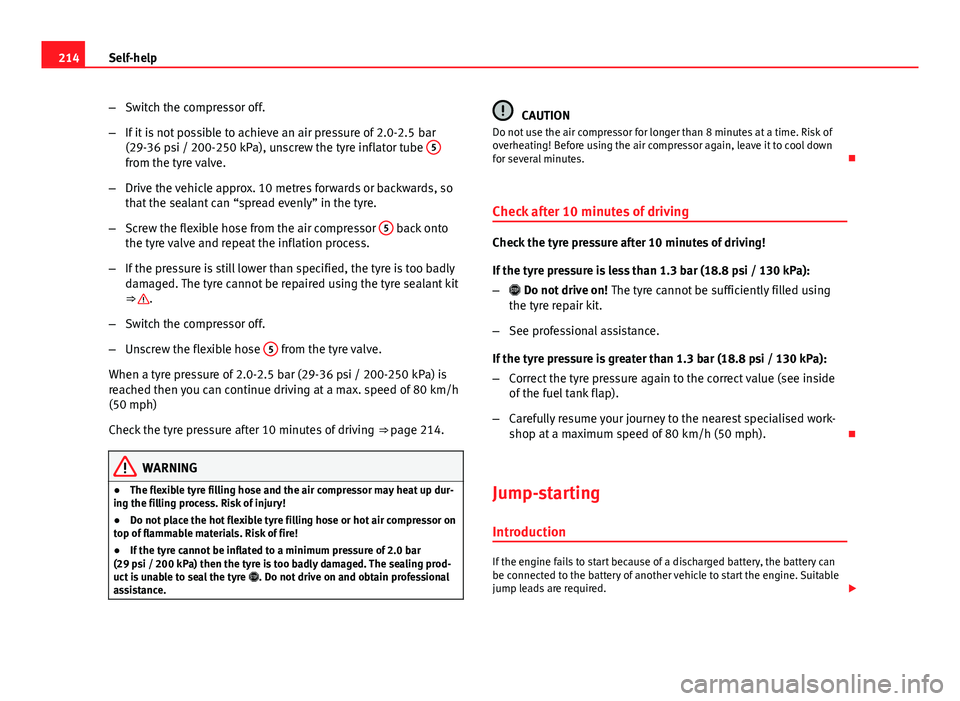

214Self-help
–Switch the compressor off.
– If it is not possible to achieve an air pressure of 2.0-2.5 bar
(29-36 psi / 200-250 kPa), unscrew the tyre inflator tube 5
from the tyre valve.
– Drive the vehicle approx. 10 metres forwards or backwards, so
that the sealant can “spread evenly” in the tyre.
– Screw the flexible hose from the air compressor 5
back onto
the tyre valve and repeat the inflation process.
– If the pressure is still lower than specified, the tyre is too badly
damaged. The tyre cannot be repaired using the tyre sealant kit
⇒ 
.
– Switch the compressor off.
– Unscrew the flexible hose 5
from the tyre valve.
When a tyre pressure of 2.0-2.5 bar (29-36 psi / 200-250 kPa) is
reached then you can continue driving at a max. speed of 80 km/h
(50 mph)
Check the tyre pressure after 10 minutes of driving ⇒ page 214.
WARNING
● The flexible tyre filling hose and the air compressor may heat up dur-
ing the filling process. Risk of injury!
● Do not place the hot flexible tyre filling hose or hot air compressor on
top of flammable materials. Risk of fire!
● If the tyre cannot be inflated to a minimum pressure of 2.0 bar
(29 psi / 200 kPa) then the tyre is too badly damaged. The sealing prod-
uct is unable to seal the tyre . Do not drive on and obtain professional
assistance.
CAUTION
Do not use the air compressor for longer than 8 minutes at a time. Risk of
overheating! Before using the air compressor again, leave it to cool down
for several minutes. 
Check after 10 minutes of driving
Check the tyre pressure after 10 minutes of driving!
If the tyre pressure is less than 1.3 bar (18.8 psi / 130 kPa):
–  Do not drive on! The tyre cannot be sufficiently filled using
the tyre repair kit.
– See professional assistance.
If the tyre pressure is greater than 1.3 bar (18.8 psi / 130 kPa):
– Correct the tyre pressure again to the correct value (see inside
of the fuel tank flap).
– Carefully resume your journey to the nearest specialised work-
shop at a maximum speed of 80 km/h (50 mph). 
Jump-starting
Introduction
If the engine fails to start because of a discharged battery, the battery can
be connected to the battery of another vehicle to start the engine. Suitable
jump leads are required. 

215
Self-help
Both batteries must be rated at 12 Volts. The capacity (Ah) of the booster
battery should not be significantly lower than that of the discharged battery.
Jump leads
The jump leads must be heavy enough to carry the starter current and must
be fitted with insulated battery clamps. Refer to the instructions given by
the manufacturer.
Positive cable – usually red
Negative cable – usually black
WARNING
● A flat battery can also freeze at temperatures slightly below 0 °C
(32 °F). Do not attempt a jump start with a frozen battery – Explosion
hazard!
● Please note the safety warnings referring to working in the engine
compartment ⇒ page 182.
● The non-insulated parts of the battery clamps must not be allowed to
touch. Additionally, the jump lead attached to the positive battery termi-
nal must not touch metal parts of the vehicle. Risk of short circuit!
● Do not connect the negative lead to the negative terminal of the dis-
charged battery. In the event of sparks when starting the engine, the ex-
plosive gas given off by the battery could catch fire.
● Position the jump leads in such a way that they cannot come into con-
tact with any moving parts in the engine compartment.
● Do not bend over the battery. Risk of acid burns!
● The screw plugs on the battery cells must be screwed in firmly.
● Keep sources of fire (flames, lit cigarettes, etc.) away from the bat-
tery. Risk of explosion!
● Never use the jump leads on batteries in which the electrolyte level is
too low. Risk of explosion and acid burns.
Note
● The vehicles must not touch each other, as electricity could flow as soon
as the positive terminals are connected.
● The discharged battery must be properly connected to the vehicle elec-
trical system.
● The jump leads should be checked in a specialist vehicle battery shop. 
Starting the engine
Fig. 143 Jump-starting
with the battery of anoth-
er vehicle: A – Dis-
charged battery, B –
Boosting battery
The two jump leads must be connected in the correct sequence:
Connecting the positive terminals with the positive lead
– Connect one end 1
⇒ Fig. 143 to the positive terminal of the
flat battery A.
– Connect the other end 2
to the positive terminal of the boost-
ing battery B. 
Safety FirstOperating instructionsPractical TipsTechnical specifications

216Self-help
Connecting negative terminals with the engine block
–Connect one end 3
⇒ Fig. 143 to the negative terminal of the
boosting battery B.
– Attach the other end 4
to a solid metal part firmly attached to
the engine block or to the engine block itself.
Starting the engine
– Start the engine of the vehicle and let it run at idling speed.
– Now start the engine of the vehicle with the discharged battery.
– If the engine fails to start, do not operate the start for longer
than 10 seconds. Wait for about 30 seconds and try again.
– Remove the jump leads from the engine in exactly the opposite
sequence to that described above. Jump-starting vehicles with the START-STOP system
Fig. 144 Jump-starting
vehicles with the START-
STOP system
In vehicles fitted with the START-STOP system, the booster cable cannot be
directly connected to the negative terminal of the vehicle battery but must
be attached to the engine earthing point. 
Towing the vehicle
Introduction
Vehicles with manual gearbox can be towed using a towbar or tow-
rope. They can also be towed with either the front or rear wheels
lifted off the road.
Vehicles with automatic gearbox can be towed using a towbar or
towrope. They can also be towed with the front wheels lifted off the 

217
Self-help
road. If the vehicle is towed with the rear wheels lifted off the road
the automatic gearbox will be damaged!
It is easier and safer to tow a vehicle with a towbar. A towrope
should only be used if you do not have a towbar.
Follow the instructions below when towing a vehicle:
Notes for the driver of the towing vehicle
– Engage the clutch very gently when starting to move or on vehi-
cles with automatic gearbox press the accelerator carefully.
– On vehicles with manual gearbox, the towrope must be taut be-
fore driving off.
The maximum towing speed is 50 km/h (31 mph).
Notes for the driver of the towed vehicle
– The ignition should be switched on so that the steering wheel
lock is not engaged and the turn signals, horn and windscreen
wipers and washers can be used.
– Put the gear lever in neutral or move the selector lever to posi-
tion N (automatic gearbox).
The brake servo and power steering only work when the engine is
running. Considerably more effort is required on the brake pedal
and steering wheel when the engine is switched off.
Ensure the towrope remains taut at all times when towing.
CAUTION
● Do not tow-start the engine. Risk of engine damage! In vehicles with a
catalytic converter, unburnt fuel could reach the catalytic converter and
catch fire in it. This could damage and destroy the catalytic converter. Use
the battery from another vehicle for help in starting the engine ⇒ page 215,
Starting the engine.
● If, due to a fault, there is no oil in the gearbox, the car may only be tow-
ed with the driven wheels lifted clear of the road and transported on a spe-
cial vehicle transporter or trailer.
● If normal towing is not possible or if the vehicle is to be towed for further
than 50 km (31 miles), the vehicle must be transported on a special vehicle
transporter or trailer.
● The towrope should be slightly elastic to reduce the loading on both ve-
hicles during towing. It is advisable to use a towrope made of synthetic fibre
or similar material only.
● Do not pull too hard with the towing vehicle and always take care to
avoid jerking the towrope. When towing on a loose surface there is always a
risk of overloading and damaging the anchorage points.
● Attach the towrope or towbar only to the towline anchorages or to the
removable towing bracket ⇒  page 164, or ⇒ page 218.
Note
● We recommend you use the towrope or towbar available in the SEAT
Original Accessories programme from authorised SEAT dealers.
● Towing a vehicle requires some experience. Both drivers should be fa-
miliar with the technique required for towing. Inexperienced drivers should
not attempt to tow away another vehicle or to have their vehicle towed.
● Note the legal regulations concerning towing, particularly those regard-
ing the signalling of the towed and towing vehicle.
● The towrope must not be twisted, as under certain circumstances this
could unscrew the front towline anchorage. 
Safety FirstOperating instructionsPractical TipsTechnical specifications

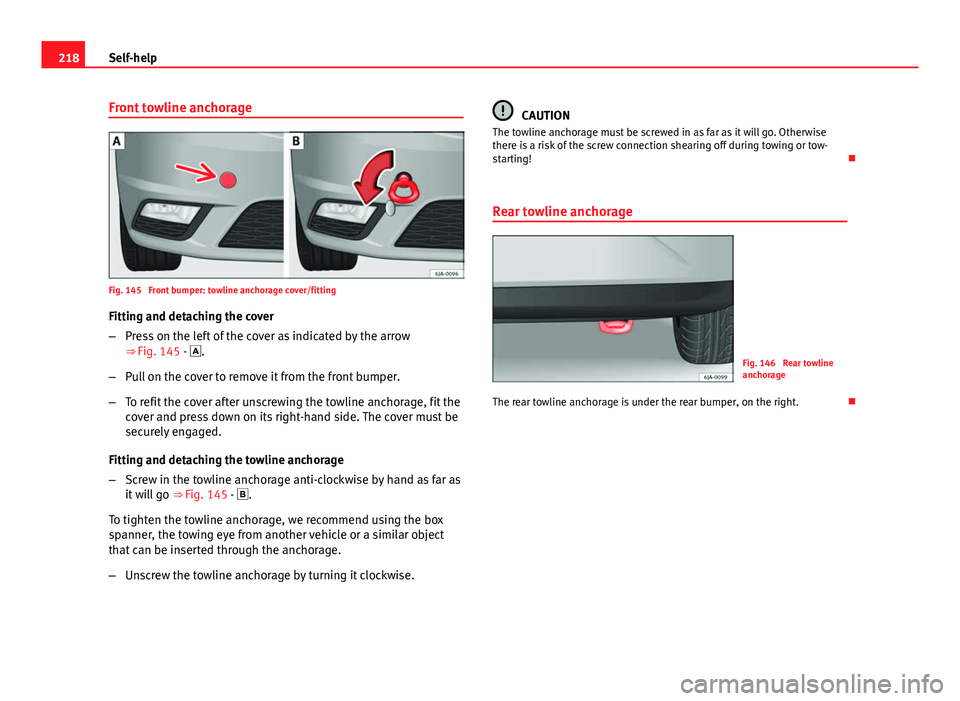

218Self-help
Front towline anchorage
Fig. 145 Front bumper: towline anchorage cover/fitting
Fitting and detaching the cover
–Press on the left of the cover as indicated by the arrow
⇒ Fig. 145 -  .
– Pull on the cover to remove it from the front bumper.
– To refit the cover after unscrewing the towline anchorage, fit the
cover and press down on its right-hand side. The cover must be
securely engaged.
Fitting and detaching the towline anchorage
– Screw in the towline anchorage anti-clockwise by hand as far as
it will go ⇒ Fig. 145 -  .
To tighten the towline anchorage, we recommend using the box
spanner, the towing eye from another vehicle or a similar object
that can be inserted through the anchorage.
– Unscrew the towline anchorage by turning it clockwise.
CAUTION
The towline anchorage must be screwed in as far as it will go. Otherwise
there is a risk of the screw connection shearing off during towing or tow-
starting! 
Rear towline anchorage
Fig. 146 Rear towline
anchorage
The rear towline anchorage is under the rear bumper, on the right. 
