Seat Toledo 2013 SOUND SYSTEM 1.X

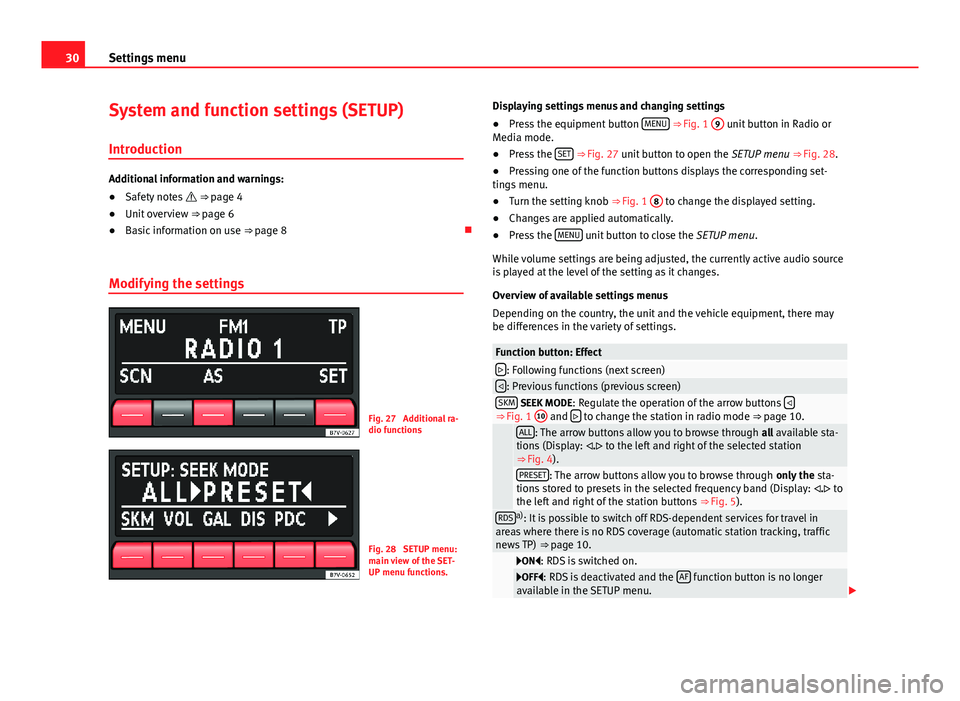

30Settings menuSystem and function settings (SETUP)
Introduction
Additional information and warnings:
●
Safety notes  ⇒ page 4
●
Unit overview ⇒ page 6
●
Basic information on use ⇒ page 8

Modifying the settings
Fig. 27
Additional ra-dio functions
Fig. 28
SETUP menu:main view of the SET-UP menu functions.
Displaying settings menus and changing settings●
Press the equipment button MENU ⇒ Fig. 1
9
unit button in Radio orMedia mode.
●
Press the SET ⇒ Fig. 27 unit button to open the SETUP menu ⇒ Fig. 28.
●
Pressing one of the function buttons displays the corresponding set-tings menu.
●
Turn the setting knob ⇒ Fig. 1
8
to change the displayed setting.
●
Changes are applied automatically.
●
Press the MENU unit button to close the SETUP menu.
While volume settings are being adjusted, the currently active audio sourceis played at the level of the setting as it changes.
Overview of available settings menus
Depending on the country, the unit and the vehicle equipment, there maybe differences in the variety of settings.
Function button: Effect: Following functions (next screen): Previous functions (previous screen)SKM SEEK MODE: Regulate the operation of the arrow buttons ⇒ Fig. 1
10
and  to change the station in radio mode ⇒ page 10.

ALL: The arrow buttons allow you to browse through all available sta-tions (Display: . to the left and right of the selected station⇒ Fig. 4).
PRESET: The arrow buttons allow you to browse through only the sta-tions stored to presets in the selected frequency band (Display: . tothe left and right of the station buttons ⇒ Fig. 5).
RDSa): It is possible to switch off RDS-dependent services for travel inareas where there is no RDS coverage (automatic station tracking, trafficnews TP) ⇒ page 10.
ON: RDS is switched on.OFF: RDS is deactivated and the AF function button is no longeravailable in the SETUP menu.

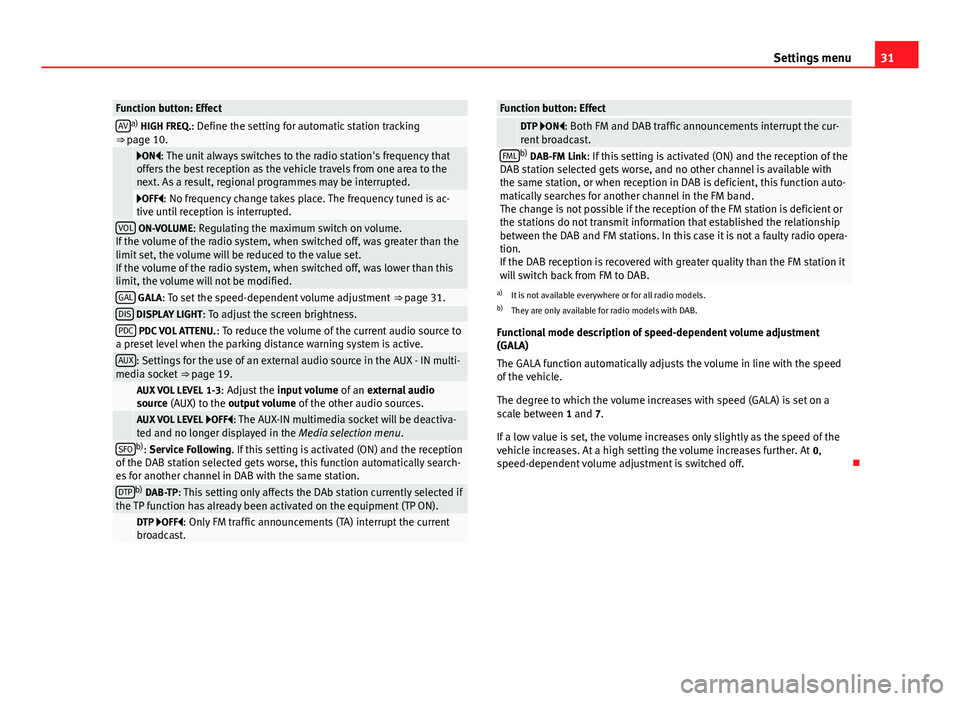

31Settings menuFunction button: EffectAVa) HIGH FREQ.: Define the setting for automatic station tracking⇒ page 10.
ON: The unit always switches to the radio station's frequency thatoffers the best reception as the vehicle travels from one area to thenext. As a result, regional programmes may be interrupted.
OFF: No frequency change takes place. The frequency tuned is ac-tive until reception is interrupted.VOL ON-VOLUME: Regulating the maximum switch on volume.If the volume of the radio system, when switched off, was greater than thelimit set, the volume will be reduced to the value set.If the volume of the radio system, when switched off, was lower than thislimit, the volume will not be modified.
GAL GALA: To set the speed-dependent volume adjustment ⇒ page 31.DIS DISPLAY LIGHT: To adjust the screen brightness.PDC PDC VOL ATTENU.: To reduce the volume of the current audio source toa preset level when the parking distance warning system is active.AUX: Settings for the use of an external audio source in the AUX - IN multi-media socket ⇒ page 19. AUX VOL LEVEL 1-3: Adjust the input volume of an external audiosource (AUX) to the output volume of the other audio sources. AUX VOL LEVEL OFF: The AUX-IN multimedia socket will be deactiva-ted and no longer displayed in the Media selection menu.SFOb): Service Following. If this setting is activated (ON) and the receptionof the DAB station selected gets worse, this function automatically search-es for another channel in DAB with the same station.
DTPb) DAB-TP: This setting only affects the DAb station currently selected ifthe TP function has already been activated on the equipment (TP ON). DTP OFF: Only FM traffic announcements (TA) interrupt the currentbroadcast.Function button: Effect DTP ON: Both FM and DAB traffic announcements interrupt the cur-rent broadcast.FMLb) DAB-FM Link: If this setting is activated (ON) and the reception of theDAB station selected gets worse, and no other channel is available withthe same station, or when reception in DAB is deficient, this function auto-matically searches for another channel in the FM band.The change is not possible if the reception of the FM station is deficient orthe stations do not transmit information that established the relationshipbetween the DAB and FM stations. In this case it is not a faulty radio opera-tion.If the DAB reception is recovered with greater quality than the FM station itwill switch back from FM to DAB.
a)
It is not available everywhere or for all radio models.
b)
They are only available for radio models with DAB.
Functional mode description of speed-dependent volume adjustment(GALA)
The GALA function automatically adjusts the volume in line with the speedof the vehicle.
The degree to which the volume increases with speed (GALA) is set on ascale between 1 and 7.
If a low value is set, the volume increases only slightly as the speed of thevehicle increases. At a high setting the volume increases further. At 0,speed-dependent volume adjustment is switched off.


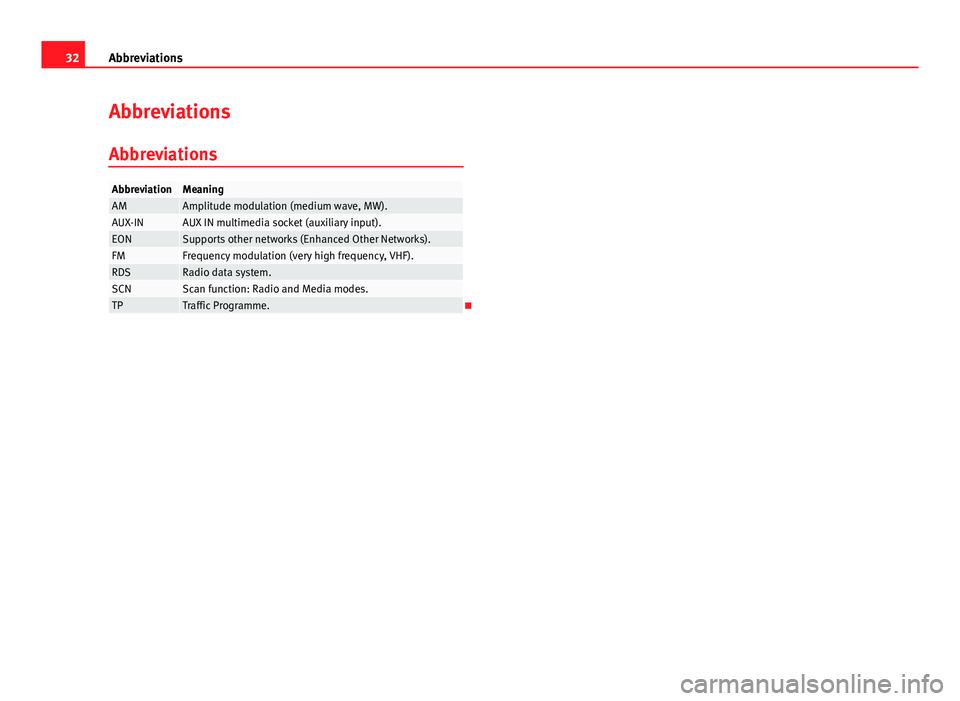

32AbbreviationsAbbreviationsAbbreviationsAbbreviationMeaningAMAmplitude modulation (medium wave, MW).AUX-INAUX IN multimedia socket (auxiliary input).EONSupports other networks (Enhanced Other Networks).FMFrequency modulation (very high frequency, VHF).RDSRadio data system.SCNScan function: Radio and Media modes.TPTraffic Programme.


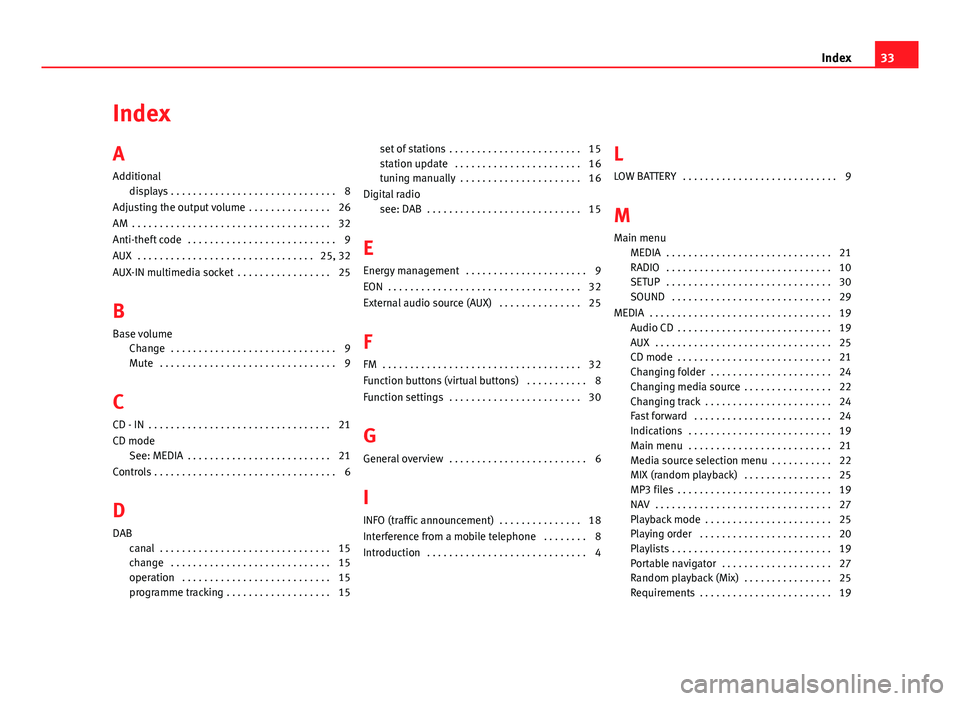

IndexA
Additional
displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Adjusting the output volume . . . . . . . . . . . . . . . 26
AM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Anti-theft code . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
AUX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 32
AUX-IN multimedia socket . . . . . . . . . . . . . . . . . 25
B
Base volume
Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
C
CD - IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
CD modeSee: MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
D
DABcanal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 15programme tracking . . . . . . . . . . . . . . . . . . . 15
set of stations . . . . . . . . . . . . . . . . . . . . . . . . 15station update . . . . . . . . . . . . . . . . . . . . . . . 16tuning manually . . . . . . . . . . . . . . . . . . . . . . 16
Digital radiosee: DAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
E
Energy management . . . . . . . . . . . . . . . . . . . . . . 9
EON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
External audio source (AUX) . . . . . . . . . . . . . . . 25
F
FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Function buttons (virtual buttons) . . . . . . . . . . . 8
Function settings . . . . . . . . . . . . . . . . . . . . . . . . 30
G
General overview . . . . . . . . . . . . . . . . . . . . . . . . . 6
I
INFO (traffic announcement) . . . . . . . . . . . . . . . 18
Interference from a mobile telephone . . . . . . . . 8
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
L
LOW BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
M
Main menuMEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Audio CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
AUX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25CD mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Changing folder . . . . . . . . . . . . . . . . . . . . . . 24Changing media source . . . . . . . . . . . . . . . . 22Changing track . . . . . . . . . . . . . . . . . . . . . . . 24Fast forward . . . . . . . . . . . . . . . . . . . . . . . . . 24Indications . . . . . . . . . . . . . . . . . . . . . . . . . . 19Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . 21Media source selection menu . . . . . . . . . . . 22MIX (random playback) . . . . . . . . . . . . . . . . 25MP3 files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19NAV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27Playback mode . . . . . . . . . . . . . . . . . . . . . . . 25Playing order . . . . . . . . . . . . . . . . . . . . . . . . 20Playlists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Portable navigator . . . . . . . . . . . . . . . . . . . . 27Random playback (Mix) . . . . . . . . . . . . . . . . 25Requirements . . . . . . . . . . . . . . . . . . . . . . . . 19
33Index

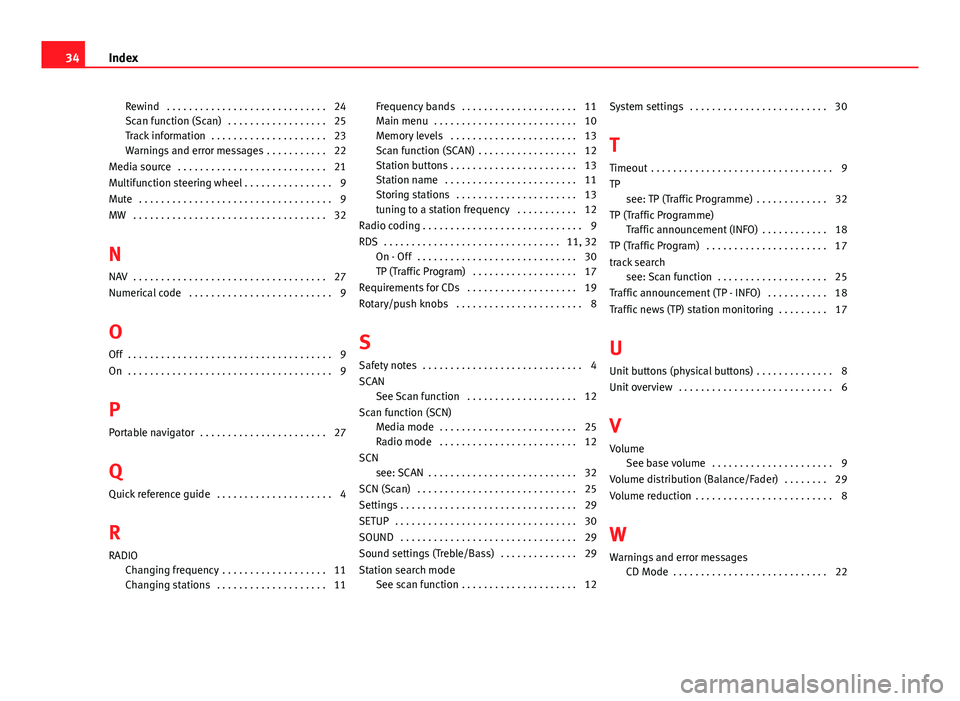

Rewind . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24Scan function (Scan) . . . . . . . . . . . . . . . . . . 25Track information . . . . . . . . . . . . . . . . . . . . . 23Warnings and error messages . . . . . . . . . . . 22
Media source . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Multifunction steering wheel . . . . . . . . . . . . . . . . 9
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
MW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
N
NAV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Numerical code . . . . . . . . . . . . . . . . . . . . . . . . . . 9
O
Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
P
Portable navigator . . . . . . . . . . . . . . . . . . . . . . . 27
Q
Quick reference guide . . . . . . . . . . . . . . . . . . . . . 4
R
RADIOChanging frequency . . . . . . . . . . . . . . . . . . . 11Changing stations . . . . . . . . . . . . . . . . . . . . 11
Frequency bands . . . . . . . . . . . . . . . . . . . . . 11Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . 10Memory levels . . . . . . . . . . . . . . . . . . . . . . . 13Scan function (SCAN) . . . . . . . . . . . . . . . . . . 12Station buttons . . . . . . . . . . . . . . . . . . . . . . . 13Station name . . . . . . . . . . . . . . . . . . . . . . . . 11Storing stations . . . . . . . . . . . . . . . . . . . . . . 13tuning to a station frequency . . . . . . . . . . . 12
Radio coding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11, 32On - Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30TP (Traffic Program) . . . . . . . . . . . . . . . . . . . 17
Requirements for CDs . . . . . . . . . . . . . . . . . . . . 19
Rotary/push knobs . . . . . . . . . . . . . . . . . . . . . . . 8
S
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SCANSee Scan function . . . . . . . . . . . . . . . . . . . . 12
Scan function (SCN)Media mode . . . . . . . . . . . . . . . . . . . . . . . . . 25Radio mode . . . . . . . . . . . . . . . . . . . . . . . . . 12
SCNsee: SCAN . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
SCN (Scan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Sound settings (Treble/Bass) . . . . . . . . . . . . . . 29
Station search modeSee scan function . . . . . . . . . . . . . . . . . . . . . 12
System settings . . . . . . . . . . . . . . . . . . . . . . . . . 30
T
Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
TPsee: TP (Traffic Programme) . . . . . . . . . . . . . 32
TP (Traffic Programme)Traffic announcement (INFO) . . . . . . . . . . . . 18
TP (Traffic Program) . . . . . . . . . . . . . . . . . . . . . . 17
track searchsee: Scan function . . . . . . . . . . . . . . . . . . . . 25
Traffic announcement (TP - INFO) . . . . . . . . . . . 18
Traffic news (TP) station monitoring . . . . . . . . . 17
U
Unit buttons (physical buttons) . . . . . . . . . . . . . . 8
Unit overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
V
VolumeSee base volume . . . . . . . . . . . . . . . . . . . . . . 9
Volume distribution (Balance/Fader) . . . . . . . . 29
Volume reduction . . . . . . . . . . . . . . . . . . . . . . . . . 8
W
Warnings and error messagesCD Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
34Index

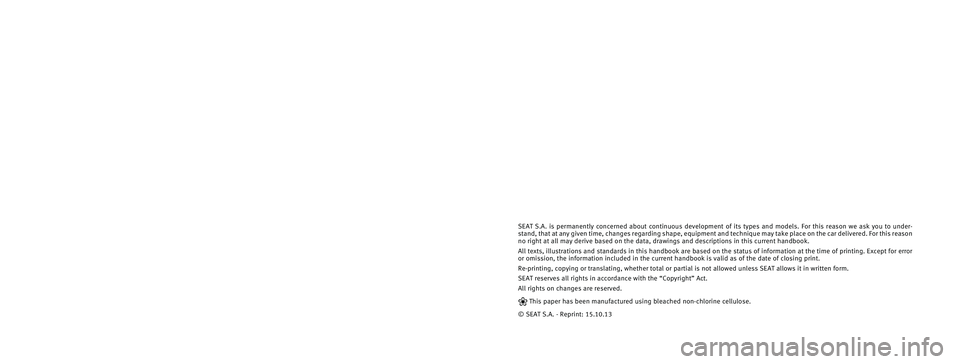

SEAT S.A. is permanently concerned about continuous development of its t\�ypes and models. For this reason we ask you to under-stand, that at any given time, changes regarding shape, equipment and te\�chnique may take place on the car delivered. For this reason no right at all may derive based on the data, drawings and descriptions \�in this current handbook.
All texts, illustrations and standards in this handbook are based on the\� status of information at the time of printing. Except for error or omission, the information included in the current handbook is valid a\�s of the date of closing print.
Re-printing, copying or translating, whether total or partial is not all\�owed unless SEAT allows it in written form.
SEAT reserves all rights in accordance with the “Copyright” Act.
All rights on changes are reserved.
❀This paper has been manufactured using bleached non-chlorine cellulose.
© SEAT S.A. - Reprint: 15.10.13
