Seat Toledo 2015 Owner's Guide

The essentials
Left turn signal: Left-hand parking light
(ignition sw it
c
hed off).
Main beam switched on: Control lamp 
lit up on the instrument panel.
Headlight flasher: lit up when the lever is
pushed. Control lamp  lit up.
Lever all the way down to switch it off.

››› page 123 Hazard warning lights
Fig. 29
See position on page 7-8 Switched on, for example:
● When approaching a traffic jam
● In an emergency
● The vehicle has broken down
● When towing or being towed
2 3
4 
›››
page 126 Interior lights
Fig. 30
Detail of headliner: version 1 Fig. 31
Detail of headliner: version 2
KnobFunction 
Switches interior lights off.
KnobFunction 
Switches interior lights on.

Switches door contact control on (central po-
sition).
The interior lights come on automatically
when the vehicle is unlocked, a door is
opened or the key is removed from the igni-
tion.
The lights go off a few seconds after all the
doors are closed, the vehicle is locked or the
ignition is switched on.

Turning the reading light on and off

›››
page 127 Windscreen wipers and window wiper
b
l
a

de Fig. 32
Operating the windscreen wiper and
r e
ar w

iper » 19

The essentialsMore the lever to the required position:
0
Windscreen wiper off.
1

Windscreen wipers interval wipe.
Using the control
››› Fig. 32 A adjust the
interval (vehicles without rain sensor), or
the sensitivity of the rain sensor.
2 Slow wipe.
3
Continuous wipe.
4
Short wipe. Brief press, short clean. Hold
the lever down for more time to increase
the wipe frequency.
More the lever to the required position:
5 
Automatic wipe. The windscreen washer
function is activated by pushing the lever
forwards, and simultaneously the wind-
screen wipers start.
6
Interval wipe for rear window. The wiper
will wipe the window approximately every
six seconds.
7
The rear window wash function is activa-
ted by pressing the lever, and the rear wip-
er starts simultaneously. 
››› in Introduction on page 129
›››
page 129
››› page 53 Easy Connect
CAR menu settin g
s

(Setup)Fig. 33
See position on page 7-8 Fig. 34
See position on page 7-820

The essentials
To select the settings menus, press the Easy
C onnect

 button and the
Set
up function
b utt
on.
The act
ual number of menus available and
the name of the various options in these me-
nus will depend on the vehicle’s electronics
and equipment.
● Switch the ignition on. ●
If the Infot ainment System is off, switch it
on.
● Press the system's MENU button and then
the sy s
t

em's 
› ››
Fig. 33
button or  but-
t on t
o g
o to the CAR menu ››› Fig. 34.
● Press the function button Setup to open the
menu Vehicle settings › ›
›

Fig. 34.
● To select a function in the menu, press the
desir
ed button. When you press the menu button, the last se-
lected menu w

ill always be displayed.
When the function button check box is activa-
ted , the function is active.
Any changes made using the settings menus
are automatically saved on closing the BACK menus.
MenuSubmenuPossible settingDescription
ESC system–Activation of the Electronic Stability Programme (ESC)›››
page 167
TyresTyre pressure monitoringTyre pressure storing (Calibration)››› page 219
Winter tyresActivation and deactivation of the speed warning. Setting the speed warning value››› page 219
Driver assistance
Front Assist (monitoring sys-
tem)Activation/deactivation: monitoring system, pre-warning, distance warning display››› page 177
City emergency braking func-
tionActivation/deactivation of the City emergency braking function.››› page 181
Tiredness detectionActivation/deactivation››› page 184
Parking and ma-
noeuvringParkPilotAutomatically activate, front volume, front sound settings, rear volume, rear sound settings,
adjust volume››› page 168
Vehicle lights
Vehicle interior lightingInstrument and switch lighting, footrest lighting››› page 127
Coming home/Leaving home
functionStart time for “Coming home” function, start time for “Leaving home” function››› page 125
Daytime driving lightActivation/deactivation››› page 122
Mirrors/wind‐
screen wipersRear vision mirrorsSynchronised regulation, lower the rear-view mirror when reversing, fold in after parking››› page 130
Windscreen wipersAutomatic windscreen wipers, wipe when reversing››› page 129» 21

The essentialsMenuSubmenuPossible settingDescription
Opening and clos-
ingRadio-operated remote controlConvenience open function››› page 109
Central locking systemUnlocking doors, automatic locking/unlocking, audible confirmation››› page 112
Multifunction
display–
Current consumption, average consumption, volume to fill up, convenience equipment,
ECOAdvice, journey duration, distance travelled, digital speed display, average speed,
speeding warning, oil temperature, coolant temperature, restore data “from start”, restore
data “total calculation”
››› page 22
Date and time–Time source, set the time, automatic summer time setting, select time zone, time format, set
the date, date format–
Measurement units–Distance, speed, temperature, volume, consumption–
Service–Chassis number, date of next SEAT service inspection, date of next oil change service››› page 30
Factory settings–All settings can be reset: driver assistance, parking and manoeuvring, lights, rear view mir-
rors and windscreen wipers, opening and closing, multi-function display– 
››› in CAR menu (Setup) on page 104
›››
page 104 Driver information system
Intr oduction With the ignition switched on, it is possible
to r
e

ad the different functions of the display
by scrolling through the menus. In vehicles with multifunction steering wheel,
the multif
u

nction display can only be operat-
ed with the steering wheel buttons.
The number of menus displayed on the in-
strument panel will vary according to the ve-
hicle electronics and equipment.
A specialised workshop will be able to pro-
gramme or modify additional functions, ac-
cording to the vehicle equipment. SEAT rec-
ommends visiting a SEAT Official Service.
Some menu options can only be read when
the vehicle is at a standstill.
As long as a priority 1 warning is displayed, it
will not be possible to read the menus. Some
warning messages can be confirmed and made to disappear with the windscreen wiper
lever b
utton or the multifunction steering
wheel button.
The information system also provides the fol-
lowing information and displays (depending
on the vehicle's equipment):

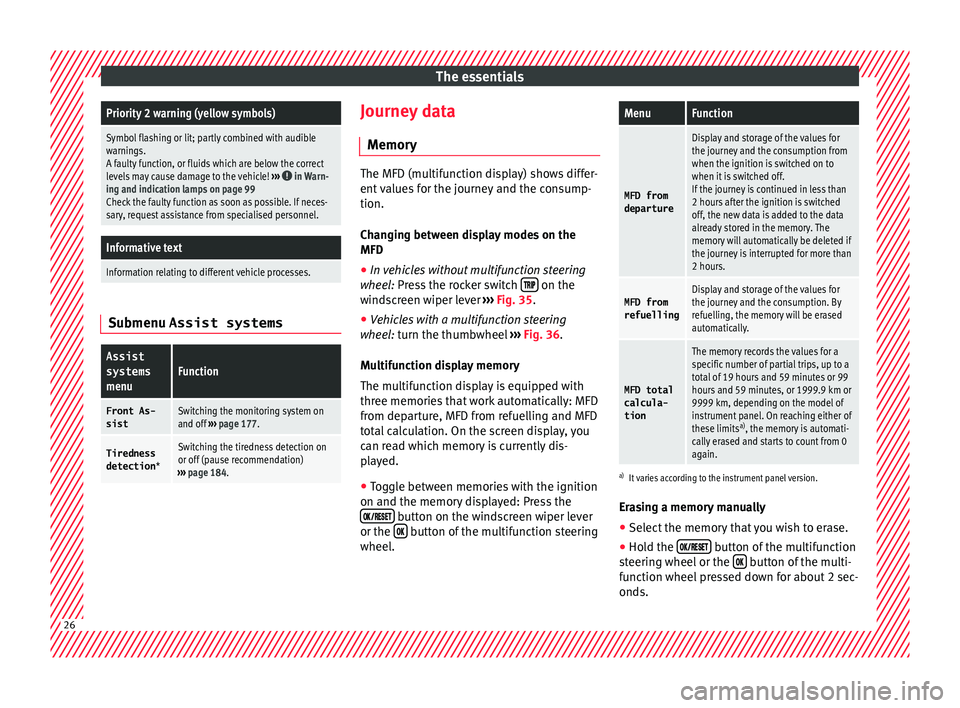

Driving data ››› page 26
■ Vehicle status
■ MFD from departure
■ MFD from refuelling
■ MFD total calculation
Assist systems ››› table on page 24
■ Reverse (optional) 22

The essentials
Navigation ›››
Book
l et Navigation system
Audio ››› Booklet Radio or ››› Booklet Naviga-
tion system
Telephone ››› Booklet Radio or ››› Book-
let Navigation system
Vehicle ››› table on page 24 WARNING
Any distraction may lead to an accident, with
the risk of

injury.
● Do not operate the instrument panel con-
trol
s when driving. Operating the instrument panel me-
nu
s Fig. 35
Windscreen wiper lever: control but-
t on
s. Fig. 36
Right side of multifunction steering
wheel: contr o

l buttons. The driver information system is controlled
w
ith the mu
ltif

unction steering wheel buttons
››› Fig. 36 or with the windscreen wiper lever
››› Fig. 35 (if the vehicle is not equipped with
multifunction steering wheel).
Enabling the main menu
● Switch the ignition on.
● If a message or vehicle pictogram appears,
pres
s button ››› Fig. 35 1 on the windscreen
w iper l
ev
er or button  on the multifunction
s t
eerin
g wheel ››› Fig. 36.
● If managed from the windscreen wiper lev-
er: to dis
play the main screen ››› page 24 or
to return to the main menu from another
menu hold down the rocker button ››› Fig. 35
2 .
● If managed from the multifunction steering
whee l:

the main menu list is not displayed.
To go from point to point in the main menu, press button

 or
  several times
› ›
›

Fig. 36.
Select a submenu ● Press the rocker switch ›››
Fig. 35 2 on the
w ind
s
creen wiper lever up or down or turn
the thumbwheel of the multifunction steering
wheel ››› Fig. 36 until the desired option ap-
pears marked on the menu.
● The selected option is displayed between
two horizont
al lines. In addition, a triangle is
displayed on the right: 
● To consult the submenu option, press but-
ton ››

› Fig. 35 1 on the windscreen wiper
l ev
er or b
utton  on the multifunction steer-
in g wheel
›
›› Fig. 36.
Making changes according to the menu ● With the rocker switch on the windscreen
wiper lev
er or the thumbwheel of the multi-
function steering wheel, make the desired
changes. To increase or decrease the values
more quickly, turn the thumbwheel faster.
● Mark or confirm the selection with button
›››
Fig. 35 1 on the windscreen wiper lever
or b utt
on  on the multifunction steering
wheel
›
›

› Fig. 36. 23

The essentials
MenuMenuFunction
Driving dataInformation and possible configurations
of the multifunction display (MFD)
››› page 26, ››› page 104.
Assist
systemsInformation and possible configurations
of the driver assistance systems
››› page 104.
Naviga-
tion
Information instructions from the activa-
ted navigation system: when a route guid-
ance is activated, the turning arrows and
proximity bars are displayed. The appear-
ance is similar to the Easy Connect sys-
tem.
If route guidance is not activated, the di-
rection of travel (compass) and the name
of the street along which you are driving
are shown ››› Booklet Navigation system.
Audio
Station display on the radio.
Track name on the CD.
Track name in Media mode ››› Booklet Ra-
dio or ››› Booklet Navigation system.
Tele-
phoneInformation and possible configurations
of the mobile phone preinstallation
››› Booklet Radio or ››› Booklet Navigation
system.
Lap tim-
er *In a racing circuit, measurement and
memorisation of lap times by the vehicle
and comparison with previously measured
best times ››› page 28.
MenuFunction
Vehicle
statusDisplay of the current warning or informa-
tion texts and other system components,
depending on the equipment
››› page 104. Outside temperature display
When the outside temperature is below +4°C
(+39°F), the symbol


“ice crystal” (warning of
risk of freezing) is also displayed. At first, this
symbol flashes and then it remains lit until
the outside temperature rises above +6°C
(+43°F) ››› in Indications on the display on
p ag
e 96

.
When the vehicle is at a standstill or when
travelling at very low speeds, the tempera-
ture displayed may be higher than the true
outside temperature as a result of the heat
produced by the engine.
The temperatures measured range from
-40°C to +50°C (-40°F to +122°F). Gear-change indicator
Fig. 37
Instrument panel: gear-change indica-
t or (m
anual

gearbox). A gear change will be recommended if the
g
e
ar

you are in is not the most economical
choice. If no gear-change is recommended, it
means that you are already in the most eco-
nomical gear.
Vehicles with a manual gearbox
The following display symbols ››› Fig. 37
mean:
●  Chan ge to a higher gear: the suggested
g

ear appears to the right of the current gear
when a higher gear is recommended .
●  Change to a lower gear: the suggested
g

ear appears to the left of the current gear
when a lower gear is recommended .
The gear recommendation may occasionally
skip a gear (2nd  4th). 24

The essentials
Vehicles with an automatic gearbox*
The di s
p
lay is only visible in tiptronic mode
›››  page 161.
The following display symbols mean:
●  Shiftin g up a gear
● 

Shifting down a gear CAUTION
The gear-change indicator is intended to help
sav e f

uel, but it is not intended to recom-
mend the right gear for all driving situations.
In certain situations, only the driver can
choose the correct gear (for instance when
overtaking, driving up a steep gradient or
towing a trailer). Note
The display disappears from the instrument
panel when

you press the clutch pedal. Bonnet, rear lid and doors open
Fig. 38
A: bonnet open; B: rear lid open; C:
fr ont
l

eft door open; D: rear right door open
(5-door vehicles only). When the ignition is switched on or when
driv
in
g, the bonnet, r

ear lid or doors that are
open will be indicated on the instrument pan-
el display, and, as applicable, this will be in-
dicated audibly. The display may vary accord-
ing to the type of instrument panel fitted.
Illustra- tionKey to ››› Fig. 38
A  Do not continue driving!
The bonnet is open or is not properly
closed ››› page 203.
B  Do not continue driving!
The rear lid is open or is not properly
closed ››› page 10.
C, D  Do not continue driving!
A vehicle door is open or is not properly
closed ››› page 112. Warning and information messages
The system runs a check on certain compo-
nents
and f
u

nctions when the ignition is
switched on and while the vehicle is moving.
Faults in the operation are displayed on the
screen using red and yellow symbols and
messages on the instrument panel display
( ››› page 32, ››› page 32) and, in some ca-
ses, with audible warnings. The display may
vary according to the type of instrument pan-
el fitted.
Priority 1 warning (red symbols)
Symbol flashing or lit; partly combined with audible
warnings.
 Stop the vehicle! It is dangerous ››› in Warning
and indication lamps on page 98 !
Check the function that is faulty and repair it. If necessa-
ry, request assistance from specialised personnel.
» 25

The essentialsPriority 2 warning (yellow symbols)
Symbol flashing or lit; partly combined with audible
warnings.
A faulty function, or fluids which are below the correct
levels may cause damage to the vehicle!
›››
in Warn-
ing and indication lamps on page 99
Check the faulty function as soon as possible. If neces-
sary, request assistance from specialised personnel.
Informative text
Information relating to different vehicle processes. Submenu Assist systems
Assist
systems
menuFunction
Front As-
sistSwitching the monitoring system on
and off ››› page 177.
Tiredness
detection *Switching the tiredness detection on
or off (pause recommendation)
››› page 184. Journey data
M emor
y The MFD (multifunction display) shows differ-
ent
v

alues for the journey and the consump-
tion.
Changing between display modes on the
MFD
● In vehicles without multifunction steering
wheel:
Press the rocker switch  on the
wind s
creen wiper lever ›››
Fig. 35.
● Vehicles with a multifunction steering
whee l:

turn the thumbwheel ›››
Fig. 36.
Multifunction display memory
The multifunction display is equipped with
three memories that work automatically: MFD
from departure, MFD from refuelling and MFD
total calculation. On the screen display, you
can read which memory is currently dis-
played. ● Toggle between memories with the ignition
on and the memory di
splayed: Press the
 button on the windscreen wiper lever
or the  button of the multifunction steering
wheel .
MenuFunction
MFD from
departure
Display and storage of the values for
the journey and the consumption from
when the ignition is switched on to
when it is switched off.
If the journey is continued in less than
2 hours after the ignition is switched
off, the new data is added to the data
already stored in the memory. The
memory will automatically be deleted if
the journey is interrupted for more than
2 hours.
MFD from refuellingDisplay and storage of the values for
the journey and the consumption. By
refuelling, the memory will be erased
automatically.
MFD total
calcula-
tion
The memory records the values for a
specific number of partial trips, up to a
total of 19 hours and 59 minutes or 99
hours and 59 minutes, or 1999.9 km or
9999 km, depending on the model of
instrument panel. On reaching either of
these limits a)
, the memory is automati-
cally erased and starts to count from 0
again.
a) It varies according to the instrument panel version.
Erasing a memory manually
● Select the memory that you wish to erase.
● Hold the  button of the multifunction
s t
eerin

g wheel or the  button of the multi-
f u nction wheel
pressed down for about 2 sec-
onds. 26

The essentials

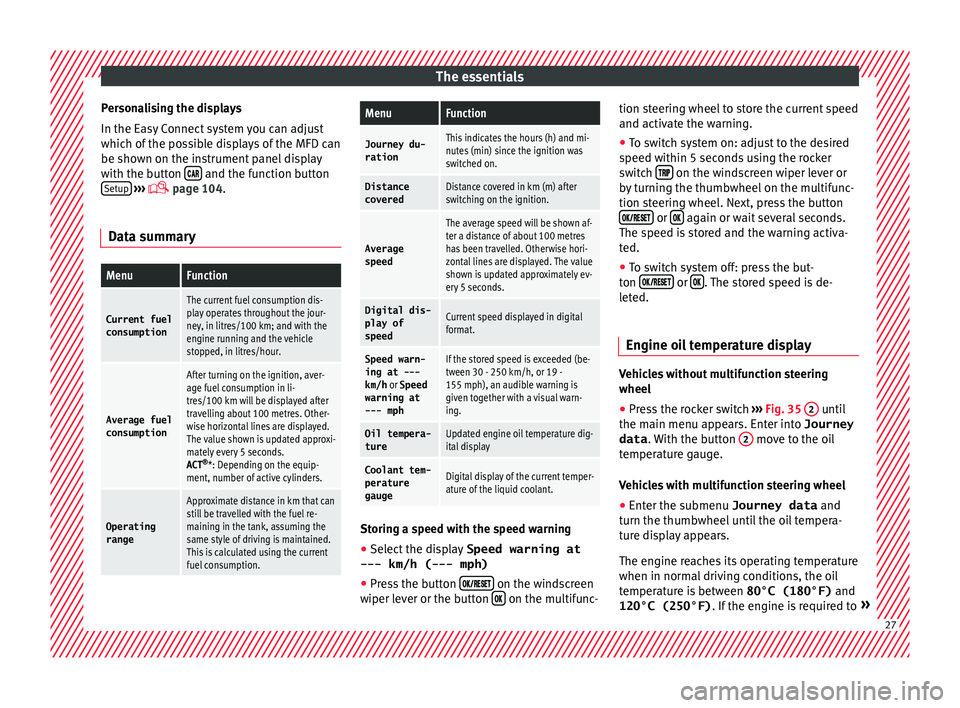

Personalising the displays
In the E a
sy
Connect system you can adjust
which of the possible displays of the MFD can
be shown on the instrument panel display
with the button  and the function button
Set up
› ››
 p
age 104.
Dat

a summary
MenuFunction
Current fuel
consumption
The current fuel consumption dis-
play operates throughout the jour-
ney, in litres/100 km; and with the
engine running and the vehicle
stopped, in litres/hour.
Average fuel consumption
After turning on the ignition, aver-
age fuel consumption in li-
tres/100 km will be displayed after
travelling about 100 metres. Other-
wise horizontal lines are displayed.
The value shown is updated approxi-
mately every 5 seconds.
ACT ®
*: Depending on the equip-
ment, number of active cylinders.
Operating range
Approximate distance in km that can
still be travelled with the fuel re-
maining in the tank, assuming the
same style of driving is maintained.
This is calculated using the current
fuel consumption.
MenuFunction
Journey du-rationThis indicates the hours (h) and mi-
nutes (min) since the ignition was
switched on.
Distance
coveredDistance covered in km (m) after
switching on the ignition.
Average
speed
The average speed will be shown af-
ter a distance of about 100 metres
has been travelled. Otherwise hori-
zontal lines are displayed. The value
shown is updated approximately ev-
ery 5 seconds.
Digital dis- play of
speedCurrent speed displayed in digital
format.
Speed warn-
ing at ---
km/h or Speed
warning at
--- mphIf the stored speed is exceeded (be-
tween 30 - 250 km/h, or 19 -
155 mph), an audible warning is
given together with a visual warn-
ing.
Oil tempera-
tureUpdated engine oil temperature dig-
ital display
Coolant tem-
perature
gaugeDigital display of the current temper-
ature of the liquid coolant. Storing a speed with the speed warning
● Select the display Speed warning at
--- km/h (---


mph)
● Press the button 
 on the windscreen
w iper l
ev
er or the button  on the multifunc-tion steering wheel to store the current speed
and activ
at
e the w

arning.
● To switch system on: adjust to the desired
speed within 5 sec
onds using the rocker
switch  on the windscreen wiper lever or
b y
t

urning the thumbwheel on the multifunc-
tion steering wheel. Next, press the button  or
 again or wait several seconds.
The s peed i
s

stored and the warning activa-
ted.
● To switch system off: press the but-
ton  or
 . The stored speed is de-
l et
ed.
En

gine oil temperature display Vehicles without multifunction steering
wheel
● Press the rocker switch ››
›
Fig. 35 2 until
the m ain menu ap
pe
ars. Enter into Journey
data . With the button 2 move to the oil
t emper
at

ure gauge.
Vehicles with multifunction steering wheel
● Enter the submenu Journey data and
turn the thumbwheel
until the oil tempera-
ture display appears.
The engine reaches its operating temperature
when in normal driving conditions, the oil
temperature is between 80°C (180°F) and
120°C (250°F) . If the engine is required to » 27

The essentials
work hard and the outside temperature is
high, the en gine oi
l
temperature can in-
crease. This does not present any problem as
long as the warning lamps  ››› table on
page 33 or  ››› table on page 33 do not
appear on the display.
Additional electrical appliances ●
Operation with the windscreen wiper lever*:
Pre s

s the rocker switch ››› Fig. 35 2 until the
main menu ap pe
ars. Enter into the section
Journey data . With the rocker switch,
move to the display Convenience appli-
ances .
● Operation with the multi-function steering
whee l*:

Move with the buttons 1 or
2 to
Journey data and enter w
ith
OK . Turn the
thumbwheel to the right until the Conven-
ience appliances display appears.
In addition, a scale will inform you of the cur-
rent sum of all the additional appliances.
Saving tips Tips on how to save fuel will be displayed in
c
ondition
s

that increase fuel consumption.
Follow them to reduce consumption. The indi-
cations appear automatically only with the ef-
ficiency programme. After a time, the tips will
disappear automatically. If you wish to hide a saving tip immediately
after it

appears, press any button on the
windscreen wiper lever*/multifunction steer-
ing wheel*. Note
● If y

ou hide a saving tip, it will reappear af-
ter you switch the ignition on again.
● The saving tips do not appear in all situa-
tions, but
rather with a large separation of
time. Timer*
You can access the timer via the selection
menu
››
›

page 24.
It allows you to manually time lap times on a
racing circuit, memorise them and compare
them to the vehicle's previous best times.
The following menus can be displayed:
● Stop
● Lap
● Pause
● Partial time
● Statistics Change from one menu to another
● Vehicles without multifunction steering
wheel:
press the rocker switch  in the
w ind
s
creen wiper lever.
● Vehicles with multifunction steering wheel:
pres
s  or
 .
Menu “Stop”
Start
The timer starts.
If there are existing laps and they are in-
cluded in the statistics, it will begin with
the number of laps in question.
It is only possible to begin with a new first
lap if the statistics have been reset first in
the Statistics
menu.
Since
startThe timer begins when the vehicle sets
off.
If the vehicle is already moving, the timer
begins once the vehicle has stopped.
Statis-
ticsThe Statistics menu is displayed on
the screen.
Menu “Lap”
New lap
The timer of the current lap stops and a
new lap starts immediately. The time for
the lap you have just completed is inclu-
ded in the statistics.
Partial timeFor about 5 seconds a partial time is dis-
played. The timer continues in parallel.
StopThe current lap timer will be interrupted.
The lap does not end. The Pause menu is
displayed. 28
