belt Seat Toledo 2018 Owner's manual

Table of Contents
Table of Contents The essential s
. . . . . . . . . . . . . . . . . . . . . . . . . .
7
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Interior view (left-hand drive) . . . . . . . . . . . . 9
Interior view (steering wheel on the
right) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . 10
How it works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Unlocking and locking . . . . . . . . . . . . . . . . . . . . . . 11
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 16
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 19
Starting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 20
Lights and visibility . . . . . . . . . . . . . . . . . . . . . . . . . 21
Easy Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
24
Driver information system . . . . . . . . . . . . . . . . . . 27
Status display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Gearbox lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 37
Fluid level control . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 45
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 46
Action in the event of a puncture . . . . . . . . . . . 46
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
52
Emergency towing of the vehicle . . . . . . . . . . . 52
How to jump start . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Changing the windscreen wiper blades . . . . 56 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
57
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Advice about driving . . . . . . . . . . . . . . . . . . . . . . . . 57
Correct position of the vehicle occu-
pants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 58
Pedal area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
The whys and wherefores of seat belts . . . . . 63
How to properly adjust your seat belt . . . . . . 66
Seat belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . 67
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Airbag safety instructions . . . . . . . . . . . . . . . . . . . 70
Deactivating airbags . . . . . . . . . . . . . . . . . . . . . . . 72

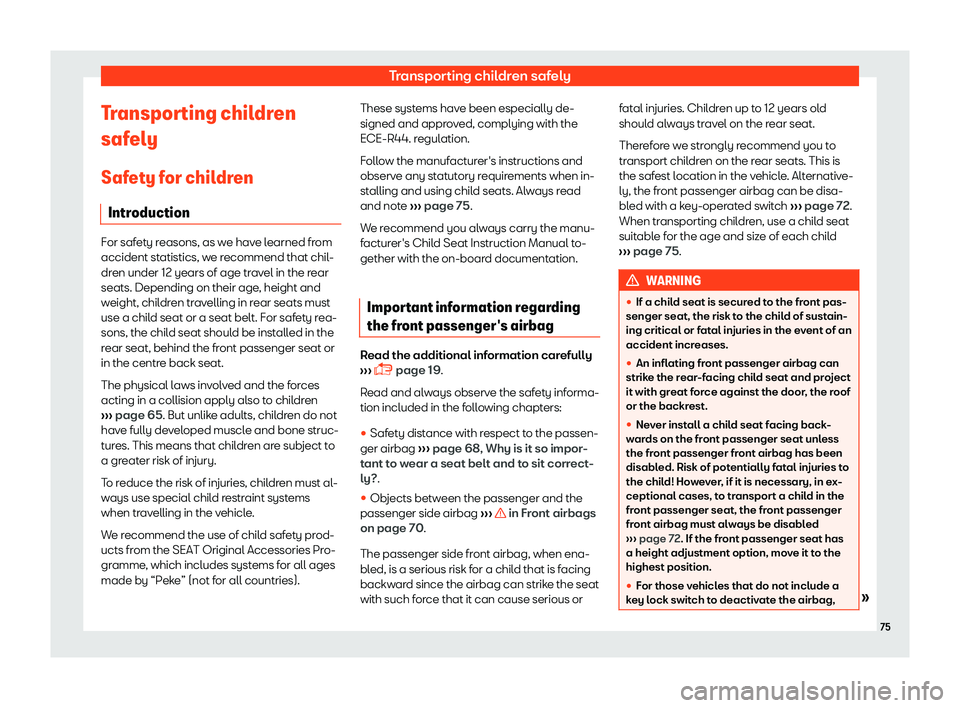

Transporting children safely . . . . . . . . . . . . . . 75
Safety for children . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 76
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78Self-help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Emergency equipment . . . . . . . . . . . . . . . . . . . . . 78
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Tyre repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
79
Towing the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Fuses and bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 83
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Changing the fog light bulbs . . . . . . . . . . . . . . . 90
Changing the rear lights (on the side pan-
el) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . 90
Changing tail lights (on the rear lid) . . . . . . . . 92
Changing the side and number plate
bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 94 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Controls and displays . . . . . . . . . . . . . . . . . . . . 97
General instrument panel . . . . . . . . . . . . . . . . . . 96
Instruments and warning lamps . . . . . . . . . . 98
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 98
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Multi-function steering wheel* . . . . . . . . . . . . . 103
Opening and closing . . . . . . . . . . . . . . . . . . . . . . 108
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . 109
Central locking system . . . . . . . . . . . . . . . . . . . . . 110
Anti-theft alarm* . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 117
Controls for the windows . . . . . . . . . . . . . . . . . . . 119
Lights and visibility . . . . . . . . . . . . . . . . . . . . . . . . 120
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . 120
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 126
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 127
Windscreen wipers and windscreen wash-
ers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . 128
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 130
Seats and head restraints . . . . . . . . . . . . . . . . 131
Adjusting seats and head restraints . . . . . . . . . 131
Seat functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. 132
Transport and practical equipment . . . . . . 135
Practical equipment . . . . . . . . . . . . . . . . . . . . . . . . 135
Storing objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Luggage compartment . . . . . . . . . . . . . . . . . . . . . 142
Roof rack* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
145
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Heating and air conditioning . . . . . . . . . . . . . . . 146
Heating and fresh air . . . . . . . . . . . . . . . . . . . . . . . 148
Air conditioning (manual)* . . . . . . . . . . . . . . . . . . 149
Climatronic* (automatic air condition-
ing) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . 151 5

The essentials

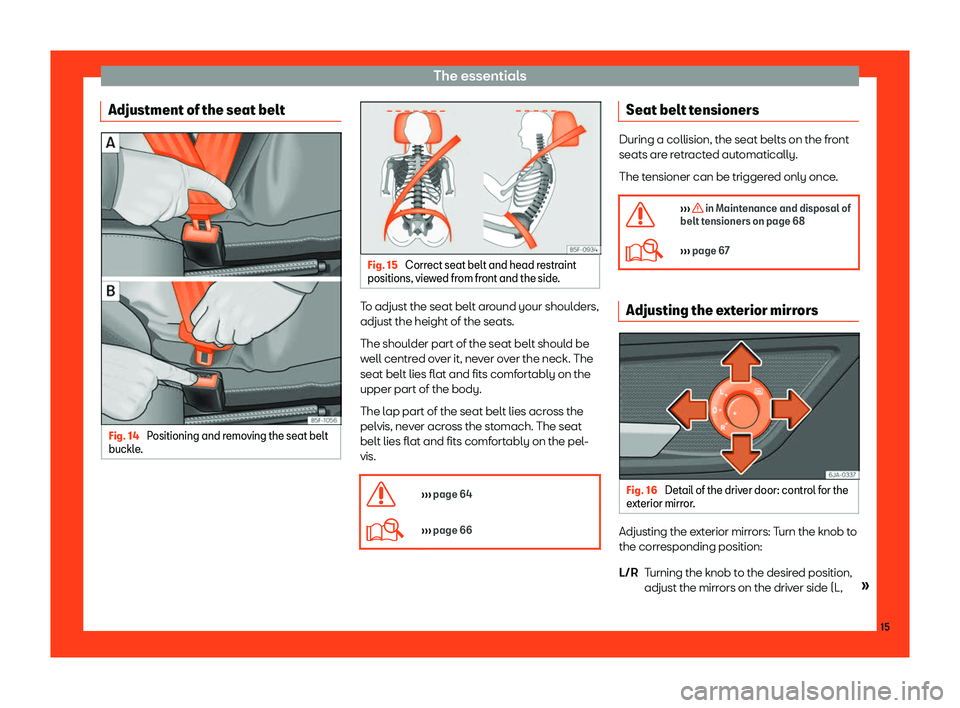

Adjustment of the seat belt Fig. 14
Positioning and removing the seat belt
buckl e. Fig. 15
Correct seat belt and head restraint
positions, view ed fr
om front and the side. To adjust the seat belt around your shoulders,
adjust the height of the seats.
The shoul
der part of the seat belt shoul
d be
w

ell centred over it, never over the neck. The
seat belt lies flat and fits comfortably on the
upper part of the body.
The lap part of the seat belt lies across the
pelvis, never across the stomach. The seat
belt lies flat and fits comfortably on the pel-
vis.

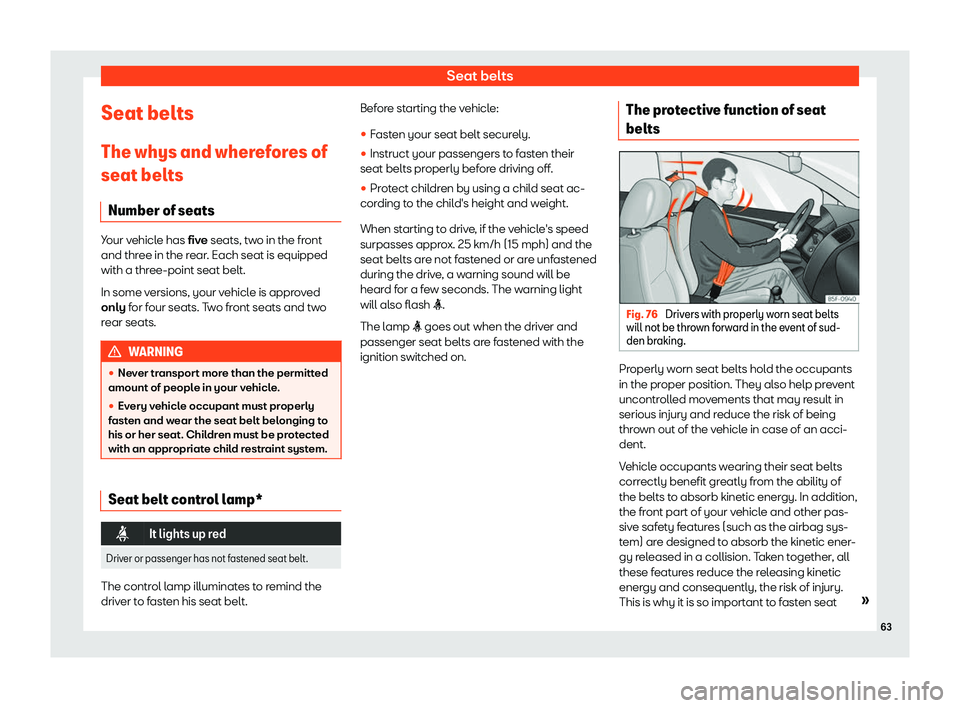

Seat belts
Seat belts
The whys and wher ef
or
es of
seat belts
Number of seats Your vehicle has five
seats, tw
o in the front
and three in the rear. Each seat is equipped
with a three-point seat belt.
In some versions, your vehicle is approved
only for four seats. Two front seats and two
rear seats. WARNING

Safety
belts before every trip, even when "just driving
ar ound the corner
".
Ensur
e that your passengers wear their seat
belts as well. Accident statistics have shown
that wearing seat belts is an effective means
of substantially reducing the risk of injury and
improving the chances of survival when in-
volved in a serious accident. Furthermore,
properly worn seat belts improve the protec-
tion provided by airbags in the event of an
accident. For this reason, wearing a seat belt
is required by law in most countries.
Although your vehicle is equipped with air-
bags, the seat belts must be fastened and
worn. The front airbags, for example, are only
triggered in some cases of head-on collision.
The front airbags will not be triggered during
minor frontal or side collisions, rear-end colli-
sions, rollovers or accidents in which the air-
bag trigger threshold value in the control unit
is not exceeded.
Therefore, you should always wear your seat
belt and ensure that all vehicle occupants
have fastened their seat belts properly before
you drive off!
Important safety instructions for
the use of seat belts

Seat belts
Head-on collisions and the laws of
physics Fig. 77
A driver not wearing a seat belt is
thr own f
orward violently. Fig. 78
The unbelted passenger in the rear
seat is thr own f

orward violently, hitting the driv-
er wearing a seat belt The effects of the laws of physics in the case
of a head-on collision ar
e easy t
o e

xplain: the
moment a vehicle starts moving, a type of en- ergy called “kinetic energy” starts acting on
both the vehicle and its passengers.
The amount of “kinetic ener

gy” depends on
the speed of the vehicle and on the weight of
the vehicle and of its passengers. The higher
the speed and the greater the weight, the
more energy there is to be “absorbed” in an
accident.
The most significant factor, however, is the
speed of the vehicle. If the speed doubles
from 25 km/h (15 mph) to 50 km/h (30 mph),
for example, the corresponding kinetic ener-
gy is multiplied by four.
Because the vehicle occupants in our exam-
ple are not restrained by seat belts, in the
event of crashing against a wall, all of the oc-
cupants

Safety

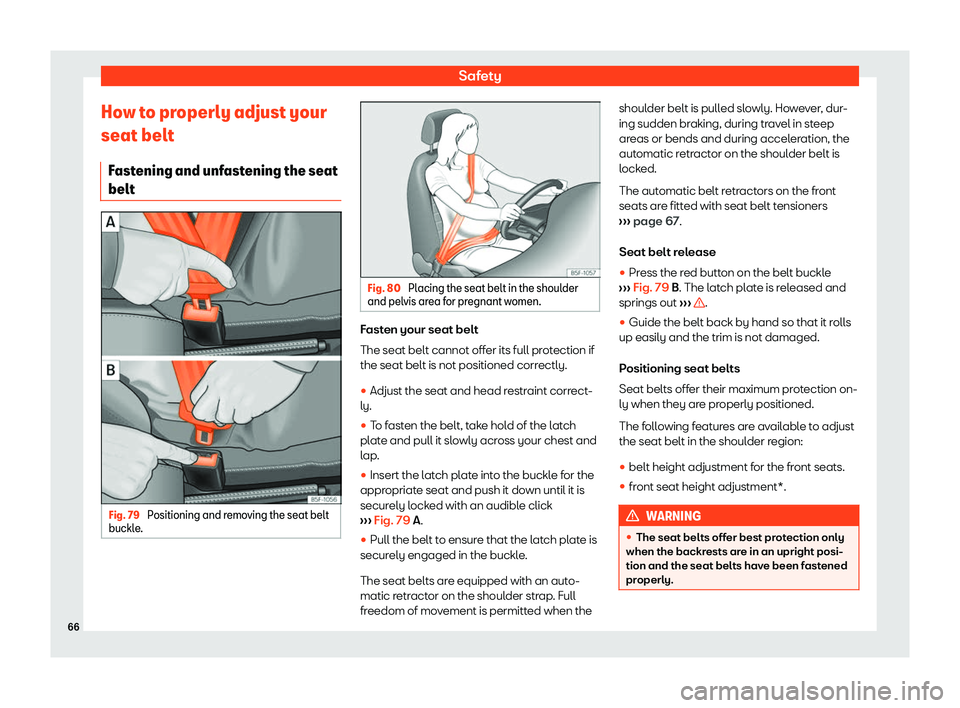

How to properly adjust your
seat belt Fast
ening and unf
astening the seat
belt Fig. 79
Positioning and removing the seat belt
buckl e
. Fig. 80
Placing the seat belt in the shoulder
and pel vis area f

or pregnant women. Fasten your seat belt
The seat belt cannot off
er its full pr
ot

ection if
the seat belt is not positioned correctly.

Seat belts

Safety

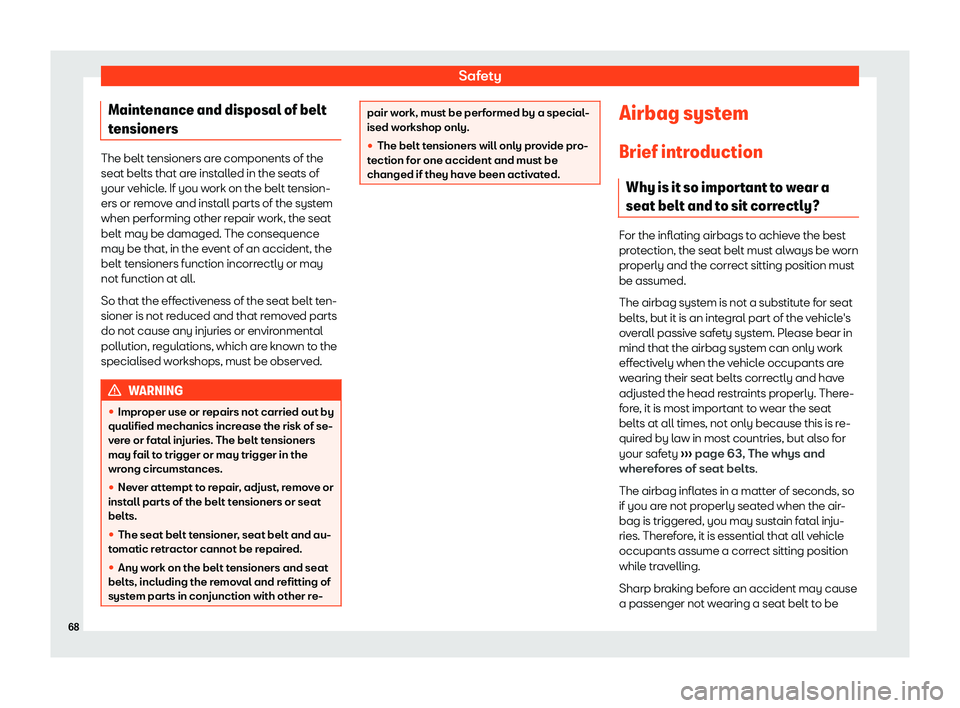

Maintenance and disposal of belt
t ensioners The belt tensioners are components of the
seat belts that are inst
all
ed in the seats of
your vehicle. If you work on the belt tension-
ers or remove and install parts of the system
when performing other repair work, the seat
belt may be damaged. The consequence
may be that, in the event of an accident, the
belt tensioners function incorrectly or may
not function at all.
So that the effectiveness of the seat belt ten-
sioner is not reduced and that removed parts
do not cause any injuries or environmental
pollution, regulations, which are known to the
specialised workshops, must be observed. WARNING

Safety

It lights up on the dash panel
Front passenger front airbag disabled.
Check whether the airbag should remain disabl edThe control lamp monitors all airbags and
seat belt tensioners in the v
ehicl

e, including
control units and wiring connections.
Monitoring of airbag and belt tensioner
system
Both the airbag and belt tensioner systems
operation is constantly monitored electroni-
cally. Each time the ignition is switched on,
the control lamp T illuminates for several
seconds (self-diagnosis) and the instrument
panel display* shows AIRBAG/TENSIONER.
The system must be checked when the
control lamp T :

Transporting children safely
Transporting children
saf ely
Saf et
y for children
Introduction For safety reasons, as we have learned from
accident statistics, w
e r

ecommend that chil-
dren under 12 years of age travel in the rear
seats. Depending on their age, height and
weight, children travelling in rear seats must
use a child seat or a seat belt. For safety rea-
sons, the child seat should be installed in the
rear seat, behind the front passenger seat or
in the centre back seat.
The physical laws involved and the forces
acting in a collision apply also to children
